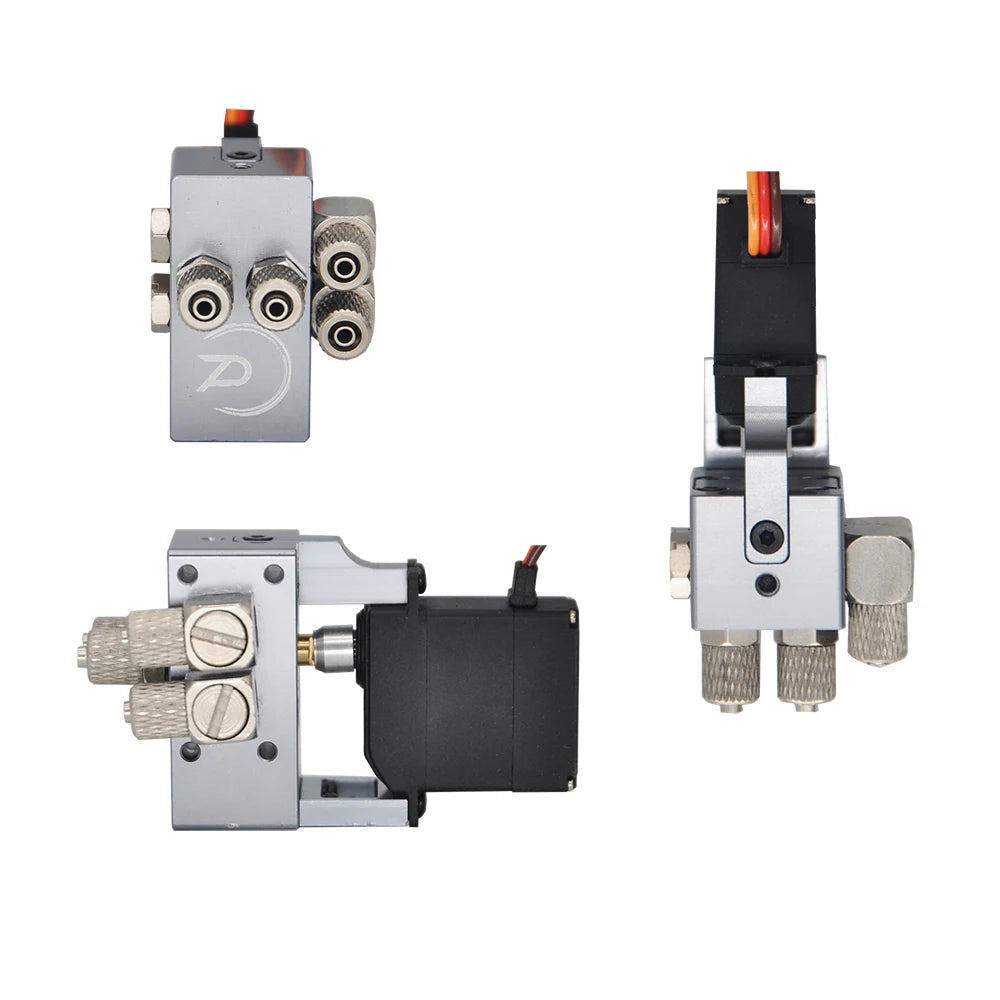

RC Hydraulic Rotary Valve Block 4mm Nozzle for Excavator Models

Key Features

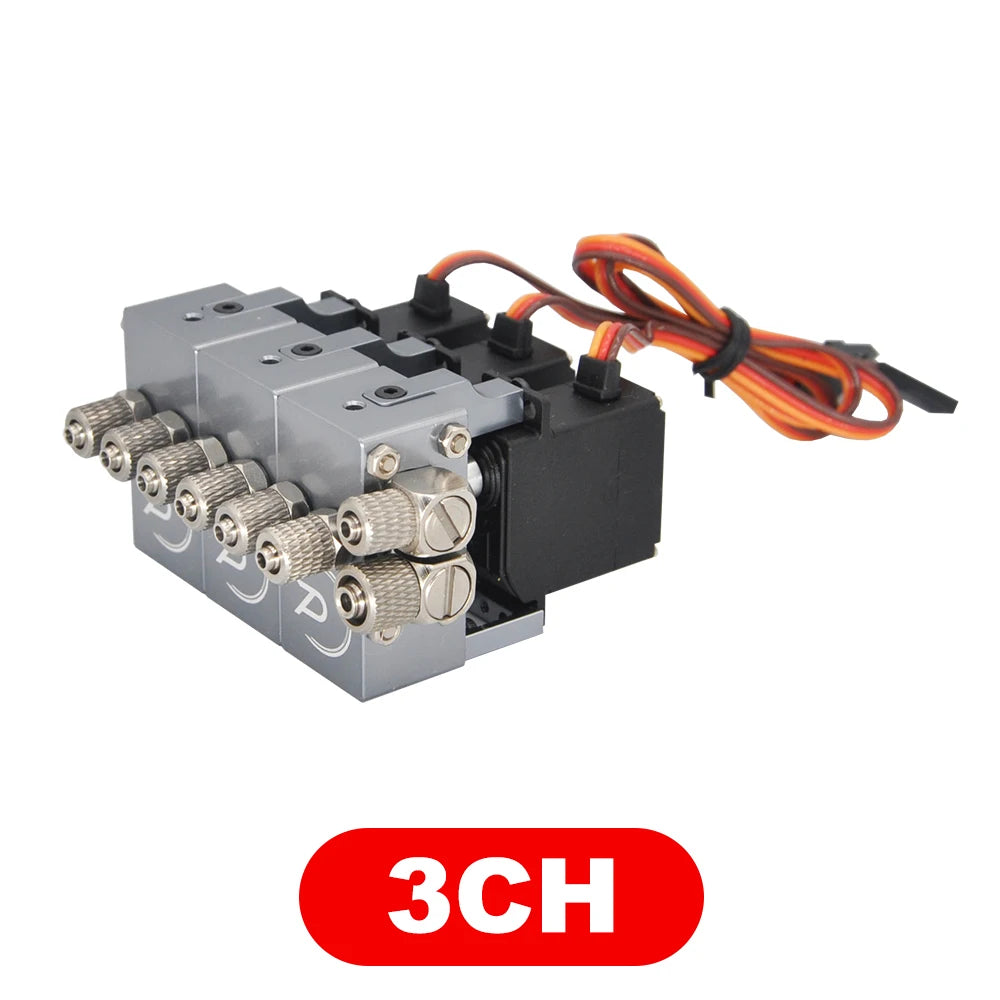

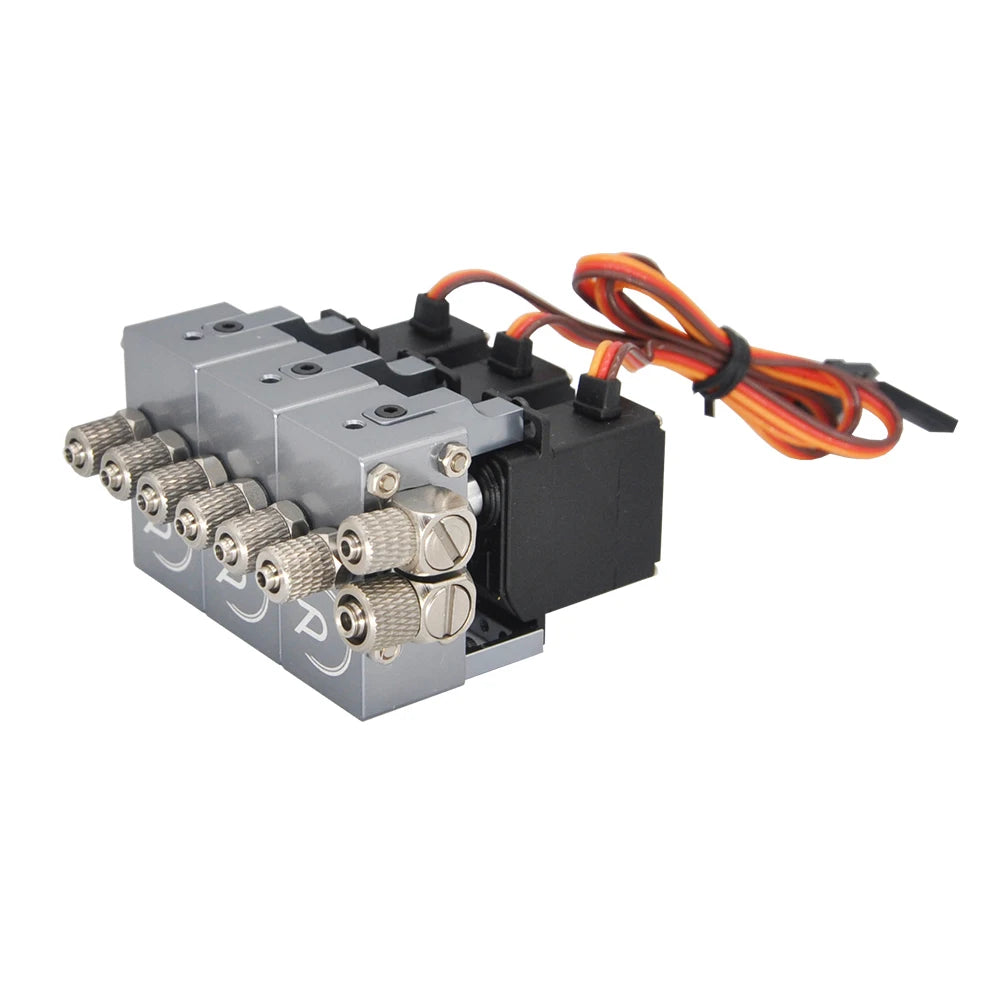

• Future Channel Upgrade — A 3-channel block can be upgraded to 4 to 8 channels by adding 1-channel upgrade valve blocks and replacing four fixed bolts.
• Anodized Aluminum Body — The aluminum alloy body is anodized and finished with CNC super-finishing.
• Compact Build — It has a small size that suits compact RC models.

Product Specifications

• Material: Aluminum alloy

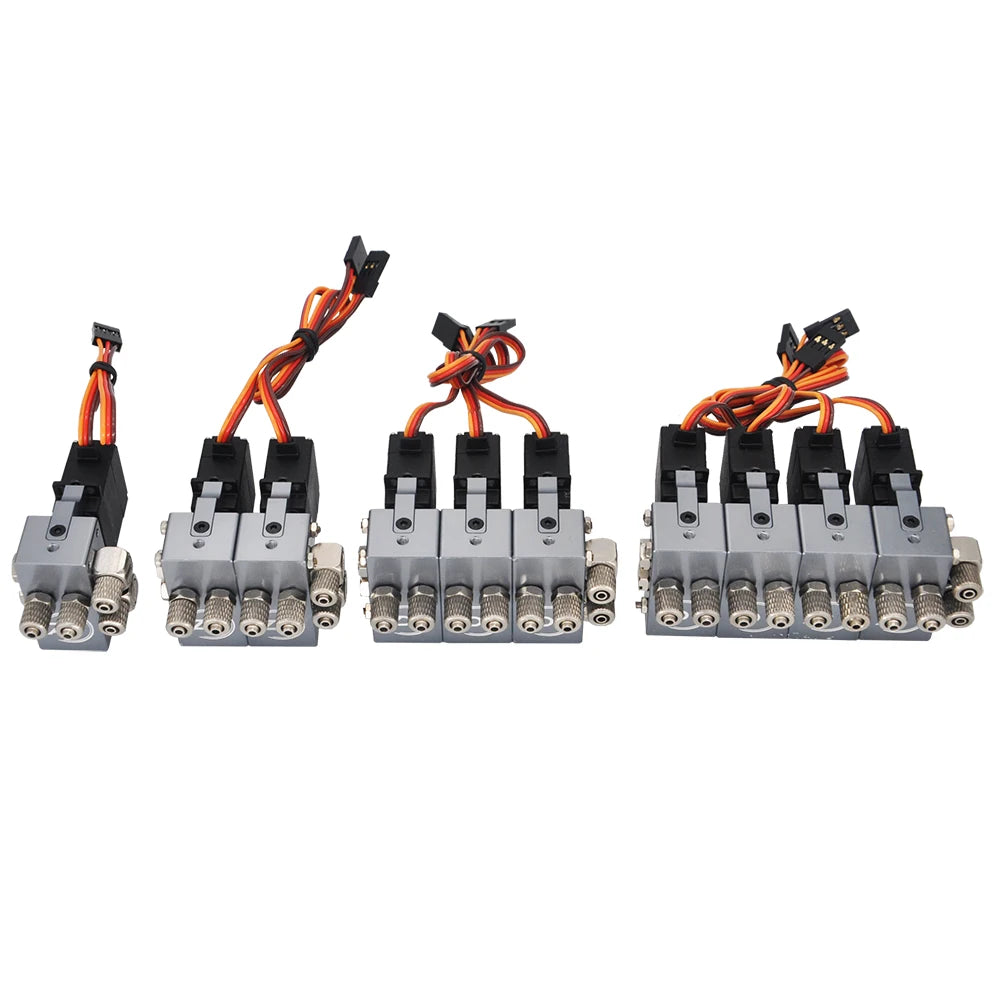

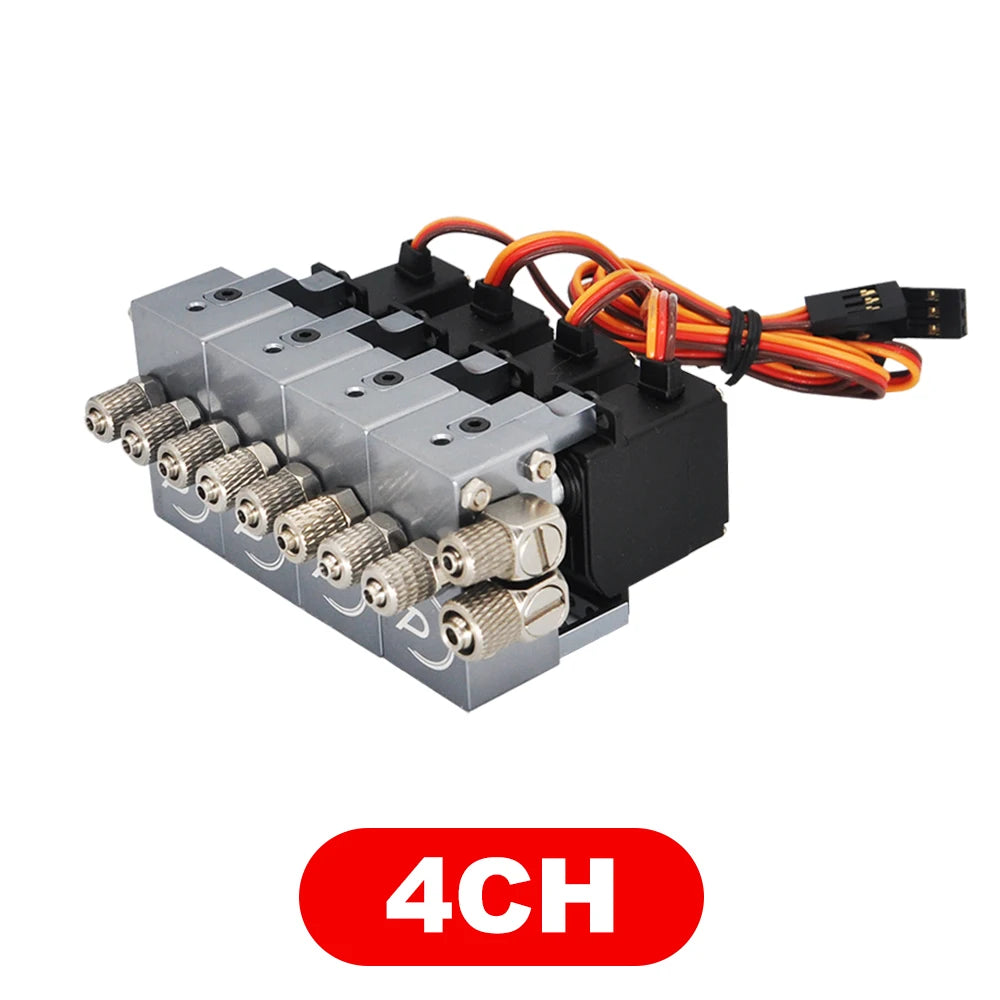

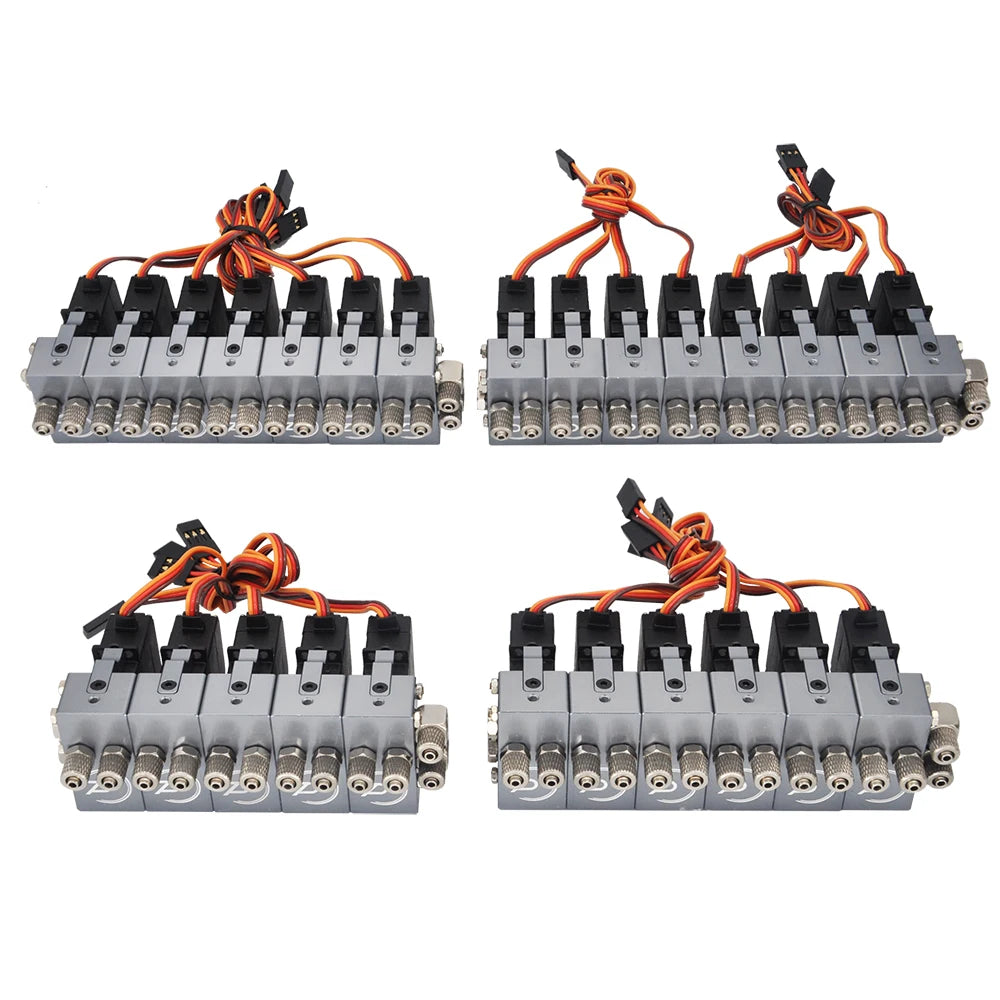

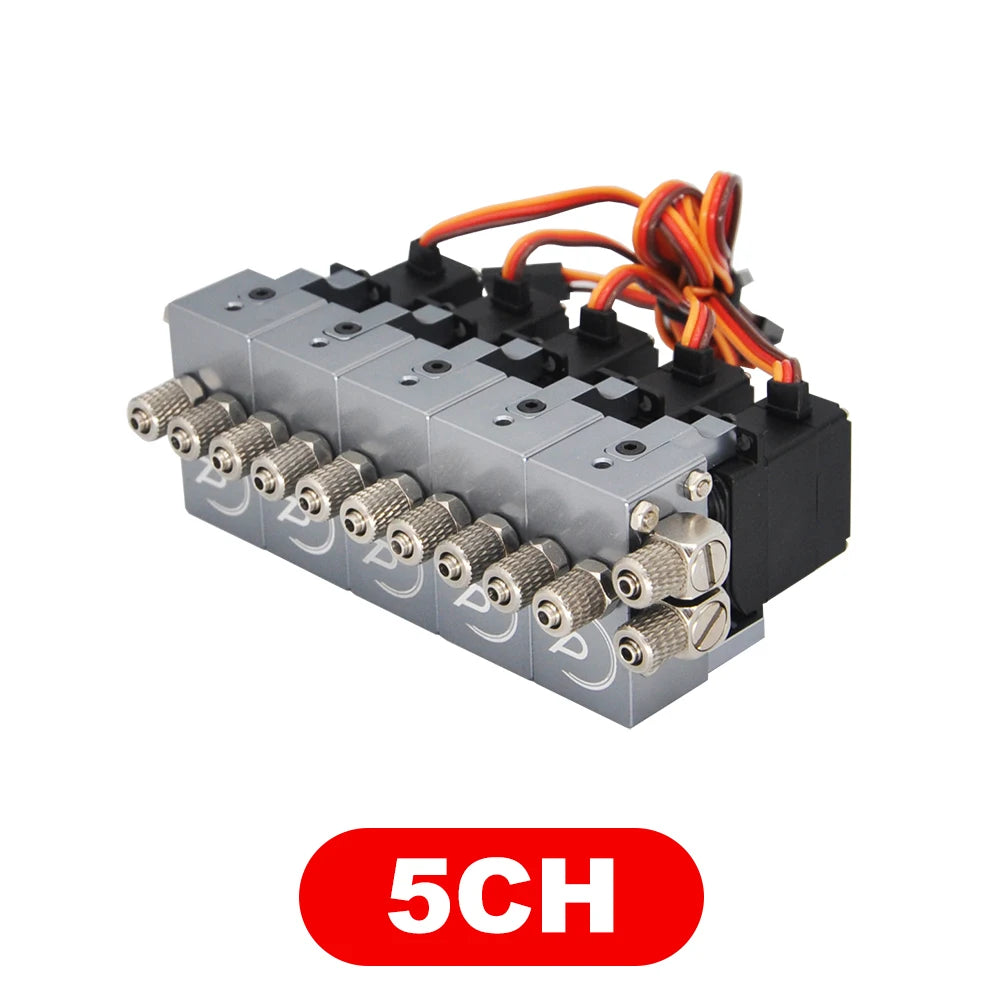

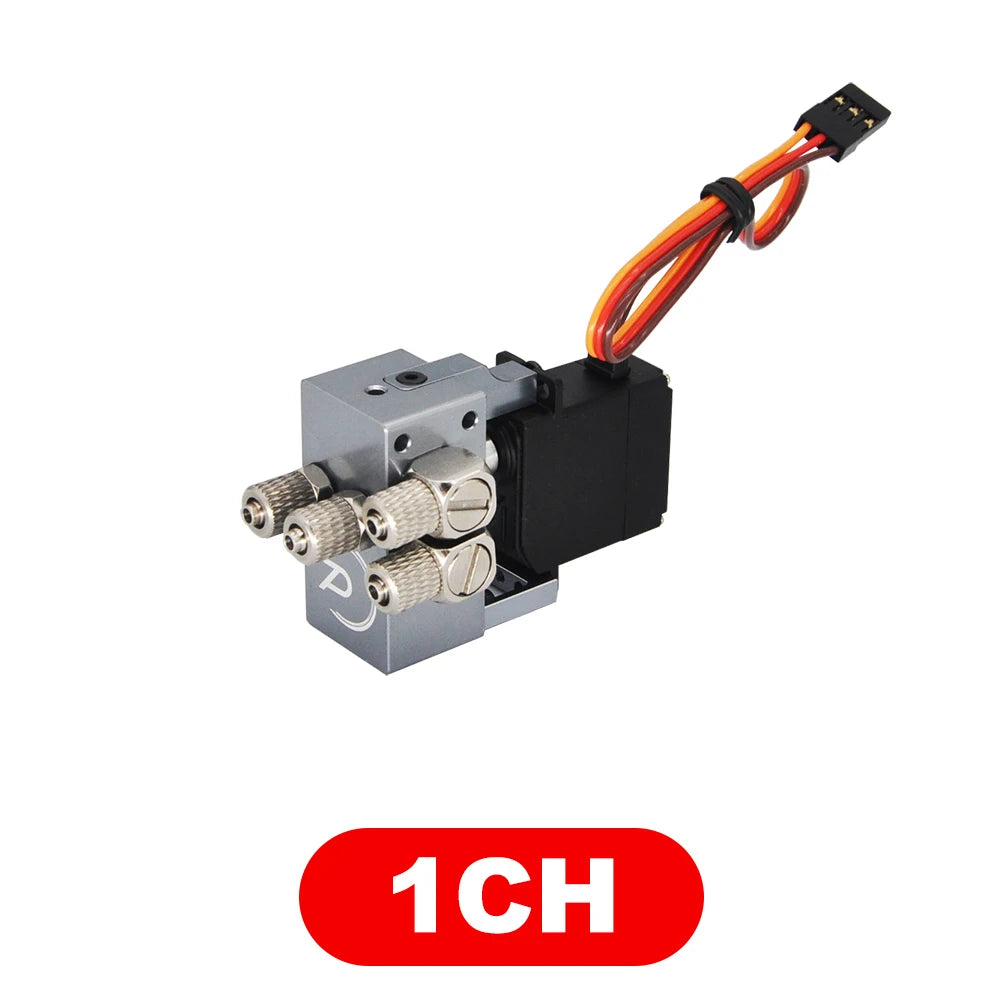

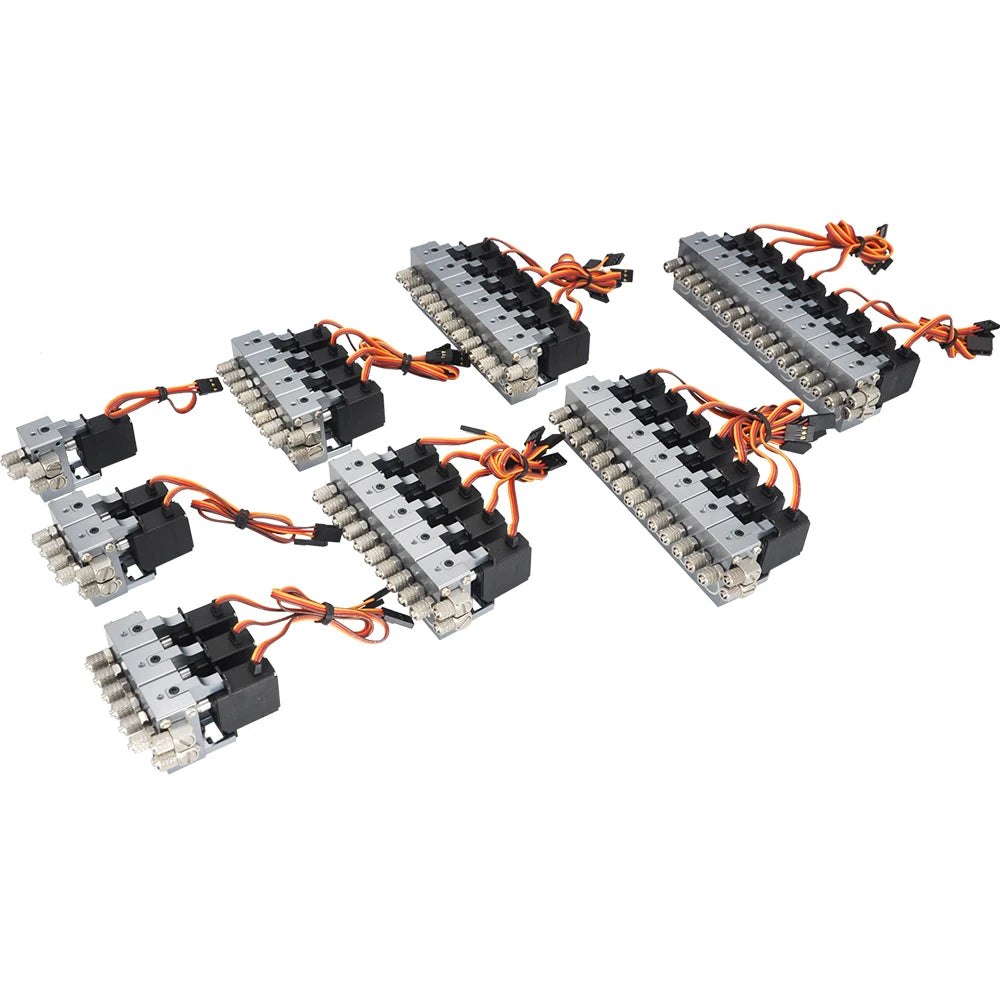

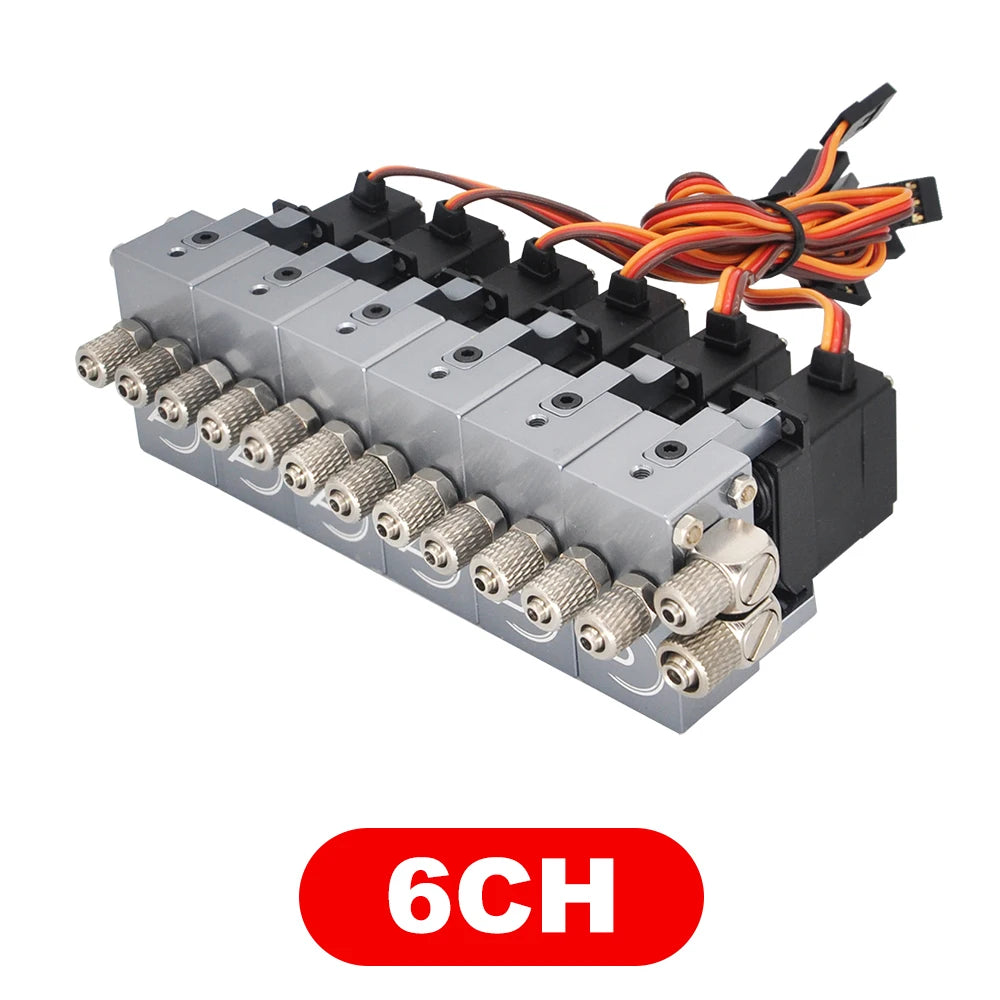

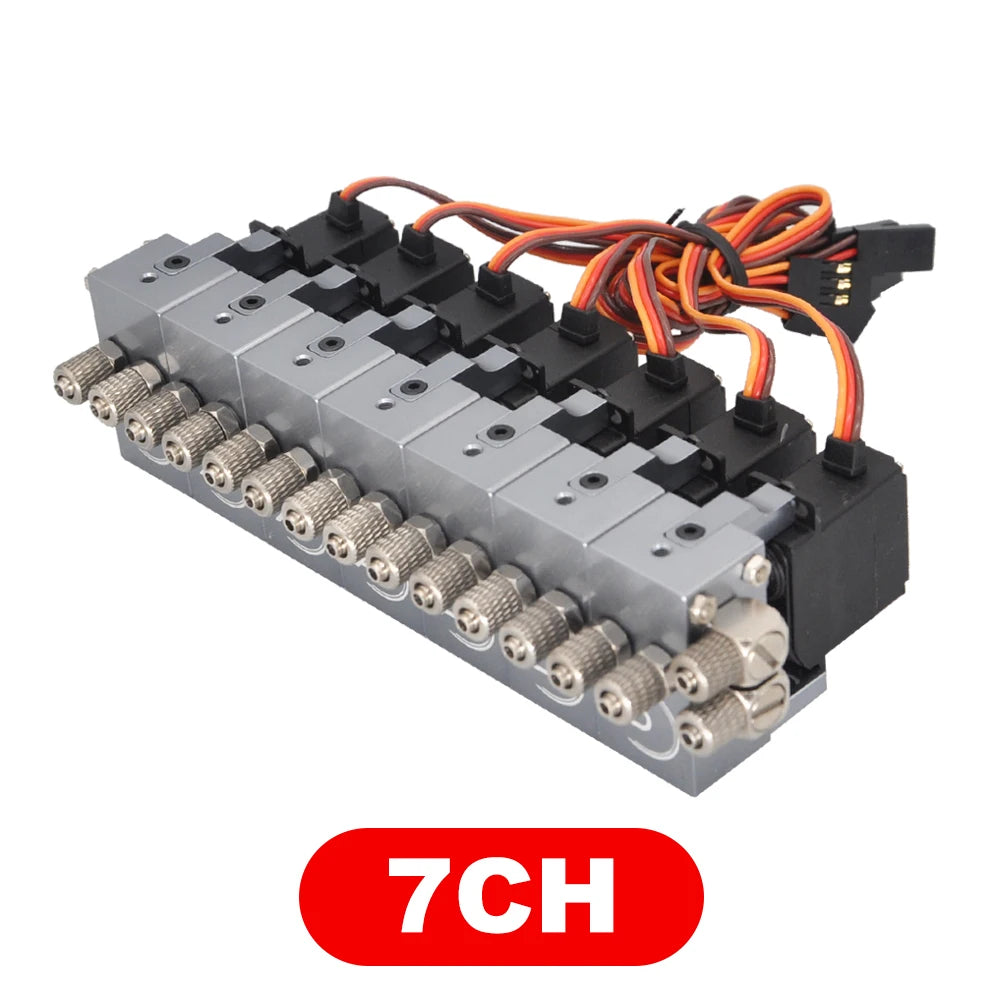

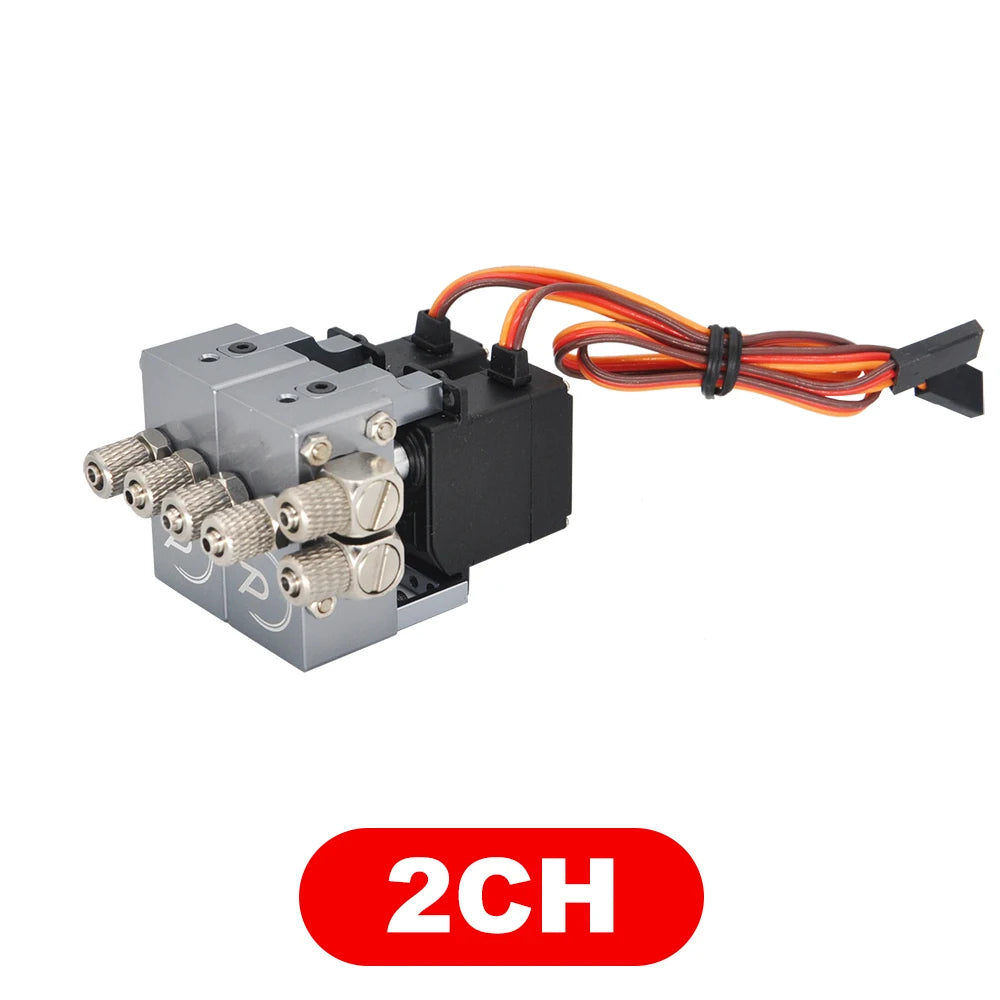

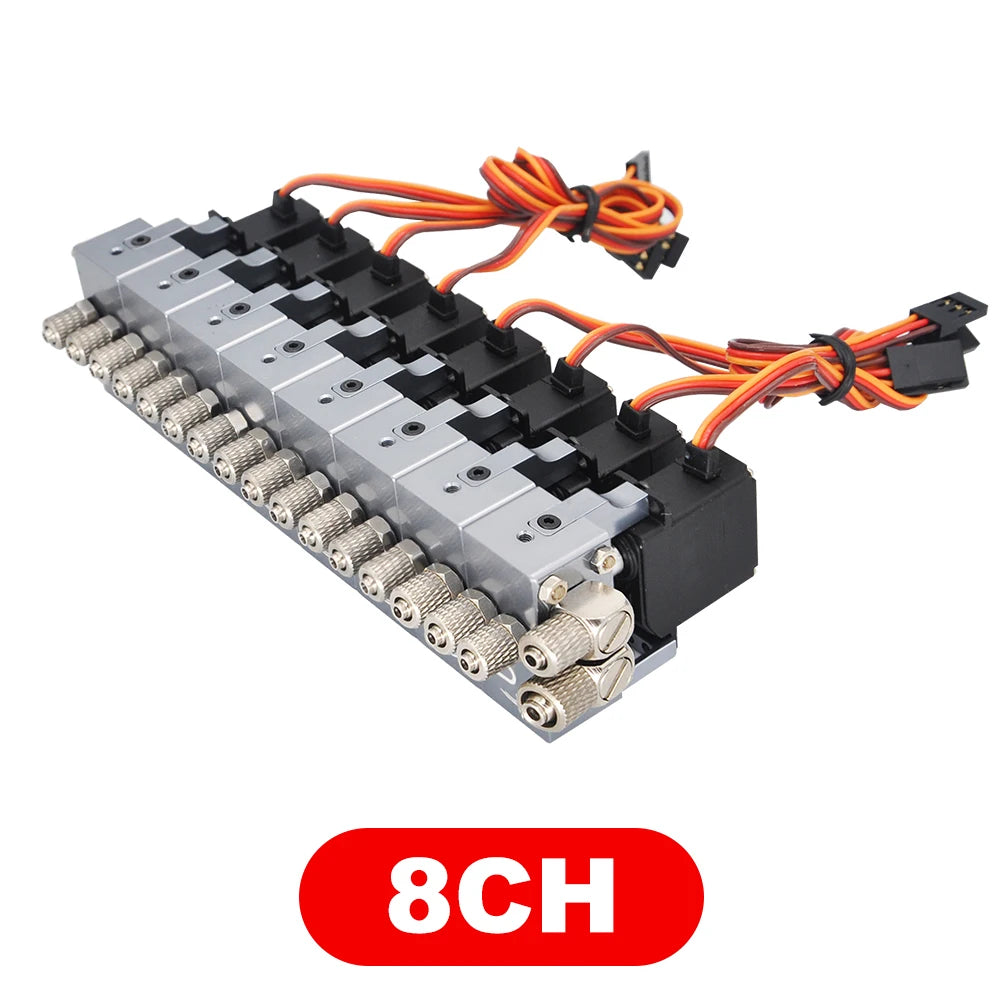

• Channels: 1/2/3/4/5/6/7/8
• Nozzle size: 4mm
• Connectors: M5-4mm hose connectors
• Use pressure: Within 8Mpa
• Product medium: 46# hydraulic oil
• Surface treatment: Anodized
• Processing technology: CNC super-finishing
• Piece Count: 1 pcs
• Intended Use: Vehicles & Remote Control Toys

What It Is / How It Works

This RC high pressure hydraulic rotary valve block is a valve block with a 4mm nozzle and 1 to 8 channels, made for excavator and engineering vehicle models. It is an aluminum alloy valve block that comes as one piece.

Who It's For / Use Cases

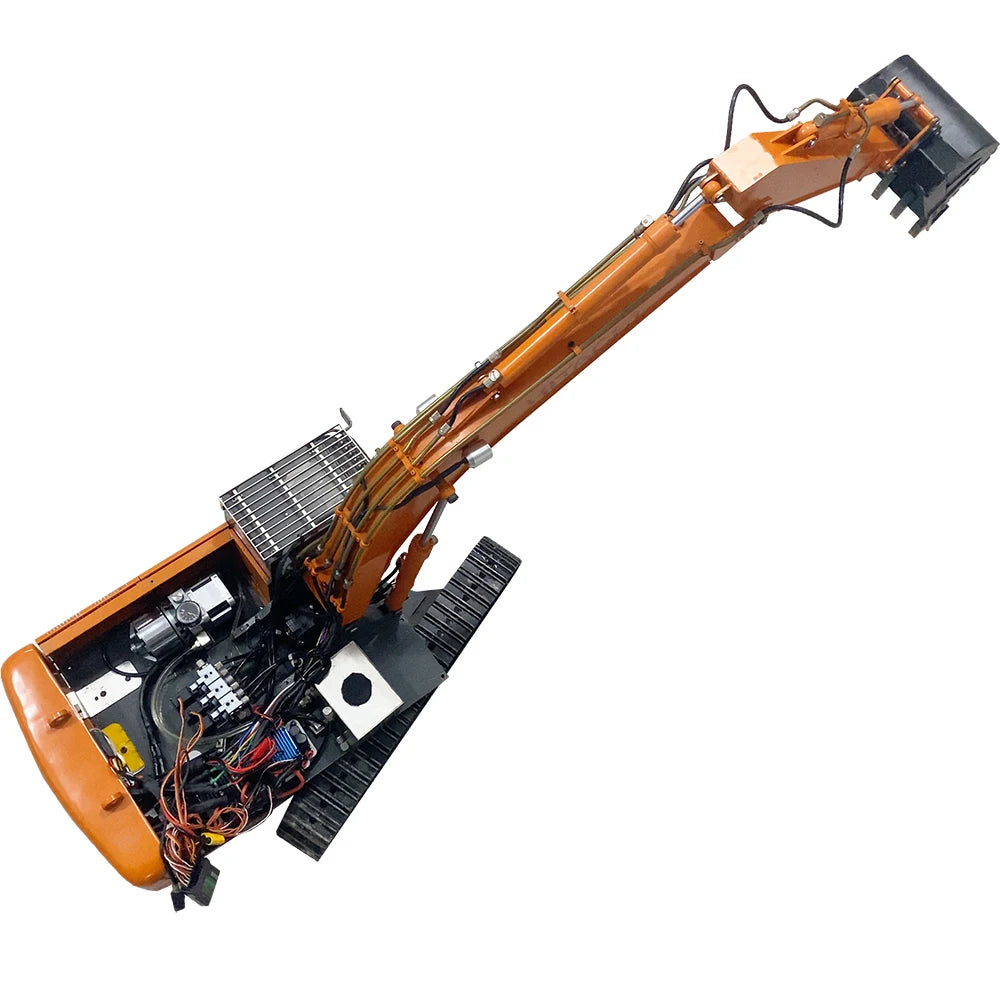

Hydraulic valve blocks like this suit hobbyists who build or upgrade radio-controlled excavator and engineering vehicle models. They suit builders who want a compact hydraulic control unit that can grow as more functions are added.

How to Use / Care

1. Keep the use pressure within 8Mpa.
2. If the system has no central oil return function, use the valve block with the overflow valve from the store.
3. When the cylinder reaches its longest or shortest stroke, the overflow valve opens the pressure relief valve to drain oil into the tank.

How to Choose

Start with the channel count, because each hydraulic function on a model needs its own channel. Check the nozzle size and hose connector type in Product Specifications against the hoses on your model. If you plan to add functions later, the upgrade path lets the block grow from a smaller channel count.

Frequently Asked Questions

Does it need a battery?
No. The valve block is hydraulic and has no battery, and the Power row lists No battery.

How many channels does it have?
The block is listed with 1 to 8 channels. A 3-channel block can be upgraded to 4 to 8 channels by adding 1-channel upgrade valve blocks and replacing four fixed bolts.

What pressure can it handle?
The use pressure is within 8Mpa.

What oil does it use?
It is rated for 46# hydraulic oil.

What is in the package?
The package has one valve block.
