12 LED Lighting Kit for 1/10 Scale RC Cars

Key Features

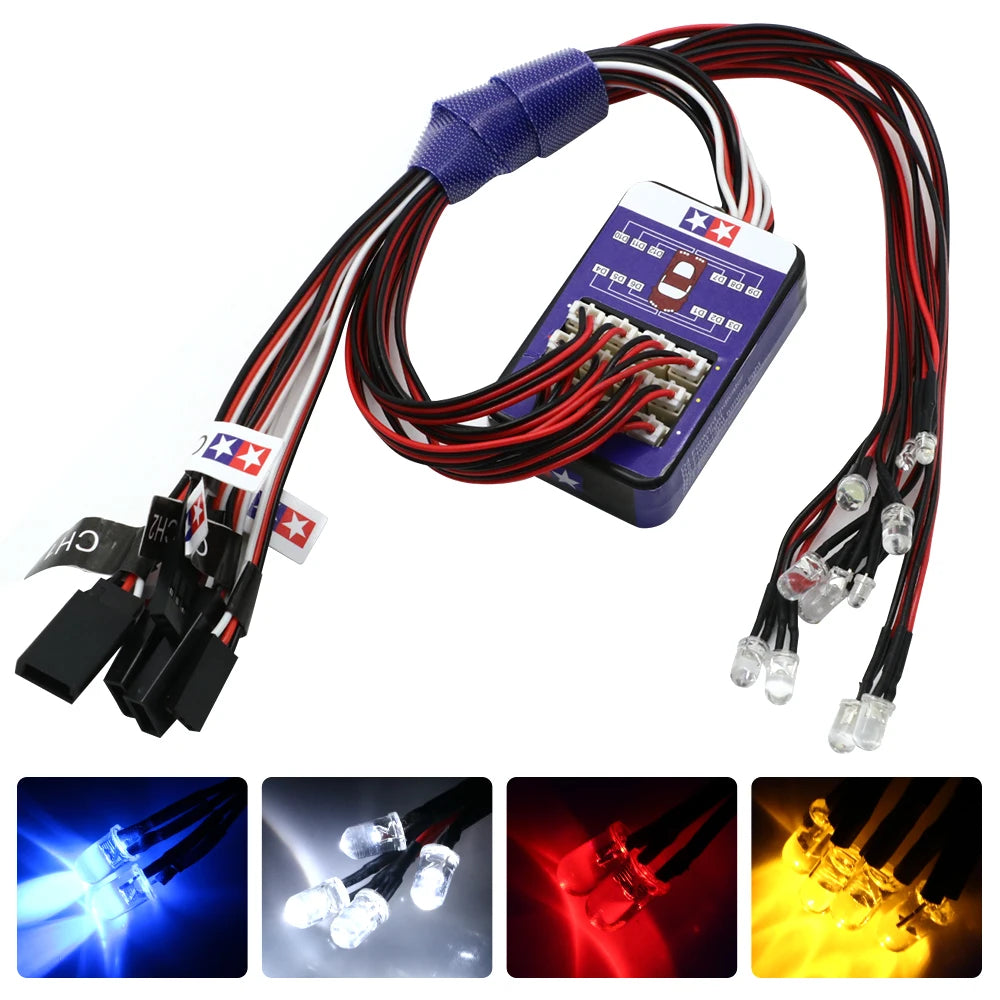

• Four Light Colors — The kit has white headlights, blue taillights, red brake lights and yellow turn lights.
• Synchronized Flashing — When the steering direction changes on the remote control, the lights flash in sync.
• Improved Circuit Board — The improved circuit board is designed to save power.
• Independent Light Control — Connected to the CH3 channel on the receiver, the transmitter can control one group of lights independently.

Product Specifications

• Scale: 1/10
• Vehicle Type: Cars
• Piece Count: 1 pcs
• LED bulb quantity: 12
• Headlights: 4 white LED lights
• Turn lights: 4 yellow LED lights
• Taillights: 2 blue LED lights, 2 red LED lights
• Working Current: 100mA
• Input voltage: 4.8V - 6.0V
• Size: 55 × 35 × 15.8 mm (2.17 × 1.38 × 0.62 in)
• Weight: 60 g (2.1 oz)
• Material: Plastic, Metal

What It Is / How It Works

This 12 LED lighting kit is a set of simulated car lights for 1/10 RC cars. It has 12 LED lights in four colors and works with both High-V and normal receivers.

Who It's For / Use Cases

Lighting kits like this suit 1/10 RC car owners who want headlights, taillights, brake lights and turn lights on a scale model. Hobbyists who want their model to show lighting functions as it moves, speeds up or stops can use this type of kit to add those visual cues.

How to Use / Care

1. Use it to add headlights, taillights, brake lights and turn lights to a 1/10 RC car.

How to Choose

Start with the car's scale, since the kit is designed for 1/10 RC cars. Next, check your receiver. The kit supports both High-V receivers and normal receivers. If you want the transmitter to control one light group separately, use the CH3 connection; without it, one light group stays on at all times.

Frequently Asked Questions

Does the kit need its own battery?
It has no battery. Its input voltage is 4.8V - 6.0V, and the working current is 100mA.

Which lights does the kit have?
It has 4 white LED headlights, 4 yellow LED turn lights, and 2 blue plus 2 red LED taillights, for 12 LEDs in total.

How do the lights connect to the receiver?
CH1 connects to the servo, CH2 connects to the speed controller, and CH3 connects to the receiver. If CH3 is not connected, one light group stays on all the time.

When do the blue and red lights come on?
The blue lights stay on, and they go out when the car speeds up or brakes. The red lights come on only when the car brakes.

How big and heavy is the kit?
It measures 55 × 35 × 15.8 mm (2.17 × 1.38 × 0.62 in) and weighs 60 g (2.1 oz). It is one kit, one piece.
