Retro Classic 52mm Gauge Pointer Oil Pressure Gauge Voltmeter Fuel Level Meter Water Temperature Gauge for Car Boat Yacht 12V24V

Retro Classic 52mm Gauge Pointer Oil Pressure Gauge Voltmeter Fuel Level Meter Water Temperature Gauge for Car Boat Yacht 12V24V

$117.12
Sale price  $117.12 Regular price  $0.00
Shipping calculated at checkout.
Color

SPECIFICATIONS

Brand Name: ZMFJH

Country/Region of Manufacture: China

High-concerned chemical: None

Interchange Part Number: Vintage Gauge

Item Height: 52mm

Item Length: 52mm

Item Weight: 140g

Item Width: 52mm

Manufacturer Part Number: Oil Pressure Meter

Material: Plastic

OEM NO.: Gauge

Origin: Mainland China

Other Part Number: Temp Gauge

Placement on Vehicle: front

Special Features: Red Yellow Light

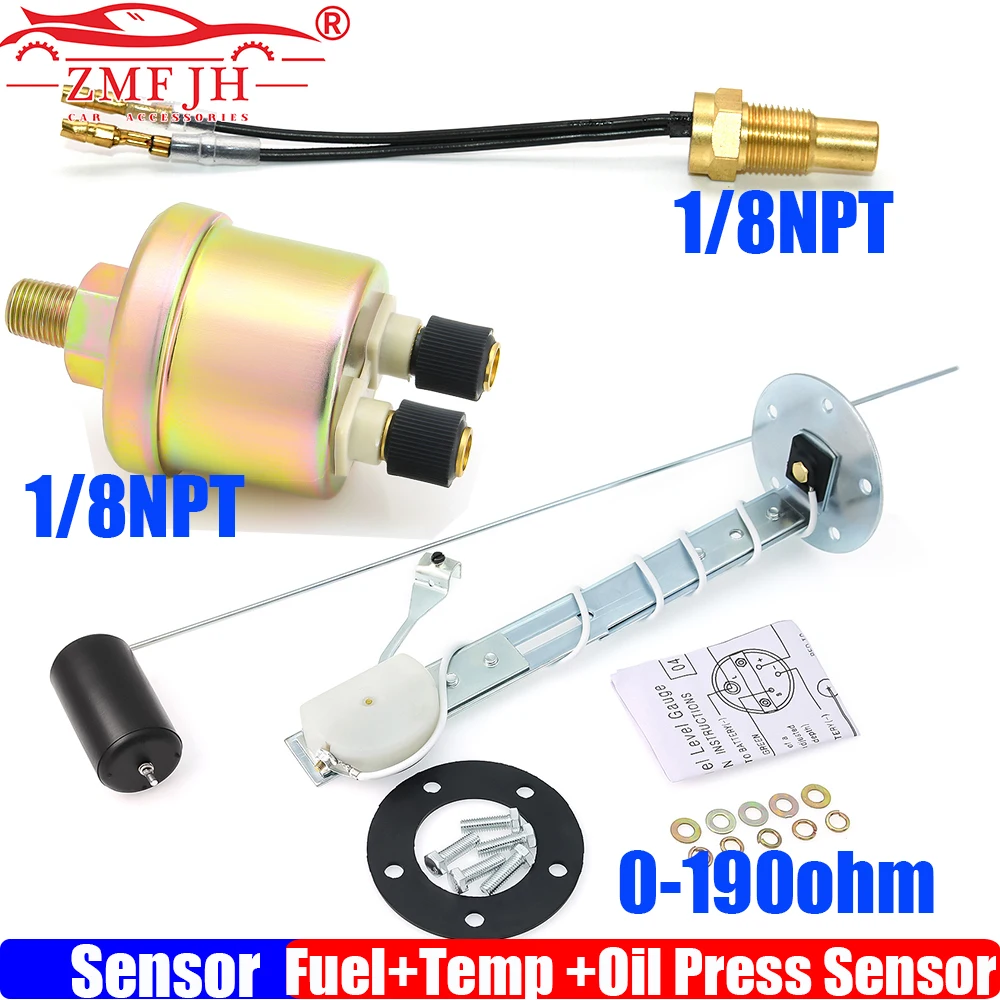

this link package not included Sensor , if you need sensor , you can click this link photo sensor to buy sensor together

https://ko.aliexpress.com/item/1005010383766743.html?gatewayAdapt=glo2kor

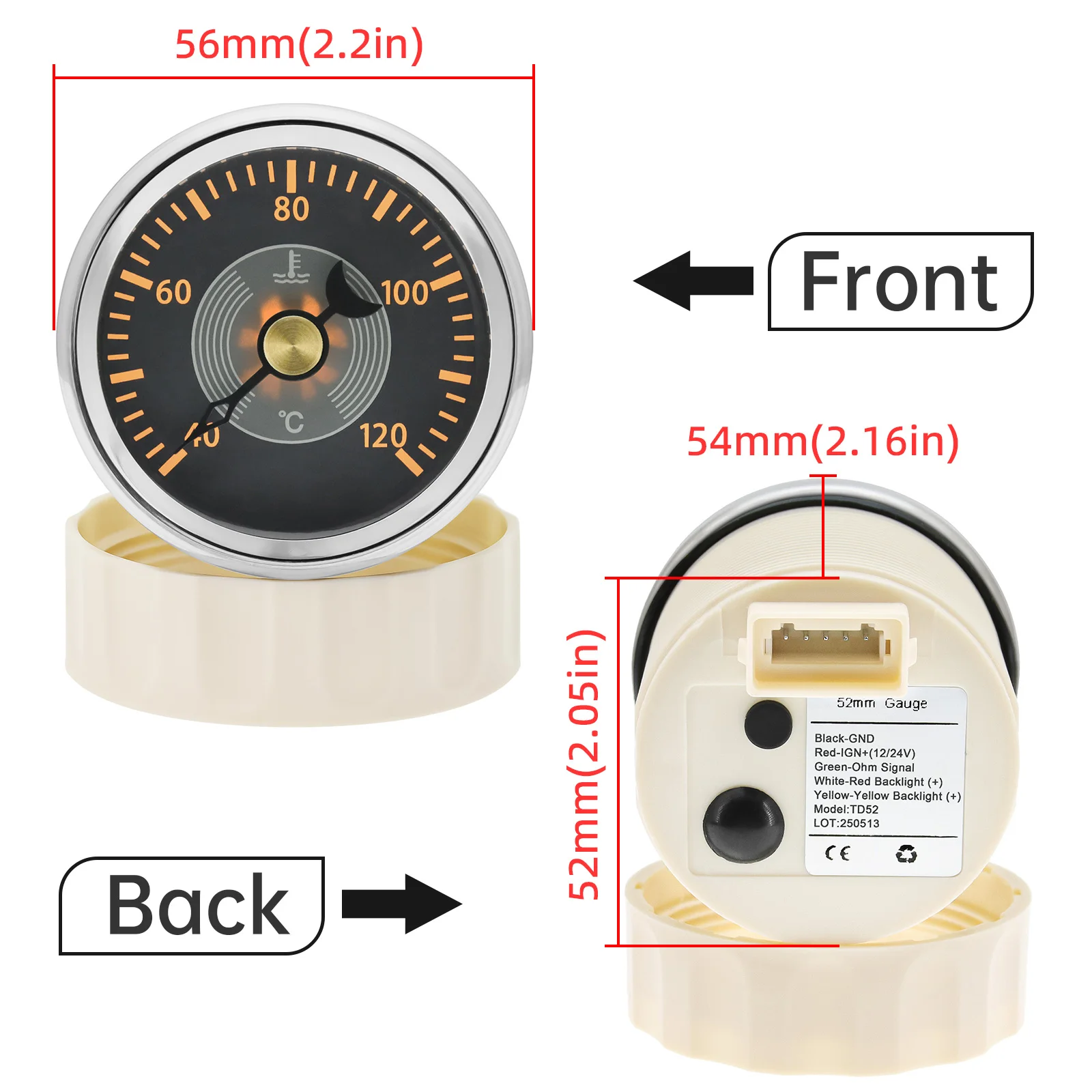

how to install:

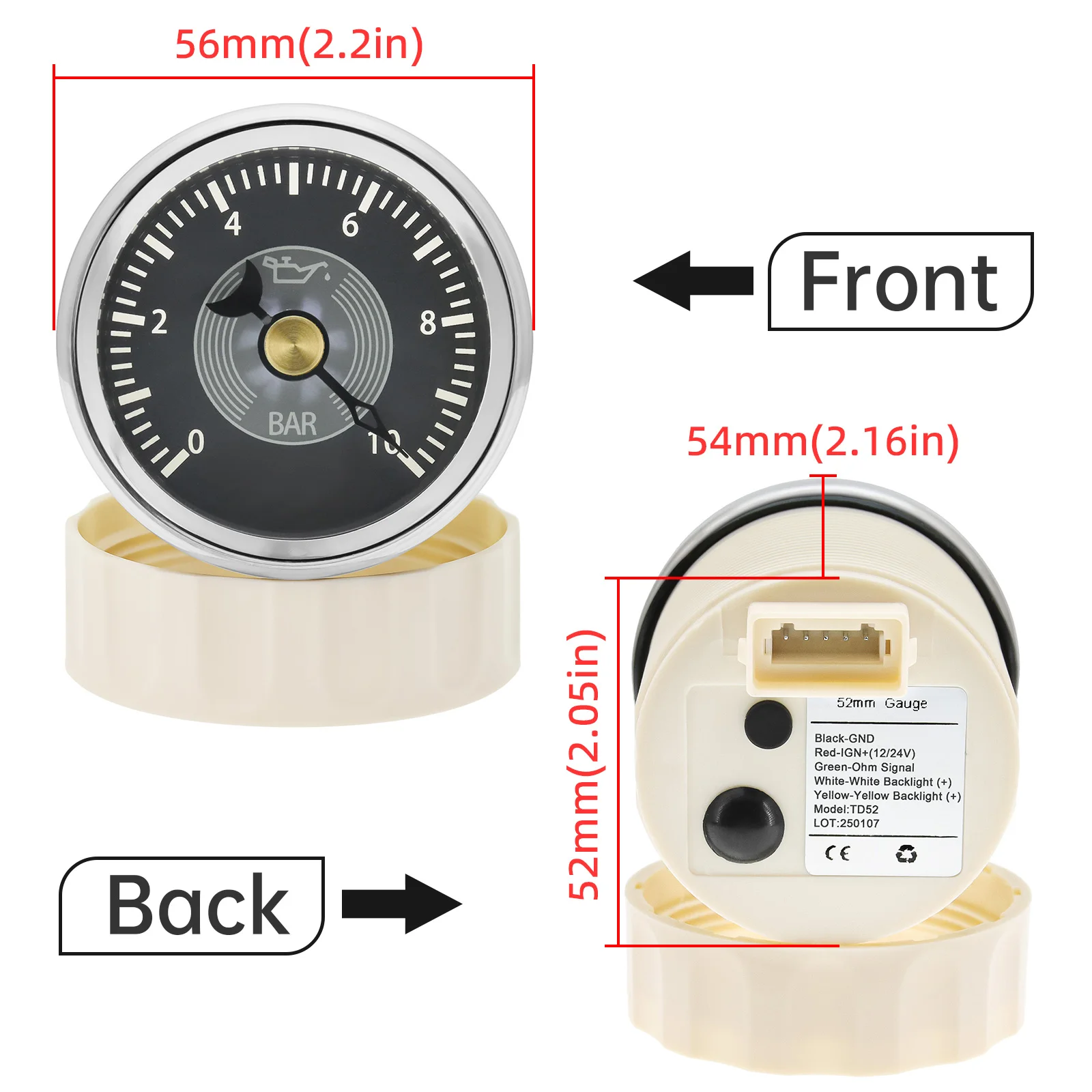

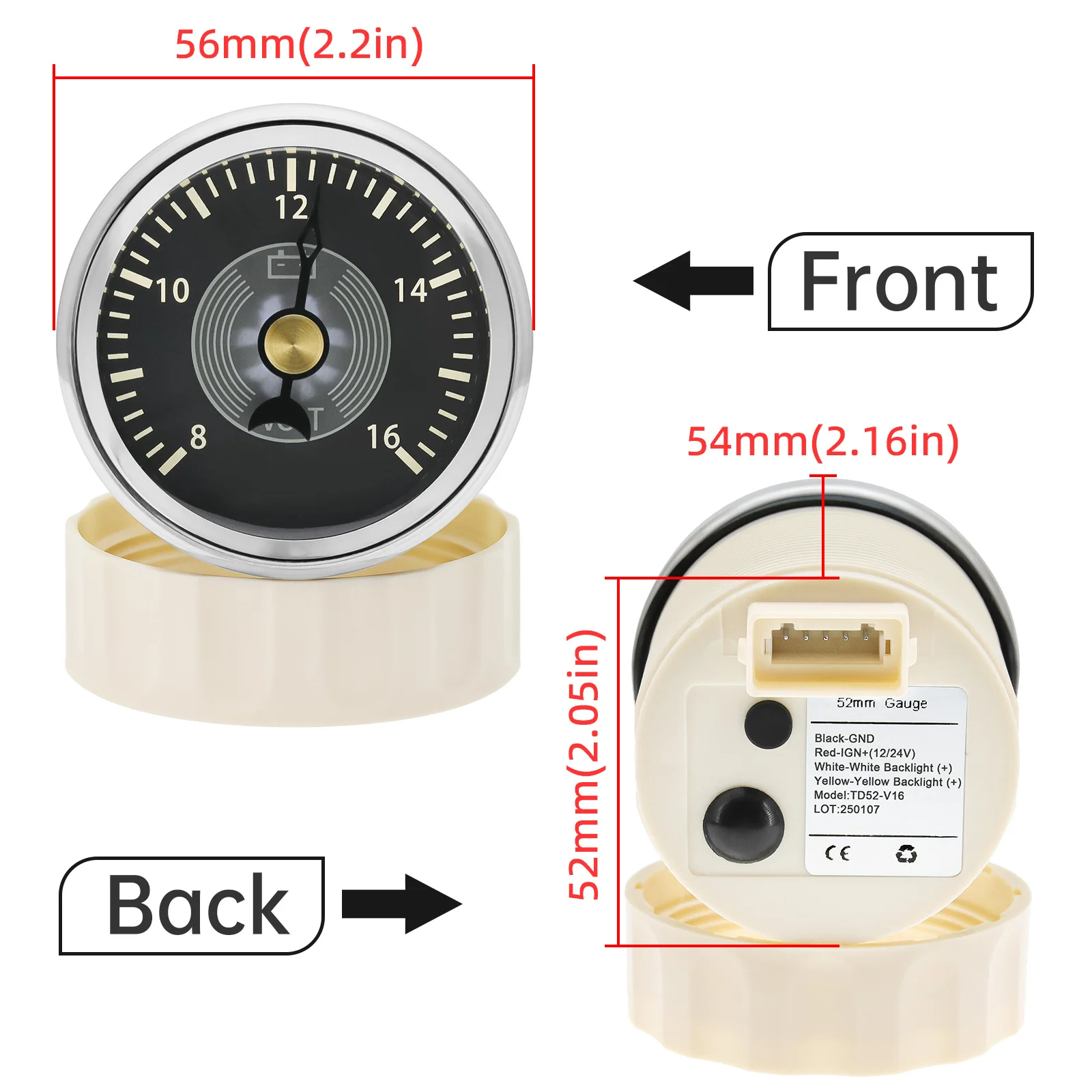

1.Cut a 52mm (2 1/16 ) diameter panel hole (II).
You will need a minimum clearance of 55mm (2 3/16 )behind the panel to fit the gauge.
2.Remove fastening ring (I).
There is an alignment tab on the gauge body (III), place the gauge in the panel hole and mark the position of this tab to correctly align the gauge.
3.Insert gauge through panel from the front, fit and tighten fastening ring (I) from the rear.

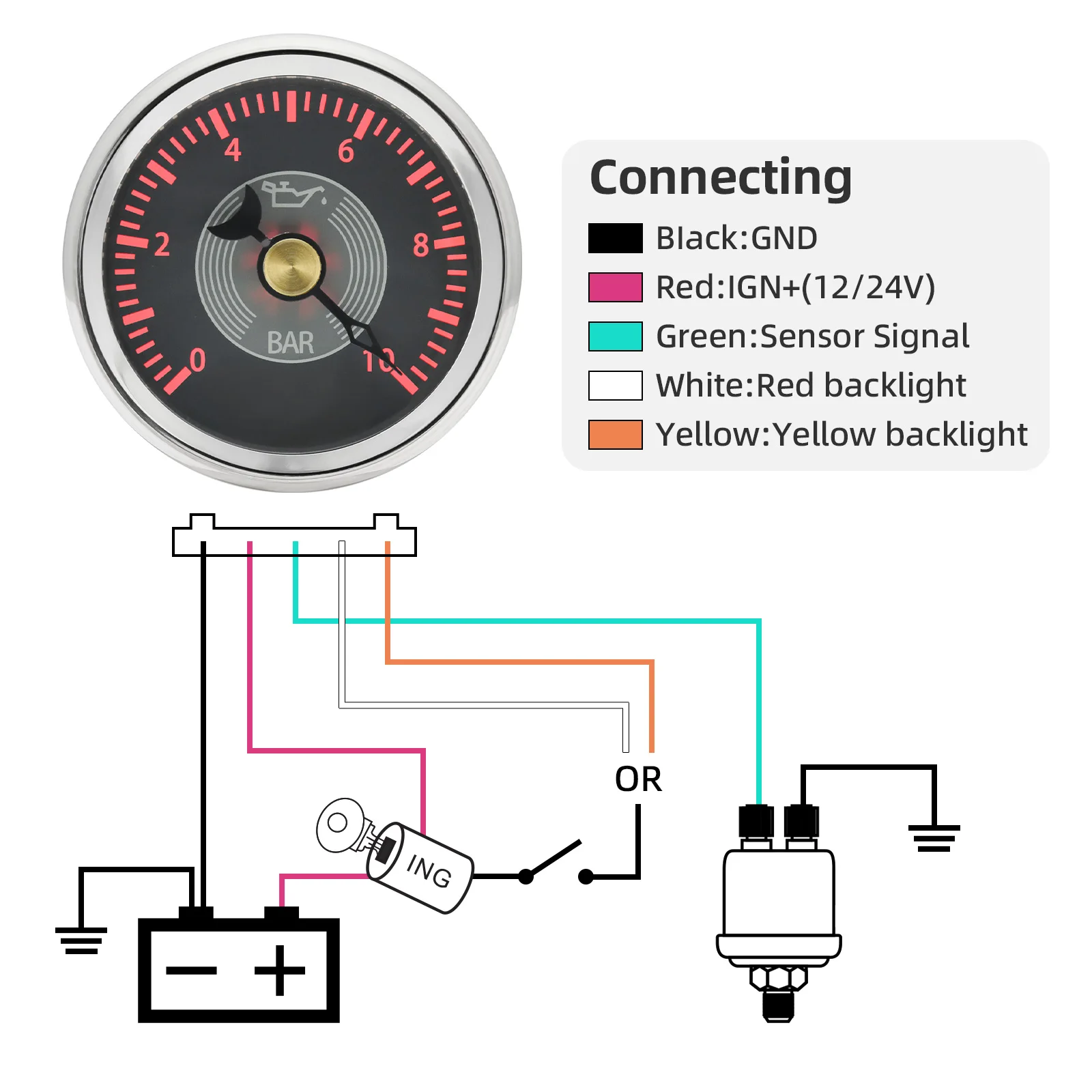

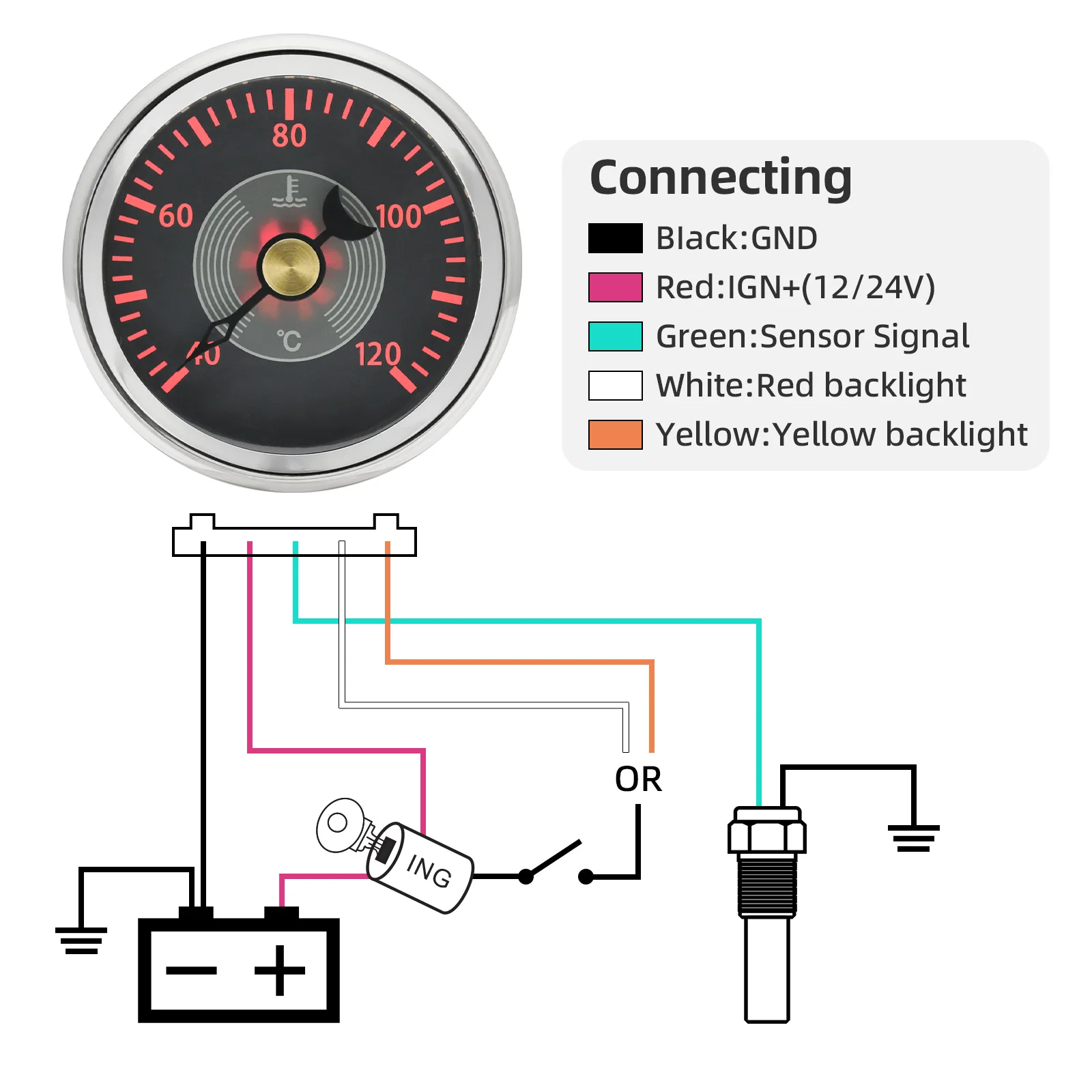

4.Connect wires according to wiring instruction. Select either White or Yellow wires for backlighting. Wire colour corresponds with backlighting colour.

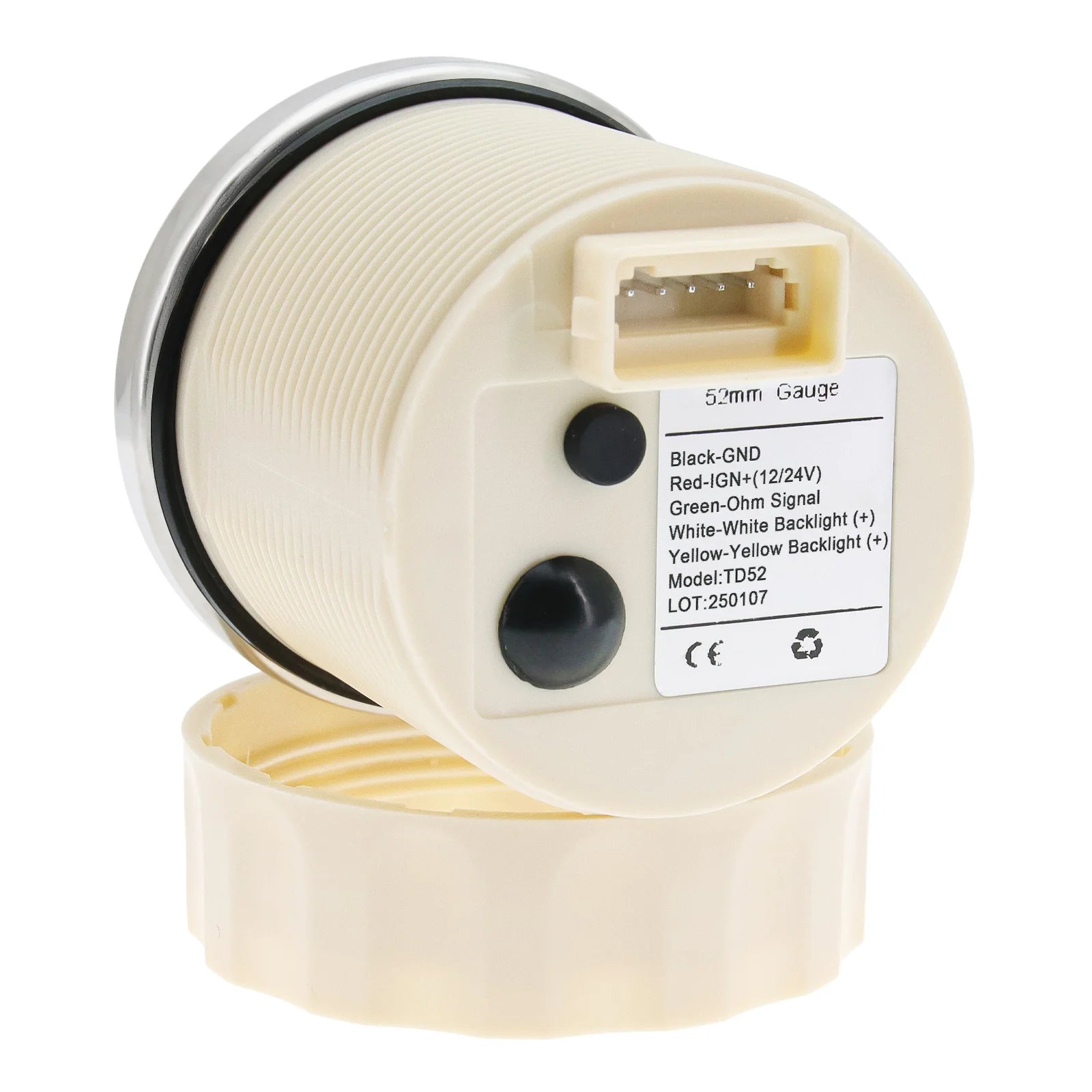

5.Insert wire harness (IV) into port at the back of the gauge

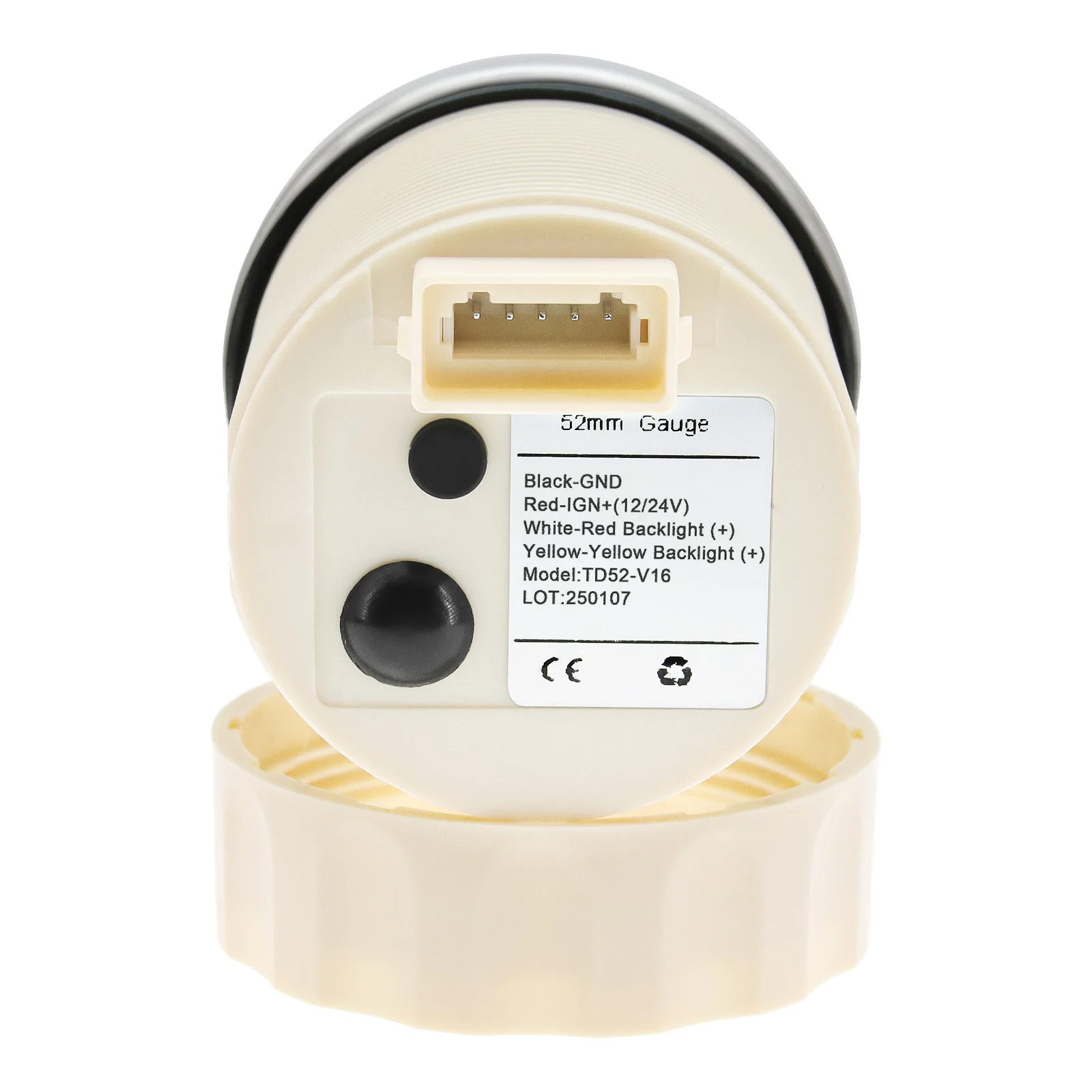

Please note if the gauge is a voltmeter, there is no Green wire.

Specification:

- Electronic 52mm Gauge (stepper motor)

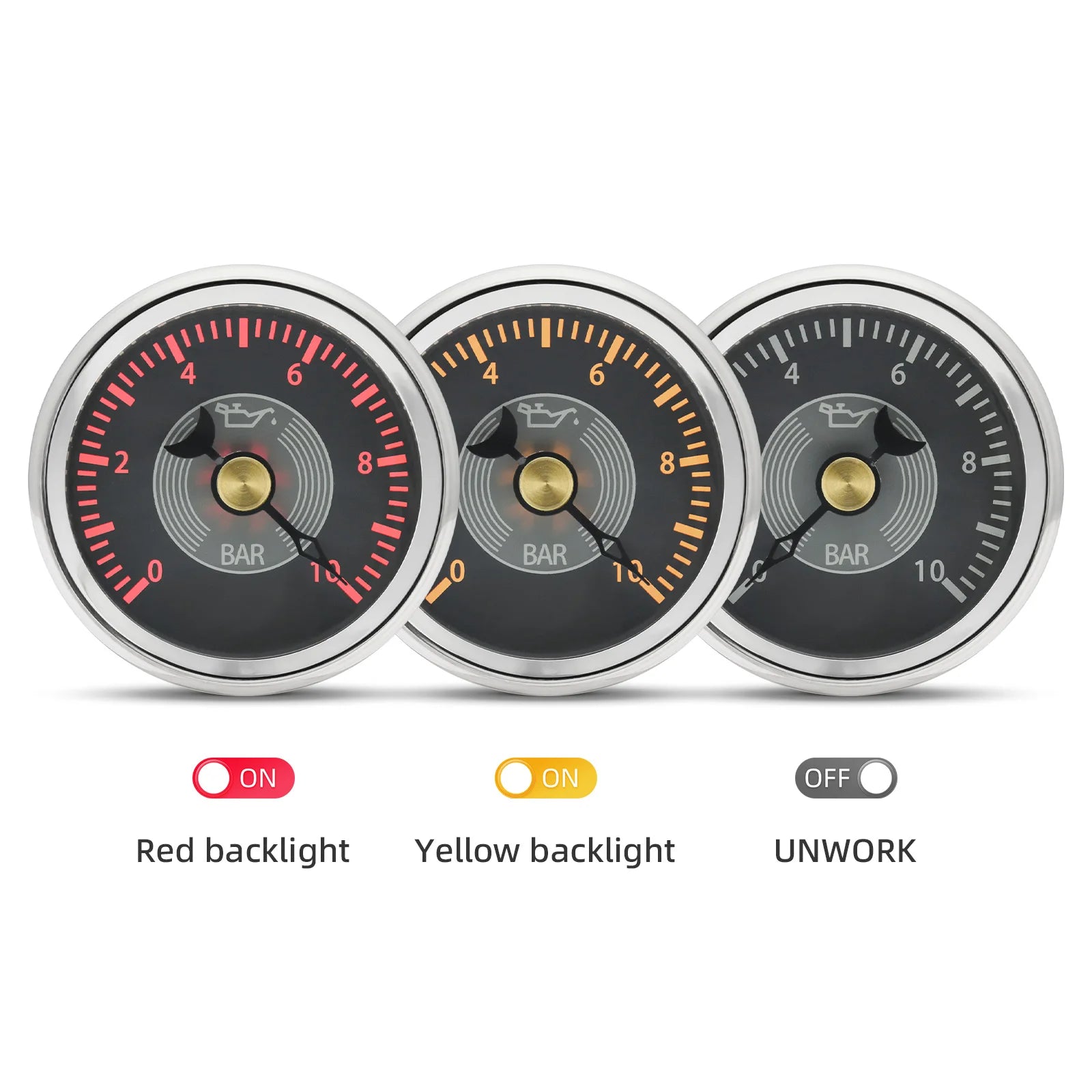

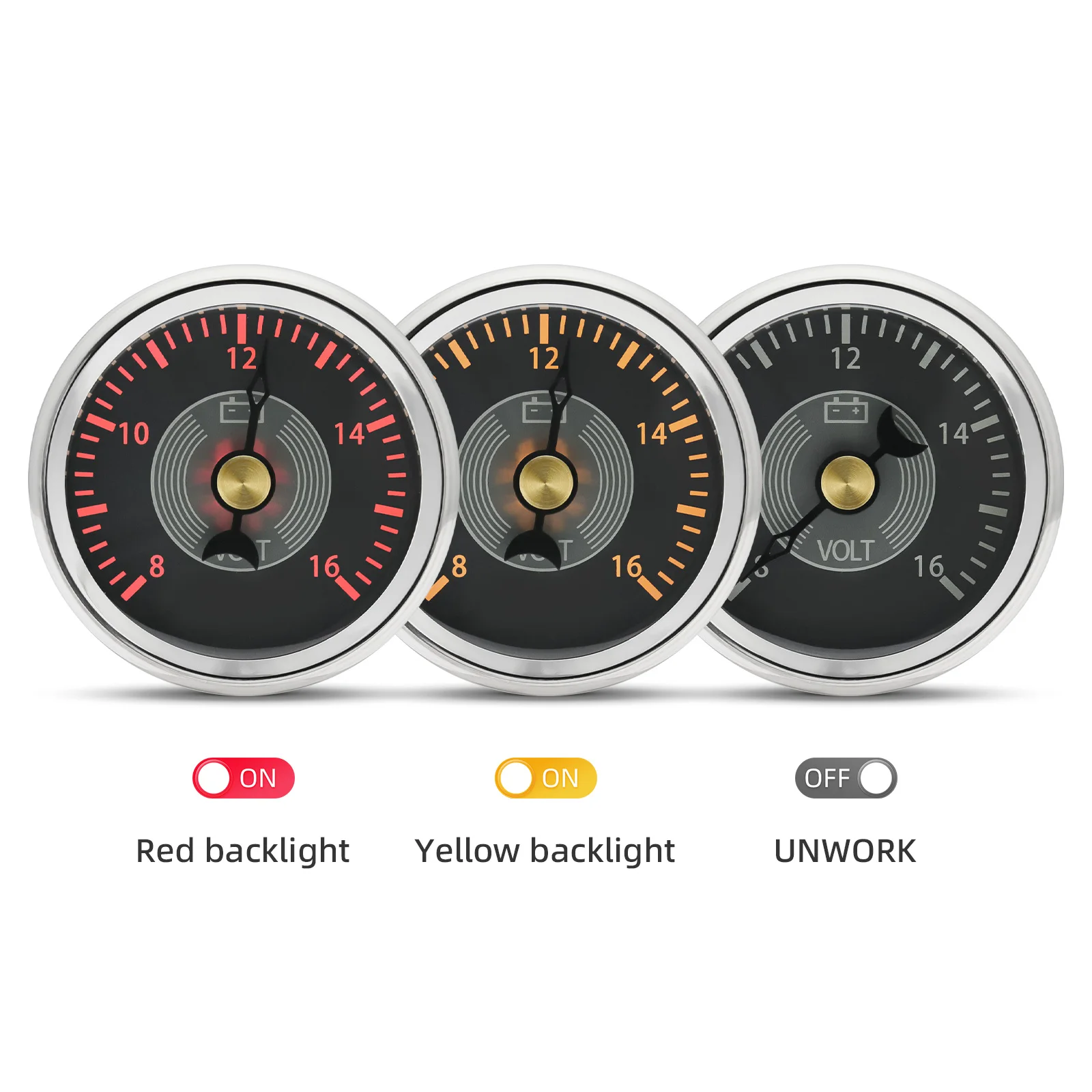

- Yellow & Red background light for option
- Resistance Gauge Input Signal
- Water Temperature:  40~120 ℃(301-23ohm)

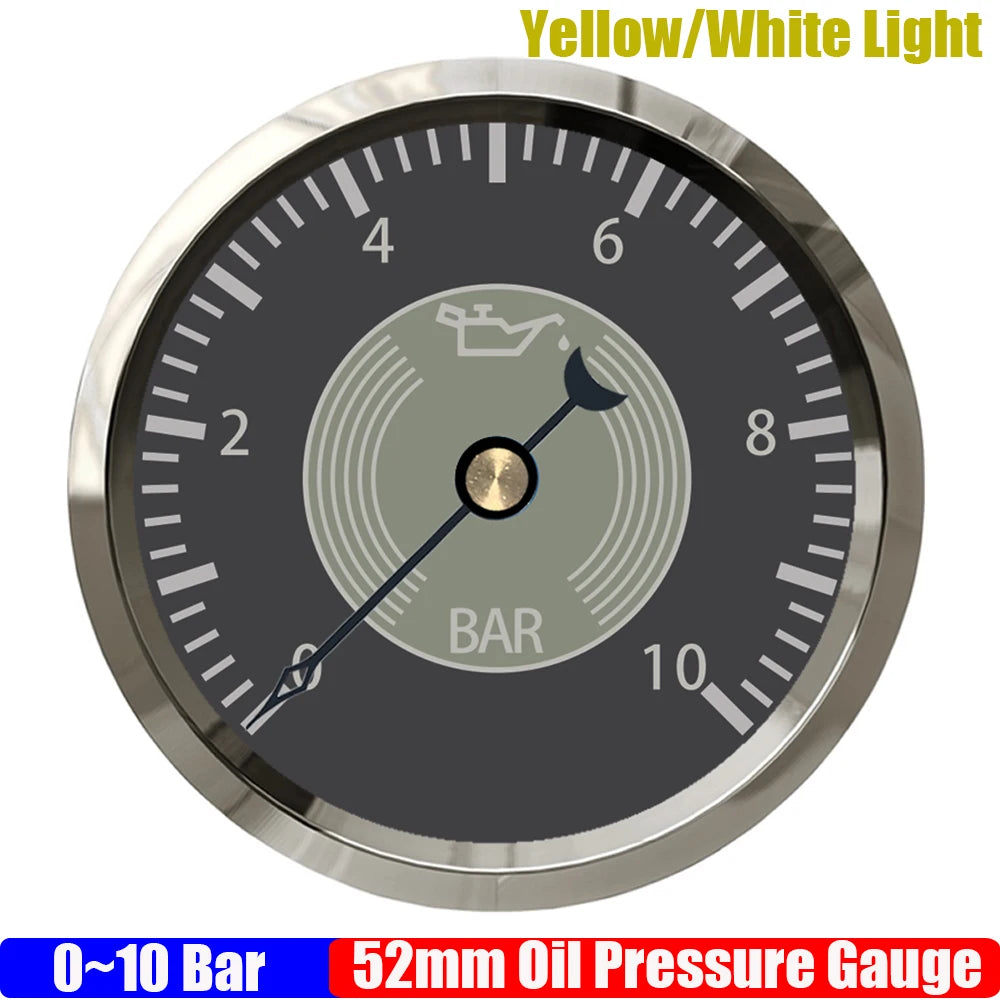

- Oil Pressure Gauge: 0~10 Bar (10~184ohm)
- Fuel Gauge: 0~190ohm
- Or Customized resistance signal range.
- Voltage: 8~16V
- Working Voltage:12V/24V
- Working temperatures: - 40 to 85°C
- IP67 Waterproof

Feature:

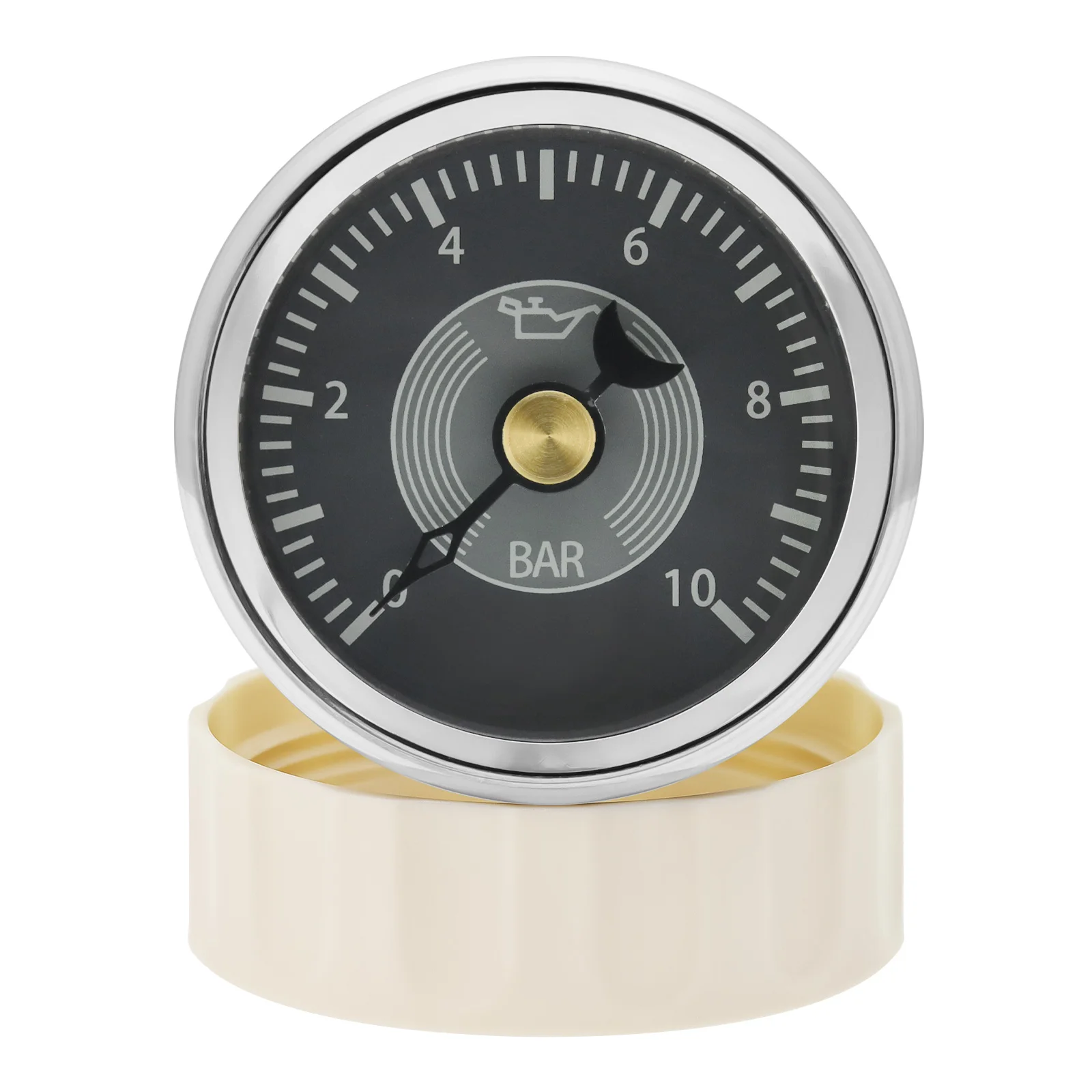

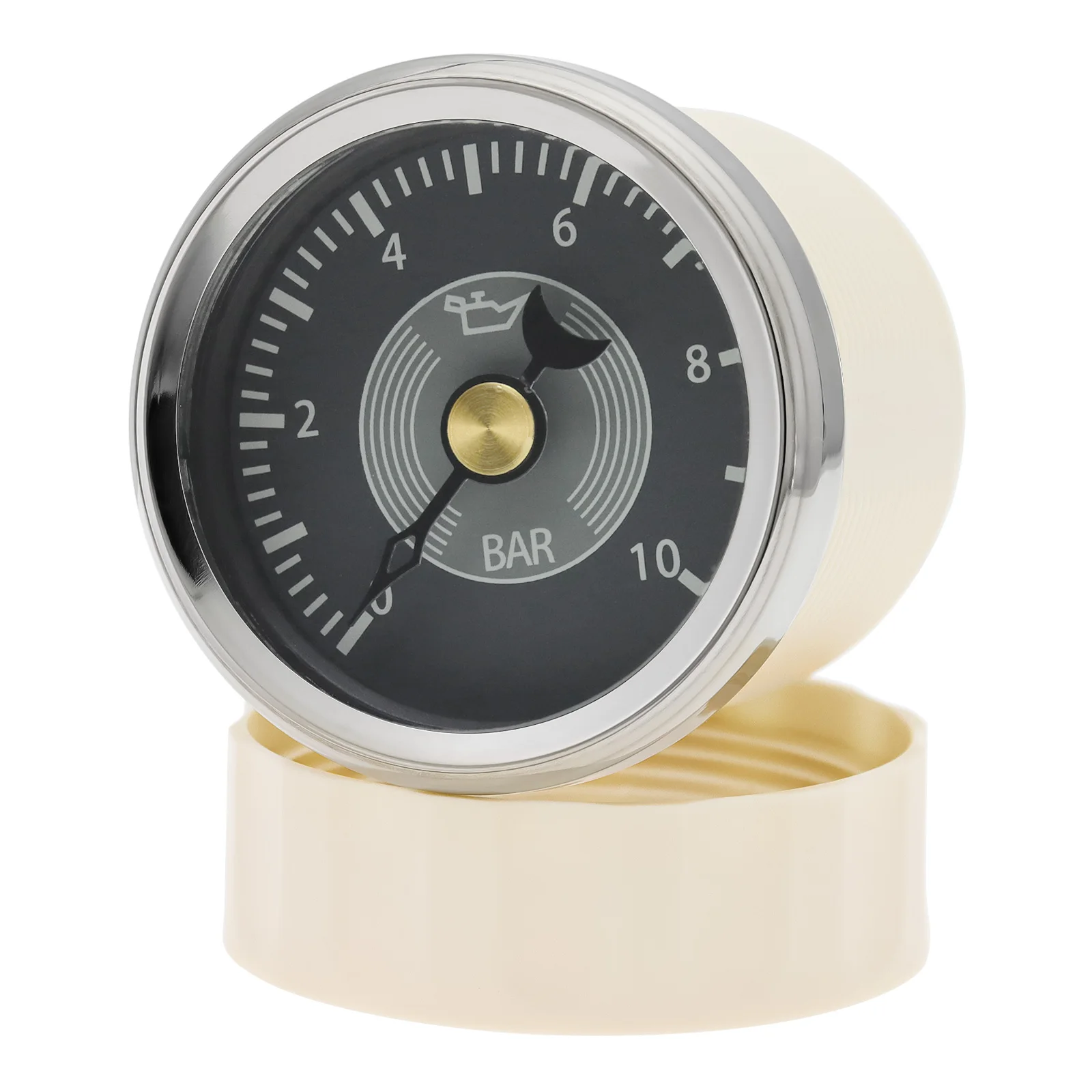

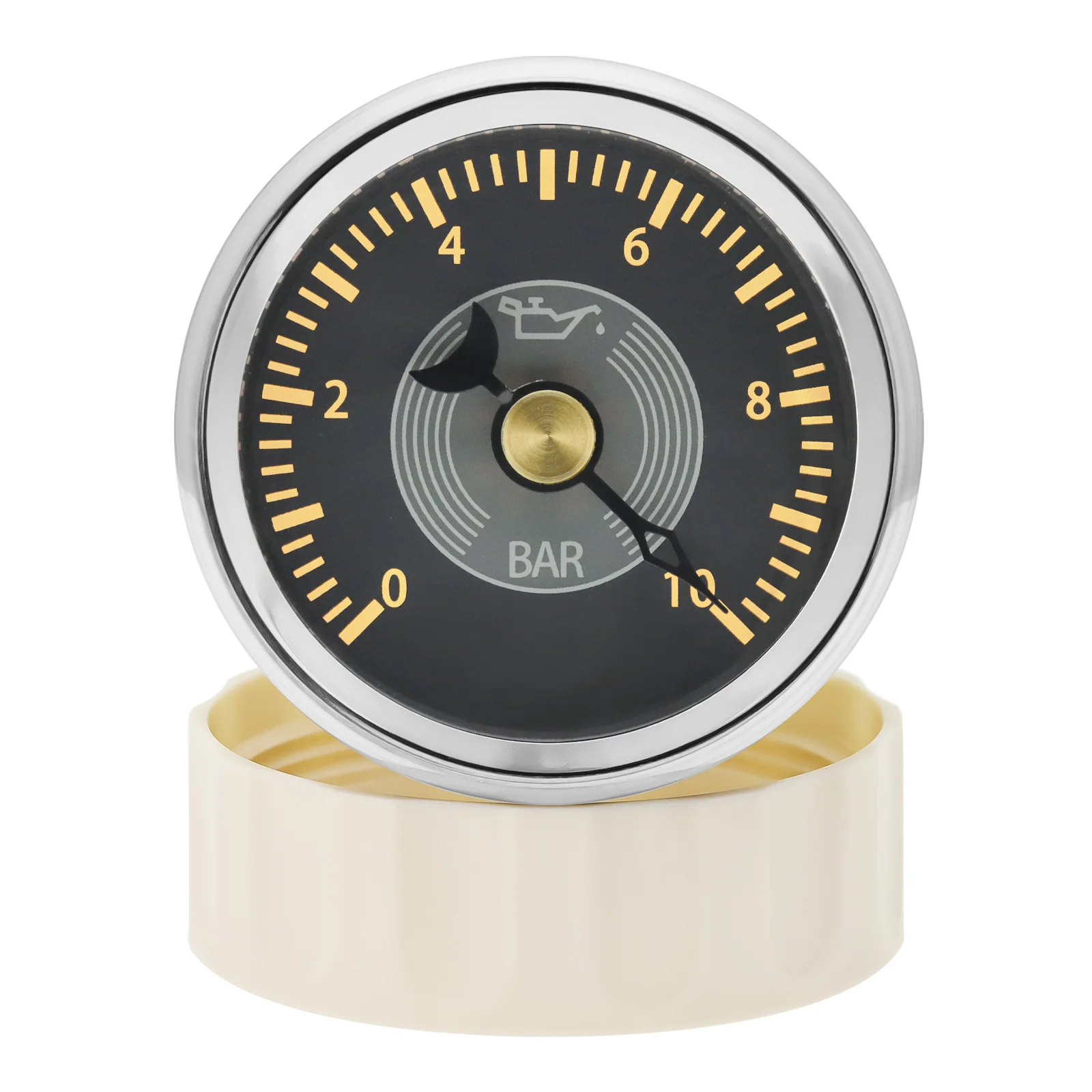

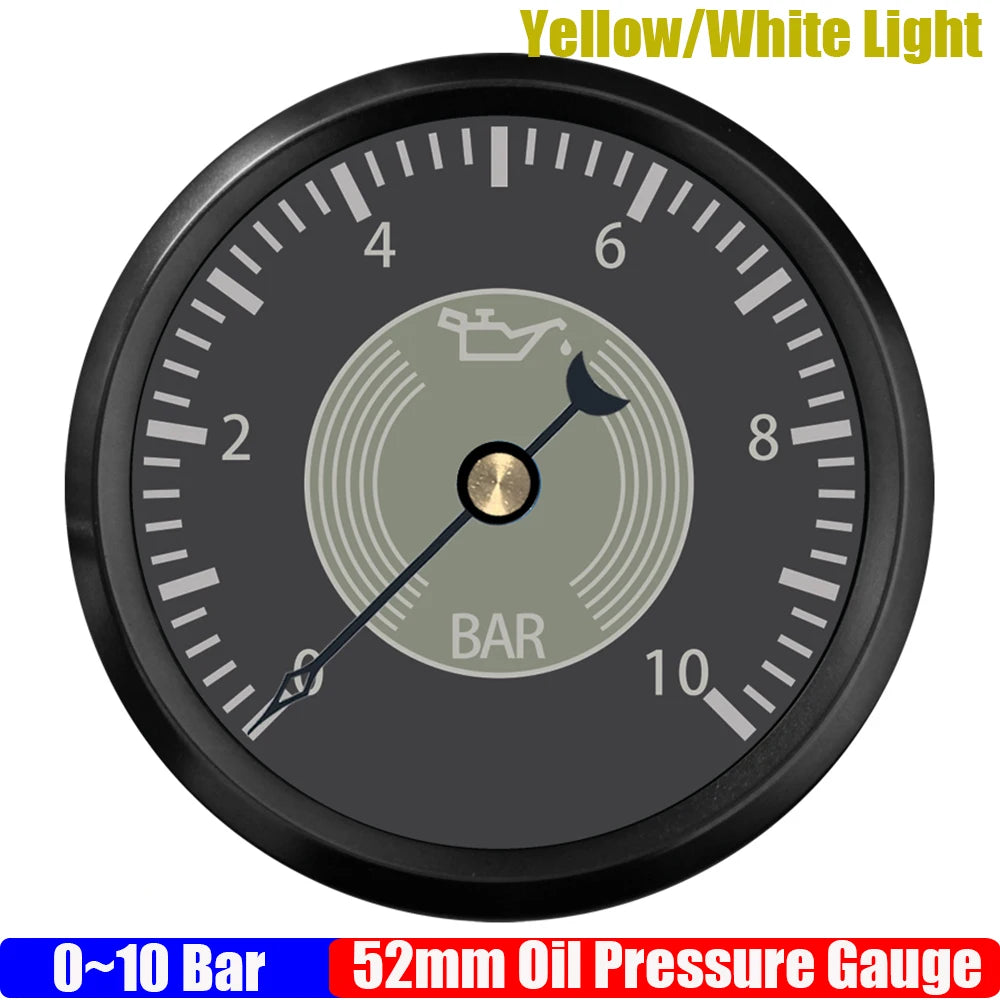

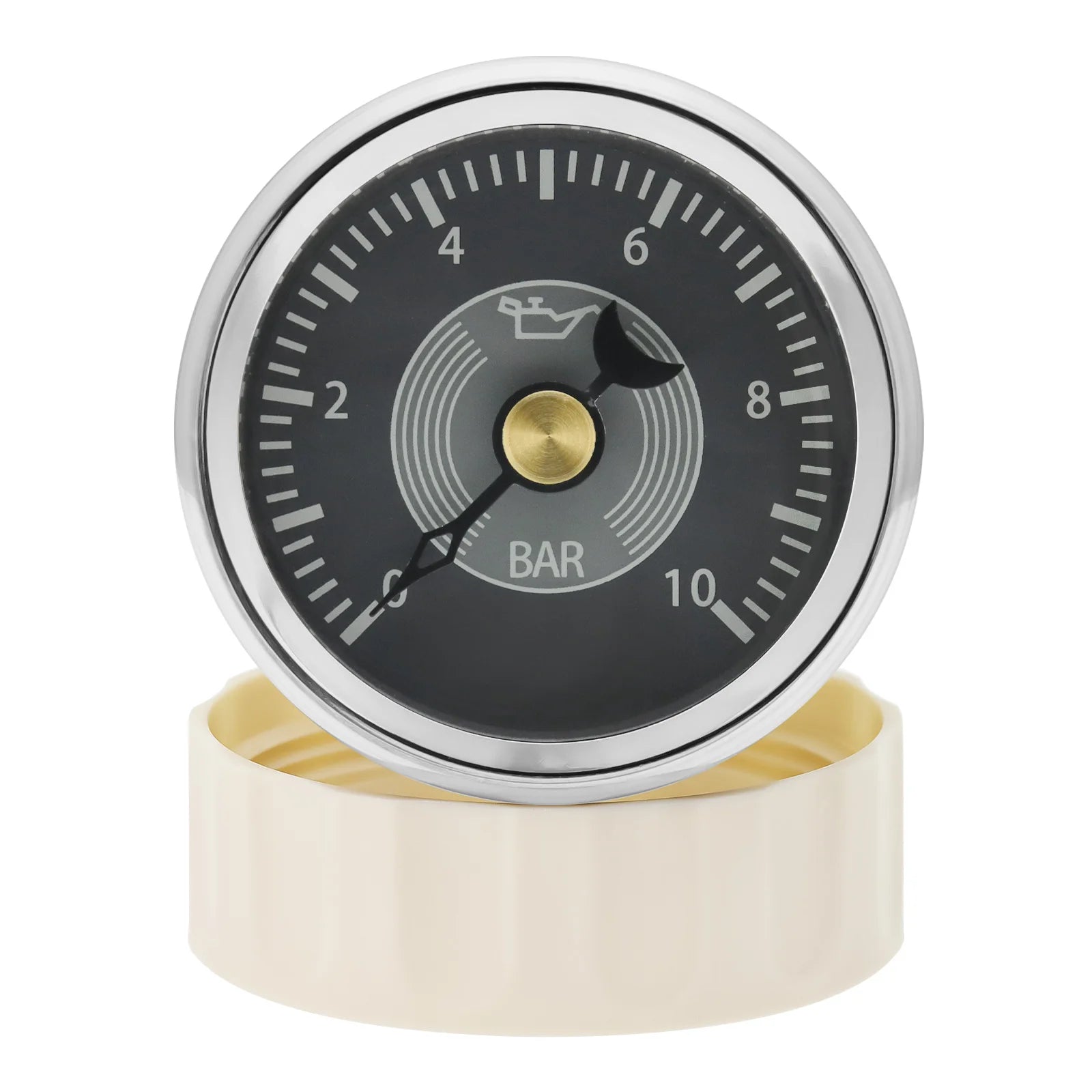

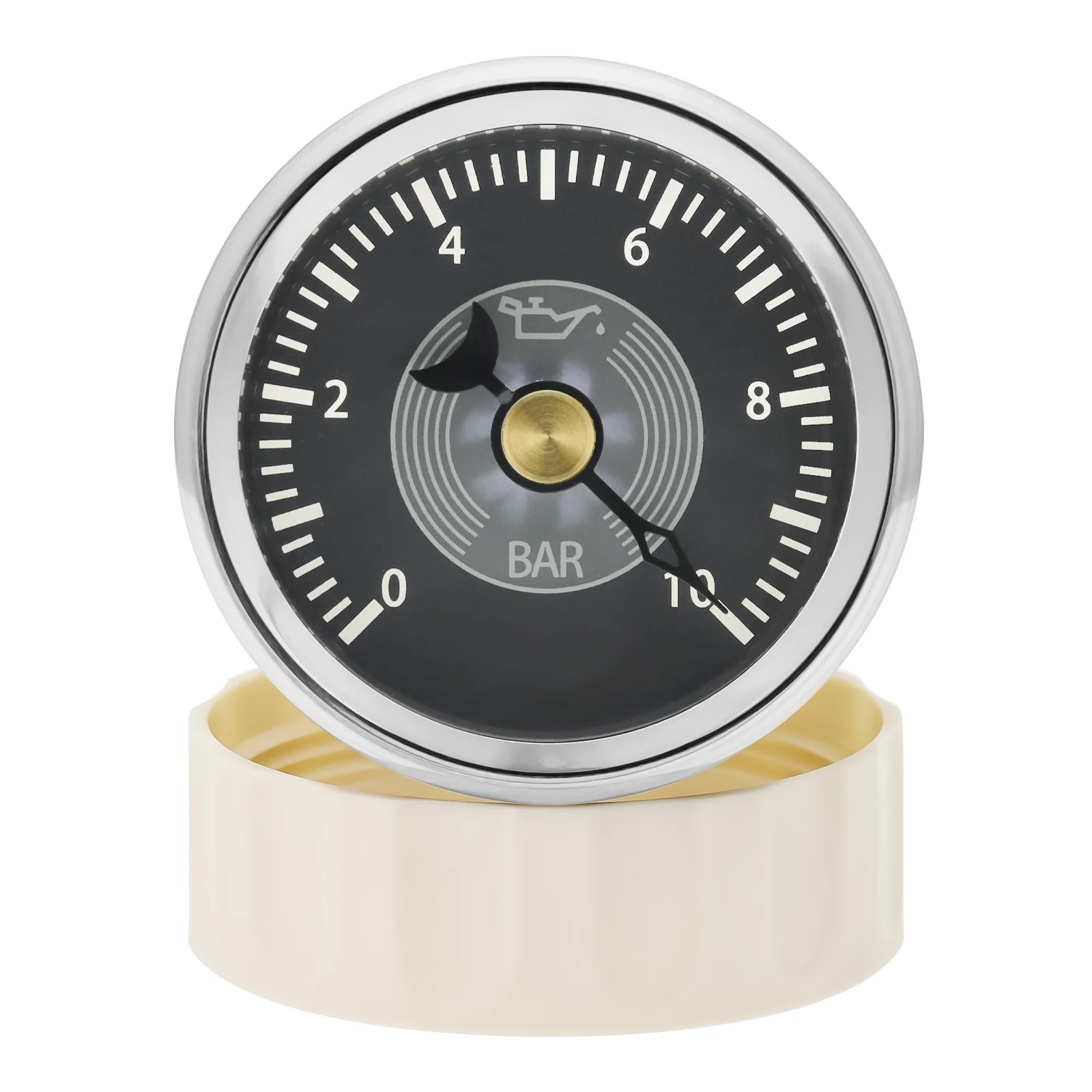

- Oil Pressure Gauge: 0~10 Bar
- Fuel Level Gauge: 0~190 ohm

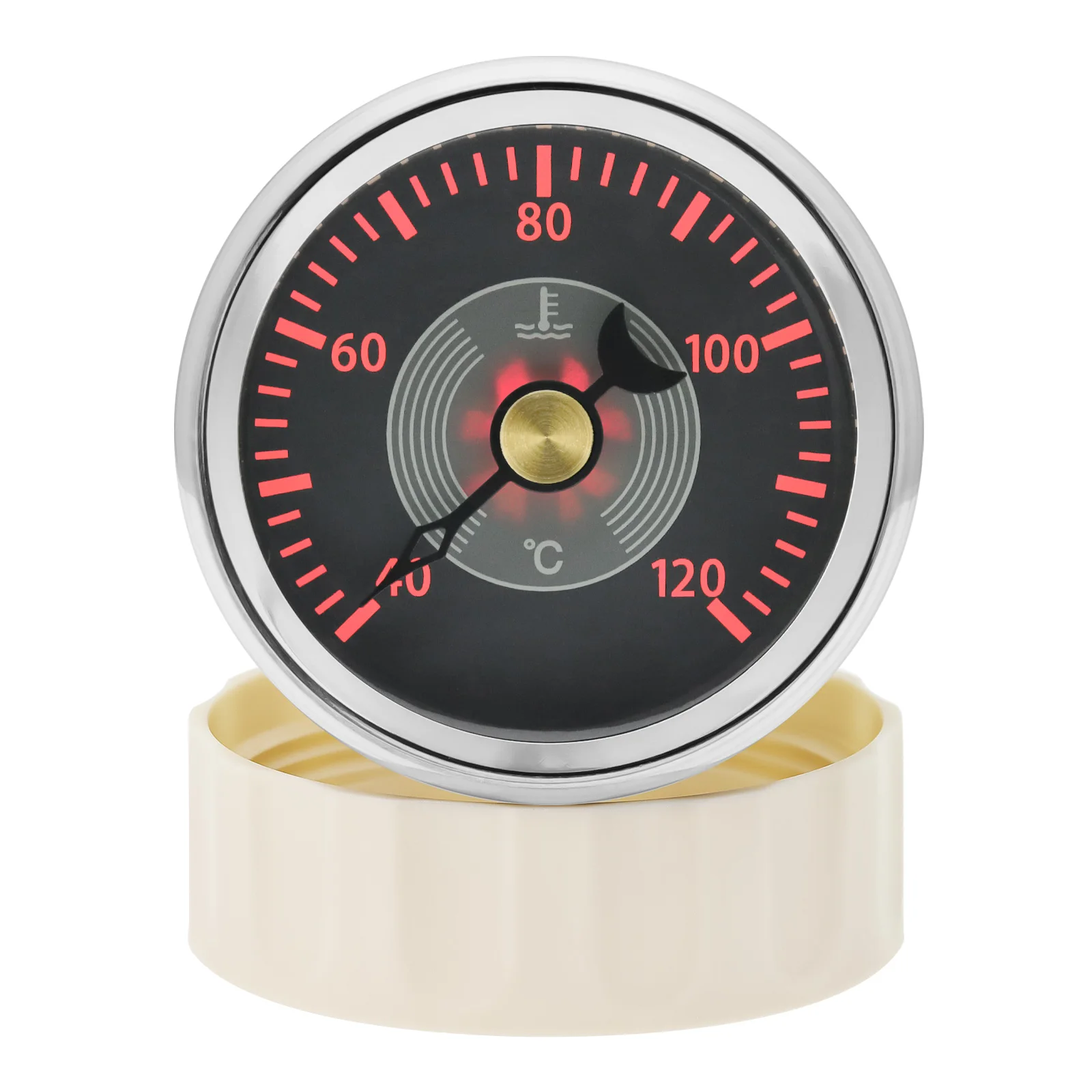

- Water Temperature Gauge: 40~120℃
- Voltmeter: 8~16V, work on DC12V
- Work on DC12V24V

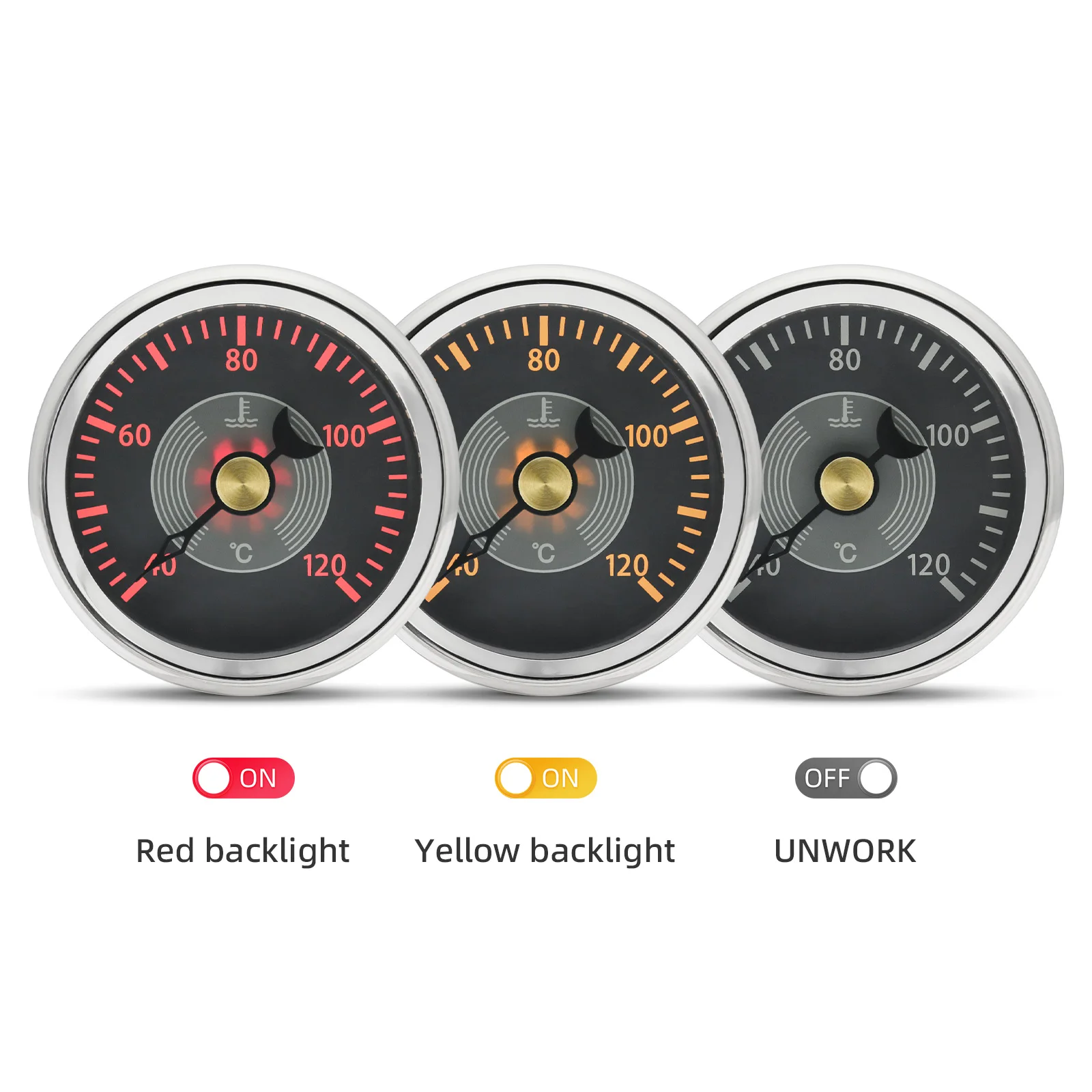

- Yellow, Red BackLight

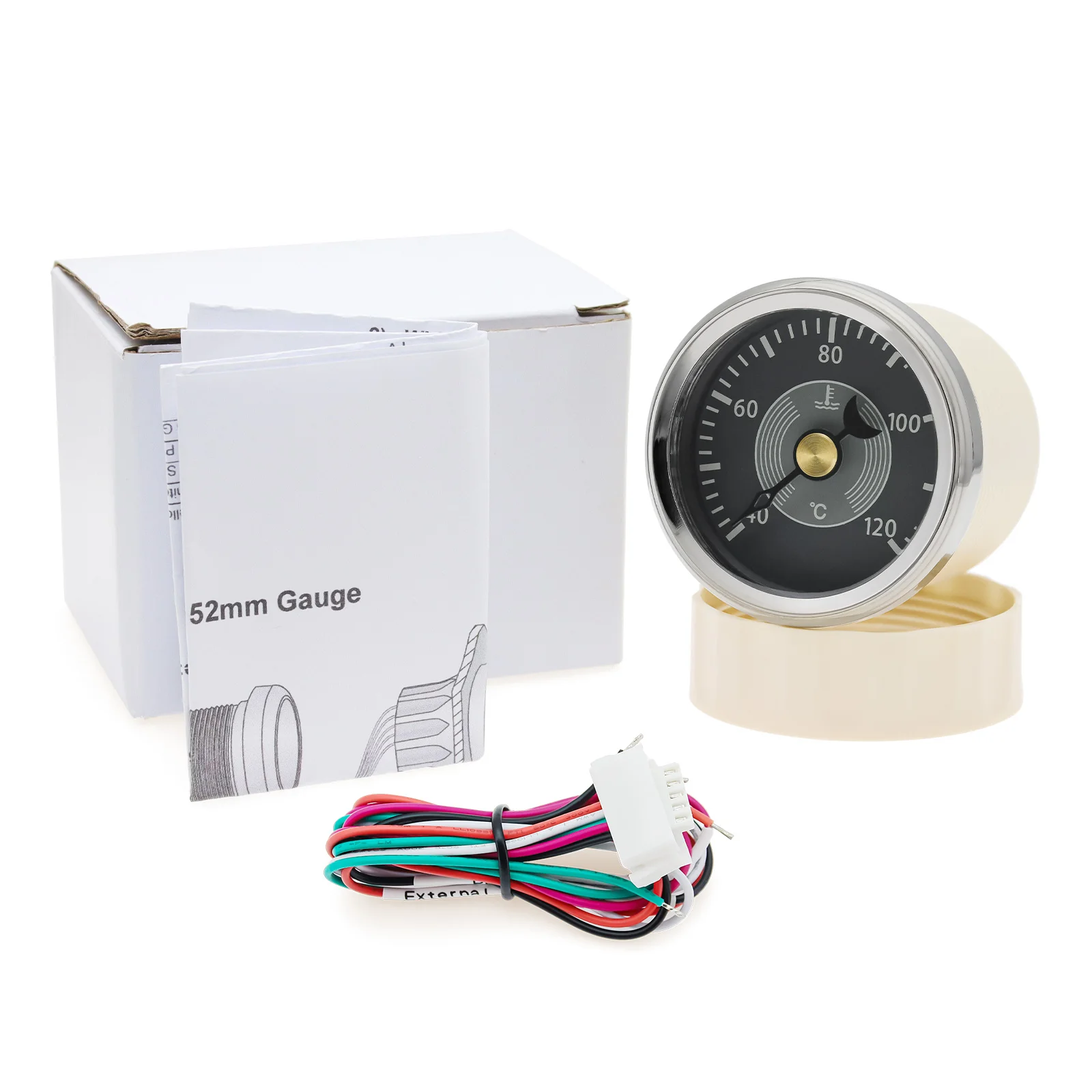

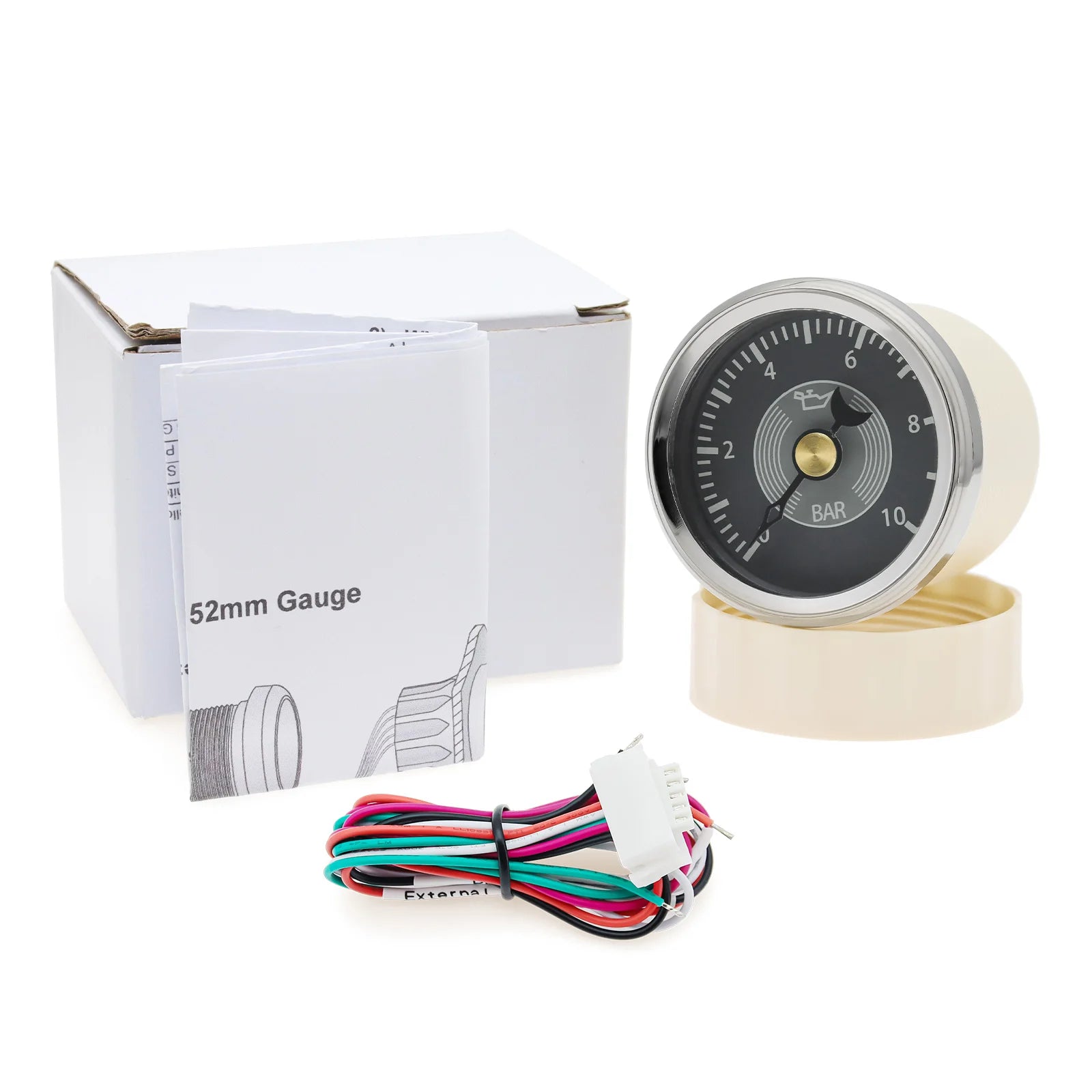

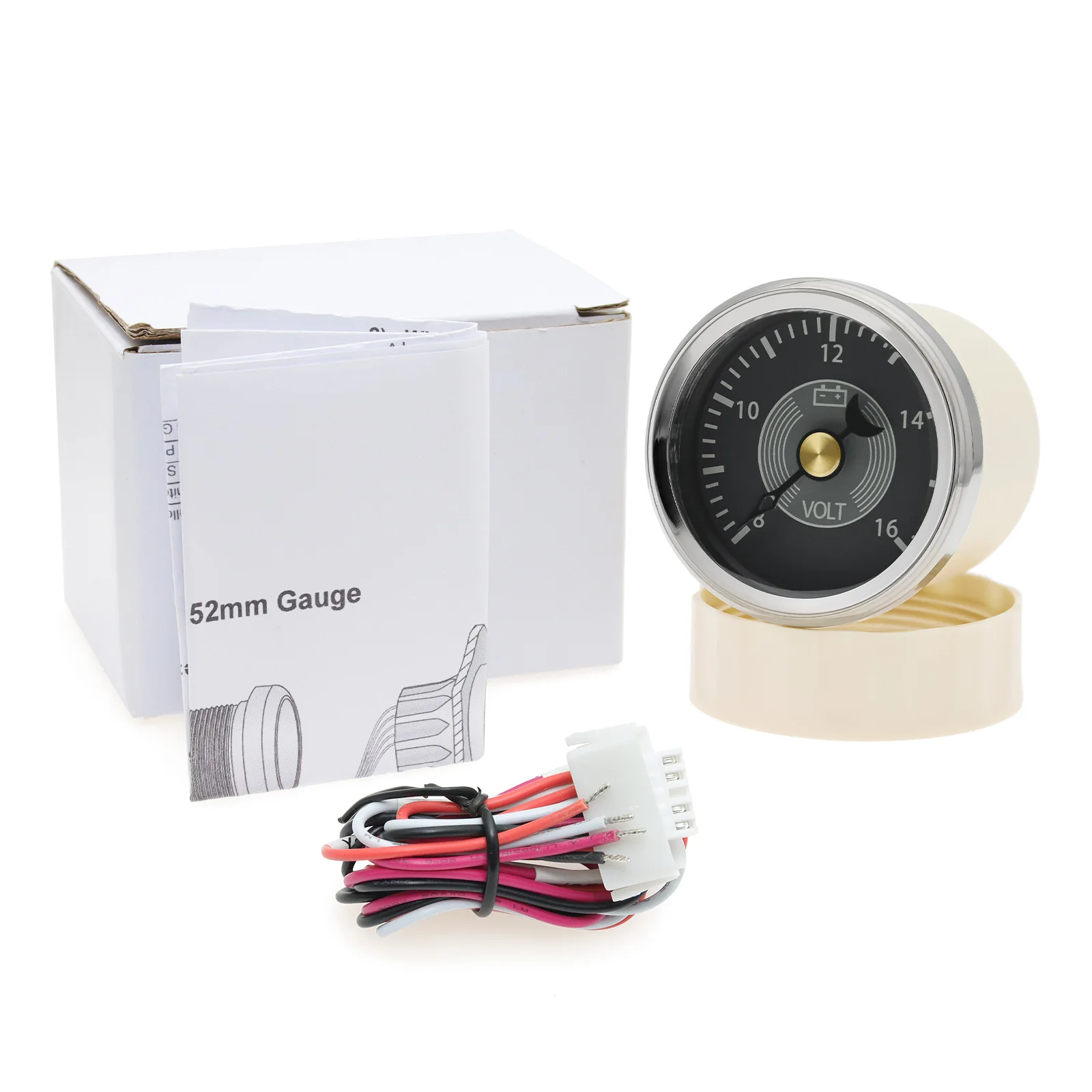

Package: 1PCS Gauge+Cable+Manual

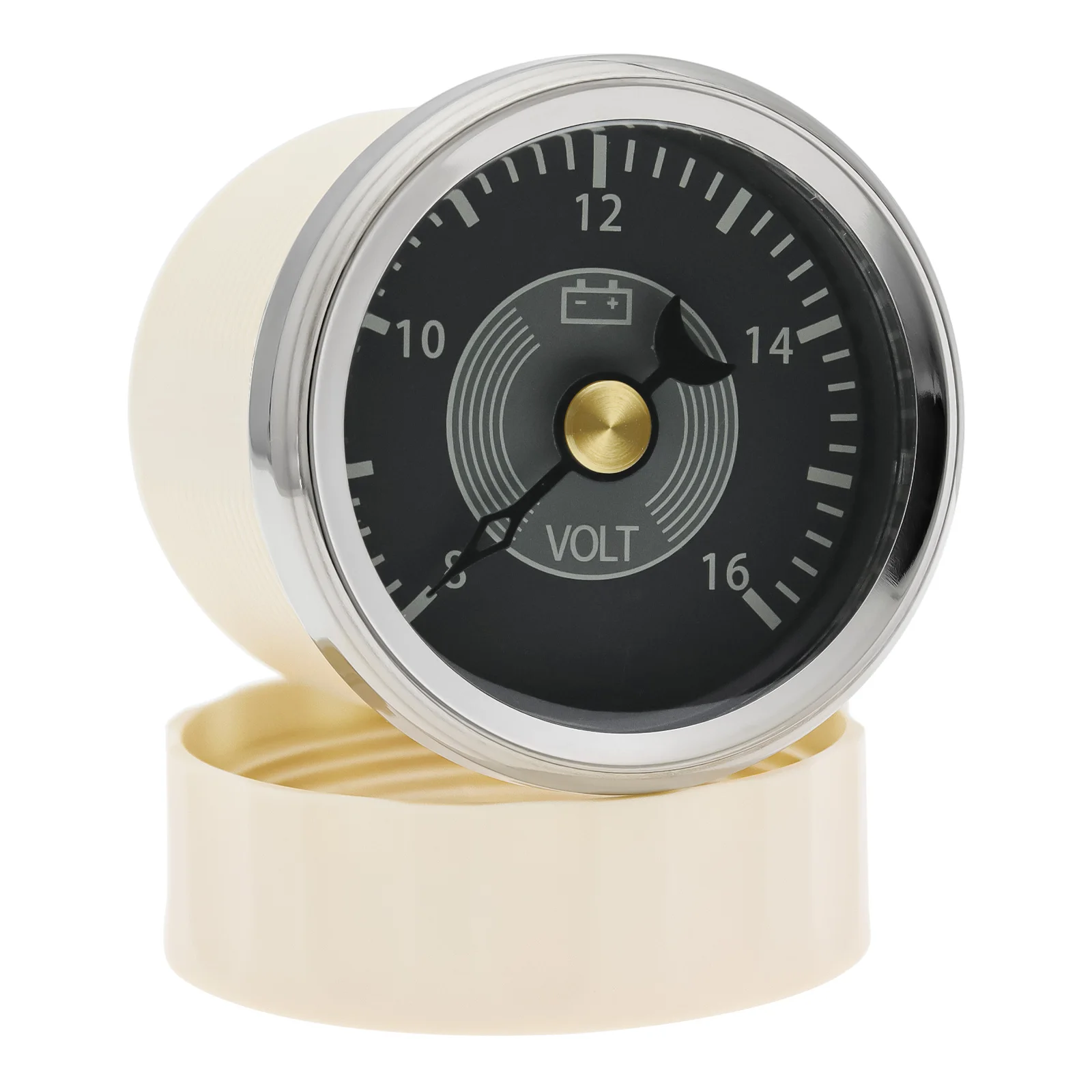

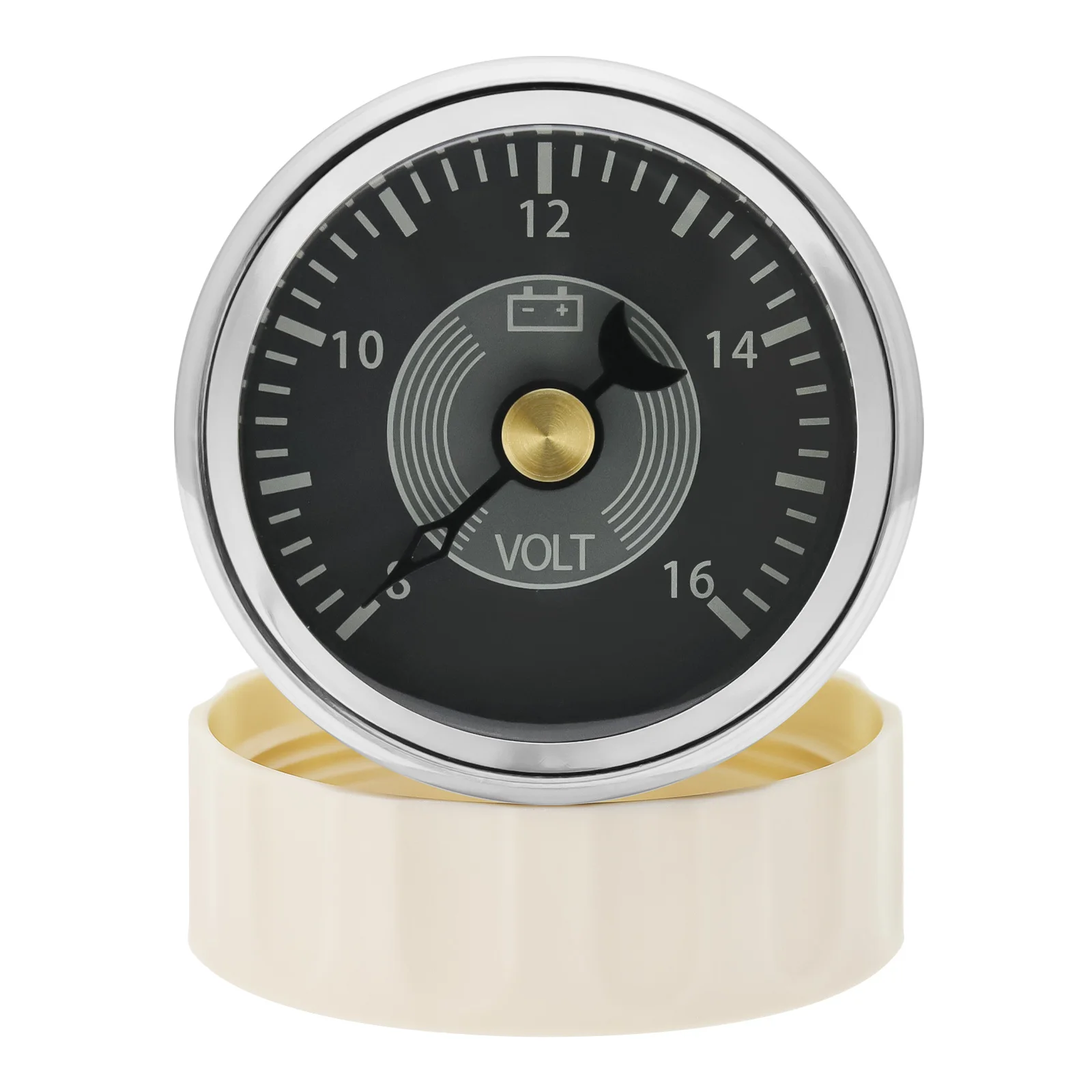

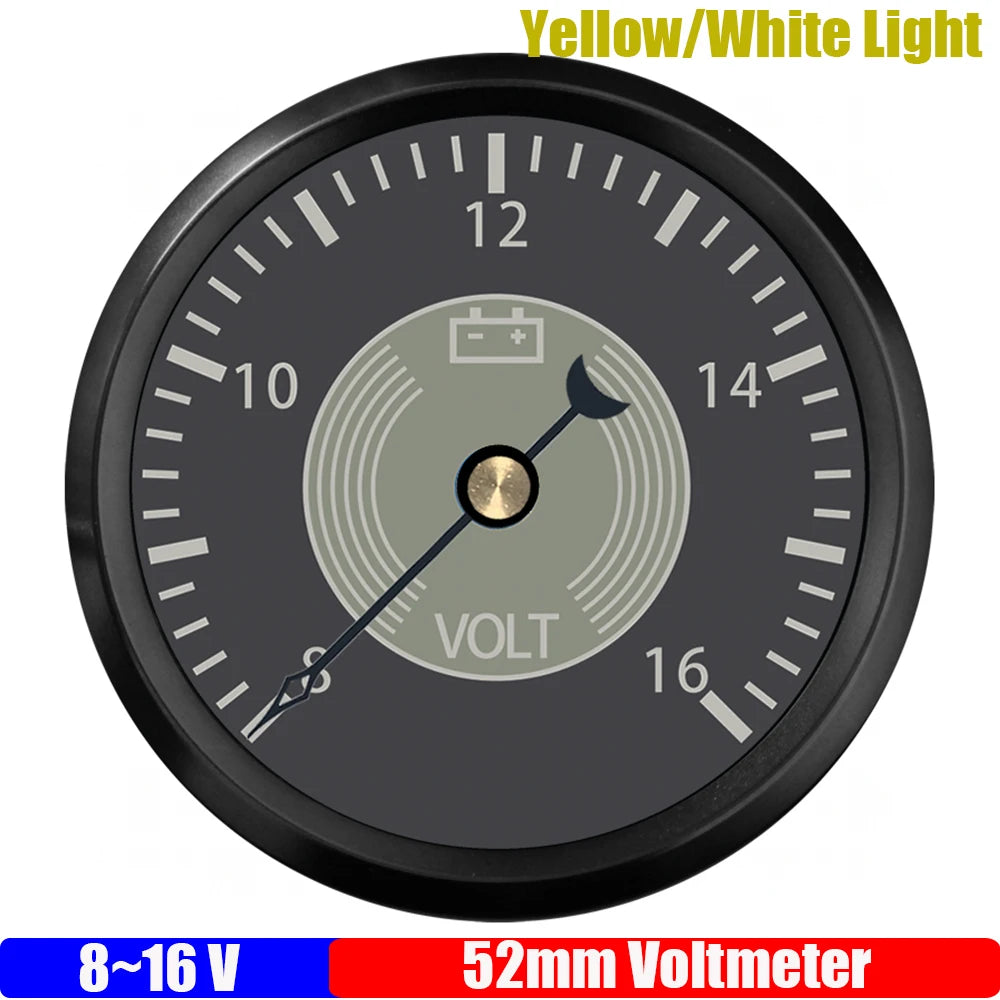

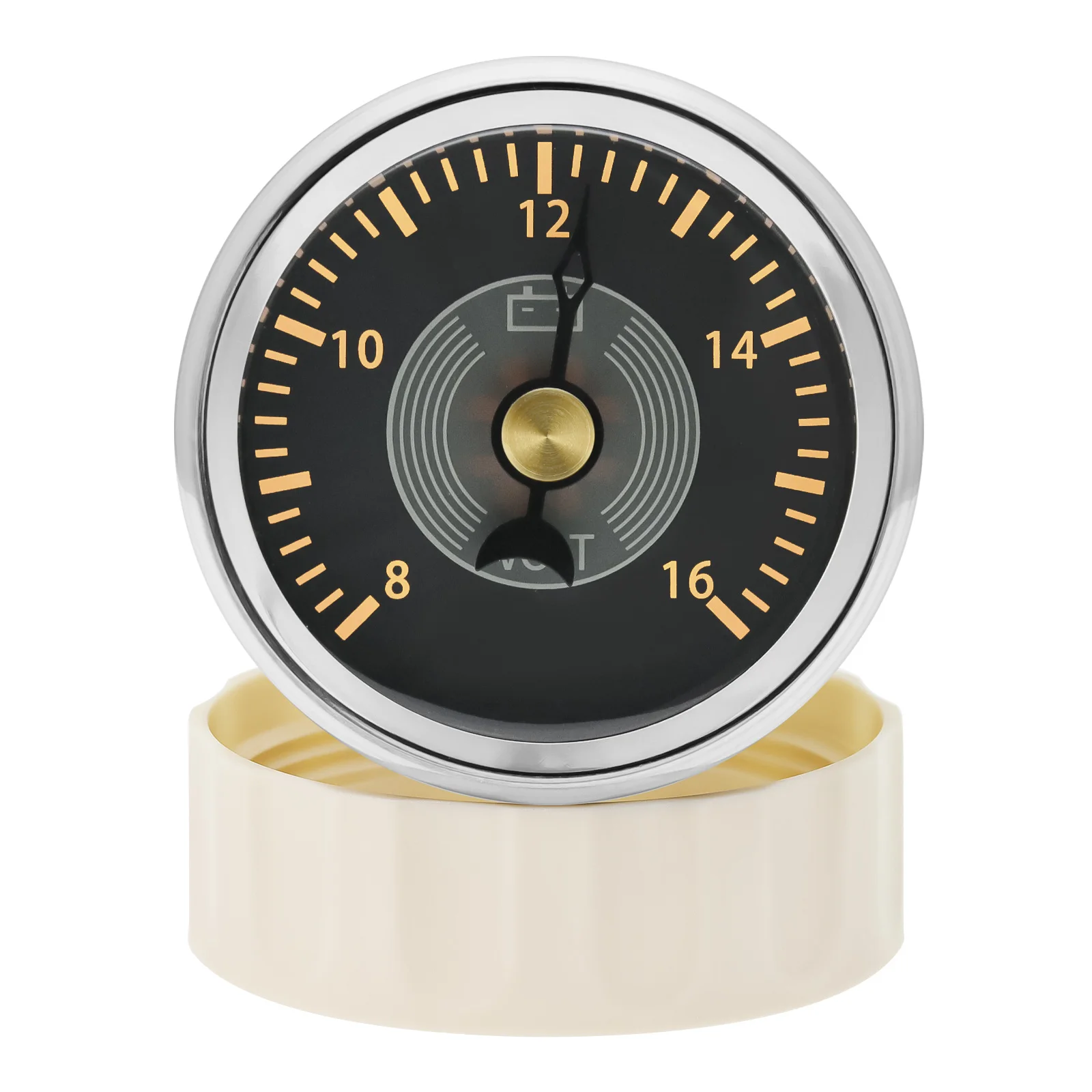

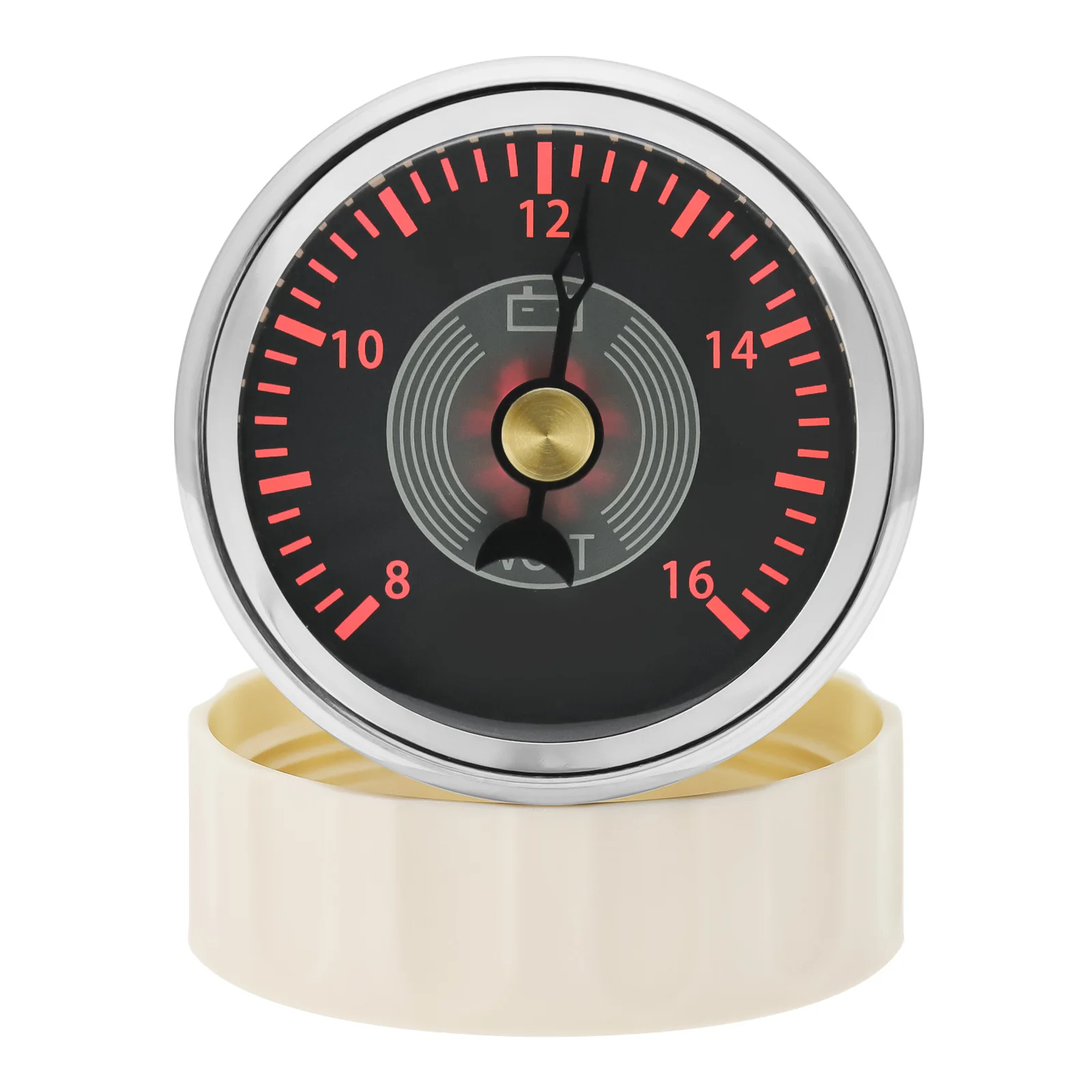

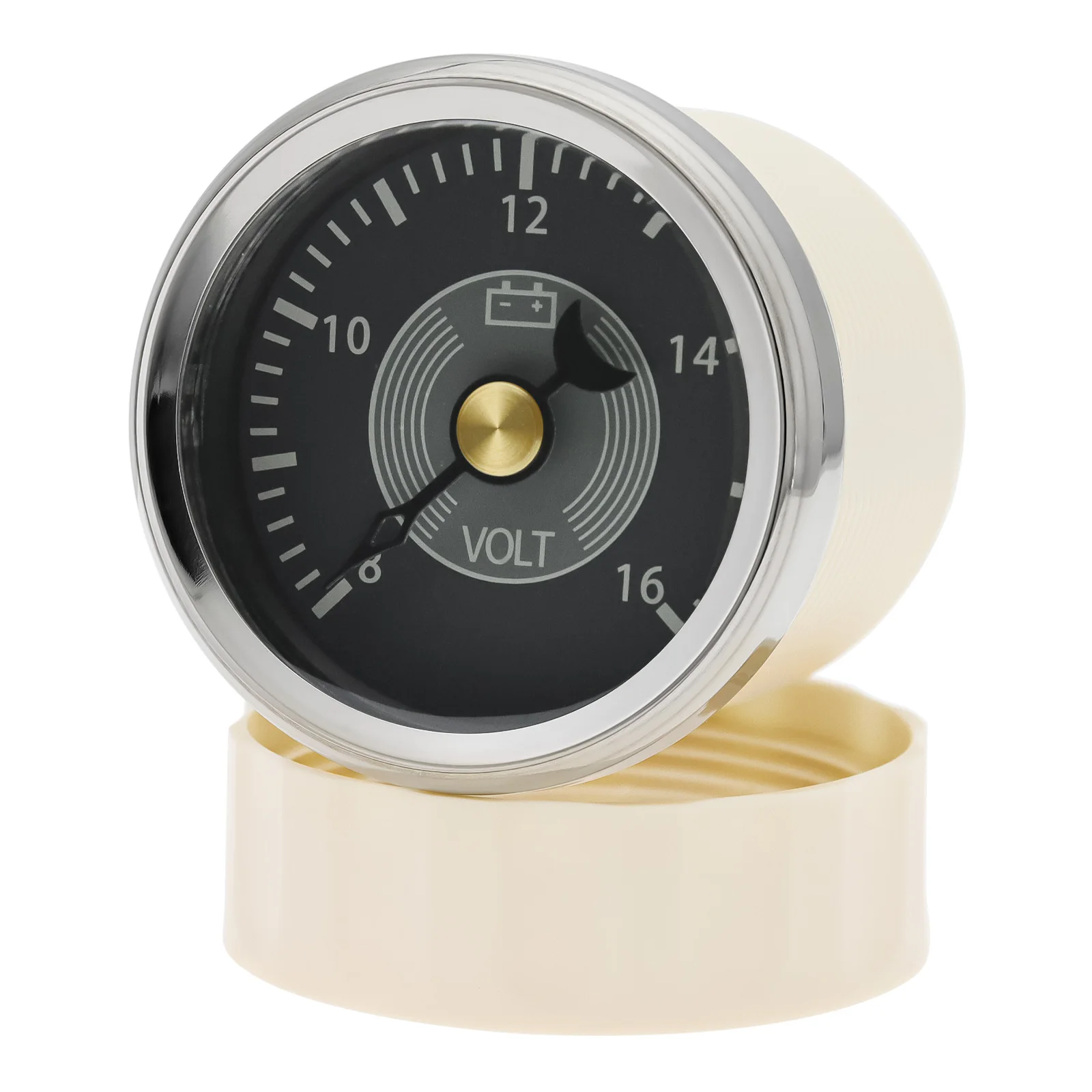

52mm Voltmeter:

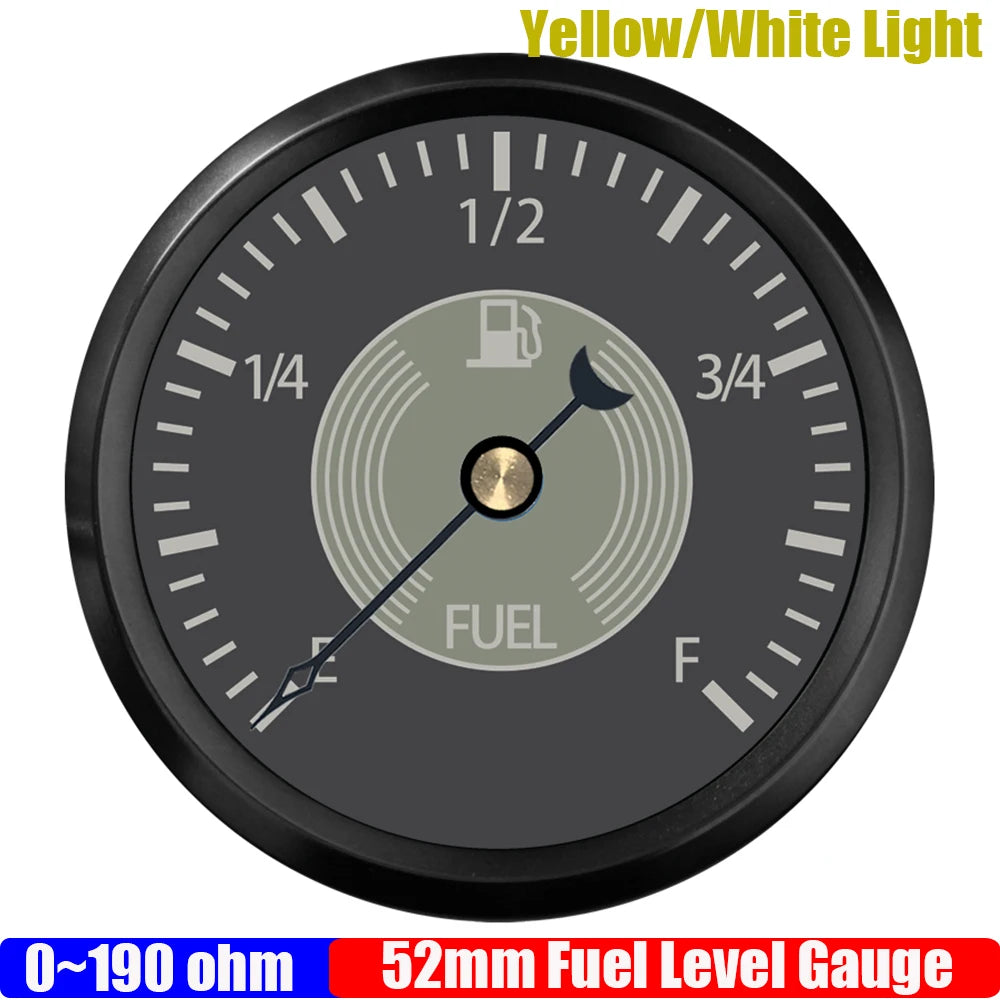

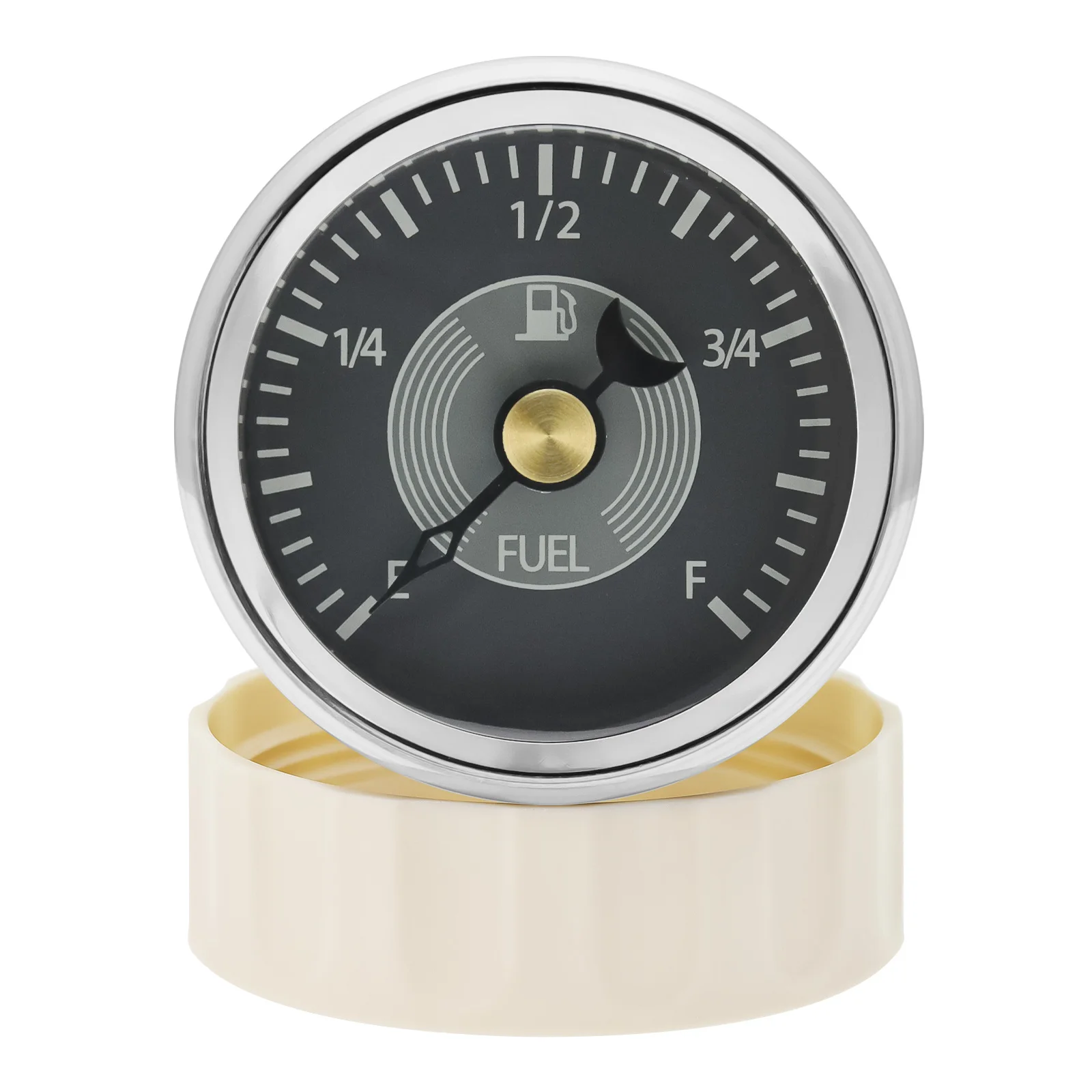

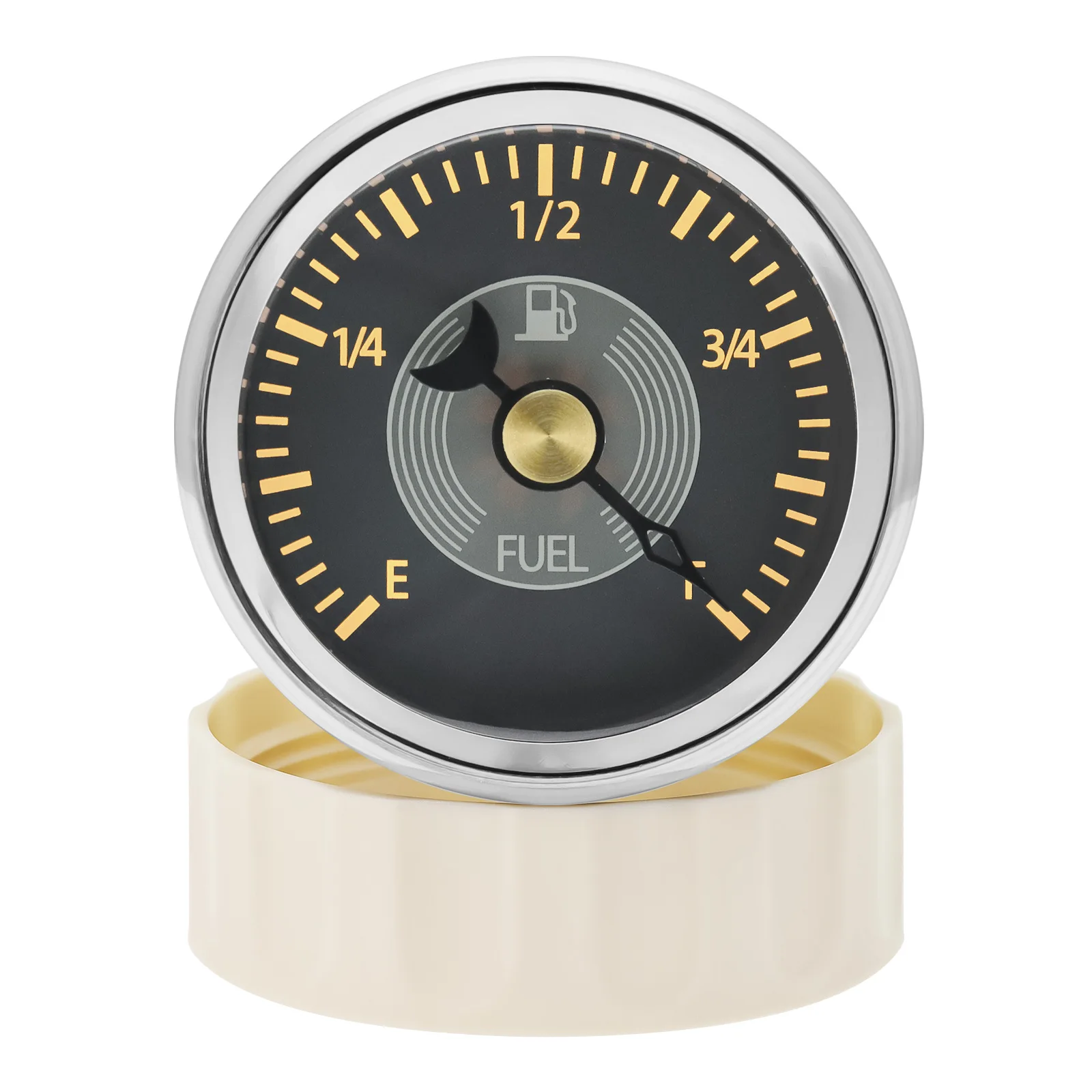

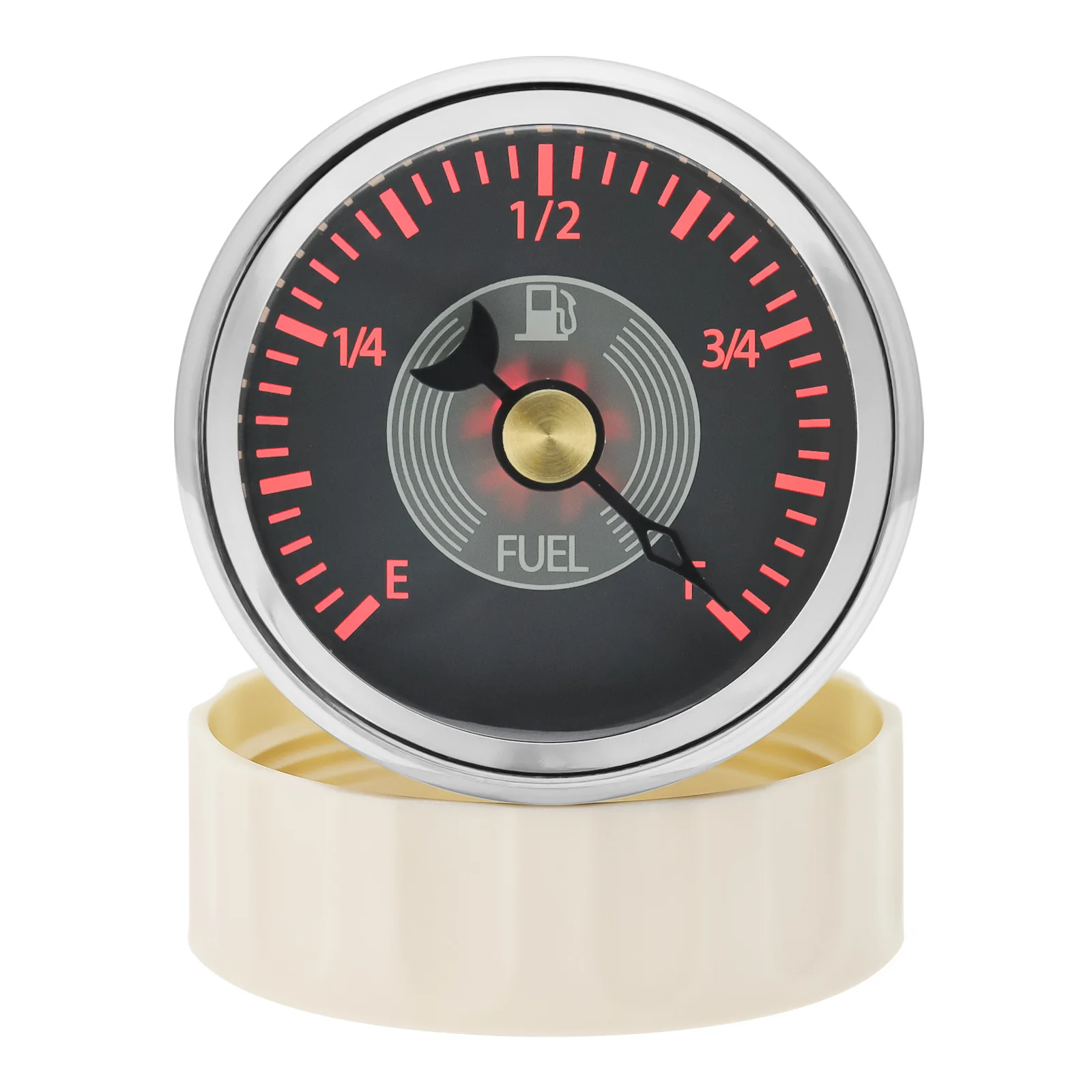

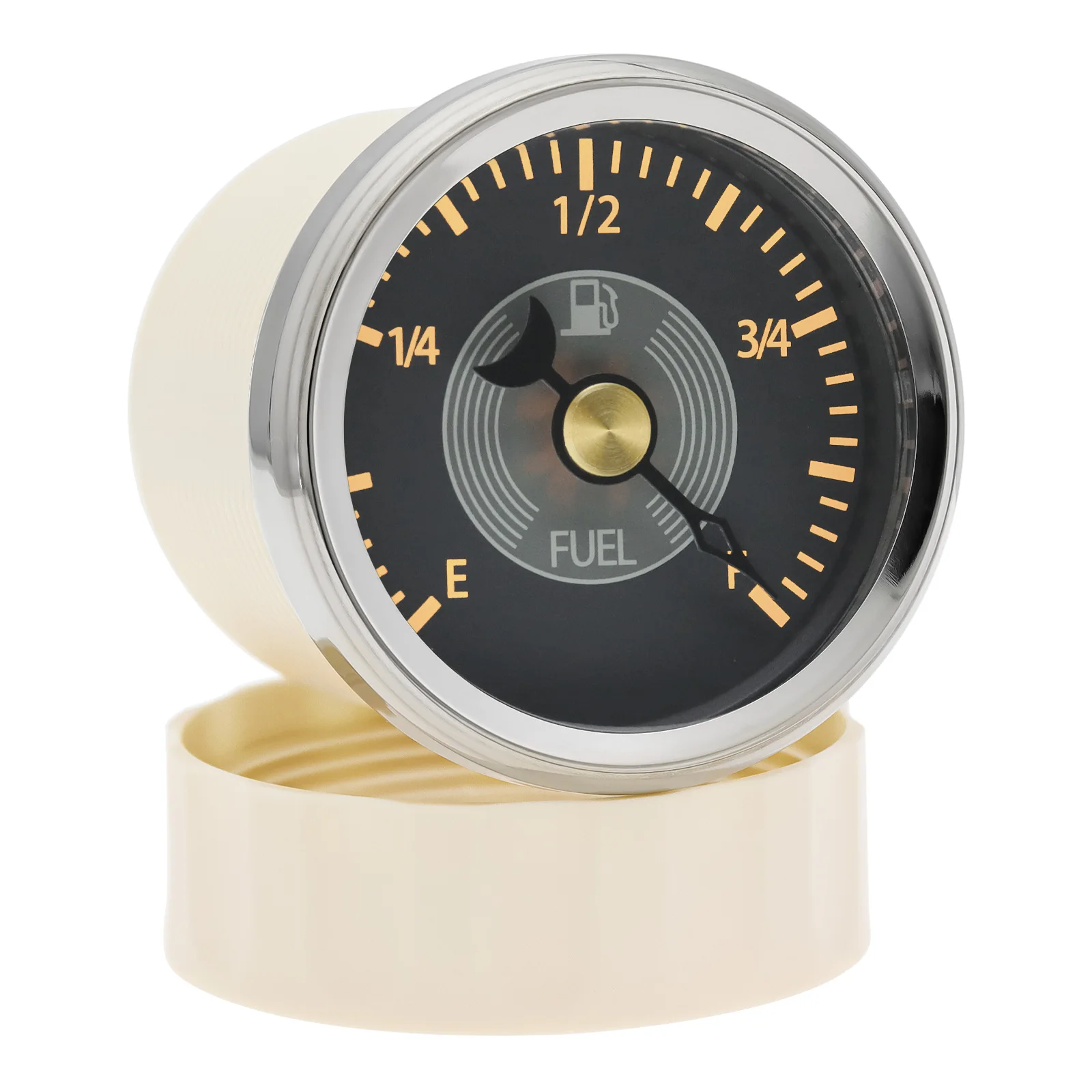

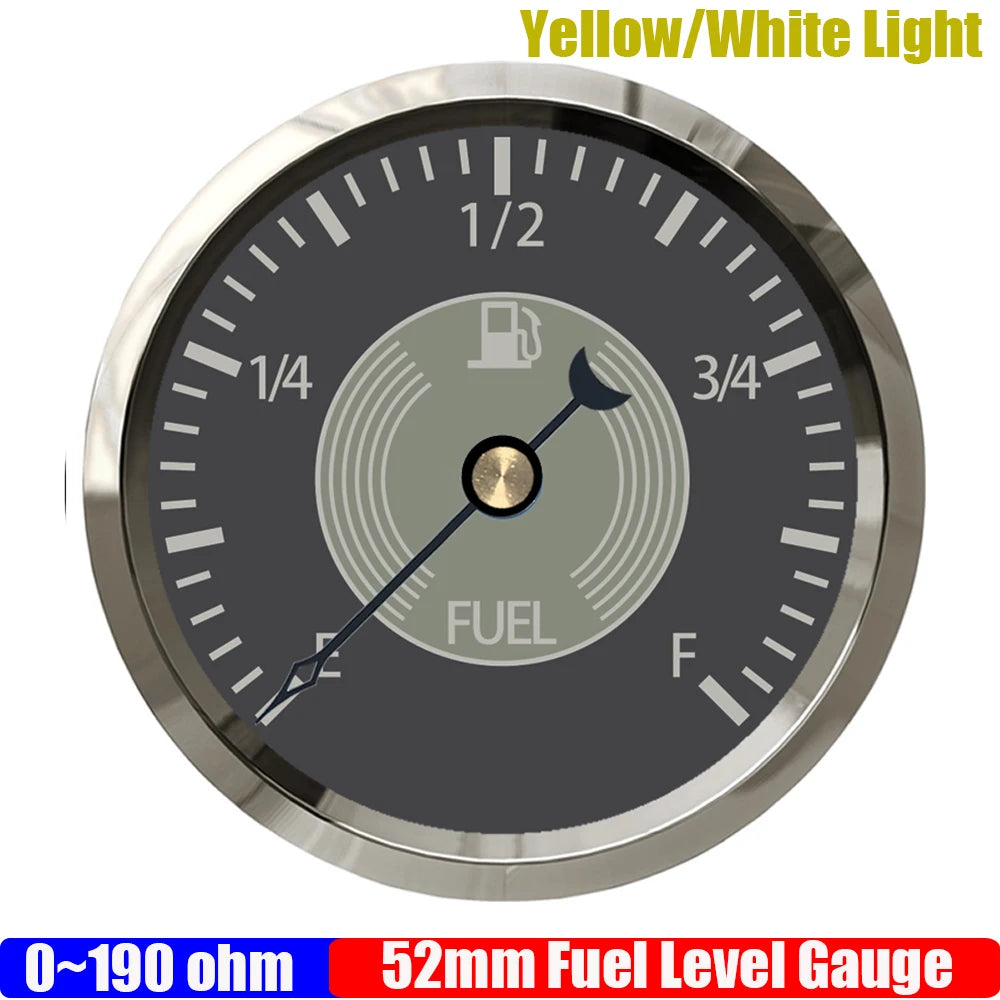

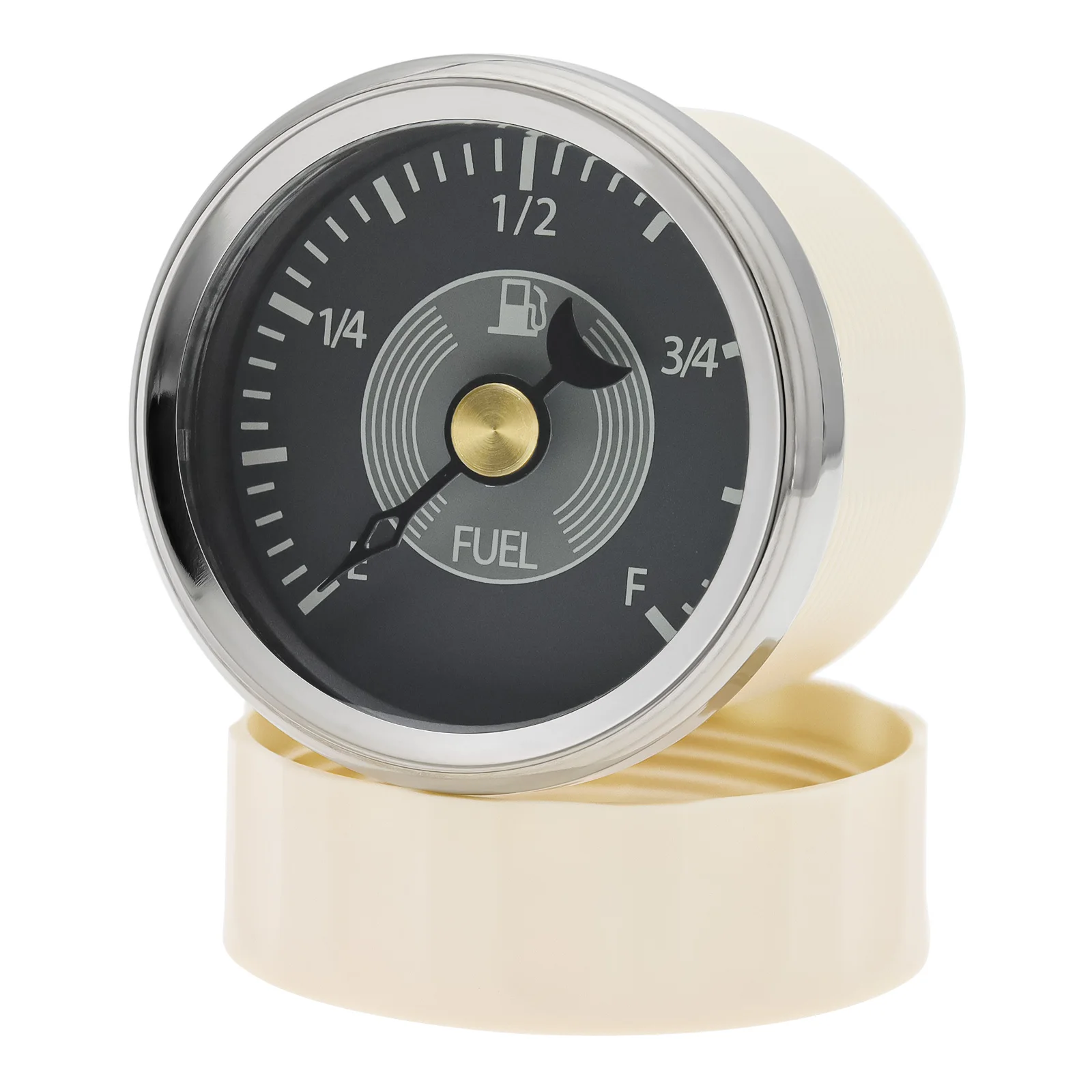

52mm Fuel Gauge:

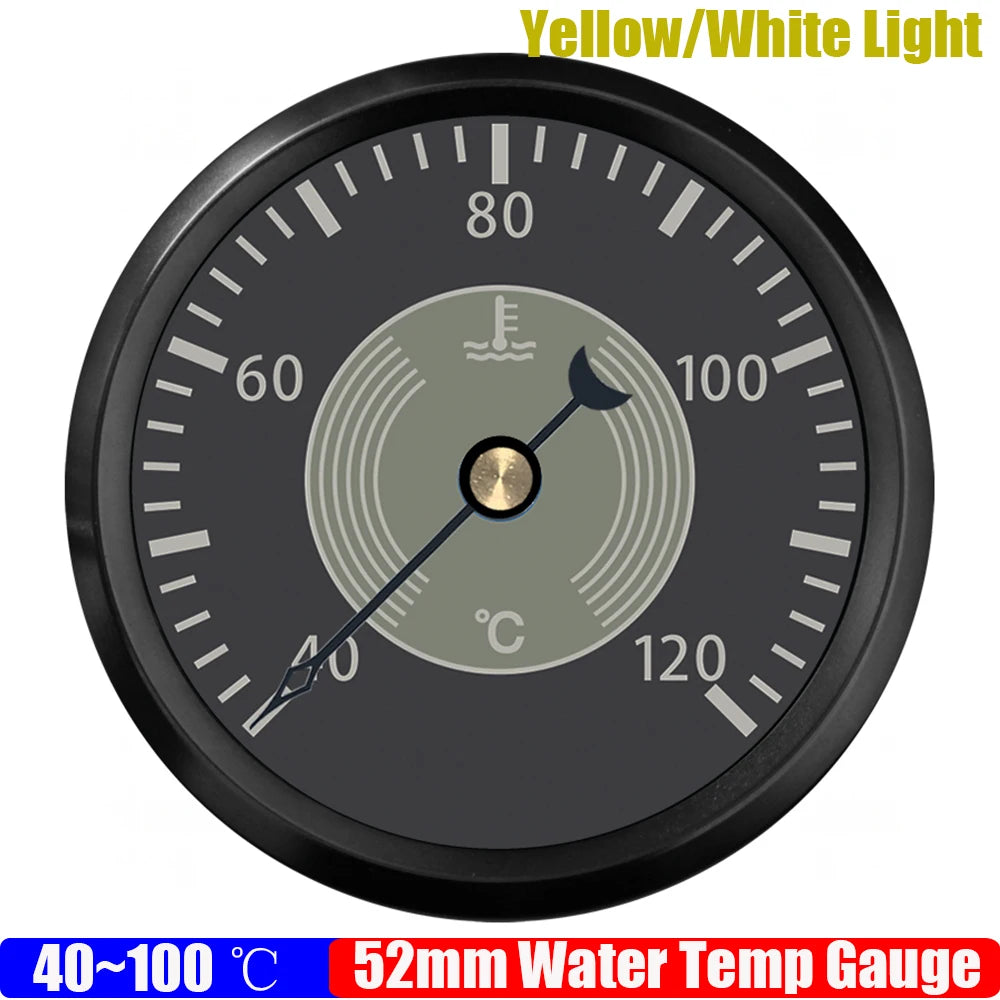

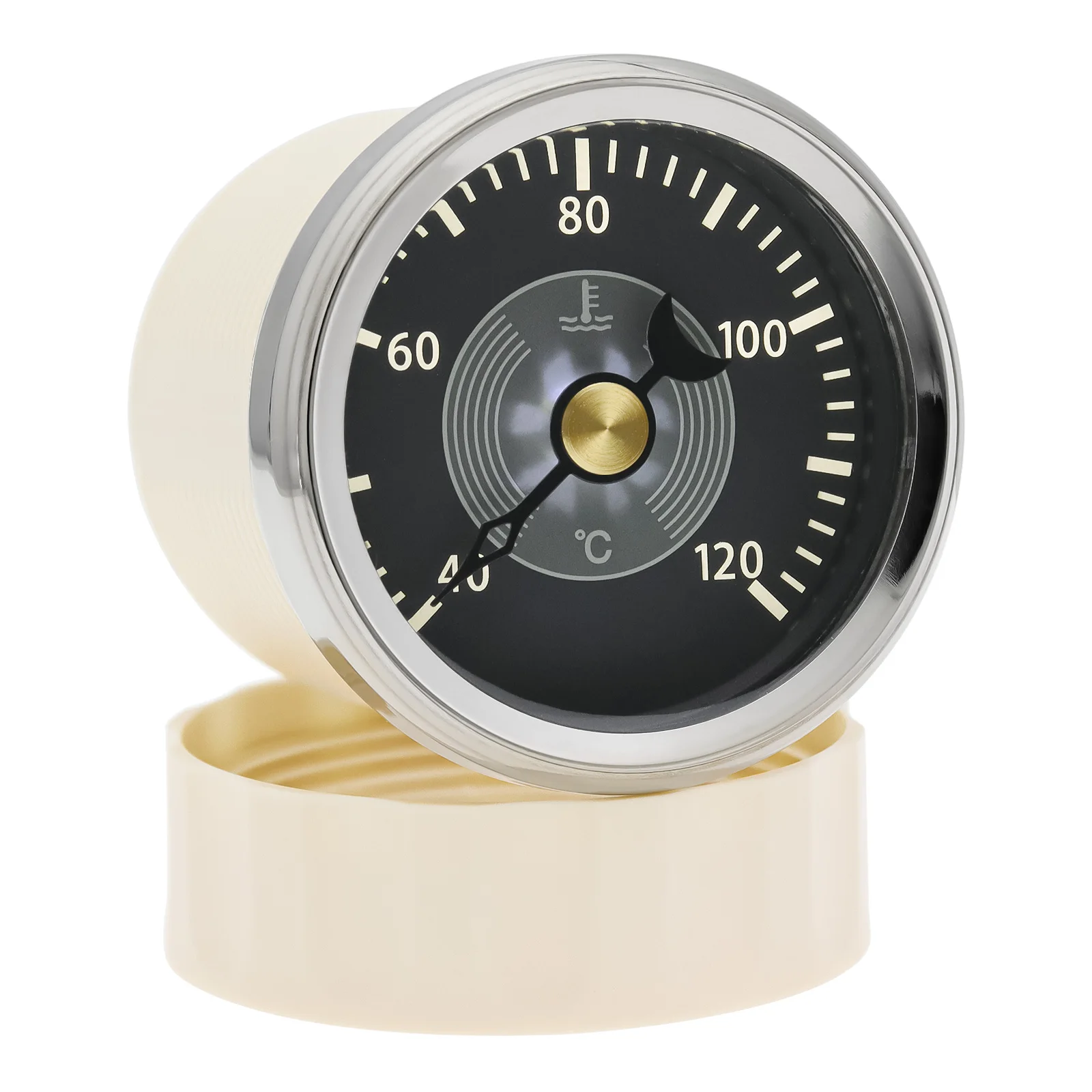

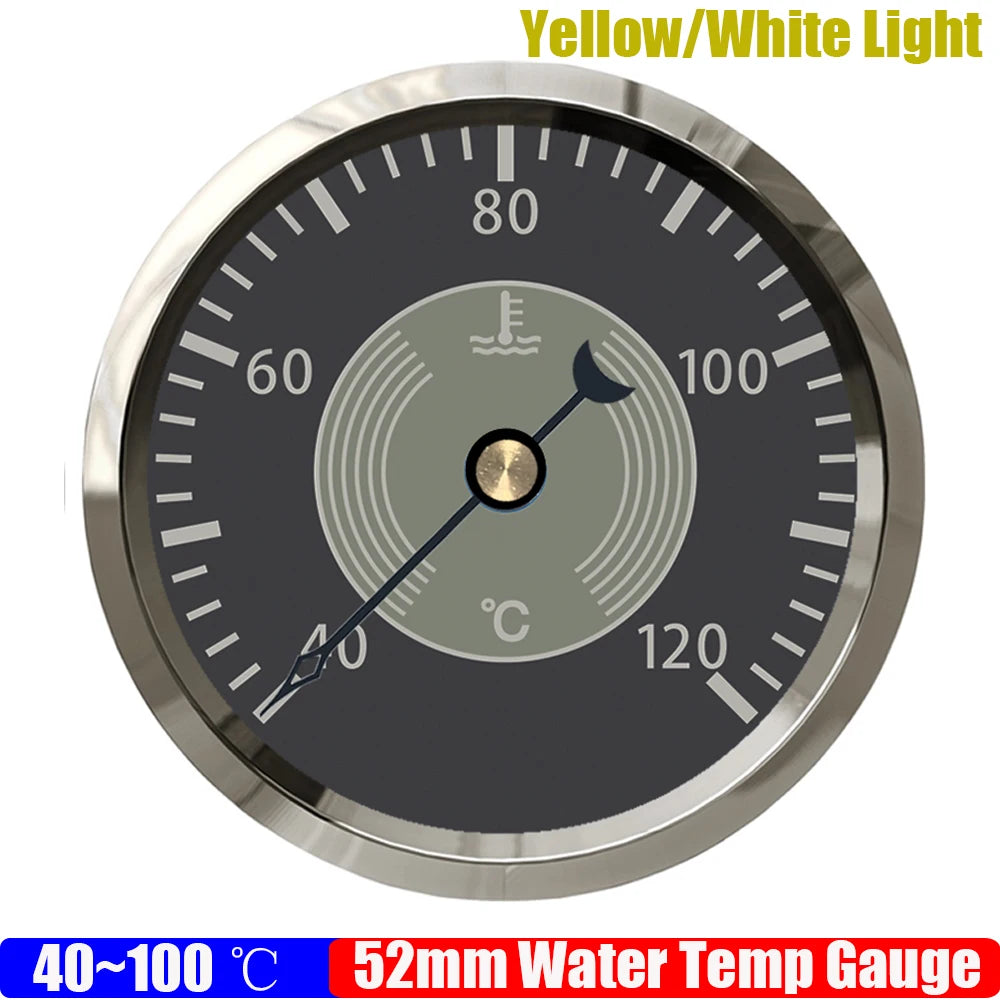

52mm Water Temp Gauge:
