433MHz Wireless Remote Control Switch with LED

Key Features

• Ultra Low Power — It is ultra low power, with a high sensitive response.
• Long Working Distance — It works at 20 meters or more in open space.
• Three Working Modes — It offers momentary, toggle and latching modes.

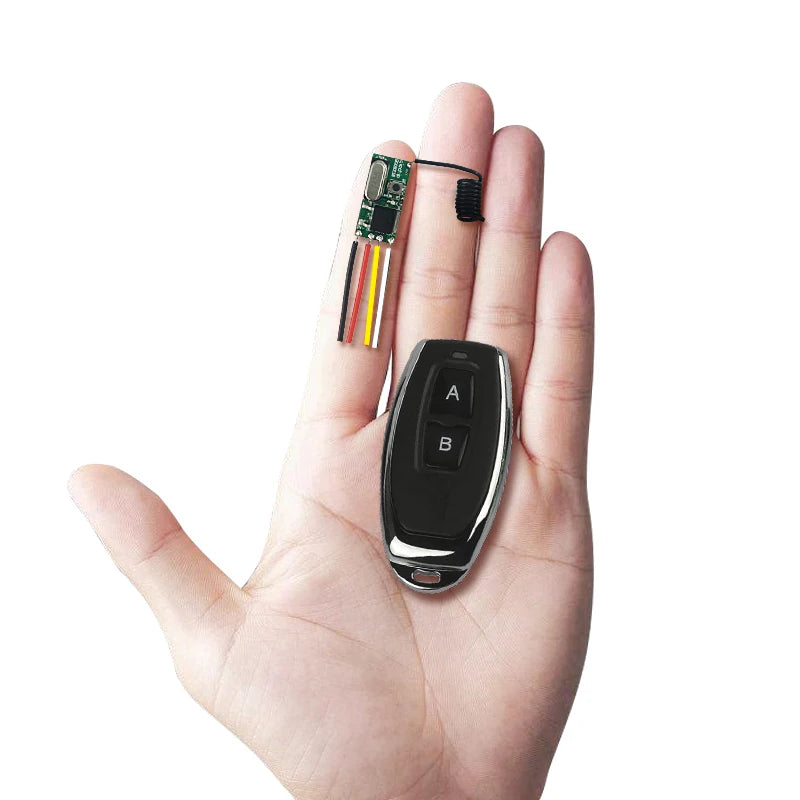

• 1527 Mini Receiver — It is a mini receiver that supports the 1527 learning code format.

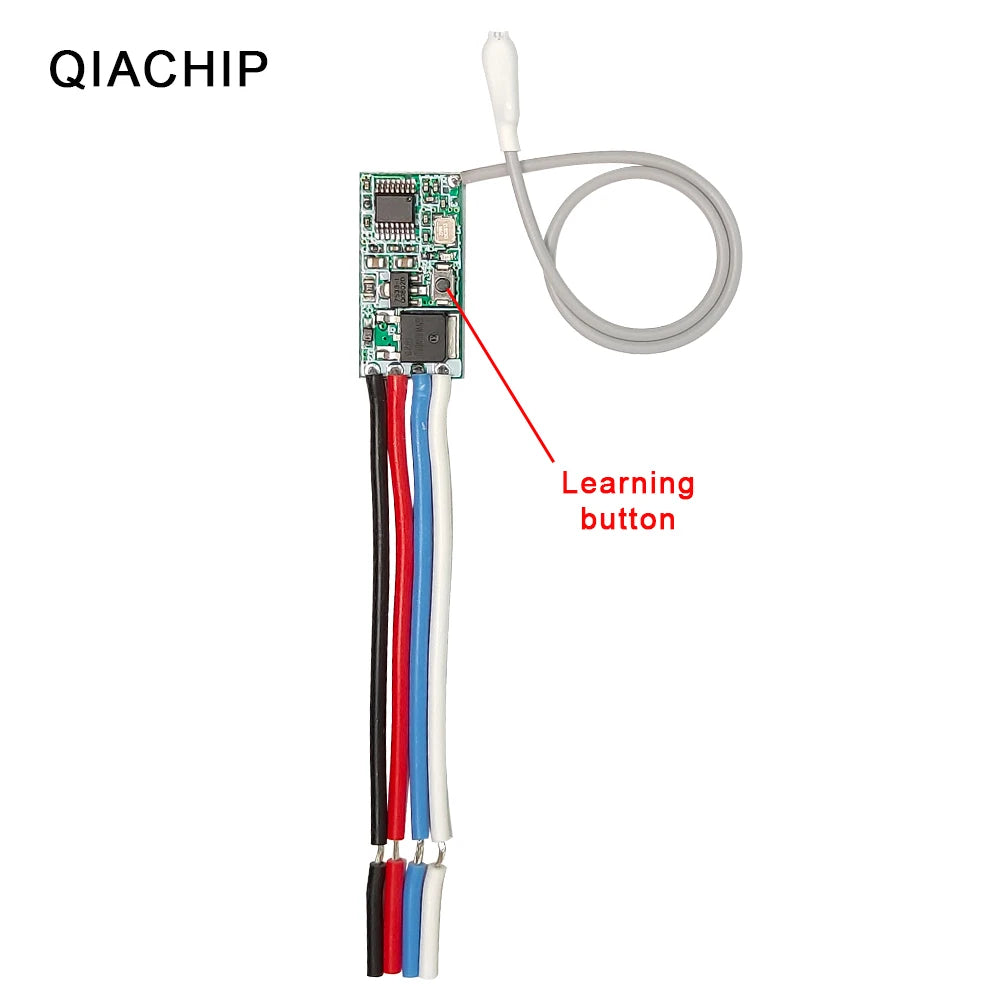

• Learning Button Setup — The module learns new remotes through its learning button.

Product Specifications

• Color: Black
• Voltage: 3.6V

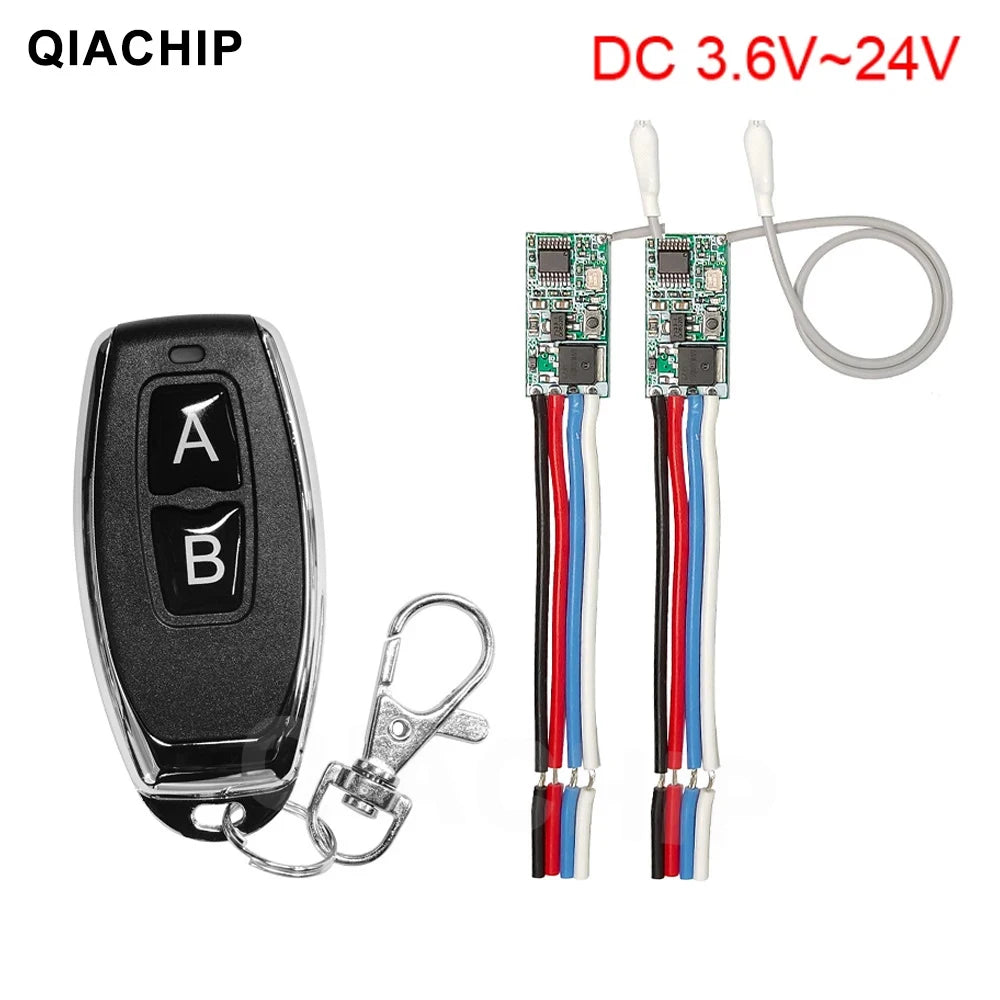

• Working voltage: DC 3.6V~24V
• Frequency: 433 MHz
• Maximum load: 2A
• Working current: 12mA
• Static current: 3.6 mA ~ 5.5mA
• Working temperature: -20 degrees 80 degrees
• Working mode: Momentary, Toggle, Latching Mode
• Wireless operating distance: 50m (Free Space)
• Stored remote controls: 10 or fewer
• Package Size: 6.2 × 2.9 × 1.2 cm (2.44 × 1.14 × 0.47 in)

What It Is / How It Works

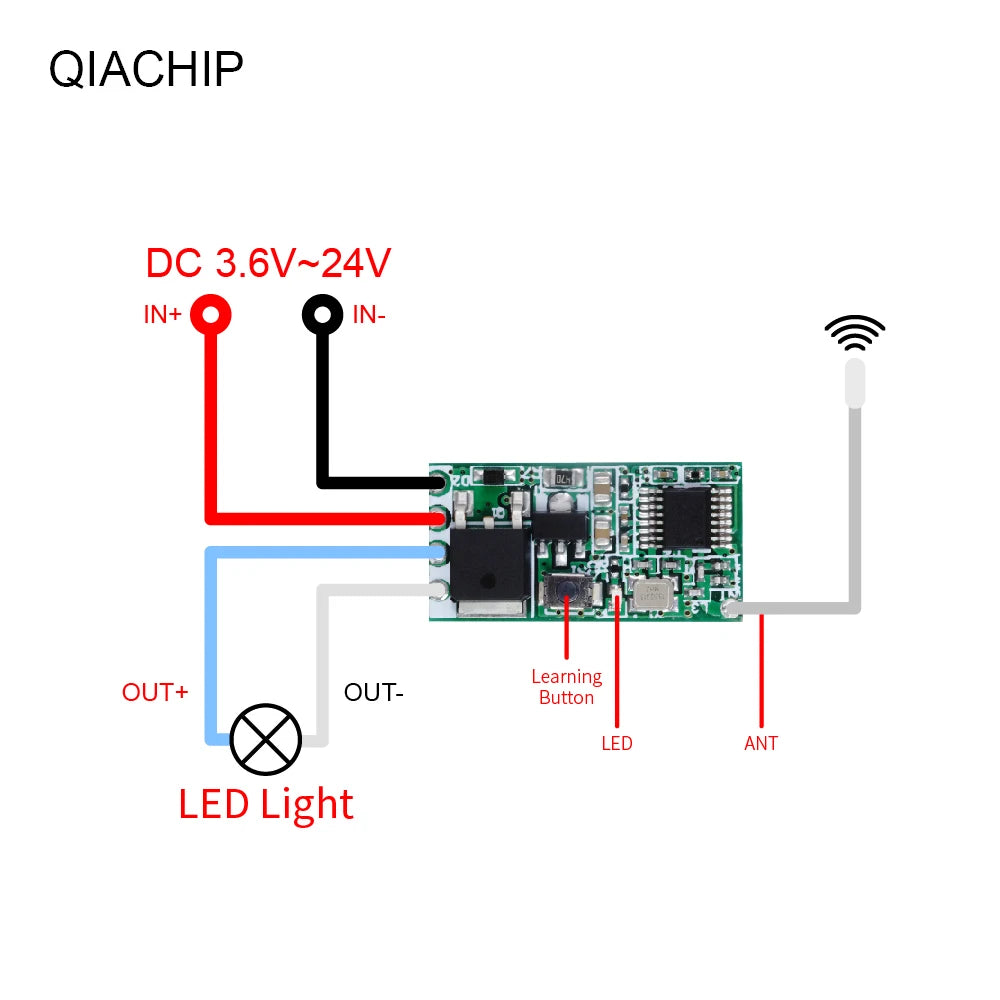

This wireless remote control switch is a 433 MHz RF switch with a remote transmitter. It is built to turn a connected DC device on and off by remote control.

Who It's For / Use Cases

Wireless remote switches suit people who want to turn a low-voltage DC device on and off from across a room or a yard instead of at a wall switch.

How to Use / Care

1. Use it to switch a connected DC device on or off with the remote control.
2. Press the remote button to connect the relay, and release it to disconnect the relay.

How to Choose

Choose a remote switch by matching its voltage range to the DC supply your device uses, with some margin below the top of the range. Check the working current and load limit against the device before connecting it. Wireless range also matters, so consider the distance between the remote and the receiver.

Frequently Asked Questions

What voltage does it run on?
It runs on a DC input from 3.6V to 24V, so 3.6V, 12V and 24V DC supplies all fall within that range.

How far does the remote work?
It works at 20 meters or more in open space, and its wireless operating distance is 50m in free space.

How many remotes can it store?
It stores up to 10 remote controls and uses the 1527 learning code format.

How much current does it draw?
Its working current is 12mA, and its static current is 3.6 mA to 5.5mA.

Does it work with a phone app?
It does not support app control. It is operated with the RF remote.
