MUCAR 892BT PRO Topology AI Key Programmer Automotive Diagnostic Tool J2534 Bidirectional Car Obd2 Scanner ECU Coding CANFD DOIP
$1,391.99
SPECIFICATIONS
Automotive fit type: Universal fit
Battery Included: Yes
Brand Name: MUCAR
Certification: CE,FCC
Communication Interface: Bluetooth
Display Size: 8 inches
Display resolution: 1280 * 800
Free Update Period: Lifetime
Hardware Version: Latest
High-concerned chemical: none
Item Type: Code Readers & Scan Tools
Language: English,French,German,Italian,Japanese,Polish,Portuguese,Russian,Spanish
OEM NO.: MUCAR 892BT PRO
Origin: Mainland China
Software Update: Yes
Software Version: Latest
Special Features: Bluetooth
Support 1: Lifetime Free Update Via Wifi
Support 10: topology
Support 11: J2534 Protocal
Support 2: Android 10
Support 3: Full System Diagnosis Lifetime Free Update
Support 4: 35 Reset Service Lifetime Free Update
Support 5: ECU Coding Lifetime Free Update
Support 6: Active Test(BI-Directional Control) Lifetime Free Update
Support 7: FCA &CANFD & DOIP
Support 8: 150+ Car brands
Support 9: 2026 Latest version
Wireless Support: Wifi
MUCAR 892BT PRO Professional Automotive Diagnostic Scanner
Diagnose Faster ∙ Test Before Parts Replacement ∙ Get More Jobs Done
MUCAR 892BT PRO is a professional‑grade wireless diagnostic tablet built for repair shops, mobile mechanics and advanced DIY users.
It packs Visual Topology Mapping, SAE J2534 Pass‑Thru, Bi‑Directional Active Tests, ECU Coding, OE‑Level Full‑System Diagnostics & MUAI Intelligent Fault Analysis into one heavy‑duty 8‑inch rugged tablet.
✅SAE J2534 Pass-Thru| ✅Topology Mapping | ✅ECU Coding | ✅35+ Reset Service ✅CAN FD & DOIP | ✅MUAI AI Assistant ✅VAG Guided Function | ✅Bi-directional Active Test ✅Lifetime Free Update | ✅8" Touch Screen | Android 11
📌Hardware Parameters
▪ 8'' Touch LCD Screen ▪ Android 11 OS ▪ 4GB RAM + 64GB ROM ▪ 2.4G & 5GHz Dual Band Wi-Fi ▪ 4150mAh Built-in Battery ▪ 28 Multi-Language Supported ▪ Vehicle Coverage: 150+ Car Brands (1996-2026)
🔥 Why Choose MUCAR 892BT PRO?
✅ Visual Topology Mapping — Instant overview of vehicle electronic network
✅ SAE J2534 Pass‑Thru — OEM ECU programming bridge for supported vehicles
✅ Bi‑Directional Active Tests — Actuate components to validate faults before replacement
✅ Advanced ECU Coding — Module matching, adaptation & vehicle personalization
✅ OE‑Level Full‑System Diagnostics — Deep access to all major vehicle control units
✅ CAN FD & DoIP Support — Compatible with latest‑generation vehicle architectures
✅ MUAI Intelligent Assistant — AI‑powered fault‑code interpretation & troubleshooting guidance
✅ Lifetime Free Software Updates — No yearly diagnostic‑software subscription fees
MUCAR 892BT PRO Upgraded Version of MUCAR 892BT! Support J2534 Pass-Thru Protocol & Vehicle Topology Diagram, Built-in Deepseek AI Diagnosis, DollarFix Technician Community, CAN FD/DOIP, 3000+ Bi-directional Tests, ECU Coding, Hidden Function Activation, 35+ Maintenance Reset Services, Full System Diagnose. Global Version 28 Languages, Lifetime Free Update, Compatible with TKEY101, Endoscope, Oscilloscope & Expansion Modules.
🚀 Core Feature Highlights

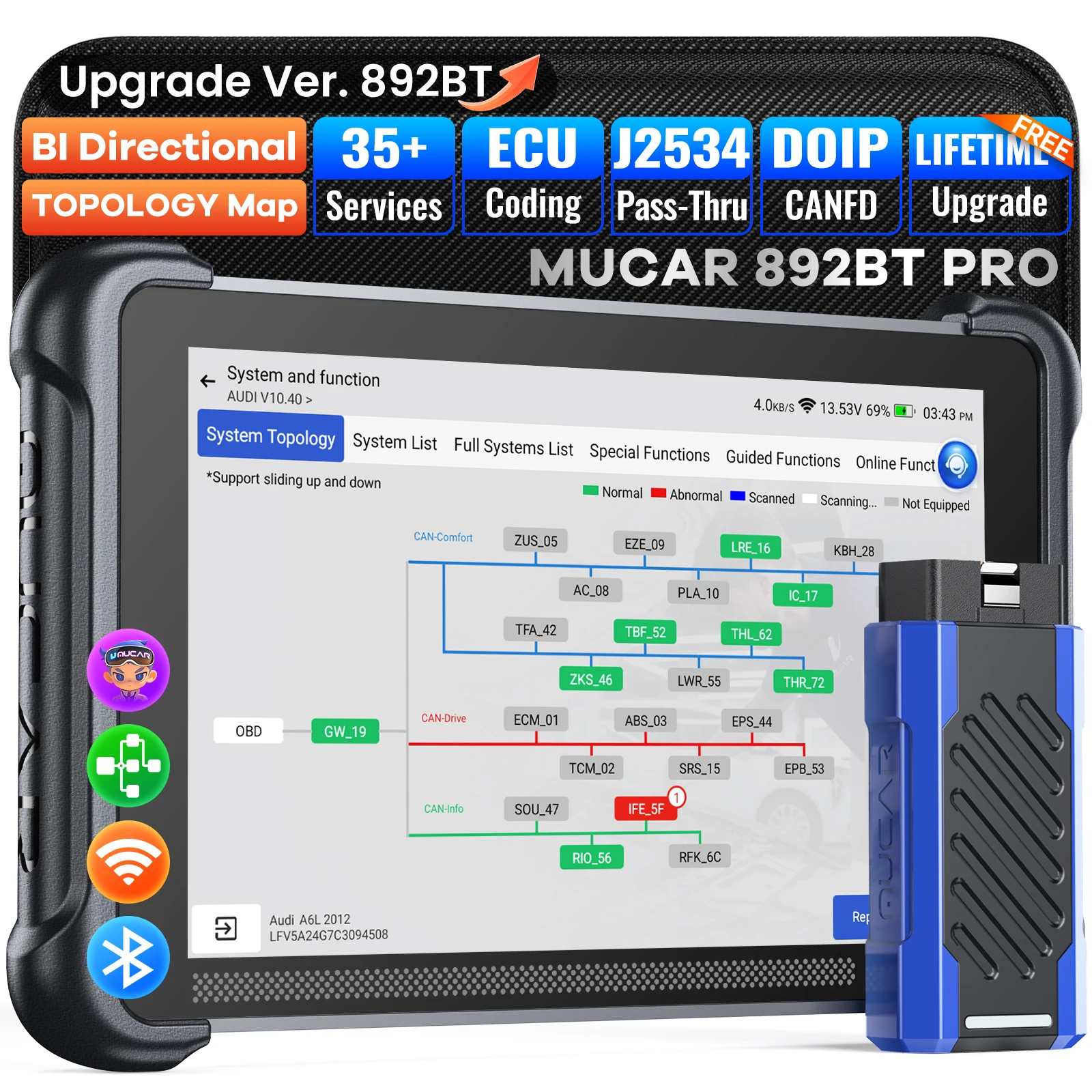

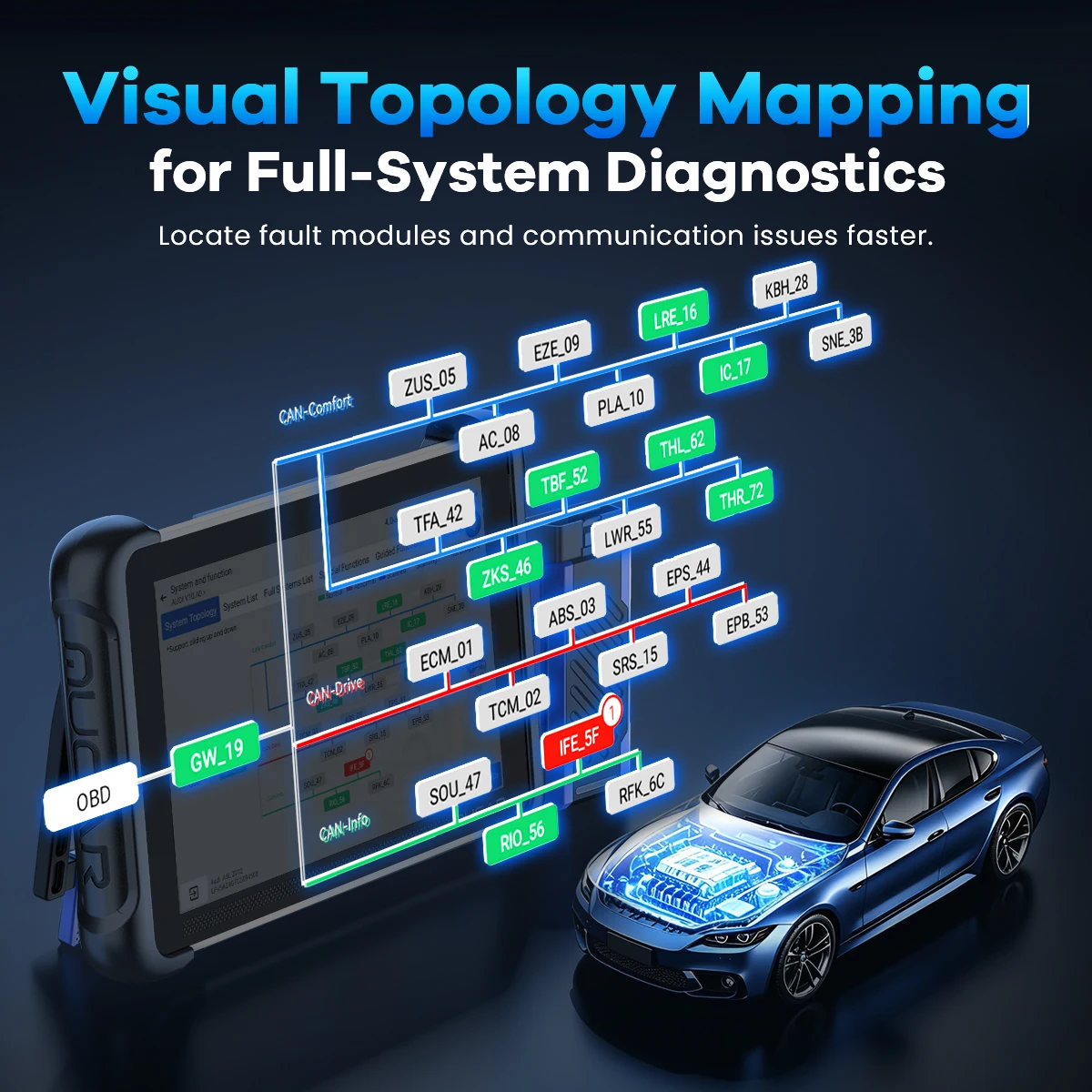

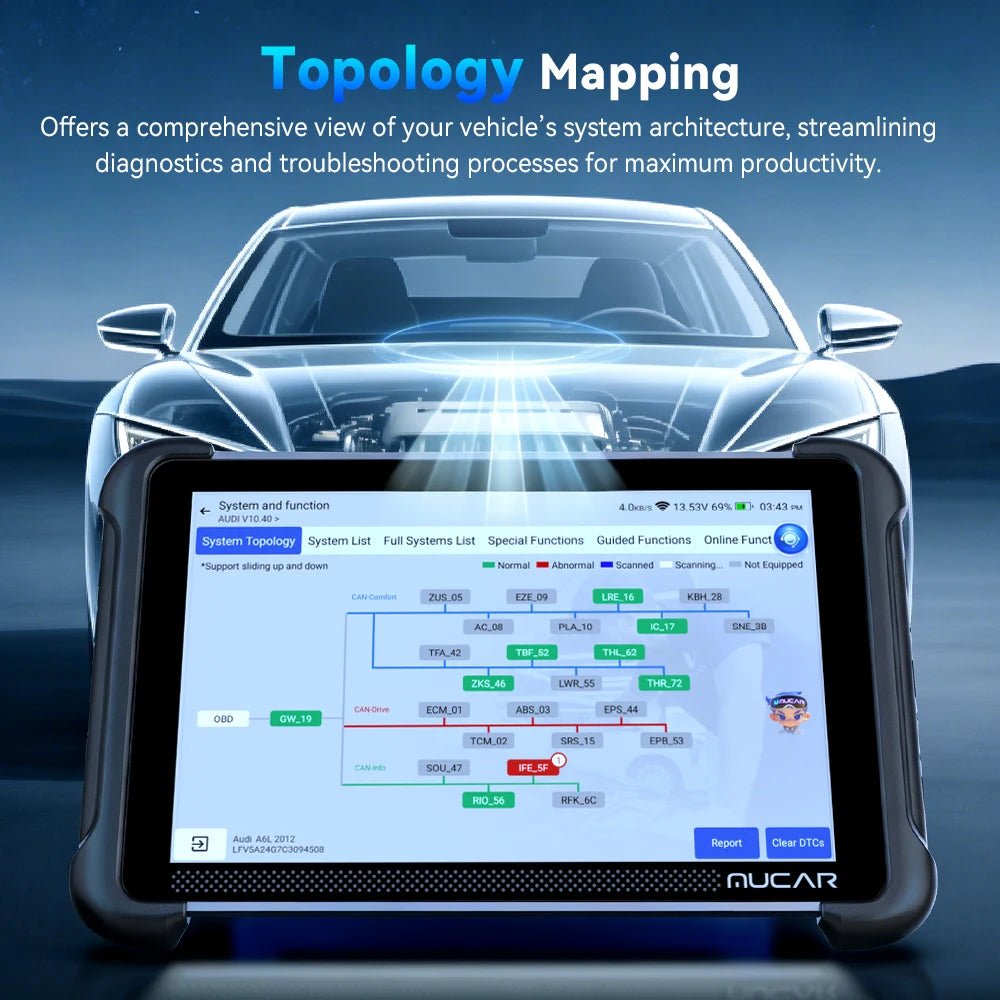

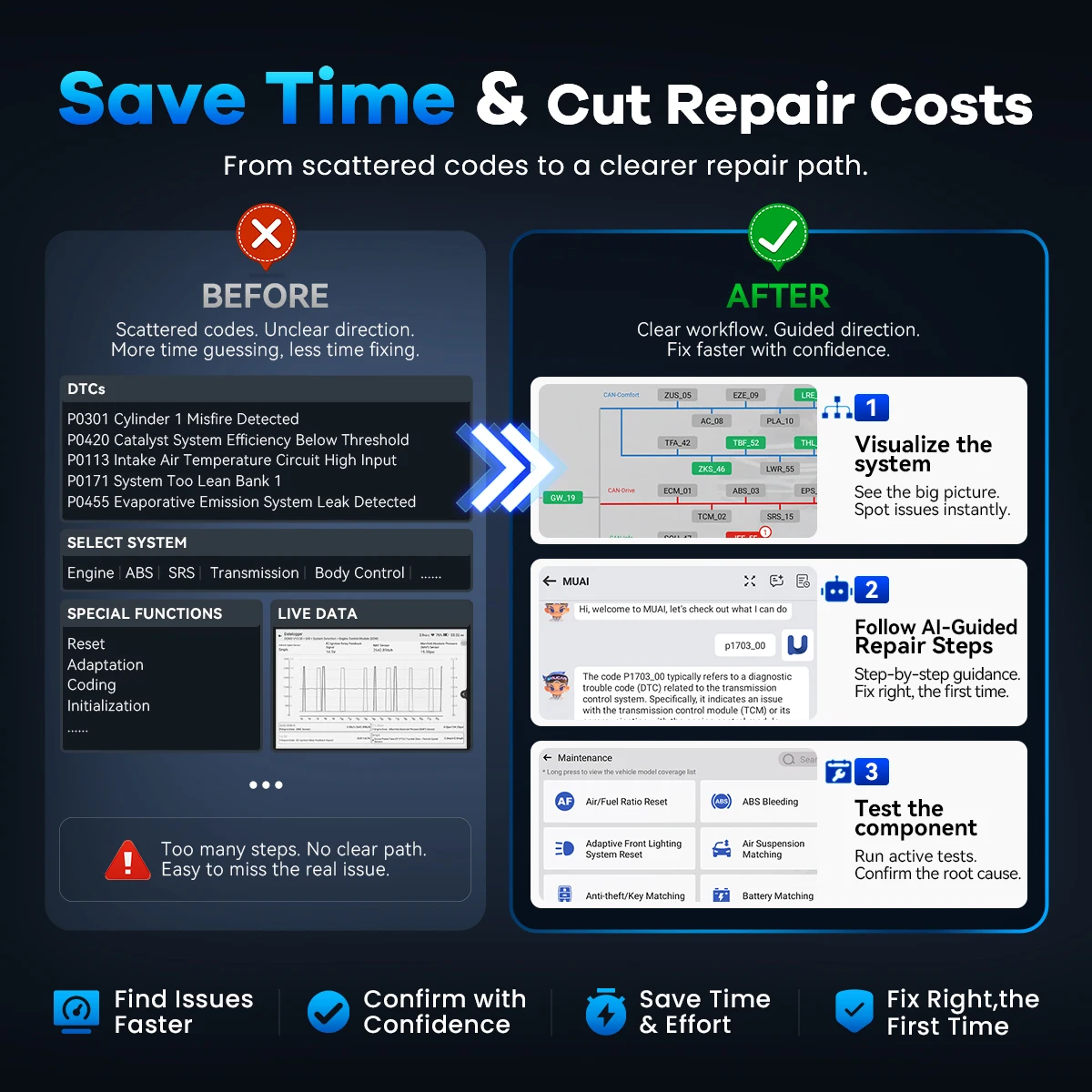

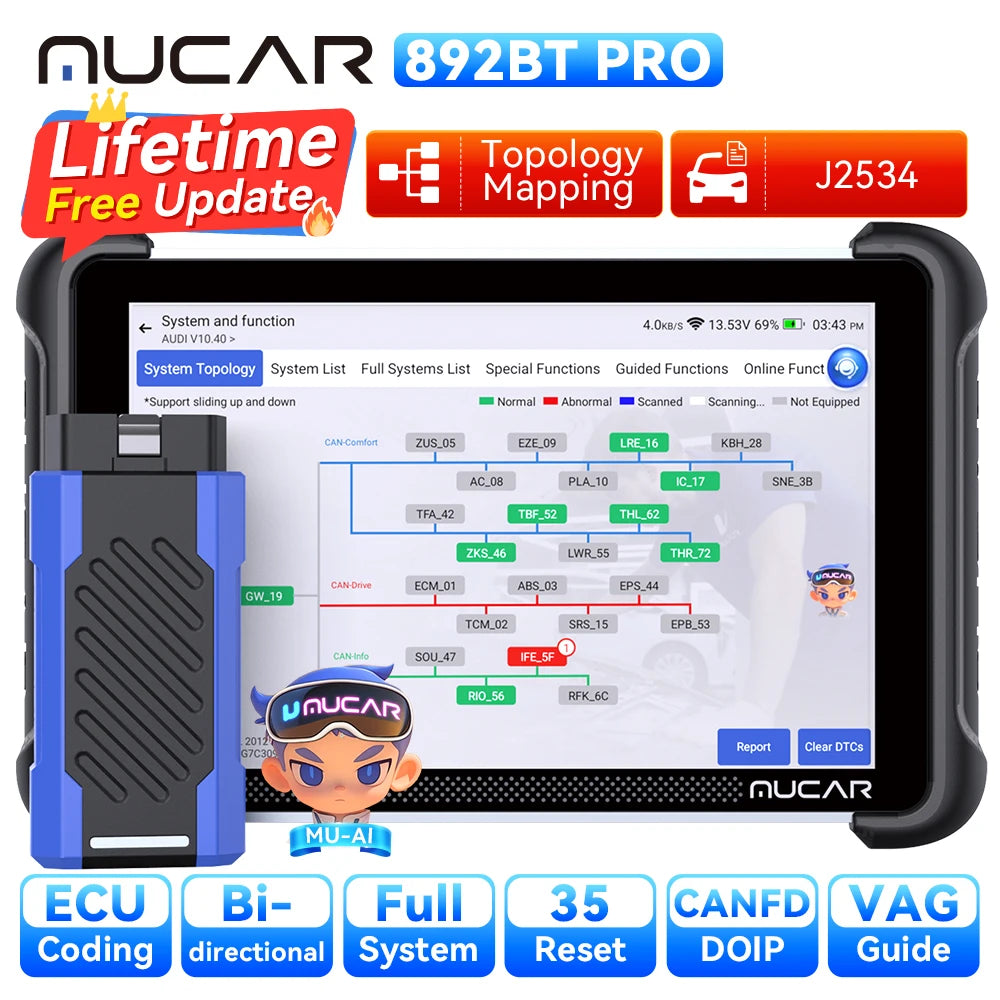

1.🛠️Visual Topology Mapping【PRO Exclusive Feature】
Modern vehicles are filled with interconnected ECUs. Ordinary scanners only show plain text lists.
MUCAR 892BT PRO renders vehicle electronics into an intuitive network topology map.
What you can do：
View all supported control modules on one screen
Rapidly locate abnormal / offline modules
Pinpoint CAN‑bus & communication failures
Skip tedious manual module‑by‑module checks

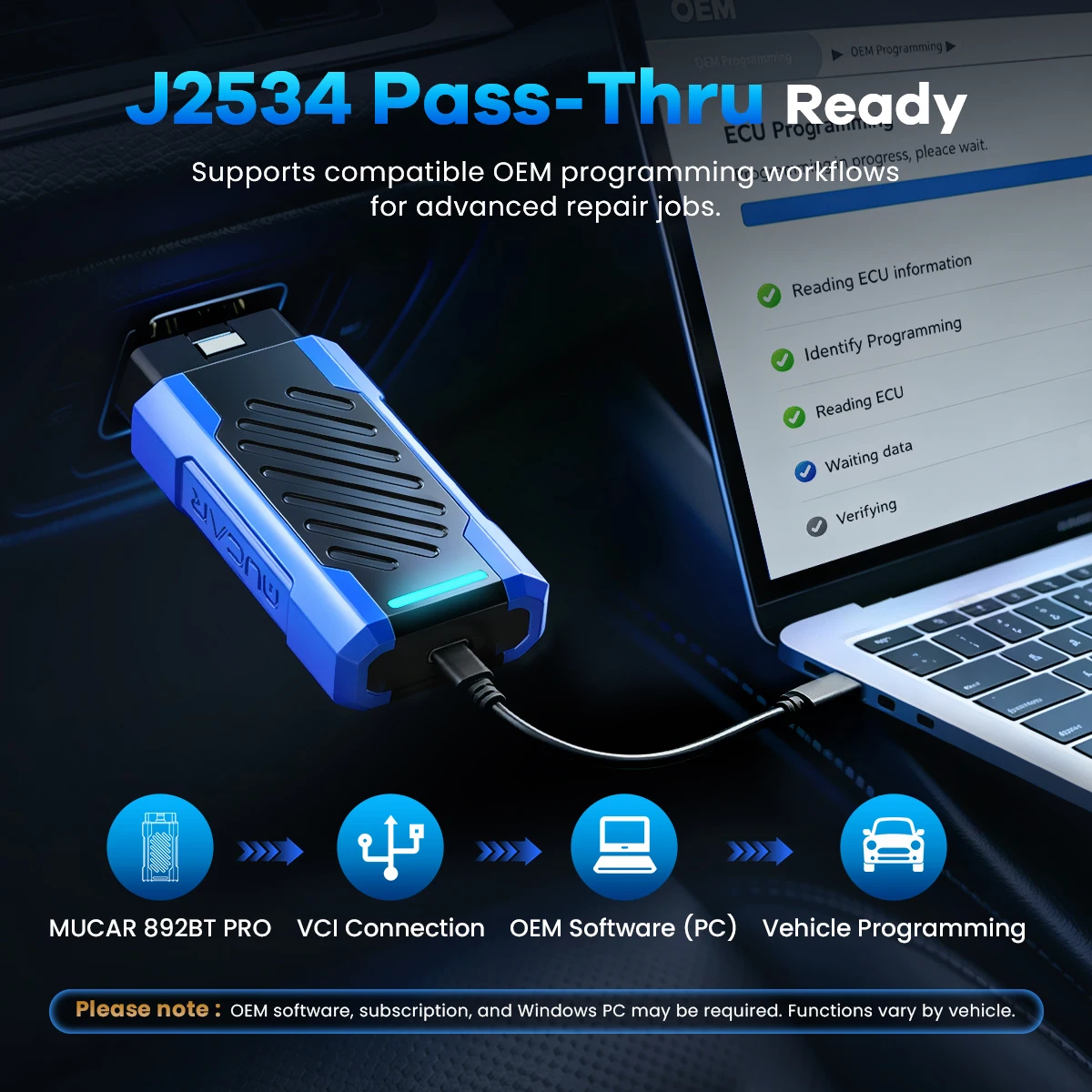

2.🔌Support SAE J2534 Pass-Thru Protocol【PRO Exclusive Feature】
MUCAR 892BT PRO complies with standard SAE J2534 / J2534-2 Pass-Thru, unavailable on standard MUCAR 892BT.
✔ Compatible with OEM official software for ECU reprogramming & flash update
✔ Fix original factory software errors
✔ Support ECU/module replacement programming
✔ Upgrade vehicle software to boost performance
✔ Resolve software-related vehicle faults ✔Suitable for advanced maintenance, ECU tuning and module upgrade projects This feature is mainly used for professional vehicle repair and ECU programming. Vehicle compatibility may vary by brand, model and year.
3.🤖MUAI Intelligent AI Assistant
MUCAR 892BT PRO is equipped with the built-in MUAI AI Assistant, which helps users quickly analyze fault codes and obtain professional repair suggestions.
✅Automatically analyze DTC fault codes
✅Match faults with the professional repair database
✅Provide troubleshooting guidance
✅Support natural language interaction
✅Help technicians and DIYers reduce diagnosis time This function is suitable for engine faults, warning light problems, electronic module faults and complex vehicle system troubleshooting.

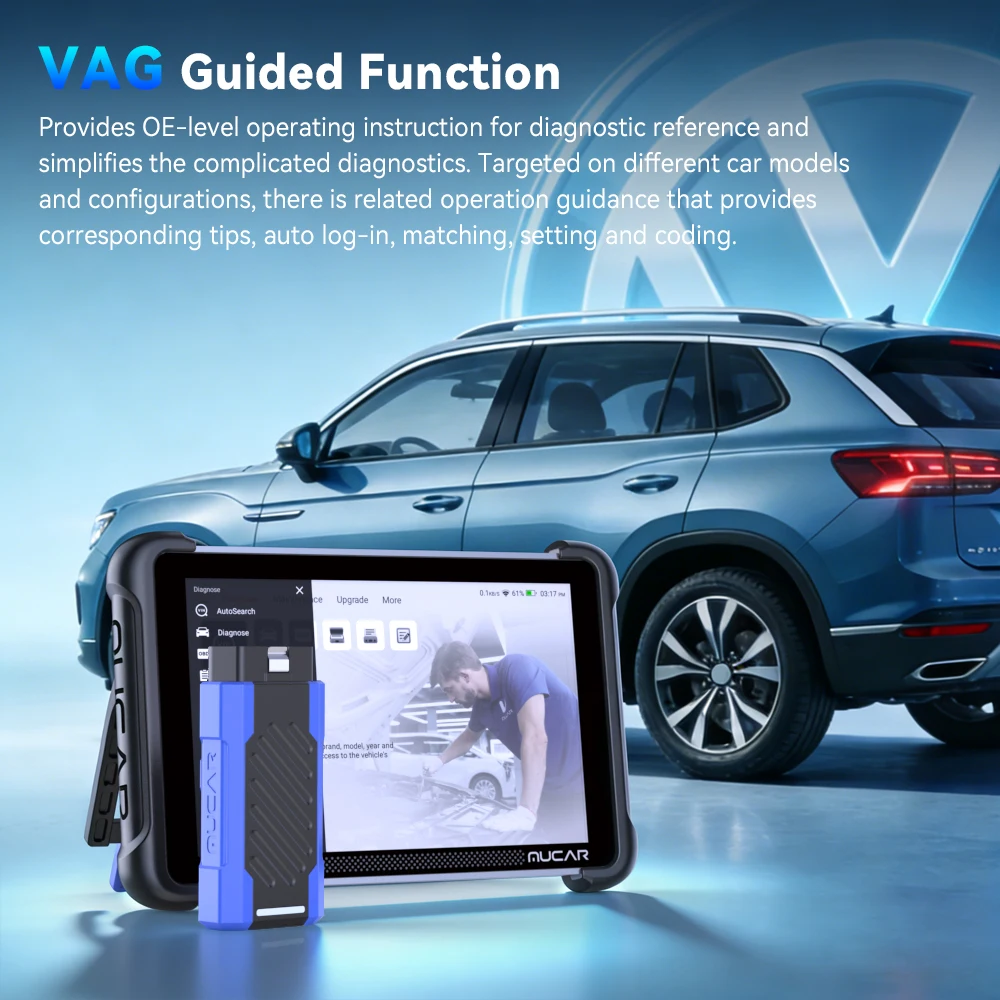

4.🚗VAG Guided Function
MUCAR 892BT PRO provides VAG Guided Function for VAG group vehicles, including Volkswagen, Audi, Skoda and Seat.
✅OE-level step-by-step operation guidance
✅Support for different vehicle models and configurations
✅Help complete gateway login, component matching, basic setting and coding
✅Simplify security gateway operations
✅Reduce operation difficulty after 2018 VAG vehicles This function is helpful for users who perform maintenance, coding and adaptive reset on VAG group vehicles.

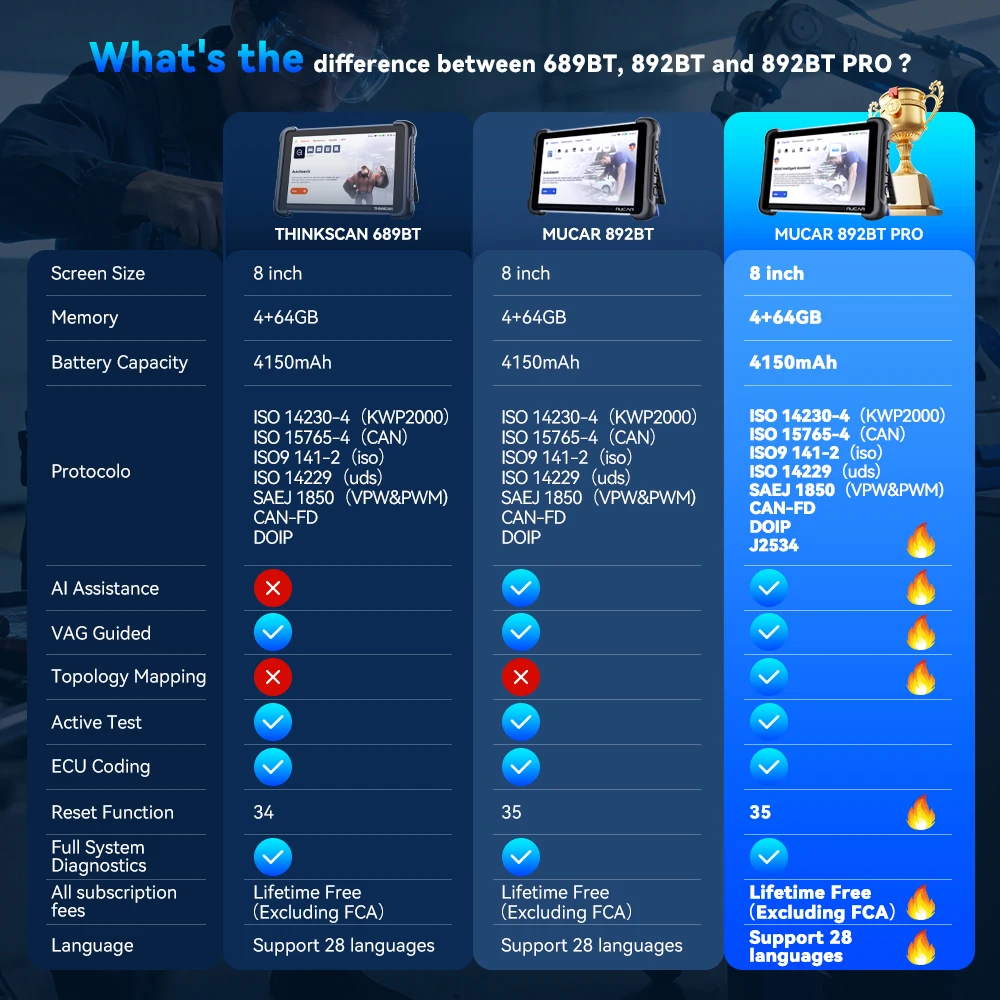

📊Difference: THINKSCAN 689BT VS MUCAR 892BT VS MUCAR 892BT PRO
💡Upgrade Tips: Choose 892BT PRO if you need J2534 ECU flash & Topology Mapping for professional repair shop

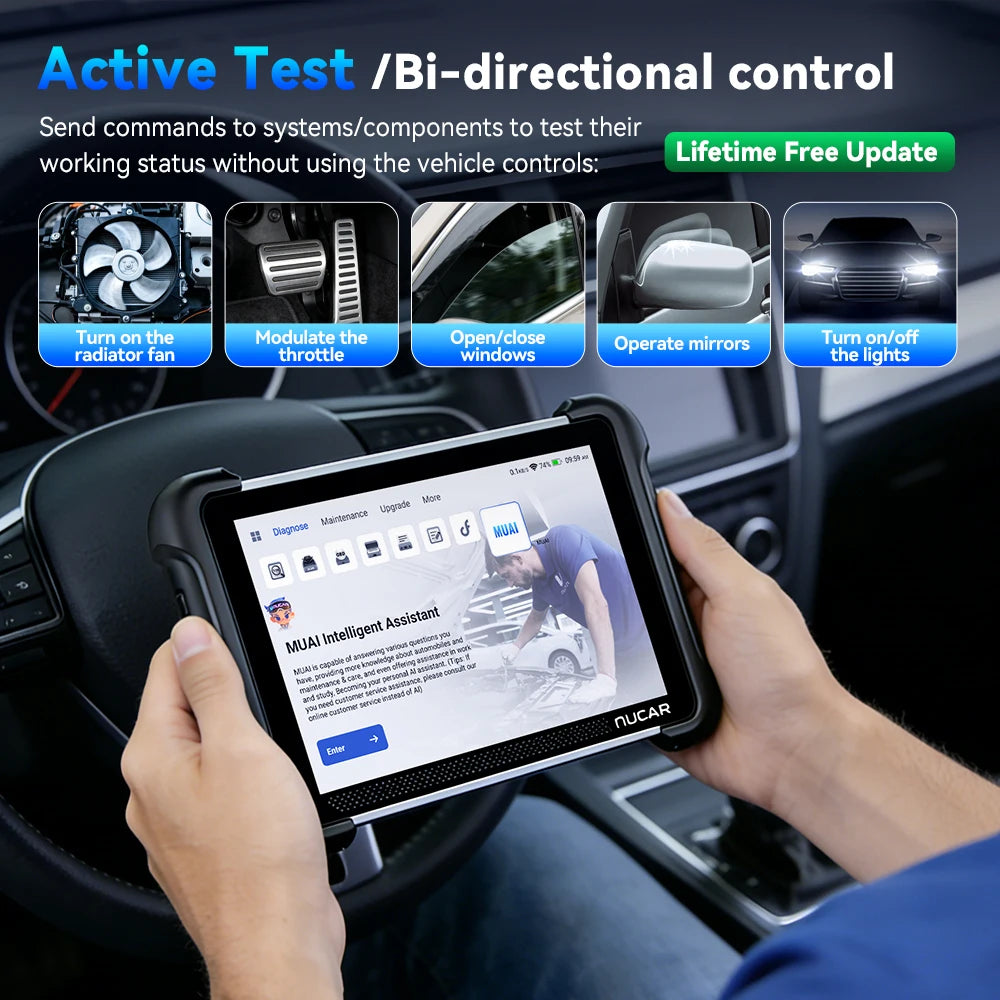

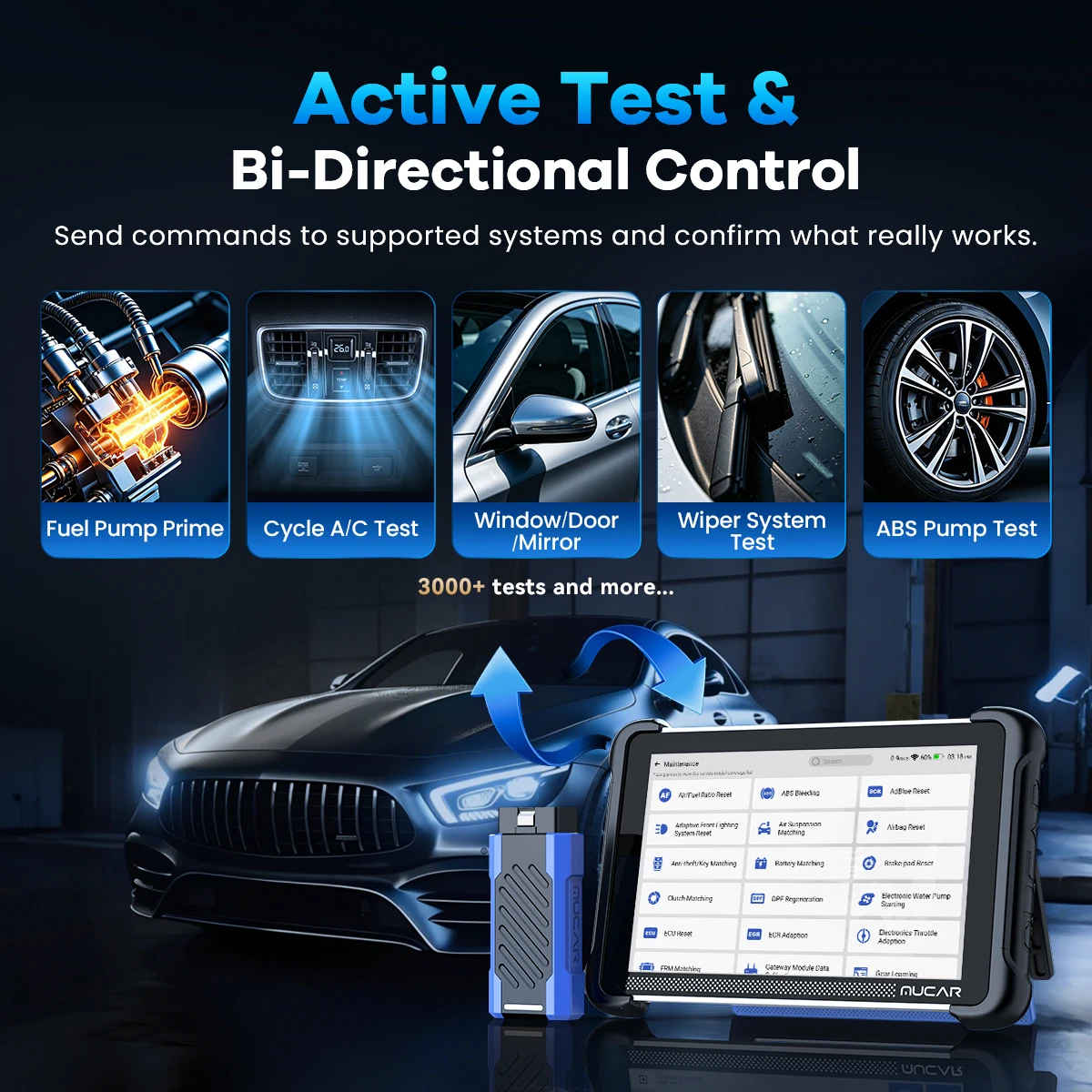

6.⚙️Active Test / Bi-directional Control | Lifetime Free Update and Use
Basic code readers only read vehicle data. This tool sends real‑time commands to on‑board components, so you test first, replace parts with confidence.
Supported actuation examples：
Fuel pump / injector tests
Cooling fan & A/C clutch control
Window, mirror & door lock actuation
Wiper, headlight & horn triggering
Solenoid, valve and actuator tests
Example：If the cooling fan fails, trigger it directly via scanner to judge whether the fault lies with fan, power supply, wiring or control unit.Function coverage varies per vehicle year, model and factory configuration.

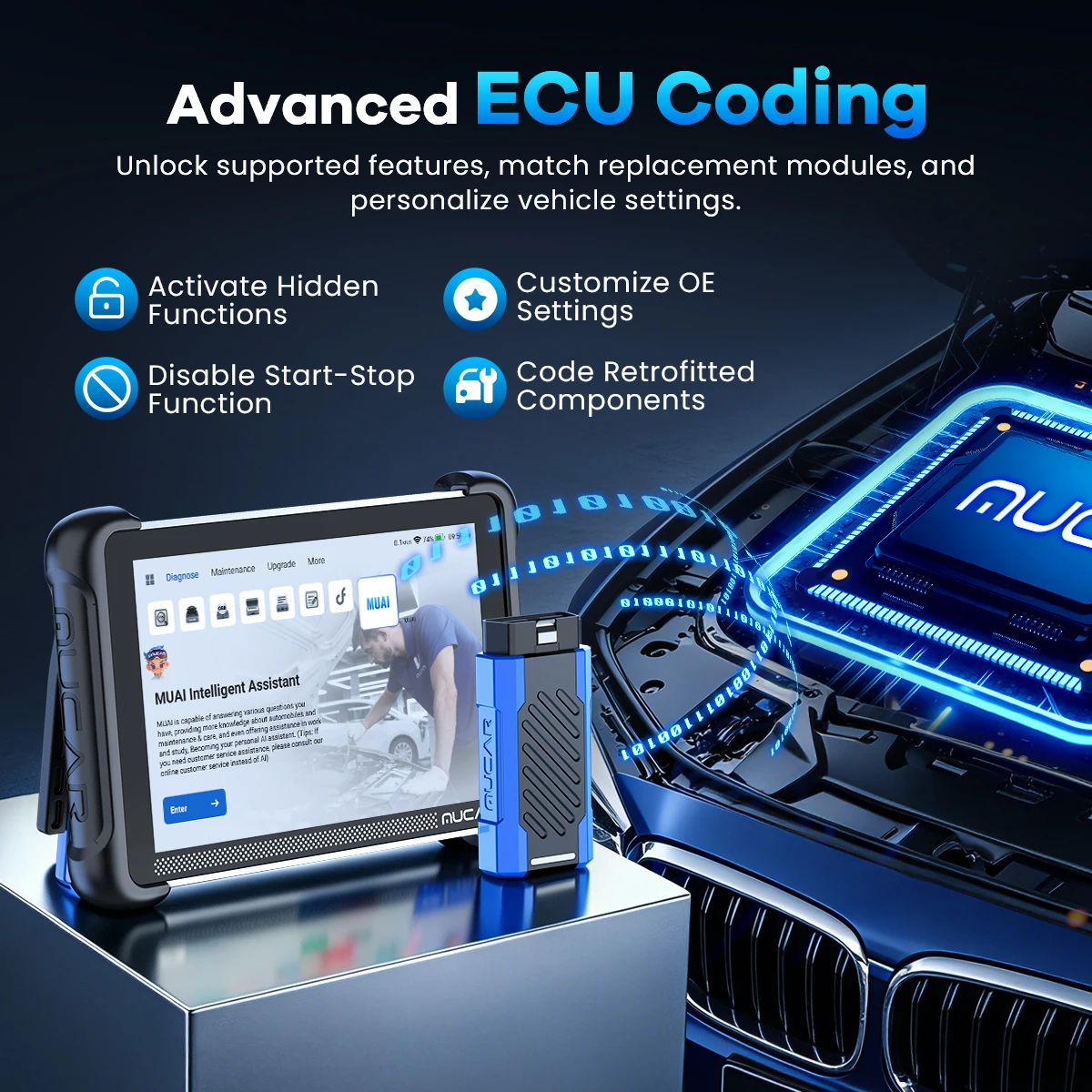

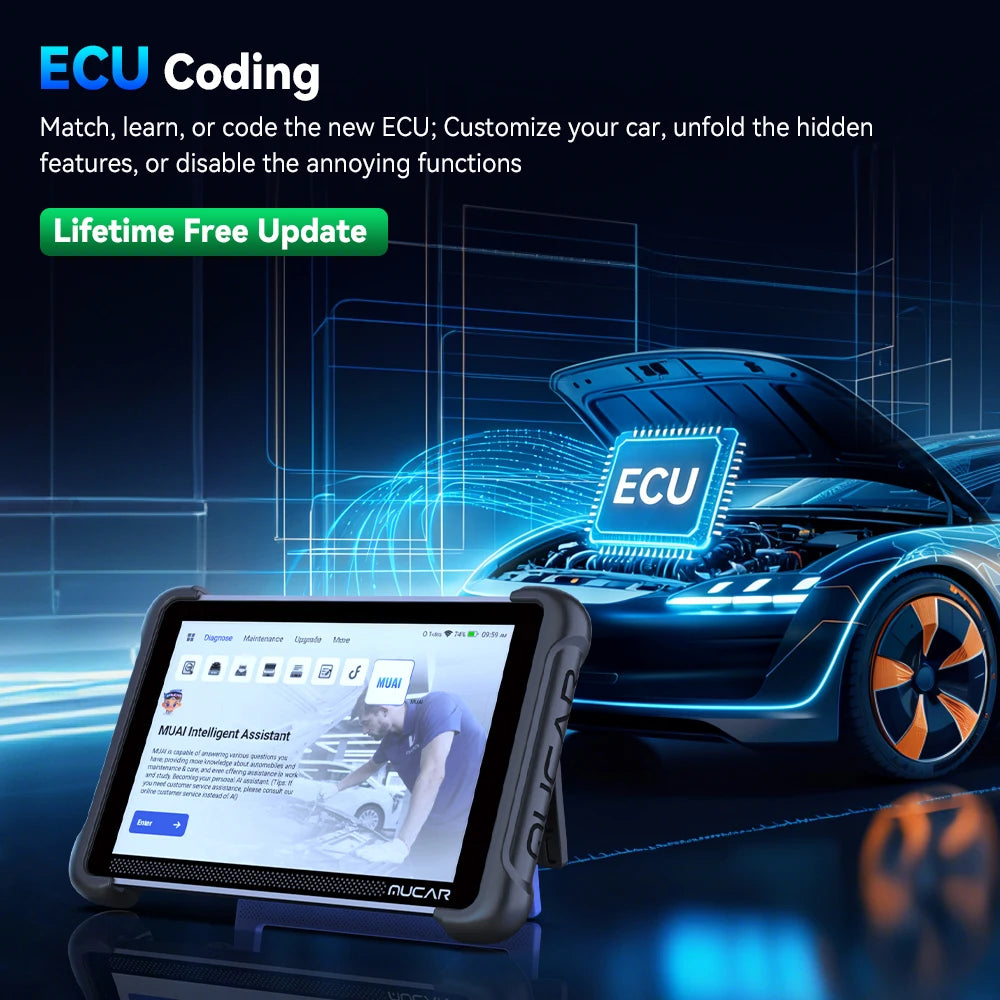

7.💻ECU Coding | Lifetime Free Update and Use
After component replacement or repair, many modules require matching, adaptation or relearn procedures.
Supported operations for compatible vehicles：
Match & initialize replacement ECUs
Perform adaptations and basic setting routines
Configure factory‑option equipment
Enable / disable vehicle personalization features
PMI functions for selected Ford / Lincoln / Mazda
Note：This is NOT universal online OEM programming. Some operations require official OEM authorization or third‑party subscriptions.
8.🔧35+ Maintenance Reset Service | Lifetime Free Update and Use
1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.
3.BAT Battery Service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current,register the battery replacement, and activate the rest state of the vehicle.
4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration,DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU,inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Key Programming
The unique car key programming and read pin code function,it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.
11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY.Start the car and drive.Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern.After you follow this programming method of the TCU/ECU drive the car.
12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side,pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.
13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled.Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.
14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine.In an electronically fuel injected car,a throttle position sensor and air flow sensor communicate with the computer,which supplies the corresponding amount of fuel needed at the injectors.It must need re-learning throttle sensor position after clearing or repair.
15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
16. EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.
19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.
20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality.When the gearbox is disassembled or repaired (after some of the car battery is powered off),it will lead to shift delay or impact problem.In this case,this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift
22.Language Change
This function is used to change the system language of the vehicle central control panel.
23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust.lf the Nox fault is re-initialized and the Nox catalytic converter is replaced,it is necessary to reset the catalytic converter learned value stored in the engine Ecu.
24.ODO Reset
a)ODO reset is to copy,write,or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable,so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure,it
is necessary to do ODO reset after maintenance.
25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).
26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
27.Transport Mode
ln order to reduce power consumption,the following functions may be disabled,including limiting the vehicle speed,not waking up the door opening network,and disabling the remote control key, etc.At this time,the transport mode needs to be deactivated to restore the vehicle to normal.
28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.
29.Motor angular position sensor calibration
There is a deviation between the rotor position detected by the angular position sensor of the motor and the actual rotor magnetic field position,and the motor angle needs to be calibrated.
Support vehicle
Acura, BMW,Honda,Lexus,MINI,Toyota
30.Engine power balance
During the power stroke of each cylinder,the power balance monitors the crankshaft acceleration to determine the relative power provided by each cylinder.
Support vehicle：Acura, Chrysler/Jeep/Dodge,Ford,GM,Honda,Hyundai,Infiniti,Kia,Nissan
31.High-voltage battery health detection
Used for high-voltage battery diagnosis and status information detection.
Support vehicle:Acura,BMW,Honda,Lexus,MINI,Mitsubishi,Toyota
32.Intelligent cruise control system calibration
It is used for the replacement and maintenance of the vehicle's intelligent cruise module.
Support vehicle Audi, BMW,Jaguar,Kia,Land Rover,Lexus,MINI,Mitsubishi,SEAT,Skoda,Toyota,Volkswagen
33.Automatic air conditioning initialization
The vehicle air conditioner replaces the electronic control unit, replaces the actuator or the memory of the electronic control unit memory is lost,and requires air conditioning initialization learning.
Support vehicle:Audi, BMW, Jaguar,Land Rover,Lexus,MINI,SEAT,Skoda,Toyota,Volkswagen
34.GPF regeneration (particle trap regeneration)
After the particle trap is used for a long time, the fuel consumption will increase and the output power of the engine will decrease.At this time,the GPF needs to be replaced or regenerated.Support vehicle
Audi,BMW,Hyundai,Jaguar,Kia,Land Rover,Lexus,MINI,Mitsubishi,Seat,Skoda,Subaru,Toyota,Volkswagen
35.MULODO Reset
MULODO reset is used to detect whether the car's mileage has been modified
Note：
Not all maintenance functions are supported for all vehicle models. If you are uncertain, please contact us.
9.📋OE-Level Full System Diagnosis | Lifetime Free Update and Use
As an OE level automotive diagnostic tool, MUCAR 892BT can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ，Air Conditioning System，Transmission System, etc...
Brief introduction of its capabilities in full systems diagnostic as follows:
1. For Engine System: help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
2. For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.
4. For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.
5. To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
6. To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
7. To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
8. To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
9. To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
10:To diagnose Light System if you see rapid signal blinking or dimming lights. And many more ....
🛡️FCA SGW Authorization + CAN FD & DoIP Support
✔ Compatible with 2018-2024 Fiat / Chrysler / Alfa Romeo / Dodge / Jeep (FCA SGW vehicles) ⚠️Note: Full access to FCA SGW requires official platform fee registration
✔ Support CAN FD & DoIP protocols, compatible with latest models: Chevrolet, Cadillac, Land Rover, Jaguar, BMW E/F Chassis and other post-2020 new vehicles
What is CAN FD Protocol?
CAN FD (CAN with Flexible Data-rate) is the upgraded version of traditional CAN bus, designed for modern high-speed automotive communication. It is the standard protocol for 2019+ GM/Chevrolet/Buick/Cadillac vehicles. Key Benefits:
🔥 10× Faster Speed: Up to 8 Mbps transmission rate, read full system fault codes and live data in seconds.
🔥 Larger Data Capacity: 64-byte per frame vs. traditional 8-byte, support multi-system data reading at the same time.
🔥 Compatible with New GM Vehicles: Full access to 2019+ GM CAN FD systems, no "no communication" error.
🔥 Stable & Reliable: Strong anti-interference performance, suitable for complex electronic systems of new cars.
GM: CANFD models
[2021][Chevrolet][Onix] CANFD6&14
[2021][Chevrolet][Tracker] CANFD6&14
[2021][Chevrolet][Suburban] CCMA
[2021][Cadillac][Escalade ESV] CCMA
[2021][Cadillac][Escalade] CCMA
[2021[GMC][YUKON XL] CCMA
[2021[GMC][YUKON] CCMA
[2023][Chevrolet][Montana] CANFD6&14
[2024][Buick][Electra E5] VSIM
[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)
[2021][Chevrolet][Onix] All Systems
[2021][Chevrolet][Tracker] All Systems
[2021][Chevrolet][Suburban] CCMA
[2021][Cadillac][Escalade ESV] CCMA
[2021][Cadillac][Escalade] CCMA
[2021[GMC][YUKON XL] CCMA
[2021[GMC][YUKON] CCMA
[2023][Chevrolet][Montana] All Systems
[2024][Buick][Electra E5] VSIM
[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)
What is DOIP Protocol?
DOIP stands for Diagnostic communication over Internet Protocol, it is the latest automotive Ethernet diagnostic protocol, widely used on new luxury vehicles and new energy cars after 2017.
1.✅Super Fast Diagnostic Speed
Greatly improve data transmission speed, read full system data, live stream data and fault information in seconds, much faster than traditional CAN bus.
2.✅Access High-Level Intelligent Systems
Support diagnosis of vehicle intelligent gateway, driving assistance system, ADAS system, central control entertainment system, new energy vehicle battery management system and other high-end electronic modules.
3.✅Full Deep System Diagnosis
Break the diagnosis limit of old protocols, realize complete full-system scanning, bidirectional active test, ECU online coding and hidden function activation on latest luxury cars.
4.✅Widely Compatible New Vehicles
Perfectly match 2017+ Jaguar, Land Rover, 2018+ Volvo, BMW F/G chassis, new Mercedes-Benz, latest Audi Volkswagen and most new energy electric vehicles.
5.✅Stable & High-efficiency Data Transmission
Strong anti-interference ability, stable connection, no data loss during long-distance and multi-module simultaneous diagnosis.
Support 99%+ Worldwide Vehicle Coverage,32 Languages,Global Version!
Covers 99%+ Car Makers and 10000+ Vehicles in American, European, & Asian etc brands from 1996-2024.
(Including 12V cars, light duty trucks, SUVs, hybrid vehicles, minivans.)
✔ American Cars: Compatible with Buick; For Cadillac; For Chevrolet; For Chrysler; For Dodge;For Ford; For GM; For Hummer; For Jeep; For Lincoln; (BRAZIL) For BX-Fiat; For BX-GM...
✔ European Cars: Compatible with For Abarth; For Alfa Romeo; For Audi; For Bentley; For Benz; For BMW; For Bugatti; For Citroen; For Dacia; For EU-Ford; For Ferrari; For Fiat; For Jaguar; For Lamborghini; For Lancia; For LandRover; For Maserati; For Maybach; For Mini; For Opel; For Peugeot; For Porsche; For Renault; For Rolls-Royce; For Rover; For Saab; For Seat; For Skoda; For Smart; For Sprinter; For Vauxhall; For Volvo; For VW; For (UKRAINE) ZAZ; For (RUSSIA) GAZ; For VAZ...
✔ Asian Cars: Compatile with (JAPAN) Acura;For Daihatsu; For Honda; For Infiniti;For Isuzu; For Jpisuzu; For Lexus; For Mazda; For Mitsubishi; For Nissan; For Nissan GTR; For Scion; For Subaru; For Subaru; For Suzuki; For Tlisuzu; For Toyota; For (KOREA) Daewoo; For Hyundai; For KIA; For Samsung; For Ssangyong; For (CHINA) Baic; For Beijing; For Changan; For Changan-Ford; For Changcheng; For Changhe; For Chsuzuki; For DF Peugeot; For DF Honda; For DF Nissan; For DF XK; For Flyer,For BYD; For Fukang; For Futian,For Foton; For Geely; For Gonow; For GZ Honda; For Hafei; For Haoqing; For HC BMW; For Hmada; For Huachen; For Isuzu,For JMC; For Jacty; For Jianghuai; For Jiao; For Jinlong;For Joylong;For Lifan; For Liuwel-TY; For Luxgen; For NJ Fiat; For Qirul-TY,For chery; For Qoros; For Saicmg; For Spark-TY; For TJ Toyota; For Trumpchi For GAC; For Weili; For Xiaokang For Dongfeng; For Xili,For Faw Tianjin; For Xinkai; For YQ Mazda; For Zhongshun; For Zhongtai,For Zotye; For Zhongxing; For (INDIA) Mahindra;For Maruti; For Tata; For (MALAYSIA) Perodua; For Proton; For (IRAN) MVM...
✔Australian Cars
For Au-Ford; For Holden...
More car models, please contact us for details.
>> IMMO Matching/Key fob Pro-gramming: Compatible with Toyota,Honda,Hyundai,Kia etc.
✔ NOTE: IMMO functions not for All cars, so Please send VIN and required function to to us check compatibility before purchase.
Support 32 Languages
English, German, Spanish, French, Italian, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Greek, Slovak, Romanian, Arabic, Croatian, Slovene, Finnish, Japanese, Korean, Czech, Persian, Swedish, Serbian, Danish, Vietnamese , Bulgarian，Indonesian，Ukrainian
🚘Full 10 Mode OBDII Universal Functions
Read Codes:Read extensive current, pending and permanent codes in OBD system quickly
Clean Codes:Clear detected fault codes and turn off the Check Engine Light efficiently
Live Date:View graphical live data of vehicle's computer module(s) for easy analyses
Freeze Frame:View the vehicle's operating parameters at the moment a DTC is detected
I/M readiness:Read I/M readiness status to have a vehicle inspected for state emissions compliance O2 sensor test:Perform O2 sensor test to check fuel efficiency and vehicle emissions On-Borad Monitor Test:Read the results of on-board diagnostic monitoring tests for specific components/systems Car Information Display:Retrieve the vehicle information of VIN, CINs, and CVNs completely EVAP Test:Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

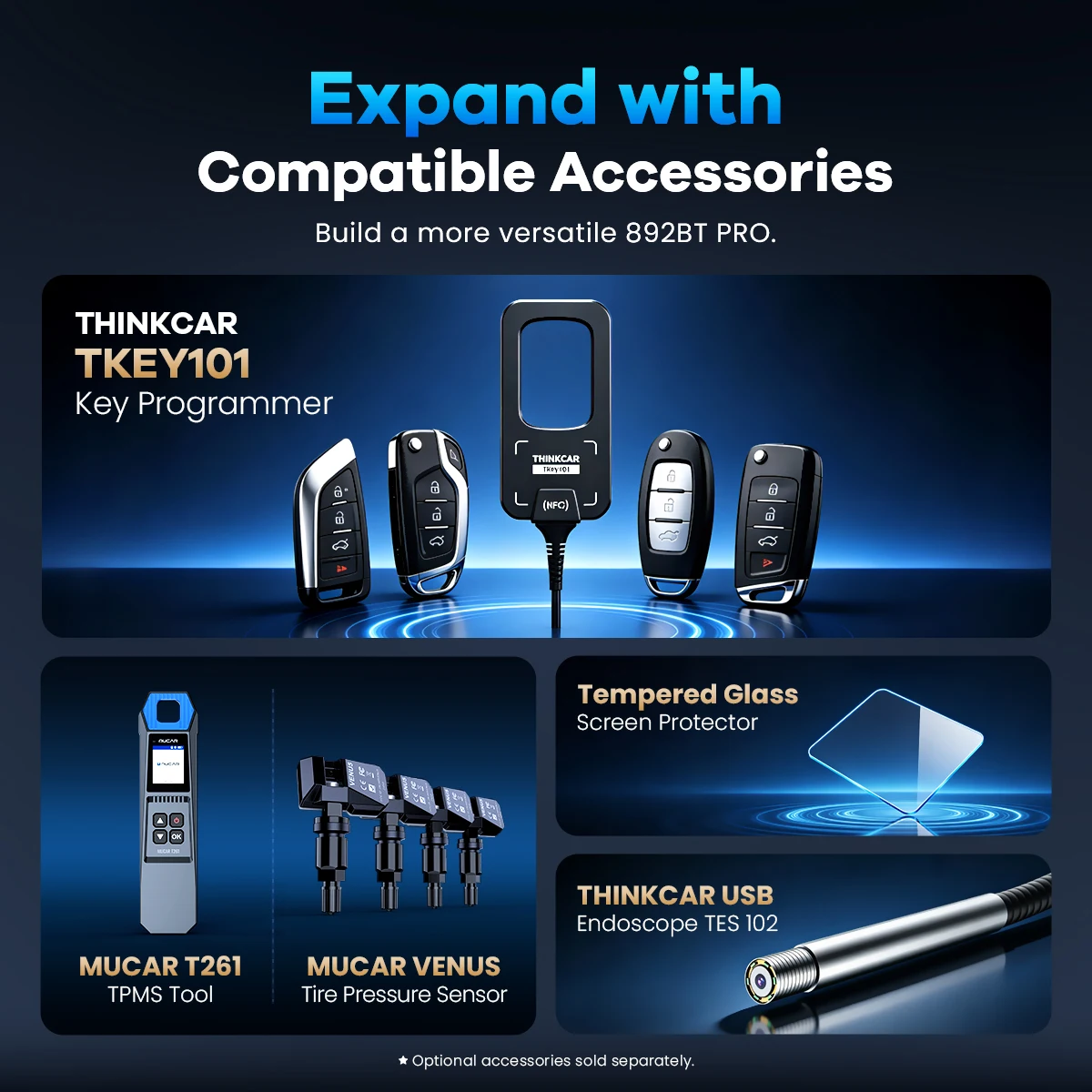

🌟 Expand Your MUCAR 892BT PRO Scanner with These Professional Tools
Turn your diagnostic tablet into a full workshop solution with these optional add-ons:
1.THINKTPMS VENU iPro TPMS Service Tool Quickly program, relearn, and diagnose TPMS sensors. Perfect for tire shops, it works seamlessly with your scanner to resolve tire pressure light issues, activate sensors, and perform TPMS resets.
2.Endoscope Inspection Camera Reach into hard-to-see areas like engine cylinders, exhaust systems, and door panels. Capture clear video and images to spot wear, leaks, or damage without disassembly.
3.Oscilloscope Module Diagnose electrical and sensor issues with precision. View real-time voltage waveforms from spark plugs, injectors, and other components to quickly identify intermittent or hard-to-find faults.
4.Portable Printer Generate and print professional diagnostic reports, fault codes, and vehicle data on-site. Great for customer records, workshop documentation, and proof of service.
5.Bluetooth Battery Clip Tester Connect wirelessly to test battery health, starting, and charging systems. Get instant results on your scanner screen, no extra tools needed.
6.TKEY 101 Key Programmer Add advanced key programming and anti-theft matching capabilities. Supports key fob programming, IMMO reset, and transponder matching for most major brands, eliminating the need for a separate dedicated programmer.
✅ These accessories are designed to work with your scanner, expanding its capabilities to handle more complex jobs and deliver better service to your customers.

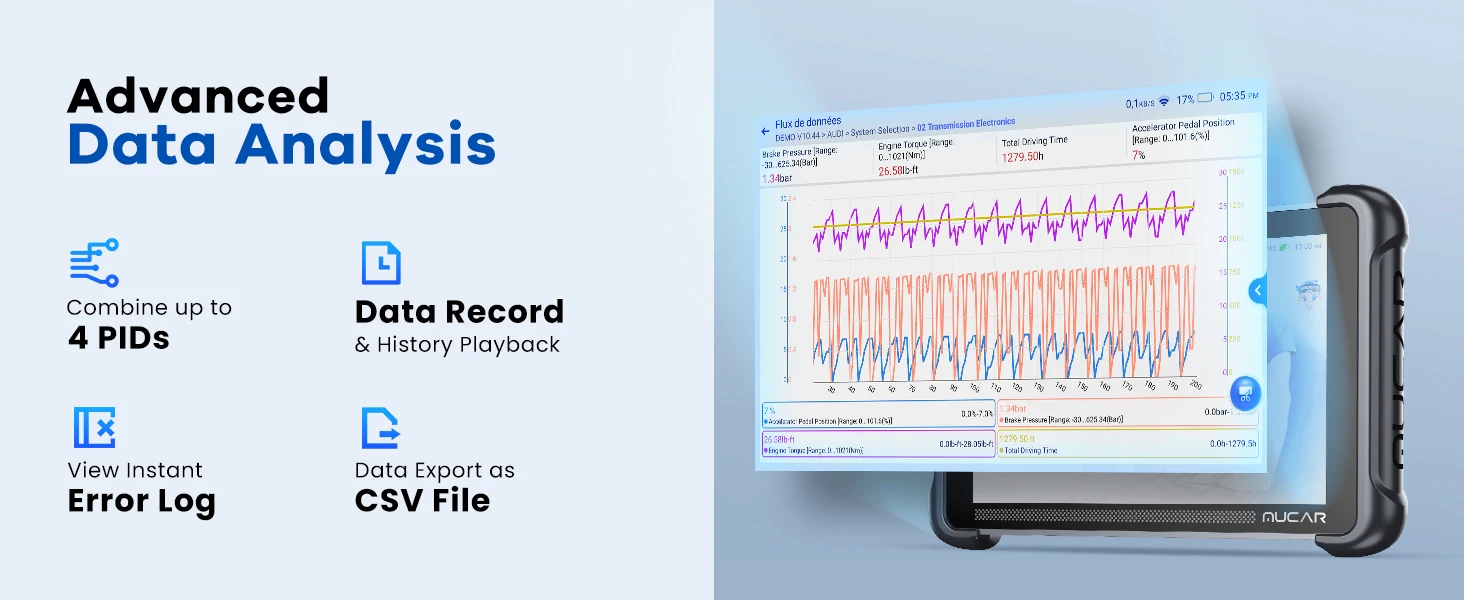

Live Data Recording & Analysis
Graph, record and replay real‑time sensor streams.
Perfect for intermittent faults that only occur during road tests. Record driving‑session data to capture parameter changes when symptoms appear.
Professional Customer‑Ready Diagnostic Reports
Generate clean workshop‑grade reports: PDF export, fault highlighting, custom company info, print & share.
Pre‑scan & post‑scan reports improve transparency and build trust with your customers.
True Wireless Workshop Experience
Separate Bluetooth VCI connects to OBD port; keep the tablet in‑hand.
Run active tests while visually checking actuators (fans, lights, pumps, windows) without messy trailing cables.
Workshop‑Built Hardware
8‑inch 1280×800 Touch Screen
4GB RAM + 64GB Internal Storage
2.4G & 5G Dual‑Band Wi‑Fi
Bluetooth Diagnostic Connection
4150mAh Rechargeable Battery
Shock‑Absorbent Protective Shell
Built‑in Adjustable Kickstand
Supports optional expansion accessories
Lifetime Free Diagnostic Software Updates
Keep vehicle coverage expanding, enjoy ongoing feature optimizations — no annual diagnostic‑software subscription cost.
Exclusion: Does NOT cover OEM software, manufacturer accounts, online programming subscriptions, FCA AutoAuth or other third‑party paid services.
⚠️ Vehicle Compatibility Reminder
Diagnosis, coding, bi‑directional test, reset, topology and programming functions vary greatly by make, model, production year, engine variant, market region and factory equipment.
Before you order, kindly send us:
17‑digit VIN number
Vehicle brand & model
Model year
Target market / region
Key functions you require
We will pre‑check compatibility for you.

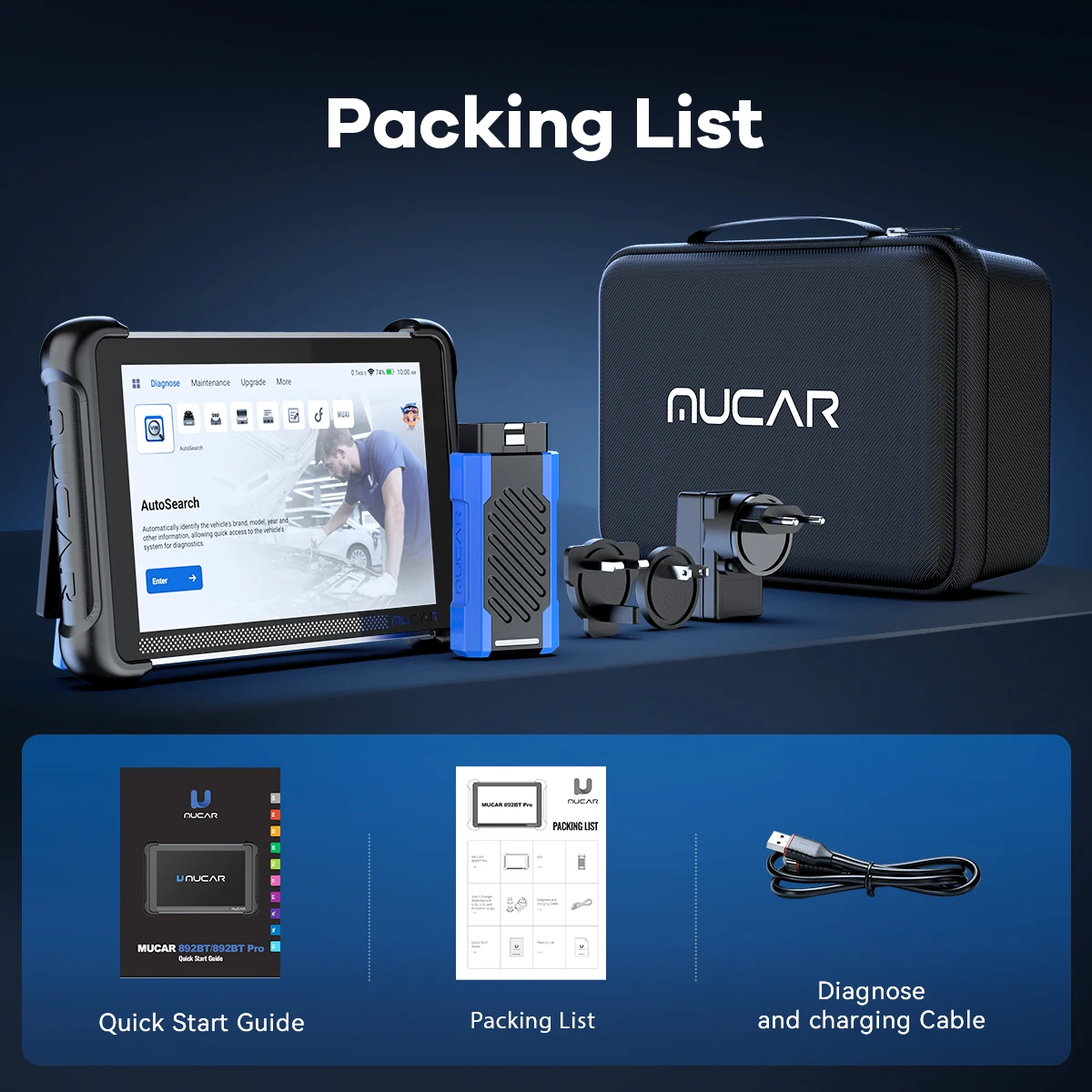

📦Packing List
✅ MUCAR 892BT Pro Diagnostic Tablet ×1
✅ Bluetooth VCI Diagnostic Dongle ×1
✅ Shockproof Storage Carry Case ×1
✅ Original Packing Box ×1
✅ Universal Charger with EU & UK Convert Plugs ×1
✅ User Quick Guide ×1
✅ TYPE-C Charging Cable ×1
💬From fast full‑vehicle scanning to advanced topology mapping, component validation, ECU coding and J2534 pass‑thru capability — MUCAR 892BT PRO empowers professional technicians to diagnose accurately, verify repairs and complete more jobs in‑house.
Share your VIN before purchase, buy with full confidence!
MUCAR 892BT PRO Topology AI Key Programmer Automotive Diagnostic Tool J2534 Bidirectional Car Obd2 Scanner ECU Coding CANFD DOIP
$1,391.99
Delivery estimates and shipping options are shown at checkout.
Payment methods
$1,391.99
$1,391.99
SPECIFICATIONS
Automotive fit type: Universal fit
Battery Included: Yes
Brand Name: MUCAR
Certification: CE,FCC
Communication Interface: Bluetooth
Display Size: 8 inches
Display resolution: 1280 * 800
Free Update Period: Lifetime
Hardware Version: Latest
High-concerned chemical: none
Item Type: Code Readers & Scan Tools
Language: English,French,German,Italian,Japanese,Polish,Portuguese,Russian,Spanish
OEM NO.: MUCAR 892BT PRO
Origin: Mainland China
Software Update: Yes
Software Version: Latest
Special Features: Bluetooth
Support 1: Lifetime Free Update Via Wifi
Support 10: topology
Support 11: J2534 Protocal
Support 2: Android 10
Support 3: Full System Diagnosis Lifetime Free Update
Support 4: 35 Reset Service Lifetime Free Update
Support 5: ECU Coding Lifetime Free Update
Support 6: Active Test(BI-Directional Control) Lifetime Free Update
Support 7: FCA &CANFD & DOIP
Support 8: 150+ Car brands
Support 9: 2026 Latest version
Wireless Support: Wifi
MUCAR 892BT PRO Professional Automotive Diagnostic Scanner
Diagnose Faster ∙ Test Before Parts Replacement ∙ Get More Jobs Done
MUCAR 892BT PRO is a professional‑grade wireless diagnostic tablet built for repair shops, mobile mechanics and advanced DIY users.
It packs Visual Topology Mapping, SAE J2534 Pass‑Thru, Bi‑Directional Active Tests, ECU Coding, OE‑Level Full‑System Diagnostics & MUAI Intelligent Fault Analysis into one heavy‑duty 8‑inch rugged tablet.
✅SAE J2534 Pass-Thru| ✅Topology Mapping | ✅ECU Coding | ✅35+ Reset Service ✅CAN FD & DOIP | ✅MUAI AI Assistant ✅VAG Guided Function | ✅Bi-directional Active Test ✅Lifetime Free Update | ✅8" Touch Screen | Android 11
📌Hardware Parameters
▪ 8'' Touch LCD Screen ▪ Android 11 OS ▪ 4GB RAM + 64GB ROM ▪ 2.4G & 5GHz Dual Band Wi-Fi ▪ 4150mAh Built-in Battery ▪ 28 Multi-Language Supported ▪ Vehicle Coverage: 150+ Car Brands (1996-2026)
🔥 Why Choose MUCAR 892BT PRO?
✅ Visual Topology Mapping — Instant overview of vehicle electronic network
✅ SAE J2534 Pass‑Thru — OEM ECU programming bridge for supported vehicles
✅ Bi‑Directional Active Tests — Actuate components to validate faults before replacement
✅ Advanced ECU Coding — Module matching, adaptation & vehicle personalization
✅ OE‑Level Full‑System Diagnostics — Deep access to all major vehicle control units
✅ CAN FD & DoIP Support — Compatible with latest‑generation vehicle architectures
✅ MUAI Intelligent Assistant — AI‑powered fault‑code interpretation & troubleshooting guidance
✅ Lifetime Free Software Updates — No yearly diagnostic‑software subscription fees
MUCAR 892BT PRO Upgraded Version of MUCAR 892BT! Support J2534 Pass-Thru Protocol & Vehicle Topology Diagram, Built-in Deepseek AI Diagnosis, DollarFix Technician Community, CAN FD/DOIP, 3000+ Bi-directional Tests, ECU Coding, Hidden Function Activation, 35+ Maintenance Reset Services, Full System Diagnose. Global Version 28 Languages, Lifetime Free Update, Compatible with TKEY101, Endoscope, Oscilloscope & Expansion Modules.
🚀 Core Feature Highlights
1.🛠️Visual Topology Mapping【PRO Exclusive Feature】
Modern vehicles are filled with interconnected ECUs. Ordinary scanners only show plain text lists.
MUCAR 892BT PRO renders vehicle electronics into an intuitive network topology map.
What you can do：
View all supported control modules on one screen
Rapidly locate abnormal / offline modules
Pinpoint CAN‑bus & communication failures
Skip tedious manual module‑by‑module checks
2.🔌Support SAE J2534 Pass-Thru Protocol【PRO Exclusive Feature】
MUCAR 892BT PRO complies with standard SAE J2534 / J2534-2 Pass-Thru, unavailable on standard MUCAR 892BT.
✔ Compatible with OEM official software for ECU reprogramming & flash update
✔ Fix original factory software errors
✔ Support ECU/module replacement programming
✔ Upgrade vehicle software to boost performance
✔ Resolve software-related vehicle faults ✔Suitable for advanced maintenance, ECU tuning and module upgrade projects This feature is mainly used for professional vehicle repair and ECU programming. Vehicle compatibility may vary by brand, model and year.
3.🤖MUAI Intelligent AI Assistant
MUCAR 892BT PRO is equipped with the built-in MUAI AI Assistant, which helps users quickly analyze fault codes and obtain professional repair suggestions.
✅Automatically analyze DTC fault codes
✅Match faults with the professional repair database
✅Provide troubleshooting guidance
✅Support natural language interaction
✅Help technicians and DIYers reduce diagnosis time This function is suitable for engine faults, warning light problems, electronic module faults and complex vehicle system troubleshooting.
4.🚗VAG Guided Function
MUCAR 892BT PRO provides VAG Guided Function for VAG group vehicles, including Volkswagen, Audi, Skoda and Seat.
✅OE-level step-by-step operation guidance
✅Support for different vehicle models and configurations
✅Help complete gateway login, component matching, basic setting and coding
✅Simplify security gateway operations
✅Reduce operation difficulty after 2018 VAG vehicles This function is helpful for users who perform maintenance, coding and adaptive reset on VAG group vehicles.
📊Difference: THINKSCAN 689BT VS MUCAR 892BT VS MUCAR 892BT PRO
💡Upgrade Tips: Choose 892BT PRO if you need J2534 ECU flash & Topology Mapping for professional repair shop
6.⚙️Active Test / Bi-directional Control | Lifetime Free Update and Use
Basic code readers only read vehicle data. This tool sends real‑time commands to on‑board components, so you test first, replace parts with confidence.
Supported actuation examples：
Fuel pump / injector tests
Cooling fan & A/C clutch control
Window, mirror & door lock actuation
Wiper, headlight & horn triggering
Solenoid, valve and actuator tests
Example：If the cooling fan fails, trigger it directly via scanner to judge whether the fault lies with fan, power supply, wiring or control unit.Function coverage varies per vehicle year, model and factory configuration.
7.💻ECU Coding | Lifetime Free Update and Use
After component replacement or repair, many modules require matching, adaptation or relearn procedures.
Supported operations for compatible vehicles：
Match & initialize replacement ECUs
Perform adaptations and basic setting routines
Configure factory‑option equipment
Enable / disable vehicle personalization features
PMI functions for selected Ford / Lincoln / Mazda
Note：This is NOT universal online OEM programming. Some operations require official OEM authorization or third‑party subscriptions.
8.🔧35+ Maintenance Reset Service | Lifetime Free Update and Use
1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.
3.BAT Battery Service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current,register the battery replacement, and activate the rest state of the vehicle.
4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration,DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU,inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Key Programming
The unique car key programming and read pin code function,it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.
11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY.Start the car and drive.Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern.After you follow this programming method of the TCU/ECU drive the car.
12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side,pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.
13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled.Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.
14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine.In an electronically fuel injected car,a throttle position sensor and air flow sensor communicate with the computer,which supplies the corresponding amount of fuel needed at the injectors.It must need re-learning throttle sensor position after clearing or repair.
15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
16. EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.
19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.
20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality.When the gearbox is disassembled or repaired (after some of the car battery is powered off),it will lead to shift delay or impact problem.In this case,this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift
22.Language Change
This function is used to change the system language of the vehicle central control panel.
23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust.lf the Nox fault is re-initialized and the Nox catalytic converter is replaced,it is necessary to reset the catalytic converter learned value stored in the engine Ecu.
24.ODO Reset
a)ODO reset is to copy,write,or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable,so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure,it
is necessary to do ODO reset after maintenance.
25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).
26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
27.Transport Mode
ln order to reduce power consumption,the following functions may be disabled,including limiting the vehicle speed,not waking up the door opening network,and disabling the remote control key, etc.At this time,the transport mode needs to be deactivated to restore the vehicle to normal.
28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.
29.Motor angular position sensor calibration
There is a deviation between the rotor position detected by the angular position sensor of the motor and the actual rotor magnetic field position,and the motor angle needs to be calibrated.
Support vehicle
Acura, BMW,Honda,Lexus,MINI,Toyota
30.Engine power balance
During the power stroke of each cylinder,the power balance monitors the crankshaft acceleration to determine the relative power provided by each cylinder.
Support vehicle：Acura, Chrysler/Jeep/Dodge,Ford,GM,Honda,Hyundai,Infiniti,Kia,Nissan
31.High-voltage battery health detection
Used for high-voltage battery diagnosis and status information detection.
Support vehicle:Acura,BMW,Honda,Lexus,MINI,Mitsubishi,Toyota
32.Intelligent cruise control system calibration
It is used for the replacement and maintenance of the vehicle's intelligent cruise module.
Support vehicle Audi, BMW,Jaguar,Kia,Land Rover,Lexus,MINI,Mitsubishi,SEAT,Skoda,Toyota,Volkswagen
33.Automatic air conditioning initialization
The vehicle air conditioner replaces the electronic control unit, replaces the actuator or the memory of the electronic control unit memory is lost,and requires air conditioning initialization learning.
Support vehicle:Audi, BMW, Jaguar,Land Rover,Lexus,MINI,SEAT,Skoda,Toyota,Volkswagen
34.GPF regeneration (particle trap regeneration)
After the particle trap is used for a long time, the fuel consumption will increase and the output power of the engine will decrease.At this time,the GPF needs to be replaced or regenerated.Support vehicle
Audi,BMW,Hyundai,Jaguar,Kia,Land Rover,Lexus,MINI,Mitsubishi,Seat,Skoda,Subaru,Toyota,Volkswagen
35.MULODO Reset
MULODO reset is used to detect whether the car's mileage has been modified
Note：
Not all maintenance functions are supported for all vehicle models. If you are uncertain, please contact us.
9.📋OE-Level Full System Diagnosis | Lifetime Free Update and Use
As an OE level automotive diagnostic tool, MUCAR 892BT can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ，Air Conditioning System，Transmission System, etc...
Brief introduction of its capabilities in full systems diagnostic as follows:
1. For Engine System: help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
2. For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.
4. For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.
5. To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
6. To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
7. To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
8. To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
9. To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
10:To diagnose Light System if you see rapid signal blinking or dimming lights. And many more ....
🛡️FCA SGW Authorization + CAN FD & DoIP Support
✔ Compatible with 2018-2024 Fiat / Chrysler / Alfa Romeo / Dodge / Jeep (FCA SGW vehicles) ⚠️Note: Full access to FCA SGW requires official platform fee registration
✔ Support CAN FD & DoIP protocols, compatible with latest models: Chevrolet, Cadillac, Land Rover, Jaguar, BMW E/F Chassis and other post-2020 new vehicles
What is CAN FD Protocol?
CAN FD (CAN with Flexible Data-rate) is the upgraded version of traditional CAN bus, designed for modern high-speed automotive communication. It is the standard protocol for 2019+ GM/Chevrolet/Buick/Cadillac vehicles. Key Benefits:
🔥 10× Faster Speed: Up to 8 Mbps transmission rate, read full system fault codes and live data in seconds.
🔥 Larger Data Capacity: 64-byte per frame vs. traditional 8-byte, support multi-system data reading at the same time.
🔥 Compatible with New GM Vehicles: Full access to 2019+ GM CAN FD systems, no "no communication" error.
🔥 Stable & Reliable: Strong anti-interference performance, suitable for complex electronic systems of new cars.
GM: CANFD models
[2021][Chevrolet][Onix] CANFD6&14
[2021][Chevrolet][Tracker] CANFD6&14
[2021][Chevrolet][Suburban] CCMA
[2021][Cadillac][Escalade ESV] CCMA
[2021][Cadillac][Escalade] CCMA
[2021[GMC][YUKON XL] CCMA
[2021[GMC][YUKON] CCMA
[2023][Chevrolet][Montana] CANFD6&14
[2024][Buick][Electra E5] VSIM
[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)
[2021][Chevrolet][Onix] All Systems
[2021][Chevrolet][Tracker] All Systems
[2021][Chevrolet][Suburban] CCMA
[2021][Cadillac][Escalade ESV] CCMA
[2021][Cadillac][Escalade] CCMA
[2021[GMC][YUKON XL] CCMA
[2021[GMC][YUKON] CCMA
[2023][Chevrolet][Montana] All Systems
[2024][Buick][Electra E5] VSIM
[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)
What is DOIP Protocol?
DOIP stands for Diagnostic communication over Internet Protocol, it is the latest automotive Ethernet diagnostic protocol, widely used on new luxury vehicles and new energy cars after 2017.
1.✅Super Fast Diagnostic Speed
Greatly improve data transmission speed, read full system data, live stream data and fault information in seconds, much faster than traditional CAN bus.
2.✅Access High-Level Intelligent Systems
Support diagnosis of vehicle intelligent gateway, driving assistance system, ADAS system, central control entertainment system, new energy vehicle battery management system and other high-end electronic modules.
3.✅Full Deep System Diagnosis
Break the diagnosis limit of old protocols, realize complete full-system scanning, bidirectional active test, ECU online coding and hidden function activation on latest luxury cars.
4.✅Widely Compatible New Vehicles
Perfectly match 2017+ Jaguar, Land Rover, 2018+ Volvo, BMW F/G chassis, new Mercedes-Benz, latest Audi Volkswagen and most new energy electric vehicles.
5.✅Stable & High-efficiency Data Transmission
Strong anti-interference ability, stable connection, no data loss during long-distance and multi-module simultaneous diagnosis.
Support 99%+ Worldwide Vehicle Coverage,32 Languages,Global Version!
Covers 99%+ Car Makers and 10000+ Vehicles in American, European, & Asian etc brands from 1996-2024.
(Including 12V cars, light duty trucks, SUVs, hybrid vehicles, minivans.)
✔ American Cars: Compatible with Buick; For Cadillac; For Chevrolet; For Chrysler; For Dodge;For Ford; For GM; For Hummer; For Jeep; For Lincoln; (BRAZIL) For BX-Fiat; For BX-GM...
✔ European Cars: Compatible with For Abarth; For Alfa Romeo; For Audi; For Bentley; For Benz; For BMW; For Bugatti; For Citroen; For Dacia; For EU-Ford; For Ferrari; For Fiat; For Jaguar; For Lamborghini; For Lancia; For LandRover; For Maserati; For Maybach; For Mini; For Opel; For Peugeot; For Porsche; For Renault; For Rolls-Royce; For Rover; For Saab; For Seat; For Skoda; For Smart; For Sprinter; For Vauxhall; For Volvo; For VW; For (UKRAINE) ZAZ; For (RUSSIA) GAZ; For VAZ...
✔ Asian Cars: Compatile with (JAPAN) Acura;For Daihatsu; For Honda; For Infiniti;For Isuzu; For Jpisuzu; For Lexus; For Mazda; For Mitsubishi; For Nissan; For Nissan GTR; For Scion; For Subaru; For Subaru; For Suzuki; For Tlisuzu; For Toyota; For (KOREA) Daewoo; For Hyundai; For KIA; For Samsung; For Ssangyong; For (CHINA) Baic; For Beijing; For Changan; For Changan-Ford; For Changcheng; For Changhe; For Chsuzuki; For DF Peugeot; For DF Honda; For DF Nissan; For DF XK; For Flyer,For BYD; For Fukang; For Futian,For Foton; For Geely; For Gonow; For GZ Honda; For Hafei; For Haoqing; For HC BMW; For Hmada; For Huachen; For Isuzu,For JMC; For Jacty; For Jianghuai; For Jiao; For Jinlong;For Joylong;For Lifan; For Liuwel-TY; For Luxgen; For NJ Fiat; For Qirul-TY,For chery; For Qoros; For Saicmg; For Spark-TY; For TJ Toyota; For Trumpchi For GAC; For Weili; For Xiaokang For Dongfeng; For Xili,For Faw Tianjin; For Xinkai; For YQ Mazda; For Zhongshun; For Zhongtai,For Zotye; For Zhongxing; For (INDIA) Mahindra;For Maruti; For Tata; For (MALAYSIA) Perodua; For Proton; For (IRAN) MVM...
✔Australian Cars
For Au-Ford; For Holden...
More car models, please contact us for details.
>> IMMO Matching/Key fob Pro-gramming: Compatible with Toyota,Honda,Hyundai,Kia etc.
✔ NOTE: IMMO functions not for All cars, so Please send VIN and required function to to us check compatibility before purchase.
Support 32 Languages
English, German, Spanish, French, Italian, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Greek, Slovak, Romanian, Arabic, Croatian, Slovene, Finnish, Japanese, Korean, Czech, Persian, Swedish, Serbian, Danish, Vietnamese , Bulgarian，Indonesian，Ukrainian
🚘Full 10 Mode OBDII Universal Functions
Read Codes:Read extensive current, pending and permanent codes in OBD system quickly
Clean Codes:Clear detected fault codes and turn off the Check Engine Light efficiently
Live Date:View graphical live data of vehicle's computer module(s) for easy analyses
Freeze Frame:View the vehicle's operating parameters at the moment a DTC is detected
I/M readiness:Read I/M readiness status to have a vehicle inspected for state emissions compliance O2 sensor test:Perform O2 sensor test to check fuel efficiency and vehicle emissions On-Borad Monitor Test:Read the results of on-board diagnostic monitoring tests for specific components/systems Car Information Display:Retrieve the vehicle information of VIN, CINs, and CVNs completely EVAP Test:Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system
🌟 Expand Your MUCAR 892BT PRO Scanner with These Professional Tools
Turn your diagnostic tablet into a full workshop solution with these optional add-ons:
1.THINKTPMS VENU iPro TPMS Service Tool Quickly program, relearn, and diagnose TPMS sensors. Perfect for tire shops, it works seamlessly with your scanner to resolve tire pressure light issues, activate sensors, and perform TPMS resets.
2.Endoscope Inspection Camera Reach into hard-to-see areas like engine cylinders, exhaust systems, and door panels. Capture clear video and images to spot wear, leaks, or damage without disassembly.
3.Oscilloscope Module Diagnose electrical and sensor issues with precision. View real-time voltage waveforms from spark plugs, injectors, and other components to quickly identify intermittent or hard-to-find faults.
4.Portable Printer Generate and print professional diagnostic reports, fault codes, and vehicle data on-site. Great for customer records, workshop documentation, and proof of service.
5.Bluetooth Battery Clip Tester Connect wirelessly to test battery health, starting, and charging systems. Get instant results on your scanner screen, no extra tools needed.
6.TKEY 101 Key Programmer Add advanced key programming and anti-theft matching capabilities. Supports key fob programming, IMMO reset, and transponder matching for most major brands, eliminating the need for a separate dedicated programmer.
✅ These accessories are designed to work with your scanner, expanding its capabilities to handle more complex jobs and deliver better service to your customers.
Live Data Recording & Analysis
Graph, record and replay real‑time sensor streams.
Perfect for intermittent faults that only occur during road tests. Record driving‑session data to capture parameter changes when symptoms appear.
Professional Customer‑Ready Diagnostic Reports
Generate clean workshop‑grade reports: PDF export, fault highlighting, custom company info, print & share.
Pre‑scan & post‑scan reports improve transparency and build trust with your customers.
True Wireless Workshop Experience
Separate Bluetooth VCI connects to OBD port; keep the tablet in‑hand.
Run active tests while visually checking actuators (fans, lights, pumps, windows) without messy trailing cables.
Workshop‑Built Hardware
8‑inch 1280×800 Touch Screen
4GB RAM + 64GB Internal Storage
2.4G & 5G Dual‑Band Wi‑Fi
Bluetooth Diagnostic Connection
4150mAh Rechargeable Battery
Shock‑Absorbent Protective Shell
Built‑in Adjustable Kickstand
Supports optional expansion accessories
Lifetime Free Diagnostic Software Updates
Keep vehicle coverage expanding, enjoy ongoing feature optimizations — no annual diagnostic‑software subscription cost.
Exclusion: Does NOT cover OEM software, manufacturer accounts, online programming subscriptions, FCA AutoAuth or other third‑party paid services.
⚠️ Vehicle Compatibility Reminder
Diagnosis, coding, bi‑directional test, reset, topology and programming functions vary greatly by make, model, production year, engine variant, market region and factory equipment.
Before you order, kindly send us:
17‑digit VIN number
Vehicle brand & model
Model year
Target market / region
Key functions you require
We will pre‑check compatibility for you.
📦Packing List
✅ MUCAR 892BT Pro Diagnostic Tablet ×1
✅ Bluetooth VCI Diagnostic Dongle ×1
✅ Shockproof Storage Carry Case ×1
✅ Original Packing Box ×1
✅ Universal Charger with EU & UK Convert Plugs ×1
✅ User Quick Guide ×1
✅ TYPE-C Charging Cable ×1
💬From fast full‑vehicle scanning to advanced topology mapping, component validation, ECU coding and J2534 pass‑thru capability — MUCAR 892BT PRO empowers professional technicians to diagnose accurately, verify repairs and complete more jobs in‑house.
Share your VIN before purchase, buy with full confidence!
Recently viewed products
- Choosing a selection results in a full page refresh.
- Opens in a new window.
