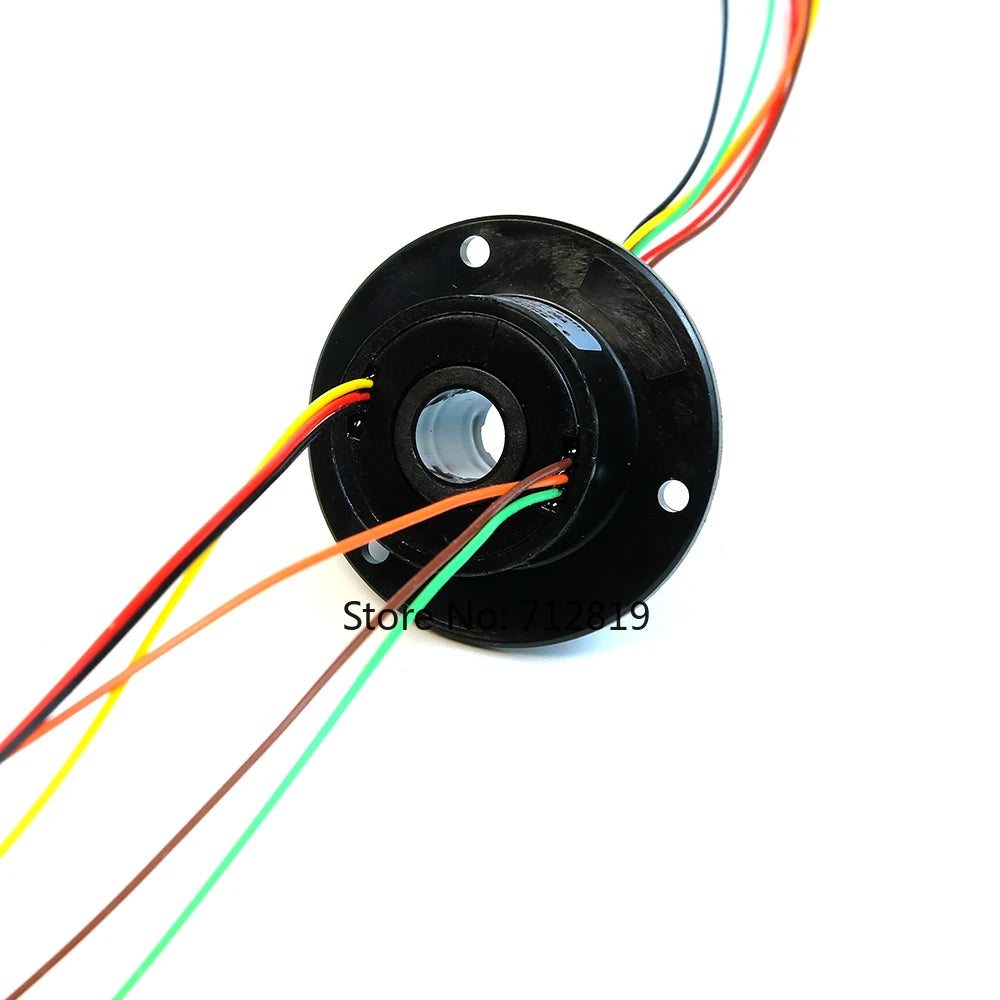

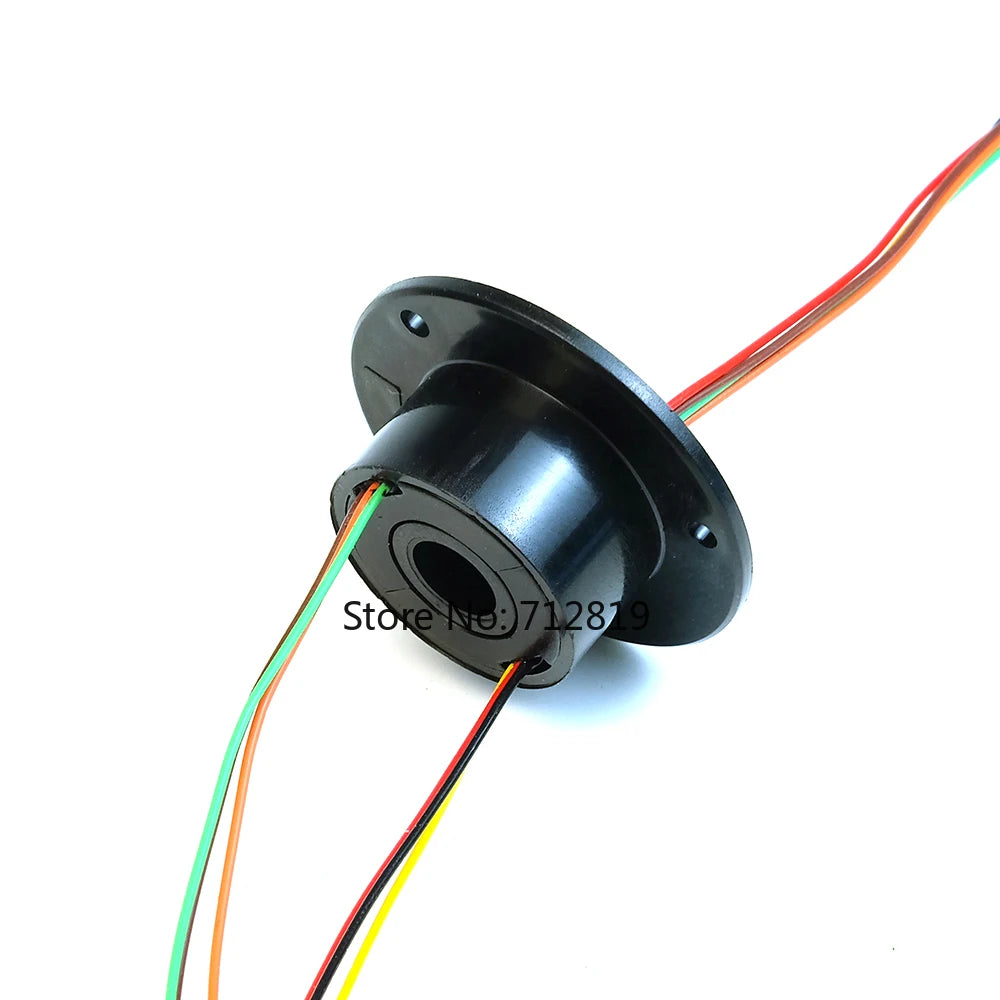

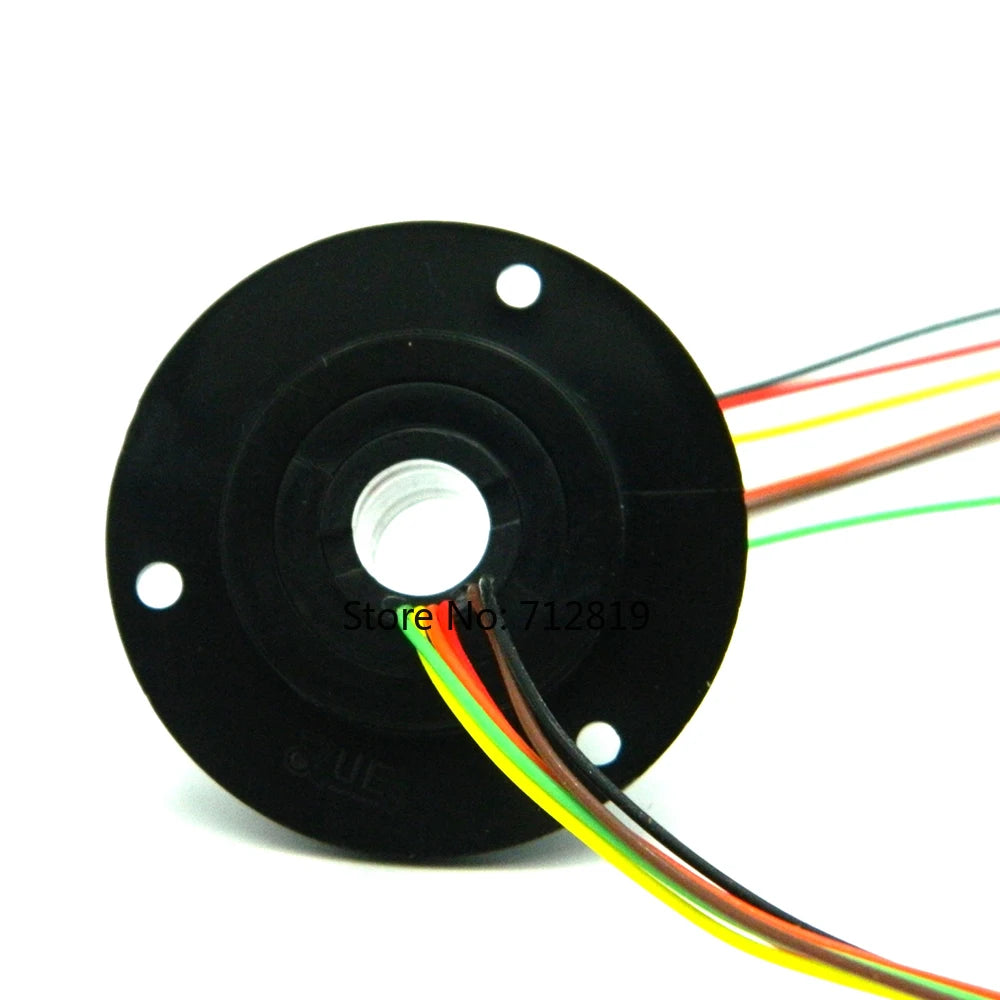

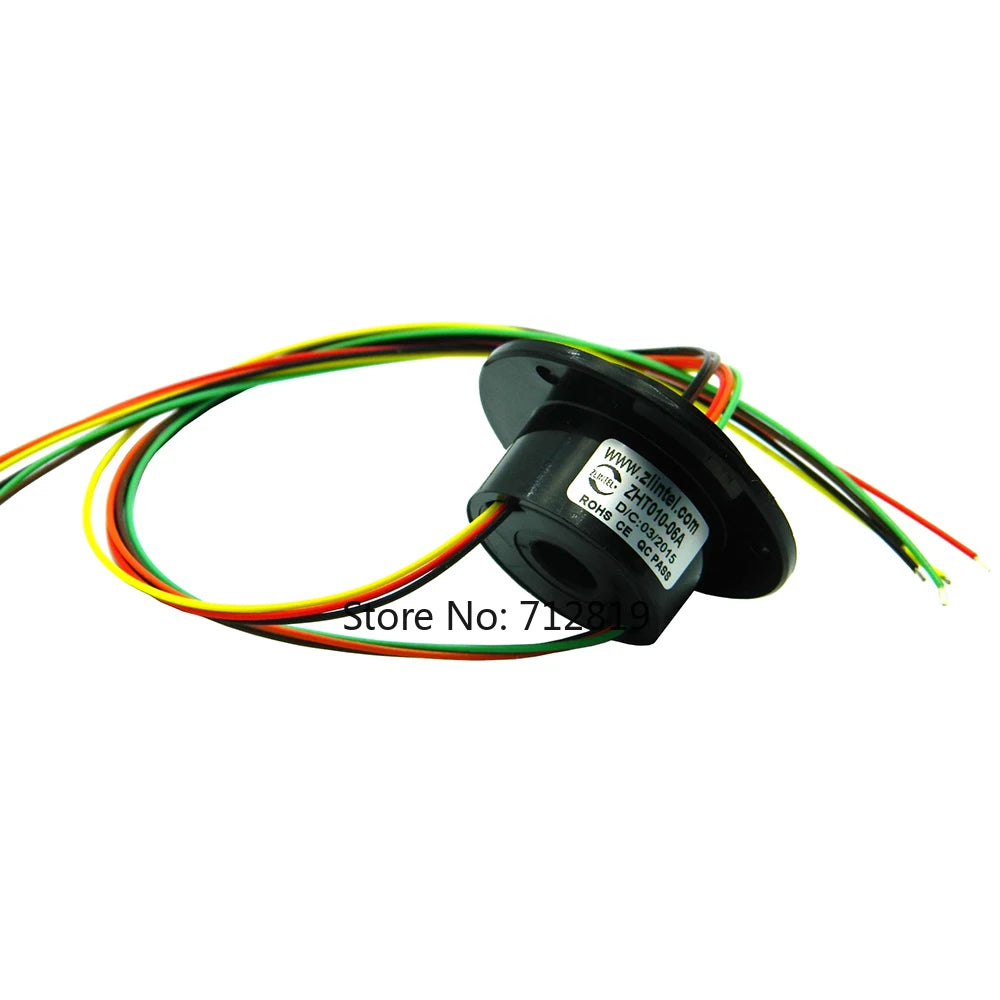

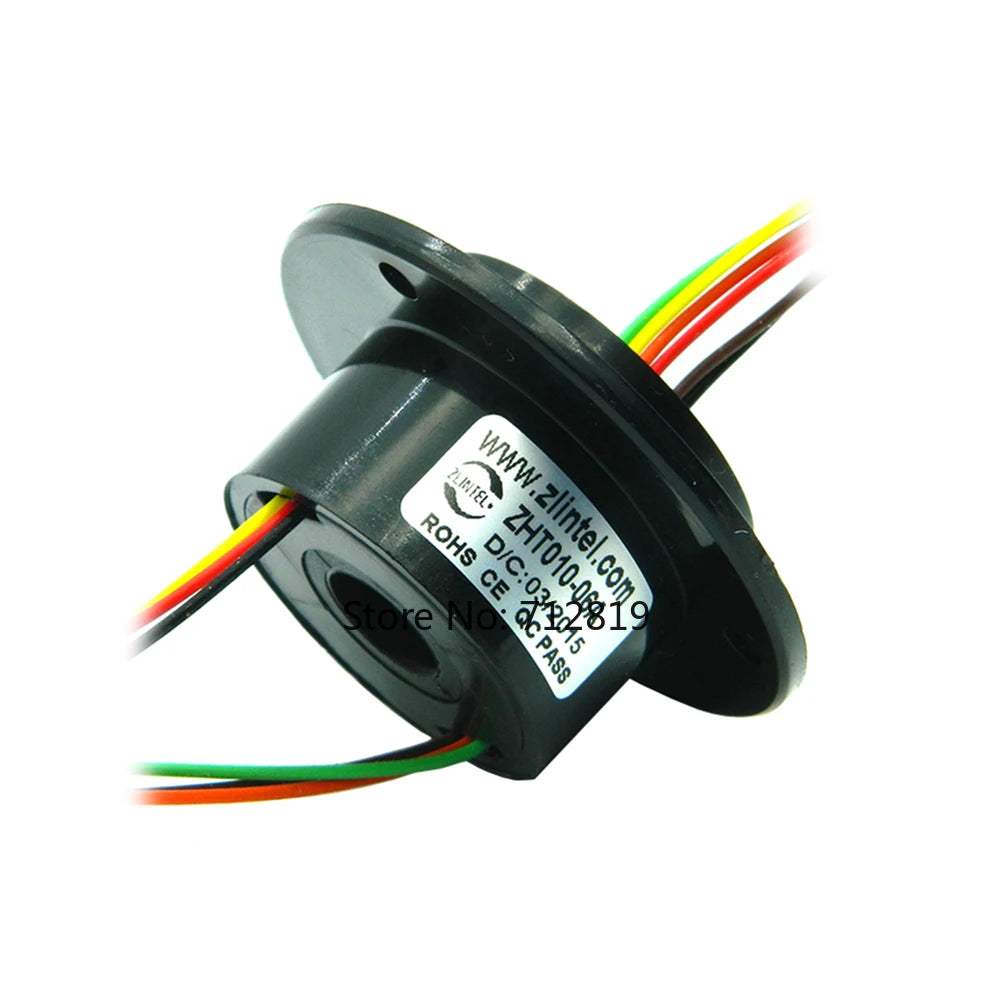

Mini Hole 10mm Hollow Slip Ring 6 Channels Wires 2A Conductive Electric Slipring Rotary Joint Connector 240V AC/DC
$50.99
SPECIFICATIONS
Brand Name: SKYAREA
Current/channel: 2A
Diameter: 30mm
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Slip ring
High-concerned chemical: none
Hole Diameter: 10mm
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Plastic
Model Number: ZHT010-06A
Origin: Mainland China
Plastic Type: PE
Quantity: 1 pcs
RC Parts & Accs: Connectors/Wiring
Recommend Age: 14+y
Remote Control Peripherals/Devices: Slip ring
Size: --
Technical parameters: value 2
Tool Supplies: Slip ring
Upgrade Parts/Accessories: Slip ring
Use: Vehicles & Remote Control Toys
Mini Hole 10mm Hollow Slip Ring 6 Channels 2A Conductive Electric Slipring Rotary Joint Connector 240V AC/DC

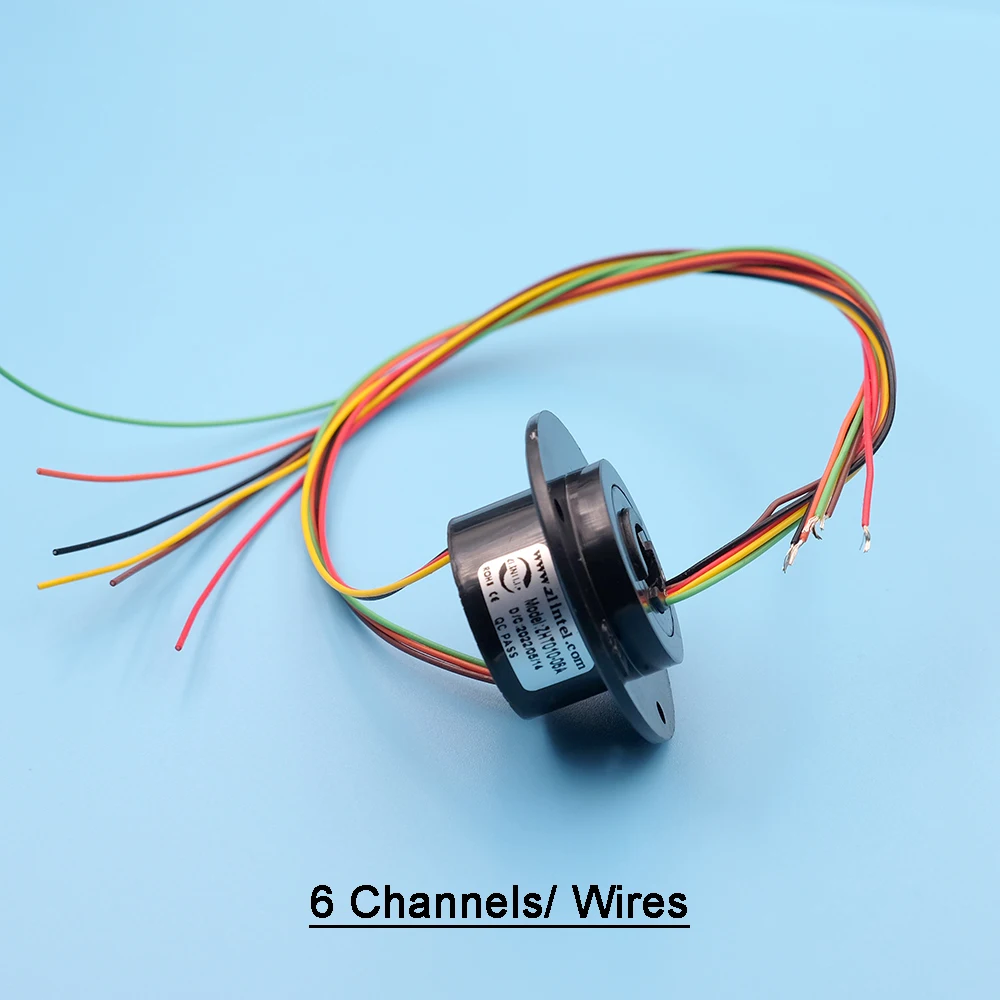

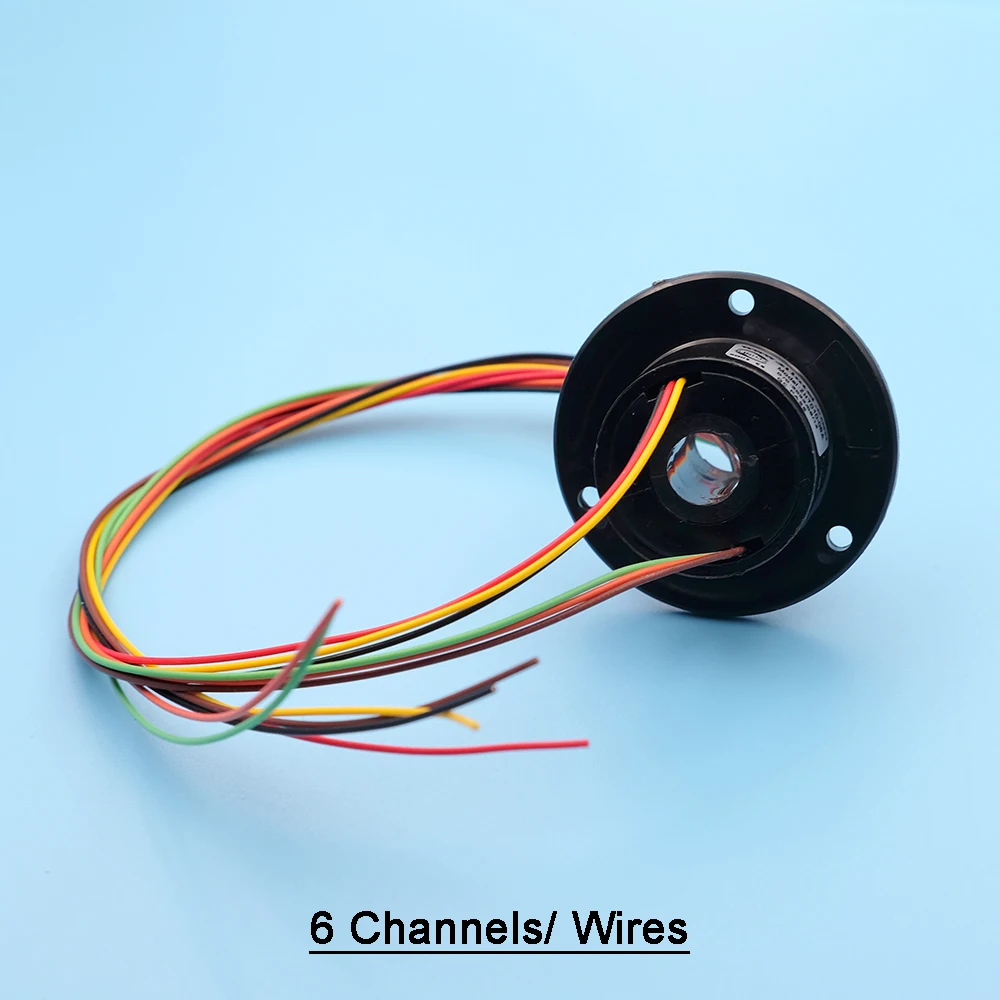

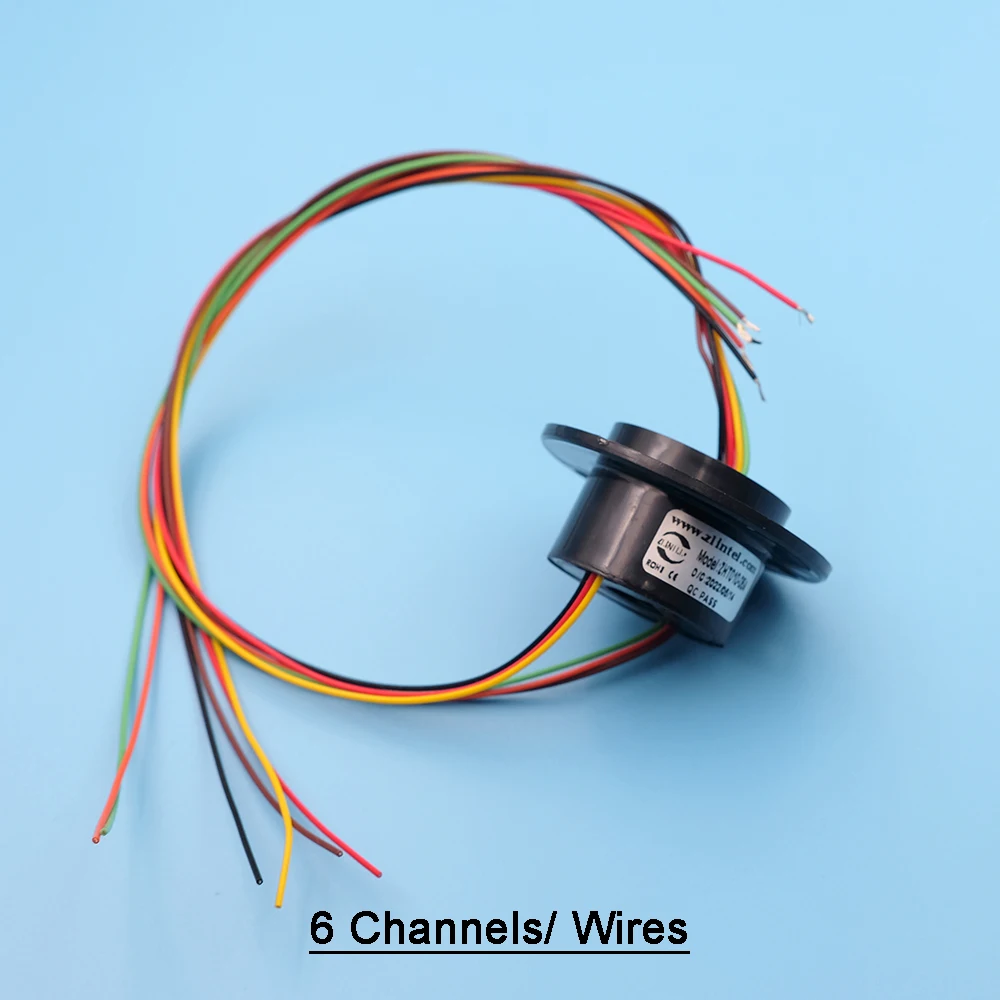

1* Slip ring (6 Channels )
Fully meet the 360 degree of unlimited rotation of the image and data transmission work small noise, long life, small rotation torque, smooth running dynamic resistance change value is extremely low,small volume, compact structure

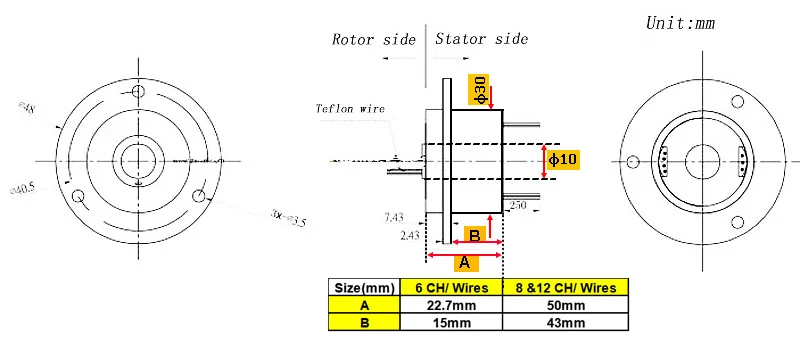

Product: 10mm Hole 30mm Slip Ring
Number of channels: 6 / 8 / 12
Rated current: 2A/Channel
Rated voltage: 240VAC/DC
Speed: 0-200rpm

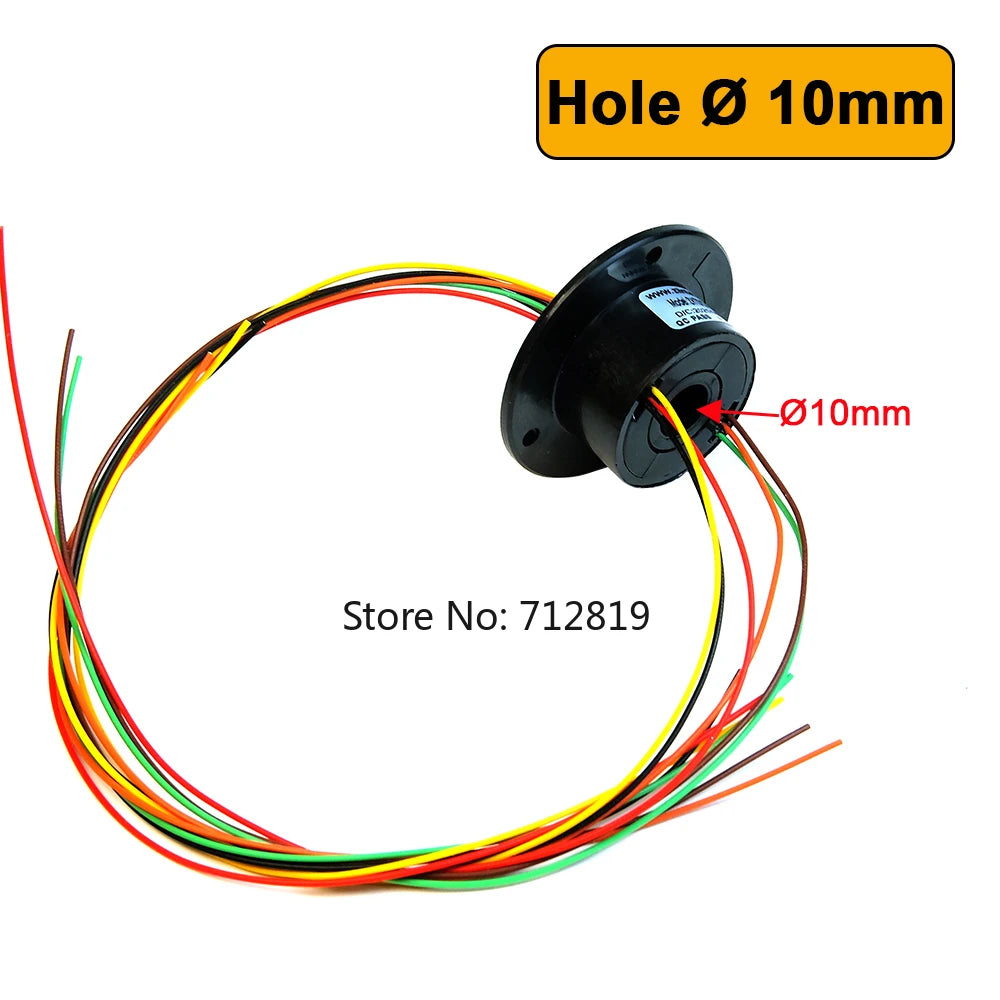

Hole: 10mm
Boday Diameter: 30mm
Contact material: precious metal
Housing material: engineering plastic
Dynamic resistance: minimum 1m Ohm
Electrical noise: <10m Ohm, 50mA, 5RPM
Wire Specifications: AWG26 Teflon
Pressure resistance: 500VDC-50Hz, 10s
Wire length: standard 250 mm
Insulation strength: 500mOhm-500VDC, 10s
Protection level: IP54
Operating temperature: -20 Celsius ~ +60 Celsius
Working humidity: 10%-85% RH
Shockproof level: MIL-STD-810E
Typical Applications:
CCTV pedestal
Automatic arm
Medical equipments
Rotary index table
Production line ,industry process equipments
