KINGBOLEN YA200 OBD2 Scanner Diagnostic Tool Code Reader Car Check Engine Lifetime Free Upgrade pk THINKOBD 500 CR3008 CR3001

KINGBOLEN YA200 OBD2 Scanner Diagnostic Tool battery tester Code Reader for Mechanics Car Check Engine Lifetime Free Upgrade pk THINKOBD 500 CR3008 CR3001

Hot Keys:
One-click I/M Readiness: Quick checks emission readiness status and drive cycle status
One-click DTC: Looks up definitions of Pending Codes stored in the scan tool and shows the possible causes of the DTC(Not every DTC with possible causes reason).
One-click VIN: Displays the vehicle's identification number.

KINGBOLEN YA200 Highlights:

1, Lifetime Free Update + Supports 9 languages:

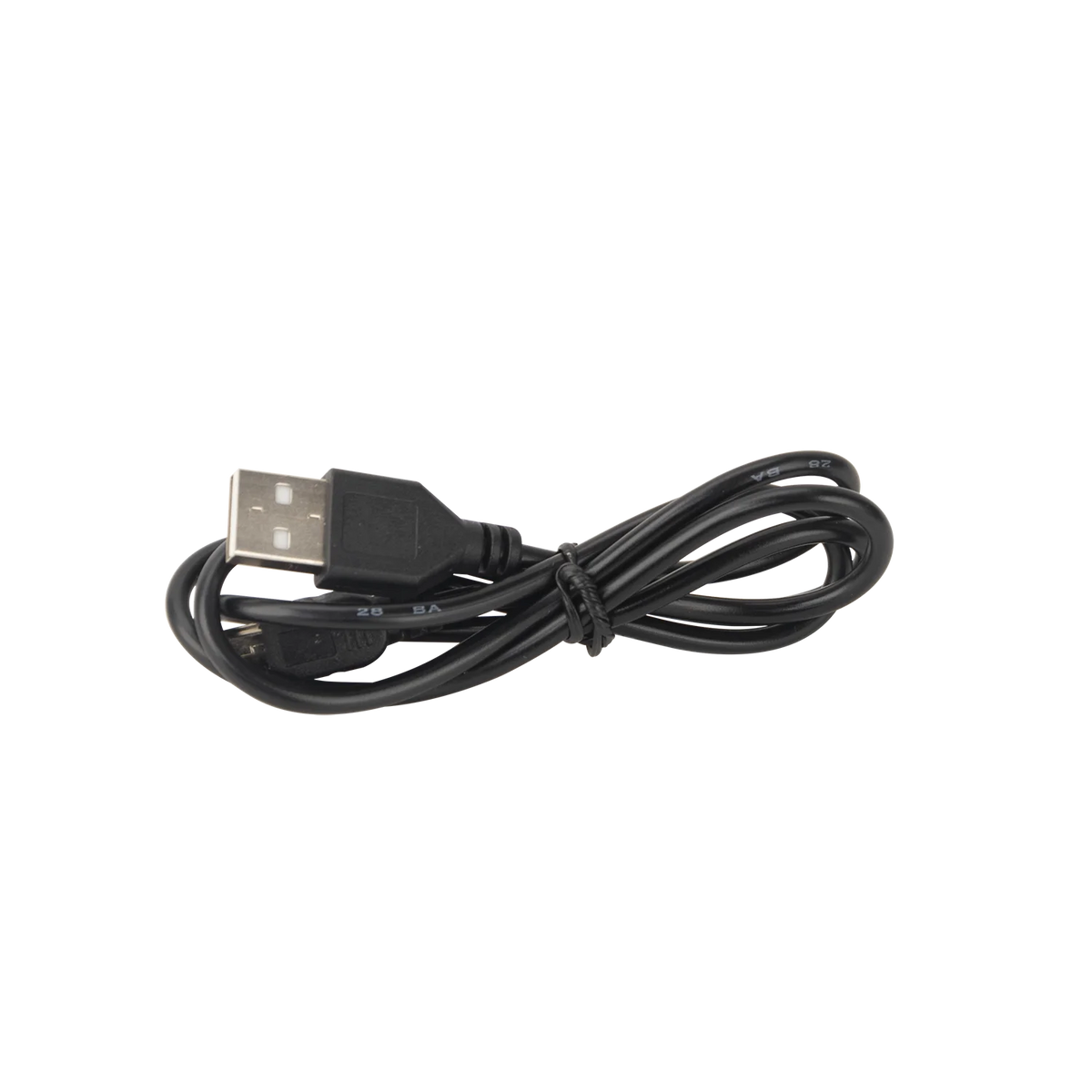

English, French, Russian, German, Italian, Spanish, Portuguese, Traditional Chinese,Polish. All languages are free to use.And KINGBOLEN YA200 OBD2 comes with Lifetime Free Update, which can be upgraded simply by connecting to a PC with a USB cablea PC with a USB cable, Traditional Chinese

2,Supports Complete OBD2 Functions:

The YA200 code reader can perform all the OBD2 functions you need, which can read/clear OBD2 fault codes, view data stream, I/M Readiness, Freeze Frame and vehicle information, and run O2 sensor test, On-board monitor test, and EVAP system test. It is a must-have basic tool for Car Owners

(* Note: It is valid only for the engine system)

3,Multifunction:

Featuring the Screenshot Function , you can take screenshots during the use of the YA200 code scanner to record the diagnosis results at any time. Just press?the?up?and?down?keys?for?3s-5s?to?take?a?screenshot, which can store up to 10 pictures. And this cost-effective OBD Code Reader also with Record and Playback Functions which enable to record and playback of real-time PID data from the electronic control module .

4,Plug and Play:

It can get the power directly from your vehicle through the OBDII Data Link Connector, just simply plug into the OBD II port on your car and turn the ignition on, and can be ready to do the OBD2 functions. It is an essential scan tool that enables you to check State Emission Monitor Status and solve basic engine problems quickly and efficiently.

5,Thoughtful Design:

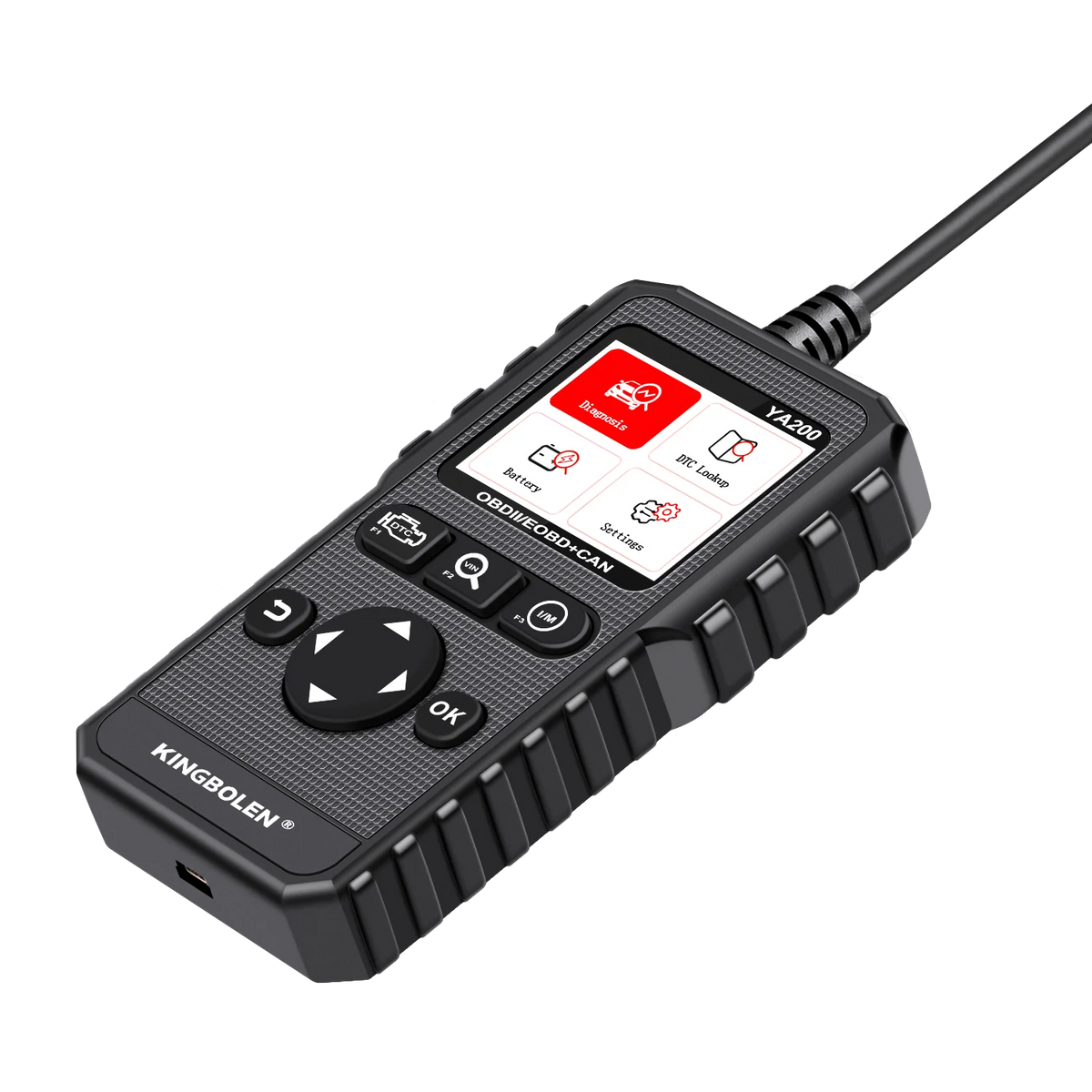

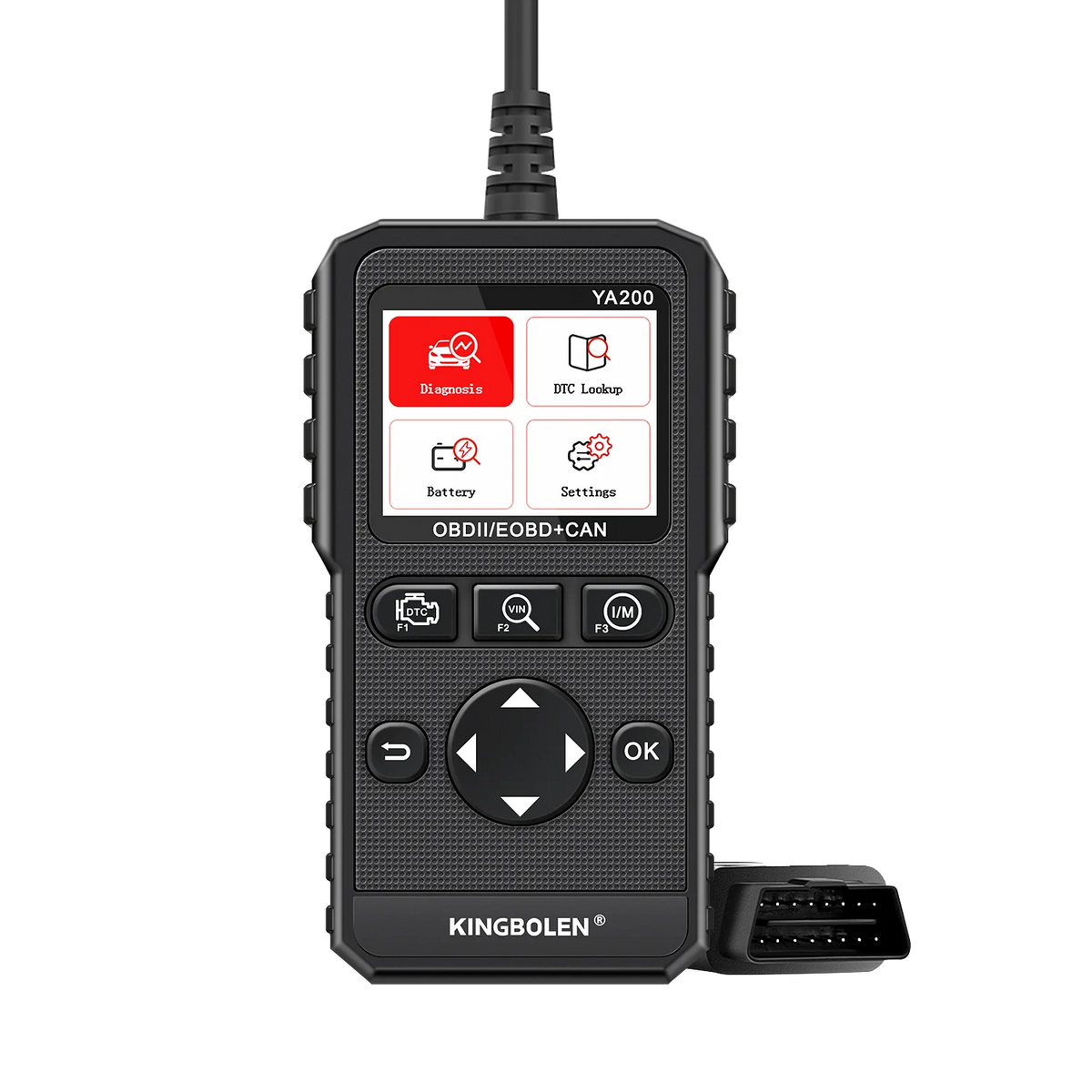

This check engine code reader is equipped with a 320 x 240 pixels display with 2.4 inches TFT color display. With 3 hotkeys: One-Click I/M Readiness/One-click VIN/One-click DTC Lookup Key design to help you can more convenient to operate. The hand-held size makes you can take it everywhere. Just plug and play, no batteries are needed.

6,Wide Capability:

Meets 9 OBD2 protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM (DOES NOT support trucks, semi-trailers, dump trucks, tractors, hybrids, electric vehicles and other commercial vehicles)

Kingbolen YA200 Supports Full OBD2 Functions:

1. Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4. I/M Readiness Status:
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability

The KINGBOLEN YA200 Code Reader meets the following protocols:

① SAE J1850 PWM (41.6 Kbaud)
② SAE J1850 VPW (10.4 Kbaud)
③ ISO 9141-2 (5 baud init, 10.4 Kbaud)
④ ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
⑤ ISO14230-4 KWP (fast init, 10.4 Kbaud)
⑥ ISO15765-4 CAN (11bit ID, 500 Kbaud)
⑦ ISO15765-4 CAN (29bit ID, 500 Kbaud)
⑧ ISO15765-4 CAN (11bit ID, 250 Kbaud)
⑨ ISO15765-4 CAN (29bit ID, 250 Kbaud)

Technical Details：

- Display: 320 x 240 pixel display with TFT color screen.

- Operating Temperature: -10°C to 40°C (14°F to 104°F).

- Storage Temperature: -20°C to 70°C (-4°F to 158°F).

- External Power: 9.0V to 16.0V power provided via vehicle battery.

- Product Size: 137 × 79 × 22 mm
(5.4"×3.1"×0.9").
