HD 52MM Car Water Temperature Gauge / Oil Level Gauge / Voltmeter Fuel Pressure Meter with 0-1.00 Mpa Oil Press Sensor 0~190 Ohm
Gauge without Sensor
$41.30
Sale price
$41.30
Regular price
$0.00
Skip to product information
HD 52MM Car Water Temperature Gauge / Oil Level Gauge / Voltmeter Fuel Pressure Meter with 0-1.00 Mpa Oil Press Sensor 0~190 Ohm
$41.30
Sale price
$41.30
Regular price
$0.00
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: MAIMEIMI
Choice: yes
Country/Region of Manufacture: China
High-concerned chemical: None
Interchange Part Number: Voltmeter Ammeter

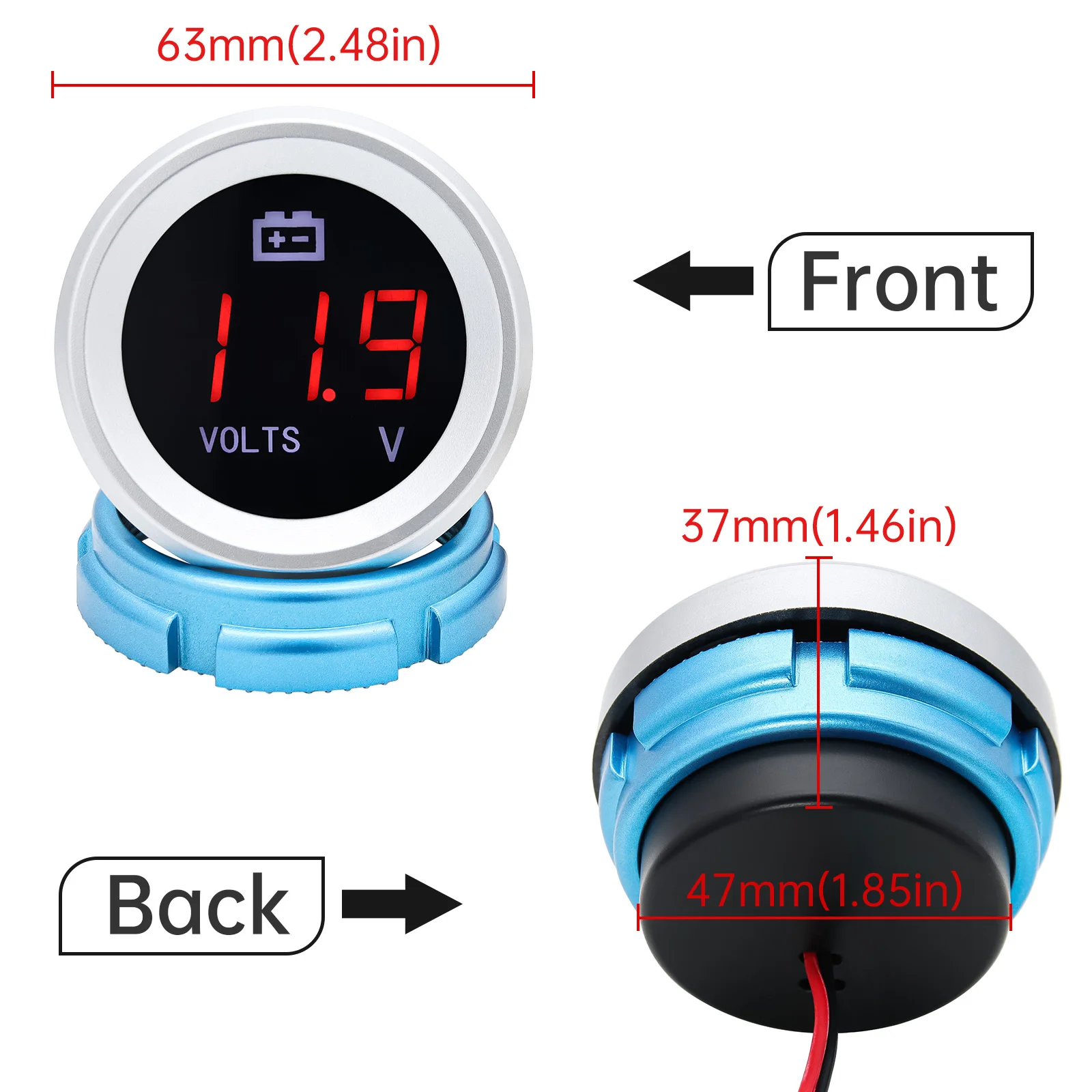

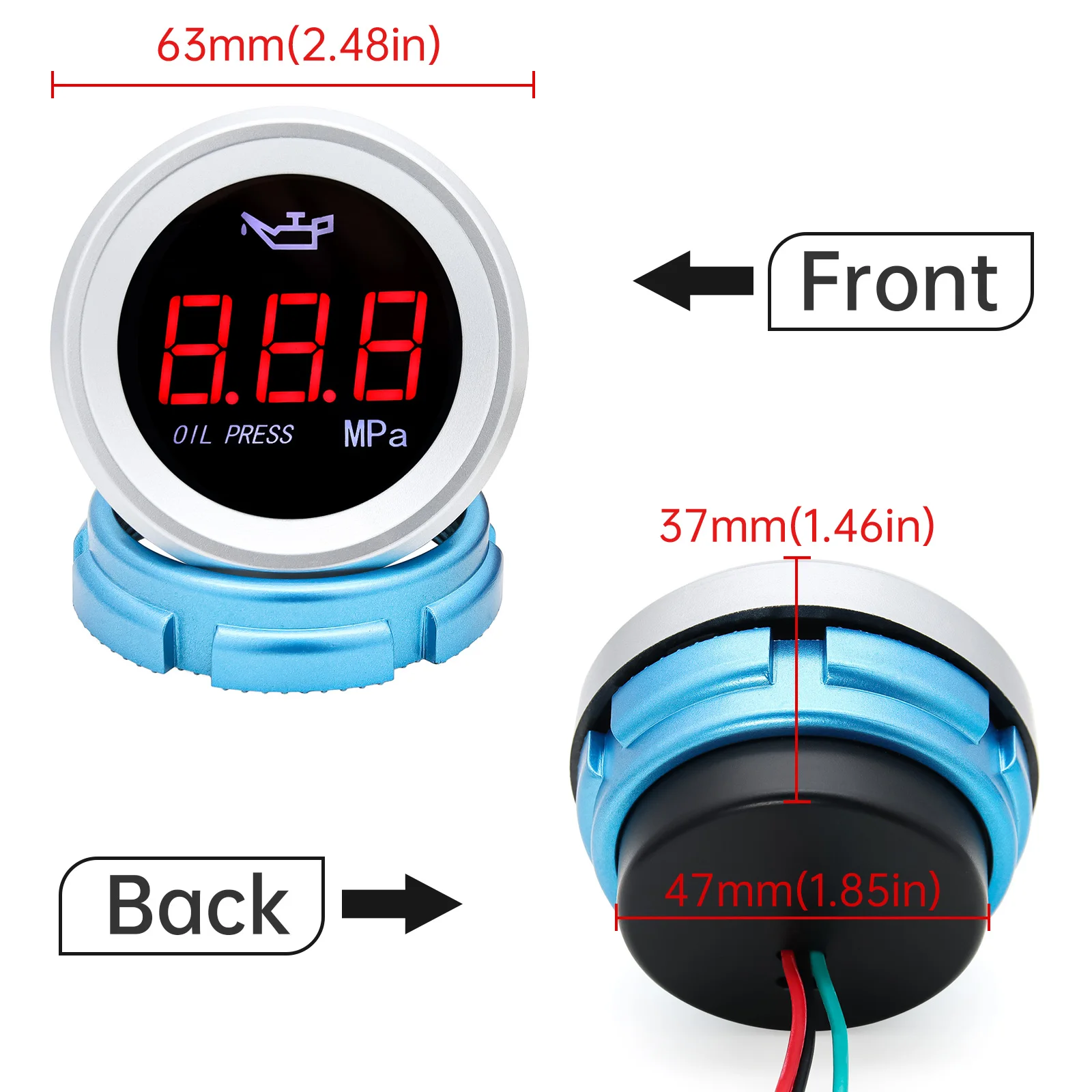

Item Length: 6.3cm
Item Weight: 0.1kg
Item Width: 3.7cm
Manufacturer Part Number: Vehicle Temperature Indicator
Material: Plastic Shell
OEM NO.: Fuel Gauge
Origin: Mainland China
Other Part Number: Oil Pressure Gauge
Placement on Vehicle: Front
Special Features: Voltmeter for cars

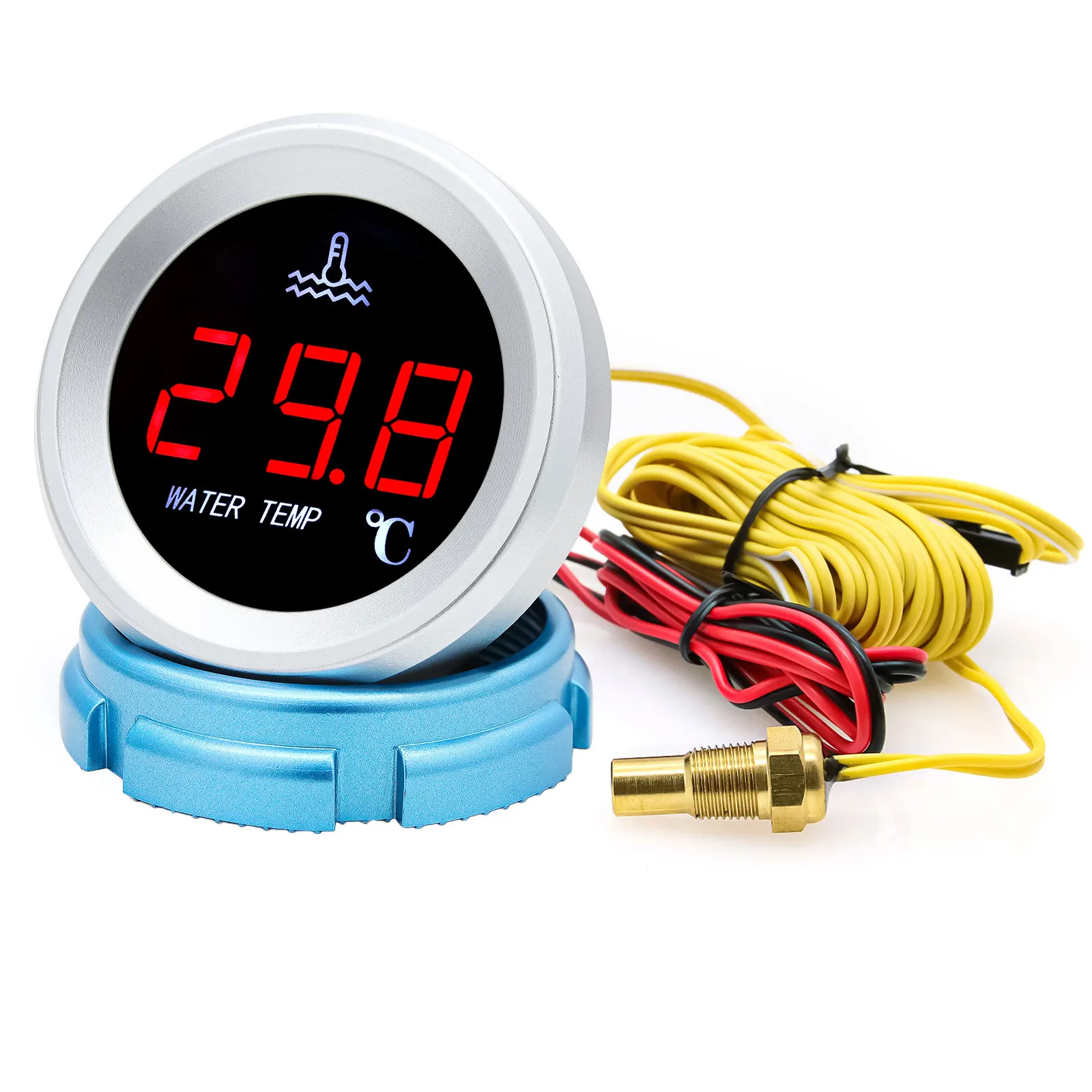

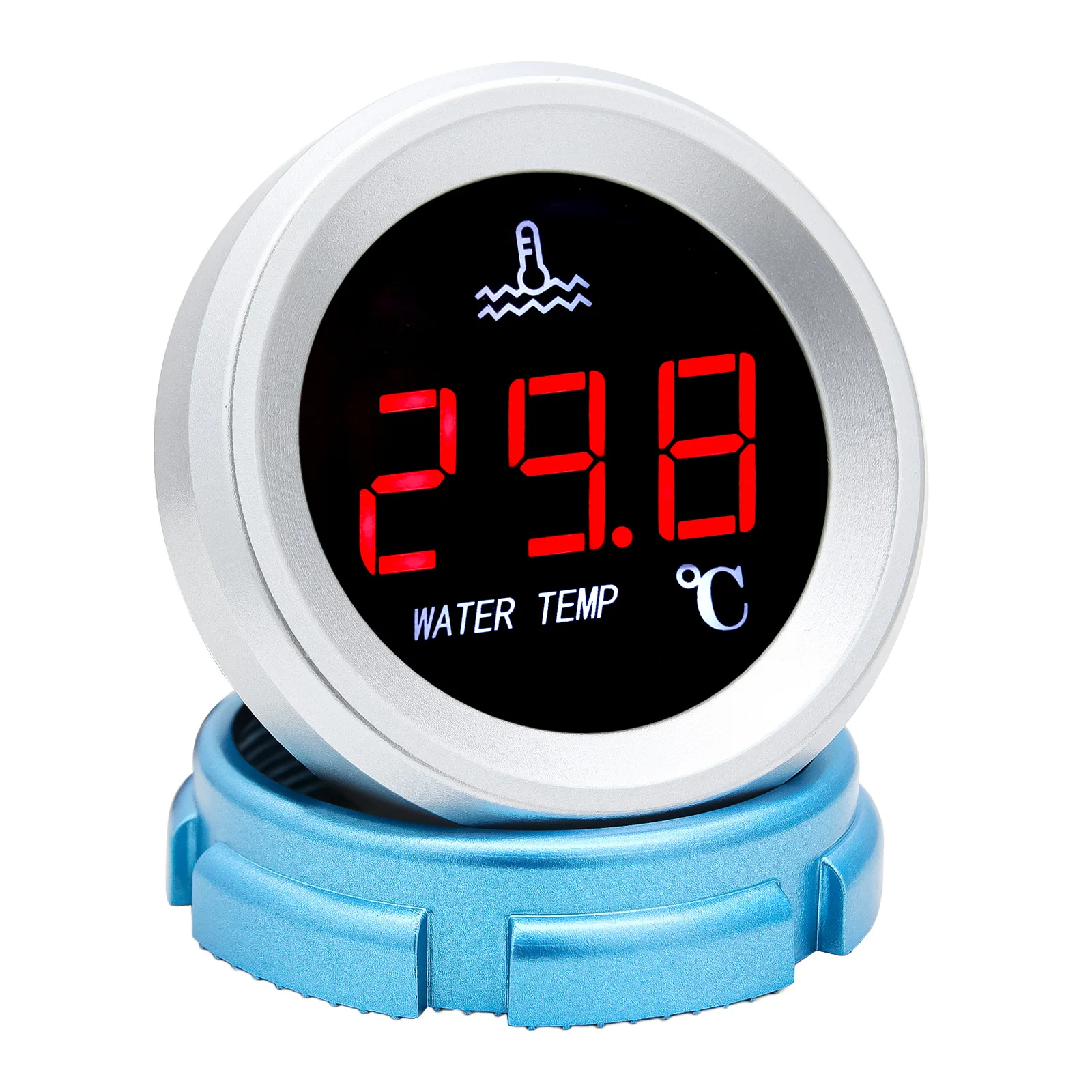

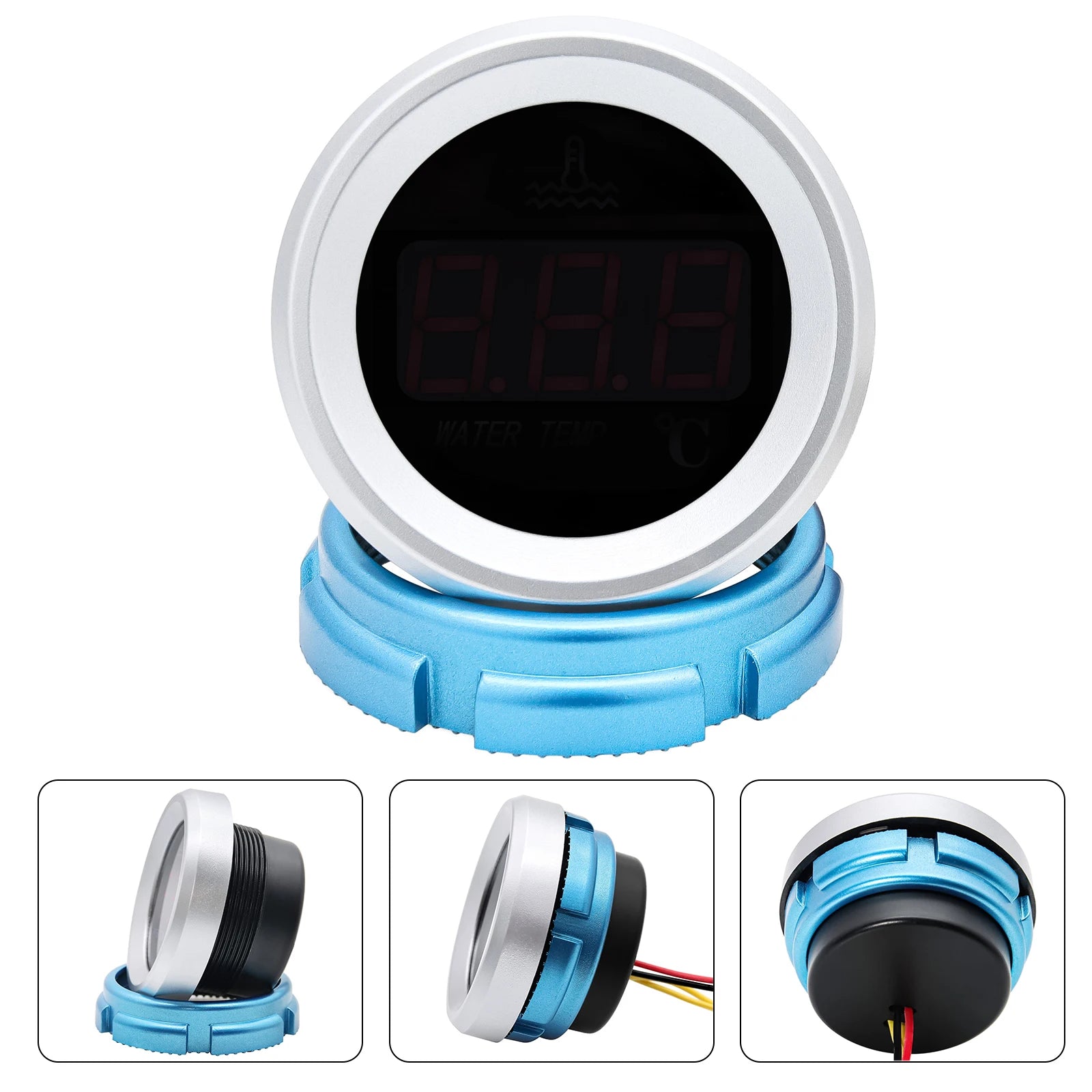

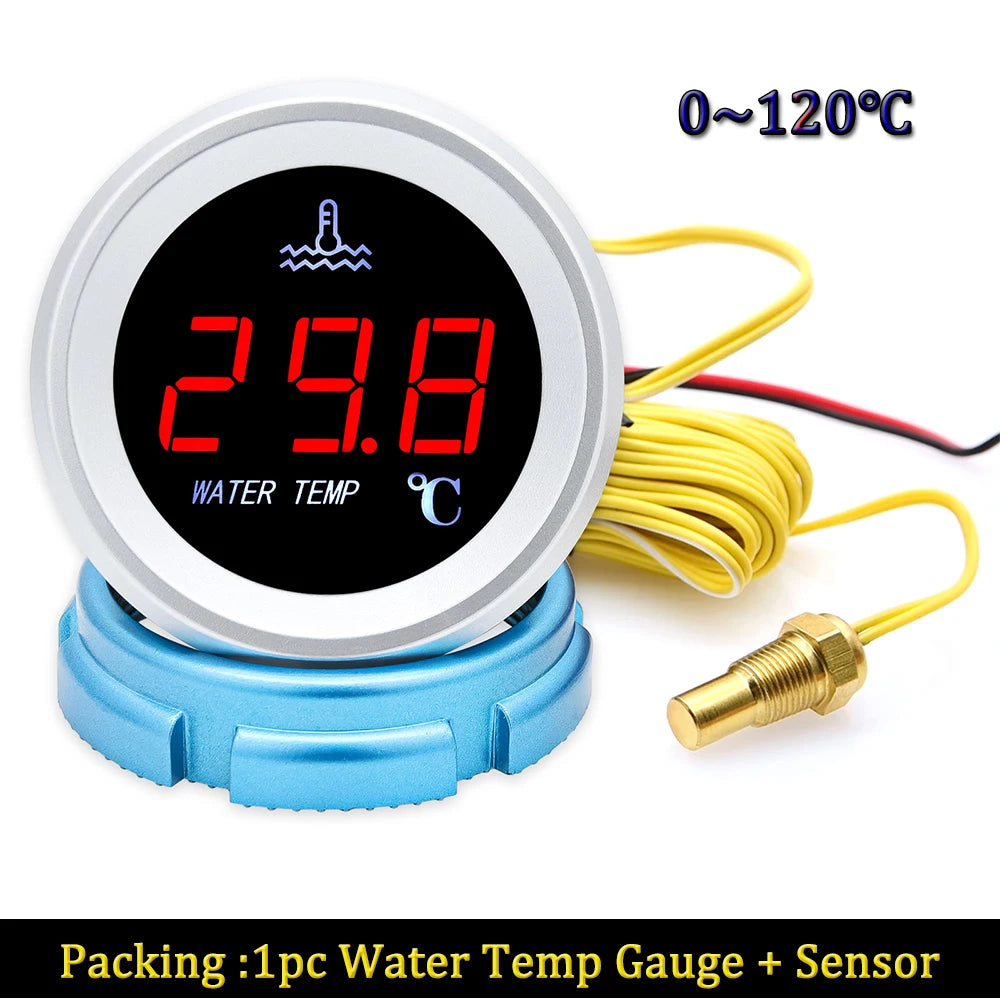

Water Temperature Gauge Specification:

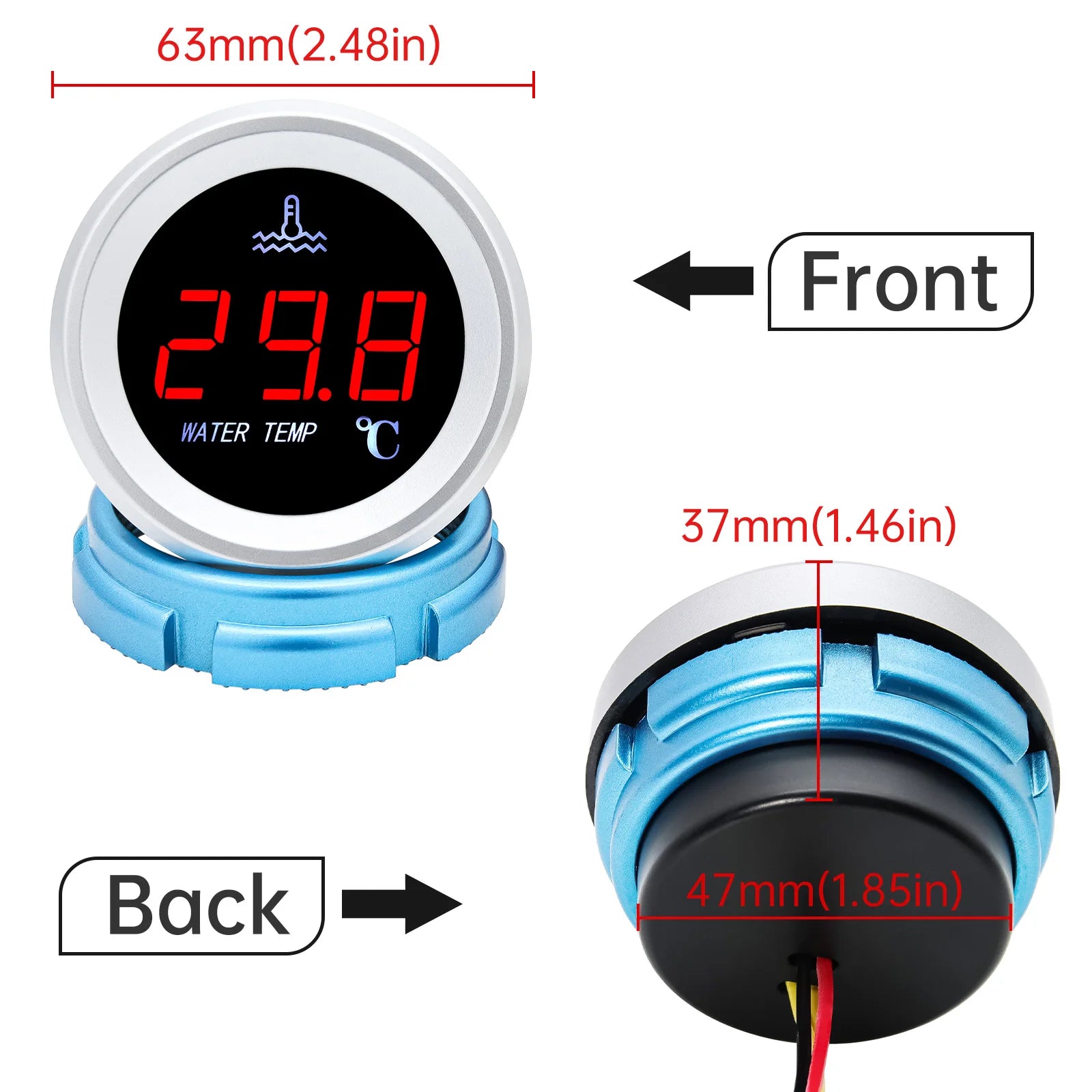

-52mm Water Temperature Gauge
-Working Voltage :9-35V
-Range:0-120℃
-Alarm Temperature :≥96℃
(The Gauge Flash Alarm )

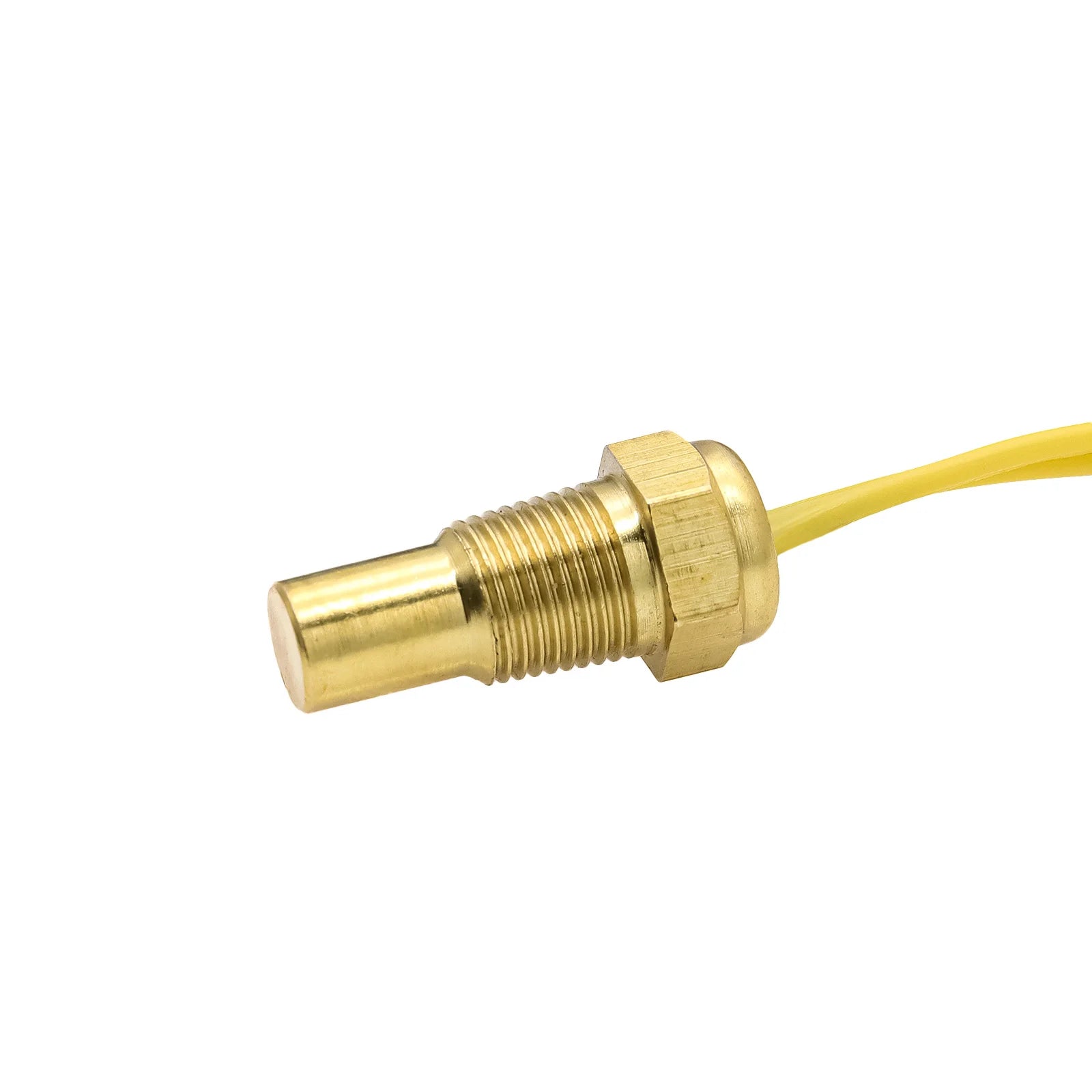

-Water Temp Sensor size :1/8NPT
-Connection:
Red Wire-------------Power (+)
Black Wire ----------Power(-)
Package Include :
1 X 52MM Water Temp Gauge
1 X 1/8NPT Water Temp Sensor

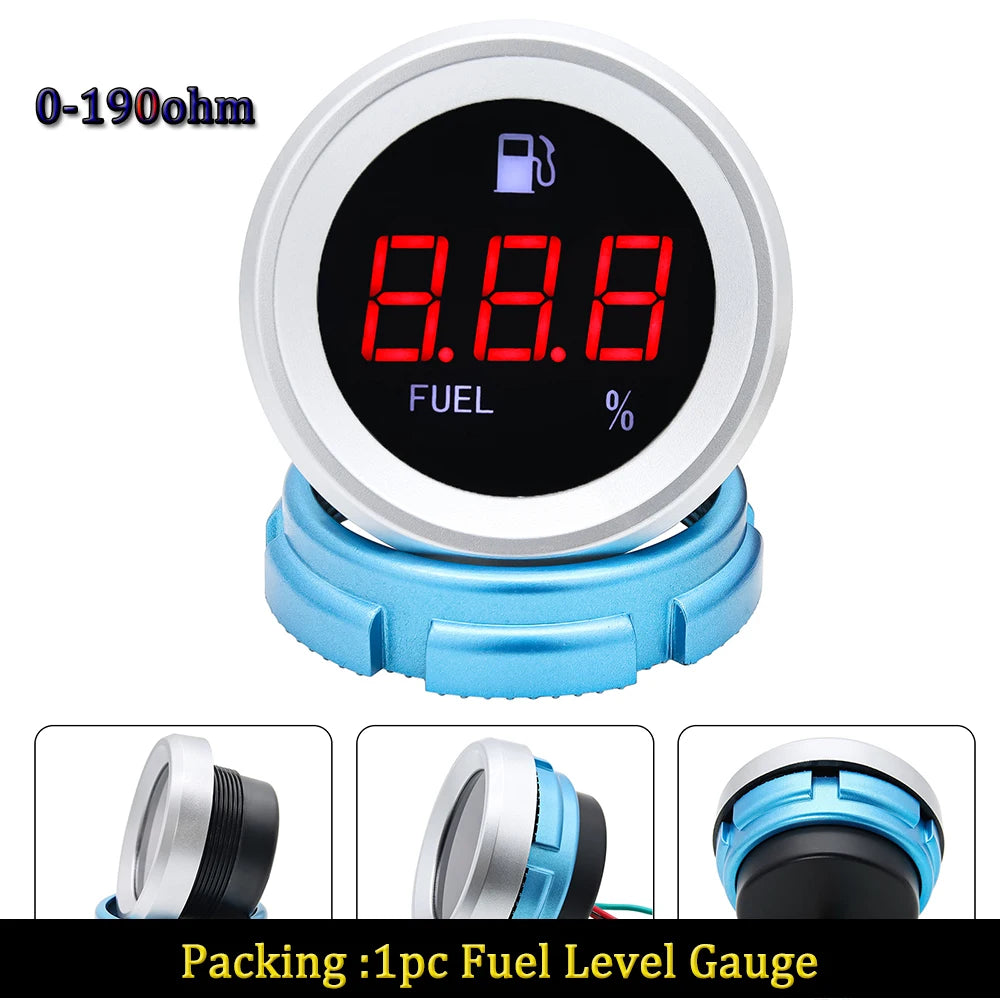

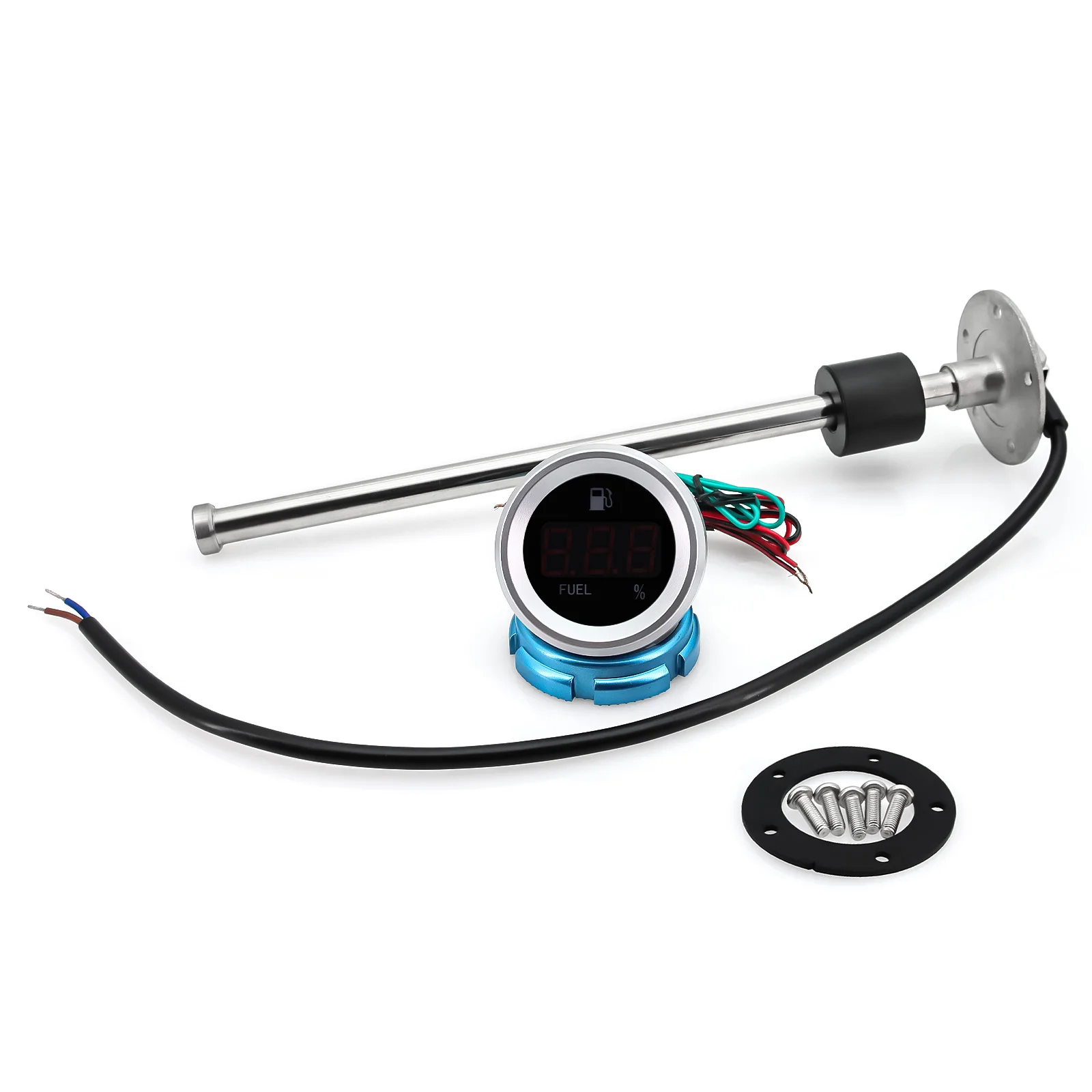

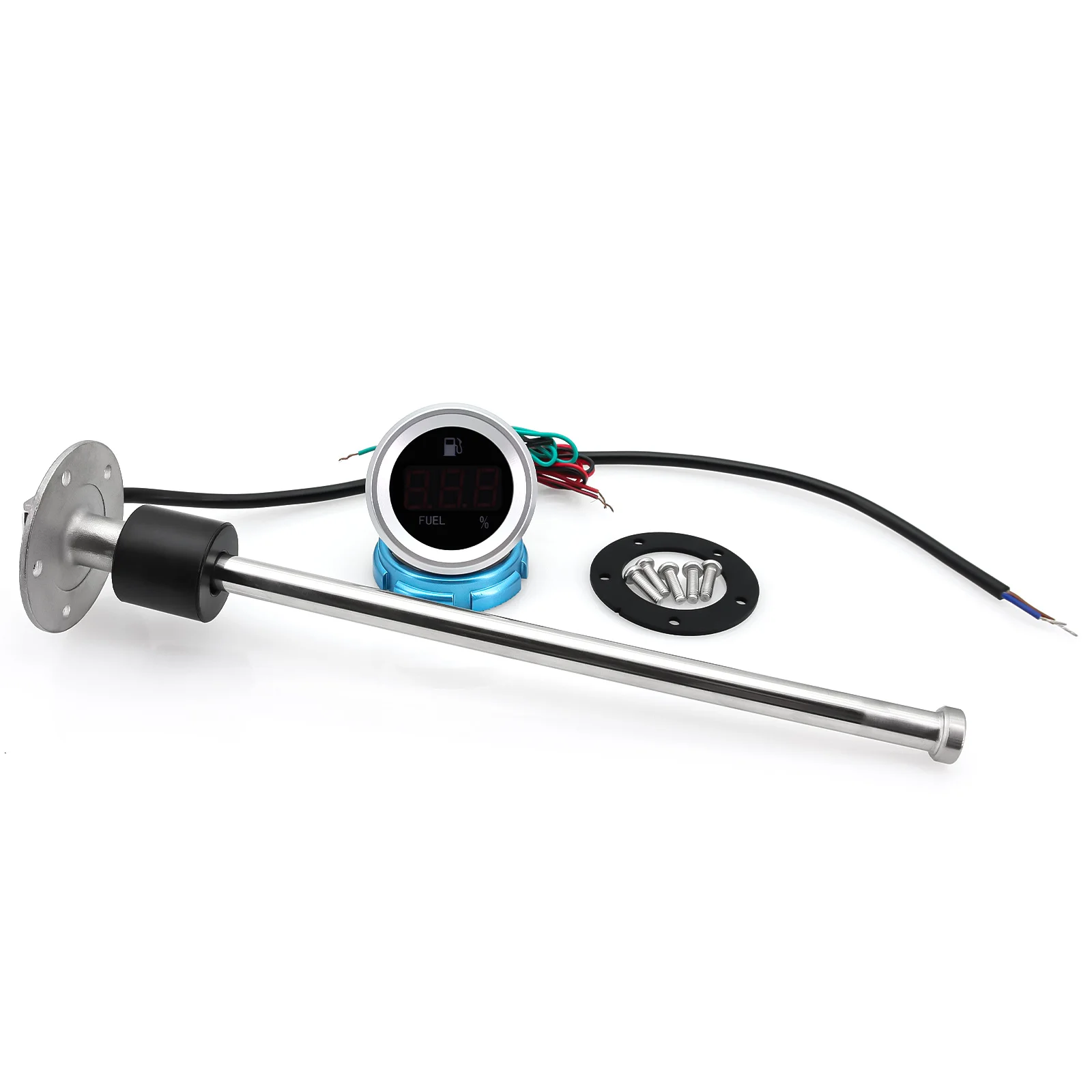

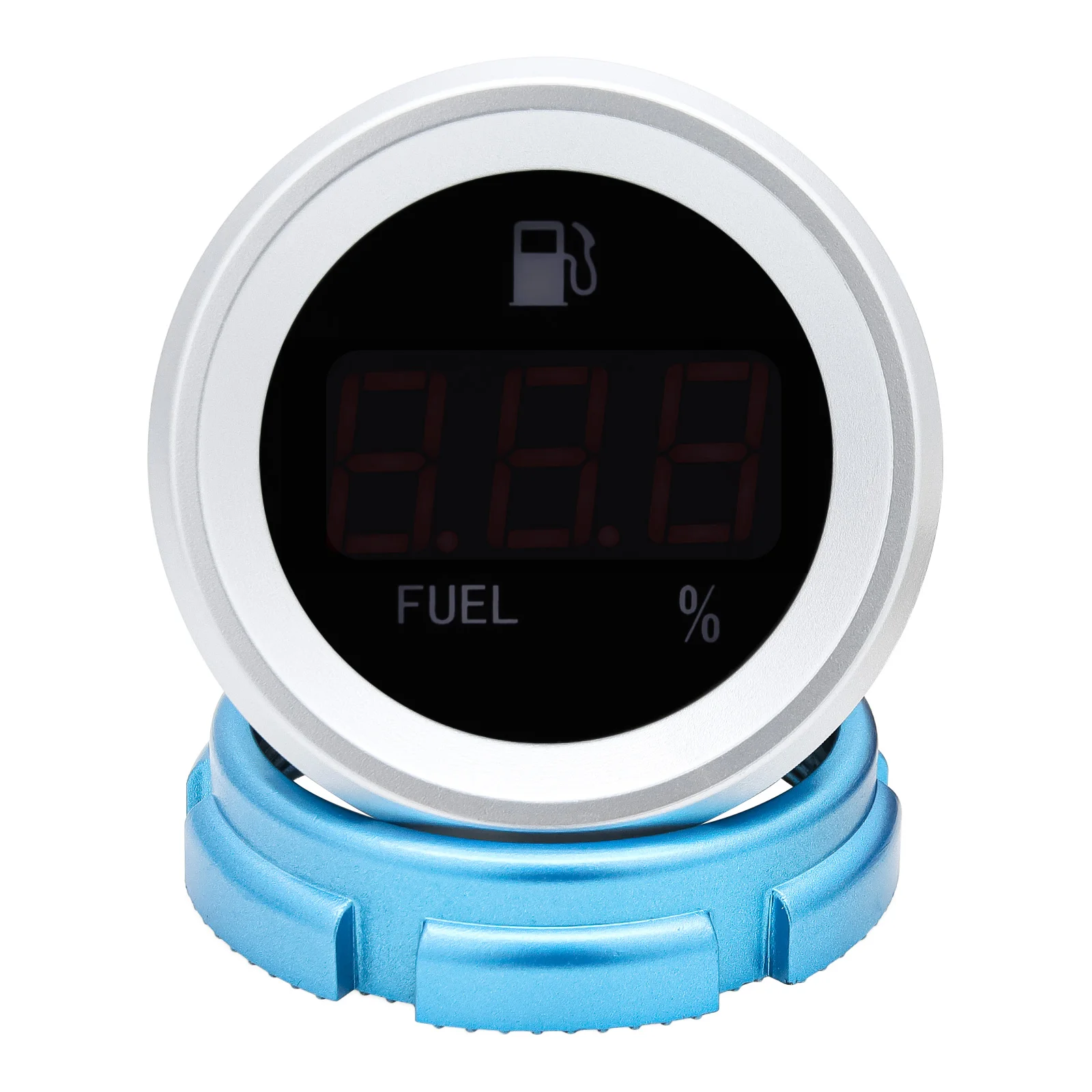

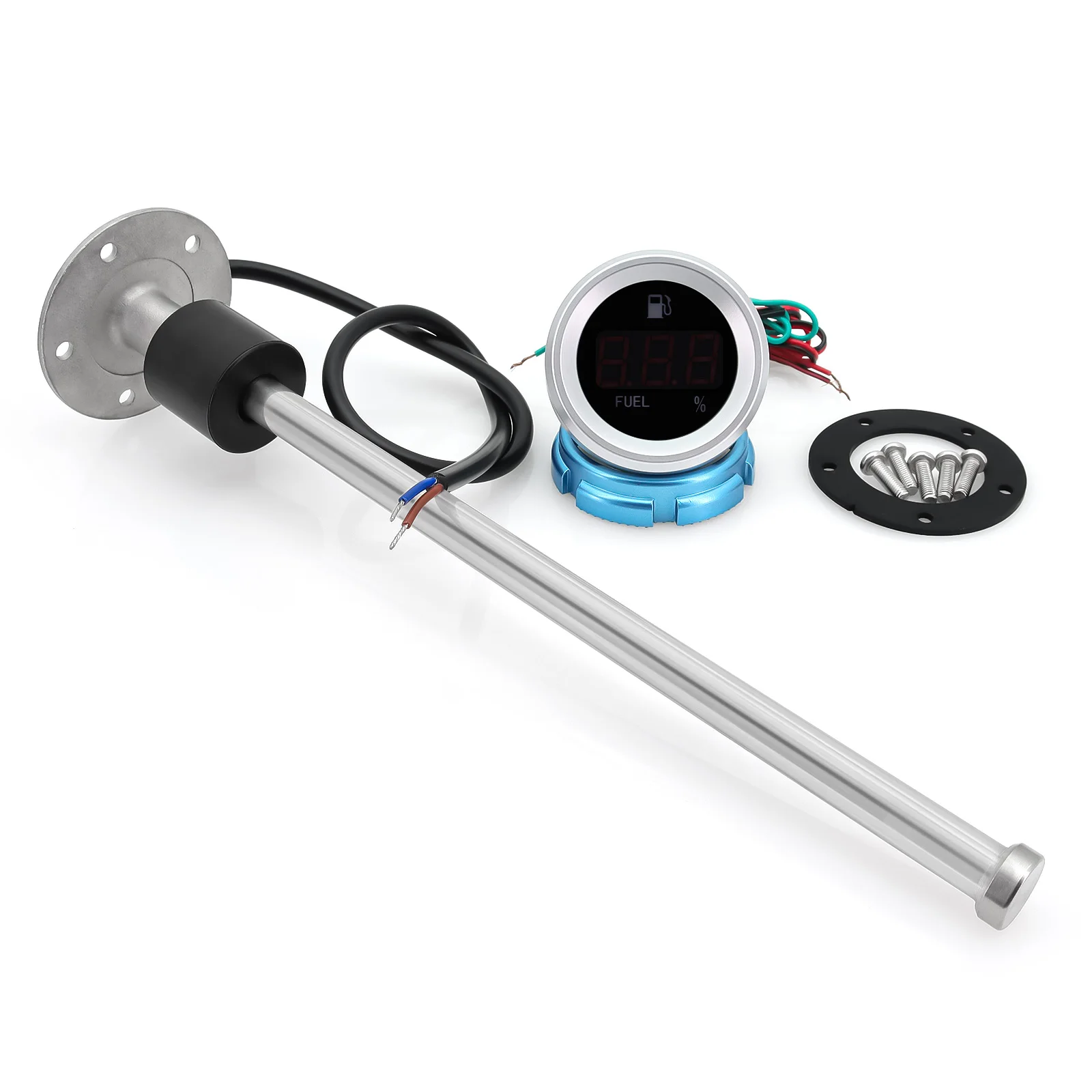

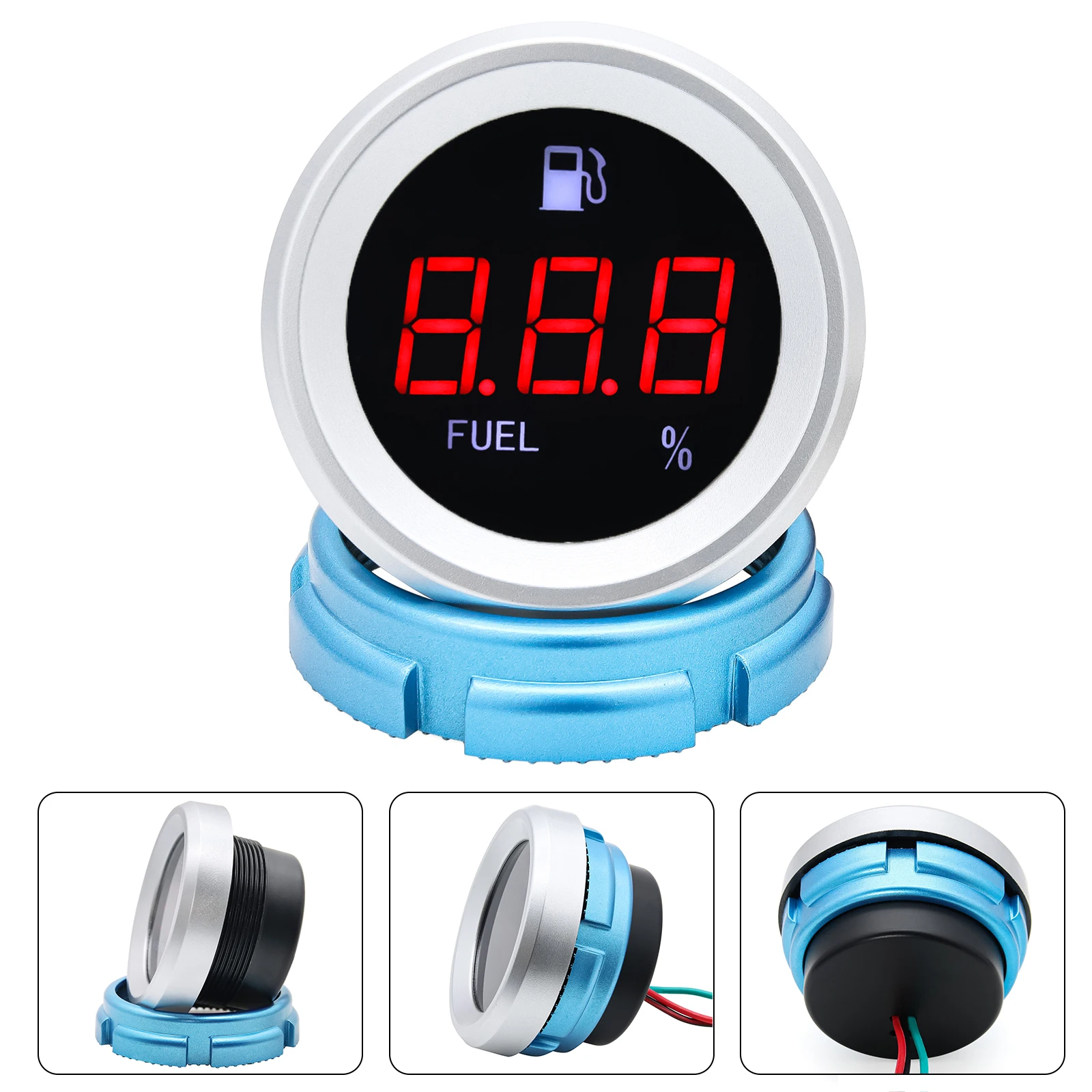

Fuel Level Gauge Specification:
1. Working voltage: 9-35V;
2. Test range: 0-100%;
3. When the Fuel Level is ≤ 10%, the Gauge will flash for alarm;
4. Resistance value of adaptive sensor: 0-190 Ω;

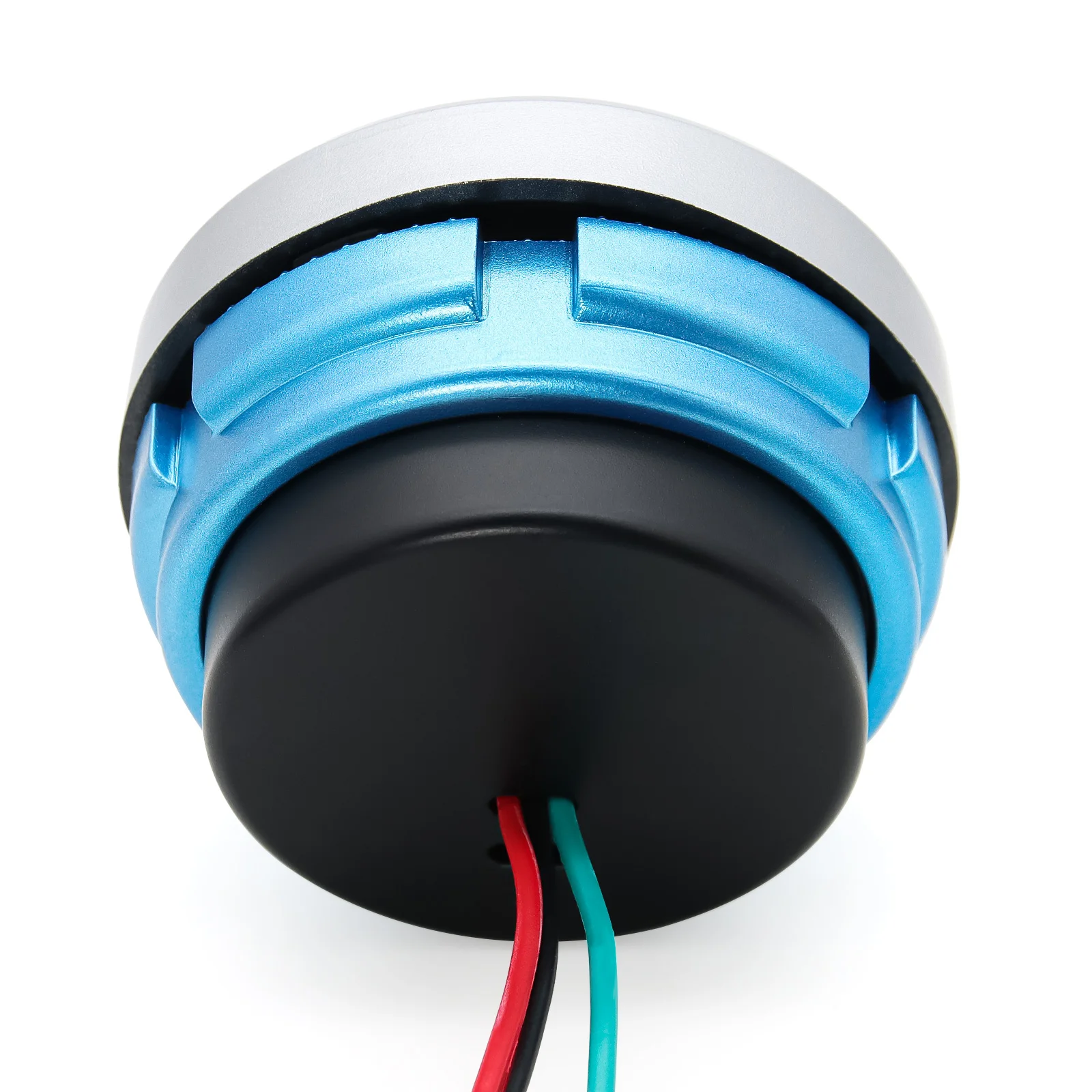

5. The RED wire is connected to the positive pole of the power supply, the BLACK wire is connected to the negative pole of the power supply, and the GREEN wire is connected to the sensor.
Package Include:
1X 52MM Fuel Level Gauge

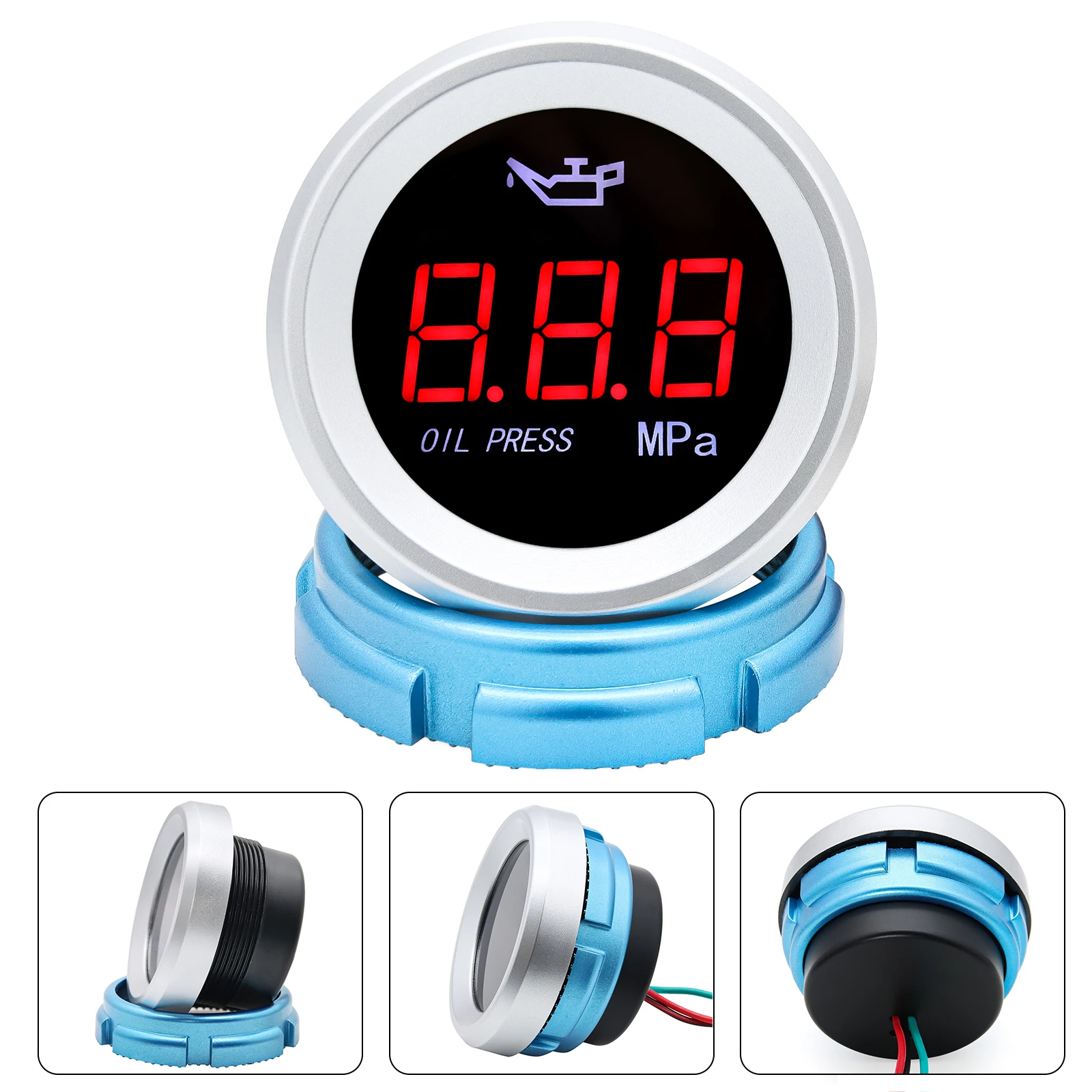

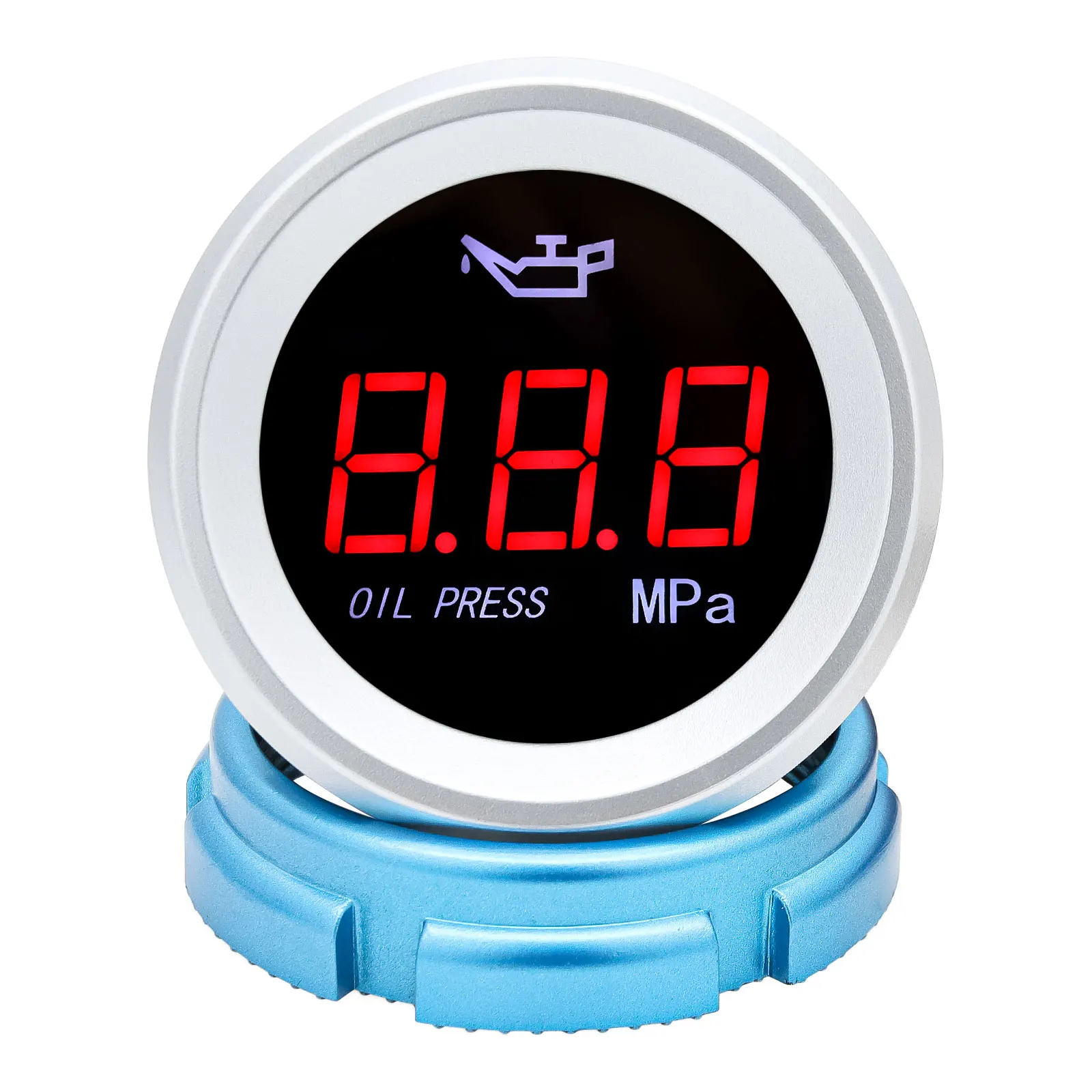

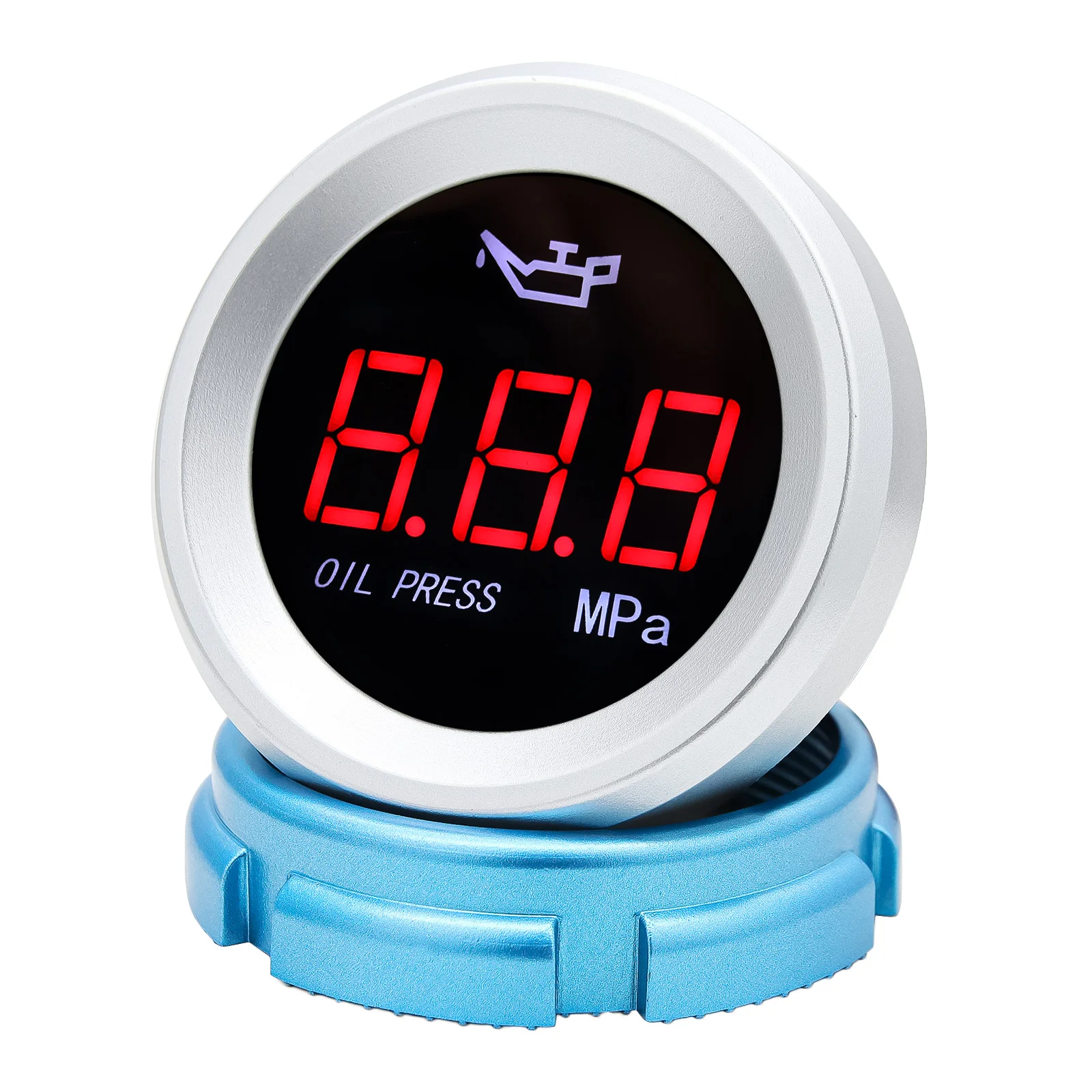

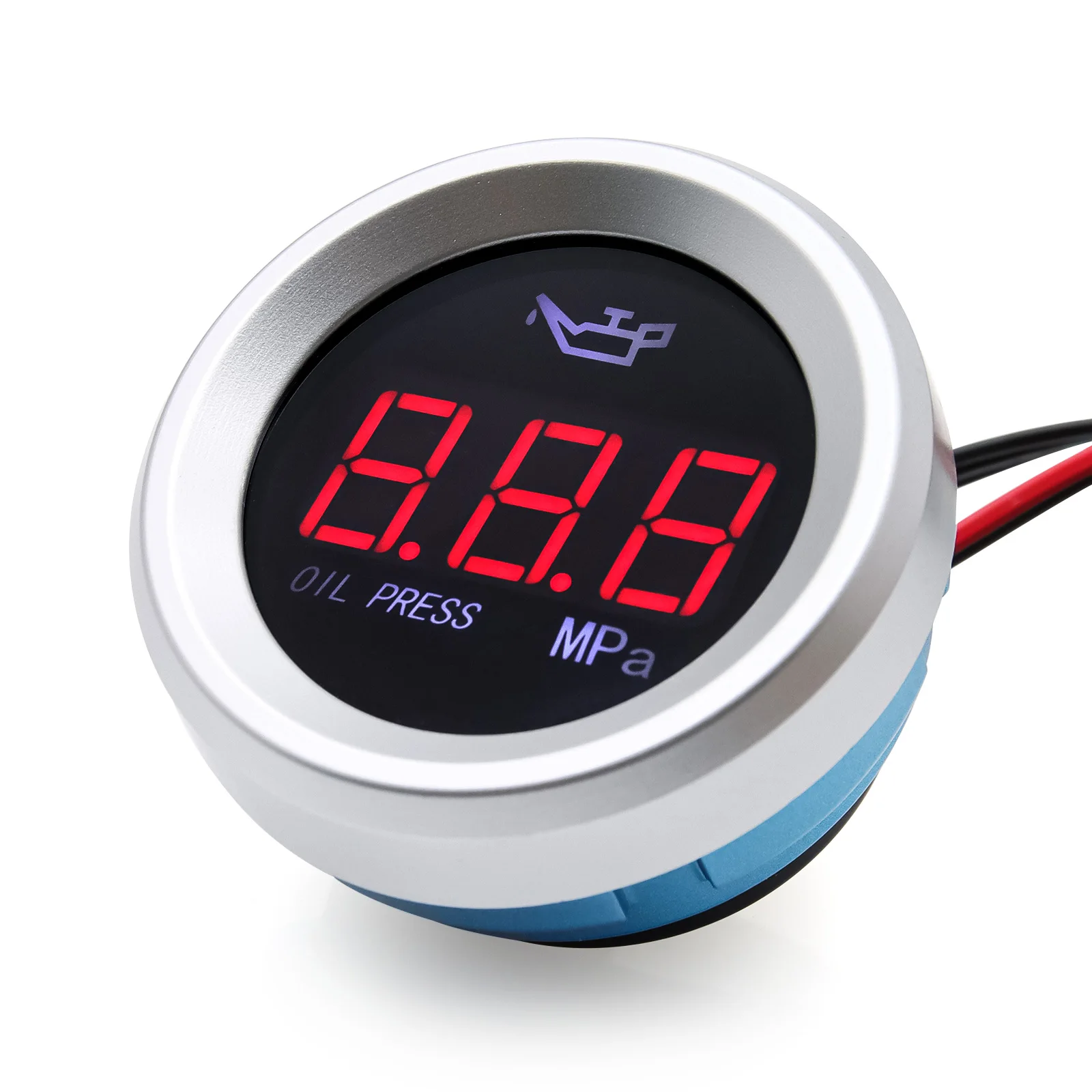

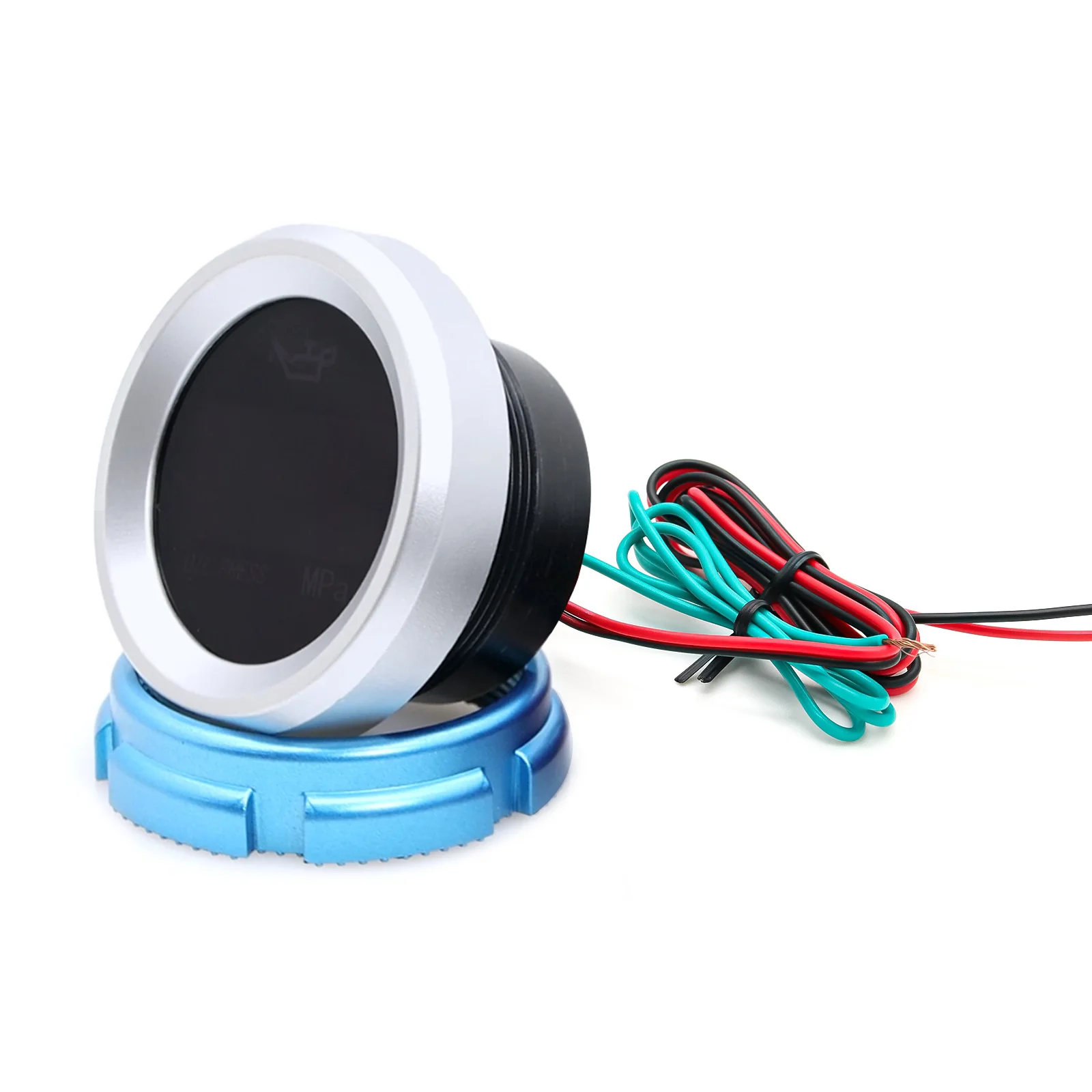

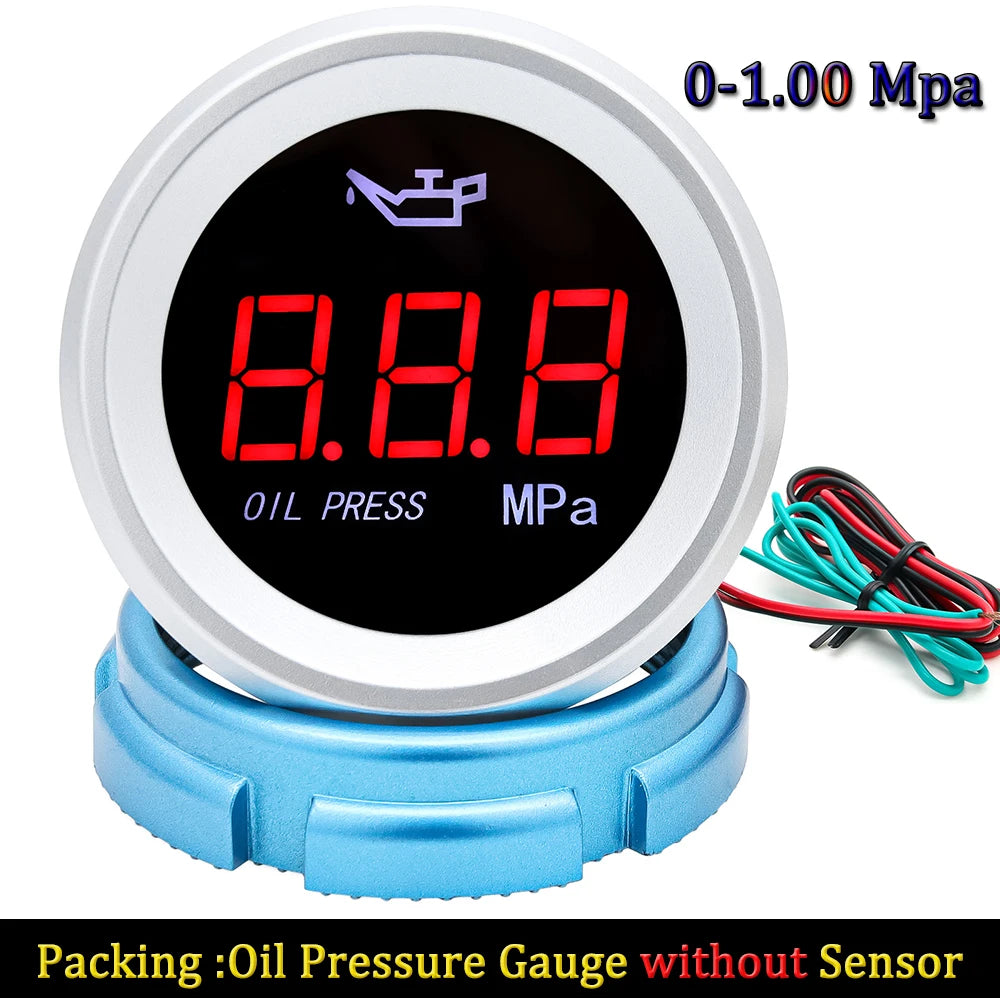

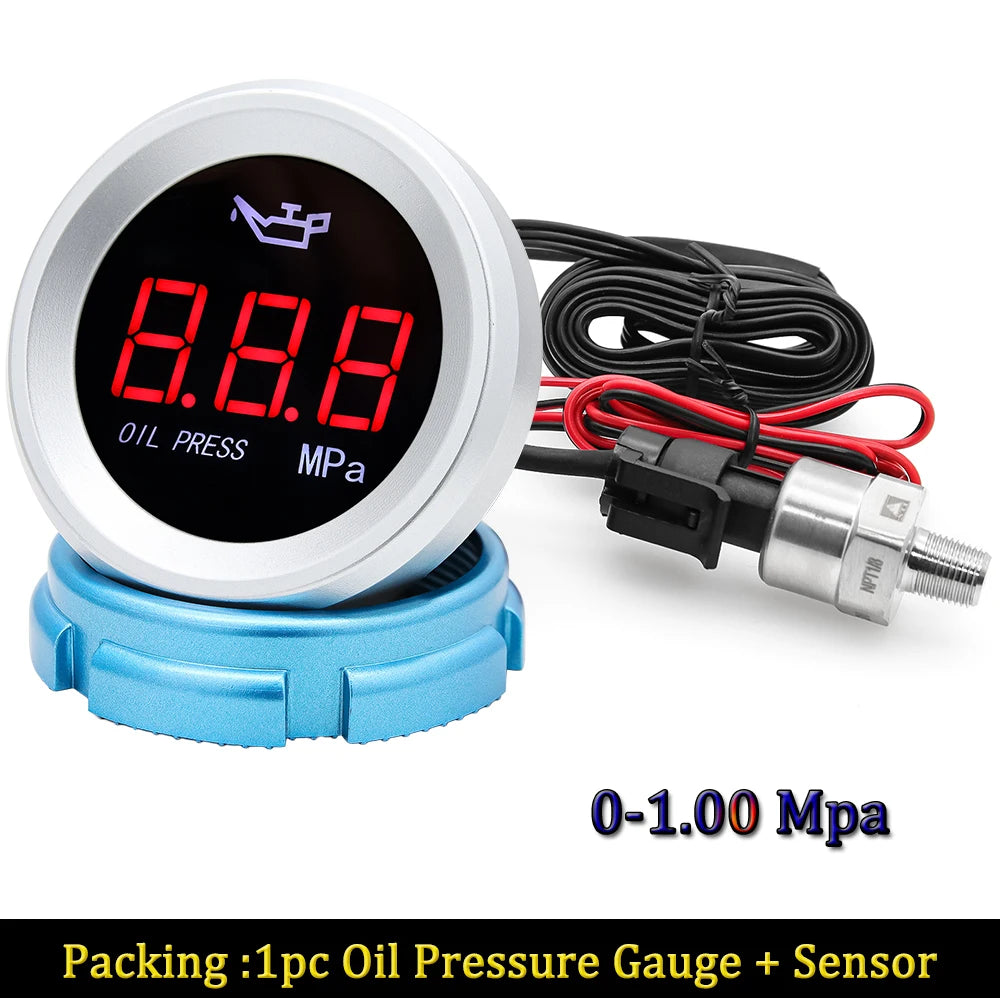

Oil Pressure Gauge Specification:
1. Working voltage: 9-35v;
2. Test range: 0-1.00Mpa;
3. When the Oil Pressure is ≤0.08Mpa,Gauge will flash for alarm .
4.Oil Pressure Sensor :1/8NPT Sensor

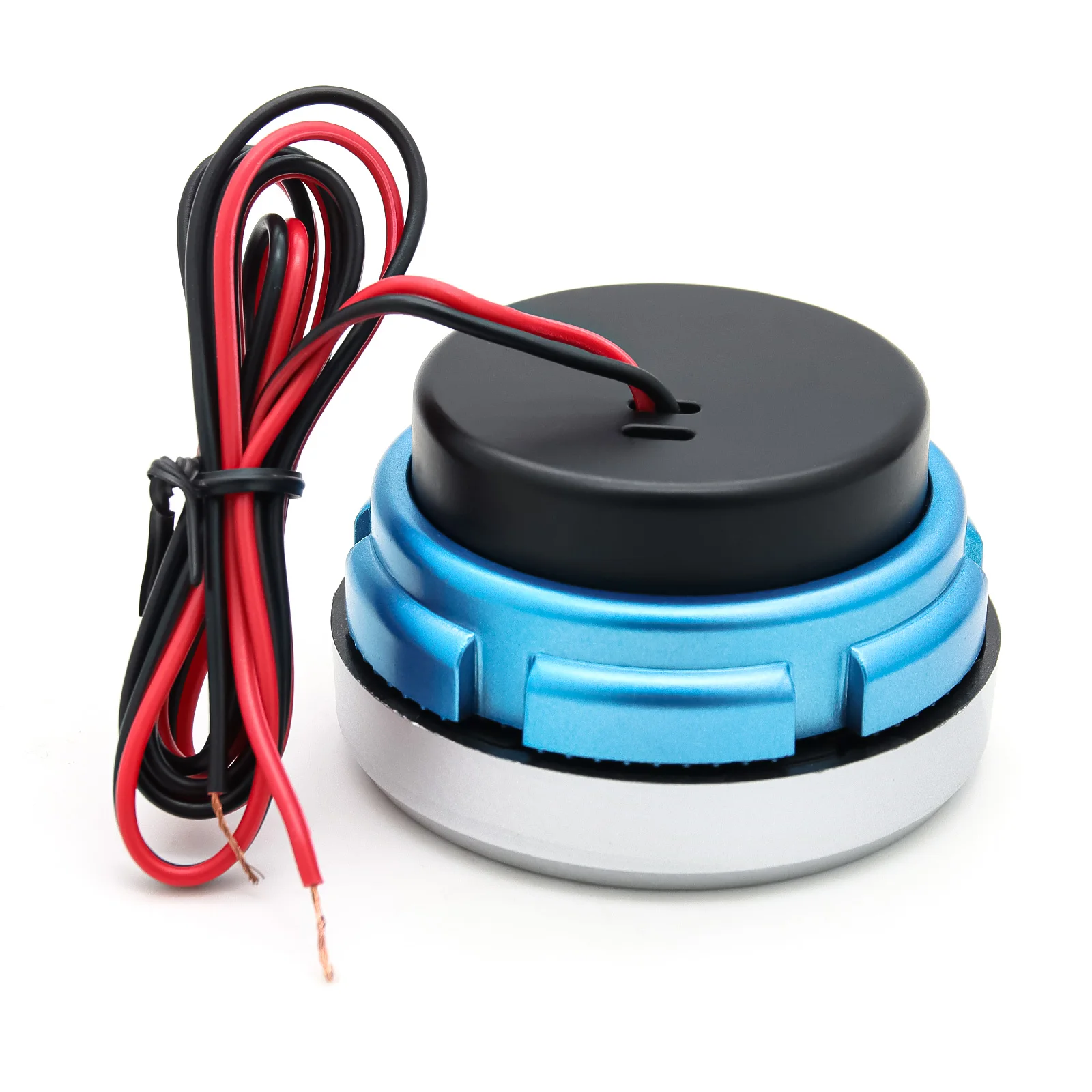

5. The red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply
Package Include :
1 X 52MM Oil Pressure Gauge

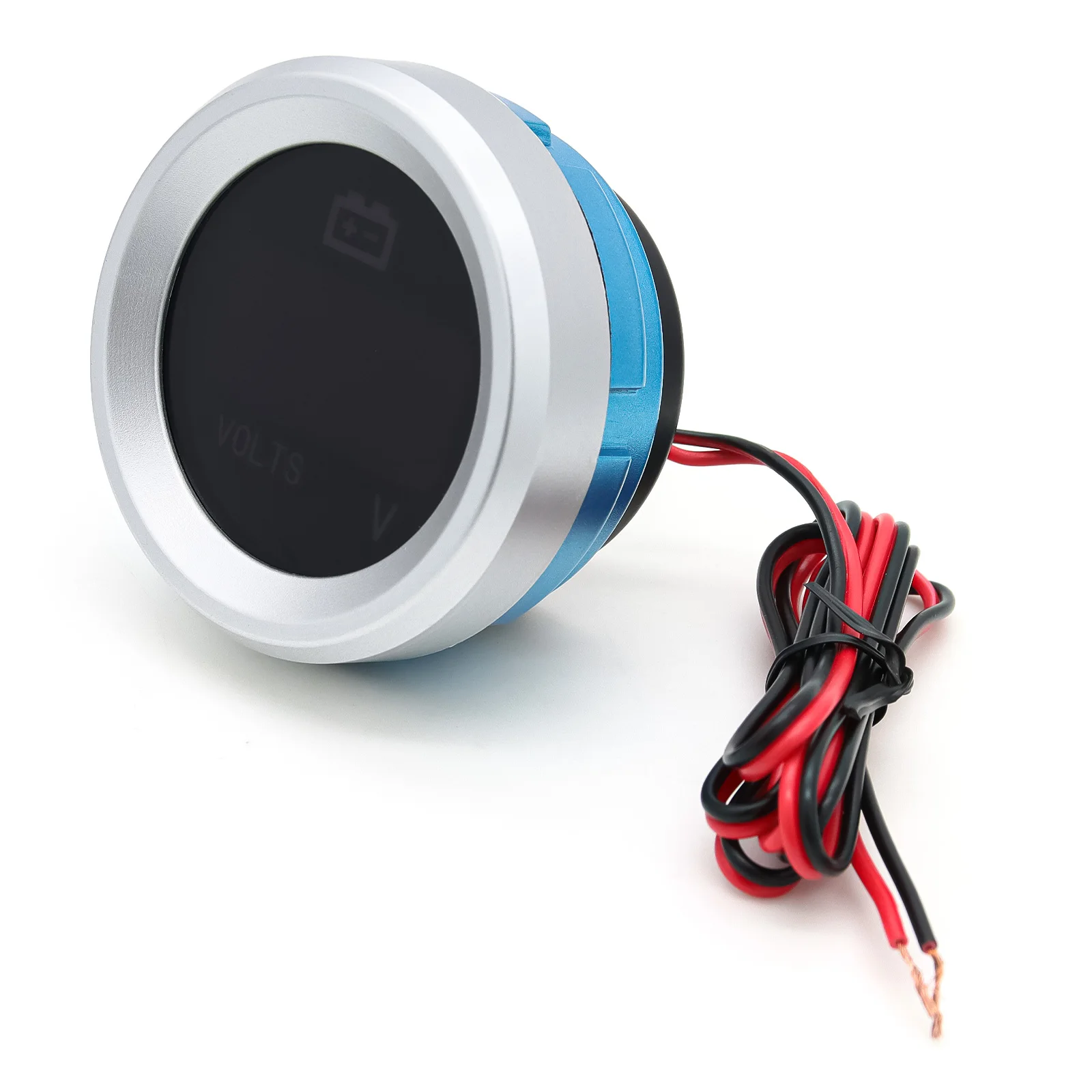

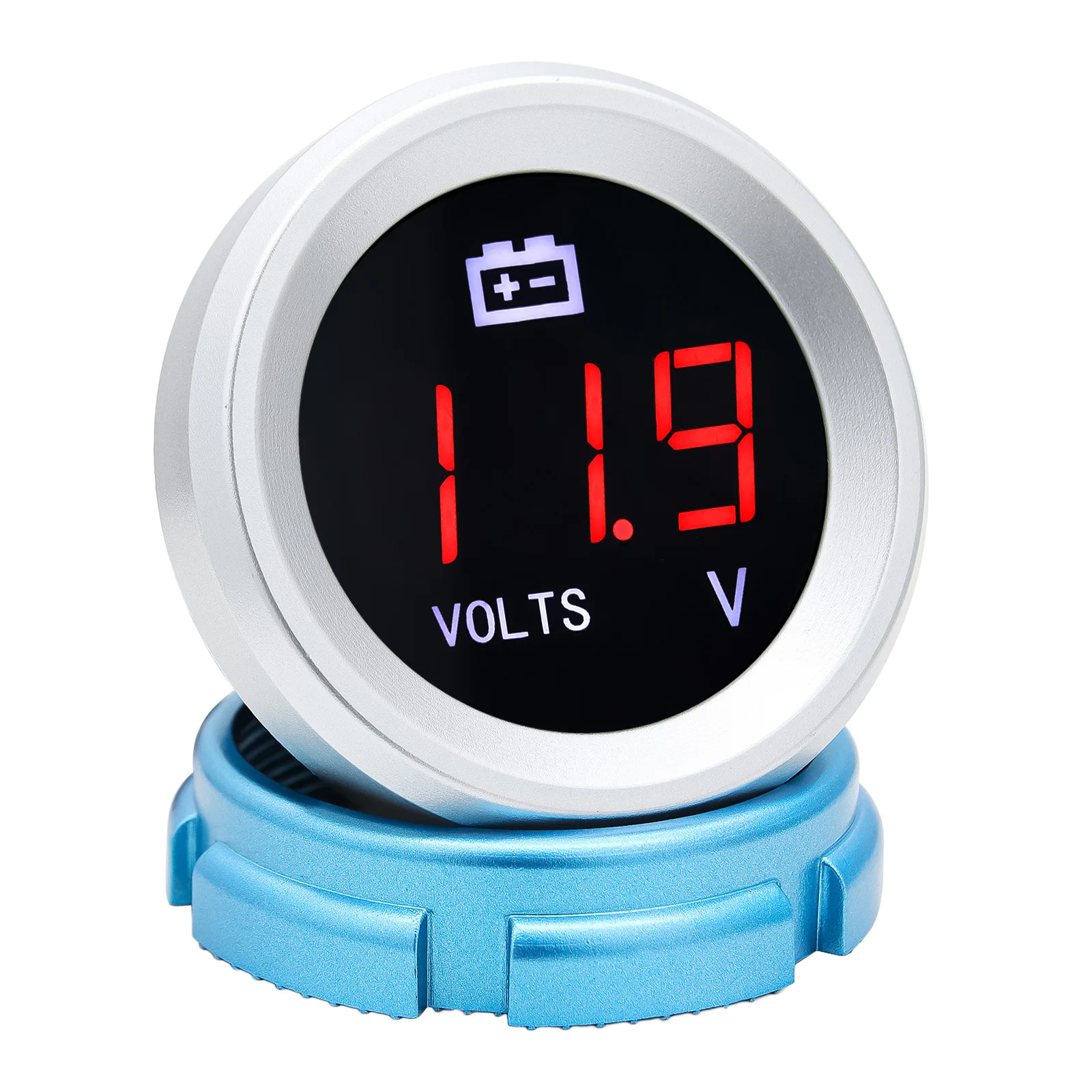

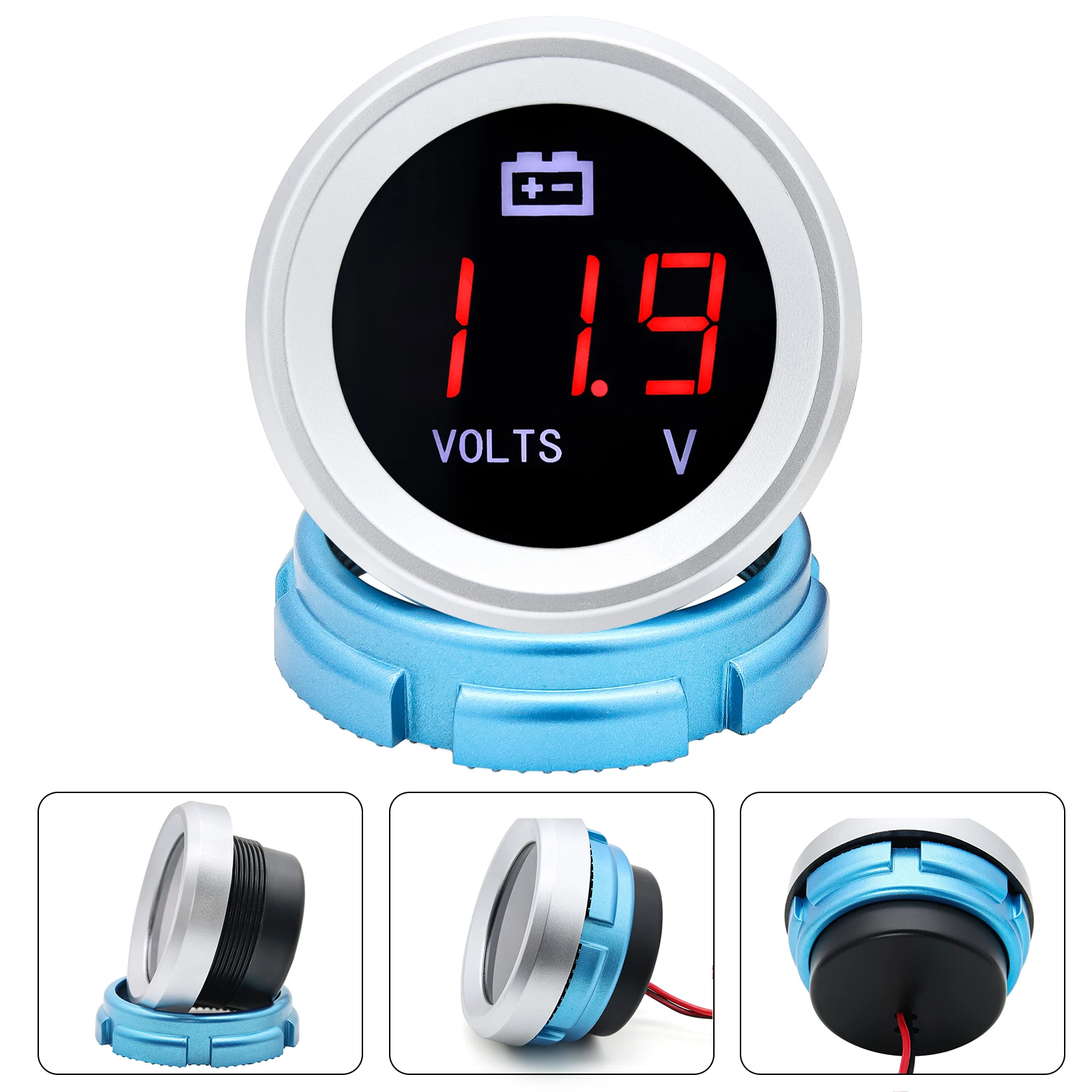

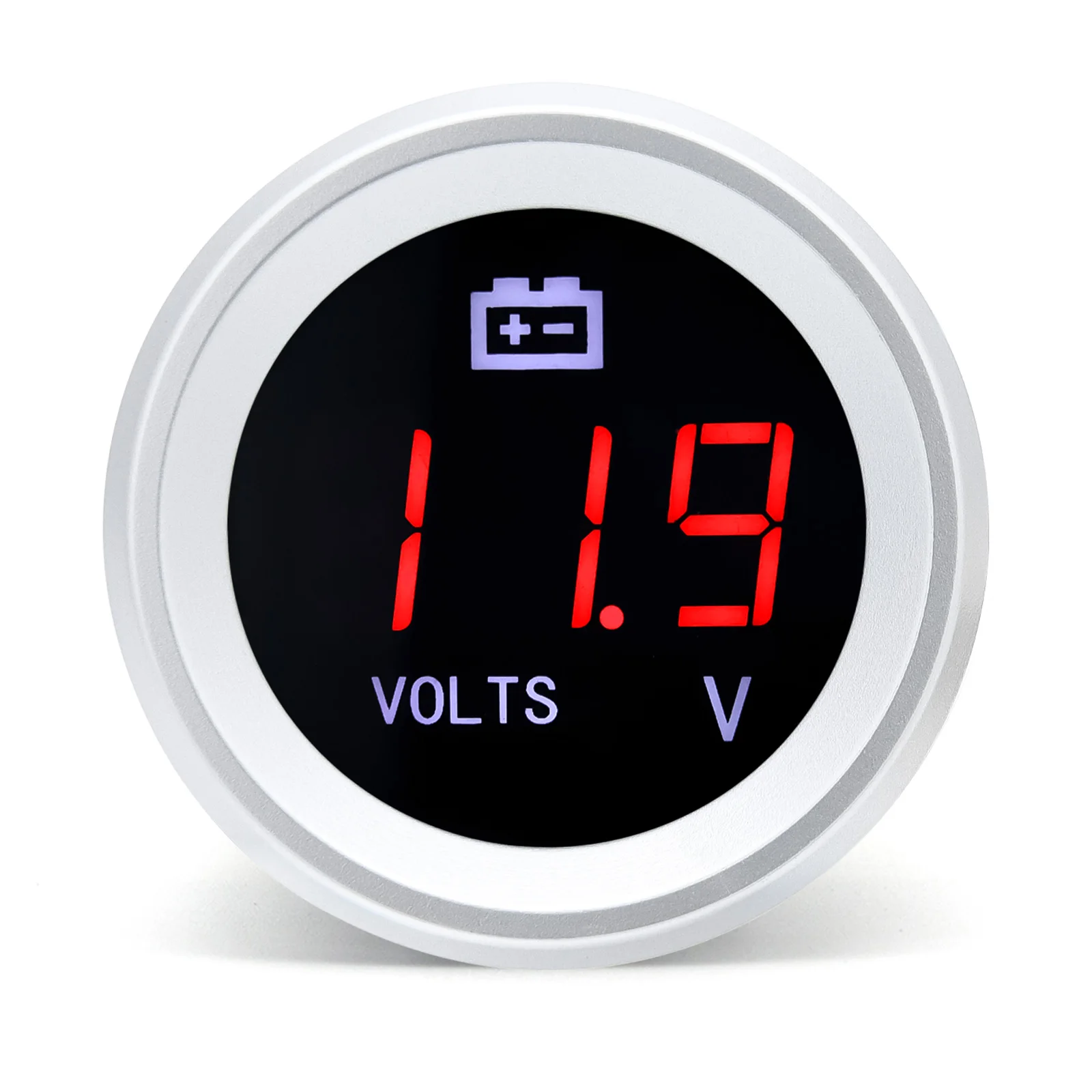

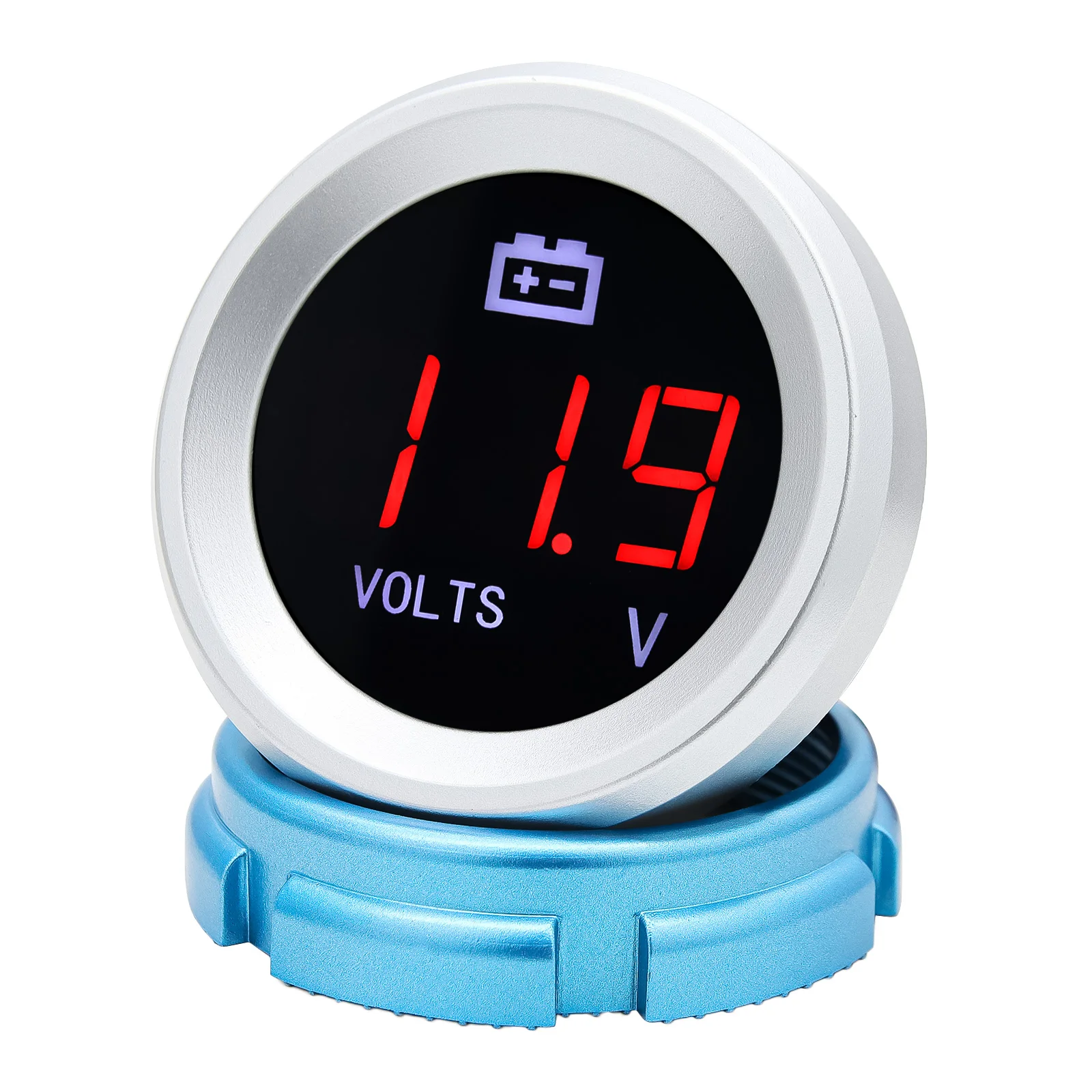

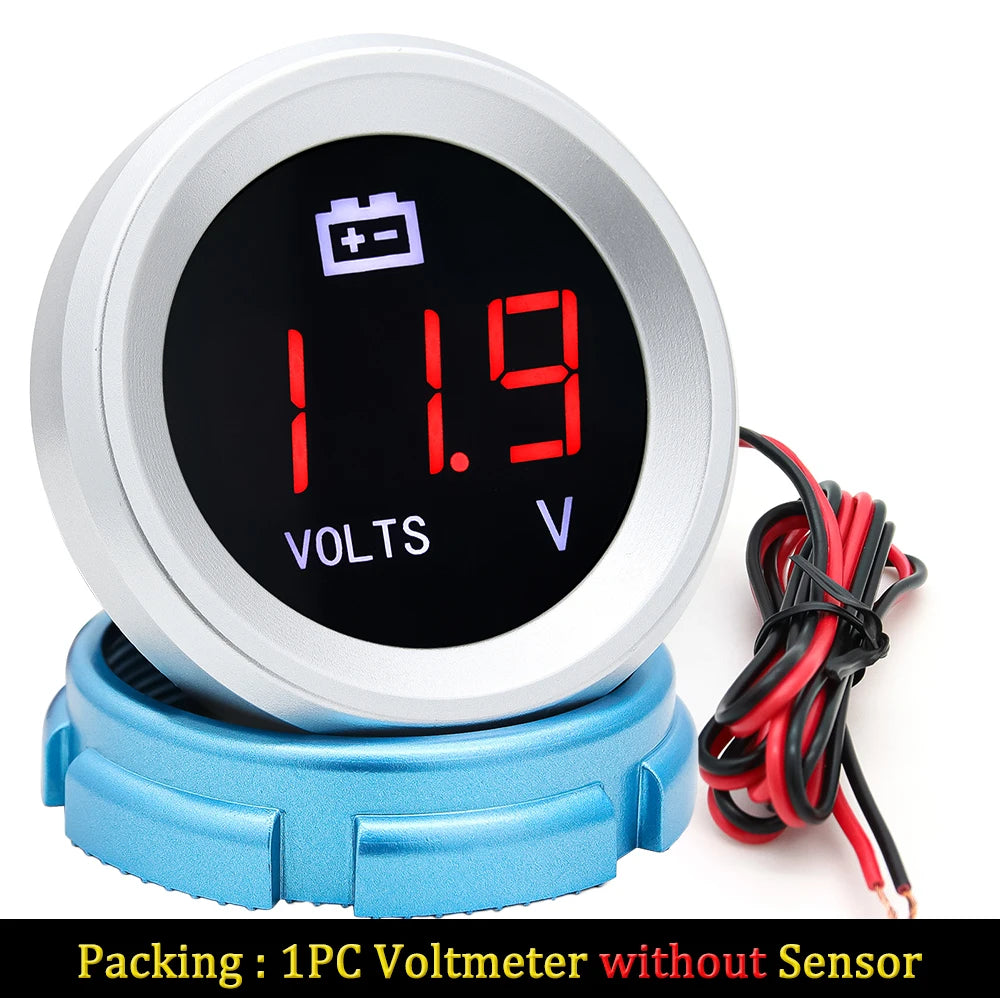

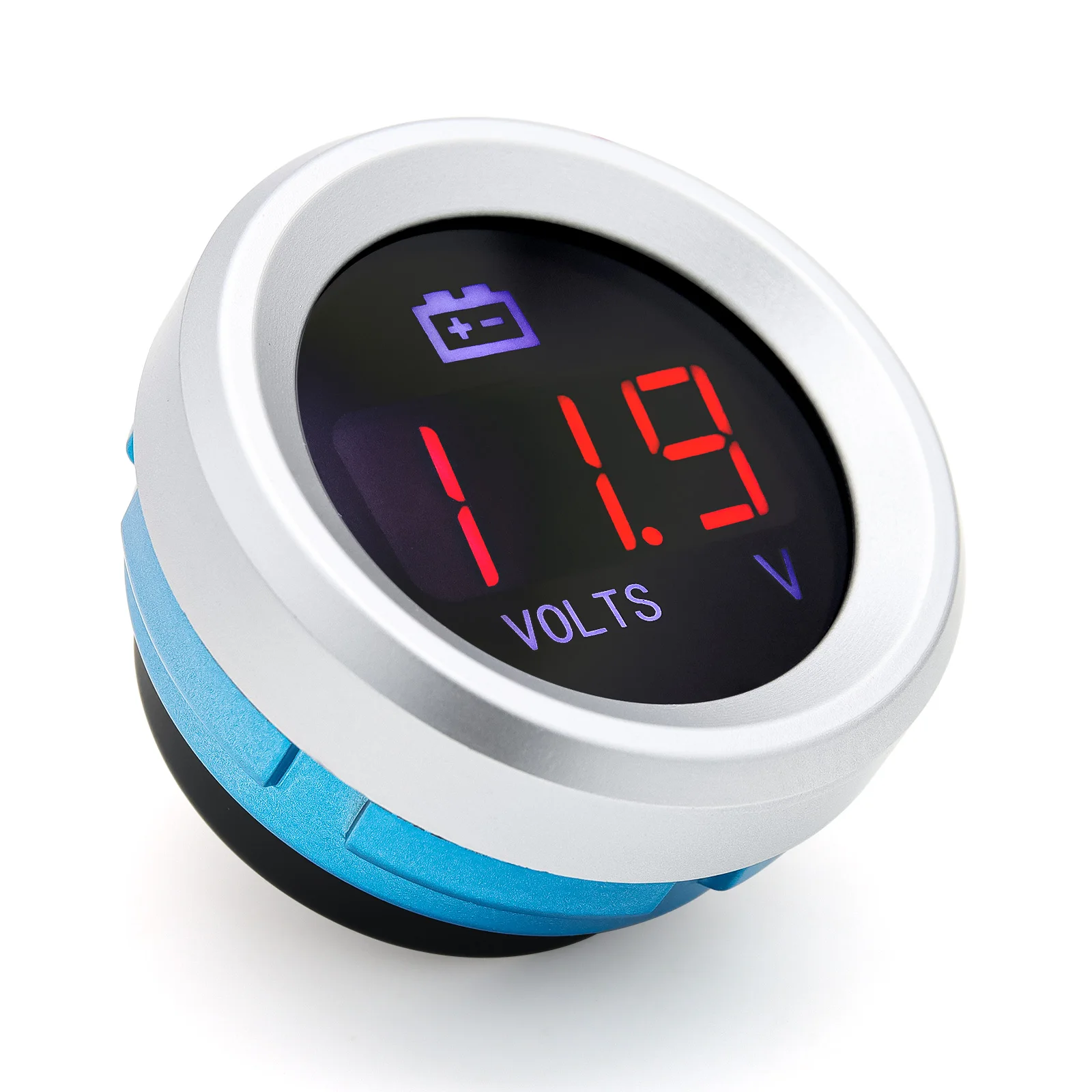

Voltage Specification:
1. Working voltage: 9-35v;
2. Test range: 9-35v;
3. When the voltage value is ≤ 10V or between 14.5 and 21.5v or ≥ 29V, the Gauge will flash for alarm;
4. The red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply
Package Include:
1 X 52mm Voltage
