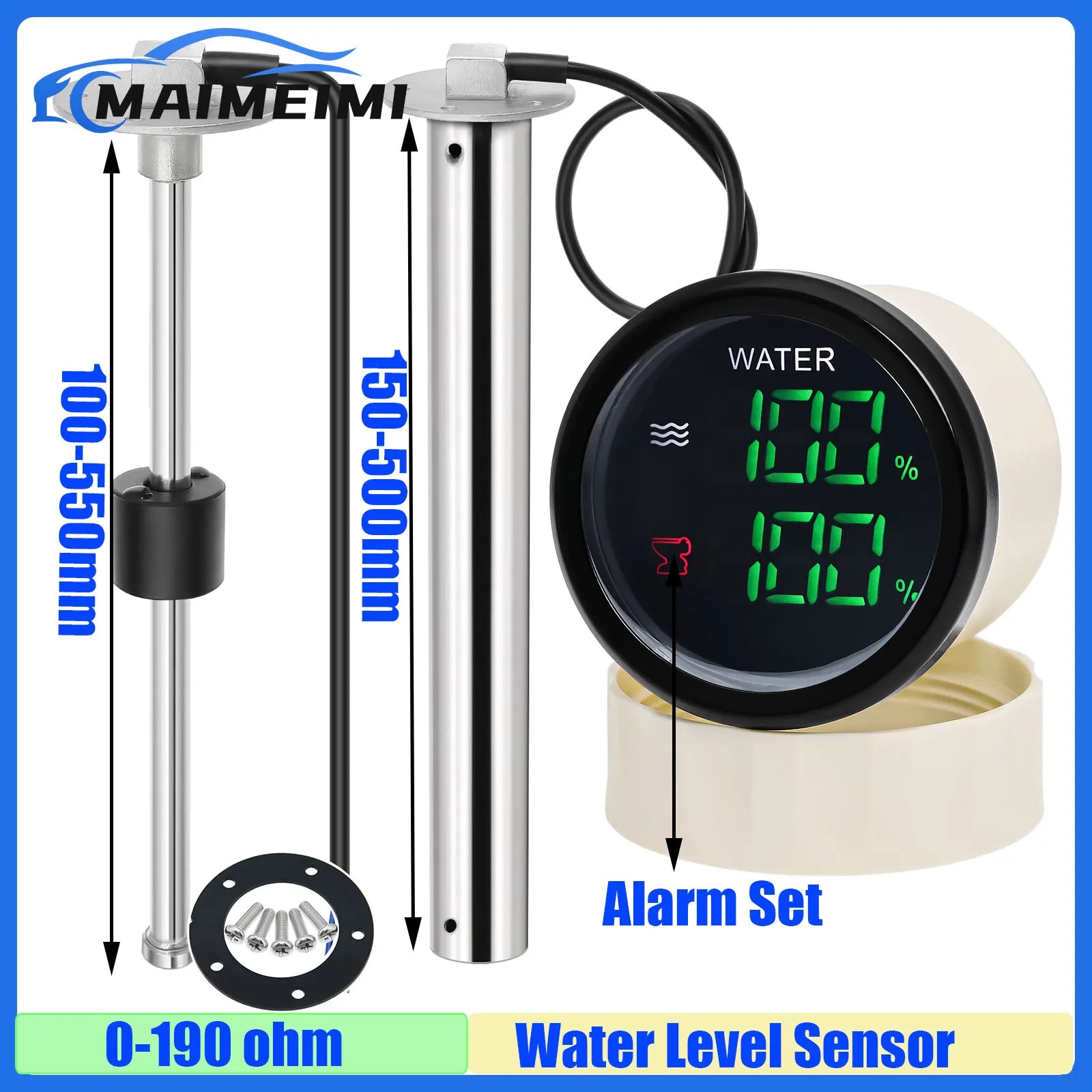

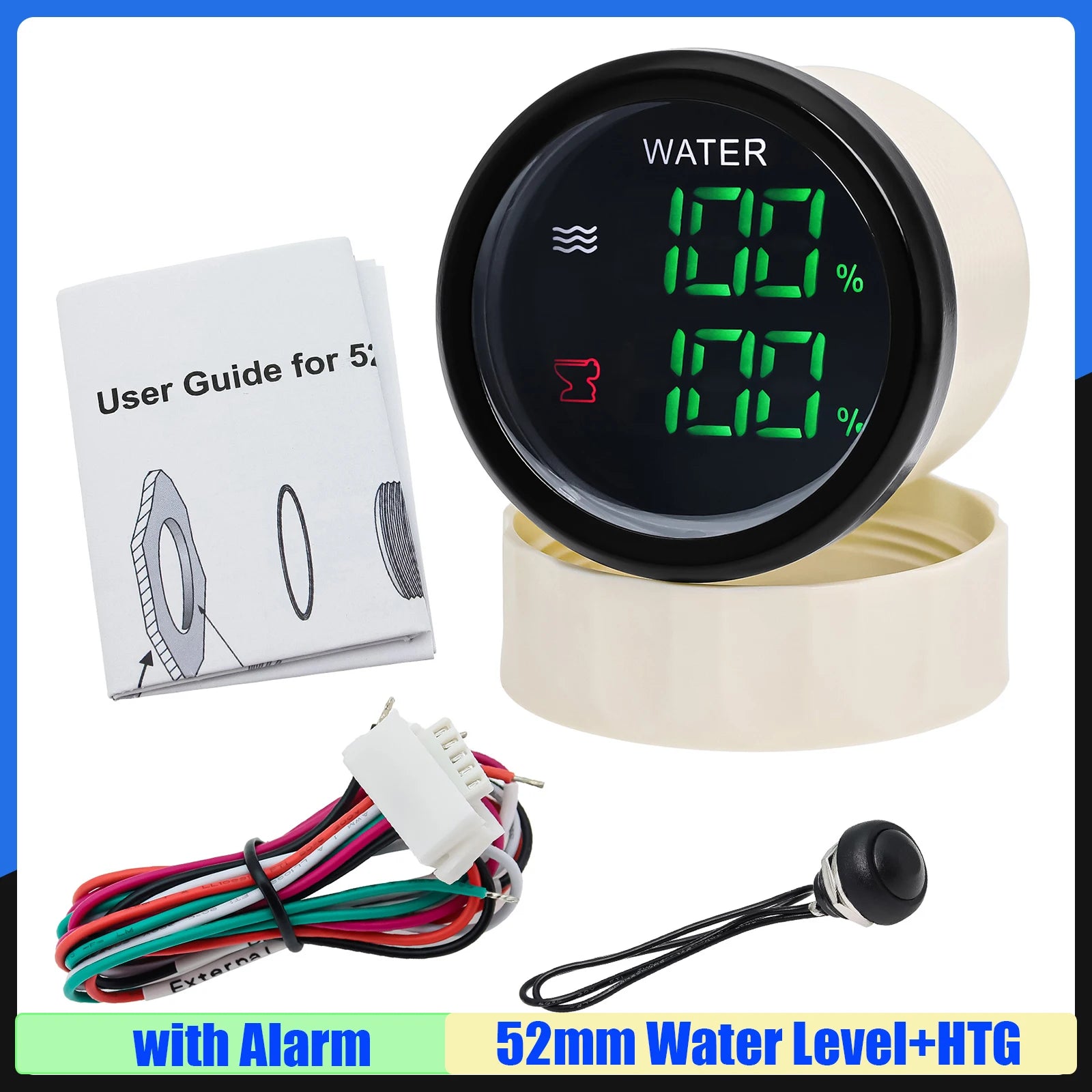

Customized Digital 2 IN 1 52mm Gauge with Alarm 0-190ohm Water Level Meter+Sewage Level Meter for Water Sewage Level Sensor Car Boat 12V24V

Note:

The Gauge sell single, The Sensor is sell single , if you choose gauge , the package is not included sensor , if you choose sensor , the package is not included gauge ,

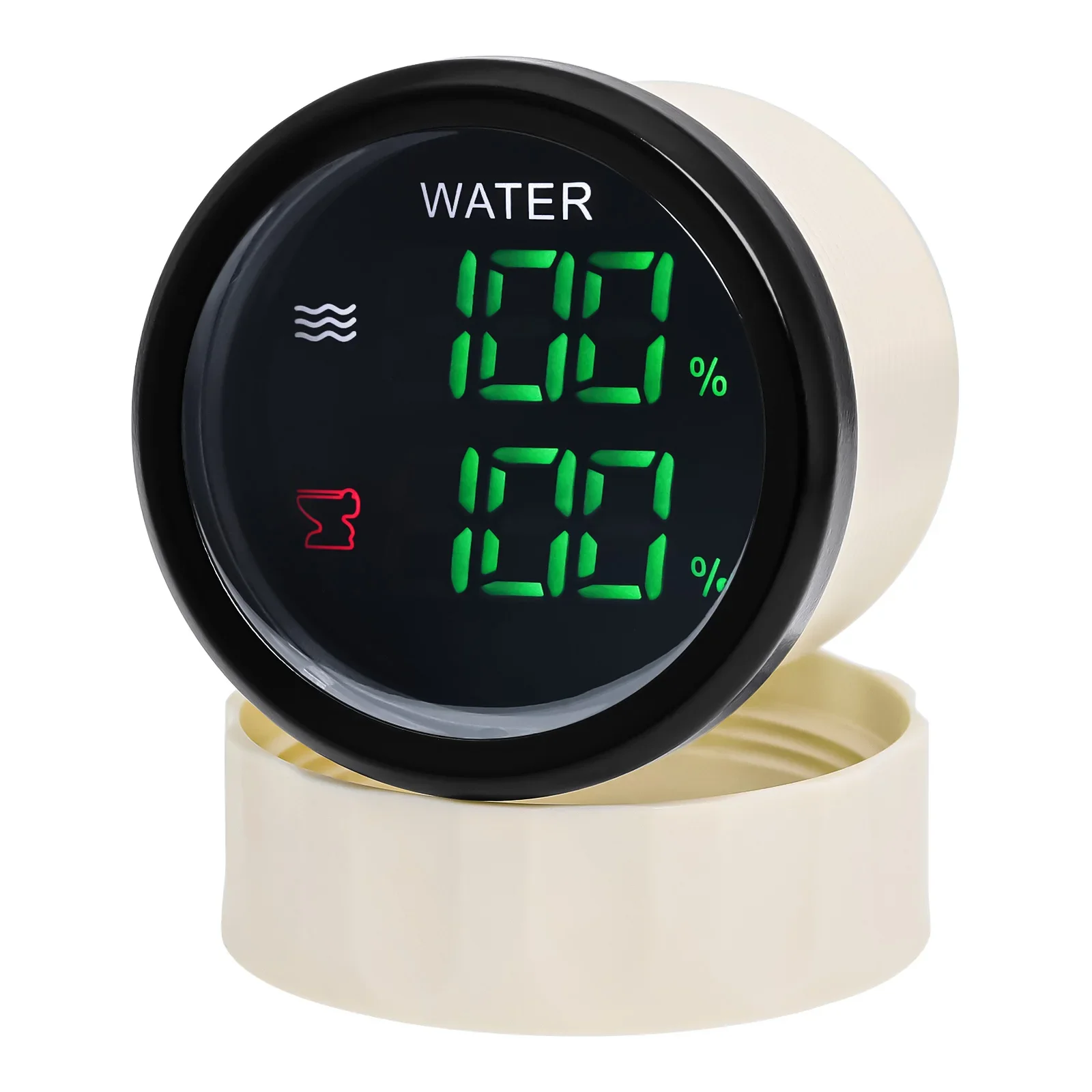

2022 New 52mm Universal 2 in 1 Dual Gauge

Application: Marine Boats/Truck/Bus/Motor Home/Hot Rod/Generators

About the gauge:

The device works, with a little delay (about 20-80 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank.

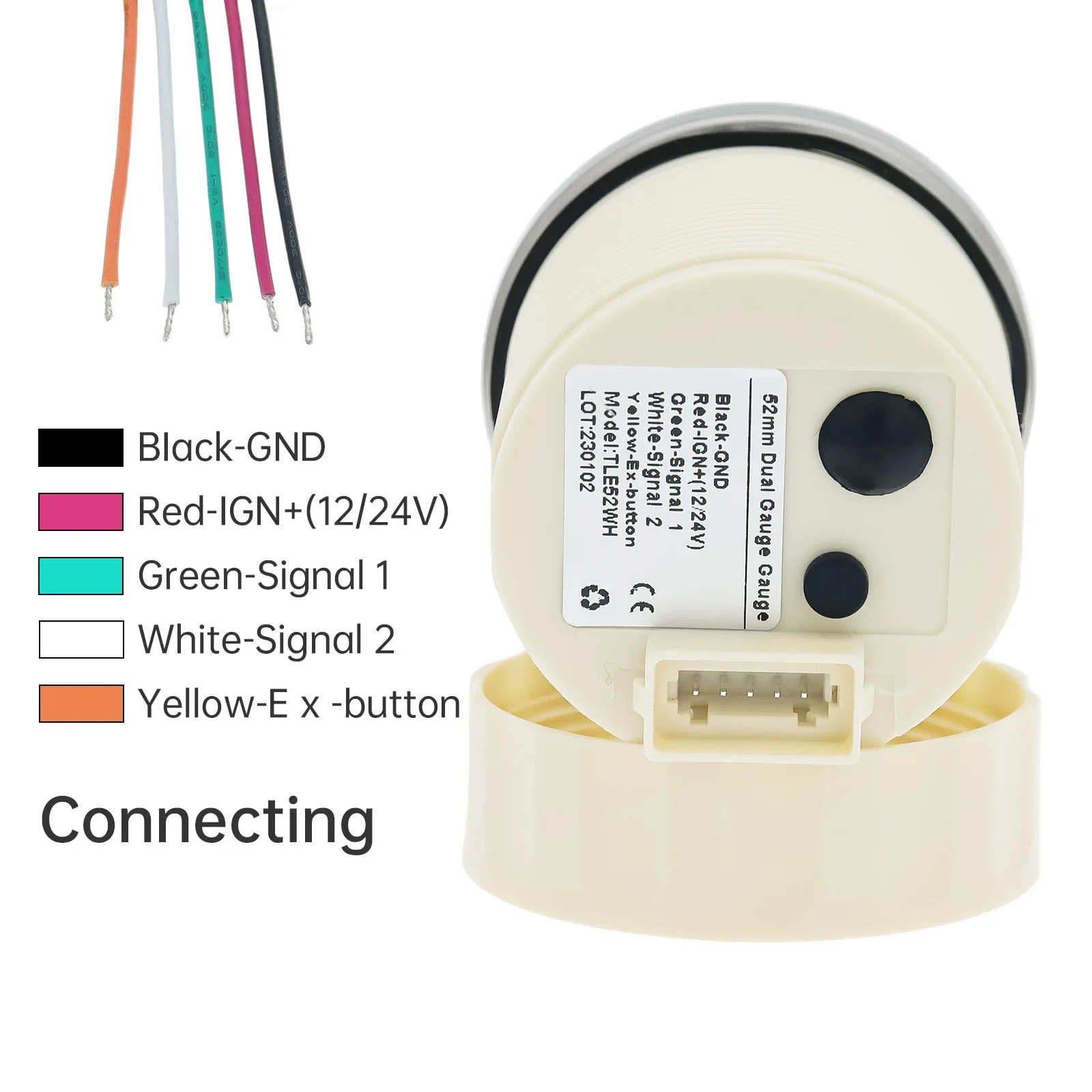

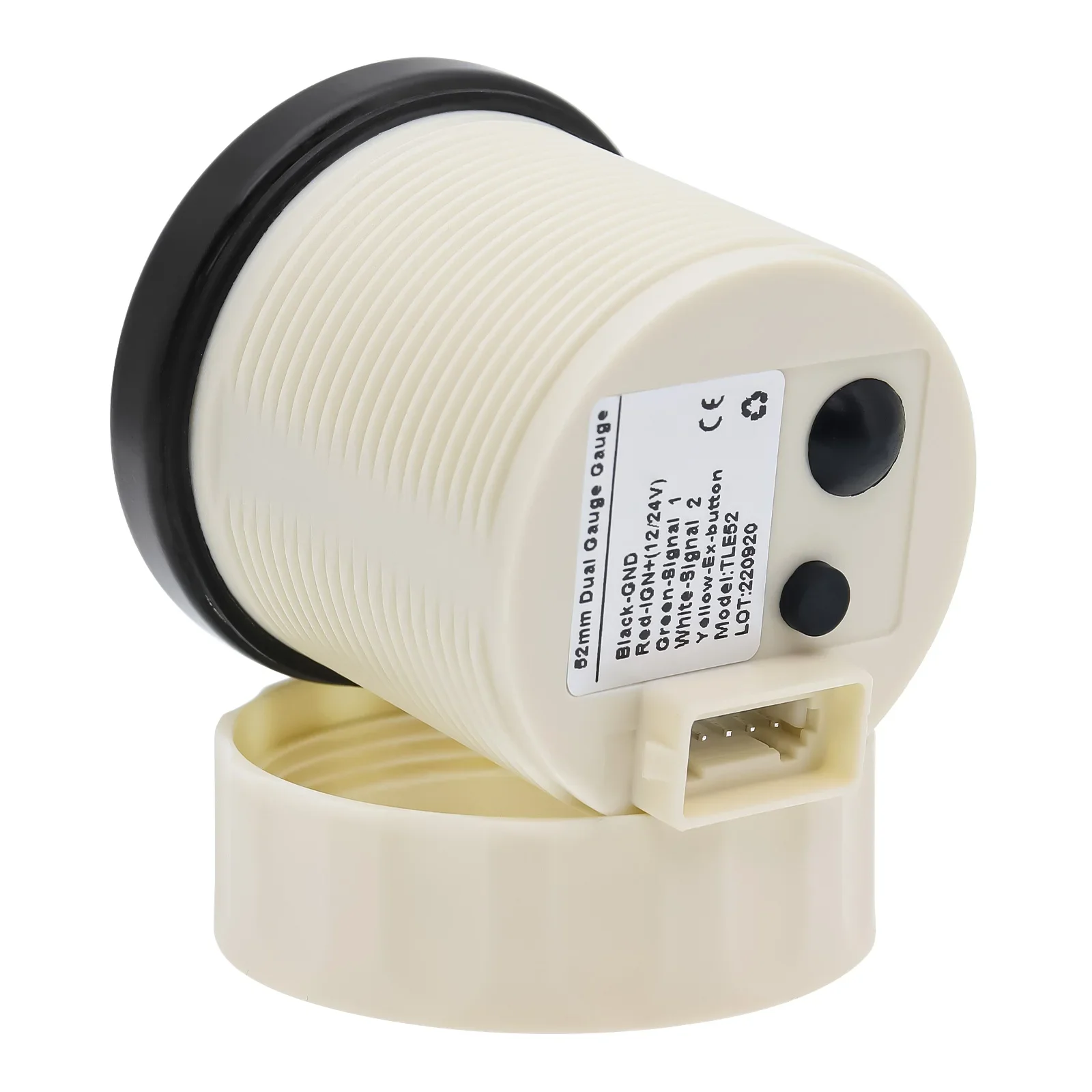

Gauge Connection:

black line connect to the negative line,
red line connect to the positive line,
green line connect to the water level sensor signal line,
white line connect to the sewage level sensor signal line,
yellow line is exchange button line

Feature:

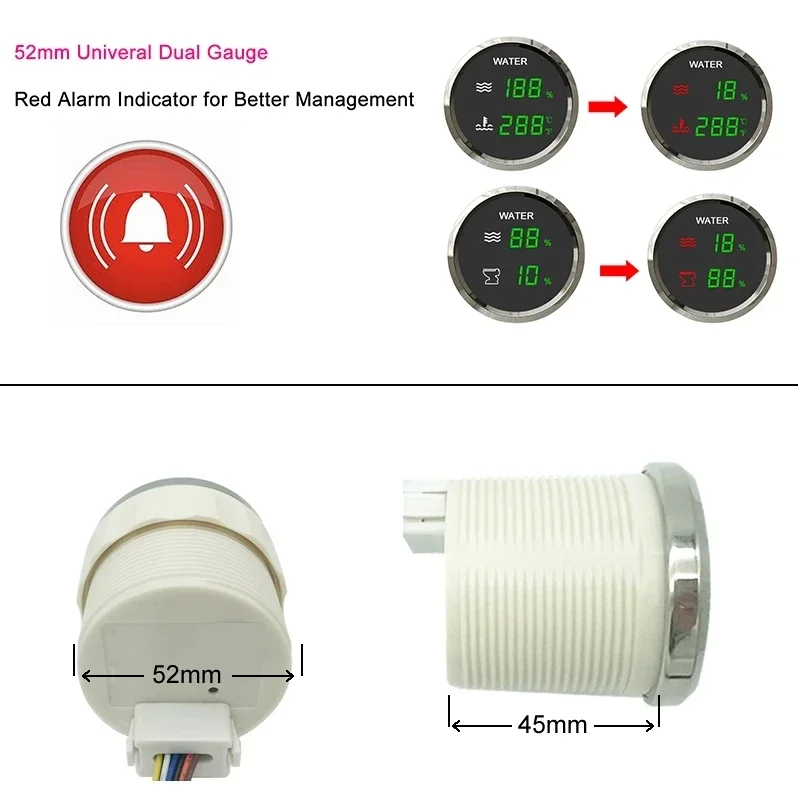

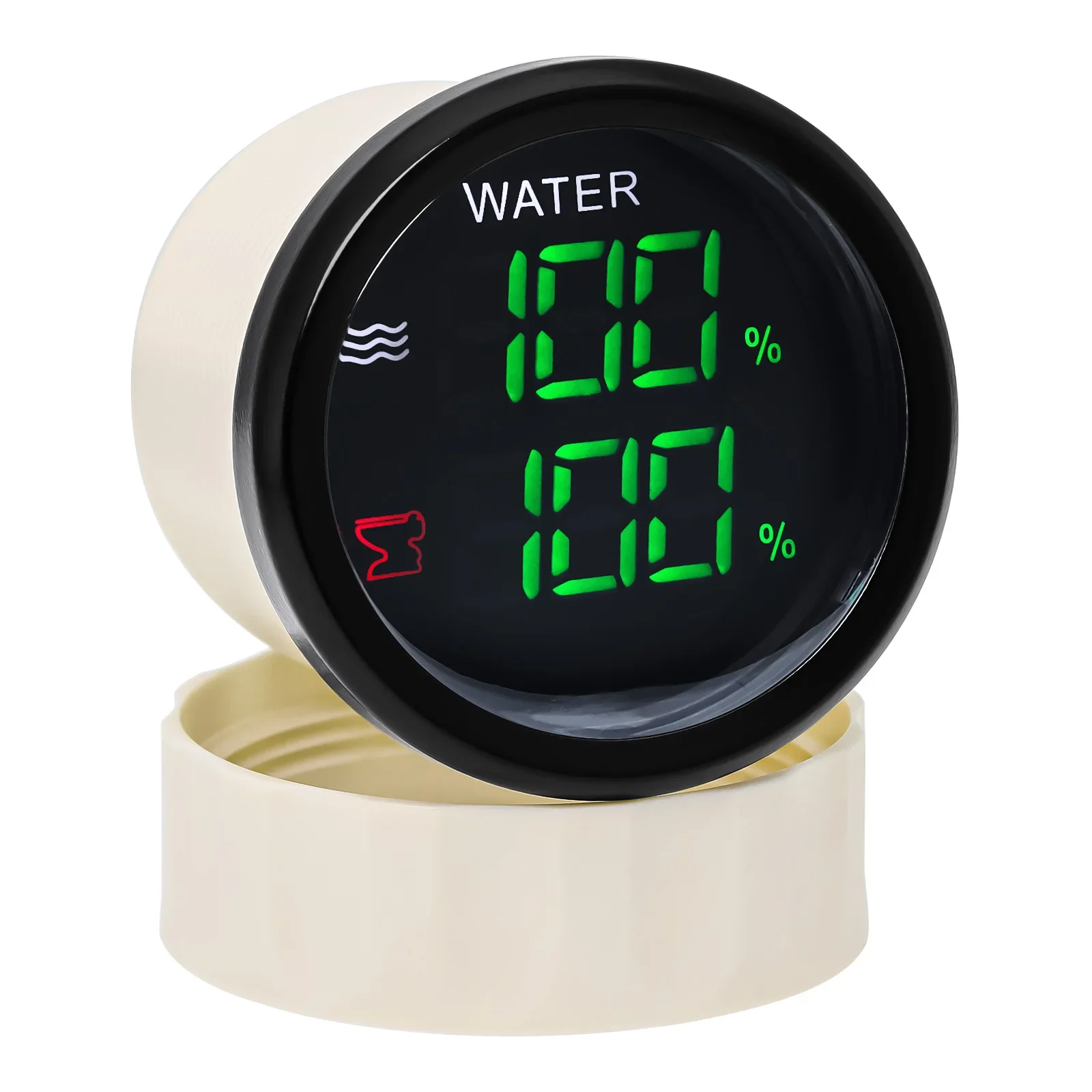

- 52mm diameter Two in One Gauge show with easy installation

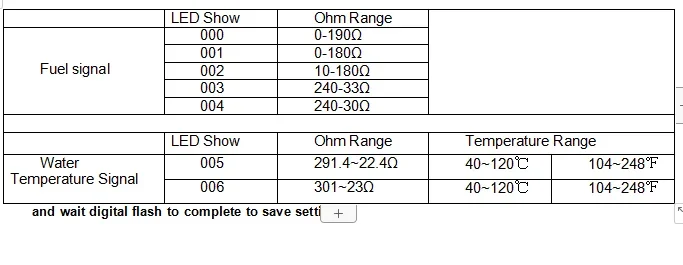

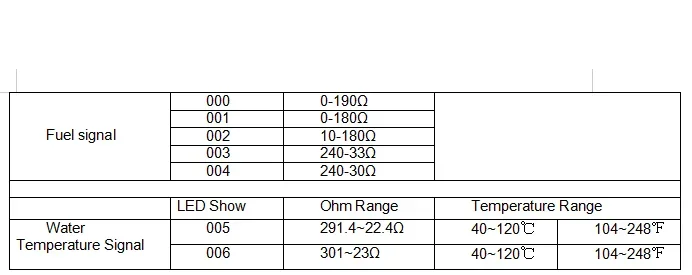

- Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor
0-190Ω, 0-180Ω, 10-180Ω, 240-33Ω, 240-30Ω
- High Resolution View under sunshine

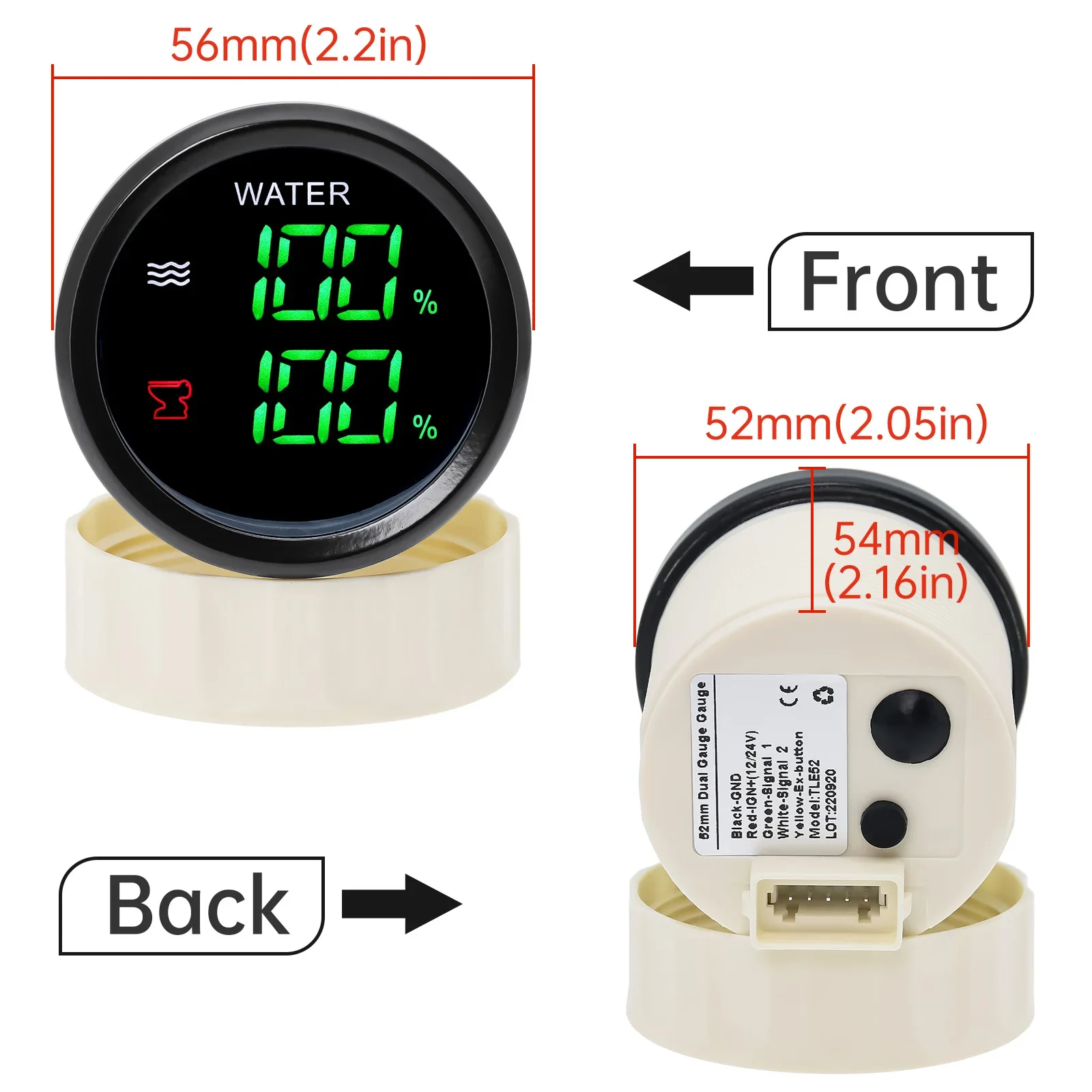

- Installation Diameter: 52mm (2inch)
- Reverse polarity protection and anti-fogging performance
- Working Voltage:12V/24V
- Working temperatures: - 40 to 85°C

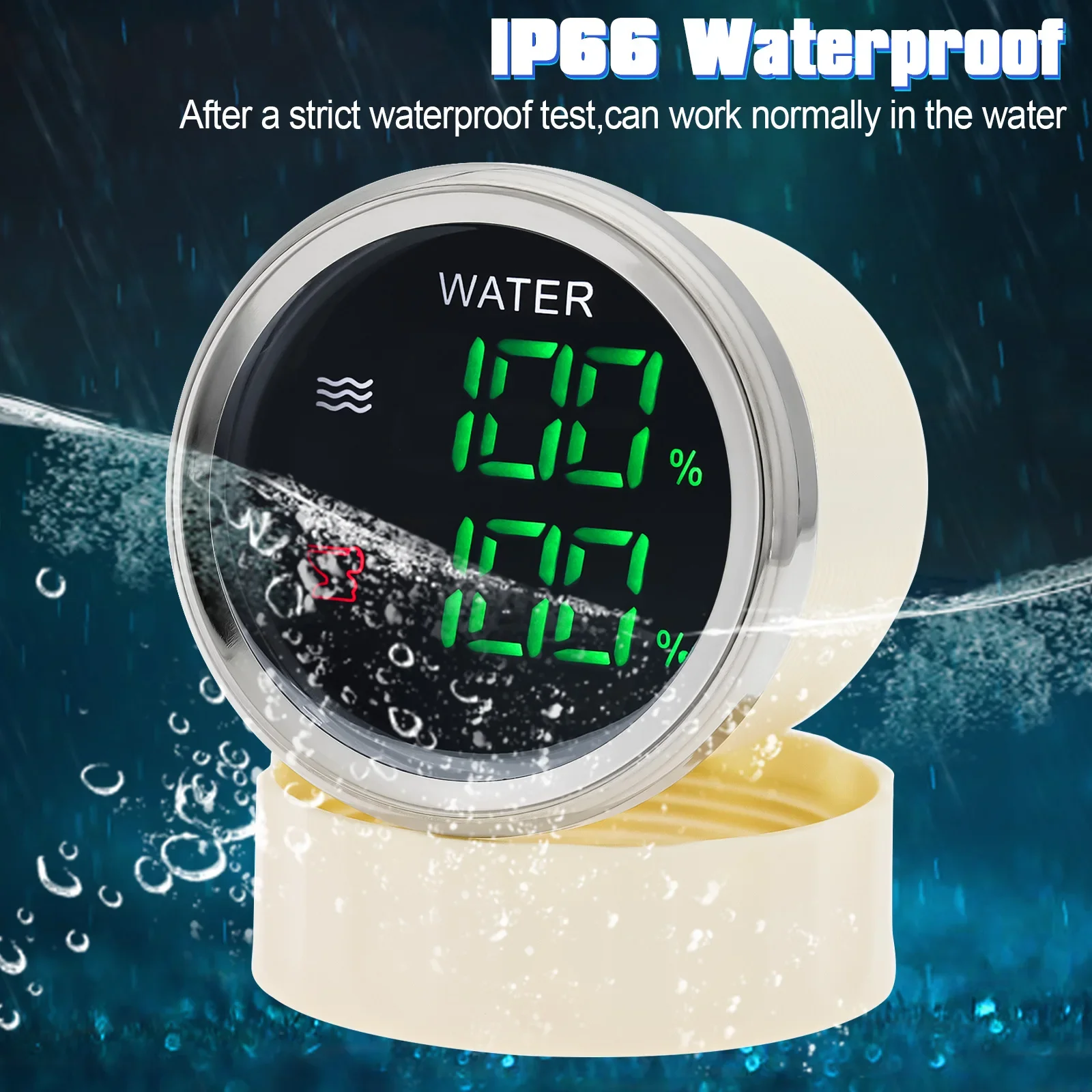

- IP66 Waterproof

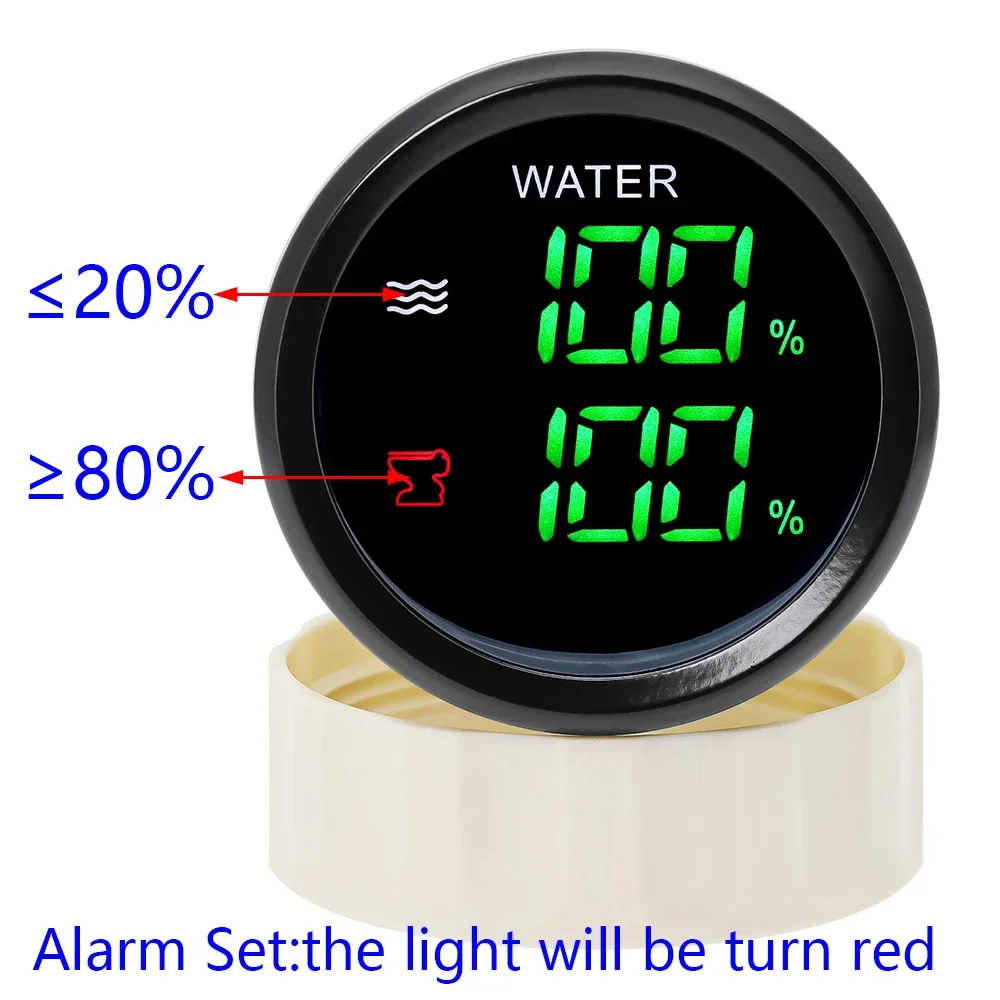

- Water level gauge alarm set: less than 20%
- Sewage level gauge alarm set: more than 80%

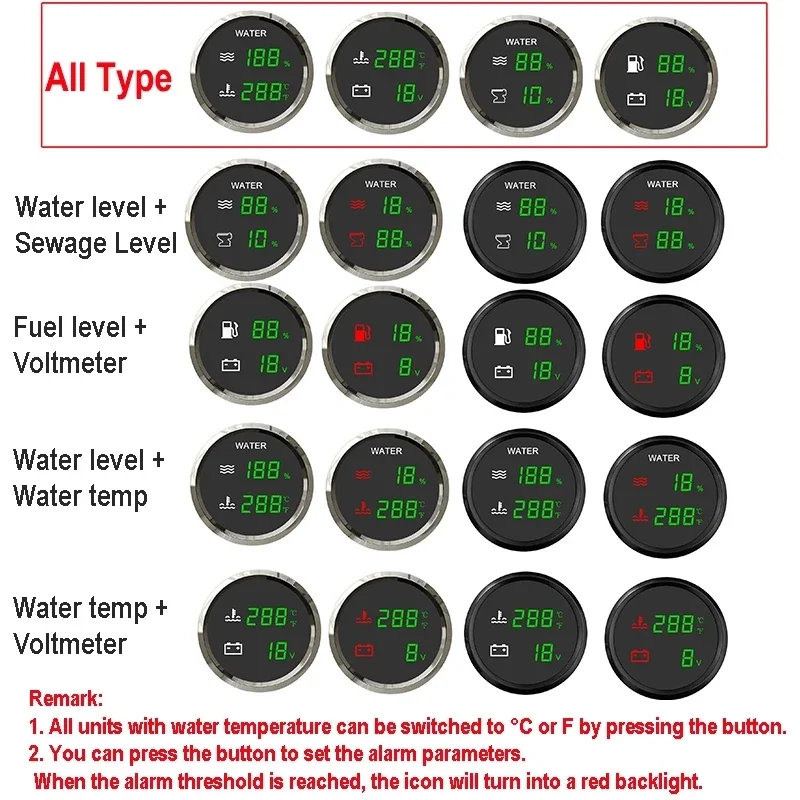

- can customized other function

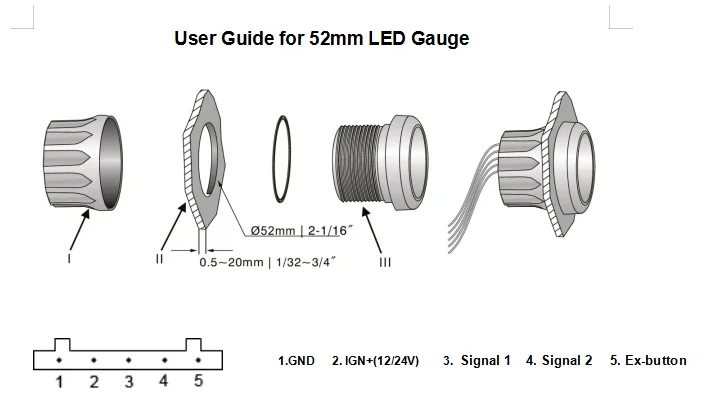

INSTALLATION GUIDE

1. Cut an Φ52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16”). behind the panel.
2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)
3. Connect cables according to the diagram/label.

Package:

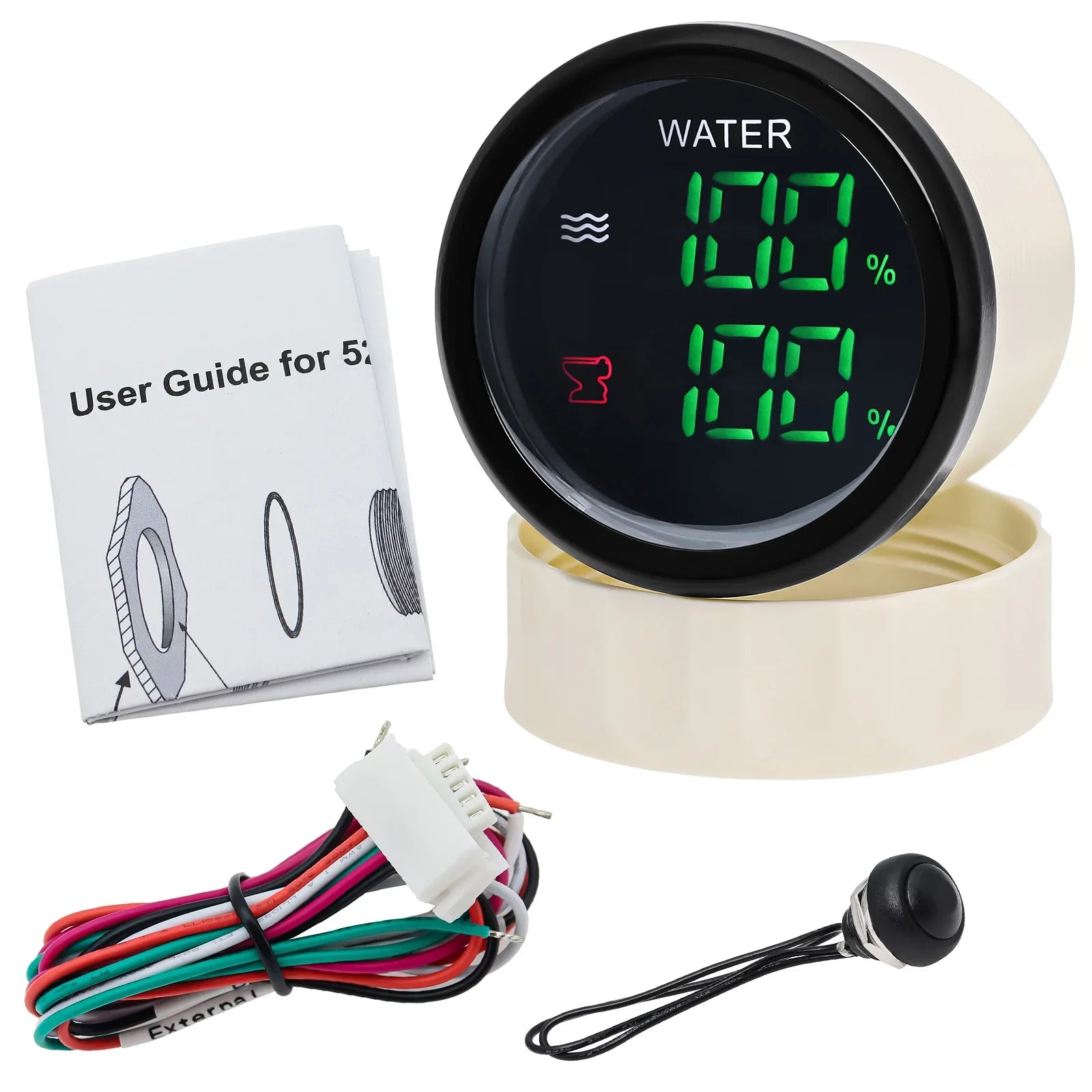

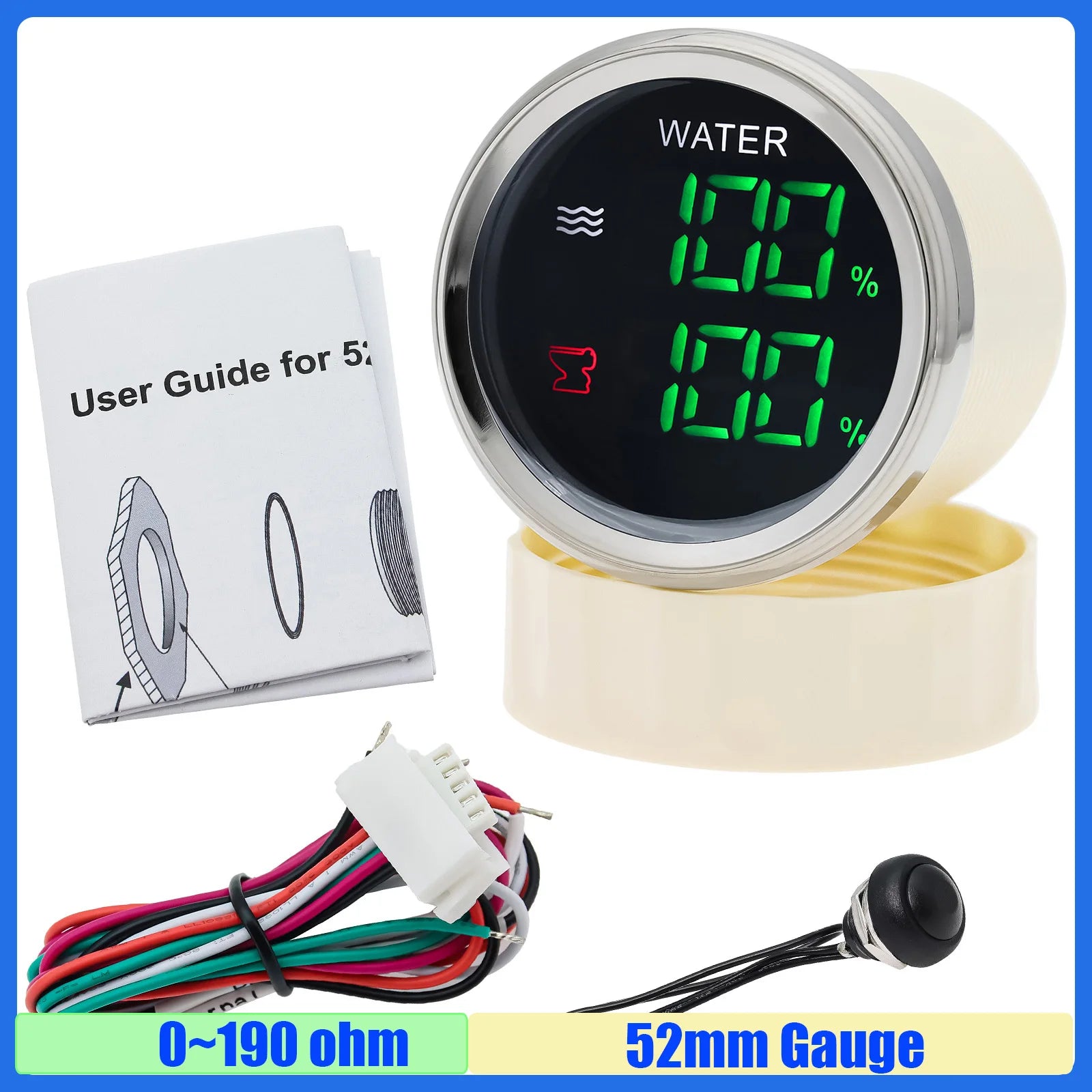

1PCS Gauge+Manual+Cable ,not included sensor

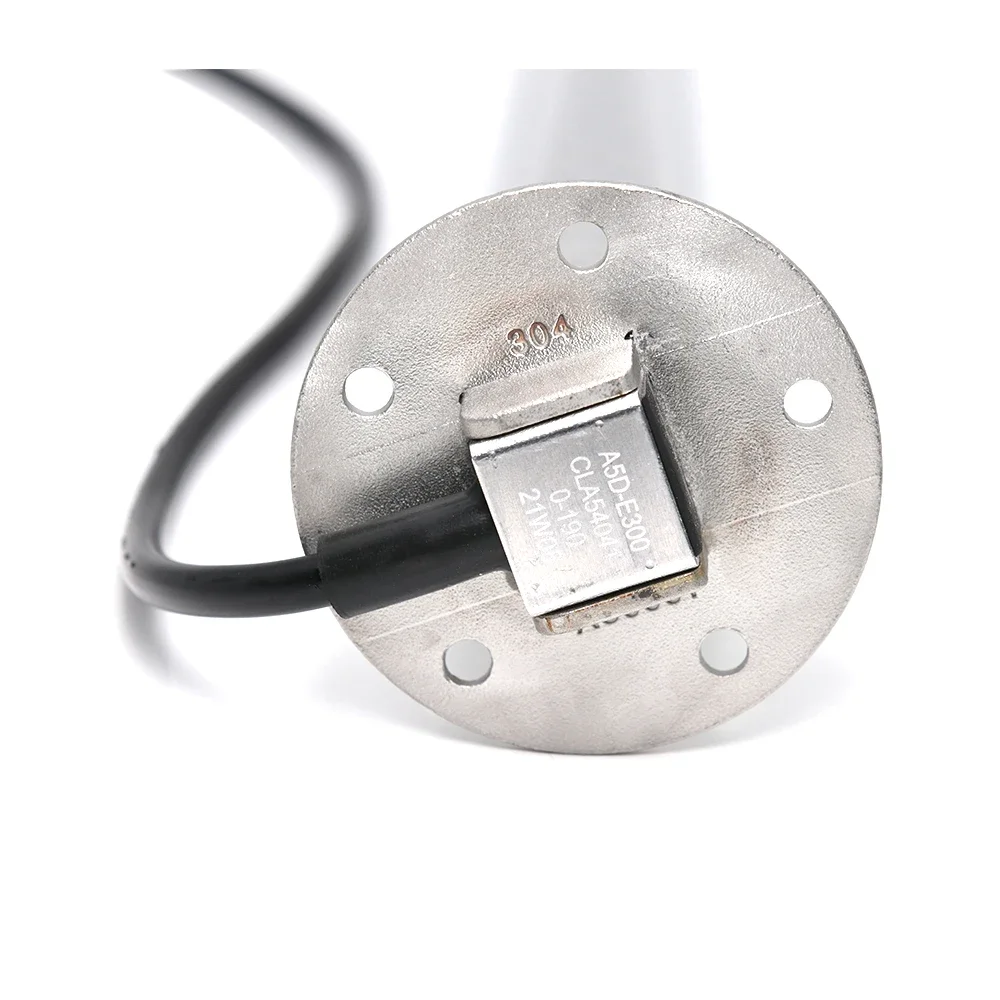

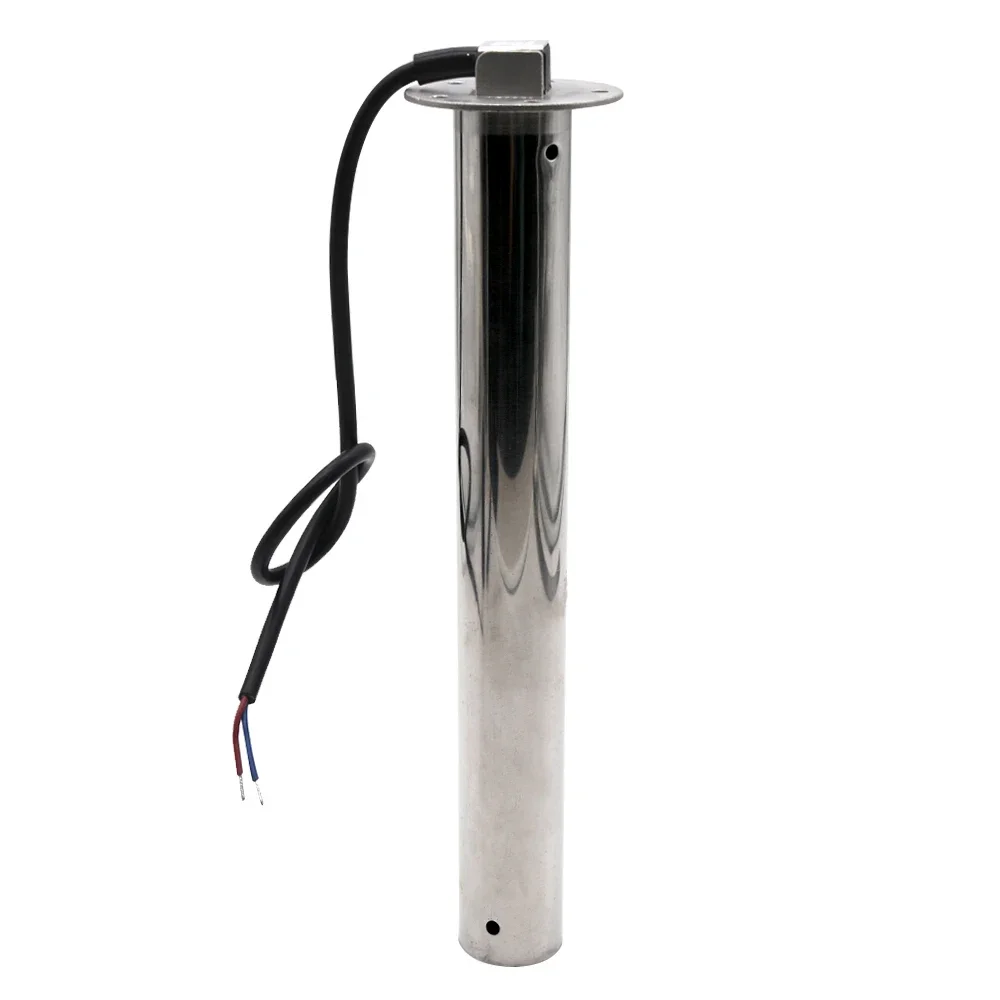

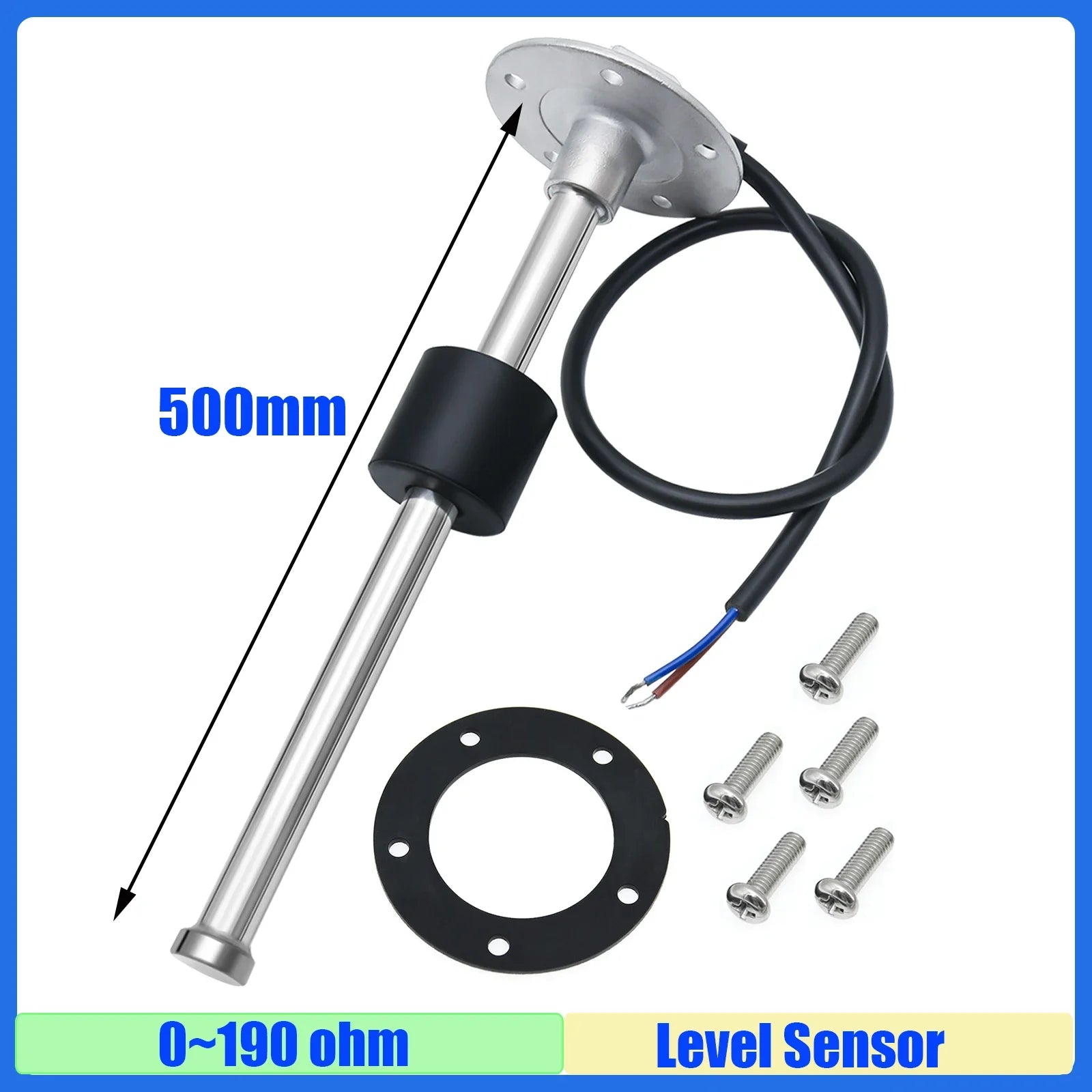

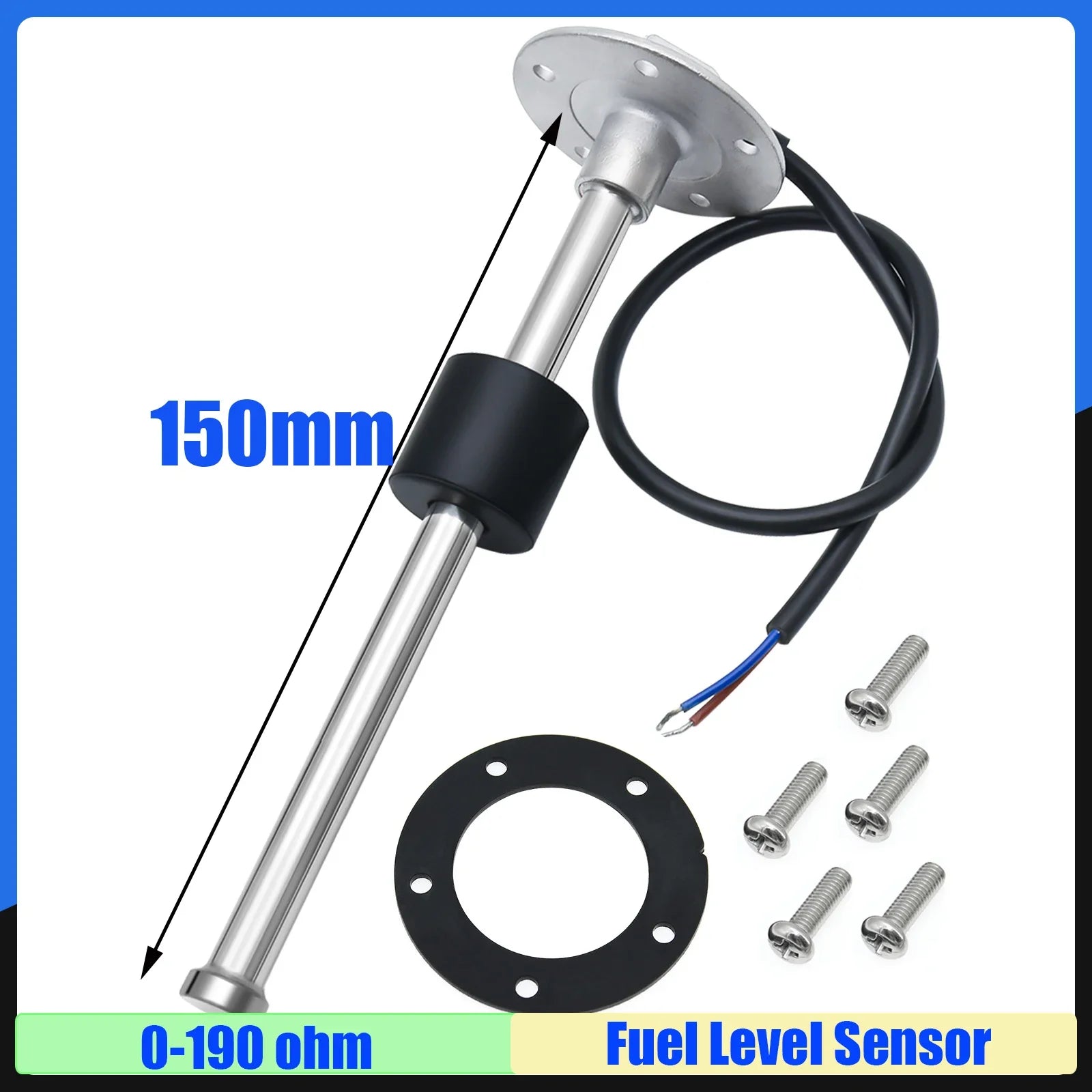

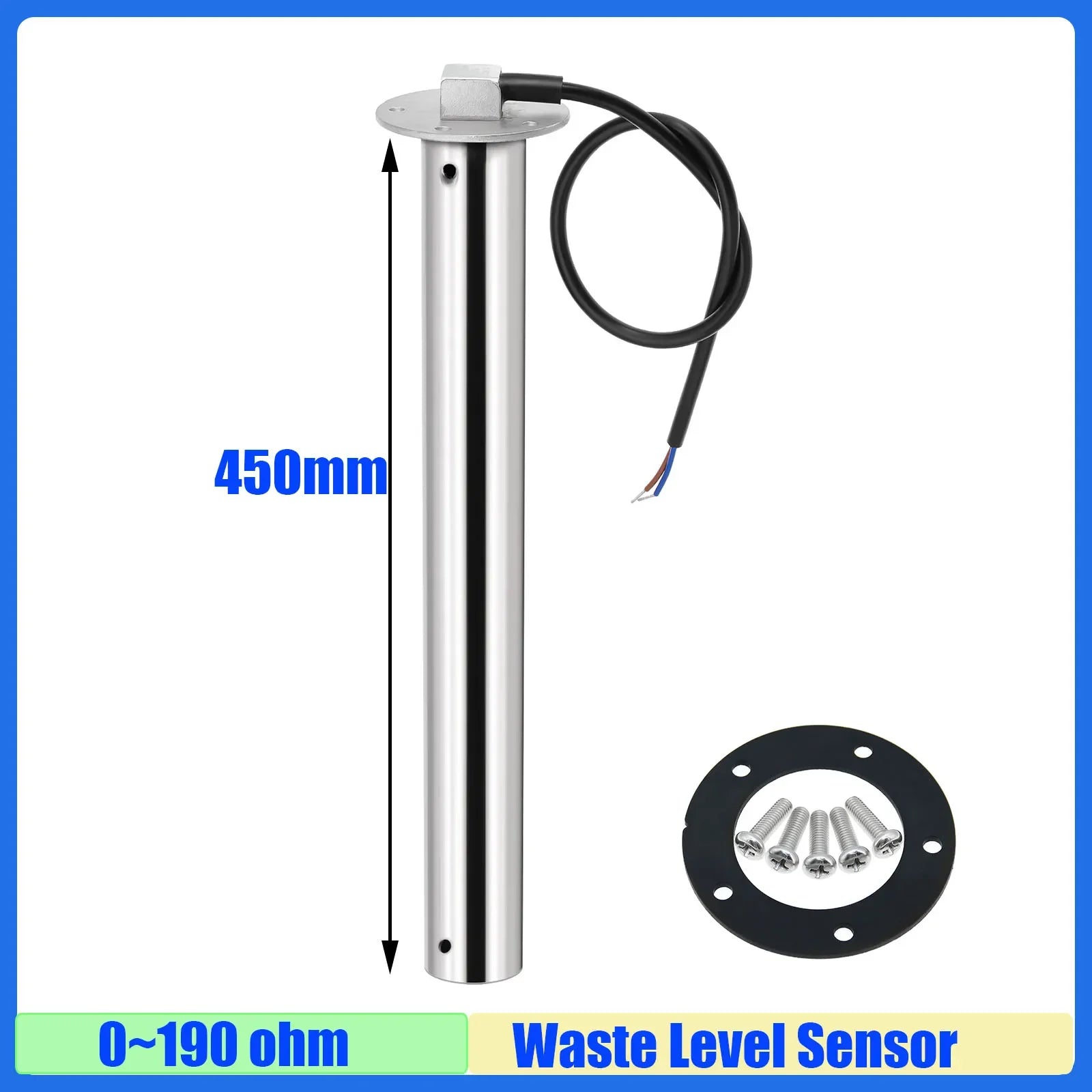

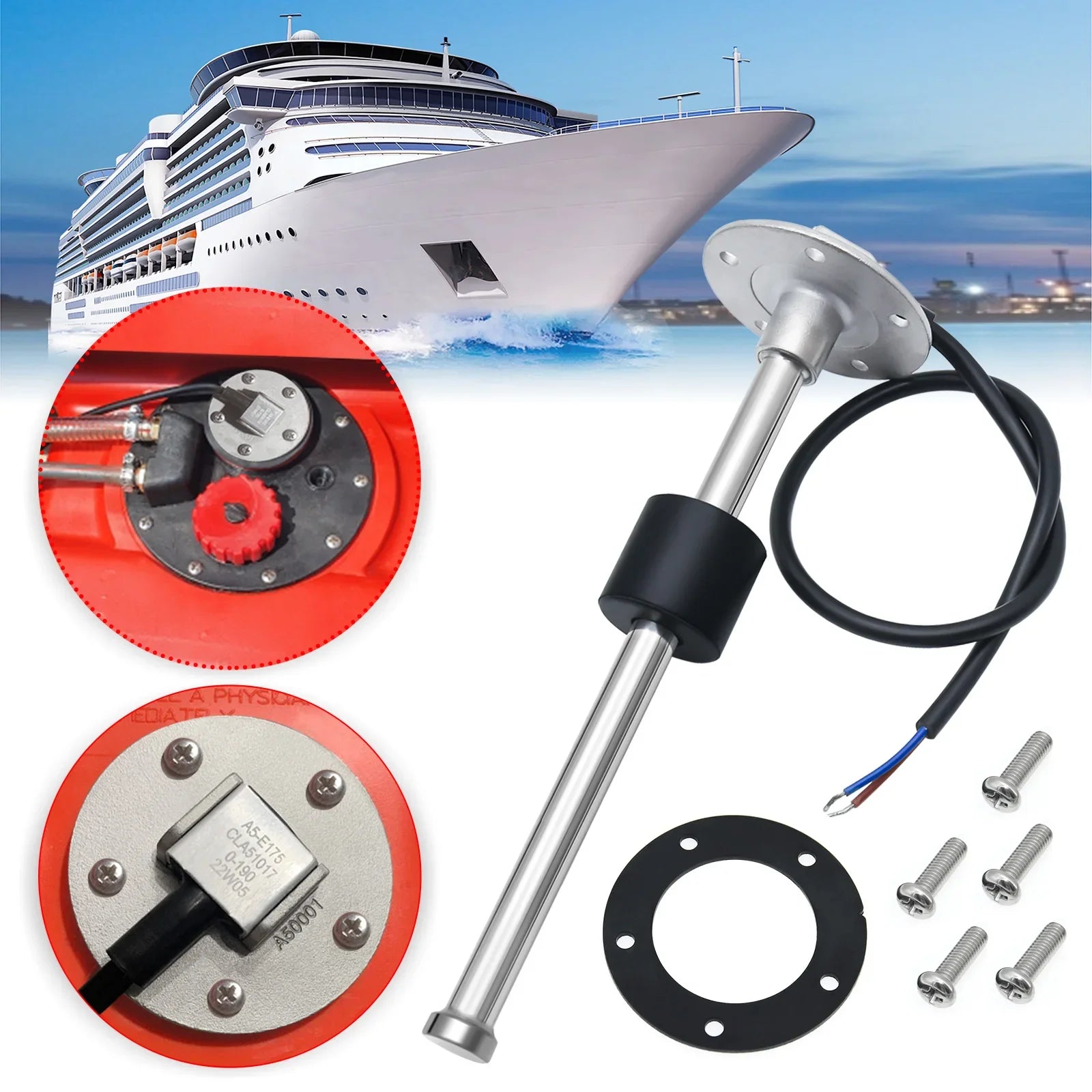

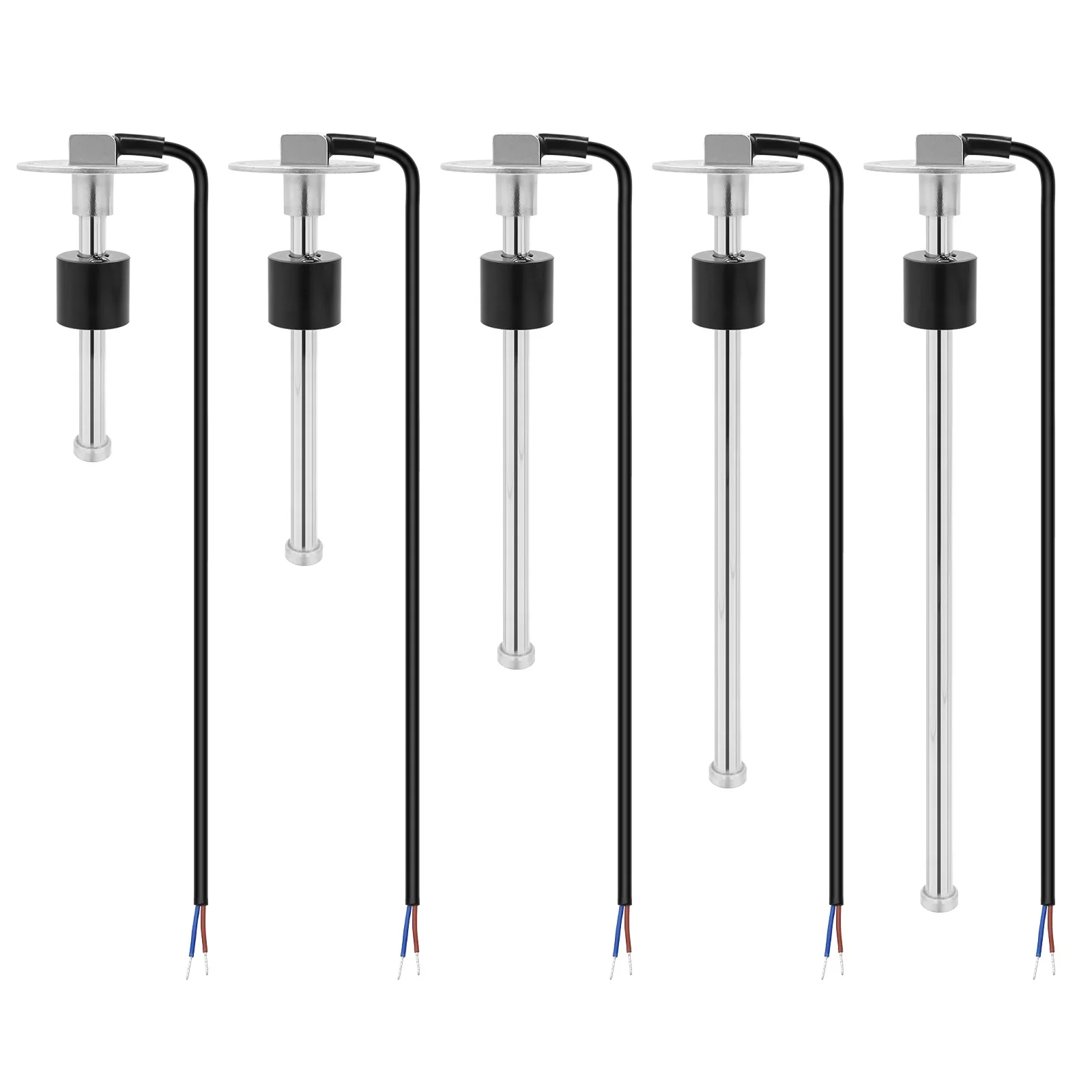

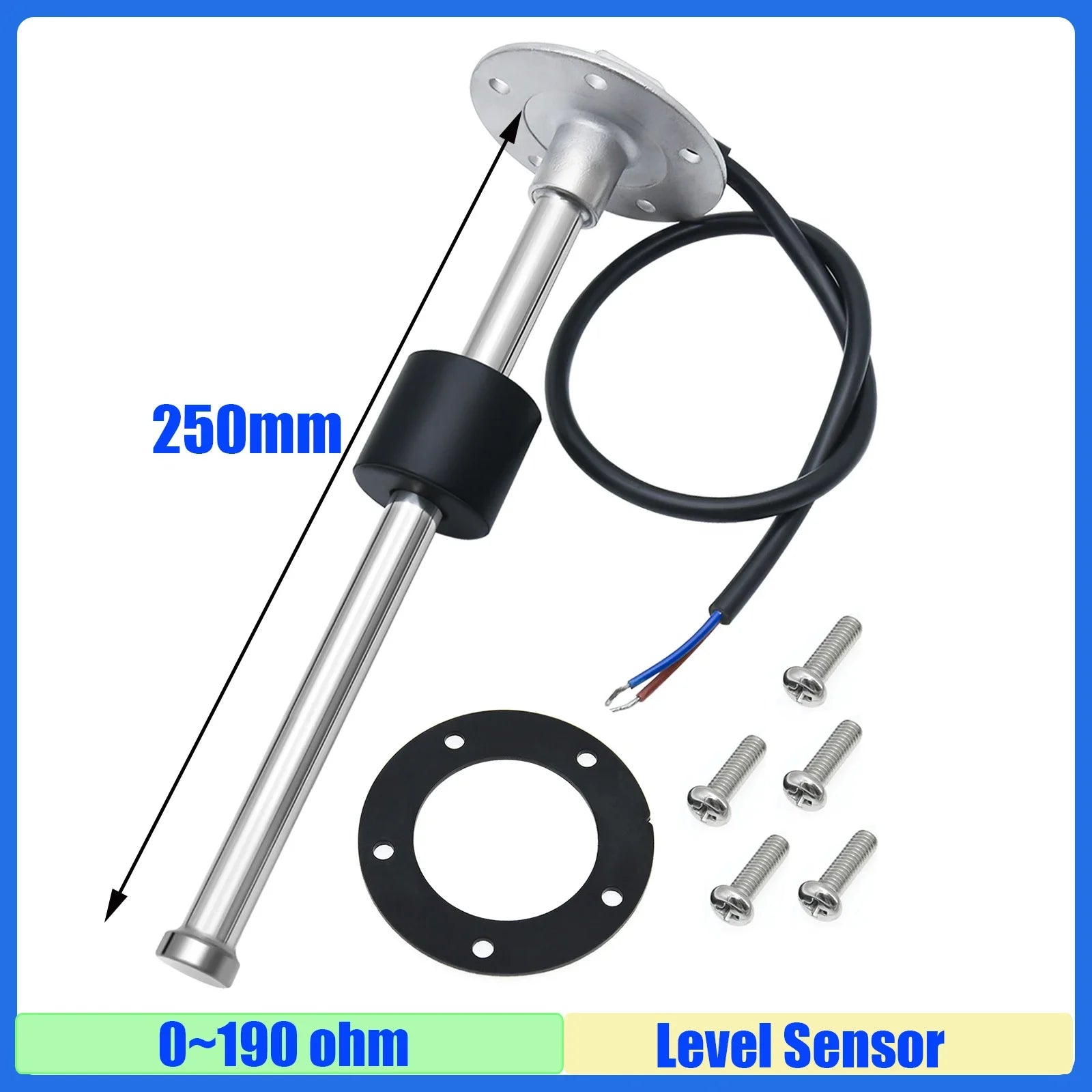

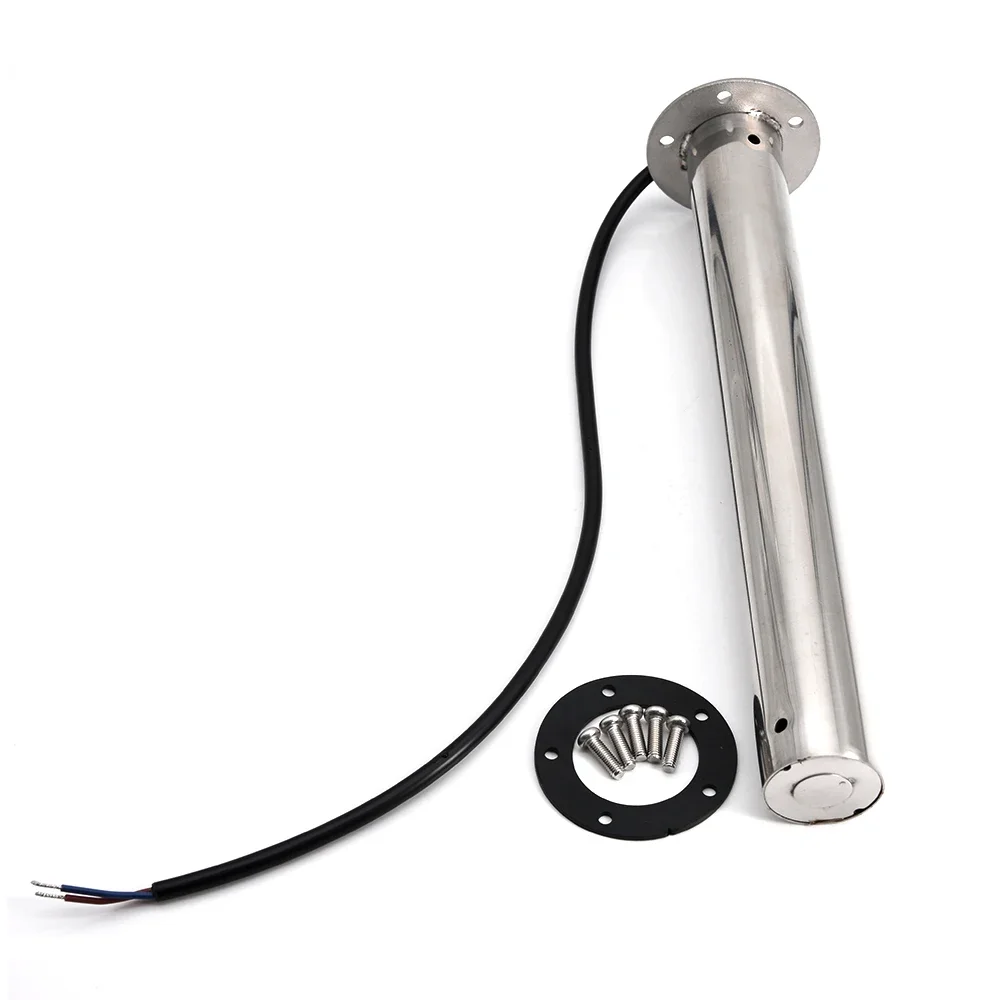

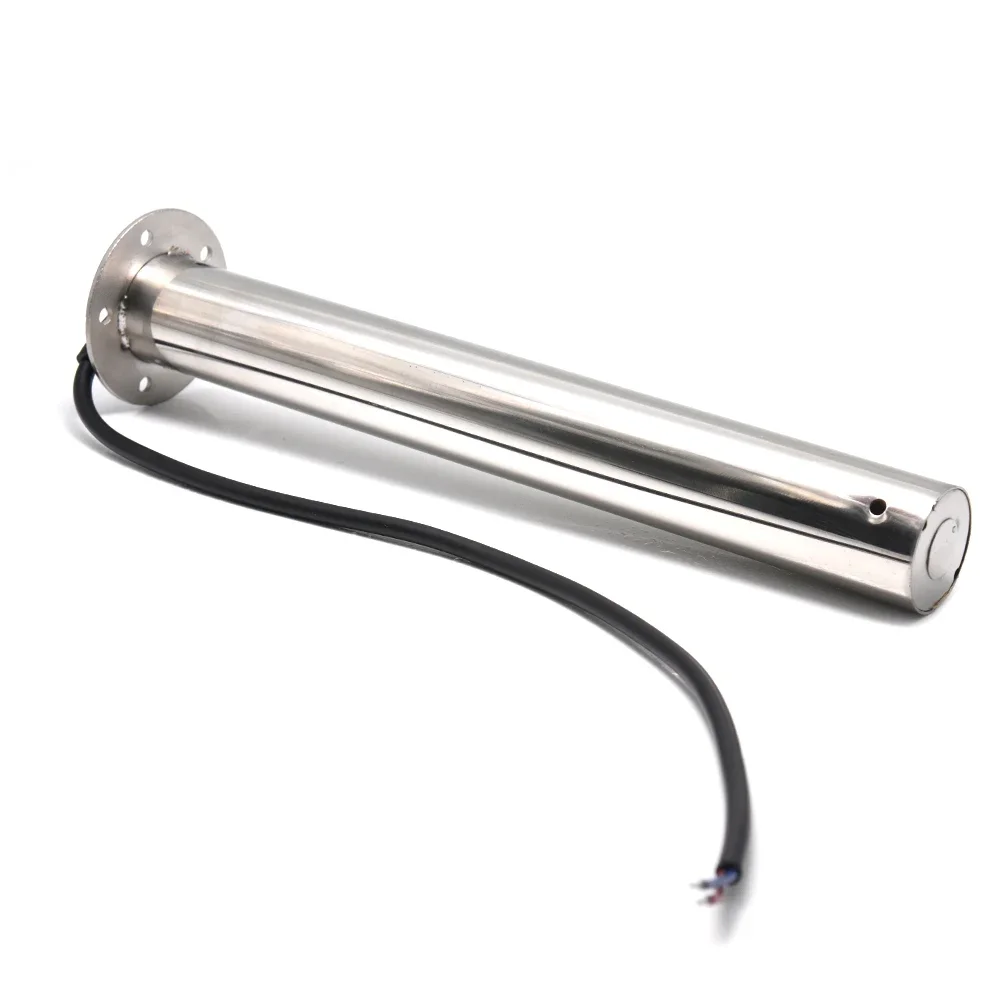

Sensor Feature:

- Material: 304 Stainless Steel
-Assembly: 5 holes

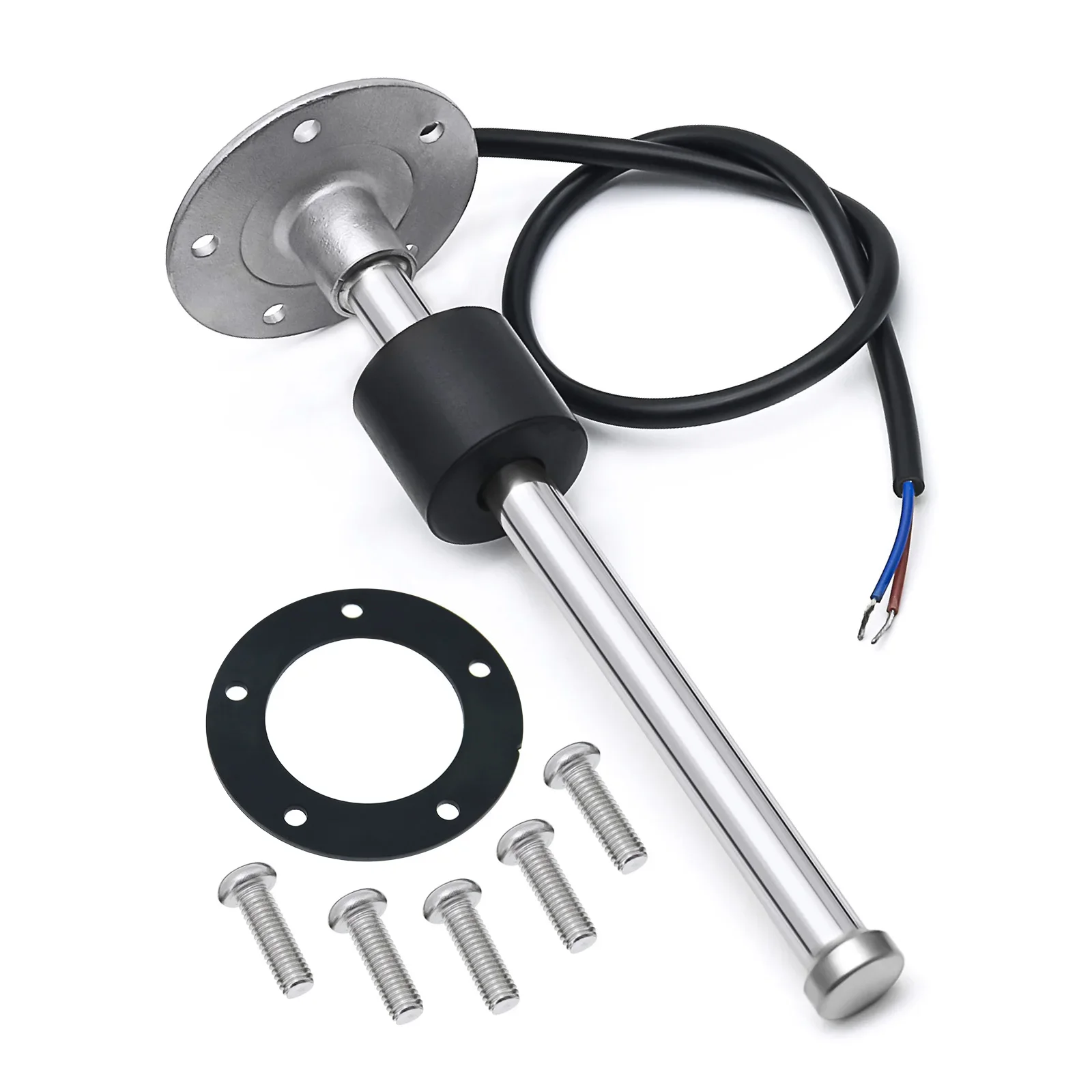

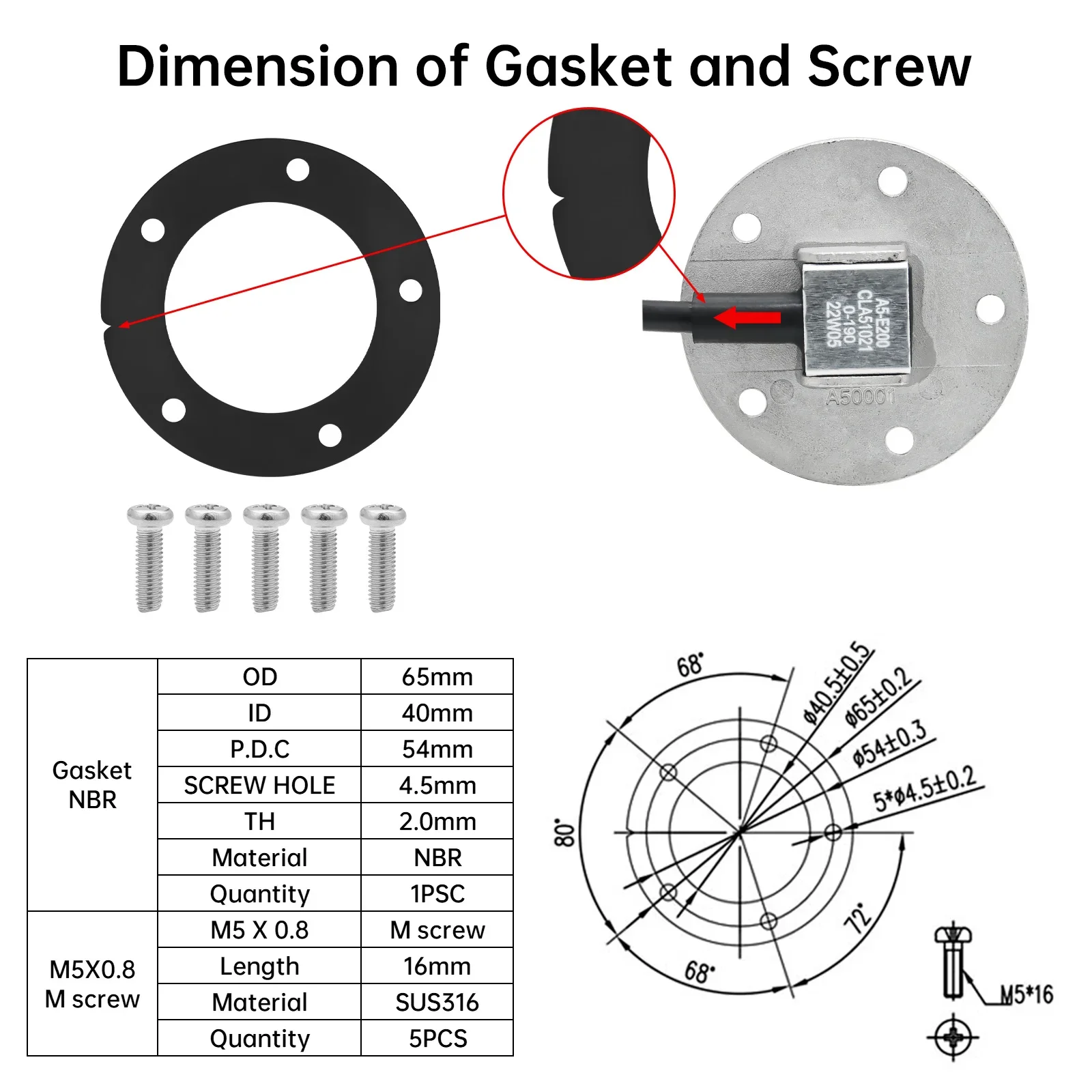

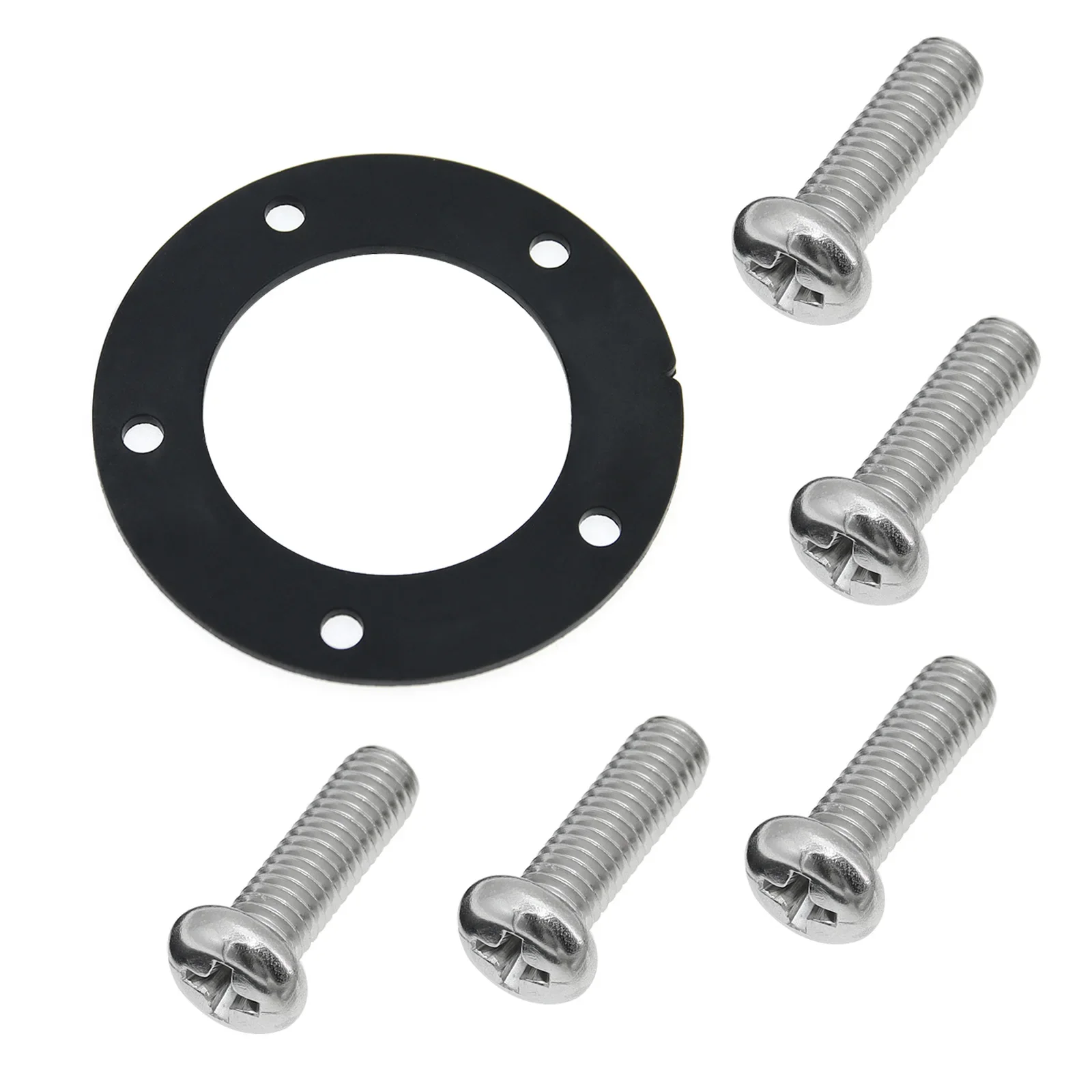

-Mounting: 5 pieces of M5 screws and 2 mm thick gasket
-Operating temperatures: - 40 to 85 degree
-Protection rank: IP67
-Level Sensor Support : Water Level Gauge

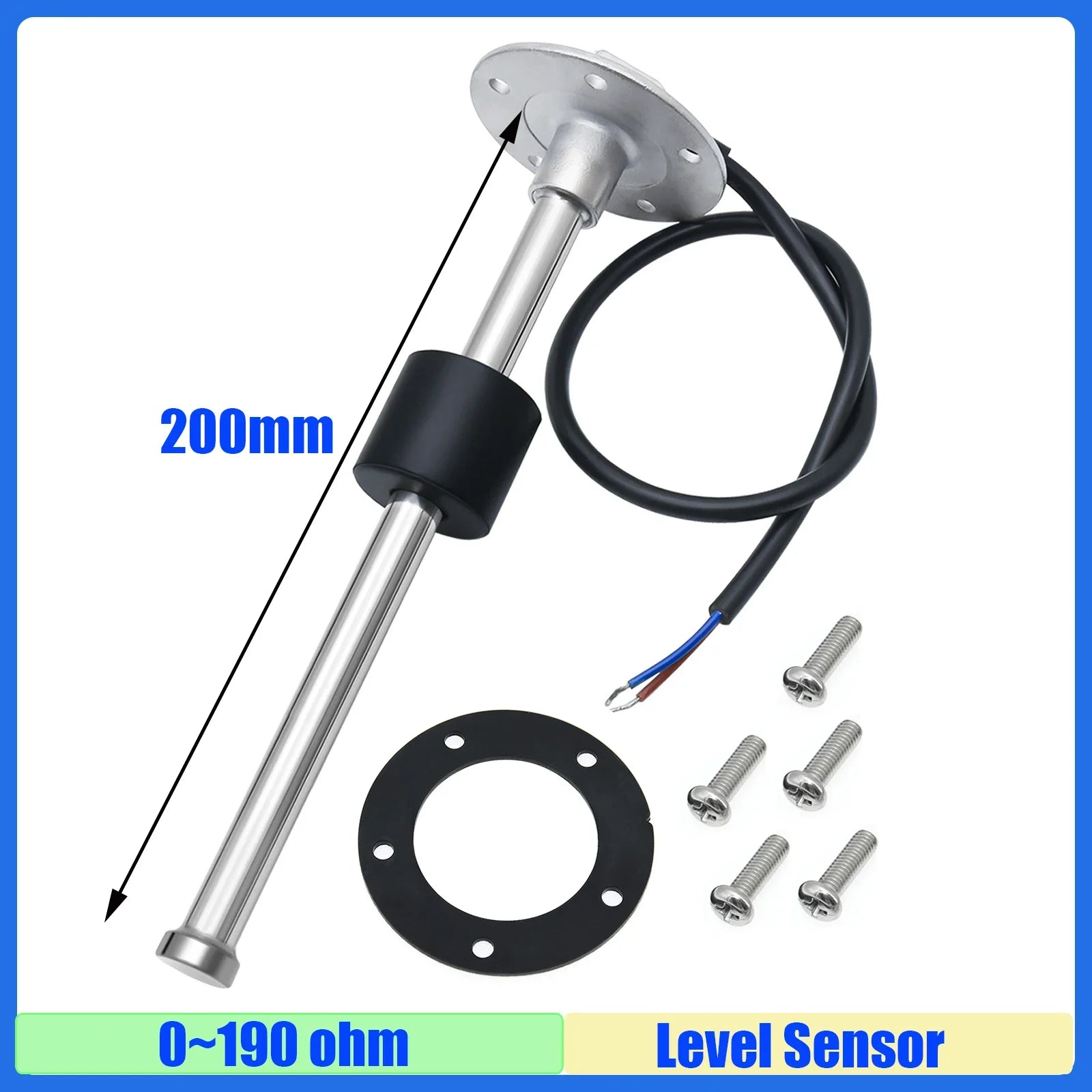

-Signal: 0-190 ohm,can customized other signal

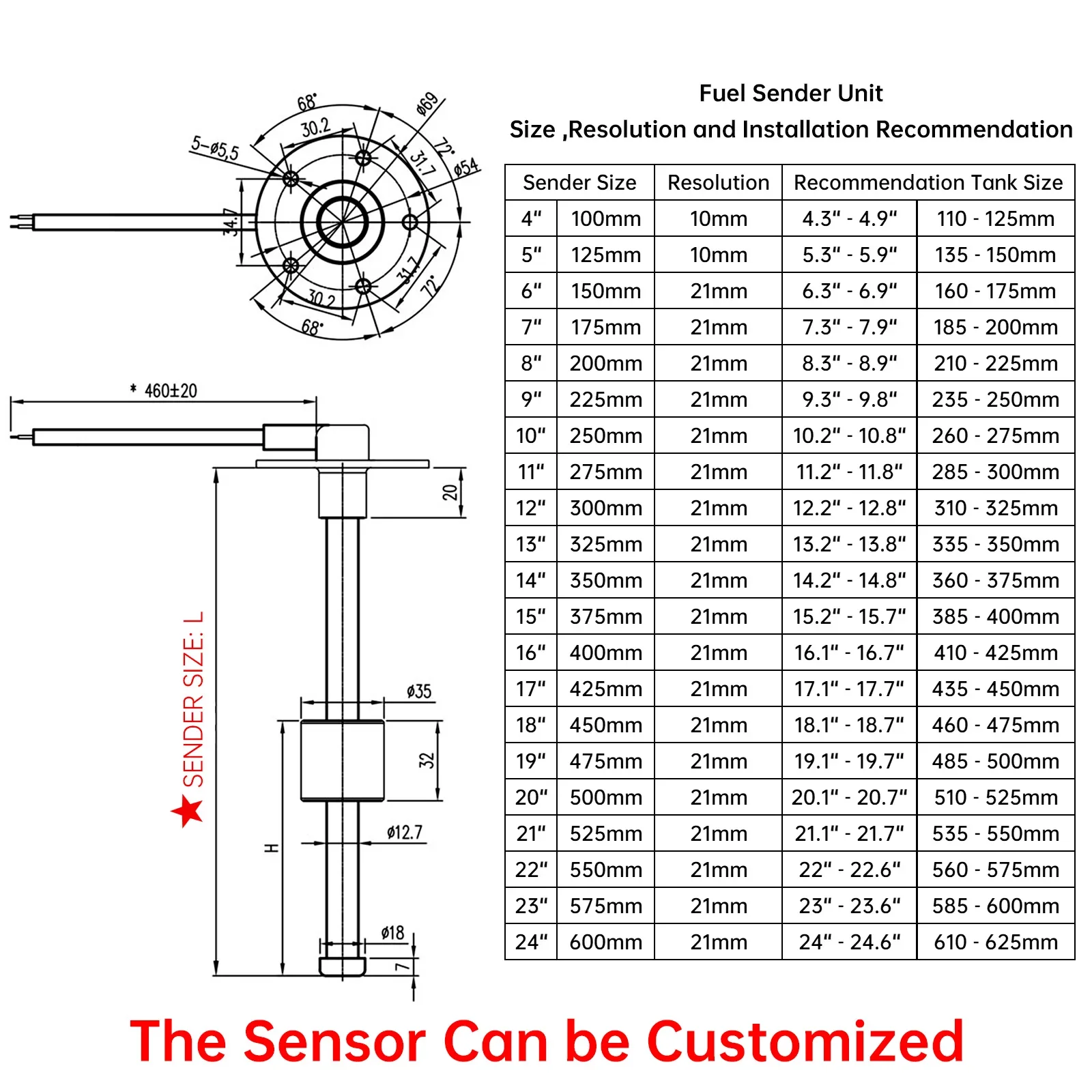

-Resolution ratio: 21mm
- Fitment: for Gasoline, diesel, methanol fuel, ethanol fuel

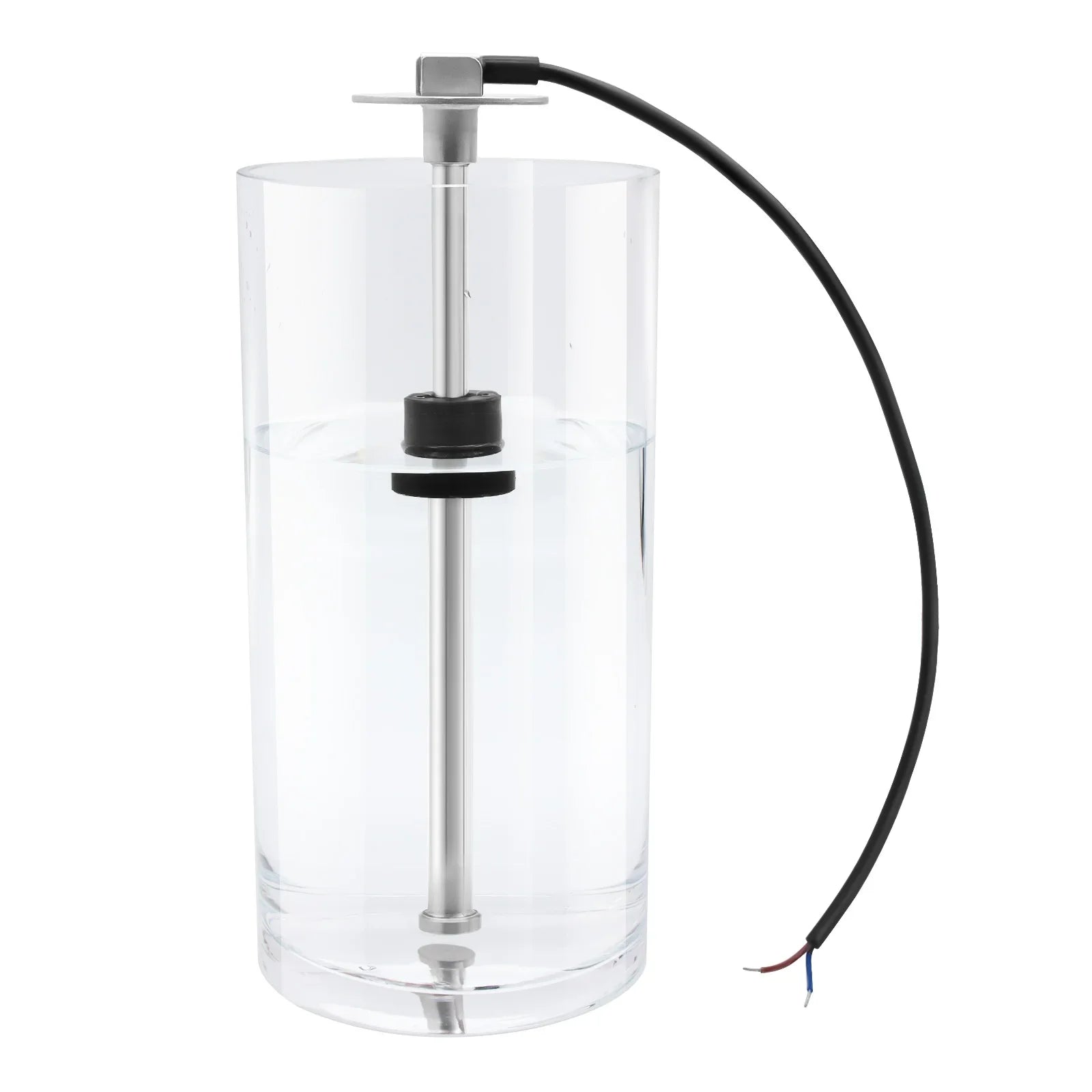

- When the oil / water level is empty , there will be a space of 3-21mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~

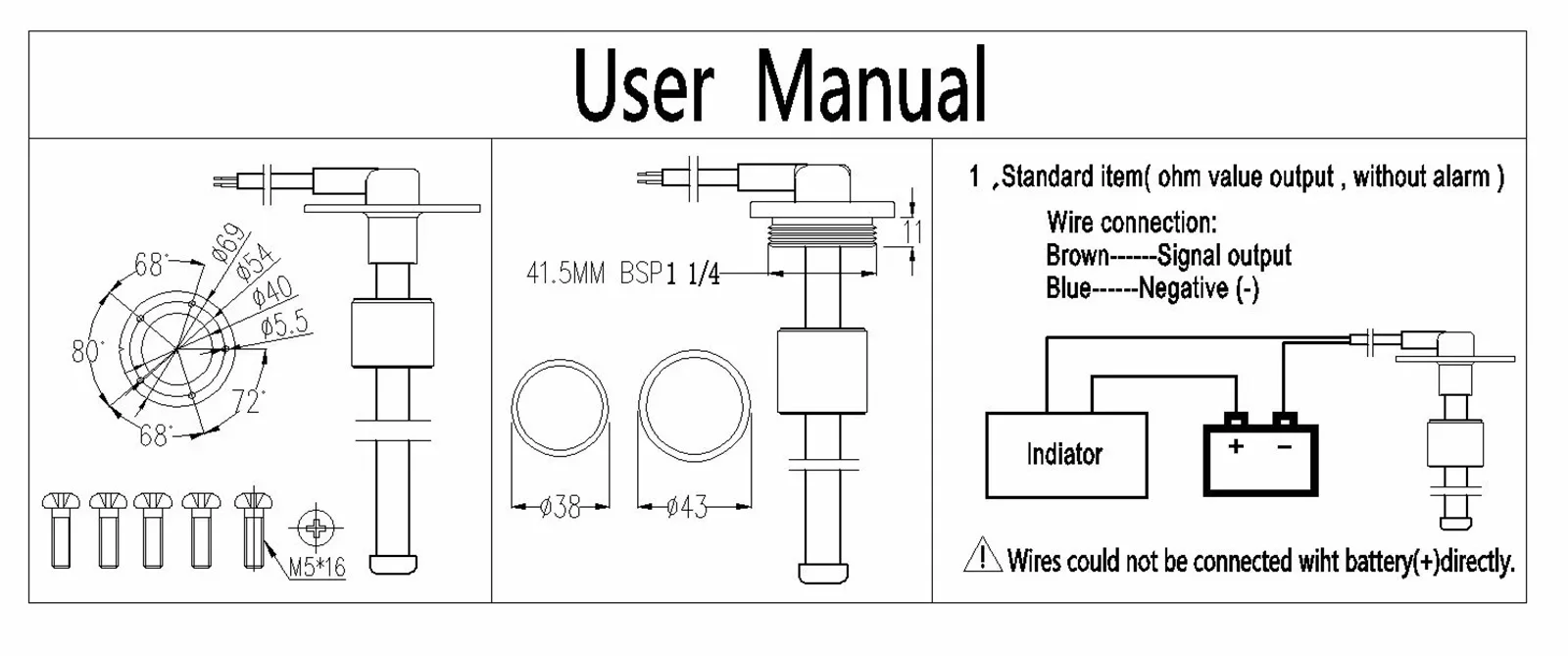

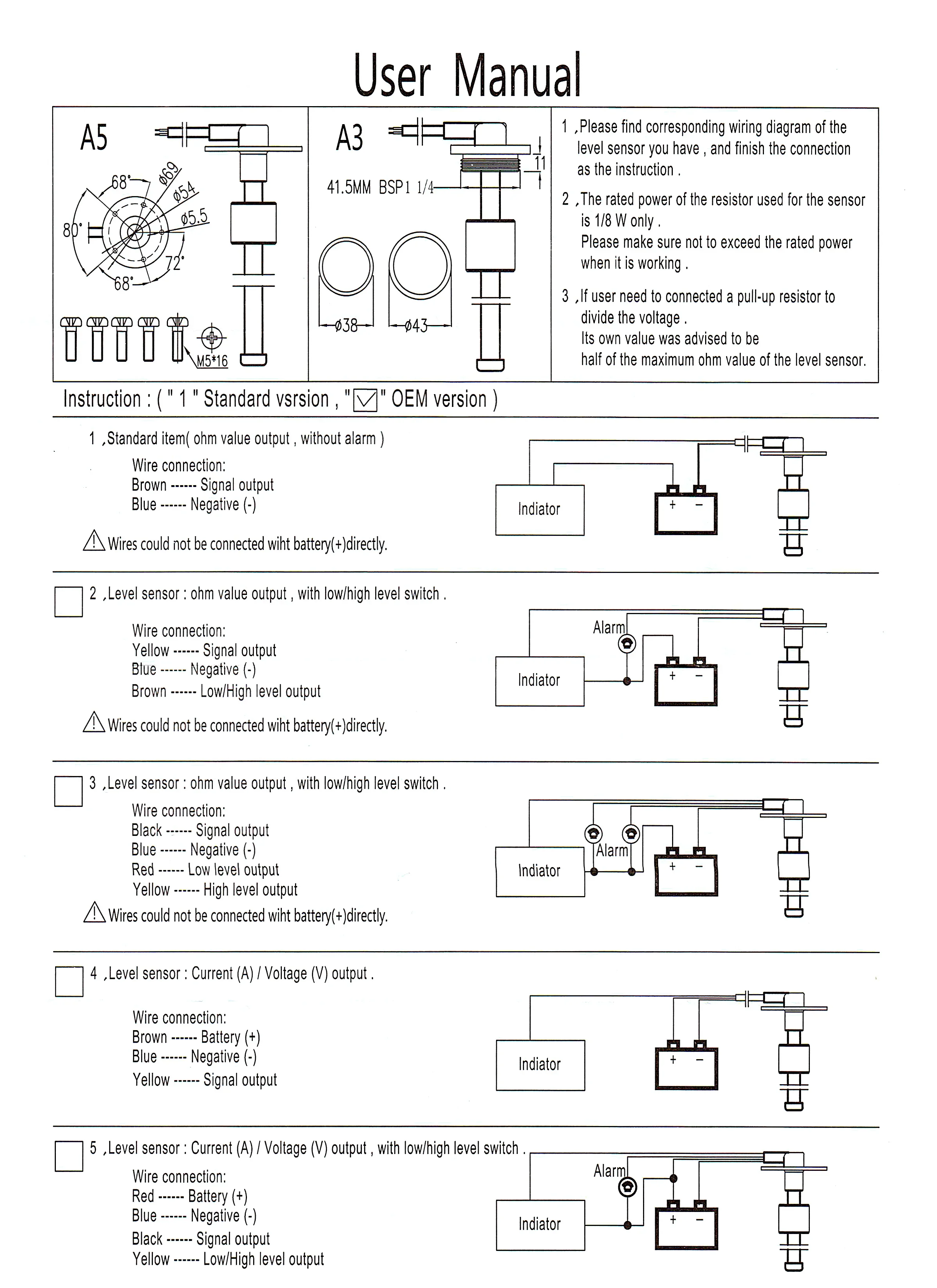

Sensor Connection:

- Brown line Connect to the Signal Output
- Blue line Connect to the Negative(-)

Package:

1 PCS Sensor(not included gauge)
