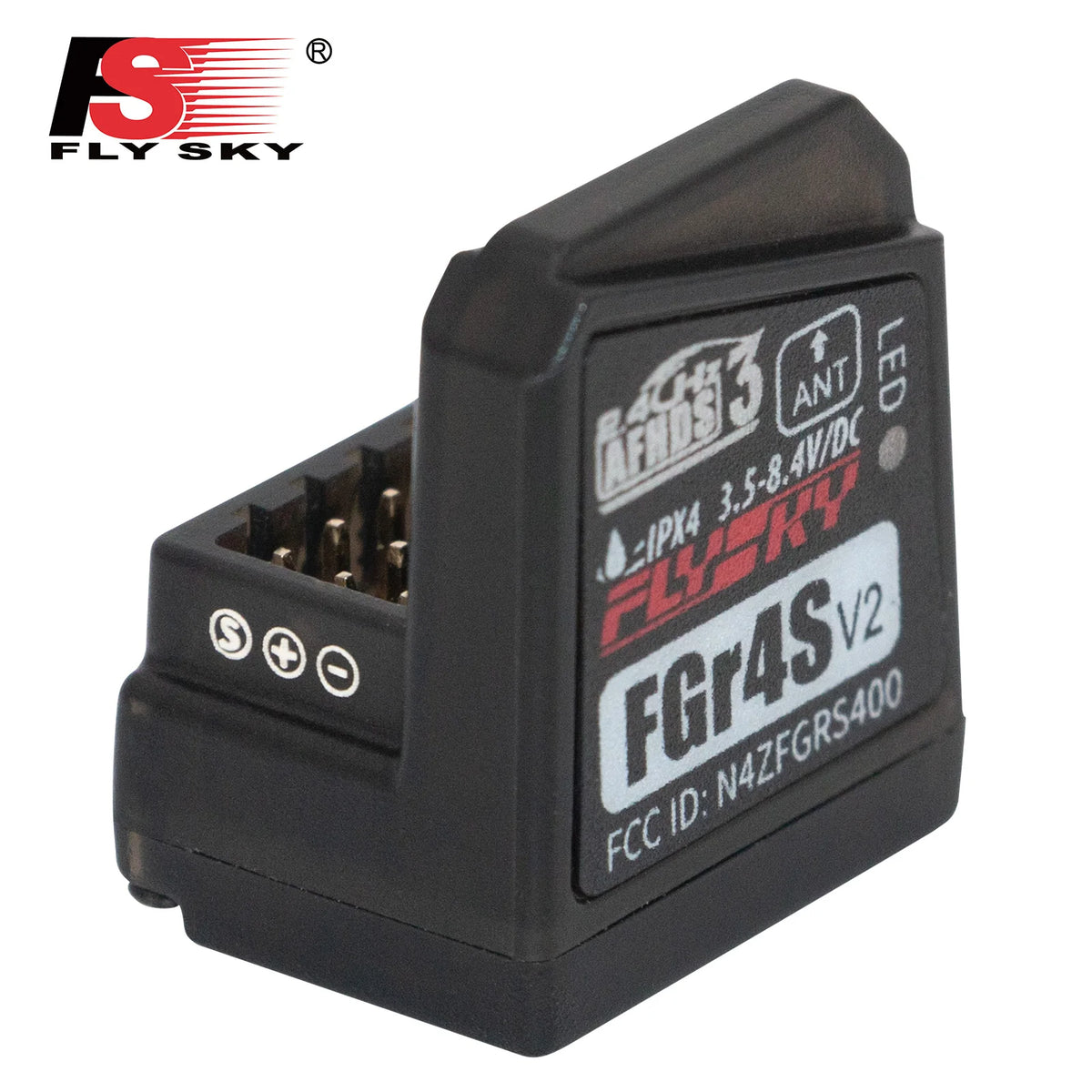

Flysky FGR4S V2 AFHDS Bidirectional Receiver for NB4 PL18 Transmitter

Key Features

• 2.4GHz AFHDS 3 Link — It runs on 2.4GHz with the AFHDS 3 wireless protocol.
• Built-in Single Antenna — It has an internal single antenna with two-way transmission.
• PWM, PPM and i. bus Output — It outputs PWM, PPM and i. bus data.

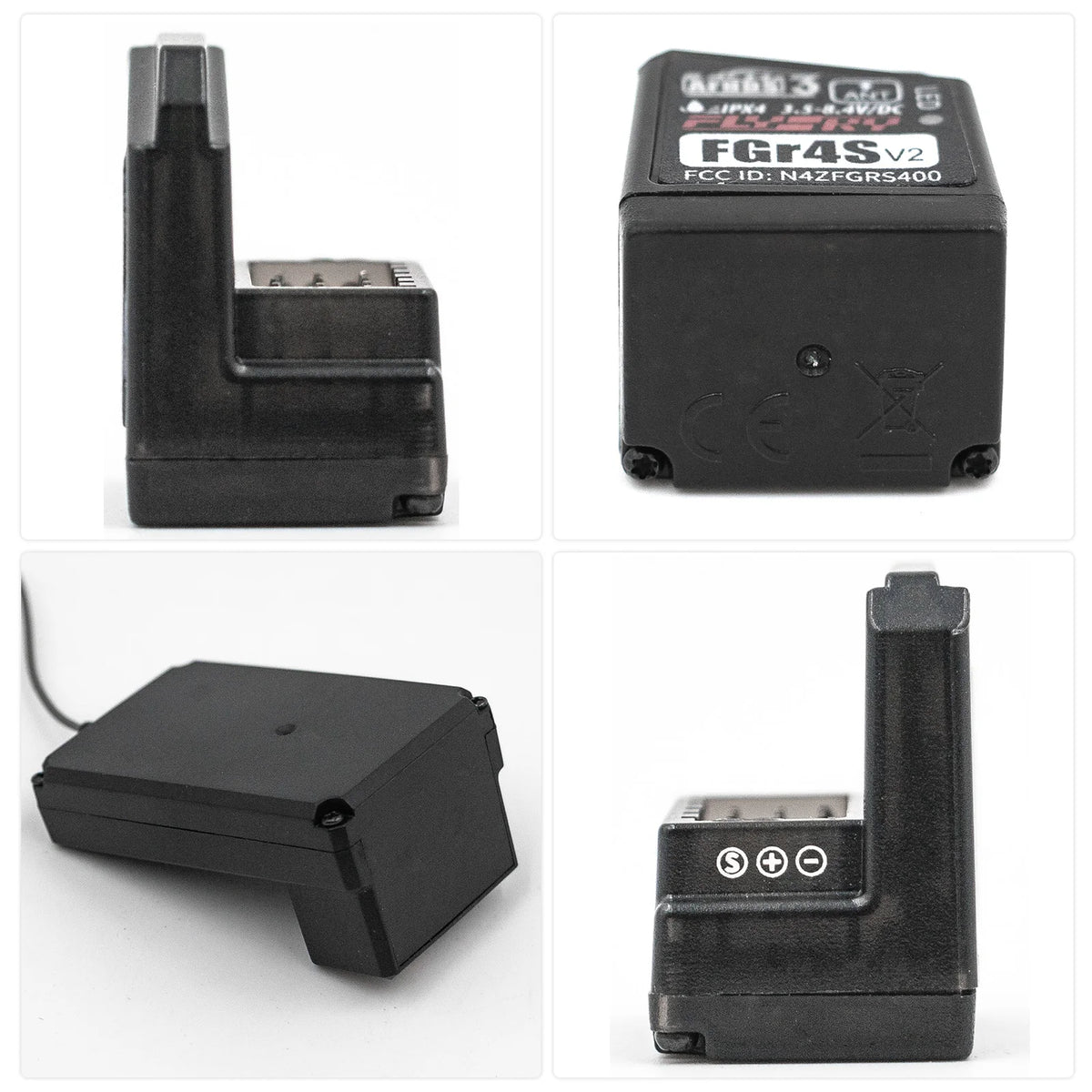

• Compact Light Body — It is ultra-small and ultra-lightweight, which saves space in the model.

Product Specifications

• Model: for Flysky NB4 PL18 RC Transmitter
• Material: Composite Material

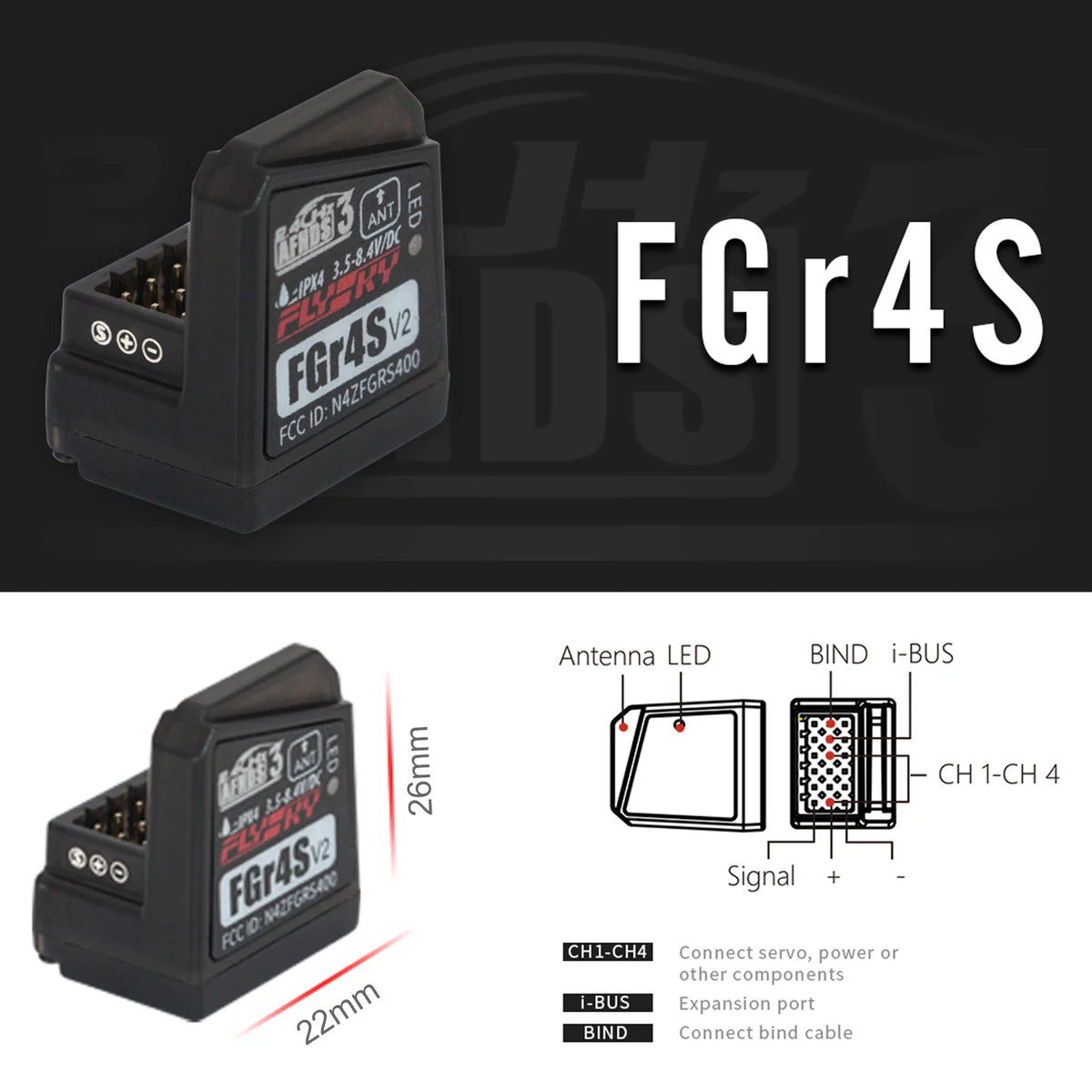

• Dimensions: 26 × 22 × 17.3 mm (1.02 × 0.87 × 0.68 in)
• Wireless frequency: 2.4GHz
• Wireless protocol: AFHDS 3
• Data port: PWM / PPM / i.bus
• PWM channel: 4
• Range: > 200m (ground)
• Power: 3.5-8.4V
• Temperature range: -10 ℃ — + 60 ℃
• Humidity range: 20% -95%
• Age Range: 14+y

What It Is / How It Works

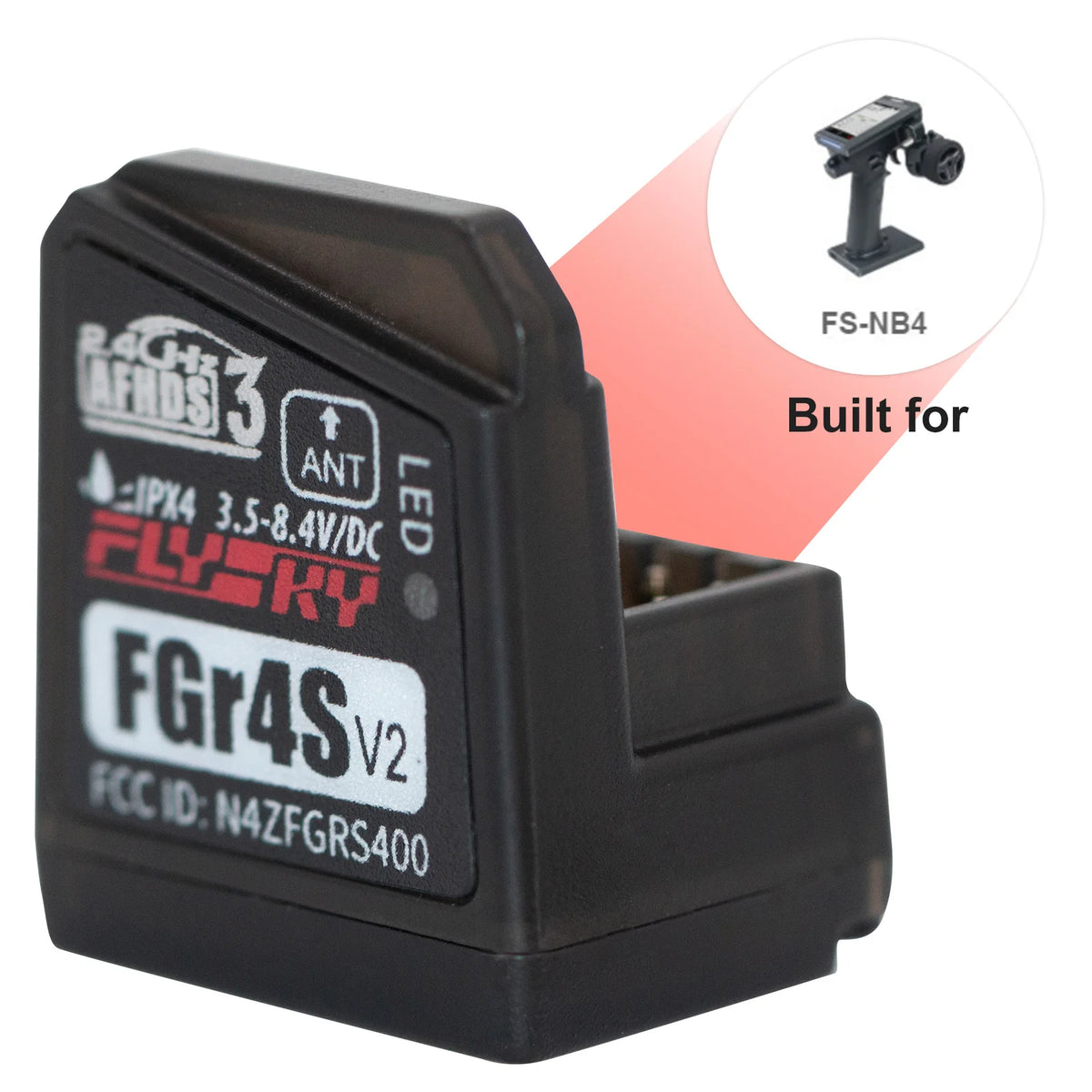

This is a 2.4GHz RC receiver for RC car and RC boat use. It is compatible with the FlySky Noble F-S-NB4 PL18 transmitter and suits models that use that transmitter's AFHDS 3 system.

Who It's For / Use Cases

RC car and RC boat hobbyists who run an AFHDS 3 transmitter often look for a small, light receiver that leaves more room inside the model. A compact receiver with PWM, PPM and i. bus outputs suits builders who want flexible connections between the receiver and their electronics.

How to Use / Care

1. Mount the receiver with its antenna as far away from any metal parts as possible.
2. Insert the binding cable into the receiver's BIND port.
3. Plug the power cable into any other port; the LED flashes quickly when the receiver is in bind mode.
4. Put the transmitter into bind mode, following its instruction manual.
5. When the LED flashes slowly, binding is complete. Remove the power and bind cables, then reconnect the power cable to the receiver.
6. Check that the transmitter and receiver work as expected; if not, repeat the binding steps.

How to Choose

Start with the transmitter. Match the receiver's wireless protocol to your transmitter system, which here is AFHDS 3 at 2.4GHz. bus are all supported. Size and weight matter in small models, so confirm the mounting space available before you choose.

Frequently Asked Questions

Which transmitter does it work with?
It works with the FlySky Noble F-S-NB4 PL18 transmitter. It supports the AFHDS3 system remote controller.

Does it need its own battery?
It has no battery of its own. It runs on a 3.5-8.4V power input.

Which outputs does it provide?
It outputs PWM, PPM and i. bus data, with 4 PWM channels.

What range does it cover?
It has a range of more than 200m on the ground, using 2.4GHz wireless frequency.

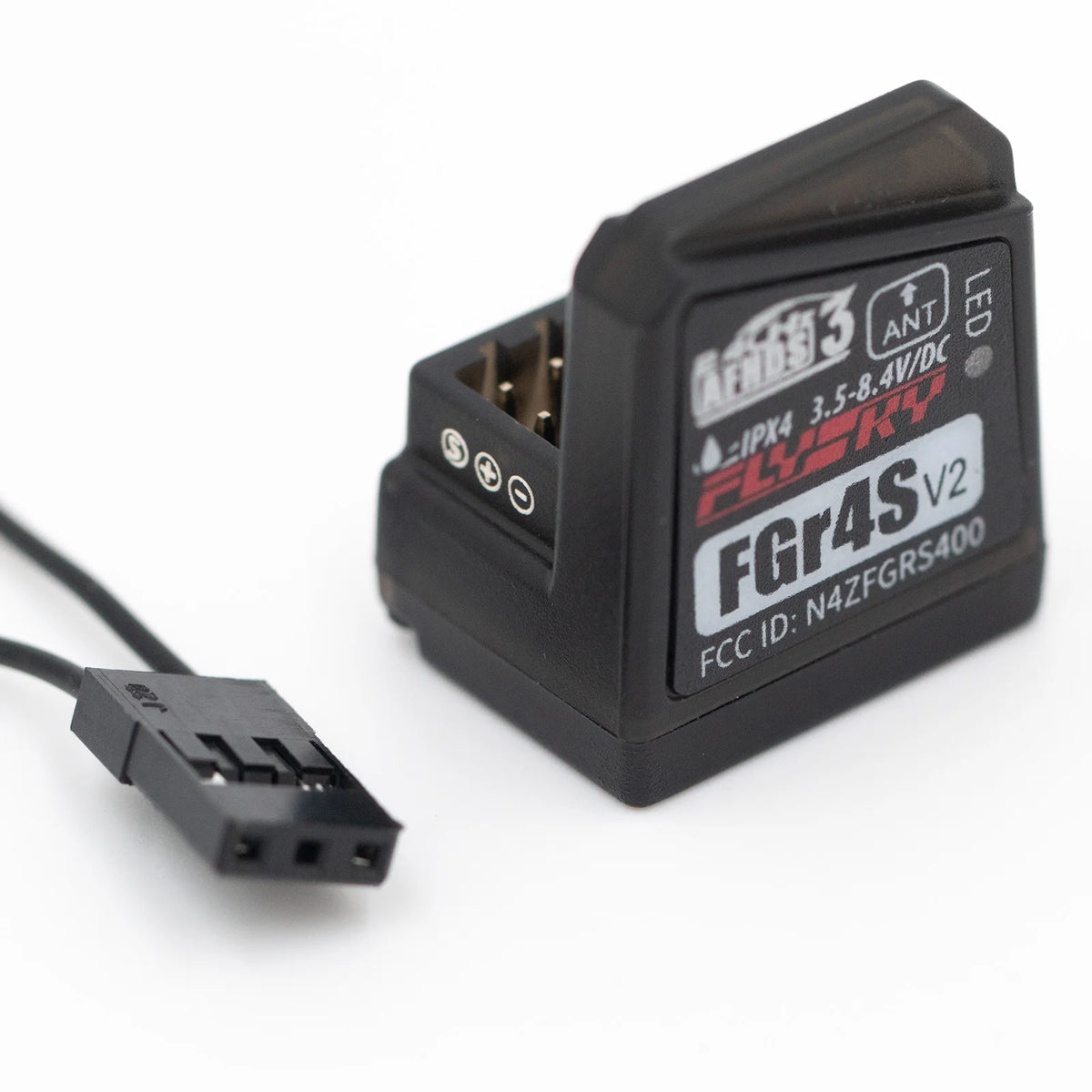

What is in the package?
The package includes one FGr4S receiver and one banding cable.
