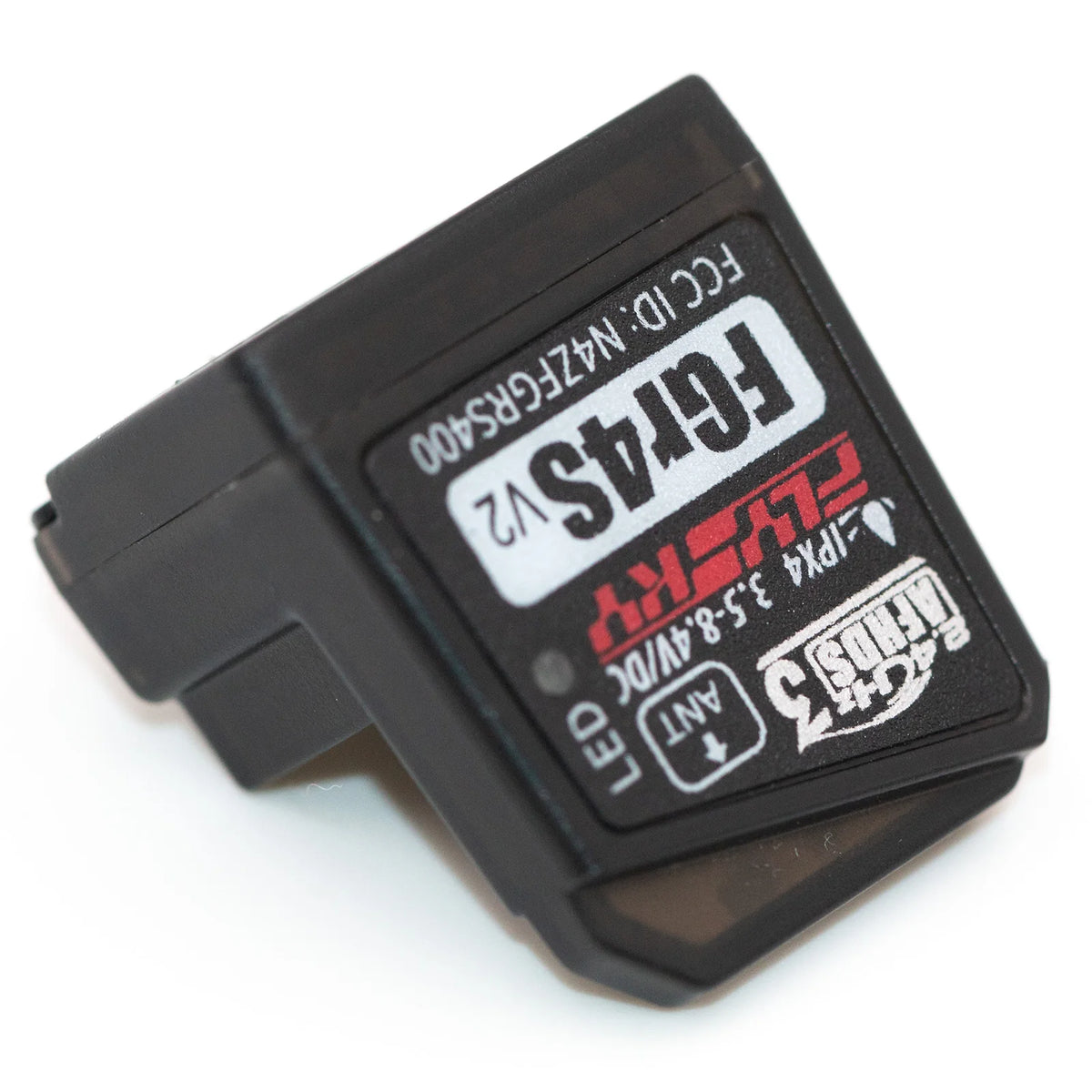

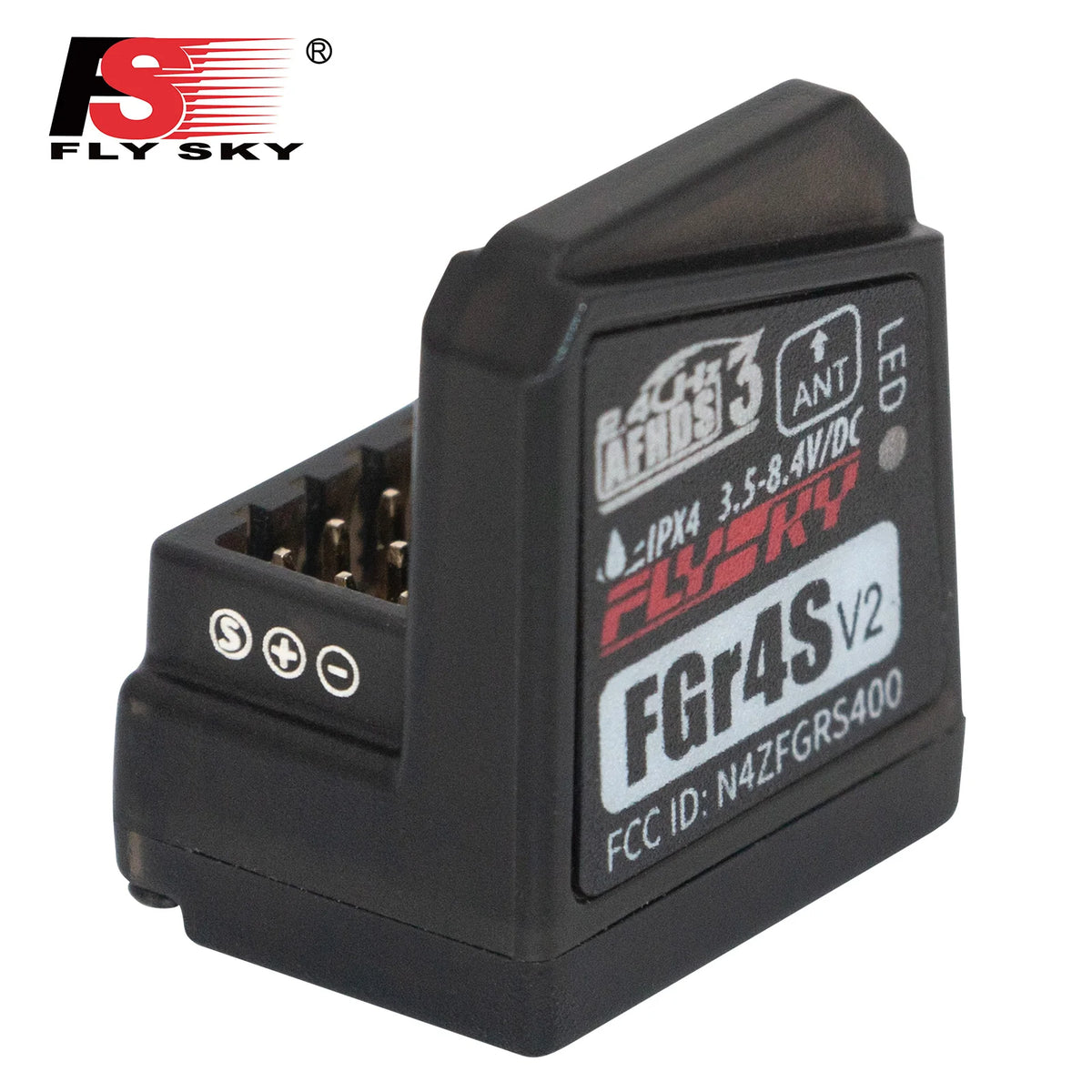

Flysky FGR4S V2 AFHDS 3 2.4GHz 4-Channel Receiver for NB4 PL18

Key Features

• Built-In Antenna — The internal single antenna supports two-way transmission in a compact body.
• AFHDS 3 Protocol — It uses AFHDS 3, Flysky's third-generation automatic frequency hopping digital system.
• It Outputs PPM — It outputs PPM, i-bus and PWM data for AFHDS3 system remote controllers.

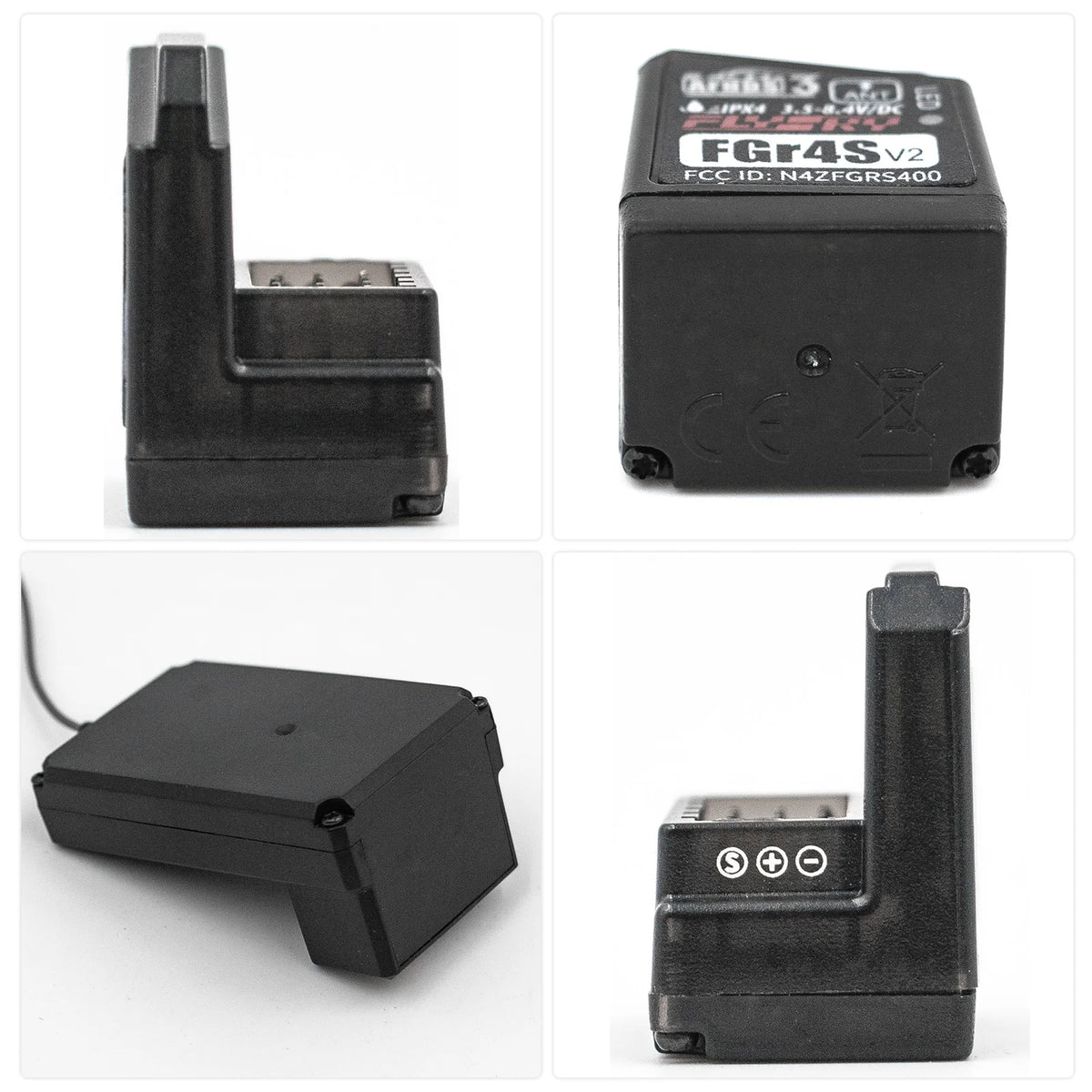

• Ultra-Small Design — The ultra-small, lightweight body saves space on the model.

Product Specifications

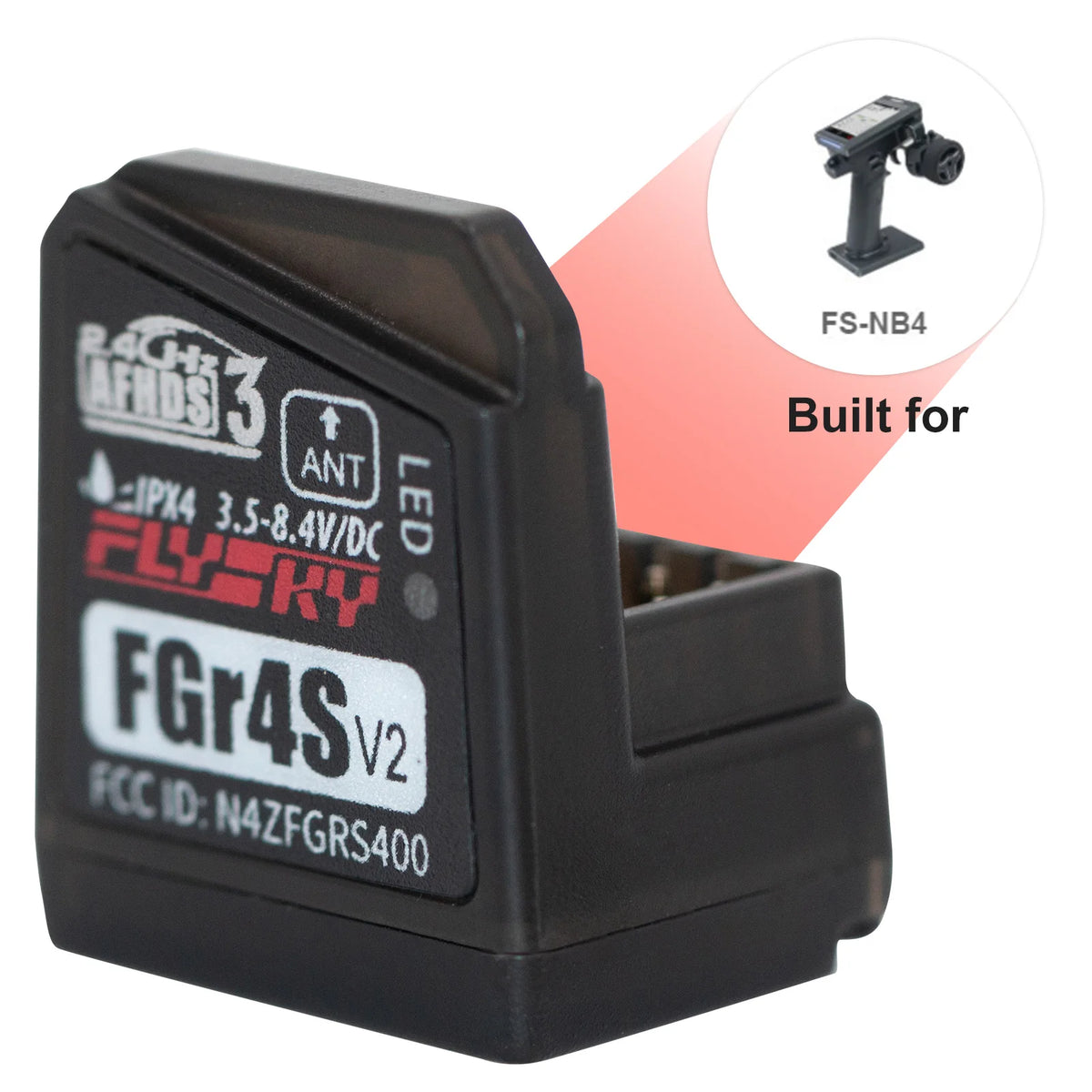

• Compatible transmitter: Flysky NB4 PL18 RC Transmitter
• Wireless frequency: 2.4GHz
• Wireless protocol: AFHDS 3
• PWM channels: 4
• Data port: PWM / PPM / i.bus
• Antenna type: Built-in single antenna
• Range: > 200m (ground)
• Voltage: 3.5-8.4V

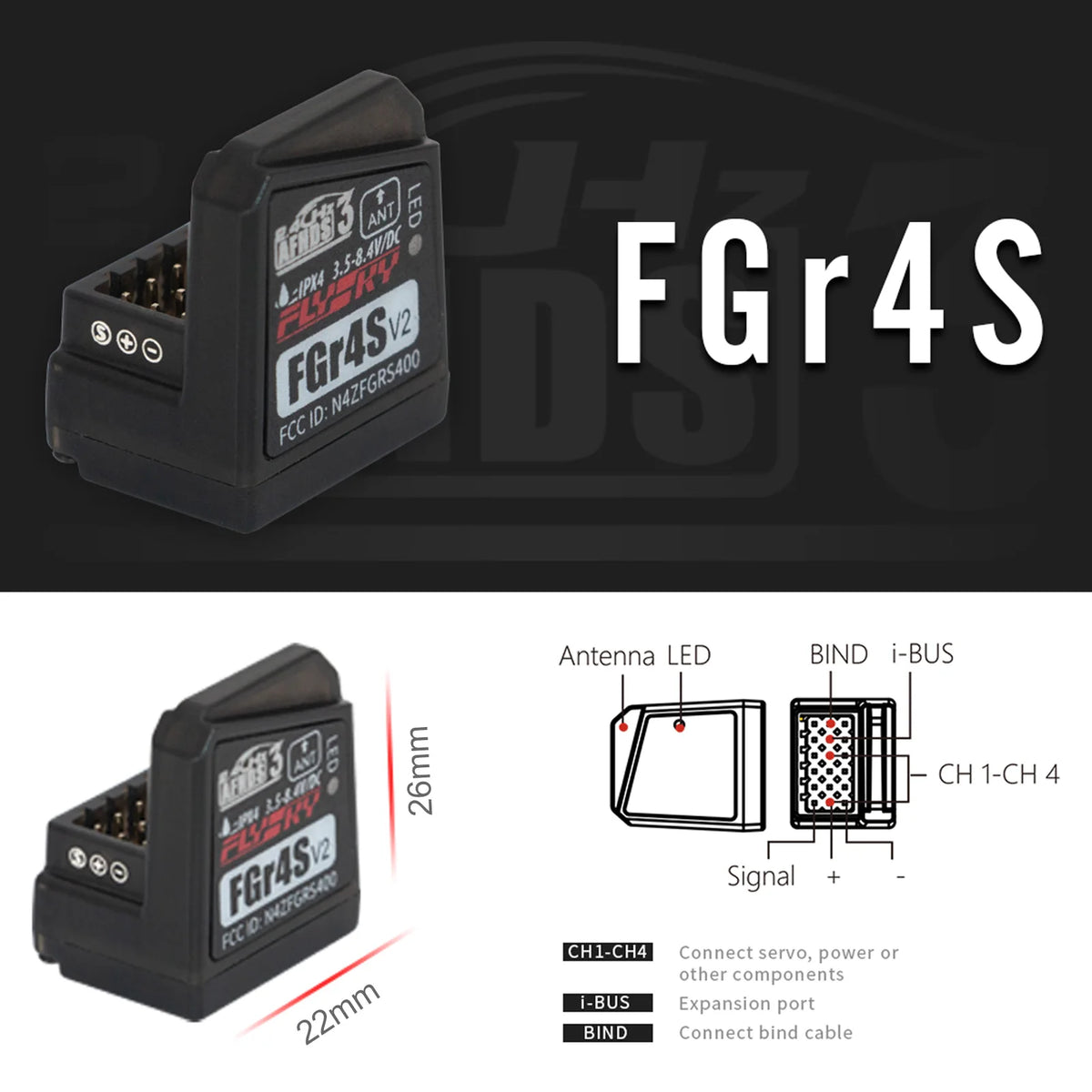

• Dimensions: 26 × 22 × 17.3 mm (1.02 × 0.87 × 0.68 in)
• Temperature range: -10 ℃ to +60 ℃
• Humidity range: 20% to 95%
• Material: Composite Material
• Package list: 1 FGr4S receiver; 1 banding cable

What It Is / How It Works

This Flysky FGR4S V2 receiver is a 2.4GHz 4-channel receiver for RC cars and boats.

Receivers in this category sit inside the model and pass the transmitter's control signals to the servos and speed controller, so the output type has to match the receiver side of the setup.

Who It's For / Use Cases

Receivers of this type suit hobbyists who run radio-controlled cars or boats and want a small receiver that leaves space in a tight model body. Anyone with a matching transmitter and a servo or speed controller that uses PWM, PPM or i-bus signals will find the output they need.

How to Use / Care

1. When installing the receiver, keep the receiver antenna as far away from any metal parts as possible to ensure good signal strength.
2. Insert the binding cable into the receiver's BIND port.
3. Plug the power cable into any other port; the receiver's LED flashes quickly when it has entered bind mode.
4. Put the transmitter into bind mode, following its instruction manual.
5. When the receiver's LED flashes slowly, binding is complete. Remove the power and bind cables from the receiver.
6. Reconnect the power cable to the receiver.

How to Choose

Choose the output type first: match PWM, PPM or i-bus to the servos or speed controller in your model. Check the channel count and the input voltage range against your power setup. Measure the space in the model, since the receiver body is 26 × 22 × 17.3 mm.

Frequently Asked Questions

Which transmitter does it work with?
Put the transmitter into bind mode to pair it with the receiver.

Does it need batteries?
No. It has no battery and is powered through the power cable, with an input of 3.5-8.4V.

What is in the package?
The package has one FGr4S receiver and one banding cable.

What temperature and humidity can it handle?
It is rated for -10 ℃ to +60 ℃ and 20% to 95% humidity.
