Car OBD2 Scanner Diagnostic Tool ANCEL FX2000 Pro Engine ABS SRS Transmission Scan 7 Reset Code Reader OBD2 Auomotive Scanner

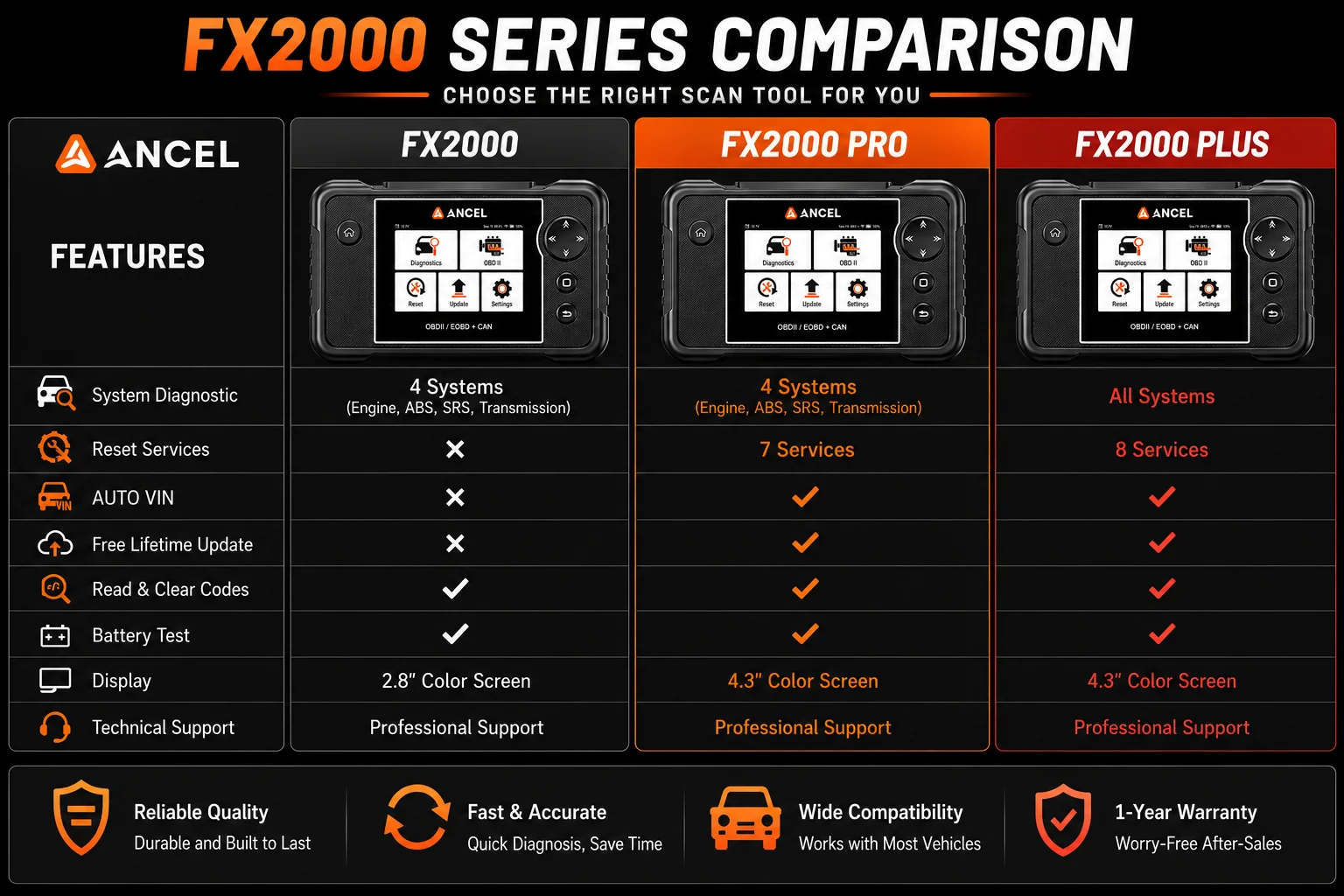

What is Difference Between FX2000, FX2000 PRO and FX2000 PLUS?

Please carefully compare the differences and choose the model you need. If you feel confused, please contact me.

The 2026 NEW ANCEL FX2000 pro is an upgraded model that offers a lot more for the same price.

The code reader comes with lifetime f-r-e-e update features, no extra expense to enjoy new features every year.
1. Identify the car problem and its severity, gaining the knowledge you need to make small repairs yourself.
2. Read a range of parameters and data from engine/ABS/SRS/transmission; timely identify trends and developing issues before they’re a big problem. 7 special services Oil Lamp Reset, Throttle Reset, and SAS Reset, ABS Bl-eeding, BMS Reset, Brake Reset, D-P/-F Reg//eneration to fix matching issues.
3. ANCEL FX2000 is regularly updated with features every year based on customer questions. ANCEL is committed to keeping a progressive perspective to meet the needs of our clients.

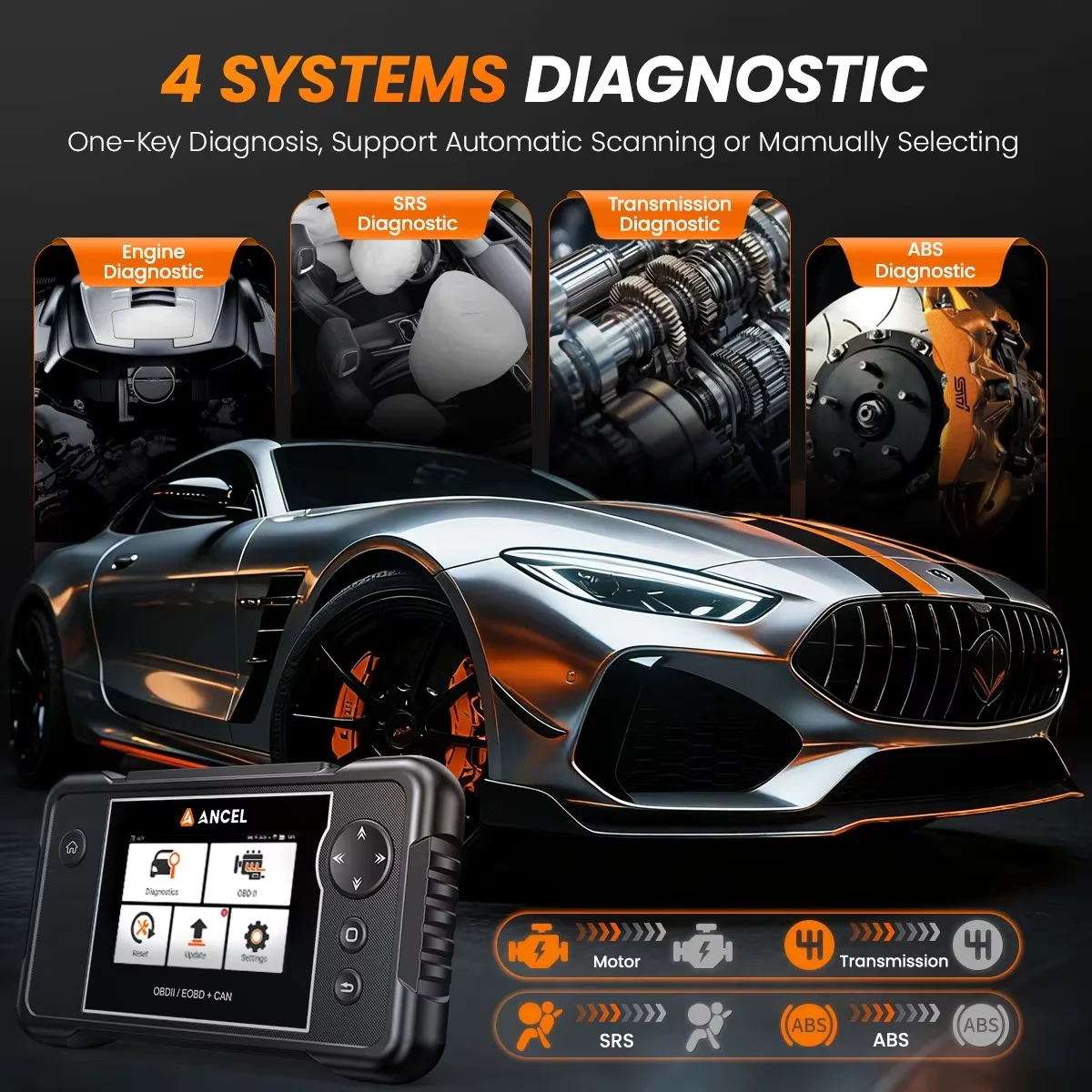

ANCEL FX2000 PRO Supports Engine/ABS/SRS/Transmission Diagnostic Function

Today’s engines are complex systems, using feedback loops from intake air temperature and flow, manifold absolute pressure, engine coolant temperature, crankshaft and camshaft position, oil pressure, fuel rail pressure, fuel tank pressure, vehicle speed and many other inputs to determine correct air/fuel ratios, camshaft timing, ignition timing and other, critical, operational parameters. The ANCEL FX2000 pro OBD2 Scanner speeds diagnosis by providing the user access to critical OBD II standard data as well as extended, manufacturer specific, data on engine, fuel, emissi

ABS System :
Anti-skid braking system (ABS) The function is to automatically control the braking force of the brake when the car is braking, so that the wheels are not locked and in the state of edge rolling slip (slip rate is about 20%) so as to ensure the maximum adhesion between the wheels and the ground. ANCEL FX2000 pro can scan this system and located the error part

AT(Transmission) System :
Auto Transmission is a set of transmission used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine. The transmission can produce different transmission ratios between the engine and the wheel during the driving process of the car

SRS System :
Airbag Systems is a device that expands the airbag to protect the passenger before the second collision occurs. As an auxiliary device of occupant restraint device of seat belt, airbag is called Supplemental Restraint System (SRS)ons and performance parameters, at the touch of a button.

7 Most Common Reset Services

✅ABS Bleeding:
When changing a new brake fluid, there is a high possibility that air will enter the brake fluid pipeline. In the traditional way, one person steps on the brake and another person changes the operating fluid. This function can perform the brake operation, and only one person is required to change the brake fluid.

✅Battery Matching:
When the Main battery is replaced, or battery monitoring sensor is replaced，battery matching must be performed. This function enables you to perform a resetting operation on the monitoring unit of the vehicle battery, in which the original low battery fault information will be cleared and the battery matching will be done.

✅EPB Reset:
1. The brake pad and brake pad wear sensor are replaced. 2. The brake pad indicator lamp is on. 3. The brake pad sensor circuit is short, which is recovered. The servo motor is replaced. By using this function, the braking process is therefore made much simpler and easier.


✅Throttle Relearn:
This automotive scan tool can make initial settings to throttle actuators so you’ll have smooth dri-ving after the throttle body has been replaced or cleaned.

✅Gear Information Learning:
The purpose of tooth signal learning is to ensure that the engine ignition timing is accurate and avoid engine failure caused by signal loss. Through tooth signal learning, the signal of the crankshaft position sensor can be recalibrated to restore the normal operation of the engine.

✅Oil Reset:
If the service lamp is on, you need to reset the Oil Life Reminder and switch off the Oil Light for a new calculation of Engine Oil Life system. Your driving safety would gets ensuring. 2. After replacement engine oil, you need to reset the service lamp.

✅Steering Angle Learning:
After replacing the steering angle position sensor, obd2 scanner can effectively perform SAS ca-libration, i.e., clear the fault steering angle sensor memories, set the steering angle to zero, and turn off steering wheel warn-ing light on supported models. You can easily set the steering in its default position and align it with the front tires.

ABS Bleeding:

When changing a new brake fluid, there is a high possibility that air will enter the brake fluid pipeline. In the traditional way, one person steps on the brake and another person changes the operating fluid. This function can perform the brake operation, and only one person is required to change the brake fluid.

Full OBDII Diagnostics

1. Read I/M Readiness
This function checks whether or not the various emissions-related systems
on the vehicle are operating properly, and are ready for Inspection and

Maintenance testing.
It can also be used to check the Monitor Run Status, and to confirm if the repair of a vehicle fault has been performed correctly.

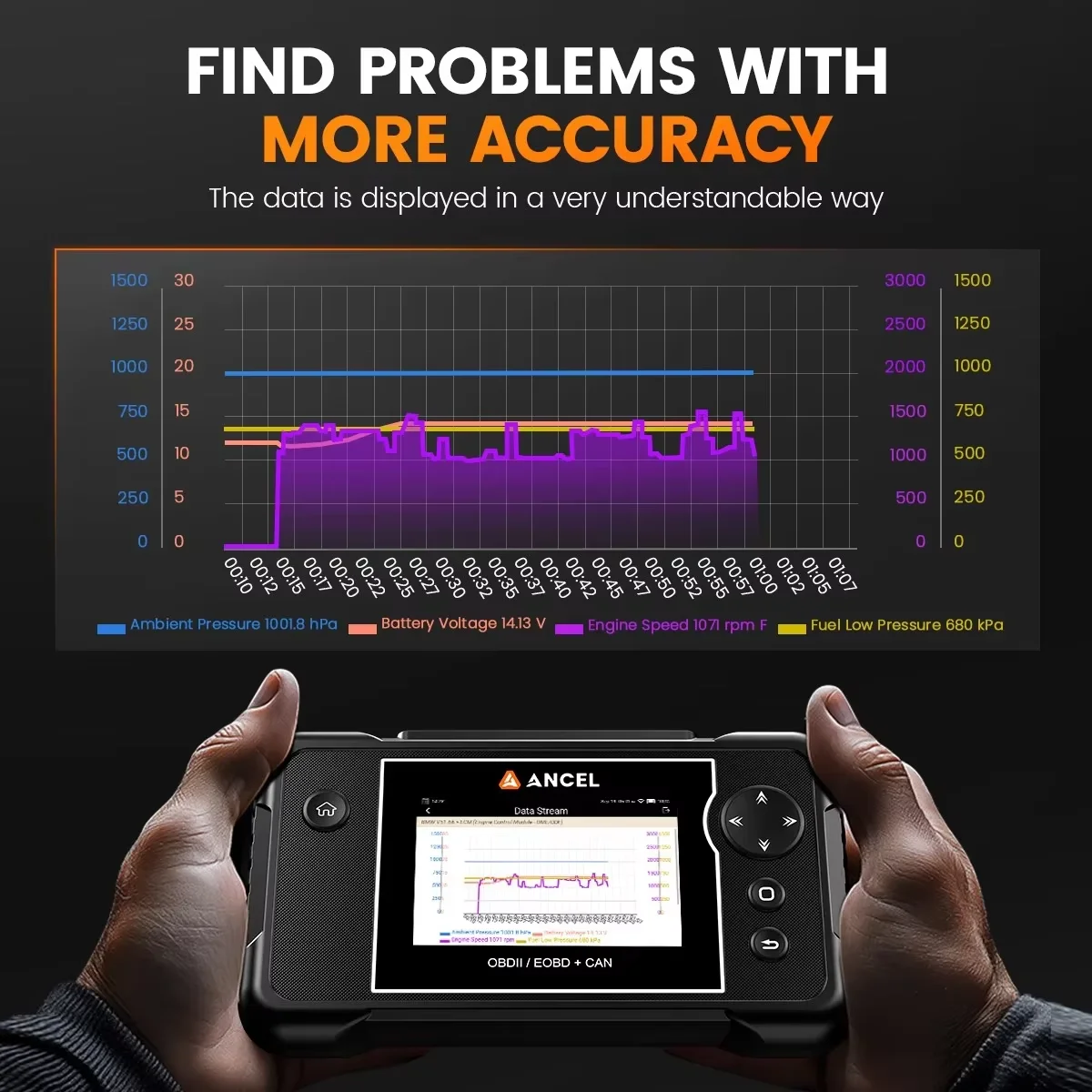

2. Read Live Data
This function retrieves and displays live data and parameters from the vehicle’s ECU.

3. Read Freeze Frame
This function takes the snapshot of the operating conditions when an emission-related fault occurs.

4. Read Fault Code
This function can identify which section of the emission control system has malfunctioned.

5. Clear Fault Code
This function erases the codes from the vehicle, after retrieving codes from the vehicle and certain repairs have been carried out.

Make sure the vehicle’s ignition key is in the ON position with the engine off before the operation.

6. Test Results: On-Board Monitoring Test
This function retrieves test results for emission-related powertrain components and systems that are not continuously monitored. The test’s
availability is determined by the vehicle manufacturer.

7. Control Operation of On-Board Component/System

This function is used to access vehicle-specific subsystem and component tests. Available tests vary by vehicle manufacturer, year, and model.

8. Read Vehicle Information
This function retrieves a list of information (provided by the vehicle manufacturer) from the vehicle’s on-board computer.

This information may include: Vehicle Identification Number (VIN), Calibration ID (CID) and Calibration Verification Number (CVN).

9. EU OBFCM
The On-Board Fuel Consumption Monitoring (OBFCM) data, which collects fuel and energy consumption data of the vehicle to check whether the CO2.

Lifetime Free Update

🚗 Compatible Vehicles

The FX2000 PRO is designed for all OBD II compliant vehicles – that means:

1996 and newer gasoline vehicles sold in the United States.

2001 and newer gasoline vehicles sold in Europe (EOBD).

2004 and newer diesel passenger vehicles sold in Europe.

Some 1994‑1995 vehicles: Only if they have a 16‑pin DLC and a vehicle emissions label stating “OBD II Certified”.
Supported communication protocols (all):
CAN Bus, J1850 VPW (GM), J1850 PWM (Ford), ISO9141‑2, ISO14230 KWP2000.


Typical brands (OBD2‑compliant models):
Ford, GM (Chevrolet, GMC), Toyota, Honda, Nissan, Hyundai, Kia, Volkswagen, BMW, Mercedes‑Benz, Volvo, Peugeot, Citroën, Renault, Mazda, Mitsubishi, Chrysler, Jeep, Subaru, and many more.

❌ Not compatible with:

Heavy duty trucks (24V systems, J1939/J1708 protocols), non‑OBD2 vehicles (pre‑1996 without OBD2 certification), and most commercial diesel trucks.

Support Language

The default language of the device is English, changeable language. Support for English, French, Spanish, German, Italian, Russian, Portuguese, Japanese, Korean, Polish, Turkish, Chinese

Data Management & Settings

The tool stores all diagnostic records, reports, screenshots, and recorded data streams. You can access them under Settings → Data:

Diagnostic Record – Play back recorded live data with graph/combine/value views.

Diagnostic Report – View and delete saved reports.

DTC Library – Look up detailed DTC definitions by entering a code.

DLC – Shows typical locations of the vehicle’s 16‑pin Data Link Connector.

Image – Manage screenshots.

Feedback – Send diagnostic problems to ANCEL for analysis.

Firmware Fix – Upgrade or repair the tool’s firmware.

Other settings include: units (metric/imperial), automatic VIN detection on/off, brightness, sound, time zone, language, workshop information (auto‑added to reports), recovery (factory reset), and clear cache.

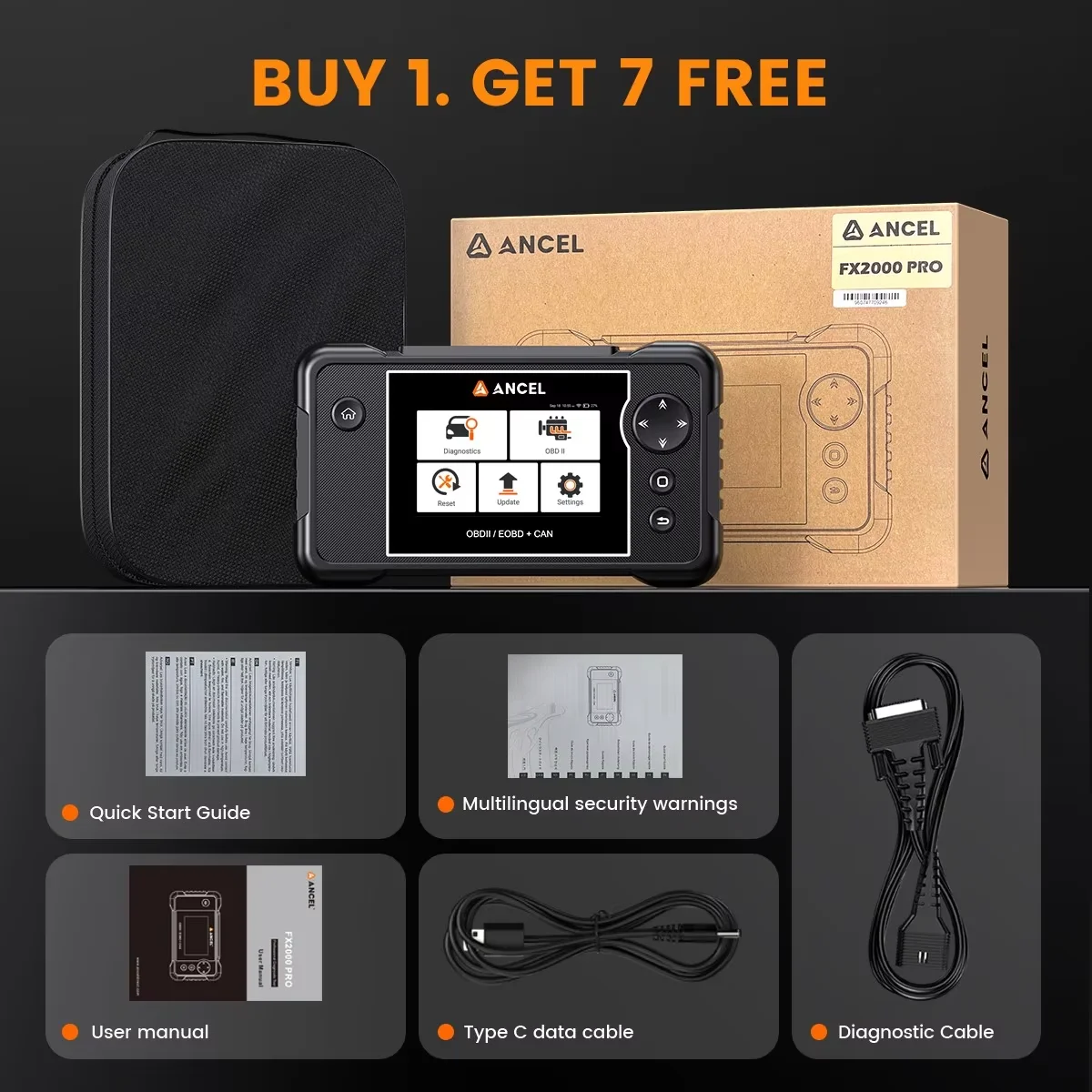

📦 Package Contents

FX2000 PRO diagnostic tool ×1
OBD2 diagnostic cable (16‑pin DLC to DB‑15) ×1
USB Type‑C charging cable ×1
User manual ×1
Quick start guide ×1
GPSR safety warning ×1
Carrying bag ×1
Accessories may vary slightly by region – please refer to the actual packing list.
