LED Car Seat Heated Switch for Toyota Camry Prius Corolla Prado

Key Features

• Latching Button Action — It latches when pressed and does not bounce back.

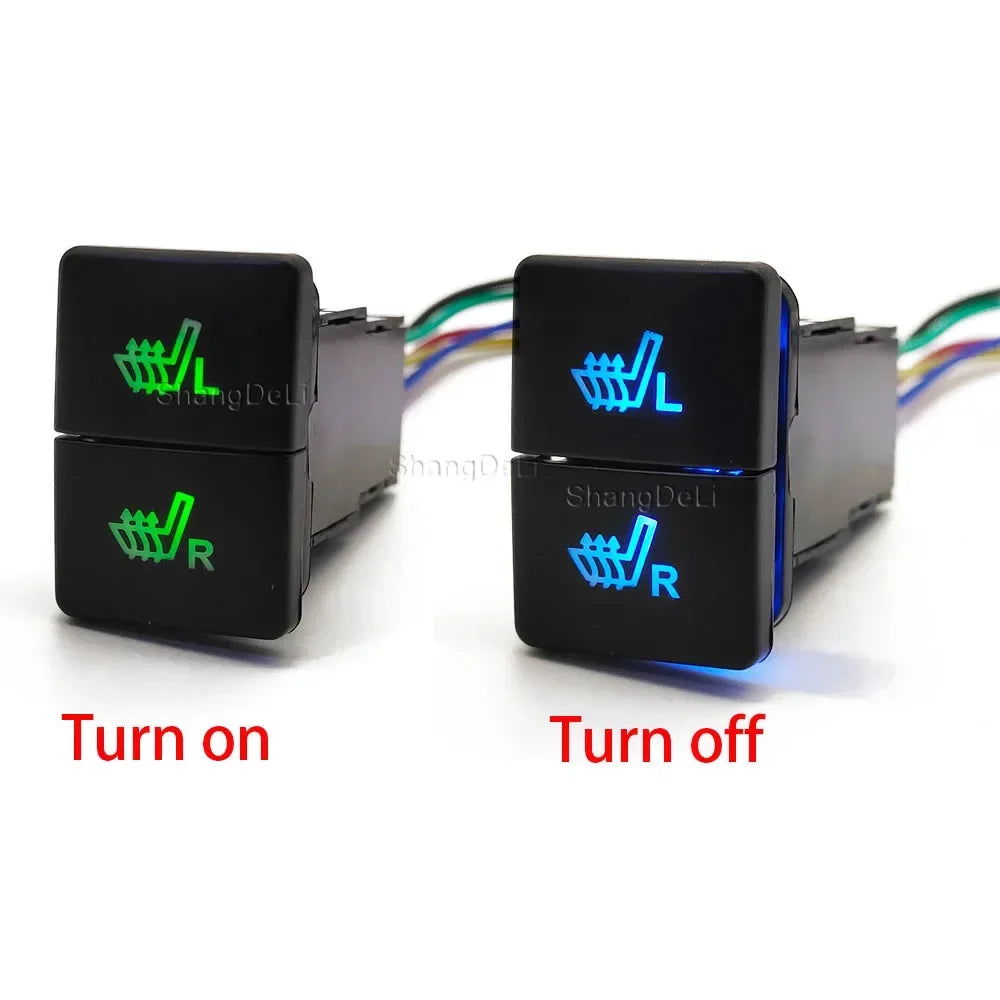

• Green Backlight — The backlight is green when the switch is on, and the blue light is off.
• DC 12V Electrical Rating — It runs on DC 12V input and is rated for up to 5A.

Product Specifications

• Switch Type: Push button
• Input Voltage: DC 12V
• Rated Current（A）: ≤5A
• Material: ABS

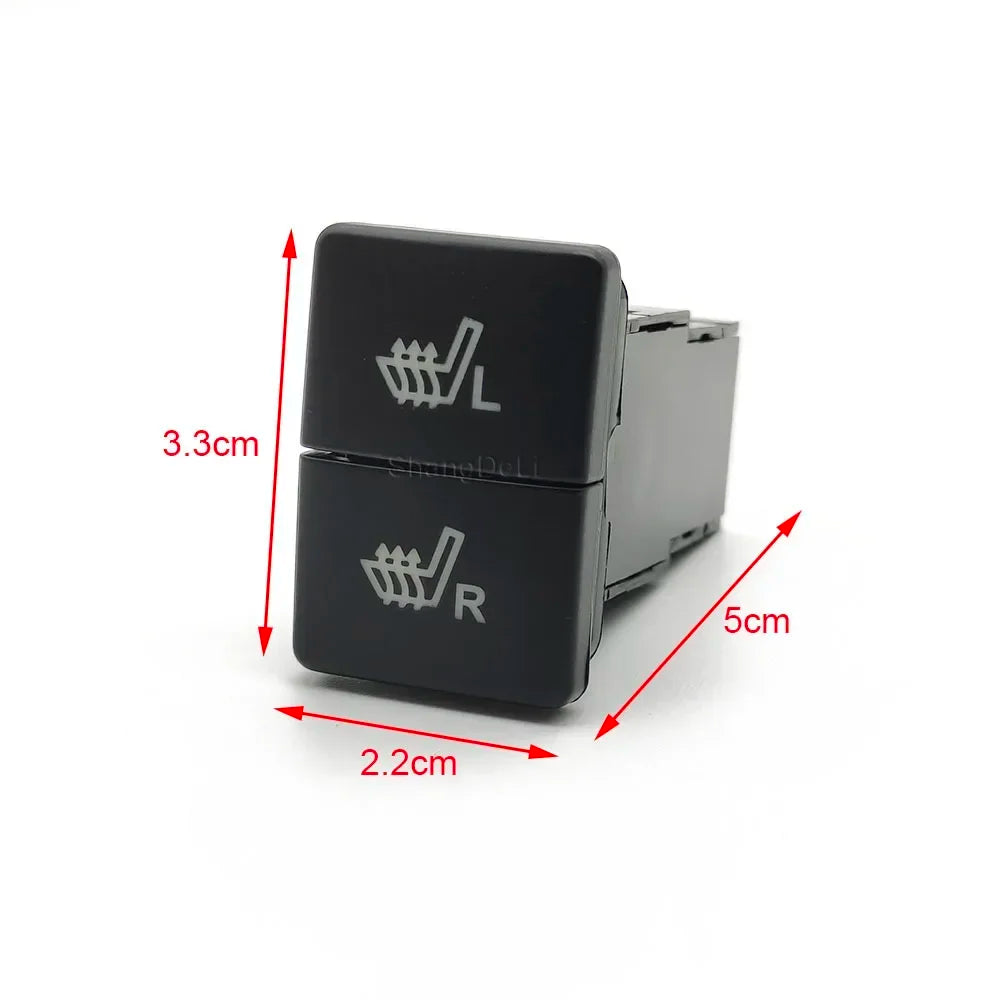

• Size: 33.1 x 22.4 x 52.1mm / 1.3 x 0.88 x 2.0 inch
• Package list: 1 x Car Switch, 1 x Connector with cable

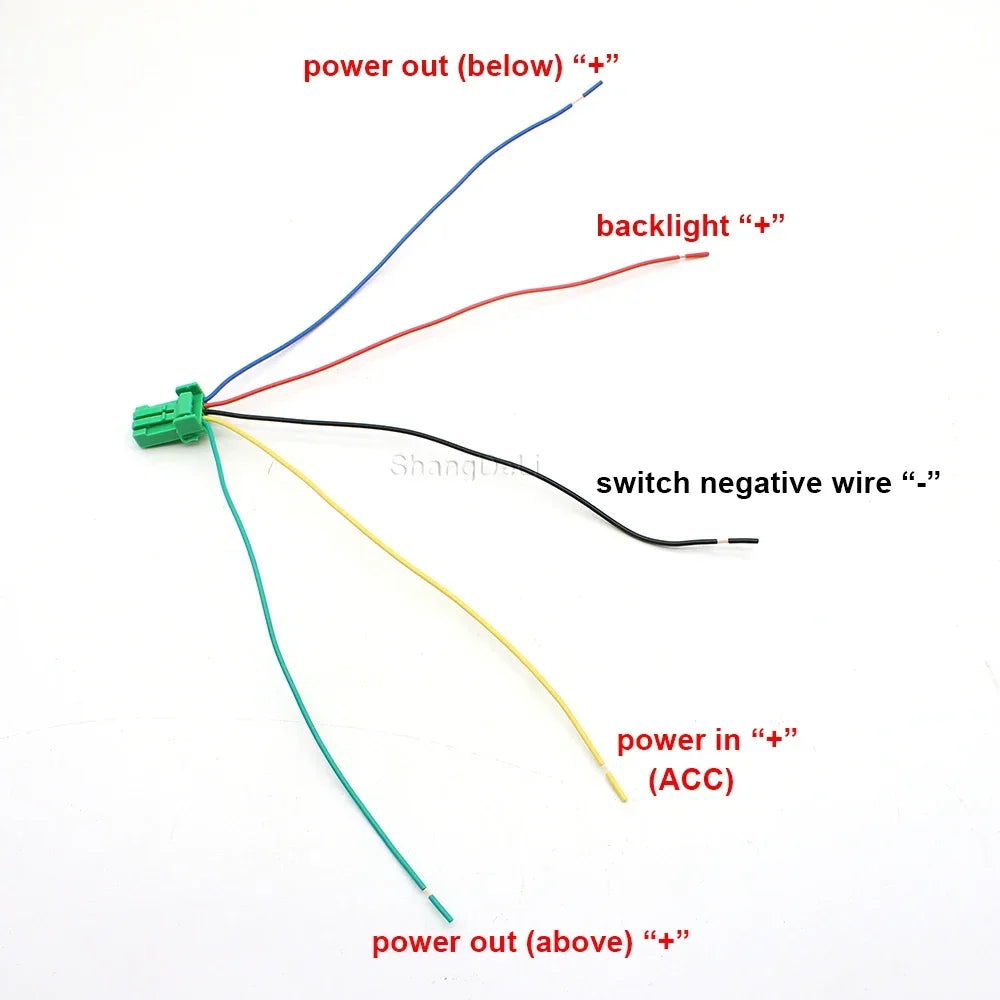

• Wire roles: Blue: positive output of the button below. Red: common positive for the backlight and indicator. Black: common negative for the backlight and indicator. Yellow: common positive input for the buttons above and below. Green: positive output of the button above.

What It Is / How It Works

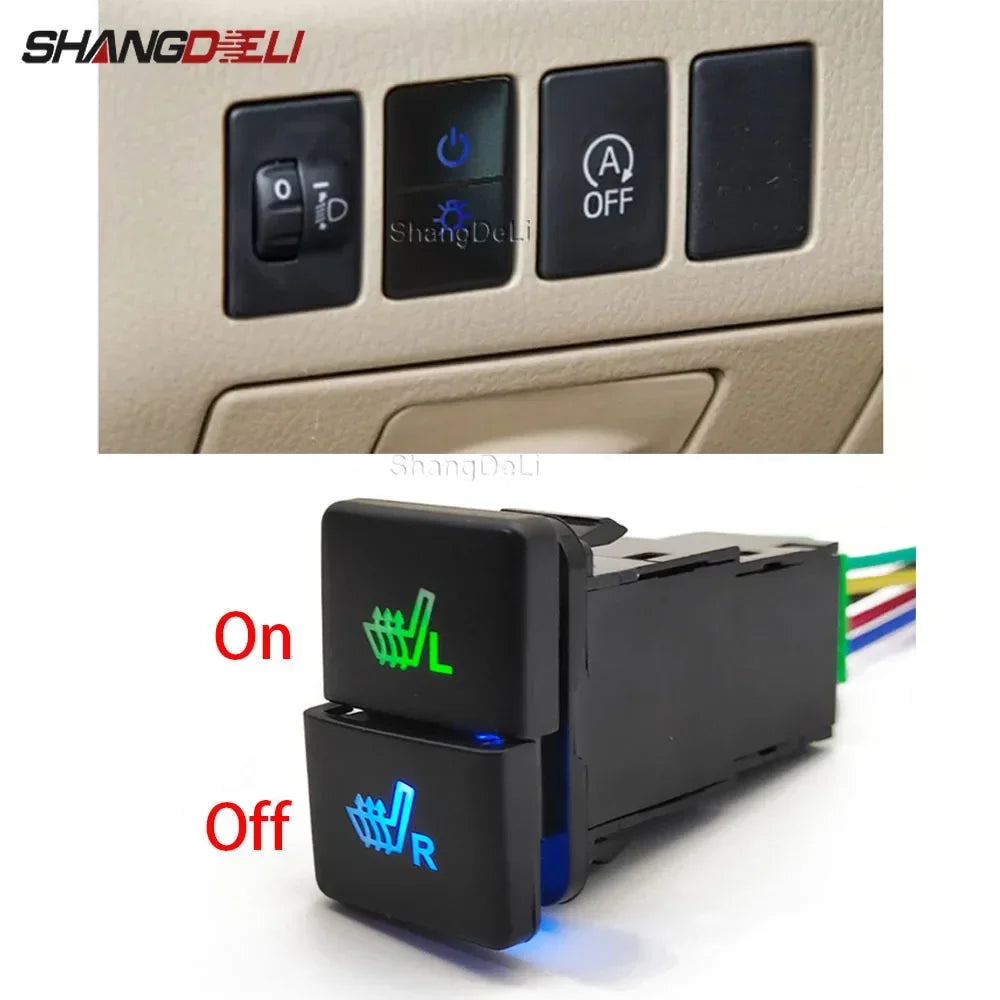

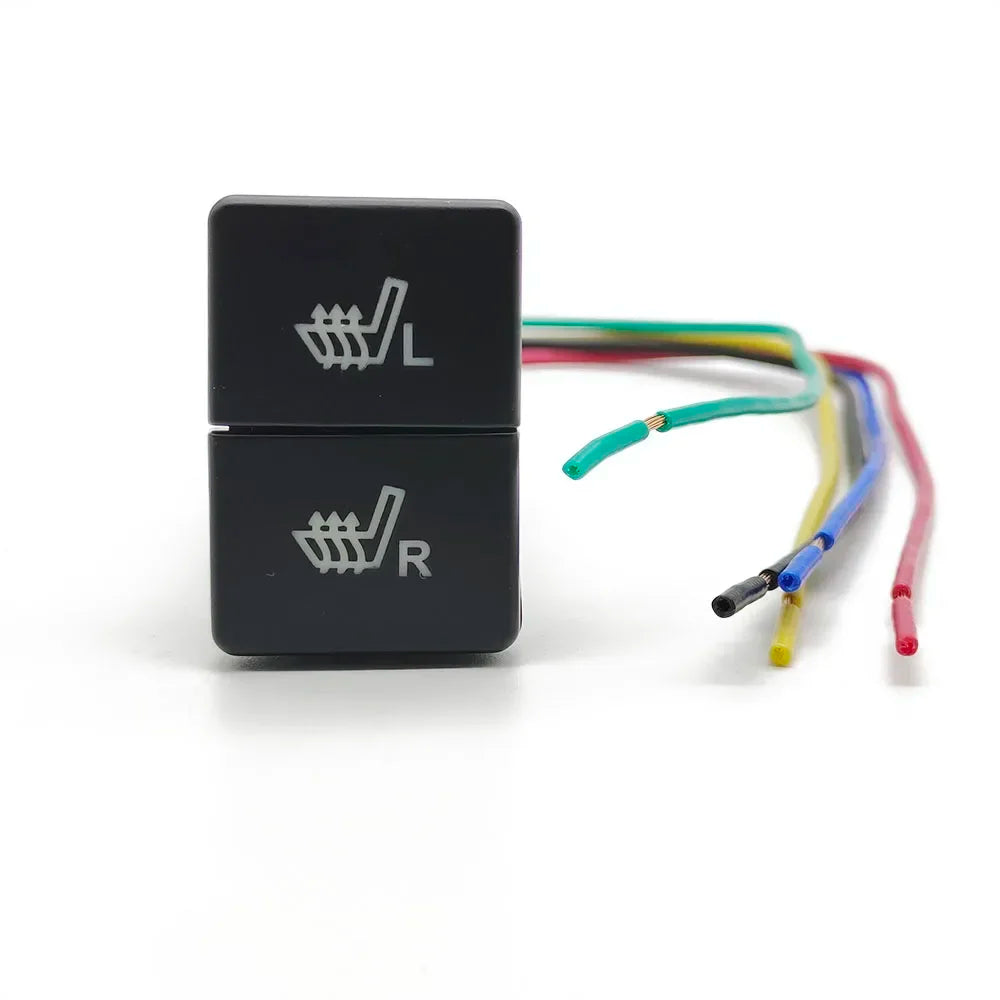

This is a car seat heating button switch, a push-button unit with an LED backlight and a connecting wire. It is made to fit in an existing panel hole, and the package has one switch and one connector with cable.

Who It's For / Use Cases

Car switches of this kind suit drivers who want to replace a worn seat heating button or add one to an existing switch panel. They also suit anyone who is comfortable matching wire colours to a panel's existing harness before connecting the switch.

How to Use / Care

1. Use it as a seat heating button switch to turn the seat heating on and off.

How to Choose

Compare the switch size and number of wires with the opening in your panel before buying. Check that the DC 12V input and up to 5A rating suit the seat heater circuit you plan to connect.

Frequently Asked Questions

What power input does the switch need?
It is rated for DC 12V input and up to 5A, as listed in the specifications.

Does the button stay pressed after I push it?
Yes, it latches when pressed and does not bounce back. It is a latching button.

What colour is the backlight?
The backlight is green when the switch is on, and the blue light is off.

What is in the package?
The package has one car switch and one connector with cable.

What is the switch made of and how big is it?
The body is made of ABS. It measures 33.1 x 22.4 x 52.1mm (1.3 x 0.88 x 2.0 inch).
