Autel MaxiCOM MK808BT PRO OBD2 Scanner Car Diagnostic Scan Tool Bluetooth Automotive Scanner OBD2 Code Reader PK MK808KBT MK808S

Autel MaxiCOM MK808BT PRO: All Systems Bi-directional & Active Test Scan Tool, Android 11, 2.4G & 5G WiFi, Upgrade of MX808S MK808S MK808BT MK808Z, 38+ Services, Support BT506 MV108S, FCA AutoAuth

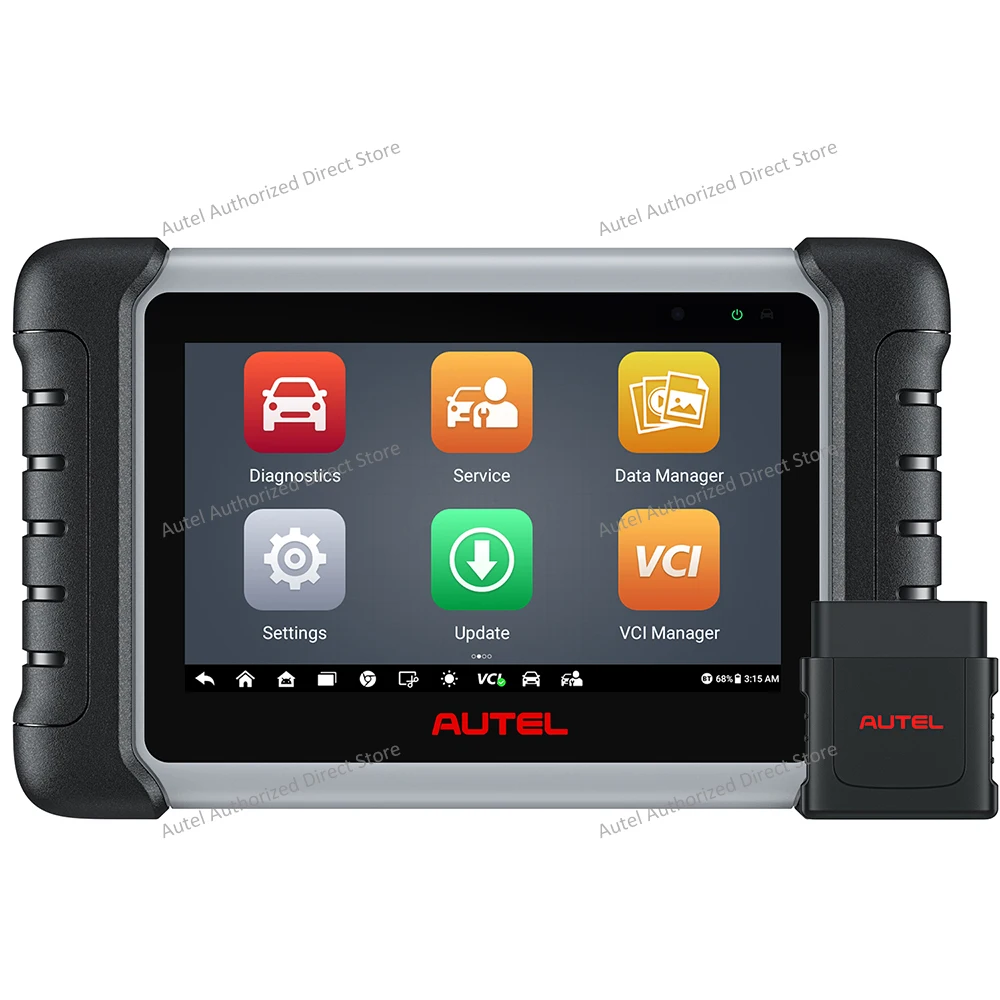

Autel MaxiCOM MK808BT PRO Diagnostic Tool:

Featuring the powerful quad-core processor, and a 7.0-inch LCD capacitive touchscreen. Based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808BT Pro is your ideal auto diagnostics and service tool, providing you with superior functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).

21+ Languages Support & 1 Year Free Update:

■ 1 Year Warranty and 1 YearFree Update.
■ Support Languages: English, Traditional Chinese, Spanish, French, German, Russian, Japanese, Korean, Polish, Portuguese, Swedish, Persian, Turkish, Thai, Vietnamese, Hebrew, Arabic, Indonesian English, Italian, Dutch.

( Please send us the S/N of device to activate the language you need after you receive it. Thanks~)

MK808BT PRO Upgraded hardware of MK808BT:

■ MK808BT PRO Hardware:
➢ CPU: Rockchip RK3566
➢ RAM: 4G
➢ ROM: 64G
➢ Battery Capacity: 5000mAh
➢ Android Version: Android 11.0
➢ Screen Size: 7inch
➢ Wifi: 2.4 & 5 GHz
➢ VCI: VCI MINI

■ MK808BT Hardware:
➢ CPU: Rockchip RK3188
➢ RAM: 1G
➢ ROM: 64G
➢ Battery Capacity: 5000mAh
➢ Android Version: Android 4.4.4
➢ Screen Size: 7inch
➢ Wifi: 2.4 GHz
➢ VCI: VCI MINI

Highlights of MaxiCOM MK808BT PRO:

✅ Wireless Ver. Of MK808S/ MK808Z/ MK808/ MX808S/ MX808;
✅ 33ft(10m) wireless remote diagnostics;
✅ Enhanced Hardware: Android 11, 2.4 & 5 GHz Wifi, 4G+64GB;
✅ 7-inch LCD capacitive touchscreen with 1024 x 600 resolution
✅ OE-Level All Systems Diagnostic;
✅ Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc
✅ Bi-directional Control / 3000+ Active Test;
✅ Support FCA Auto Auth for FCA Cars after 2017;
✅ Stable BT Connection, range up to 33 feet (10m);
✅ 38+ Maintenance Services;
✅ 10,000+ Vehicle Coverage, 21+ Languages supported;
✅ Battery Test & Electrical System Analysis ( Work with BT506 );
✅ Work with Autel MV108S/MV18S HD Inspection Camera
✅ Autel Cloud Management;
✅ One Years Free Wi-Fi Update.
✅ Same As MK808K BT, MK808Z BT, Upgrade of MK808BT

33FT Wireless Diagnostic Range:

Autel MaxiCOM MK808BT Pro professional scan tool is an upgraded version of Autel MK808 MK808S/MX808. It comes with both wireless VCI connection and lined connection via the USB cable included. MK808BT Pro enables you to access and diagnose various vehicles wirelssly with a working range up to 33ft (10m), no more short cables.

VIN/O..meter Check:

● Adds "VIN/O..meter Check" feature, which supports reading the mileage and Vehicle Identification Number (VIN)values stored in various control units of the vehicle.
● By comparing the values,it serves as reference information for the maintenance history of the vehicle module.
● Supported Manufacturers: Chrysler, Dodge, JEEP, Porsche, Hyundai, Kia, Genesis, Fiat, Alfa, Abarth, Lancia, VW, Audi, Bentley, Lamborghini, Seat, Skoda, Nissan, Infiniti, NissanGTR, Toyota, Scion, Lexus, Subaru, Suzuki, Ford, Mazda, Peugeot, Citroen, DS, LandRover, Jaguar, GM, Chevrolet, BMW, Mini, Renault, Dacia, Samsung, Volvo, Polestar, Benz, Maybach...

Bi-Directional Control/ 3000+ Active Test:

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Bidirectional control tool MK808BT PRO can perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.

Active tests are often widely performed on different parts, such as: A/C Configuration; Adaptive Headlamp Adjustment; Window Wipers Setting; Doors Turn on/off; Sunroof Switch on/off; Mirrors Folding/Unfolding; Active tests on Interior lights, inside mirrors, steering wheel heating, windows, horn, etc.

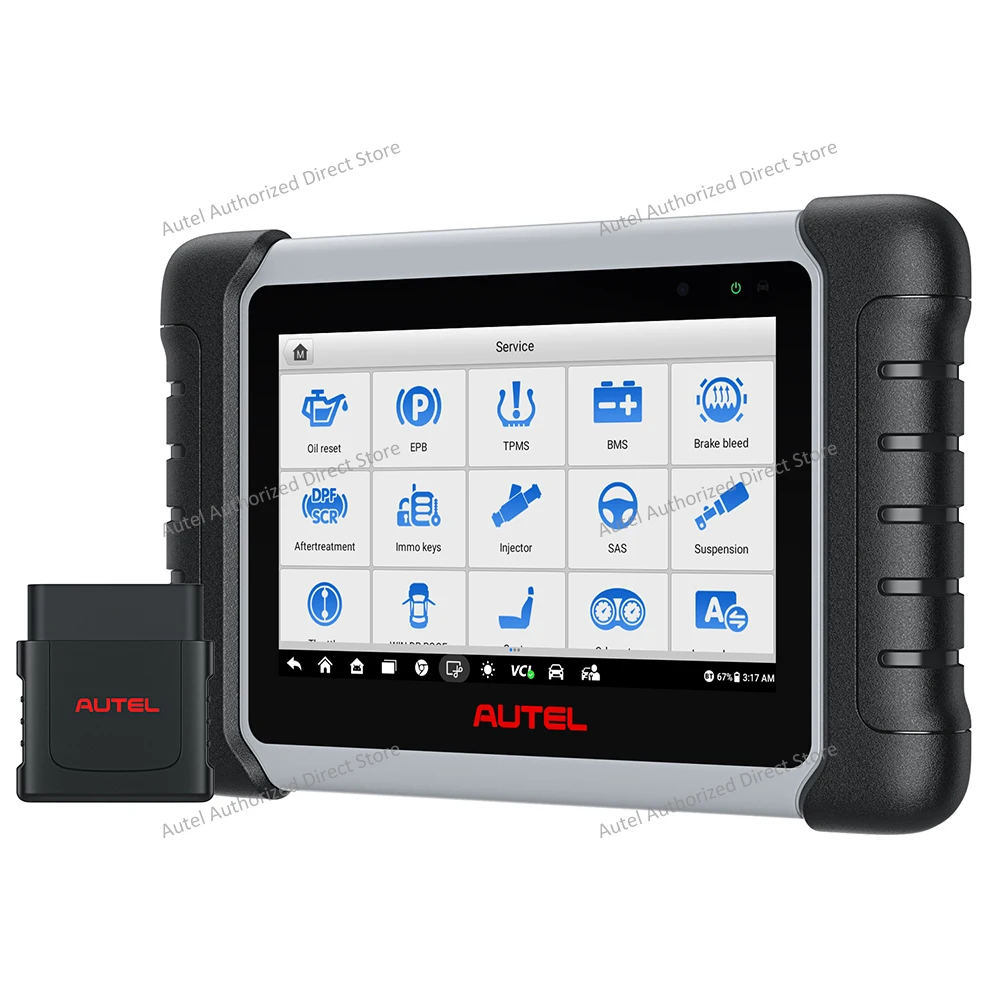

38+ Service Functions:

Autel MK808BT PRO automotive diagnostic tool performs 38+ service functions, Such as Oil reset; EPB; TPMS; BMS; Brake bleed; Aftertreatment; Injector; SAS; Suspension; Throttle; WIN DR; ROOF; Seats; Odometer; Lang change; Headlamp; CHG tire size; TEC learn; ABSSRS; Cylinder; VGT learn; Speed & PTO; Clutch; Trans adaptation; Airbag reset; A/F Setting; Automatic Start/Stop; Electronic Water Pump start; EGR; VIN; FRM RESET; Transport Mode; HV Battery; ACC; A/C; Rain/Light Sensor; Reset control unit; CCS/ACC, and etc.

● Oil Reset: Turn off the oil light, and reset the service mileage.
● EPB Reset: Reset the brake pads after replacement.
● DPF Regeneration: Clear the blockage in the DPF filter, to meet emission standards.
● ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.
● Injector Coding: To make the cylinder better identify injector after ECU or injector is replaced.
BMS Reset: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.
● TPMS: The TPMS service function include displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.

OE-Level Full Systems Diagnostics:

Same as the Snap-on scanner, Autel full-system diagnostic tool MaxiCOM MK808BT PRO works well on 150+ car makes and models worldwide (1996 and newer) to read/ clear codes, read ECU info., view Live Data, do active tests, and perform special functions for all available systems, allowing you to repair cars with dealer-like capabilities. This Autel diagnostic tool can

● ECU Information — provides the retrieved ECU information in detail. An information screen opens upon selection.
● Trouble Codes — contains Read Codes and Erase Codes. The former displays detailed DTC information retrieved from the vehicle control module, the latter allows you to erase DTCs and other data from the ECU.
● Live Data — retrieves and displays live data and parameters from the vehicle's ECU.
● Active Test — accesses vehicle-specific subsystem and components tests.
● Special Function — performs various component adaptations.

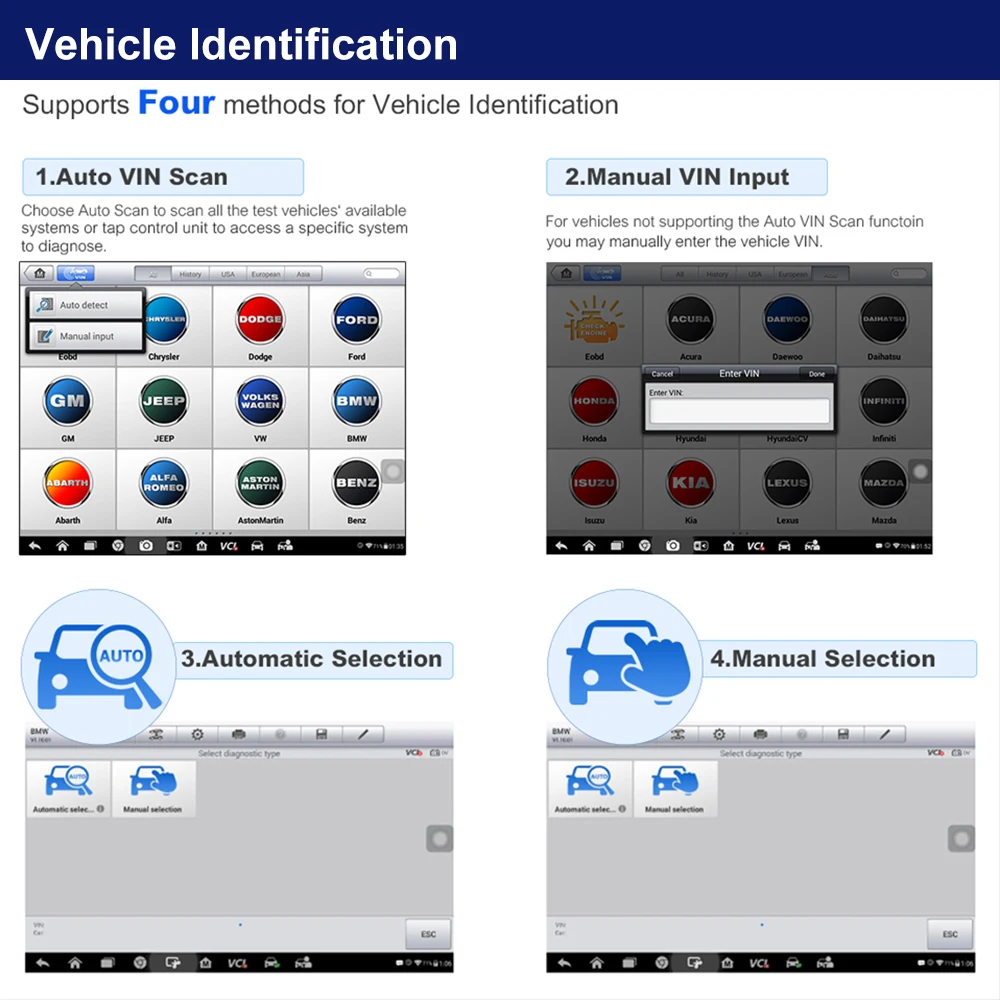

4 Methods for Vehicle Identification:

1.Auto VIN Scan
The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system.

2.Manual VIN Input
For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.

3.Automatic Selection
The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.

4.Manual Selection
When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.

OBDII Full Functions:

This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related. The OBD direct access option is also used for testing OBD II/EOBD compliant vehicles that are not included in the Diagnostics database.

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).

2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

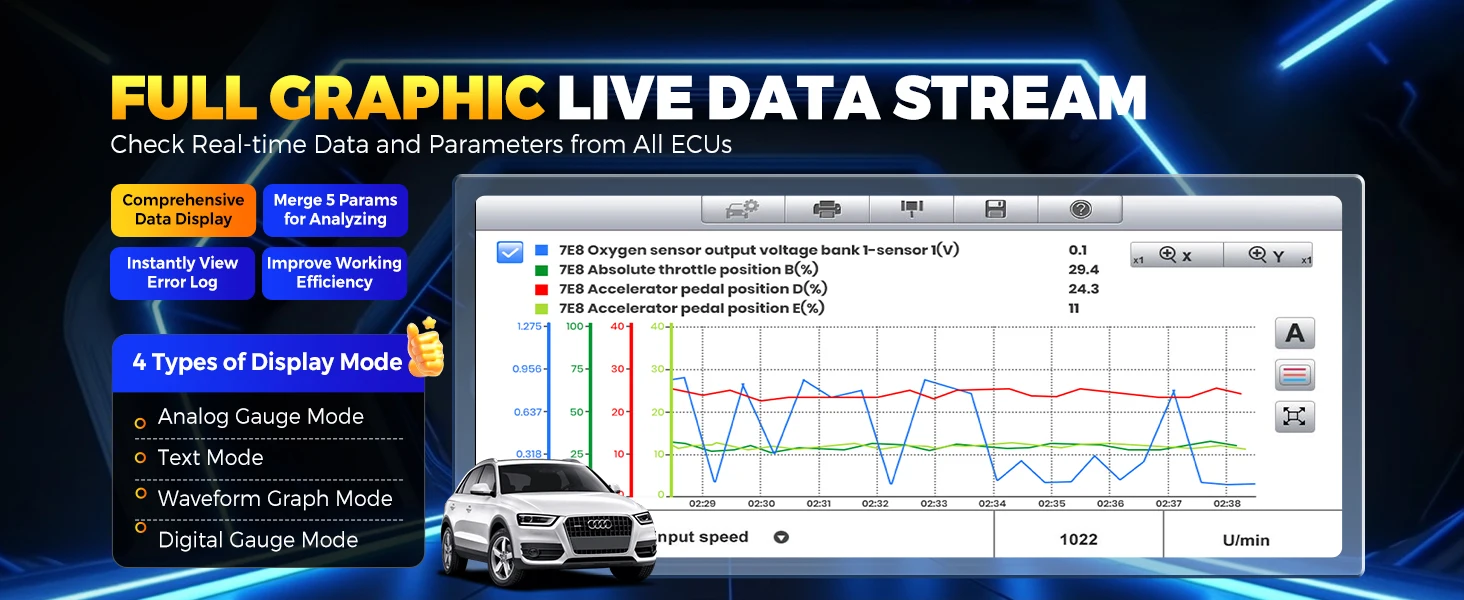

4. Live Data: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

5. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

6. O2 Sensor Monitor: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

7. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

8. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Newest Add-In Functions:

Autel MaxiCOM MK808BT PRO adds NEW Functions. Click the "Update" to upgrade the system to V2.62 or above to get all new: ✅3000+ full Bi-Directional Control (Active Tests) ✅WiFi Print same as MK900BT/ MS906 Pro/ Elite 2 Pro/ MsUltra ✅Battery Tests/ Starter Test/ Generator Test/ Out-of-Vehicle Test with BT506 ✅Examine Difficult-To-Reach Areas with MV108S/ MV105S Endoscope ✅FCA AutoAuth for FCA cars after 2017 & Renault SGW Access. MK808BT Pro OBDII scanner is becoming more and more cost-effective!

Compatible with Autel MV108(S)/MV105(S) Inspection Camera:

Turn your MaxiCOM MK808BT PRO into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos.

Battery Testing with BT506 – Not Compatible with MK808S MK900 (BT506 Sold Separately)

Autel MK808BT PRO diagnostic scan tool, when paired with Autel BT506, performs professional cranking/ charging system tests and in-vehicle and out-of-vehicle battery tests with 98%+ accuracy, thanks to advanced adaptive conductive - significantly higher than the market average of 50%. Tests all 6V/12V batteries with 100-2000 CCA, incl. popular types: Flooded, AGM, AGM Spiral, EFB, GEL batteries. Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA standards.

Note📢: Downgraded Verison: MK808S MK900 MK808Z MX808S MX900 don't support BT506, as they do not have built-in bluetooth to pair with BT506.

FCA AutoAuth:

FCA AutoAuth for FCA cars after 2017 & Renault SGW Access. MK808BT Pro obdii scanner is becoming more and more cost-effective! ⚠️Fee for FCA AutoAuth Ga-teway(optional): $50/year, charged by AutoAuth,not Autel.

Broad Vehicle Coverage:

99% of Vehicles Coverage: No matter whether the vehicle you are going to diagnose is come from the US, Europe, Asia, or Australia, the diagnostic tool Autel MK808BT PRO can fulfill your demands. If you worry that the car models update from one year to another but the diagnostic tool cannot scan the latest model, take it easy, the one-click update feature is here to make the scanner always compatible with the latest model. This list is still growing as the industry progresses.

The Autel MaxiCOM MK808 PRO works well with: Acura, Audi, Benz, Bentley, BMW, Bugatti, Chevrolet, Chrysler, Corolla Gm, Holden, Ford, Honda, Hyundai, Infiniti, Kia, Land Rover, Isuzu, Jaguar, Lexus, Maybach, Mitsubishi, Nissan, Mazda, Mini, Opel, Porsche, Saab, Scion, Smart, Seat, Skoda, Sprinter, Subaru, Vauxhall, Volvo, Suzuki, Toyota, and Volkswagen vehicles, etc.

ABS Auto Bleeding:

MaxiCOM MK808BT PRO OBD2 Scanner comes with the hot function of ABS Brake Bleeding that enables technicians and home mechanics to bleed air out of the ABS module, saving you time and money!

Note:
1.You still need to bleed the air manually in the brake lines after ABS brake bleeding.
2.This function is not universally compatible with all vehicles.

Useful APPs for Shops and DIYs:

1.Shop Manager: You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.

2.Data Manager: In case of any issues while performing diagnostics or services functions, please reproduce the issue and go to Data Manager- Data Logging to upload data log to Autel server and send us the serial number(at the back of the unit) to follow up the case until it's resolved satisfactorily.

3.Remote Desk: You can directly get ad-hoc remote support from Autel via Team Viewer software.

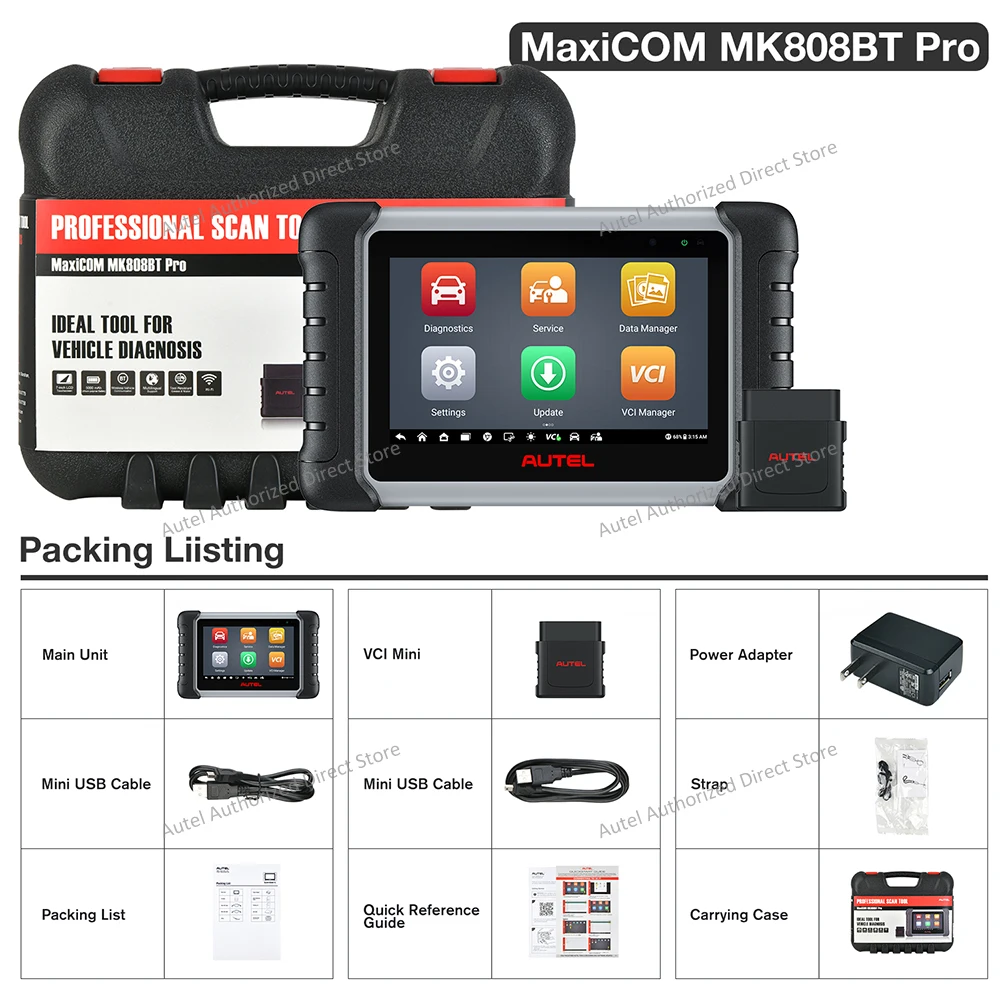

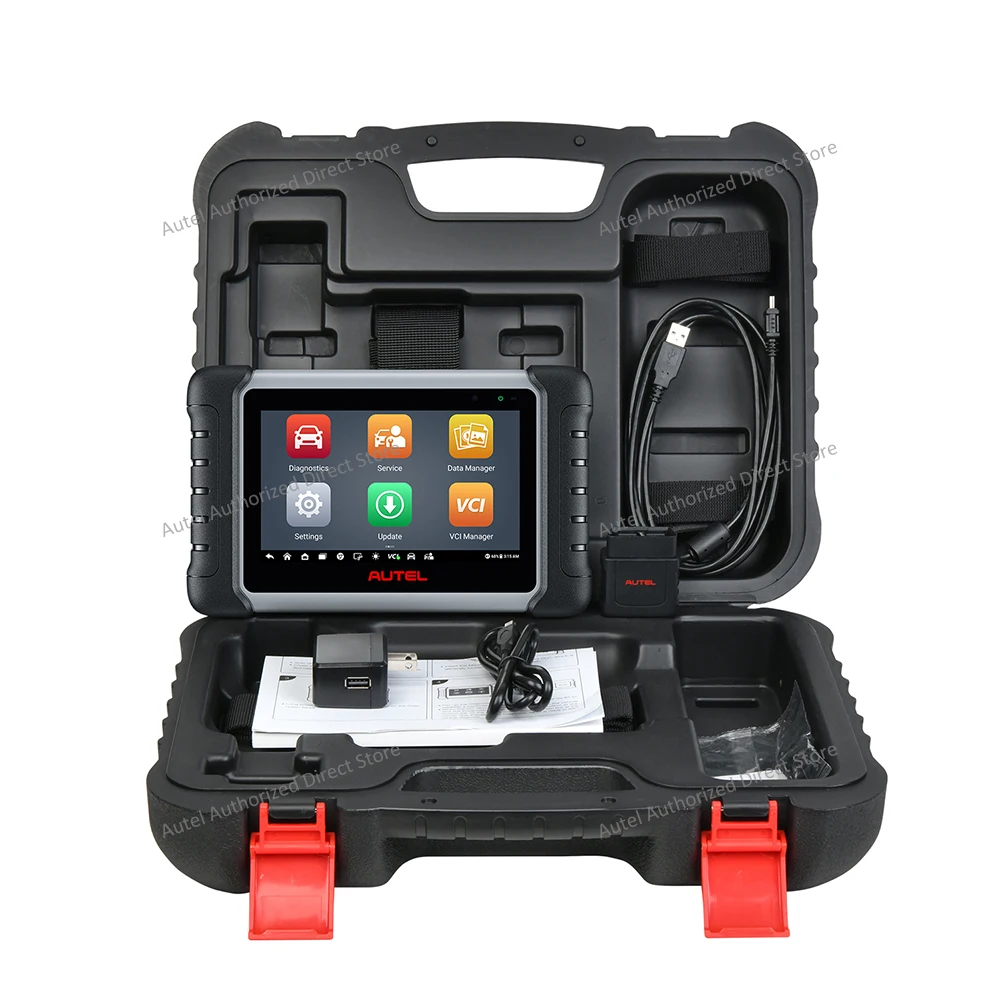

MK808BT PRO Package List:

1 x MK808BT PRO Tablet
1 x USB External Power Adapter_test
1 x USB Cable (for charging)
1 x USB Cable (for test)
1 x MaxiVCI Mini
1 x User Manual
1 x Quick Reference Guide
