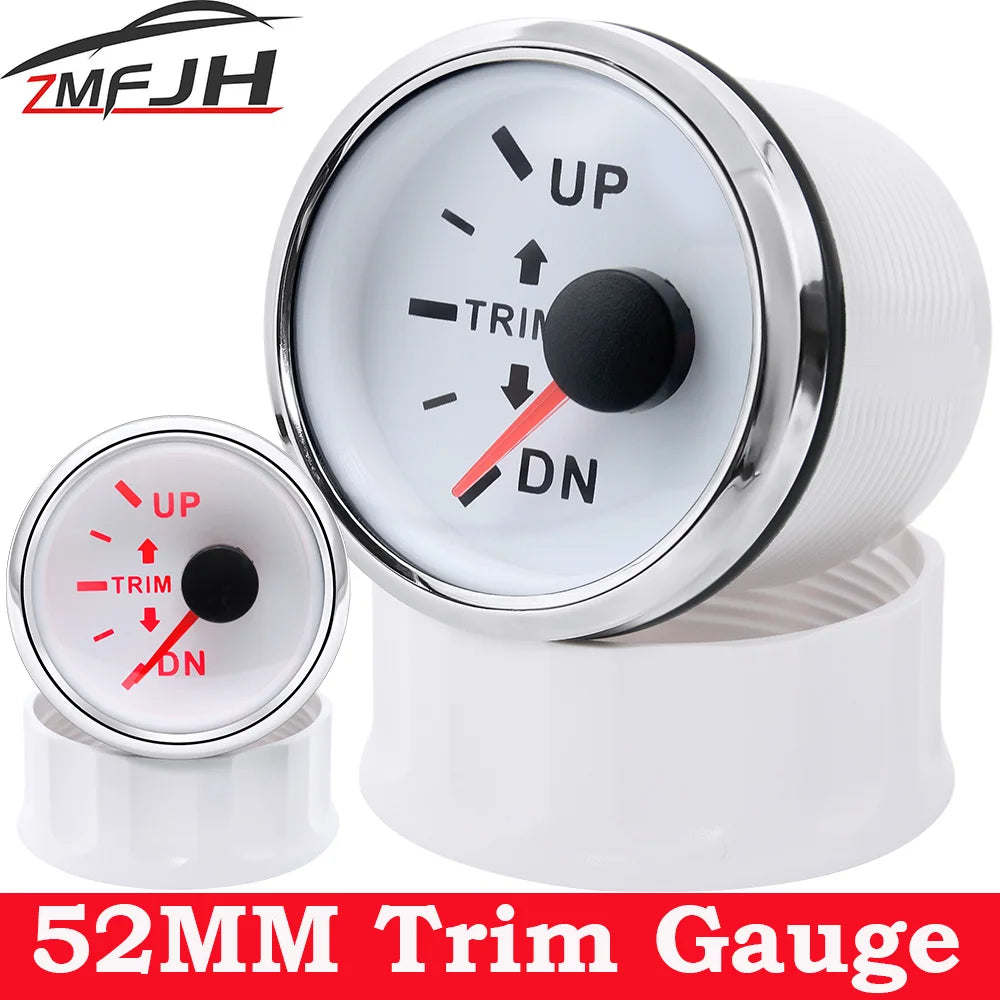

52mm Marine Trim Tilt Indicator Meter | 2 Inch Boat Trim Gauge for Inboard Outboard Engine with Red Backlight 9-32V

This 52mm marine trim gauge gives you a clear view of your outboard or inboard engine trim position. It is designed for universal fitment on boats, trucks, and other vehicles. The red backlight ensures easy reading in low light, and the waterproof construction handles tough marine conditions.

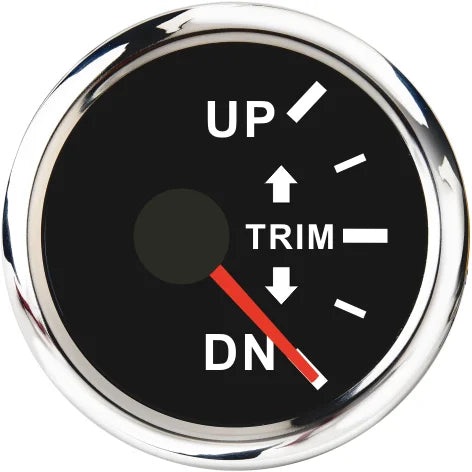

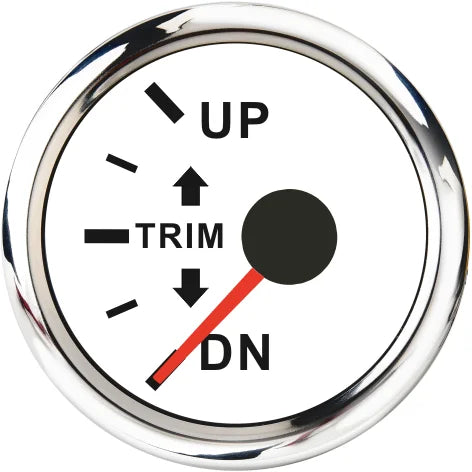

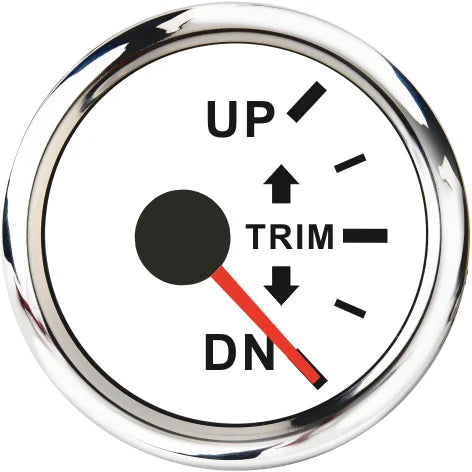

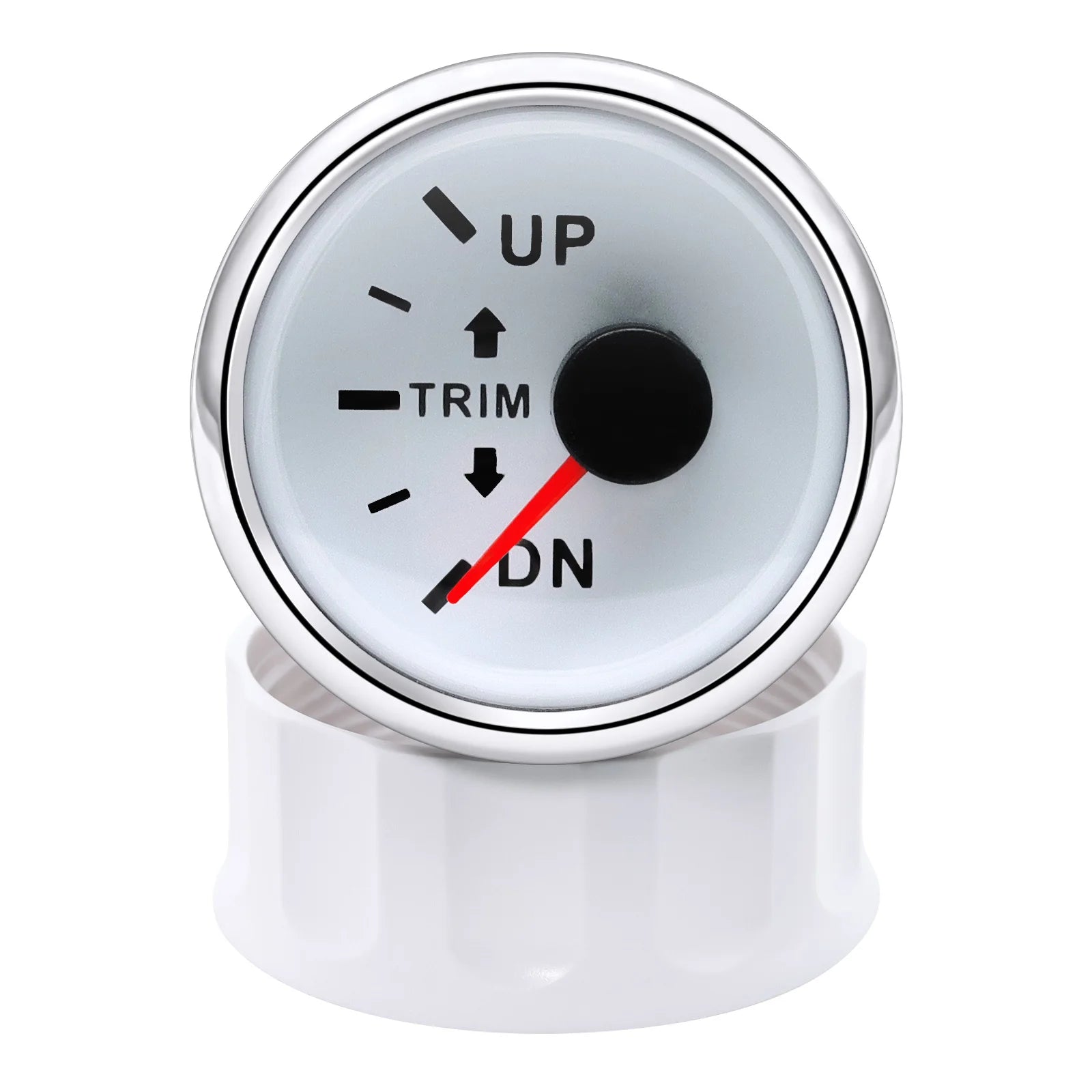

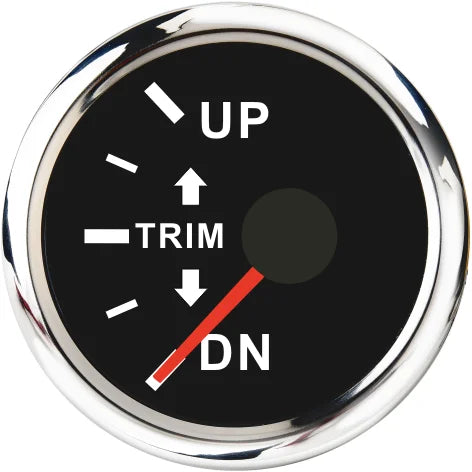

The gauge displays a simple UP-DOWN dial range so you always know your engine angle. It works with a wide 9-32V voltage range, making it compatible with most 12V and 24V electrical systems. The high-brightness LED backlight provides long-lasting illumination without draining power.

Built with a 316 stainless steel front cover, the gauge resists corrosion from saltwater and weather. The shell uses PBT+GF20% material with a melting point of 220°C, offering strong resistance to heat, chemicals, and oil. The curved PC surface combines with curved glass to create a double-layer anti-fog structure, keeping the dial clear in humid conditions.

Inside, a high-precision stepper motor moves the pointer smoothly with acceleration and deceleration curves. This extends motor life and gives accurate readings. The gauge also includes an alarm signal, so you do not need an additional sensor alarm. It can match various sensor signals, including 0-190 ohms.

Key Features and Benefits

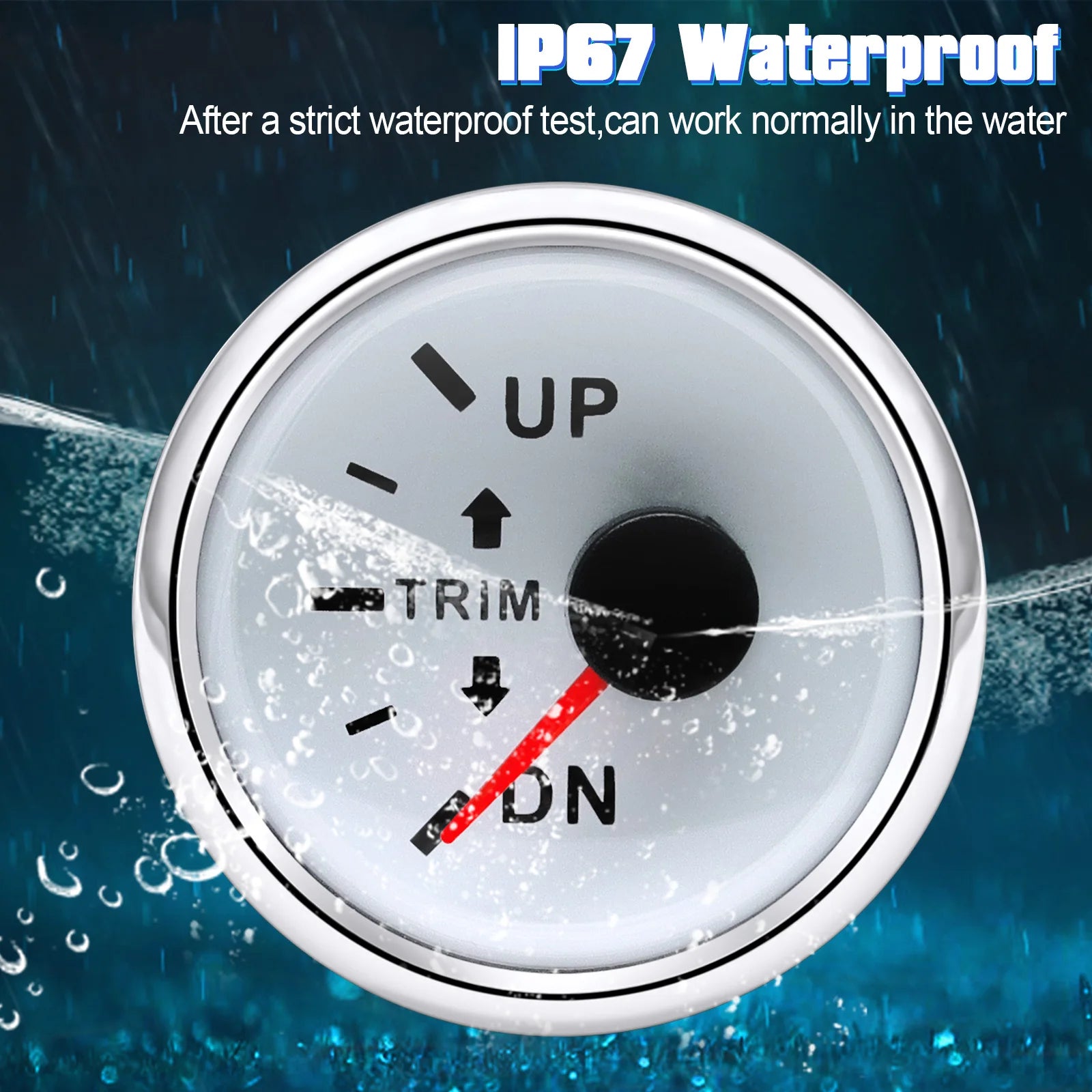

- IP67 waterproof and dustproof rating that protects the gauge from water spray and dust ingress in harsh marine environments

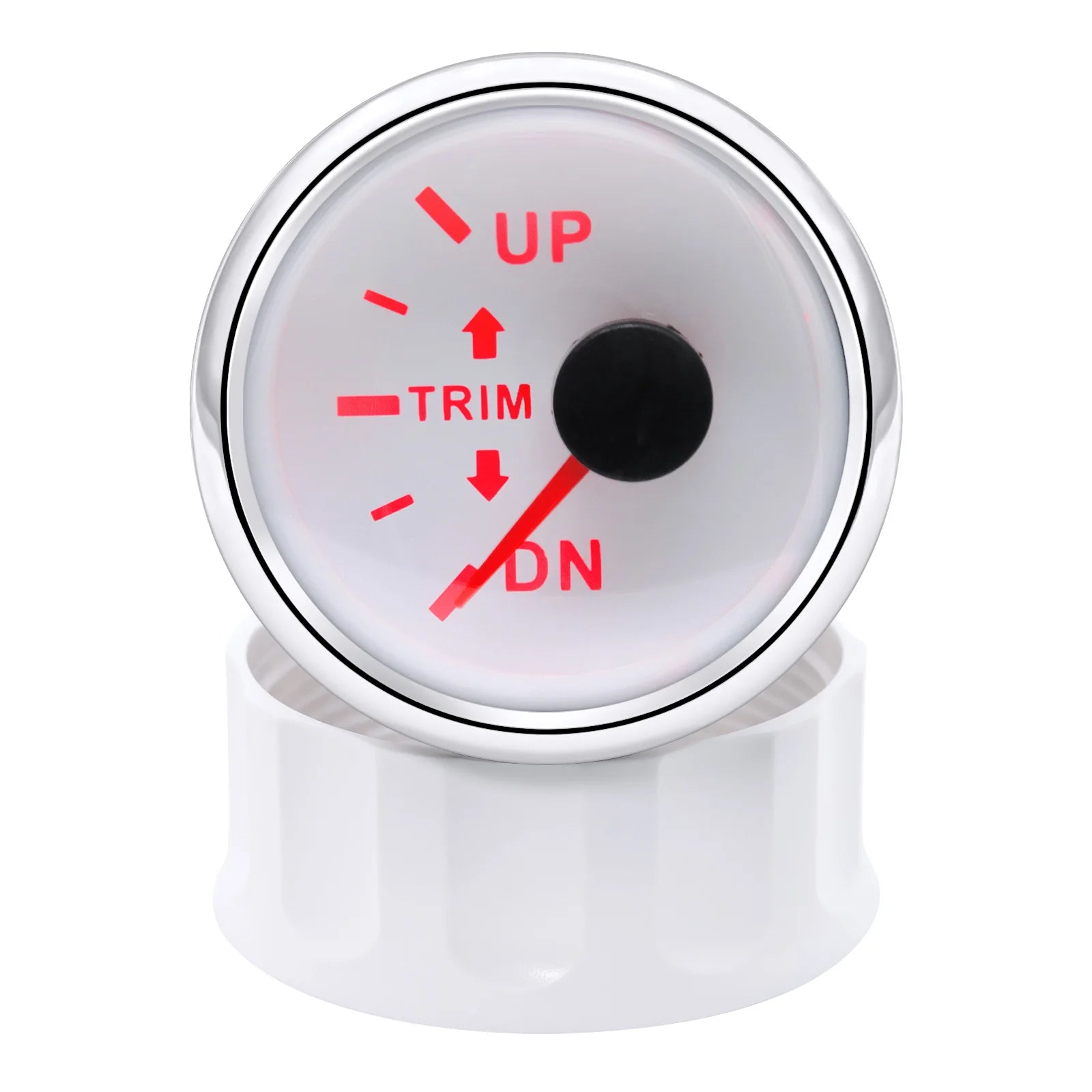

• Red LED backlight with high brightness that improves visibility during night boating or low-light conditions

• High-precision stepper motor with smooth pointer motion that extends the life of the gauge and provides accurate trim readings

• 316 stainless steel front cover that resists corrosion from saltwater and keeps the gauge looking good over time

• Double-layer anti-fog structure with curved PC and glass that prevents condensation on the dial in humid marine air

• Wide working voltage range from 9 to 32V that allows use on both 12V and 24V boat electrical systems

Who Is This For

- Boat owners with inboard or outboard engines who want a reliable trim position indicator

• Marine mechanics and DIY boaters replacing an old or broken trim gauge

• Boaters who run their vessel at night or in low light and need a clear backlit display

• Anyone with a universal mounting application like trucks or other vehicles needing a trim tilt gauge

Usage Scenario

Mark took his fishing boat out before sunrise. The water was calm, but he could not see his engine trim position in the dark. His old gauge had no backlight. After installing this 52mm trim gauge with red backlight, he could read the UP-DOWN dial clearly from the helm. The waterproof seal meant he did not worry about spray hitting the dash. He adjusted the trim easily and got on plane faster, saving fuel and time.

Micro Comparison

Some basic trim gauges use standard plastic housings that can fog up or corrode quickly in saltwater. This gauge uses a 316 stainless steel front and a PBT+GF20% shell for better durability. The IP67 rating also gives you dust and waterproof protection that many budget gauges lack. The built-in alarm signal means you do not have to buy a separate sensor alarm, saving you extra cost and installation time.

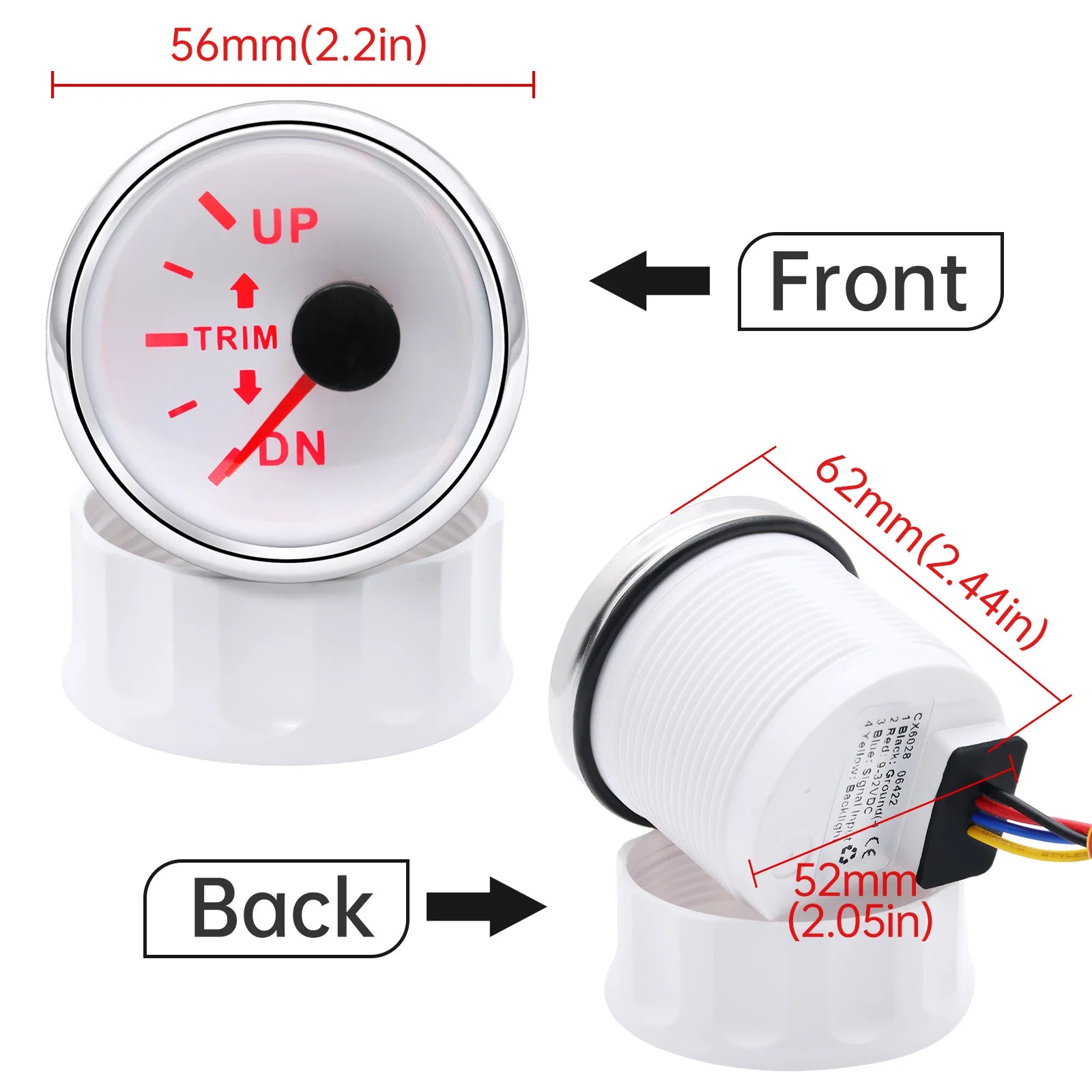

Specifications

Material: Stainless Steel + Plastic + Glassy

Size: 8 x 8 x 7 cm / 3.1 x 3.1 x 2.75 in

Item Height: 52 mm / 2.0 in

Item Width: 52 mm / 2.0 in

Item Length: 52 mm / 2.0 in

Item Weight: 300 g / 10.6 oz

Working Voltage: DC 8-16V, DC 18-32V (9-32V range)

Working Current: Less than 100mA

Indicating Range: UP-DOWN

Display Accuracy: Less than 3 degrees

Display Angle: 90 degrees

Working Temperature: -40 to 85 degrees Celsius

Protection Level: IP67

Mounting Hole: 52 mm / 2.0 in

Interchange Part Number: CX6027

Please allow 1-3 cm / 0.4-1.2 in difference due to manual measurement.

Package Includes

- 1x Gauge (back screw cap, gasket)

• 1x Cable

• 1x Rubber Stopper

• 1x Instruction Manual

Why You Will Love It

You will love the peace of mind that comes from knowing your engine trim position at a glance. The bright red backlight makes night boating easier and safer. The rugged construction stands up to saltwater, sun, and spray, so this gauge stays reliable season after season.

Questions and Answers

Question: What voltage does this trim gauge work with?

Answer: It works with DC 8-16V and DC 18-32V, covering 12V and 24V boat systems. The total range is 9-32V.

Question: Is this gauge waterproof?

Answer: Yes, it has an IP67 protection level, meaning it is dust-tight and can handle water spray and temporary submersion.

Question: What size mounting hole do I need?

Answer: You need a 52 mm / 2.0 in mounting hole for this gauge.

Question: Does the gauge come with a backlight?

Answer: Yes, it has a red LED backlight that is bright and long-lasting for night use.

Question: What material is the front cover made from?

Answer: The front cover is made from 316 stainless steel, which resists corrosion from saltwater and weather.

Question: Can I use this gauge with any sensor?

Answer: It can match various sensor signals, including 0-190 ohm sensors, and it has a built-in alarm signal.

Question: What is the display accuracy?

Answer: The display accuracy is less than 3 degrees.

Question: What is included in the package?

Answer: You get 1 gauge with back screw cap and gasket, 1 cable, 1 rubber stopper, and 1 instruction manual.
