Insulated Crimp Terminals Assorted Wire Butt Connectors 50pcs

Key Features

• Strain Relief Design — Provides strain relief and protection against vibration in rugged environments, insulating and protecting electrical connections.
• Copper Conductor Tube — A high pure copper tube sits in the middle of the splice, offering excellent conductivity.
• Fully Insulated Design — Fully insulated connectors made of tin-plated copper with PVC insulation.
• Stretch and Puncture Resistance — Excellent stretch, puncture and mechanical damage resistance performance.

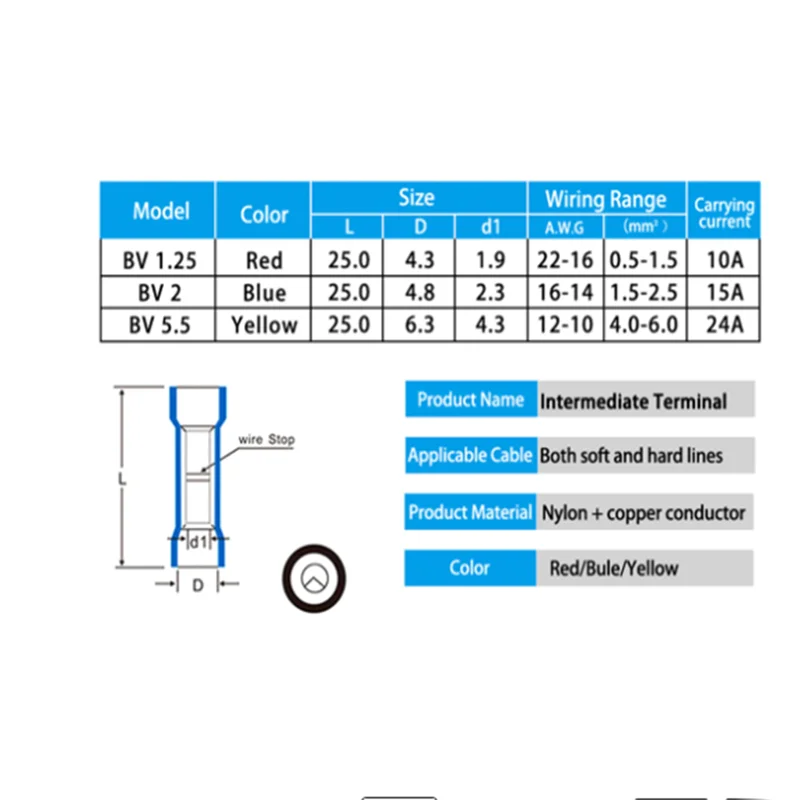

Product Specifications

• Type: Crimp Terminal
• Piece Count: 50 pcs

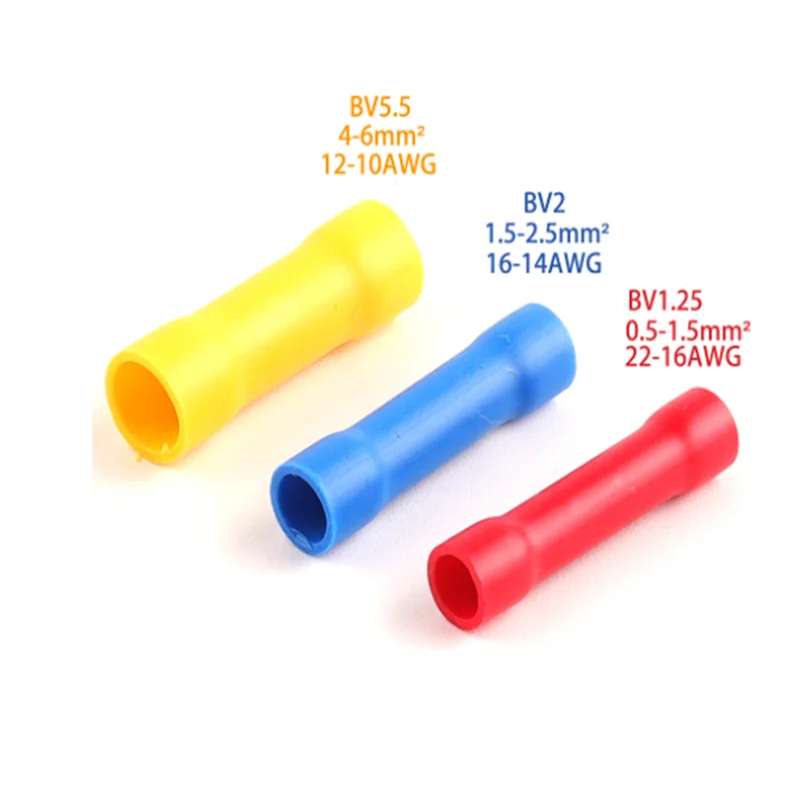

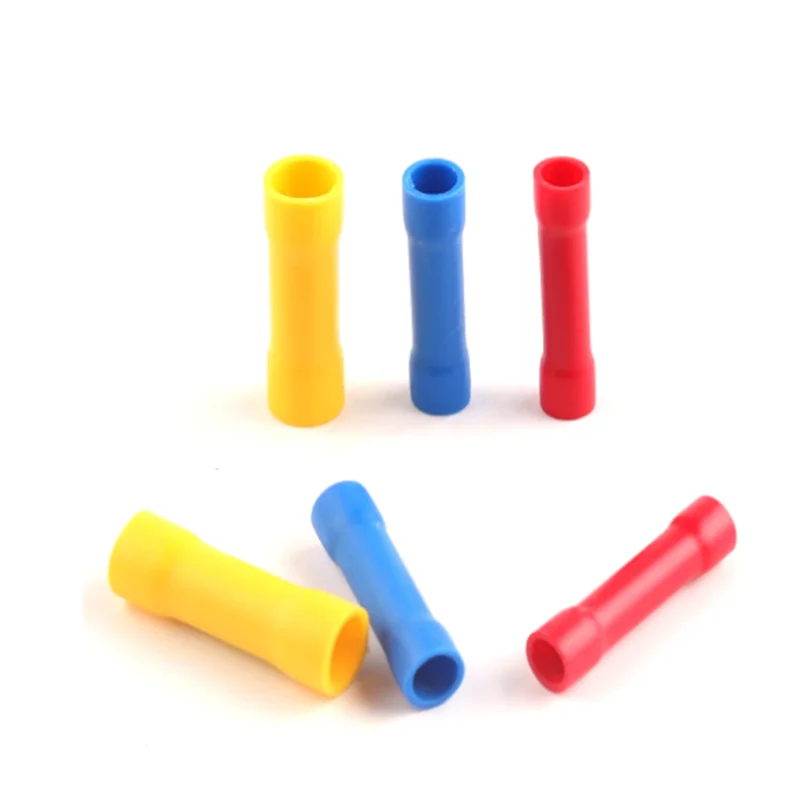

• Color: Red, Blue, Yellow
• Size: 0.5-6.0mm2; 10-22AWG
• Insulator: PVC
• Terminal Body: Copper
• Plating: Tin
• Maximum Temperature: 75 Celsius
• Insulation Voltage: 600V
• EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

What It Is / How It Works

These are insulated crimp terminals, electrical connectors that join a stripped wire end to a crimped metal barrel. This listing covers red, blue, and yellow terminals in one set.

Who It's For / Use Cases

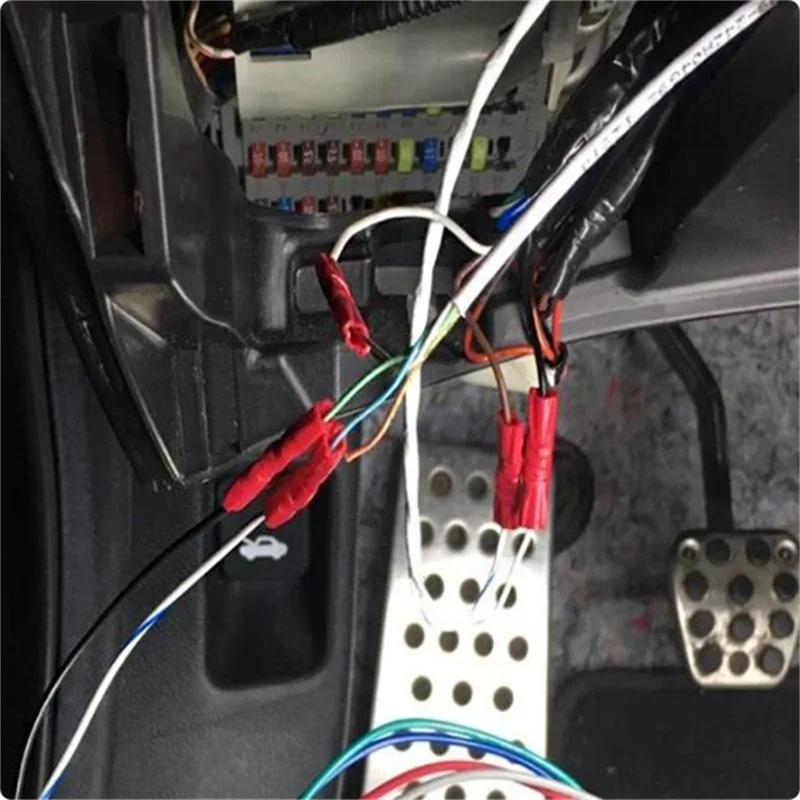

Insulated crimp terminals suit people who join electrical wires in general DIY wiring, electrical repair, and wire harness work. They are useful for anyone who needs several terminal sizes and colors on hand for routine connections.

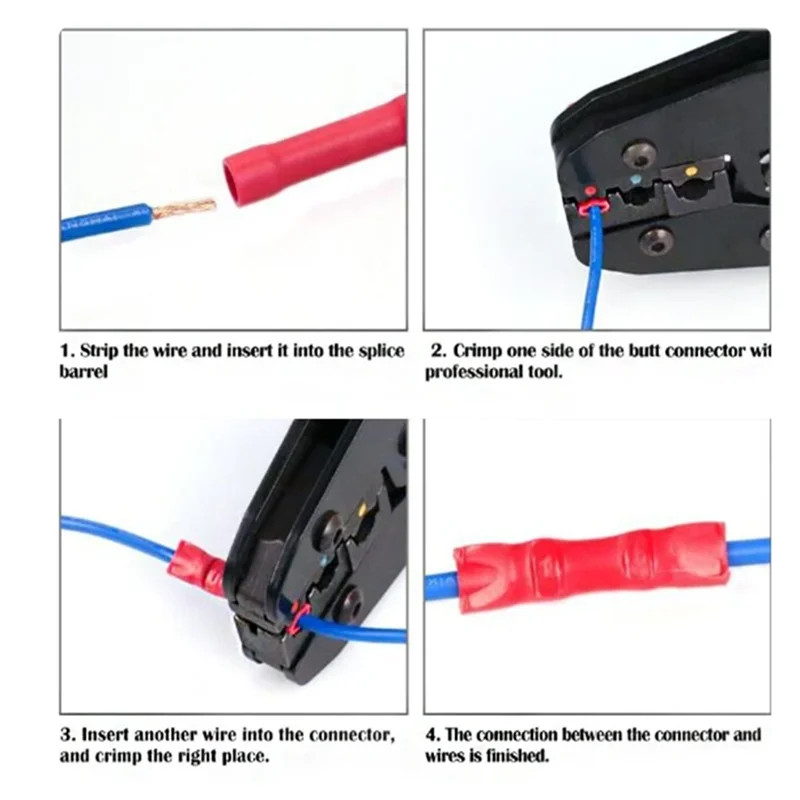

How to Use / Care

1. Before crimping, match the terminal color and wire size range to the wire, since the set covers 0.5-6.0mm2 (10-22AWG).

How to Choose

Start with wire size. This set covers 0.5-6.0mm2 (10-22AWG), so confirm the wire falls within that range. Check the color counts, which are 20 red, 20 blue, and 10 yellow, against how many of each you expect to need. Compare the rated maximum temperature of 75 Celsius and the 600V insulation voltage with your circuit.

Frequently Asked Questions

Does this set include a battery or wireless function?
No. The listing states that no battery is included and that there is no wireless functionality. These are mechanical crimp connectors.

What wire sizes do these terminals cover?
The listing gives 0.5-6.0mm2 and 10-22AWG as the size range.

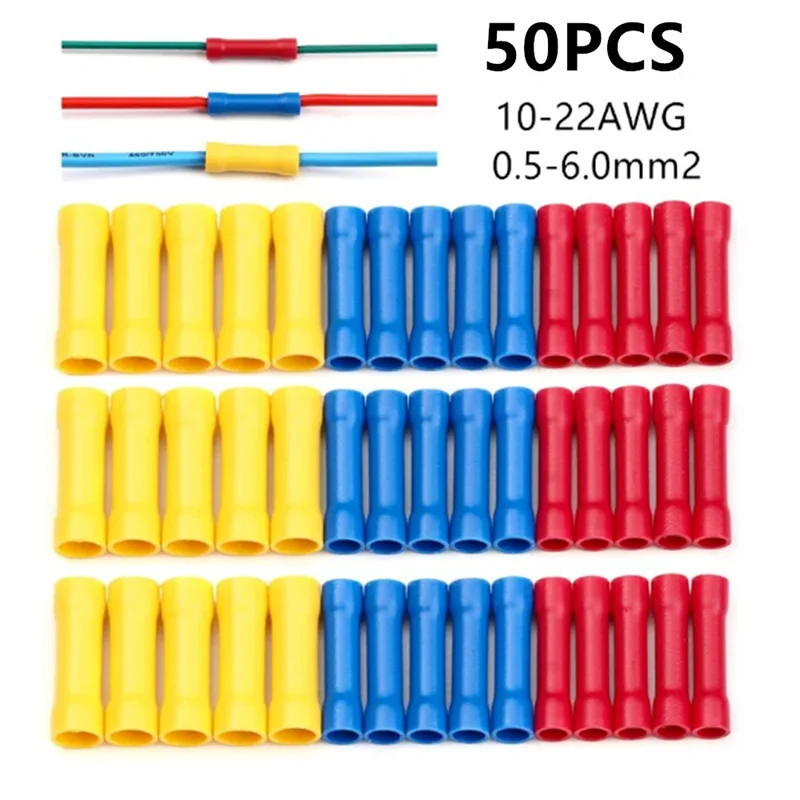

How many terminals of each color are in the set?
The set includes 20 red, 20 blue, and 10 yellow terminals, for 50 pieces in total.

What are the temperature and voltage ratings?
The maximum temperature is 75 Celsius and the insulation voltage is 600V. The EU LVD rating covers low voltage, below 50Vac or 75Vdc.

What materials are used?
The terminal body is copper, plated with tin, and the insulator is PVC.
