Insulated Straight Wire Butt Connector Set Copper Crimp Terminals

Key Features

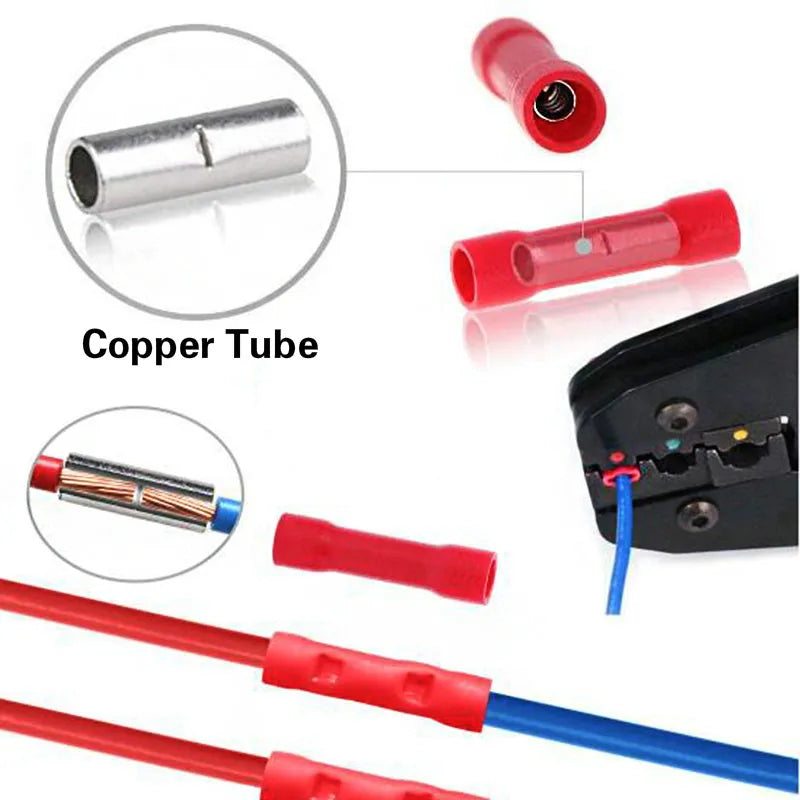

• Copper Conductor Core — The middle of the splice has a high pure copper tube with excellent conductivity.
• PVC Insulated Body — The connector is fully insulated, with tin-plated copper and a PVC insulator.
• Strain Relief Against Vibration — It provides strain relief and protection against vibration in rugged environments, and it insulates and protects electrical connections.
• Stretch and Puncture Resistance — It has excellent stretch, puncture and mechanical damage resistance performance.

Product Specifications

• Quantity: 50/100/200pcs
• Color: Red, Blue, Yellow
• Material: Copper
• Insulator: PVC
• Plating: Tin

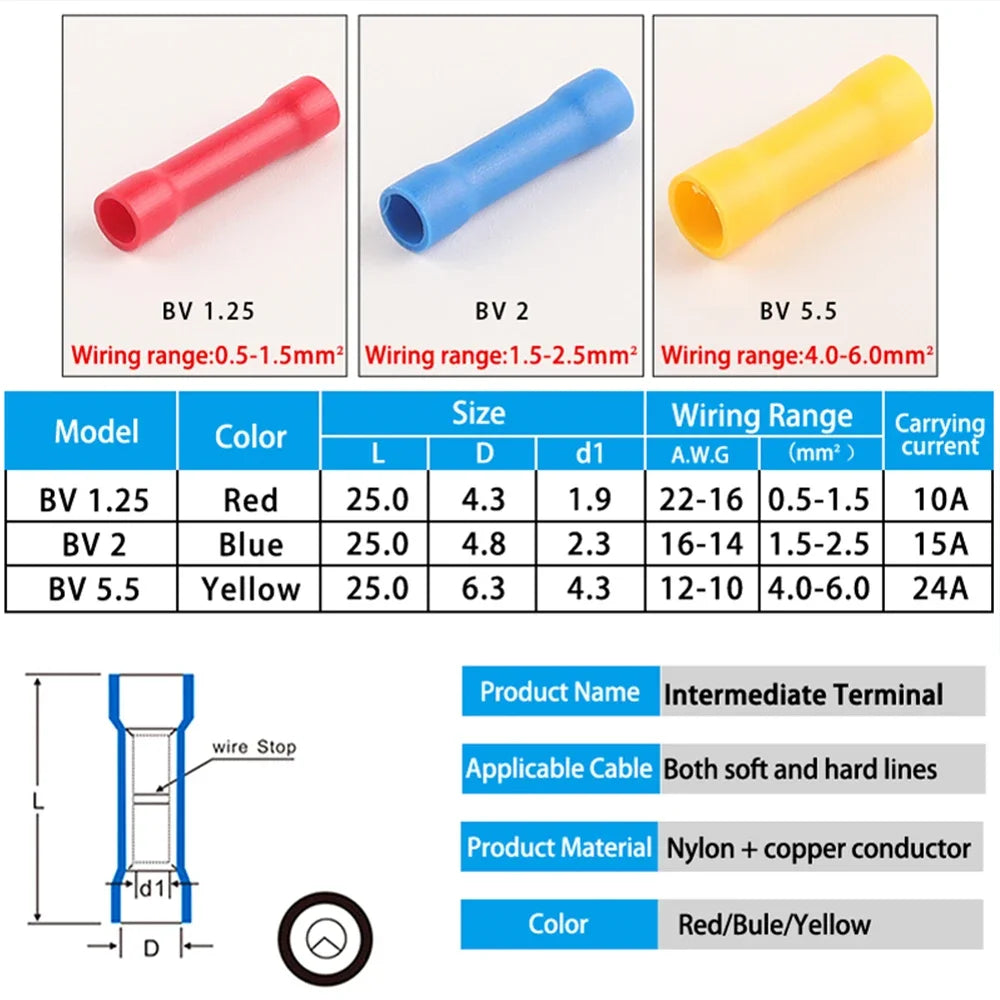

• Wire Size: 0.5-6.0mm2; 10-22AWG
• Maximum Temperature: 75Celsius
• Insulation Voltage: 600V
• EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

What It Is / How It Works

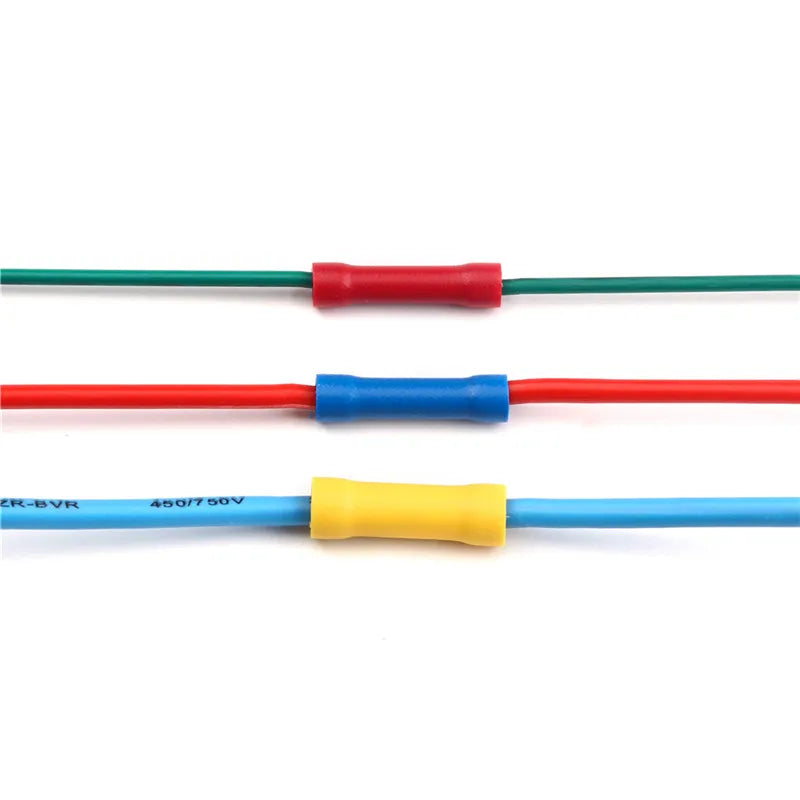

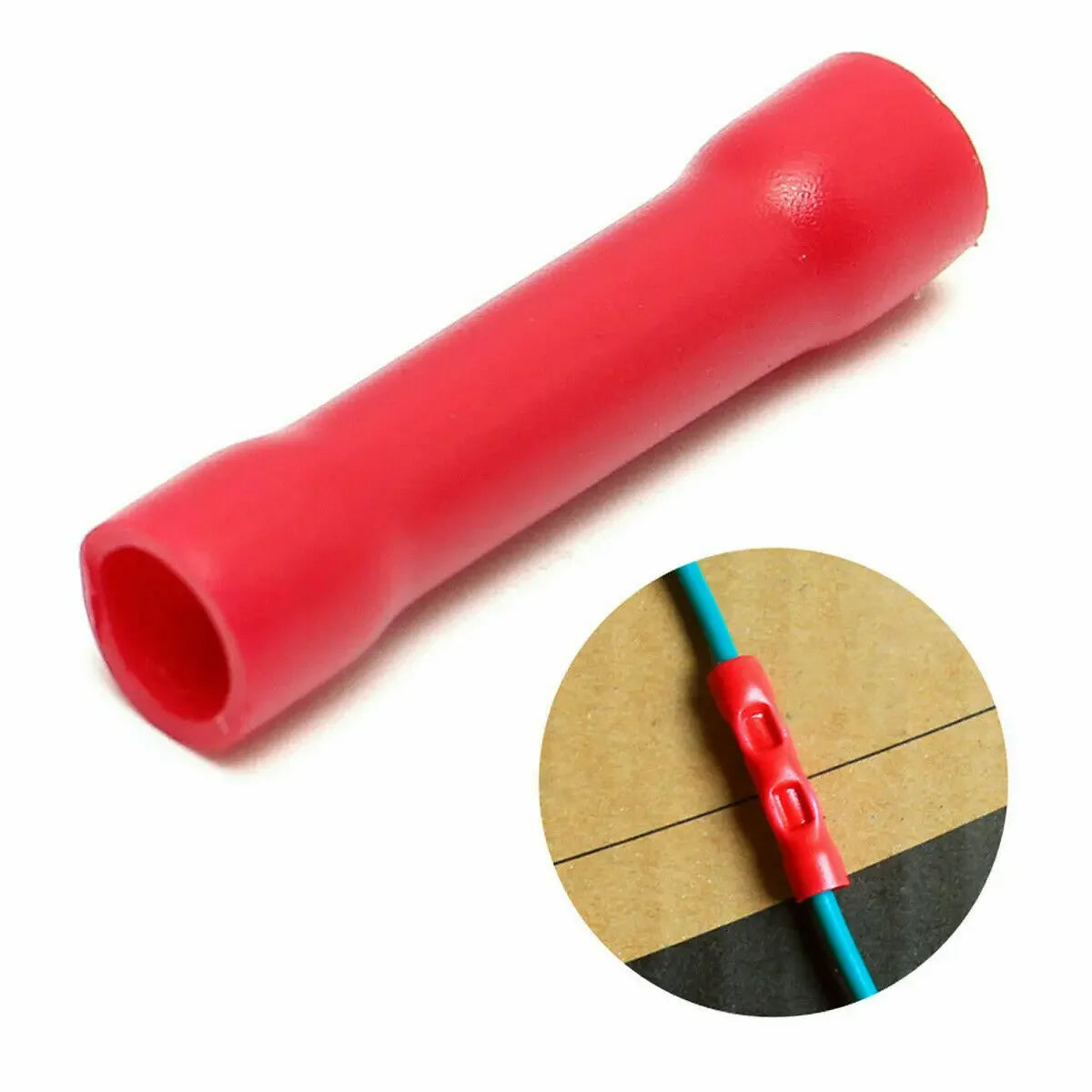

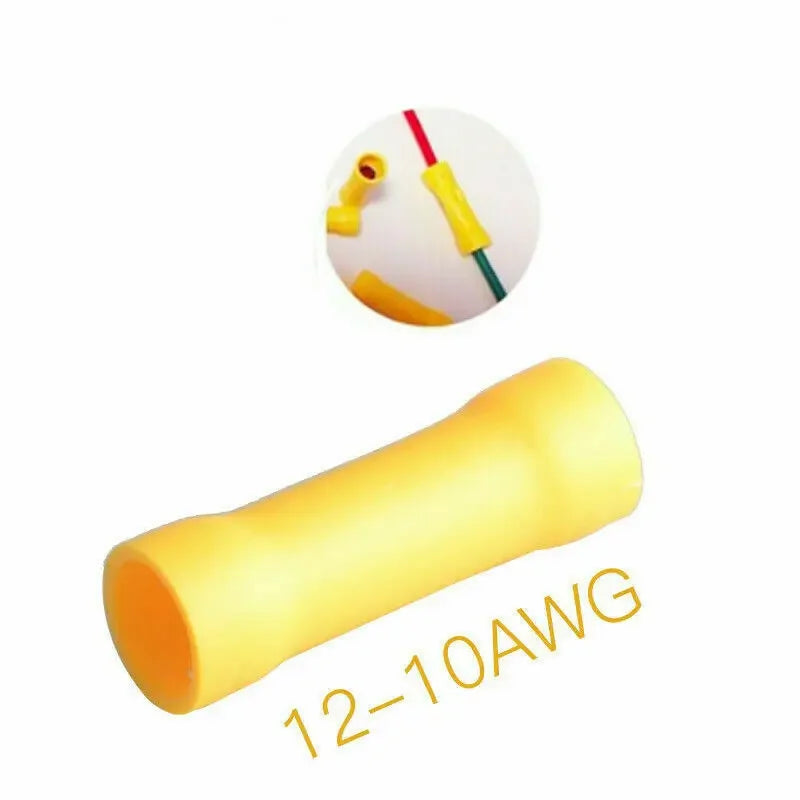

Butt connectors are crimp terminals used to join two wire ends in a straight line. This insulated straight wire butt connector is a copper crimp terminal of that type, sold as a set for wiring work.

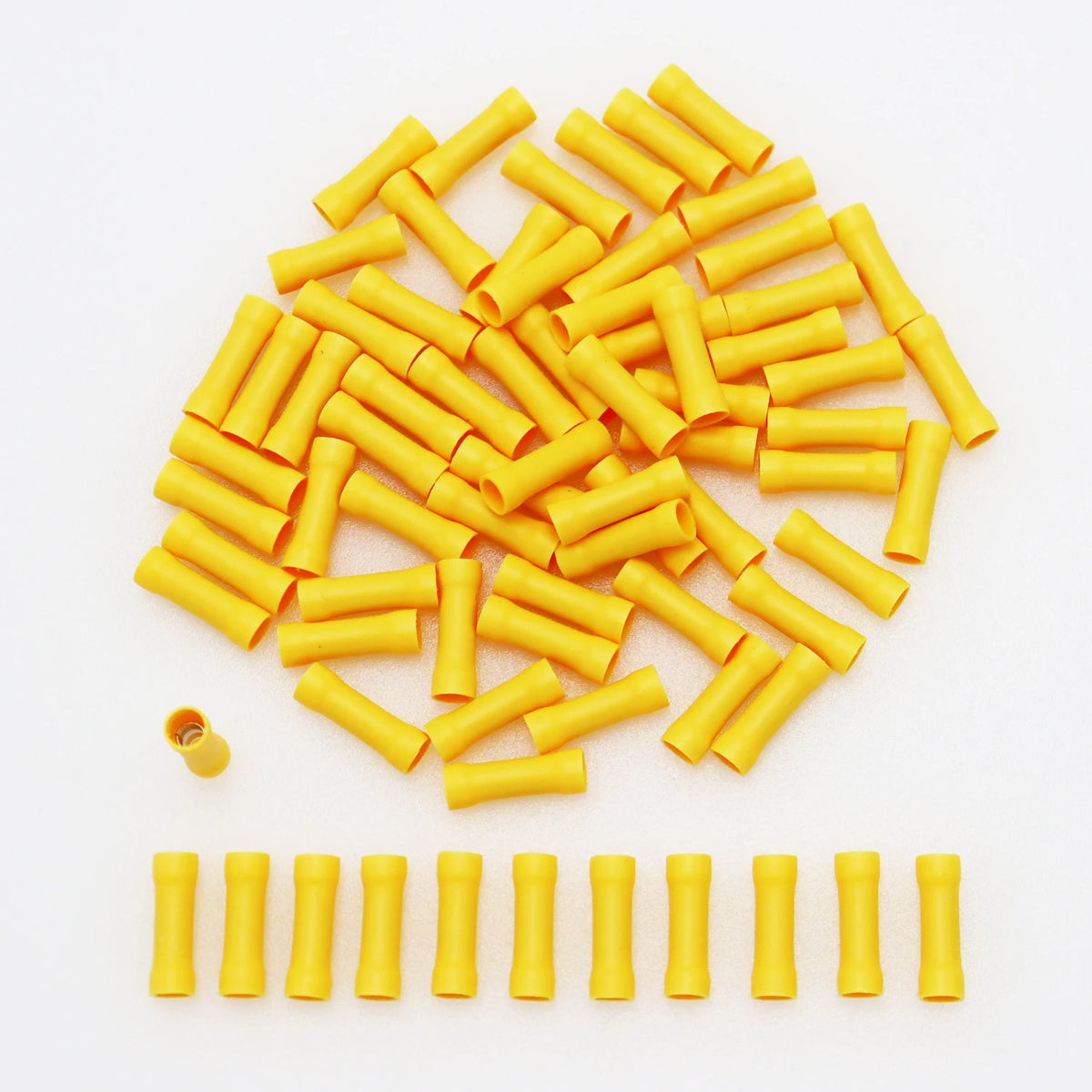

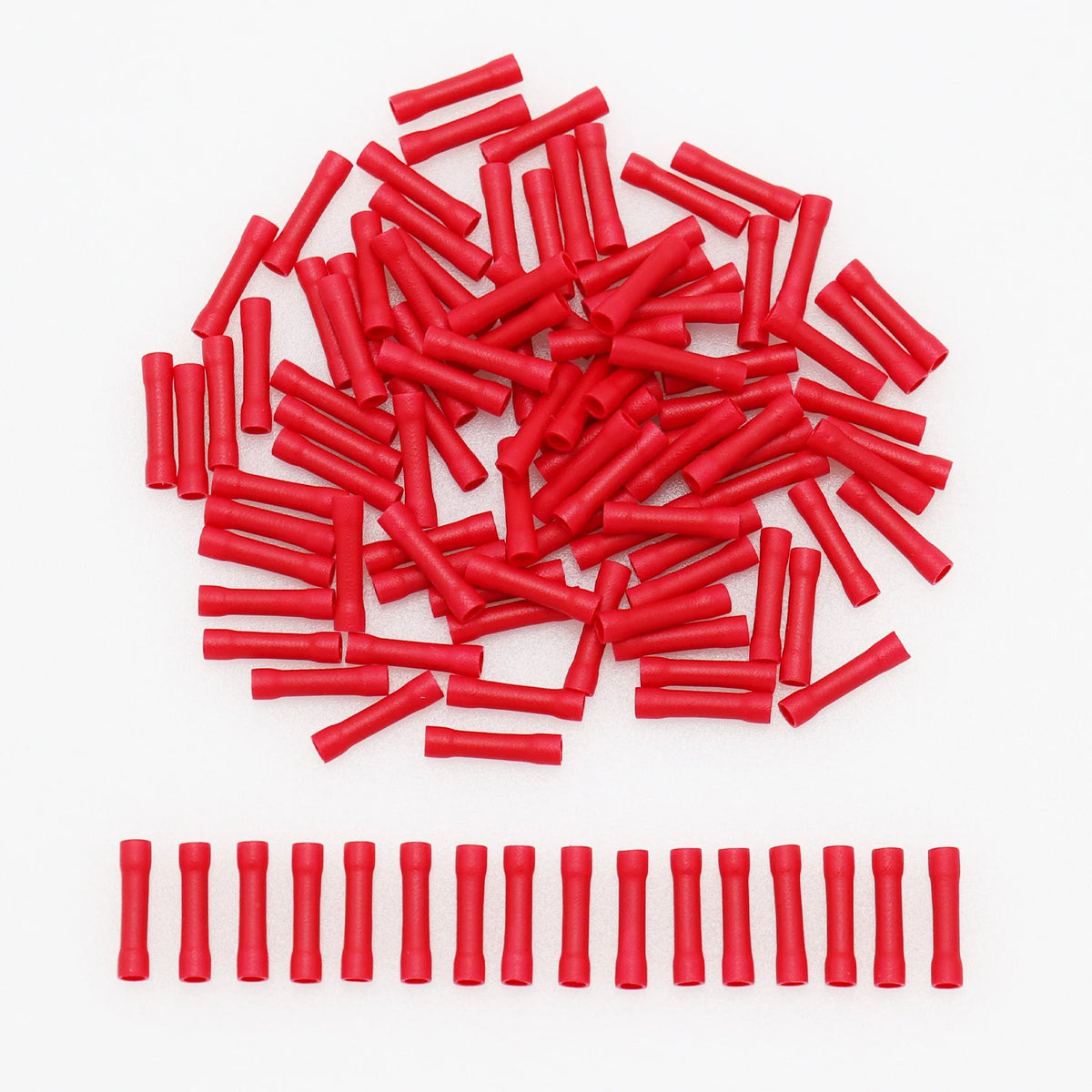

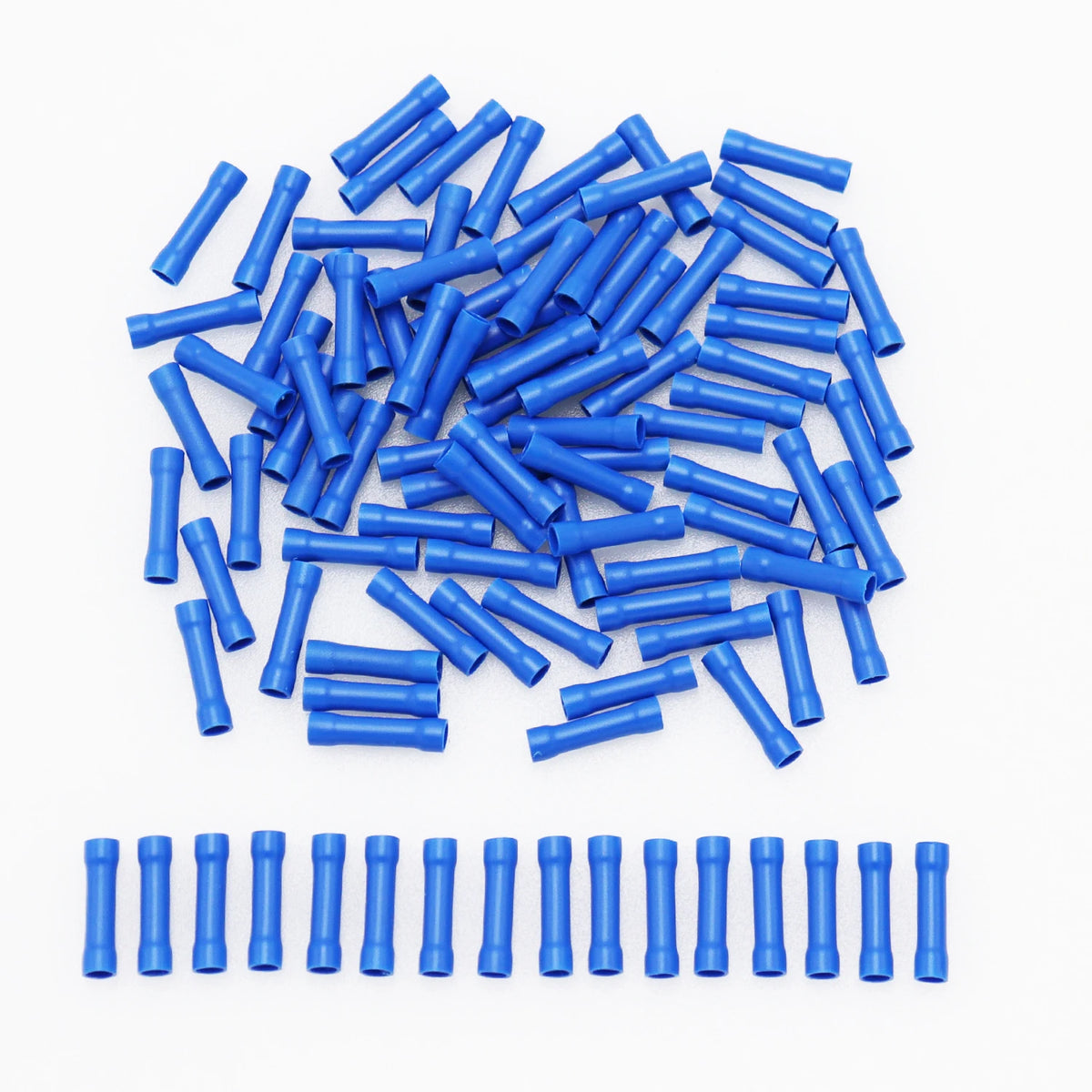

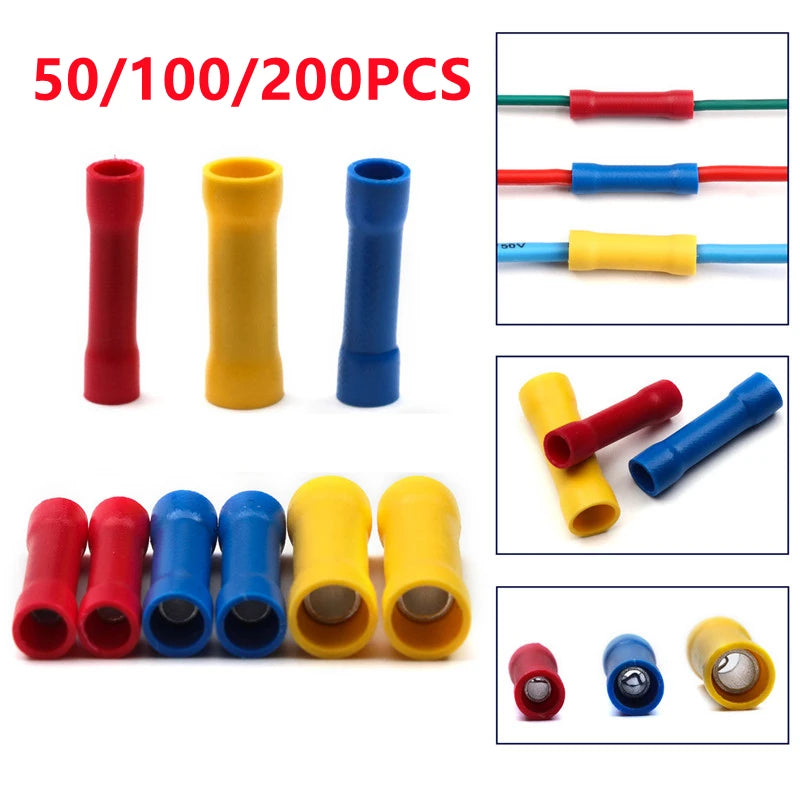

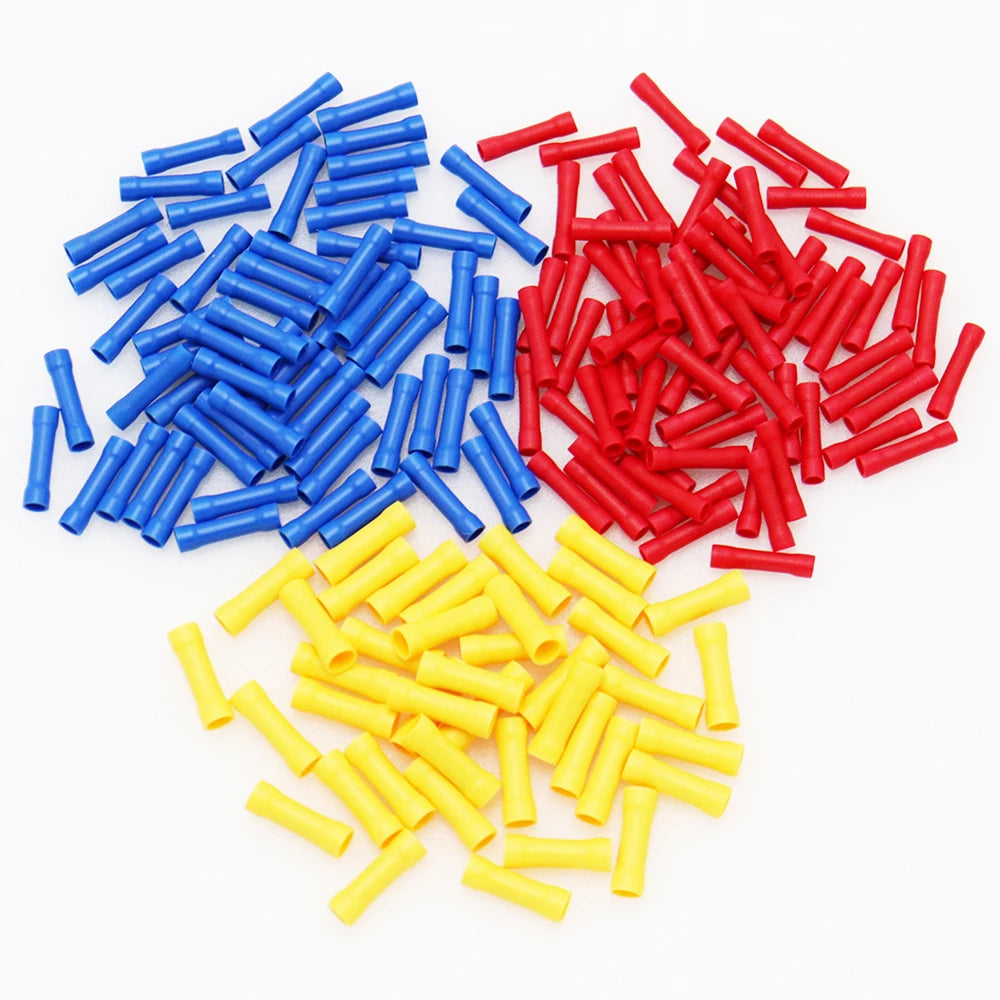

The set comes in red, blue and yellow, in 50, 100 or 200 pieces.

Who It's For / Use Cases

Butt connectors suit electricians, hobbyists and DIY wiring jobs where two wires need to be joined end to end. They are useful for anyone who wants a set of color-coded crimp joints for a range of wire sizes.

How to Use / Care

1. Use the connector as a crimp-type wire butt splice to join two wires end to end.
2. Check that each wire falls within the 0.5-6.0mm2 or 10-22AWG wire size range before crimping.

How to Choose

Start with the wire size, since the connectors are rated for 0.5-6.0mm2 or 10-22AWG wire. Check the maximum temperature and insulation voltage against your circuit before you buy.

Frequently Asked Questions

What wire sizes does it cover?
It is rated for 0.5-6.0mm2 or 10-22AWG wire.

What is it made of?
The terminal body is copper, with a tin plating and a PVC insulator.

What are the temperature and voltage ratings?
The maximum temperature is 75Celsius and the insulation voltage is 600V.

Does it include a battery or wireless function?
No. It does not include a battery and has no wireless functionality.

Which colors and quantities are available?
It comes in red, blue and yellow, and the quantity options are 50/100/200pcs.
