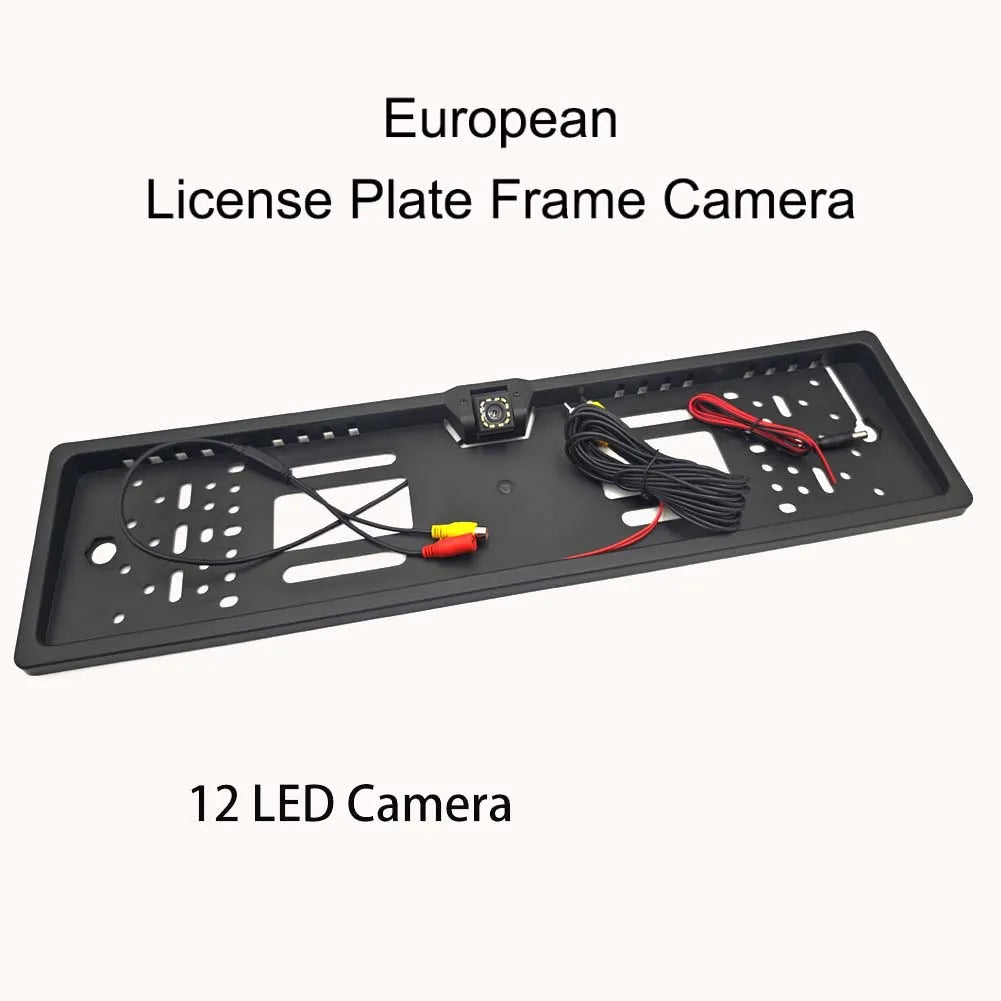

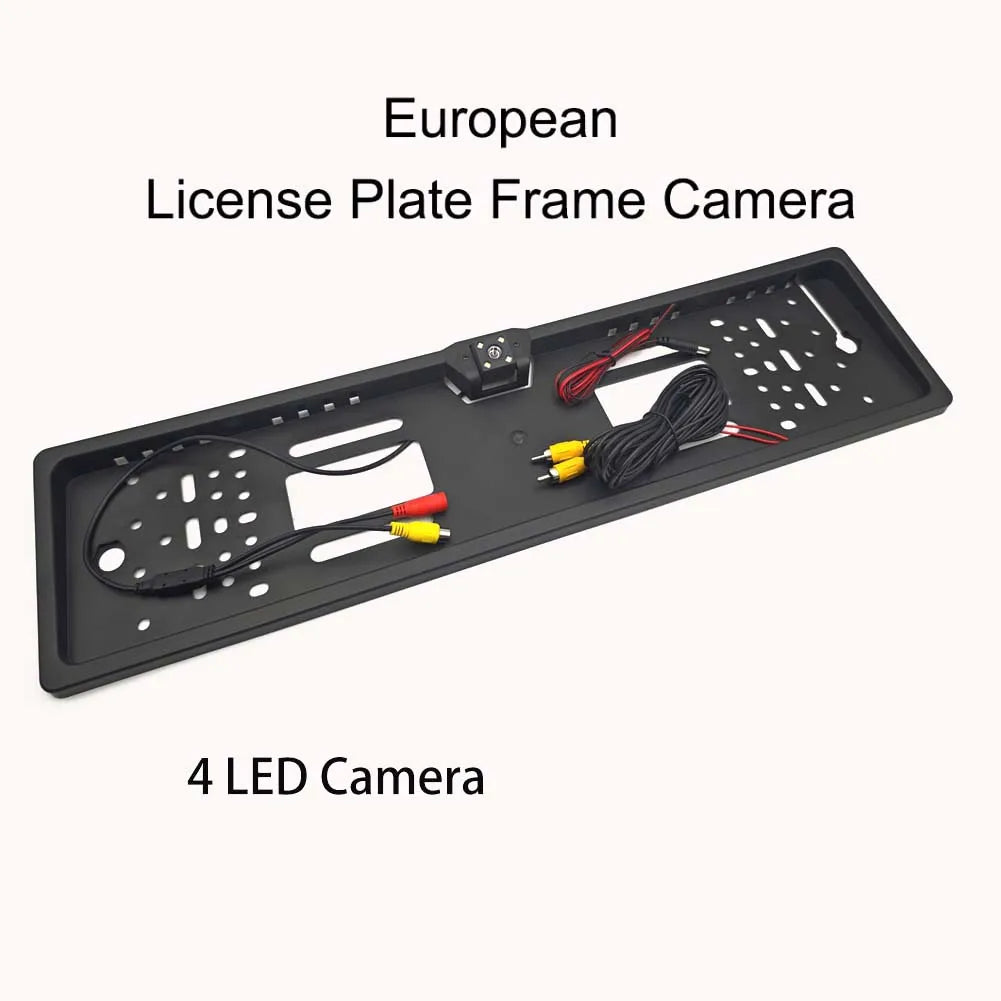

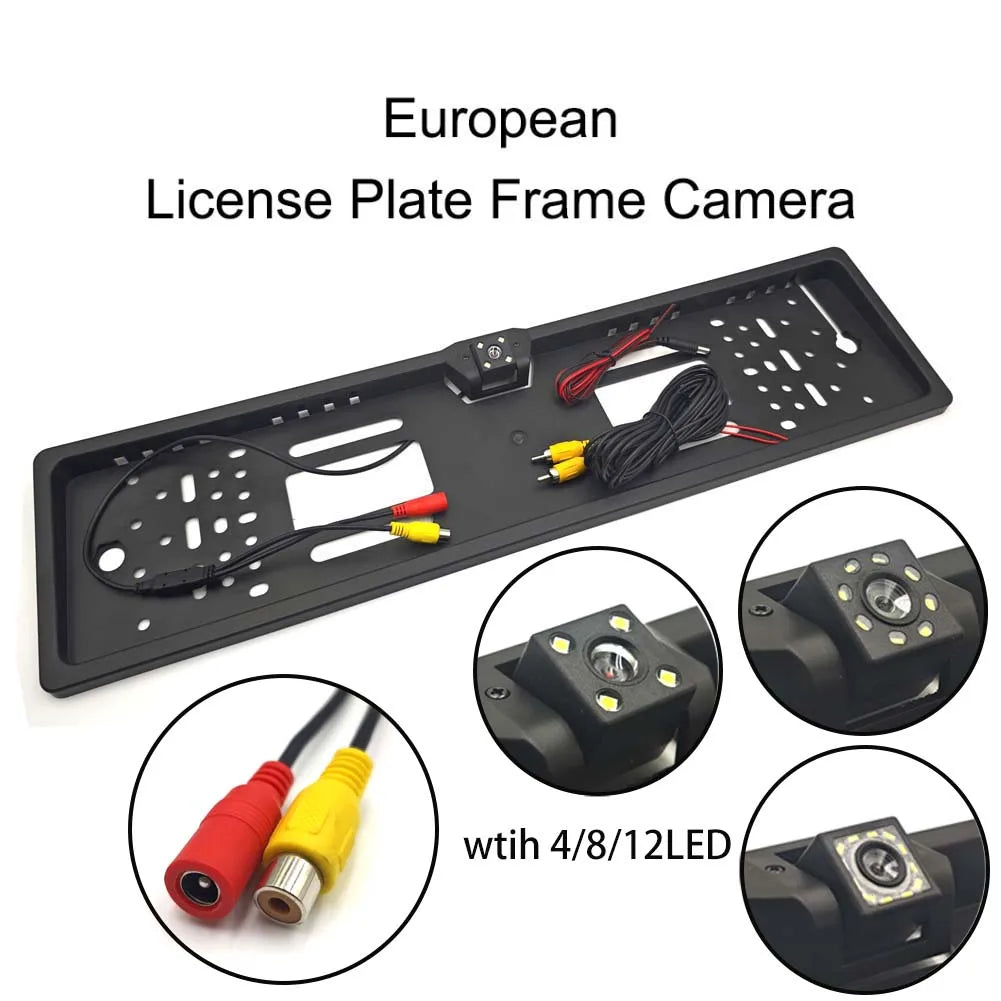

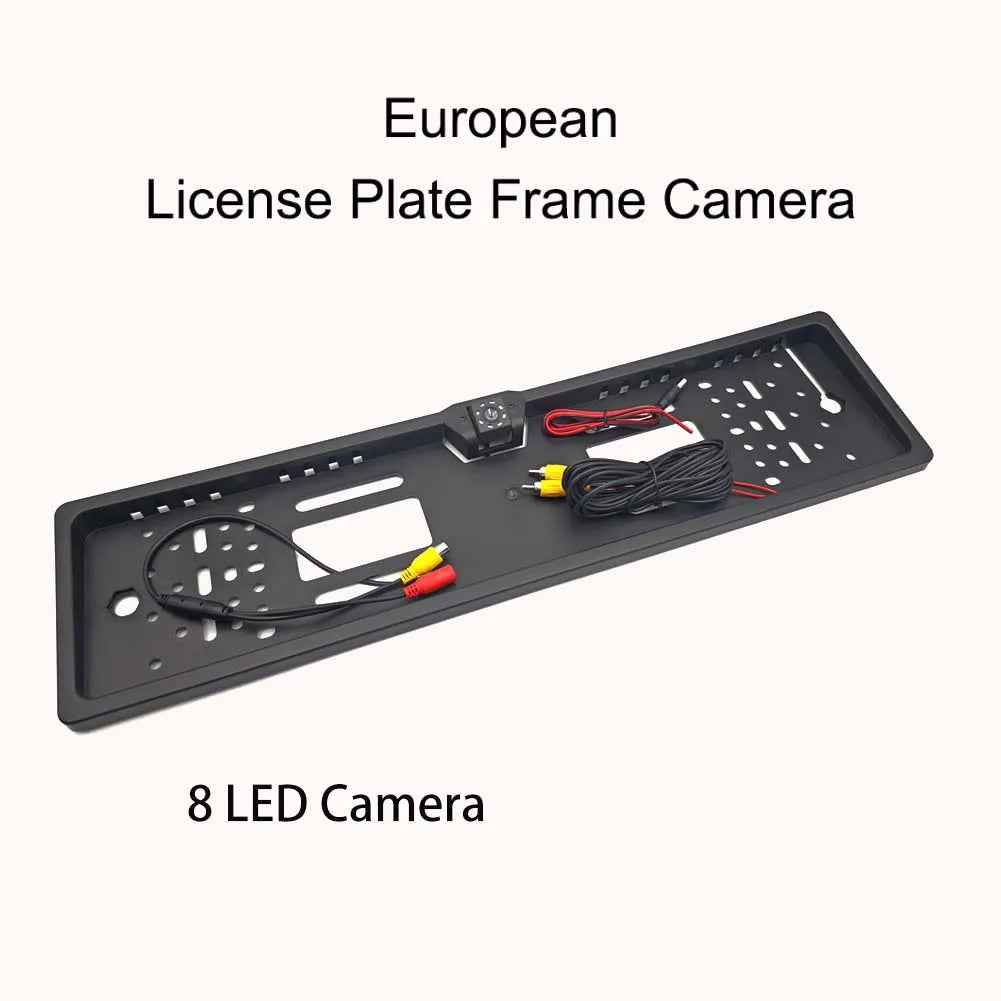

4/8/12LED European License Plate Rearview Camera Frame Reverse Backup Camera Night Vision for Truck Car SUV, Camper Pickup

SPECIFICATIONS

Brand Name: Bornwin

Choice: yes

High-concerned chemical: none

Lens Material: Plastic + Glass

Material: Plastic

Origin: Mainland China

Shell Material: Plastic

Viewing Angle : 170°

Wire or Wireless: Wire

Note: After installing the camera, you need to set the car's infotainment system's reversing camera to "NTSC" mode; otherwise, it will not function properly, as shown in the video below.

• CMOS imaging sensor.

• Support NTSC video system.

• Snap-in design, it is easy to install.

• Video format: NTSC / PAL automatic switching

• Water-proof, shock-proof and anti-jamming functions.

• 170° view that superbly kills all blind angles, the built-in distance scale line function helps you avoid possible obstacles in time when you do reversed parking.

• With High-definition wide viewing angles and good waterproof functions, it is perfectly to fit with your license plate, and also help reduce incidents and accident.

• Low illumination level, it can work within 3 meters at night and other dark environments.

• Connect to any type of monitor with a composite yellow RCA jack for crystal clear resolution mounted inside will fit into most vehicle key holes, no other installation needed.

• Material: Plastic

• Size: 545 x 140 x 30mm

• Resolution: 420TV lines

• Effective pixels: 300,000

• Working voltage: DC 12V

• Power consumption: <1W

• Minimum illumination 0.1Lux

• Video output: 1.0vp-p, 75Ohm

• Photosensitive area: 4.08mm x 3.12mm

• Working temperature: -20 to +80 RH95%Max

• Electronic shutter (N)1/60-1/100000 (P)1/50-1/100000

• 1 Set 4/8/12 LED Car Plate Camera

• 1 x 6M Video Cable

• 1 x 1M Power Cable

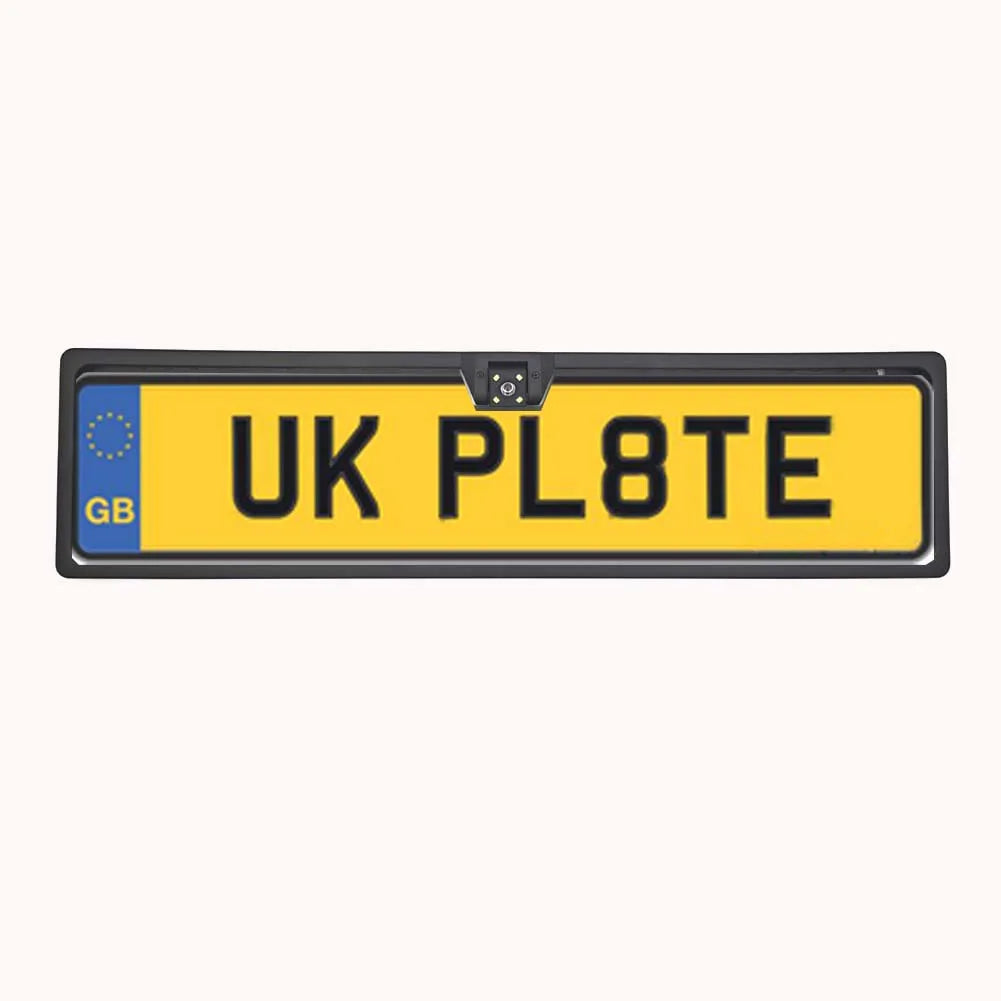

• 1 x European License Plate Frame(NO CAMERA)

1. Due to factors such as monitor brightness and light brightness, the actual color of the item may be slightly different from the image displayed on the website.

2. Manual measurement data may have slight deviations.
