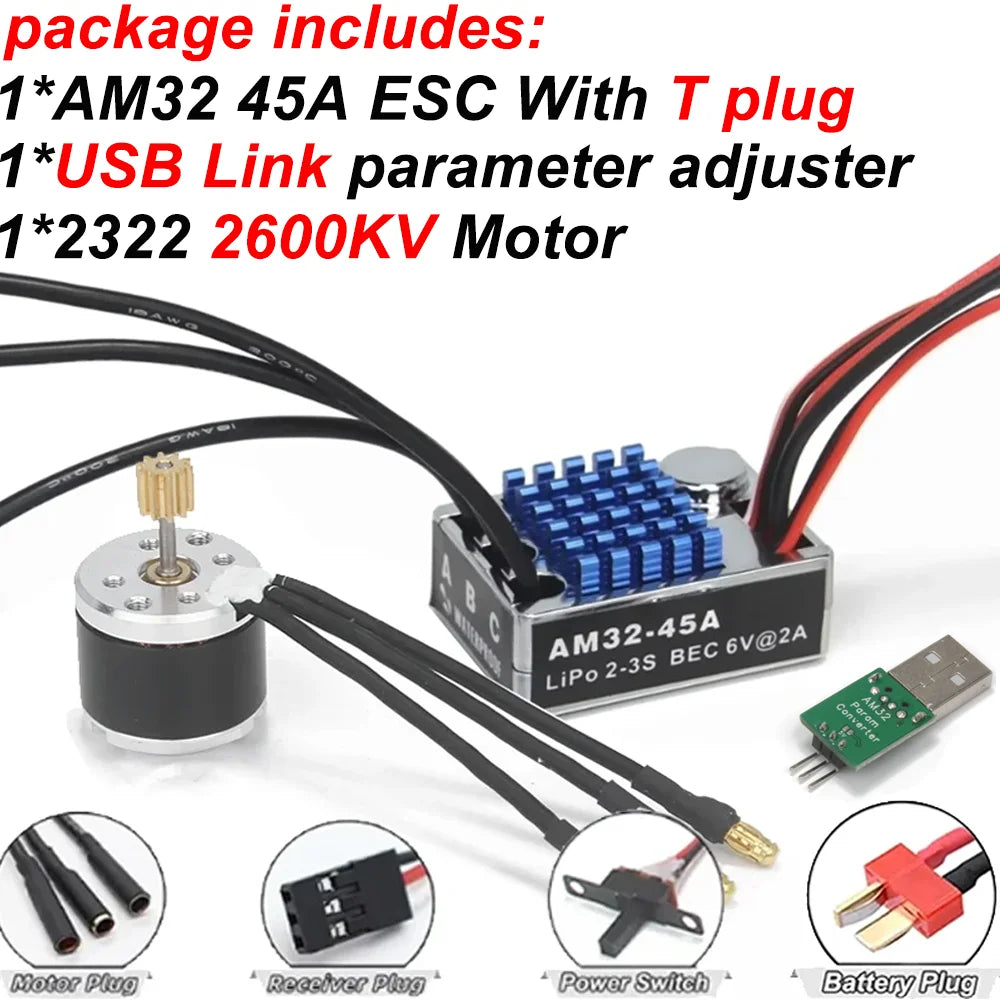

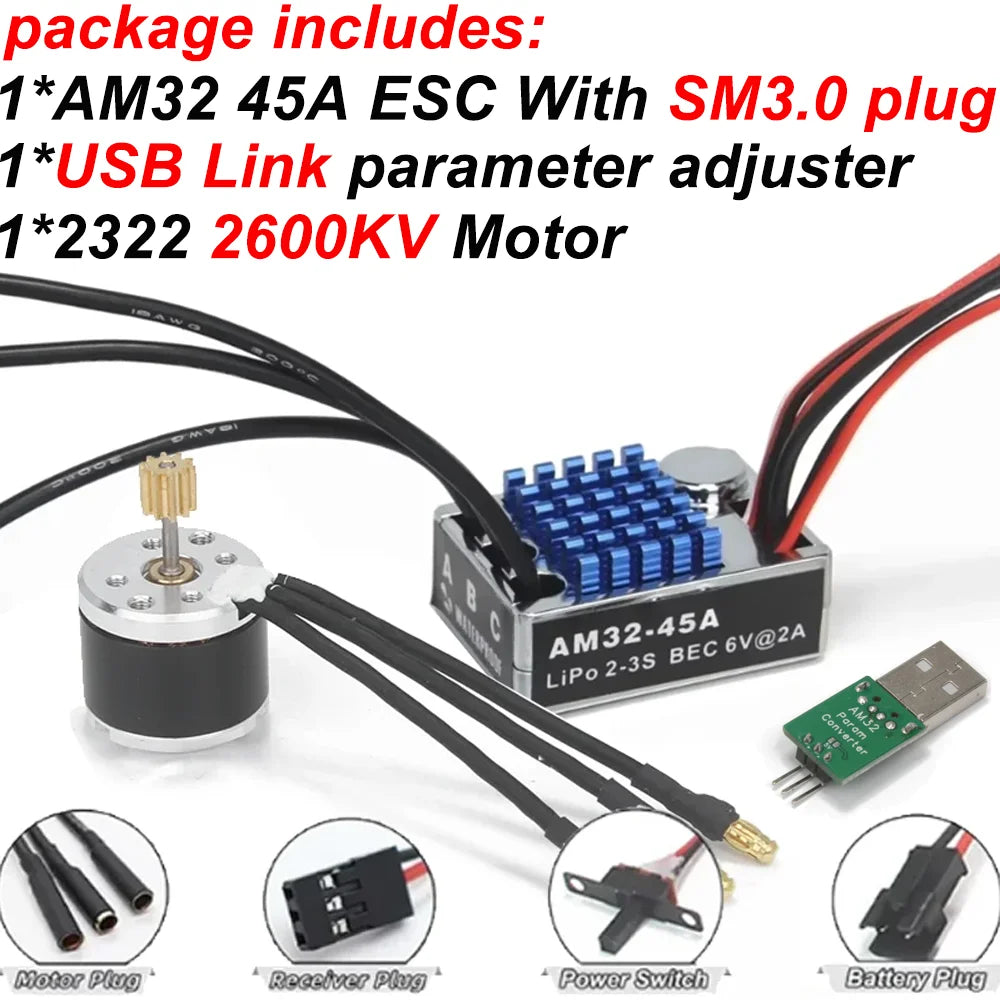

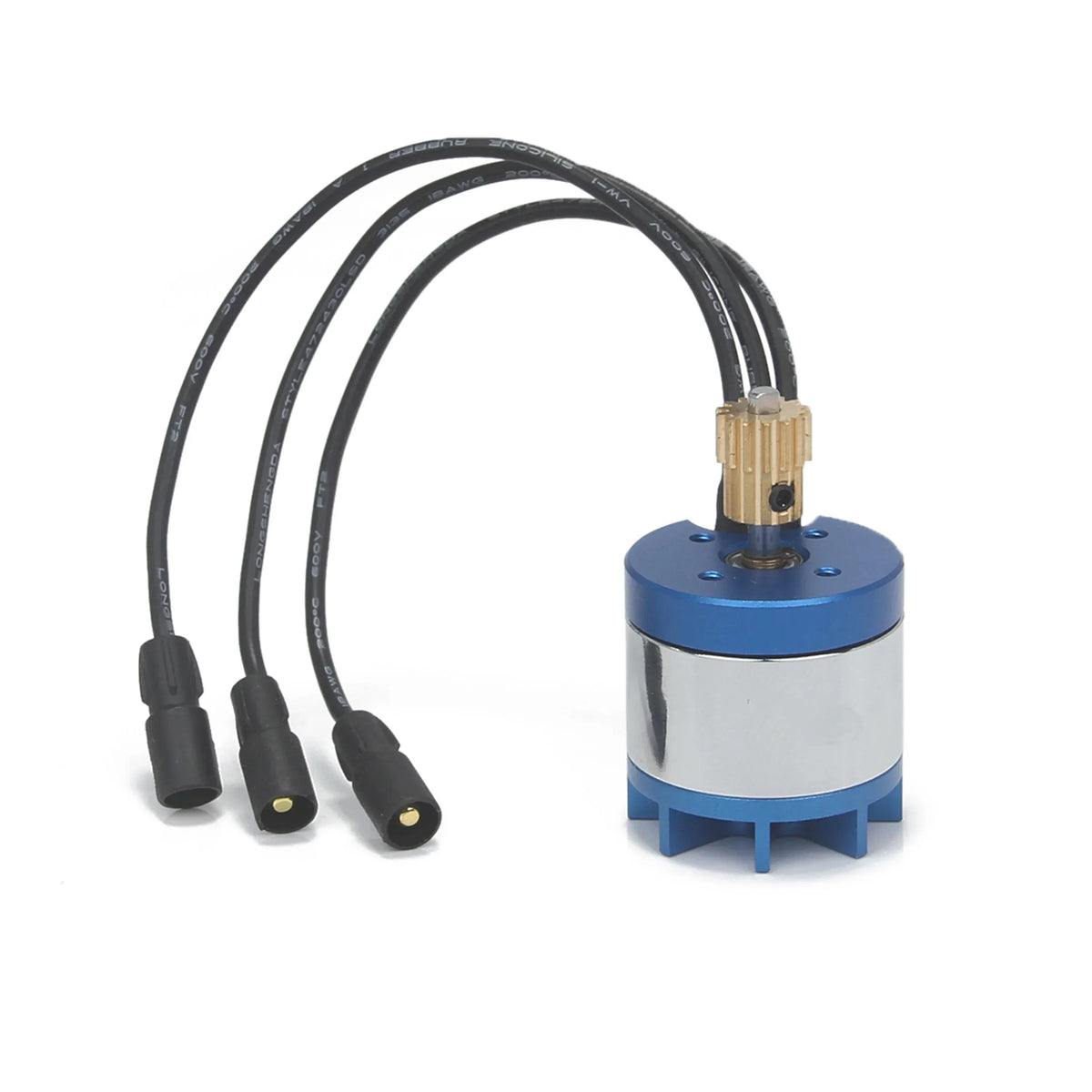

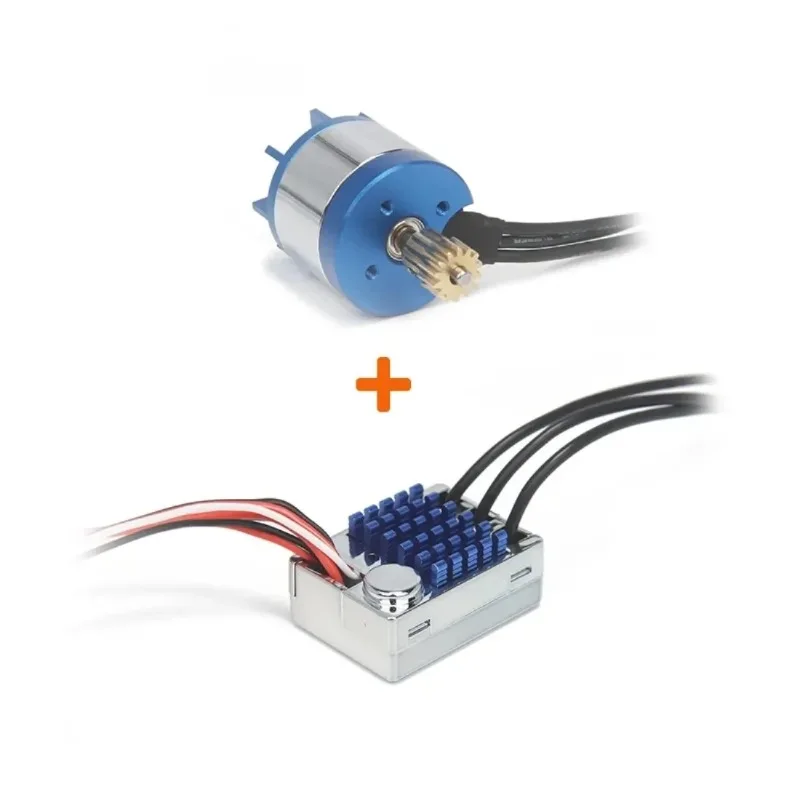

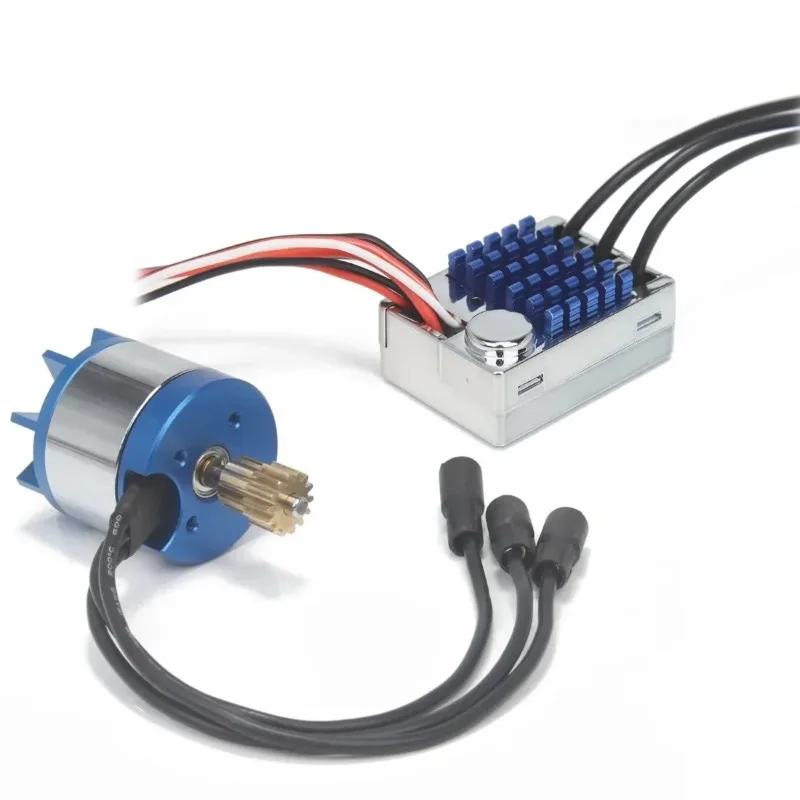

2322 2600KV 2830 2400KV Brushless Motor AM32 45A for 1/12 RC Crawler Car Off Road Car MN82 MN168 MN78 MN86 MN128 Power Kit
$120.99
SPECIFICATIONS
Brand Name: NeebRC
Certification: CE
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Motors
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: 2322 AM32 NEEBRC
Origin: Mainland China
Product Name: NEEBRC 2322 2600KV Outrunner Motor AM32 45A ESC 21g Servo
Quantity: 1 pcs
RC Parts & Accs: Motors
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 2600KV 45A 21g
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Frame
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate

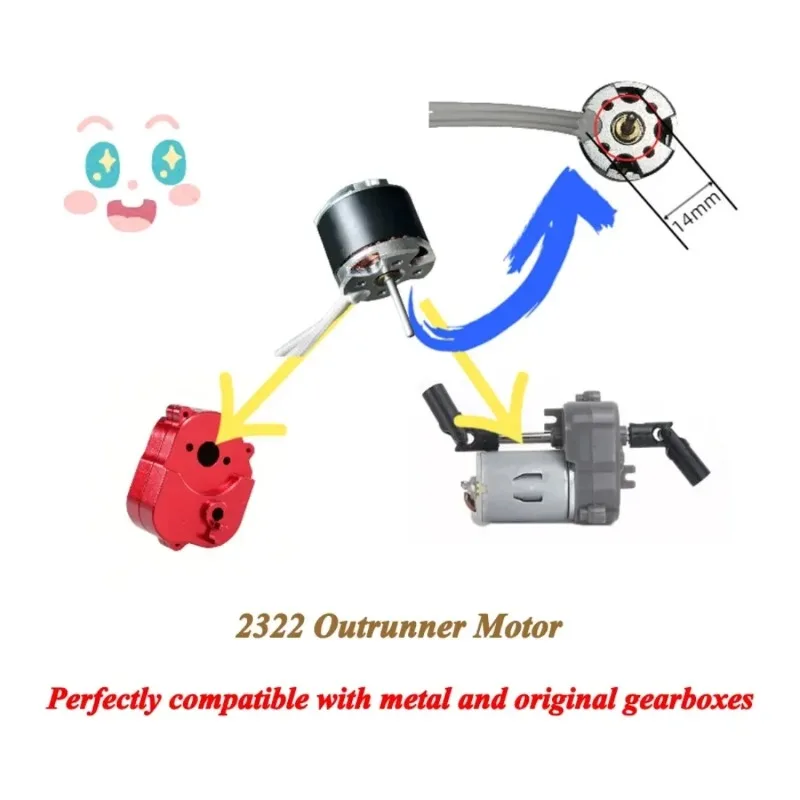

Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearbox
Smaller size, stronger power
No need to polish the bottom shell or car shell during installation
After modification, low-speed torque compensation, better linearity, easy to climb
Specification:
Applicable vehicle models: MN82 MN99S MN168 MN78

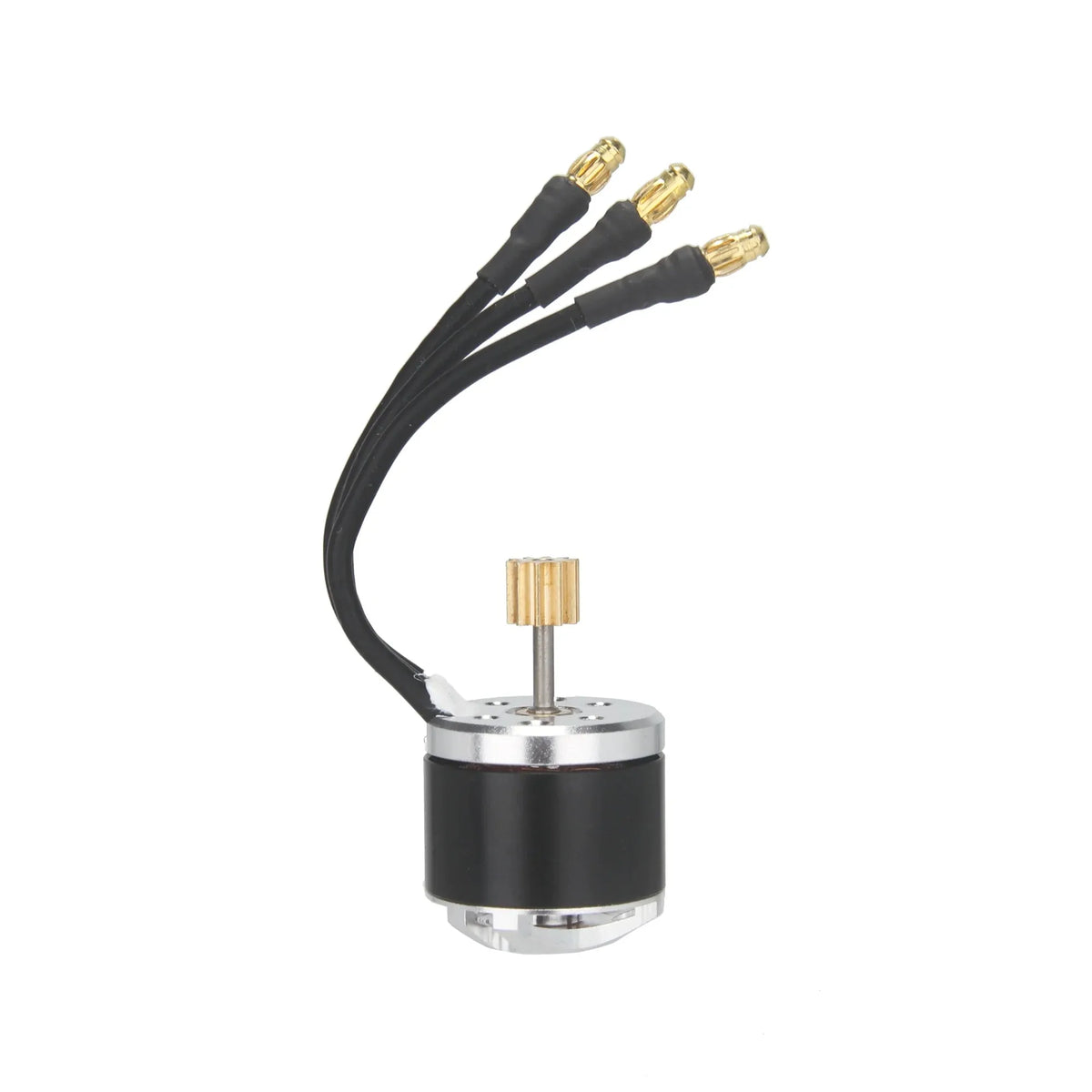

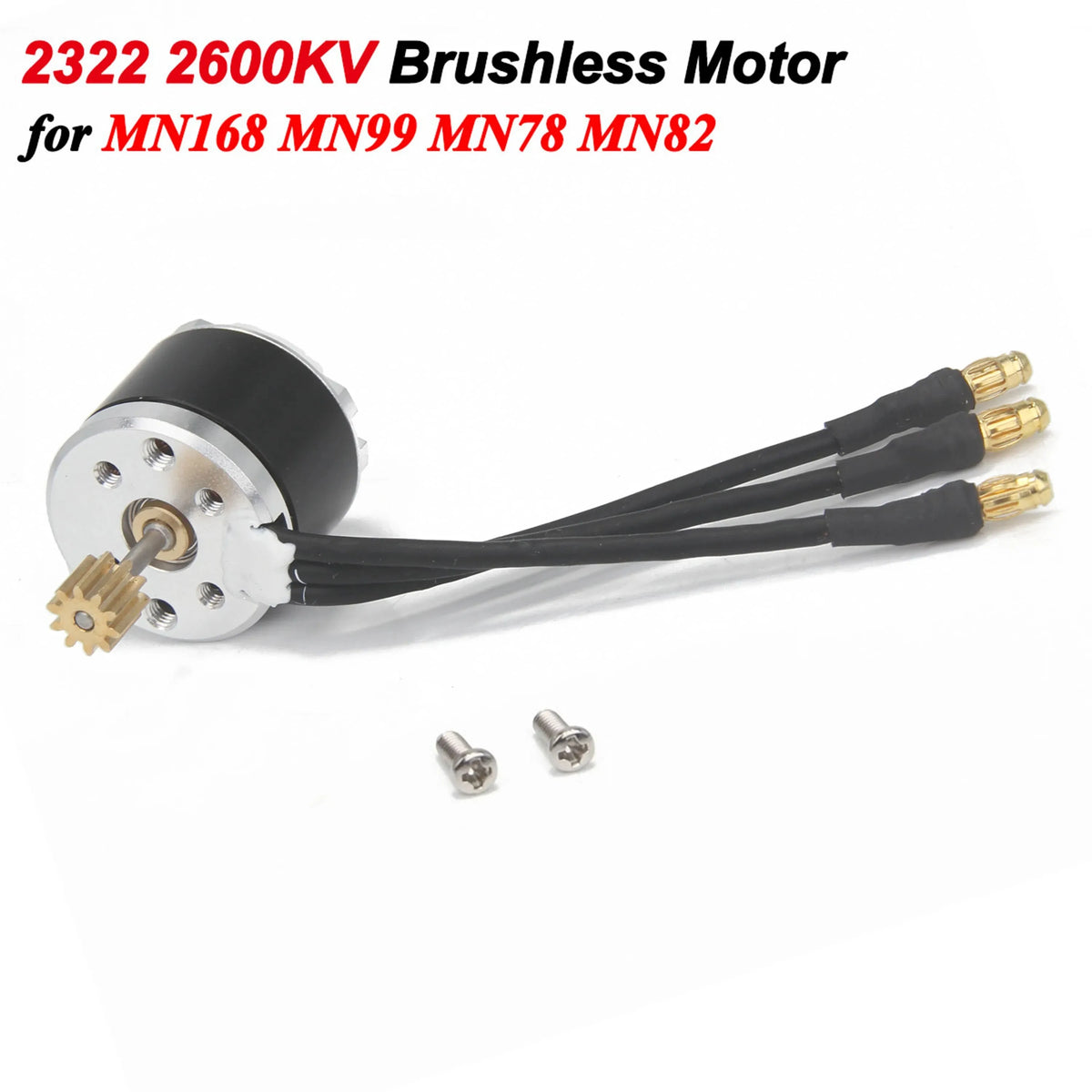

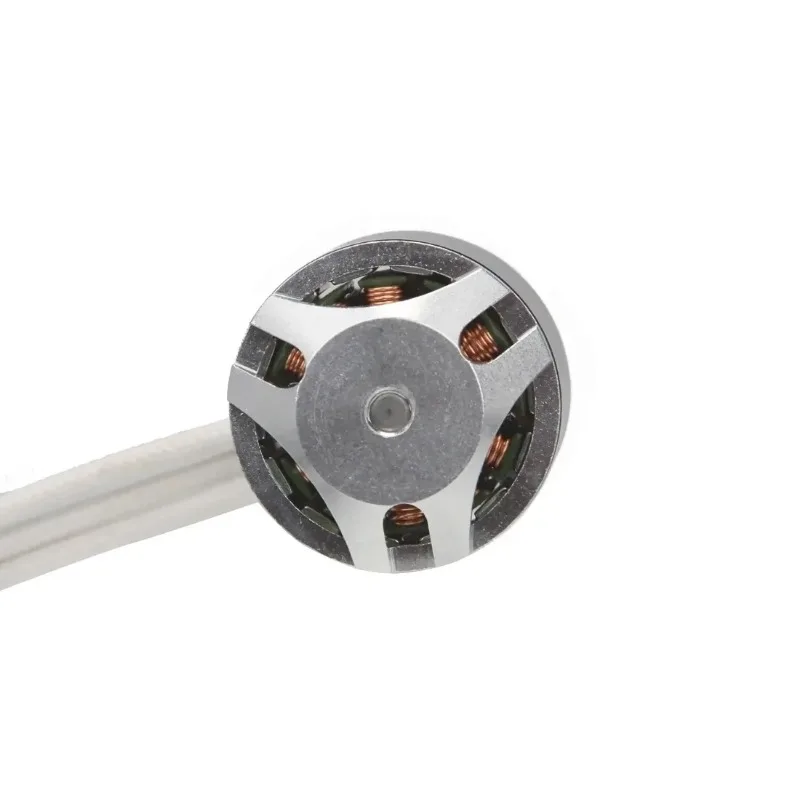

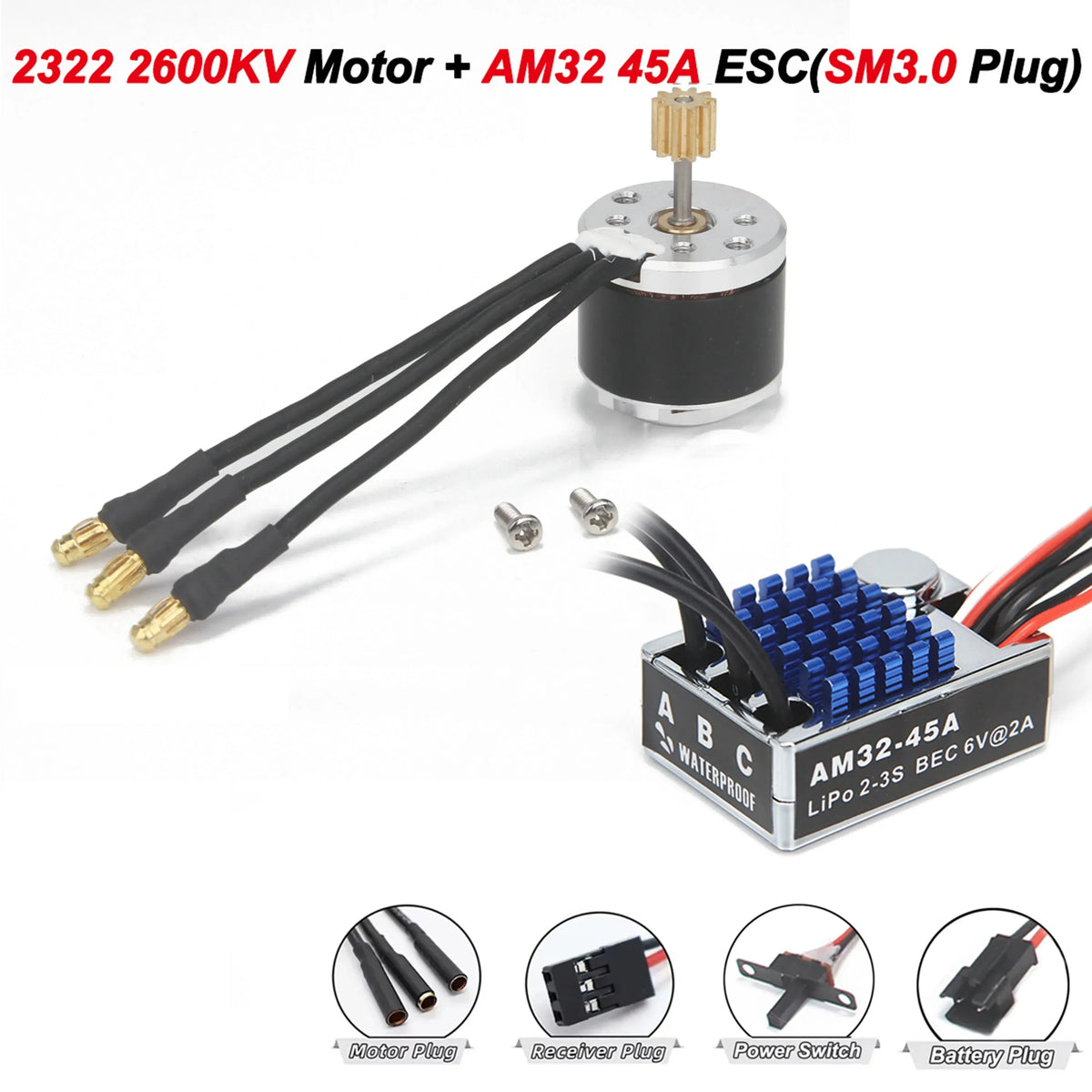

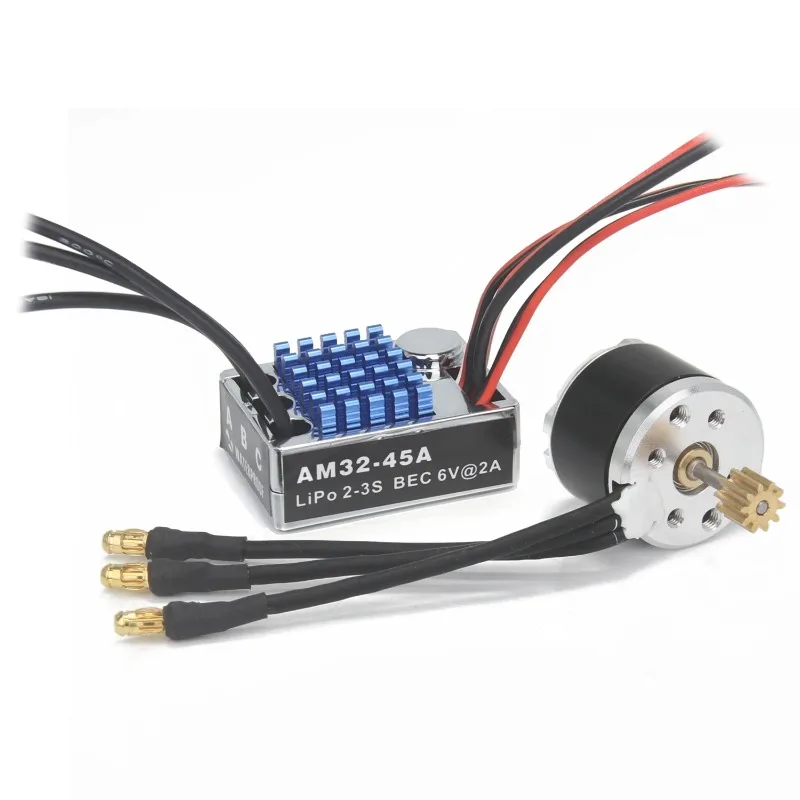

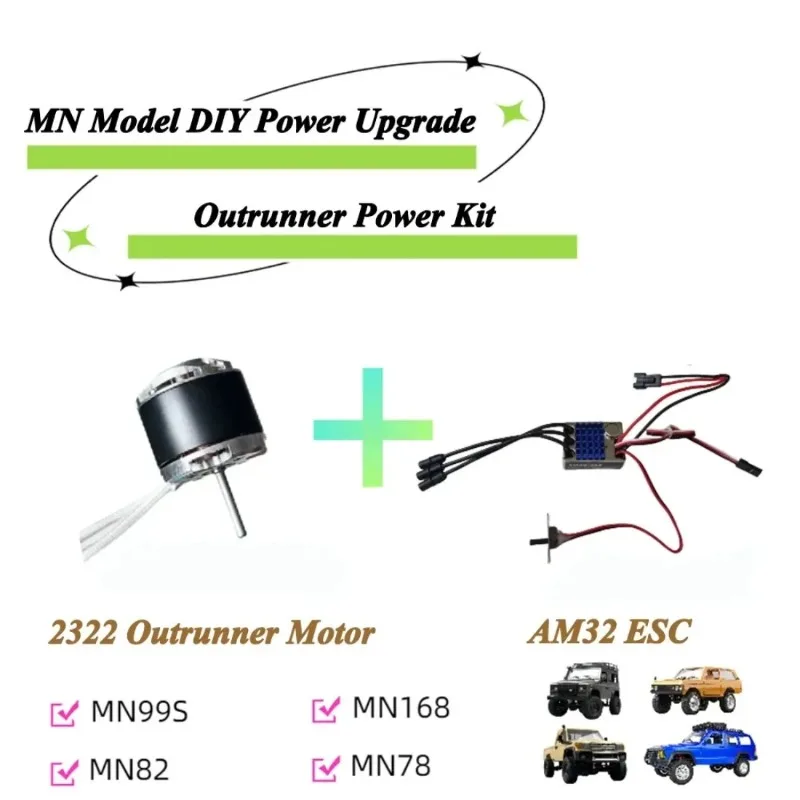

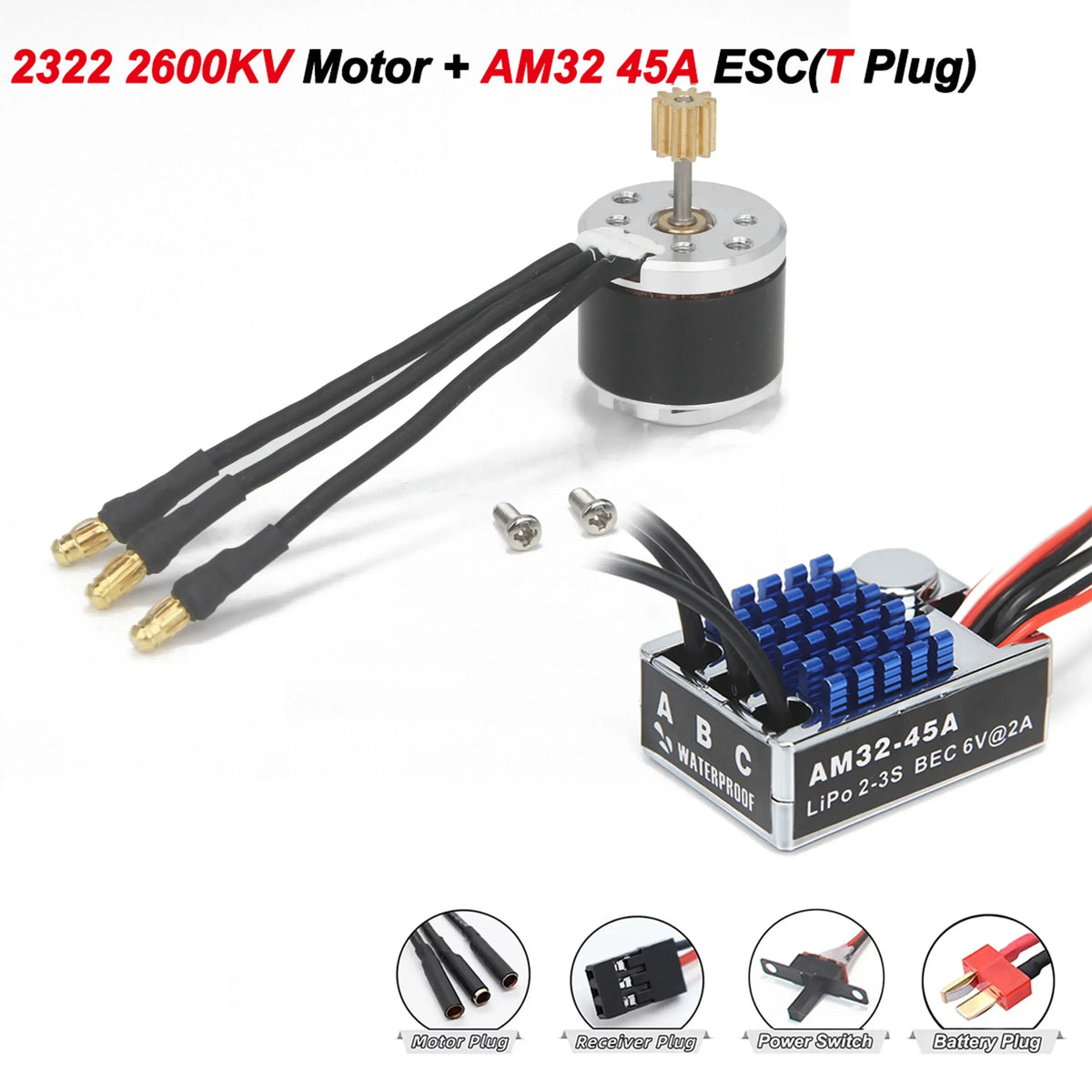

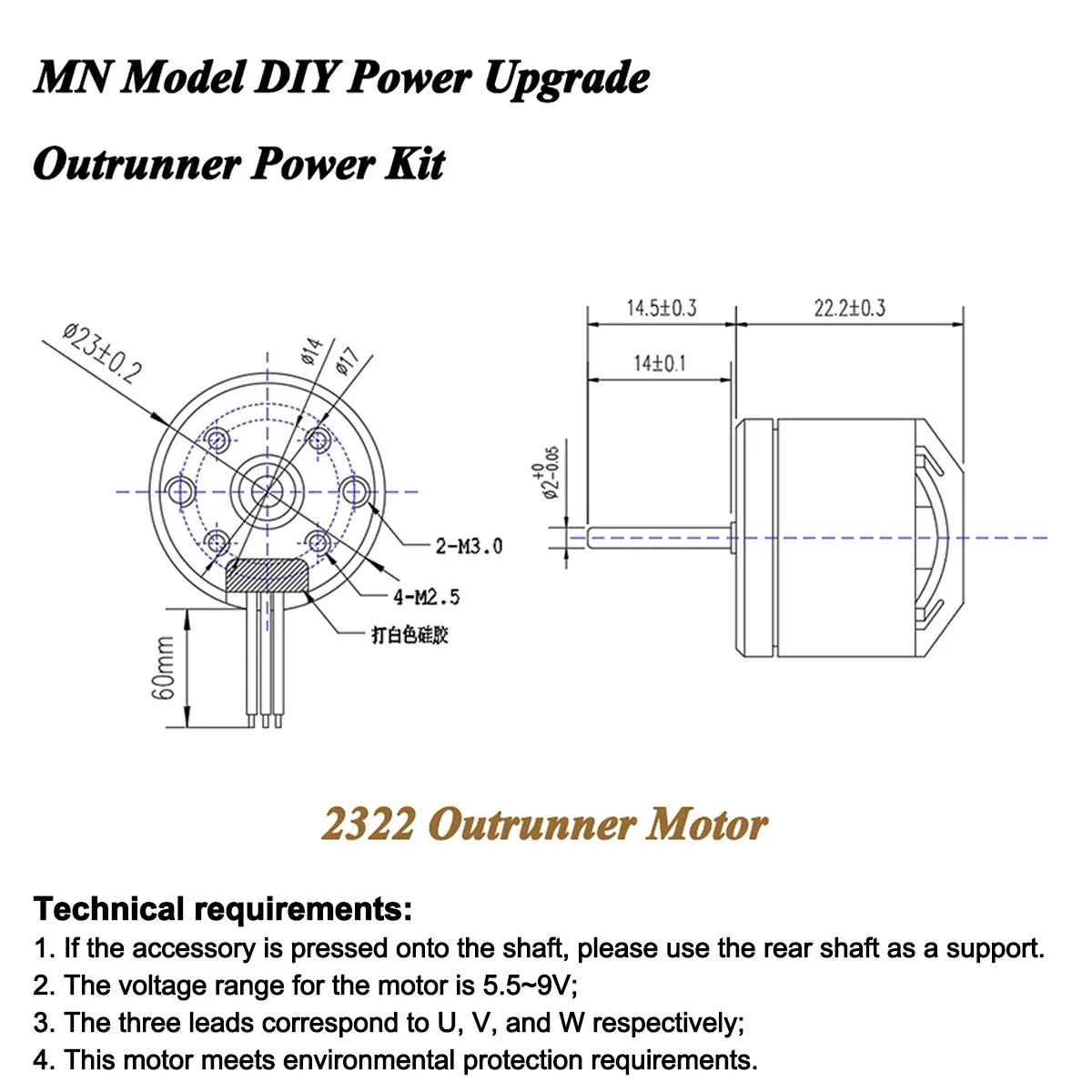

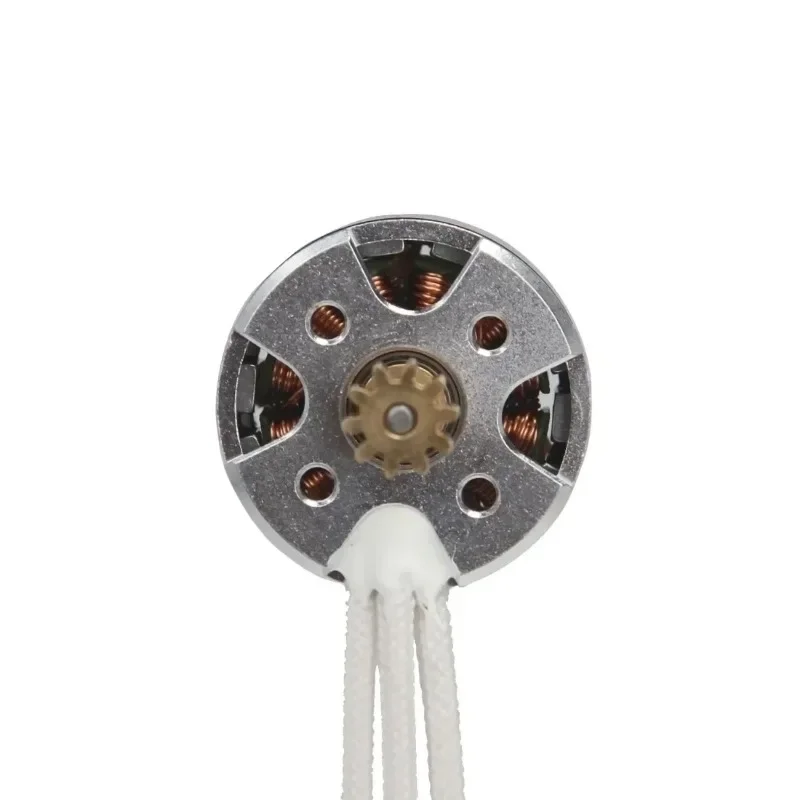

Product: 2322 2600KV external climbing motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max
Number of gear teeth: 10T

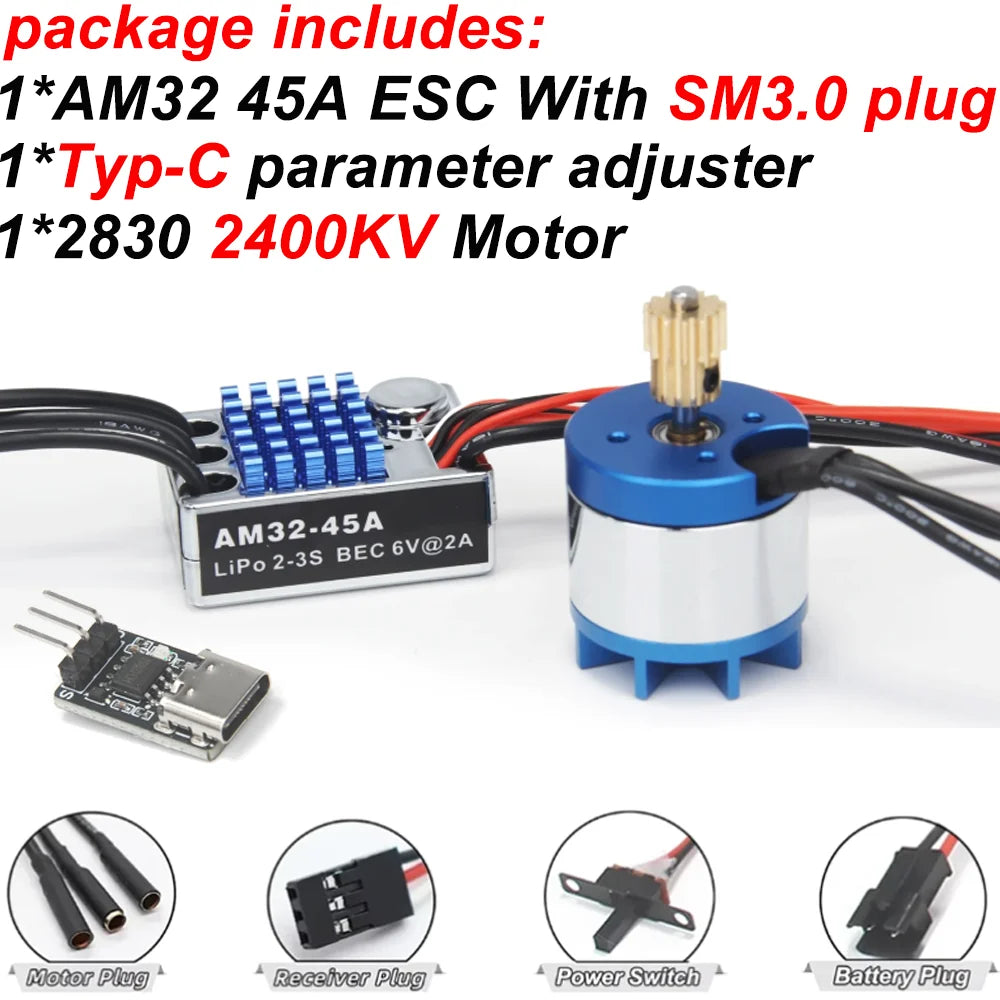

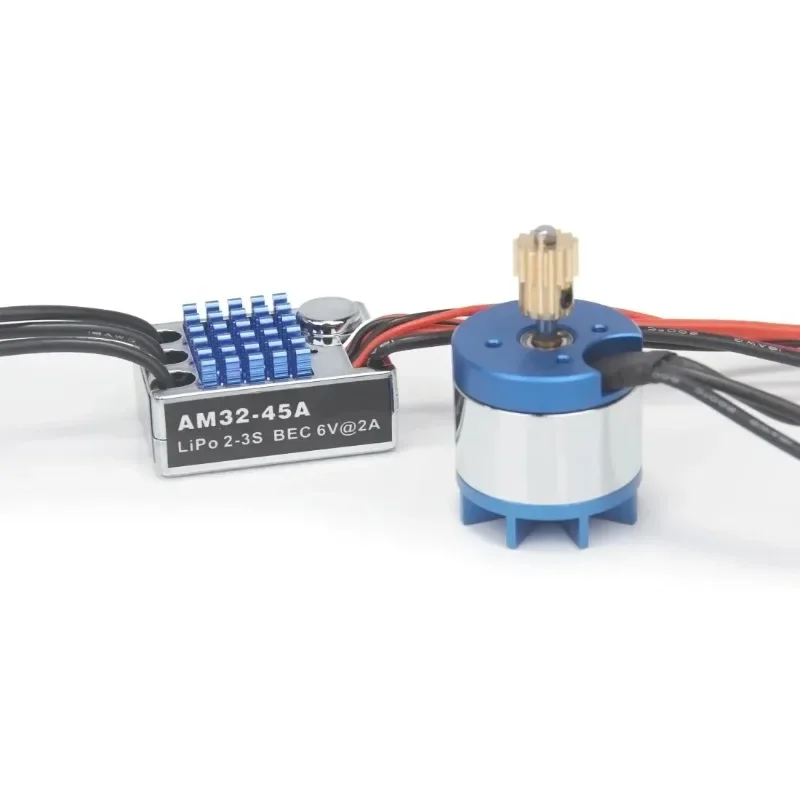

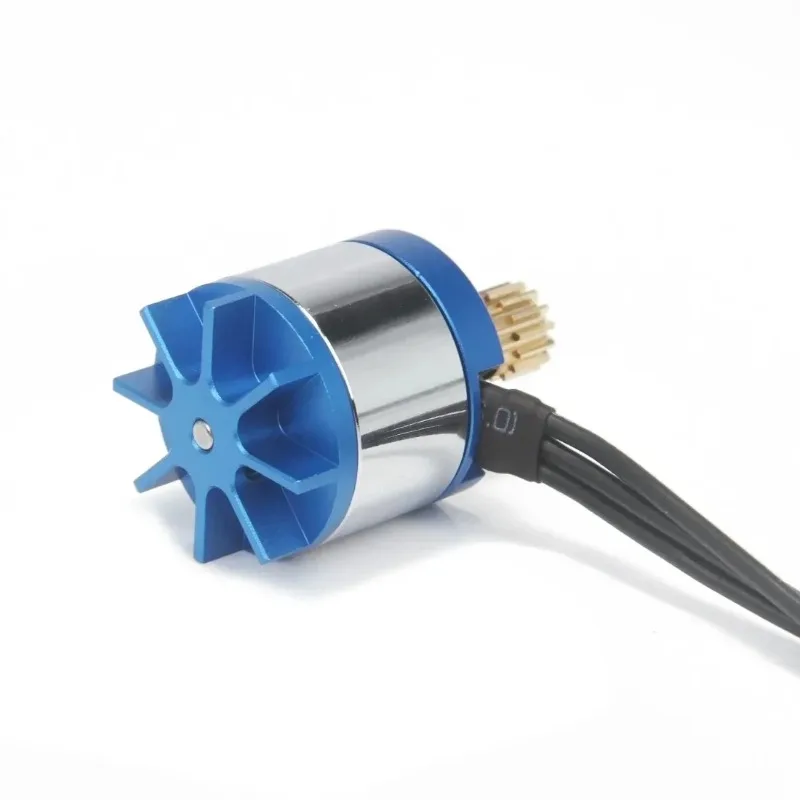

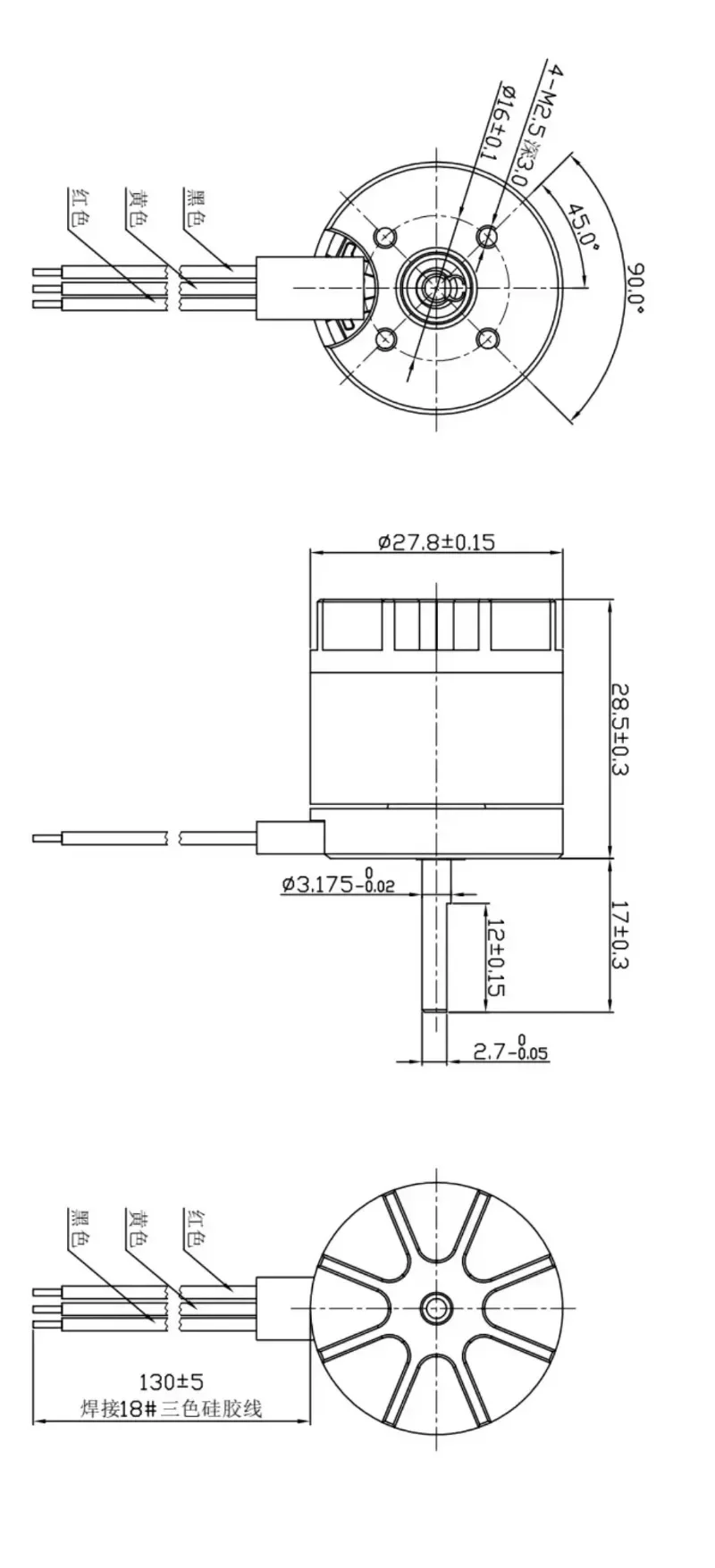

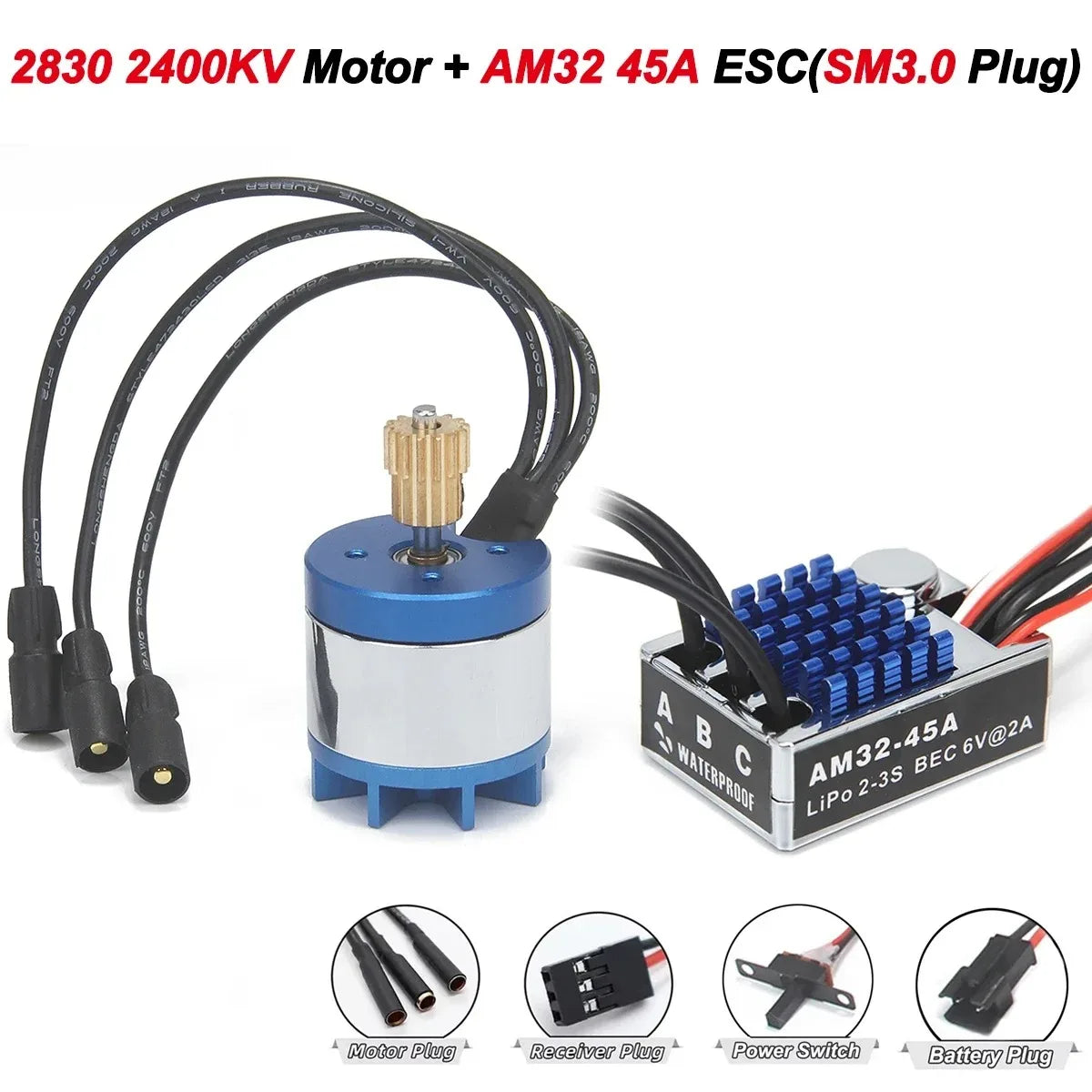

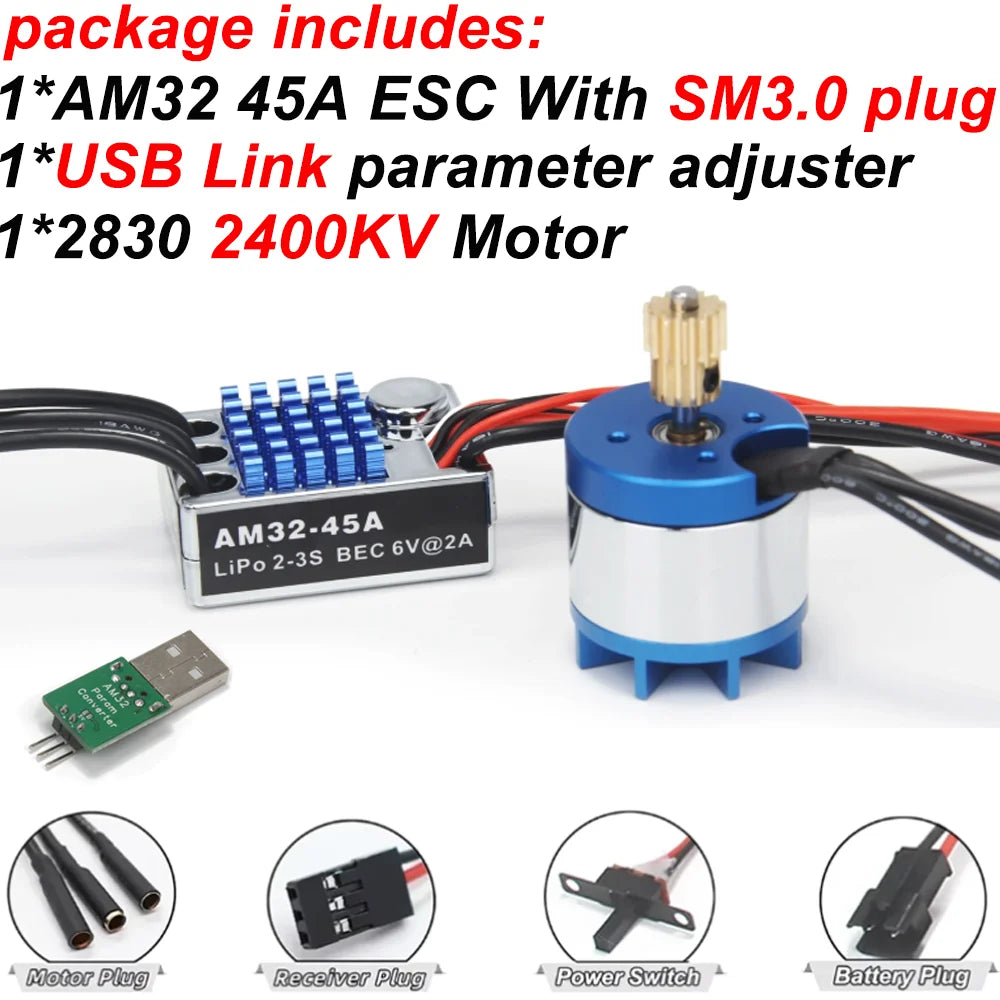

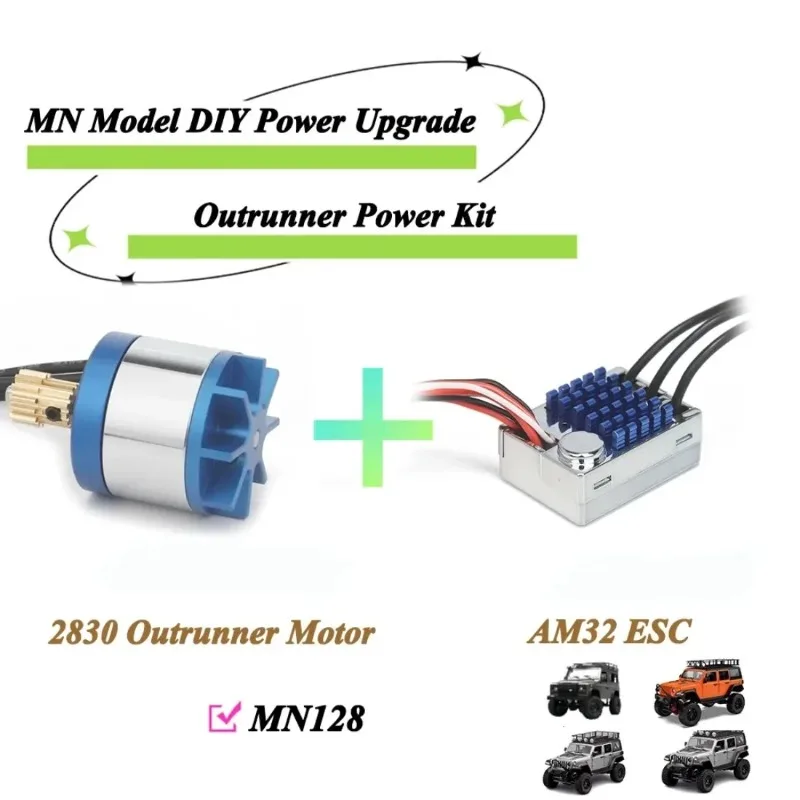

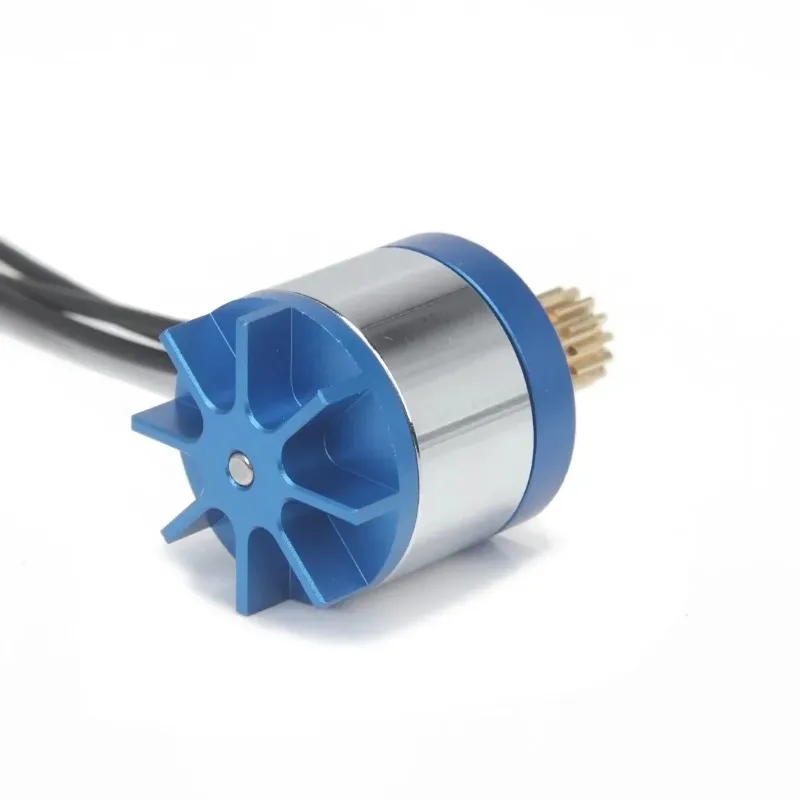

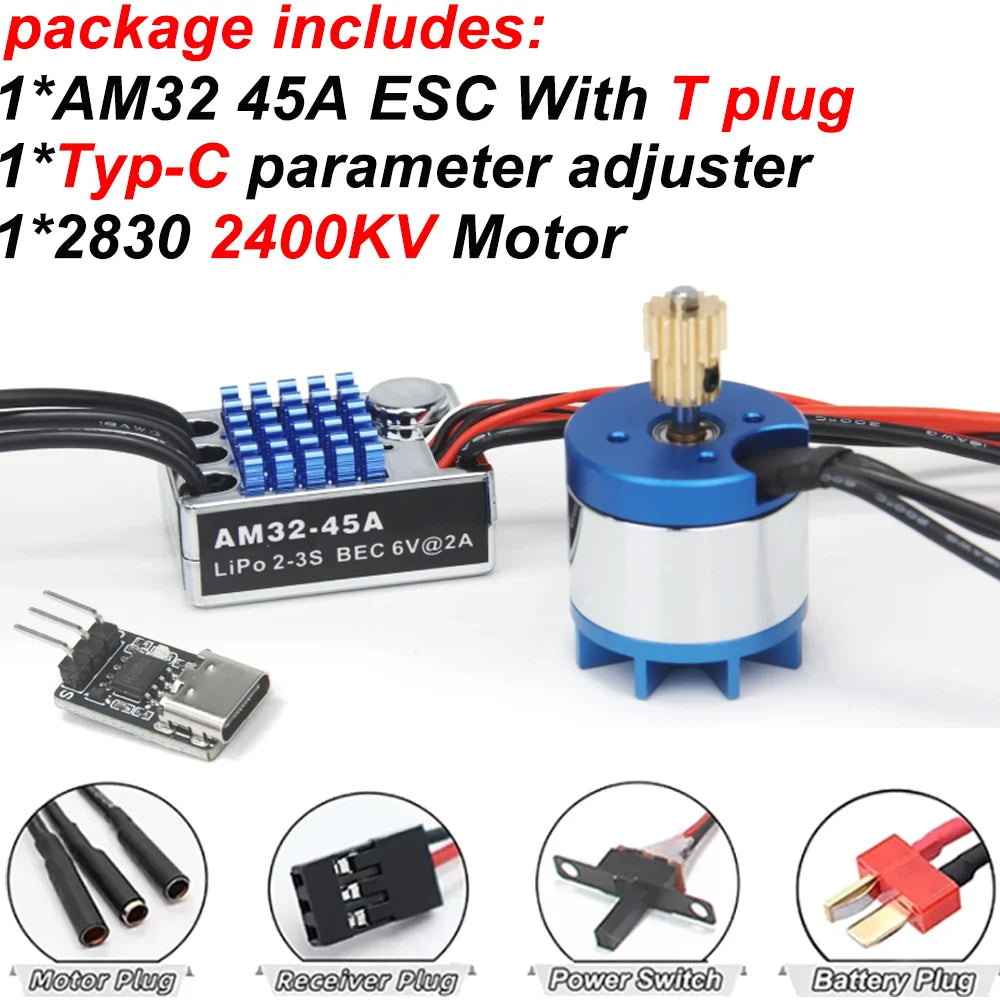

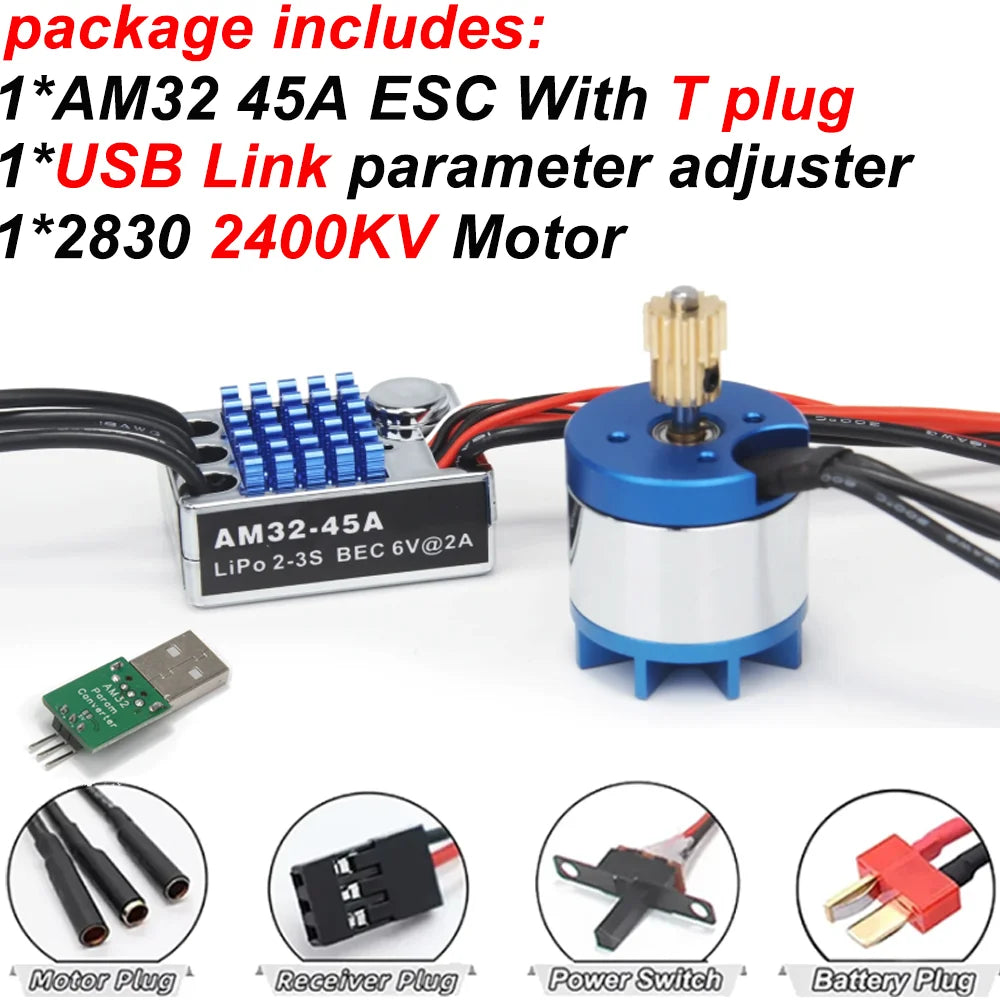

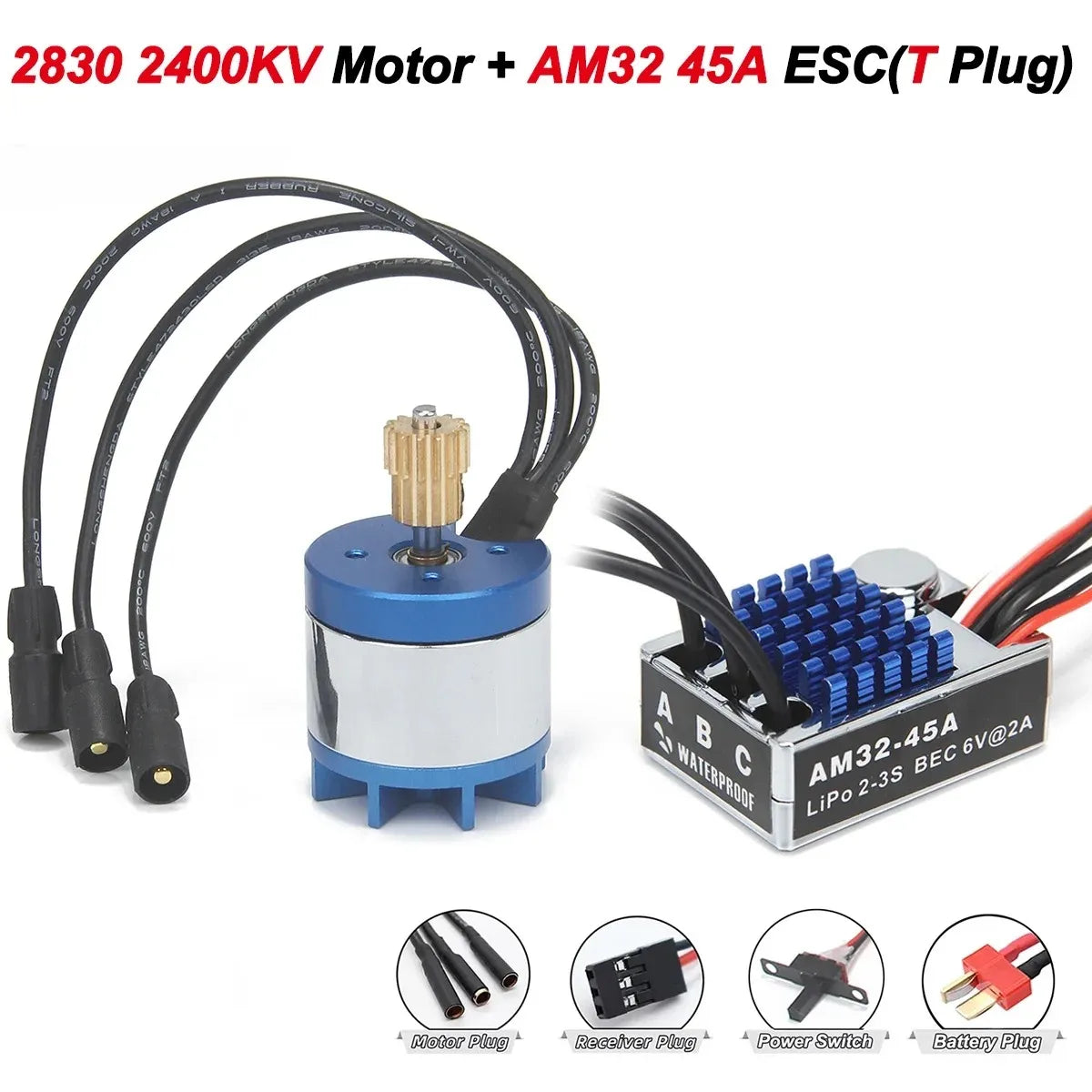

2830 2400KV Motor Specification:
Applicable vehicle models: MN128 MN86
Using voltage range: 7.4-12.6V
Rated voltage: 7.4[VDC]
Lipo: 2-3S
No-load current: 500 [mA] max
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Banana Plug:3.5mm

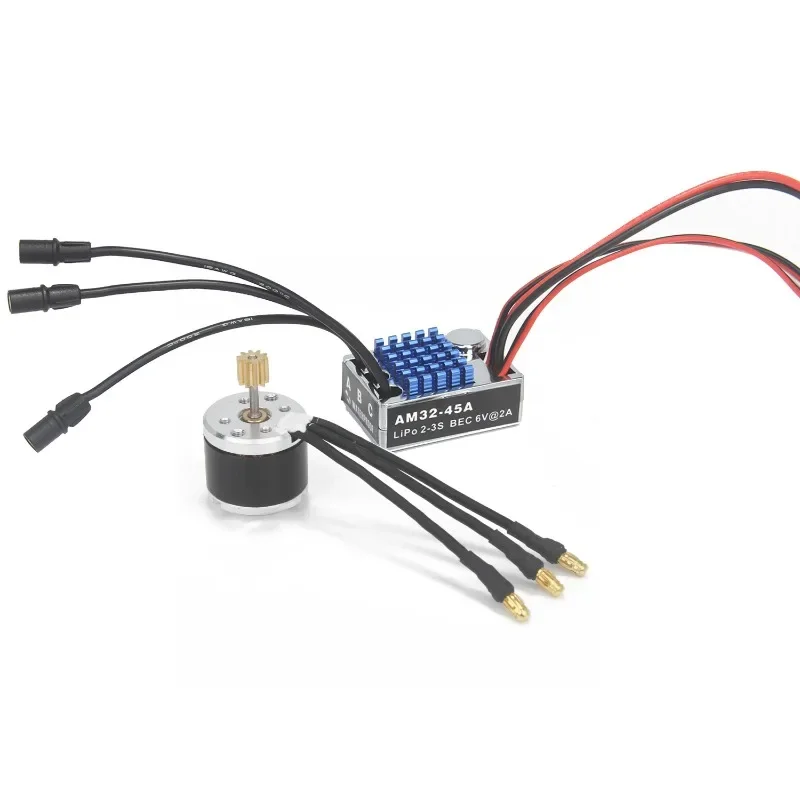

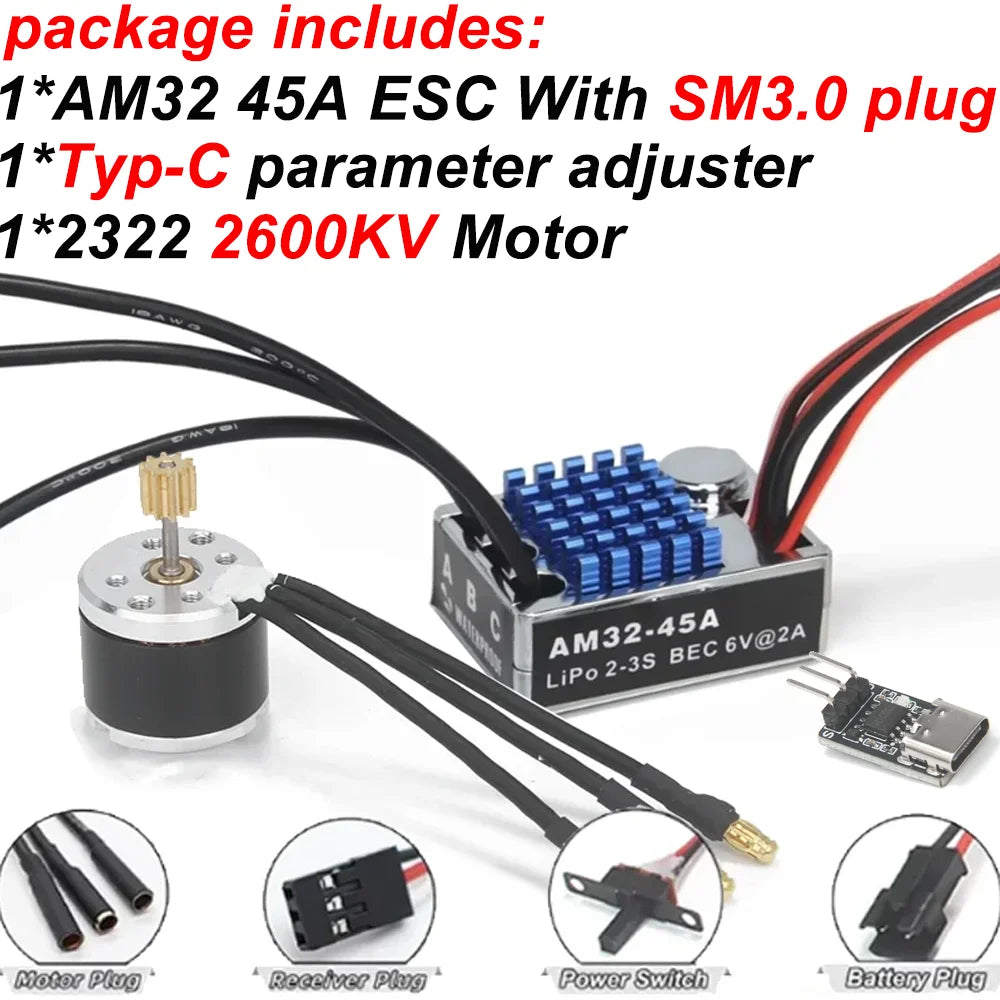

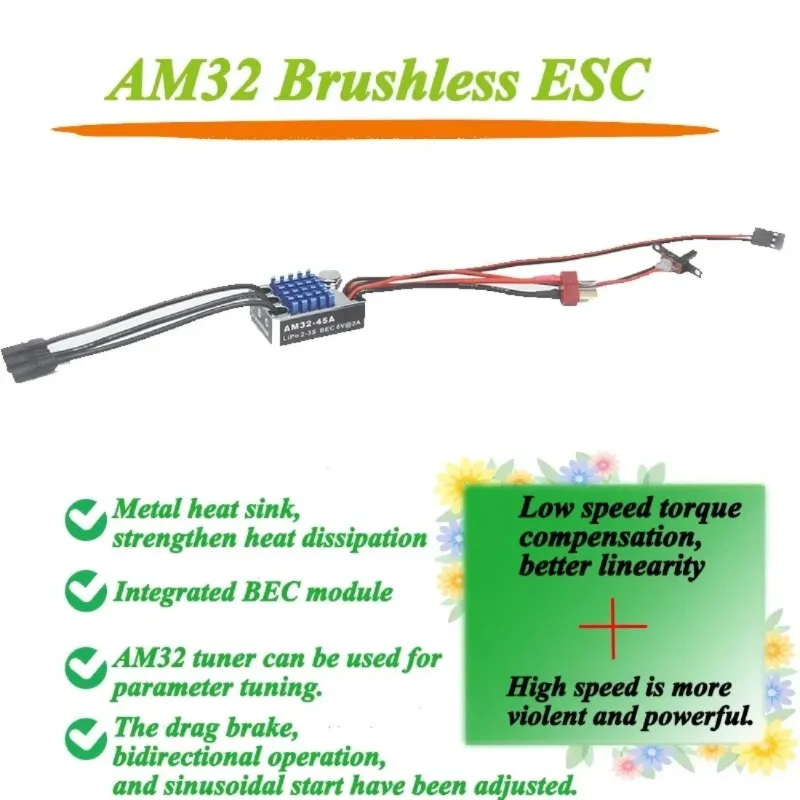

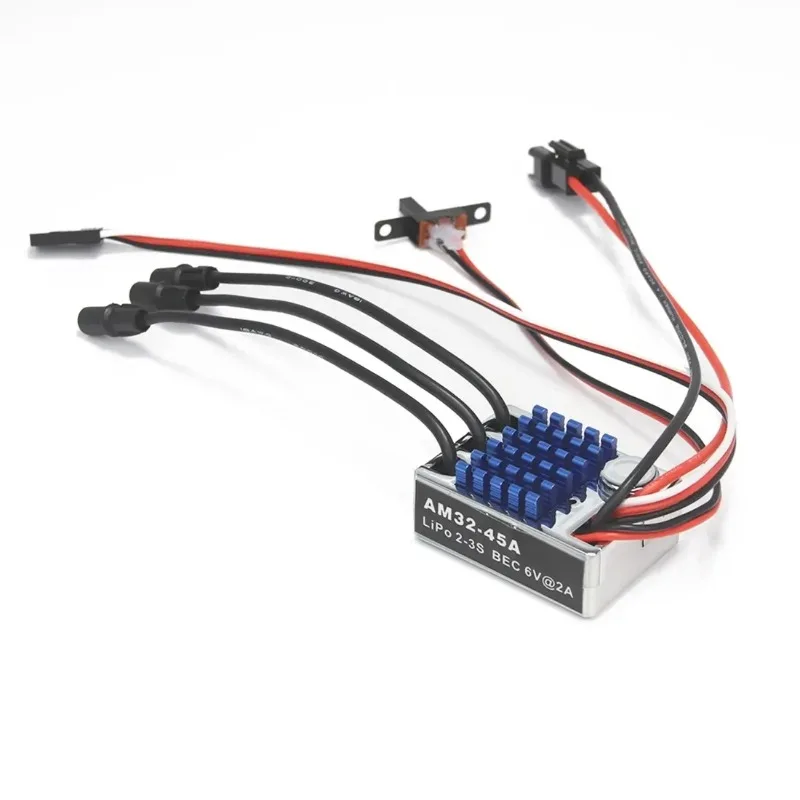

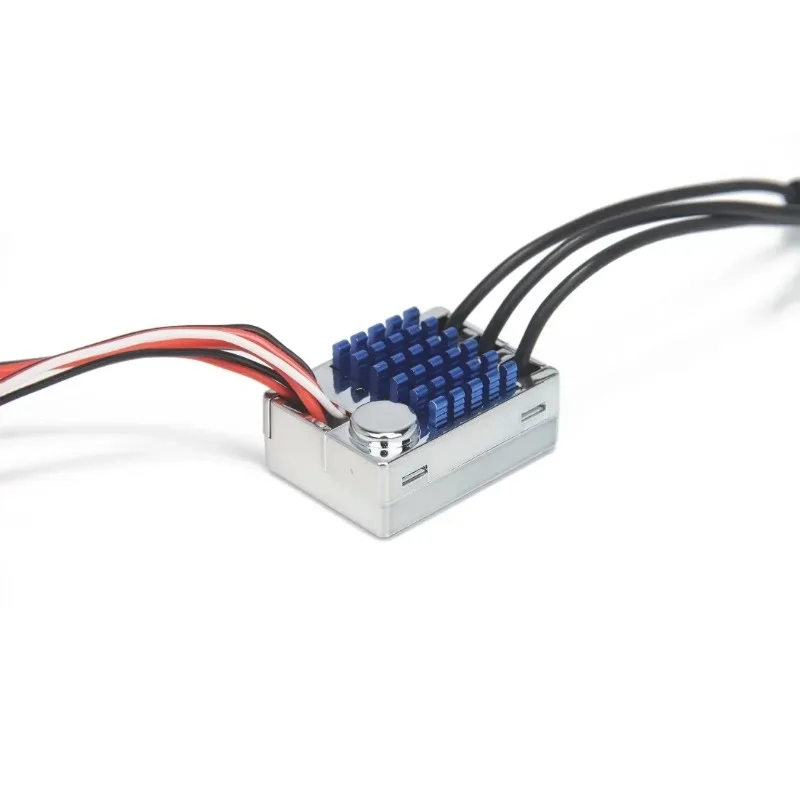

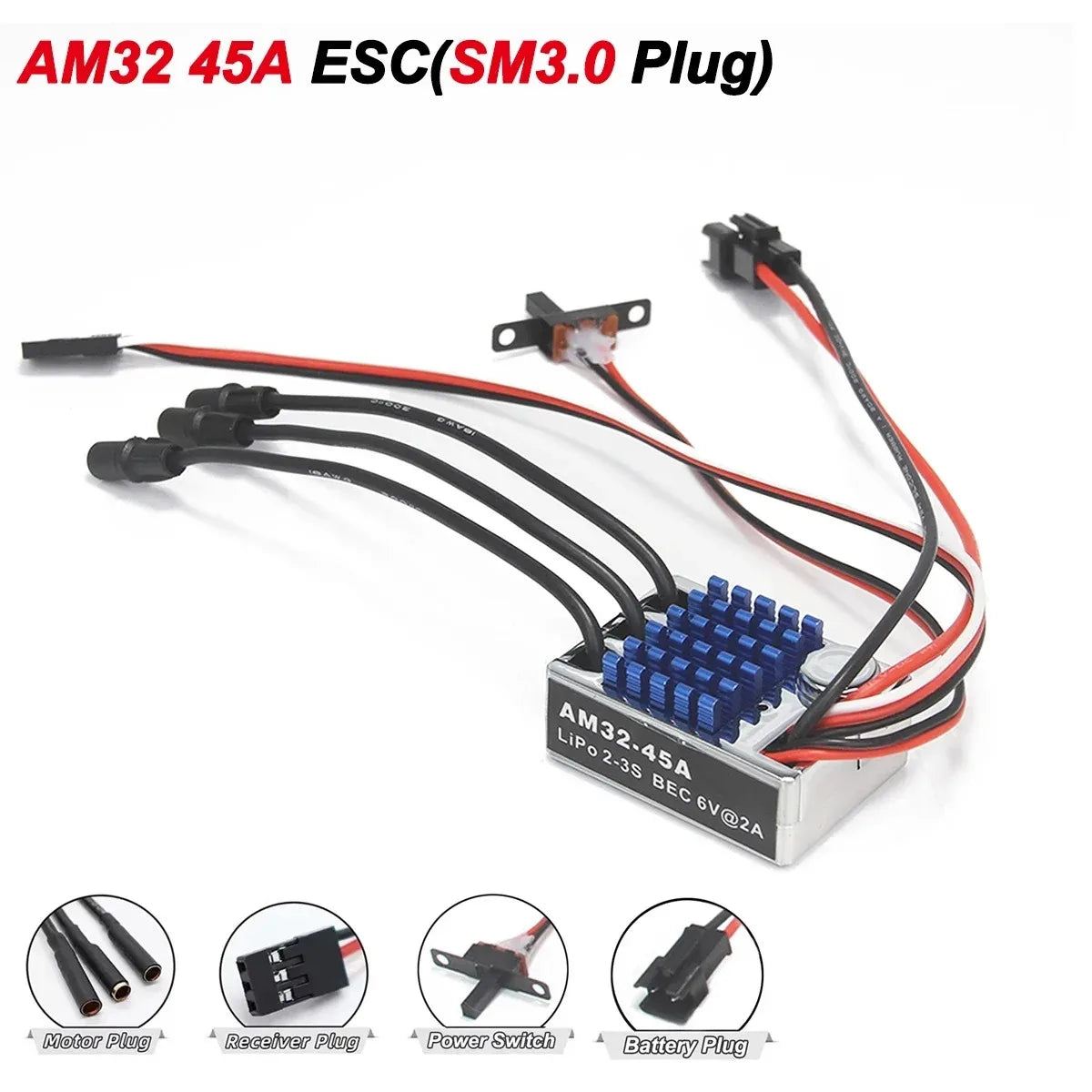

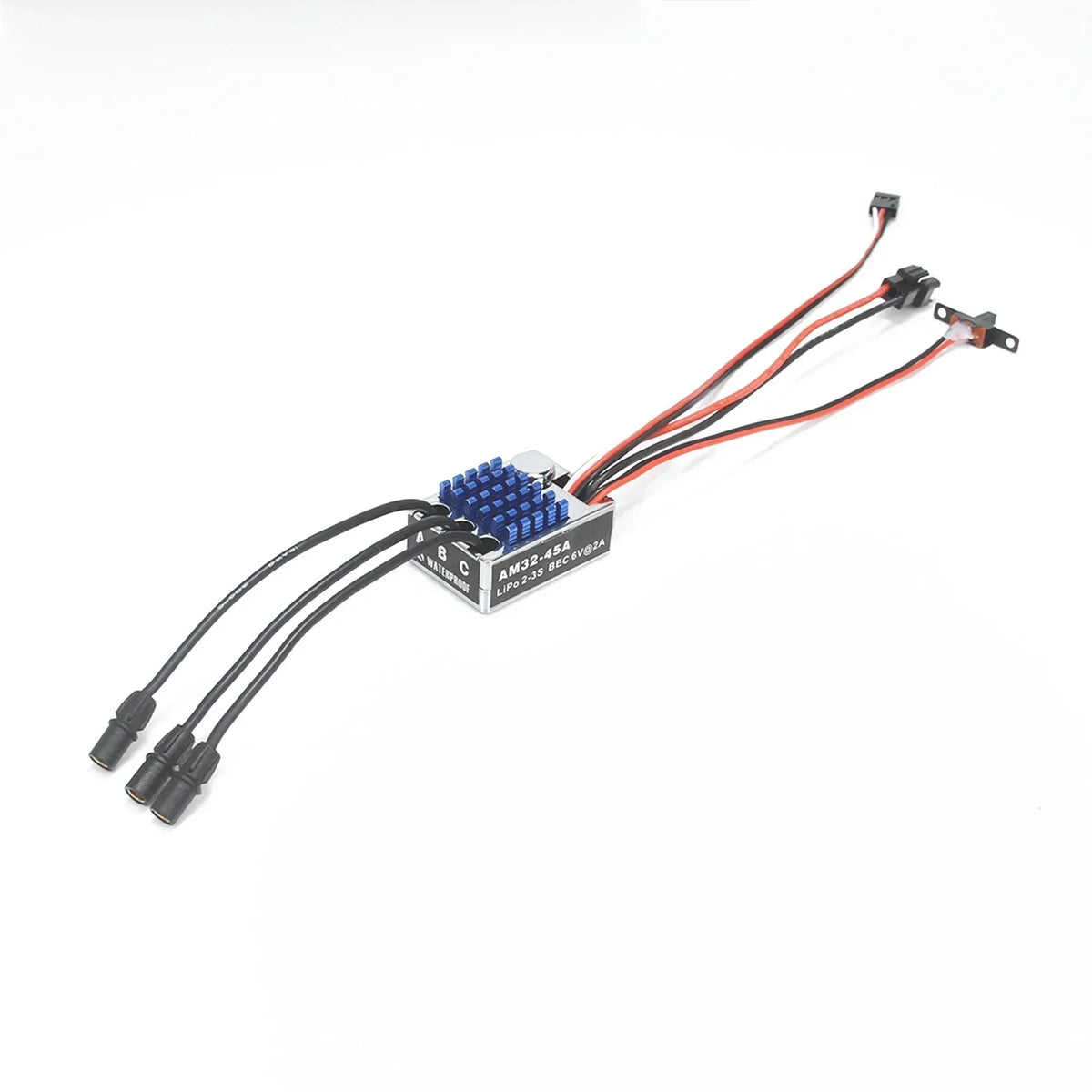

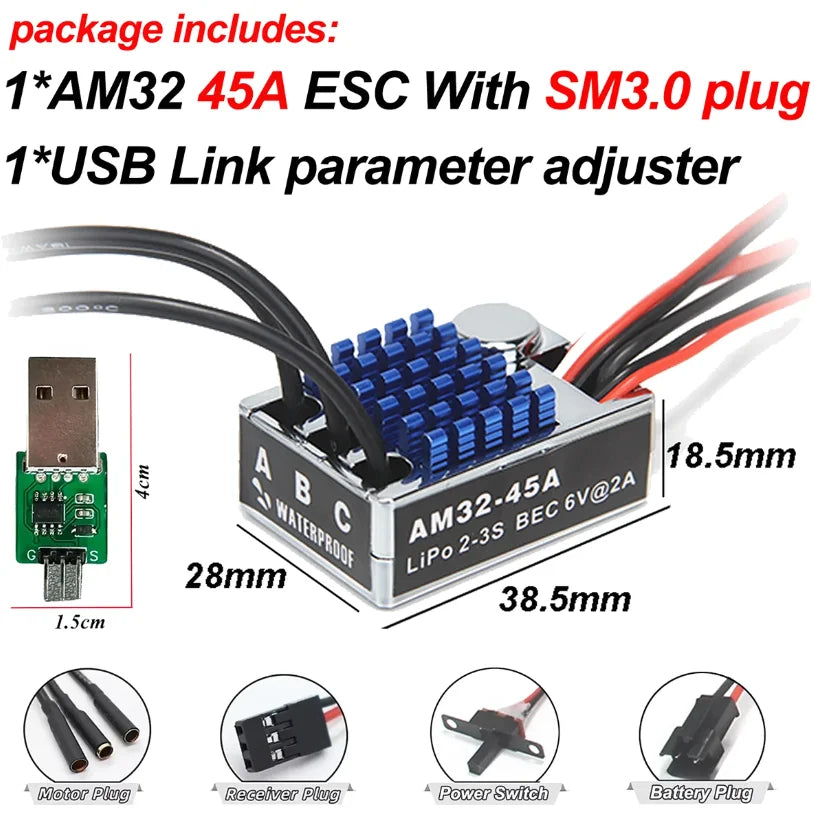

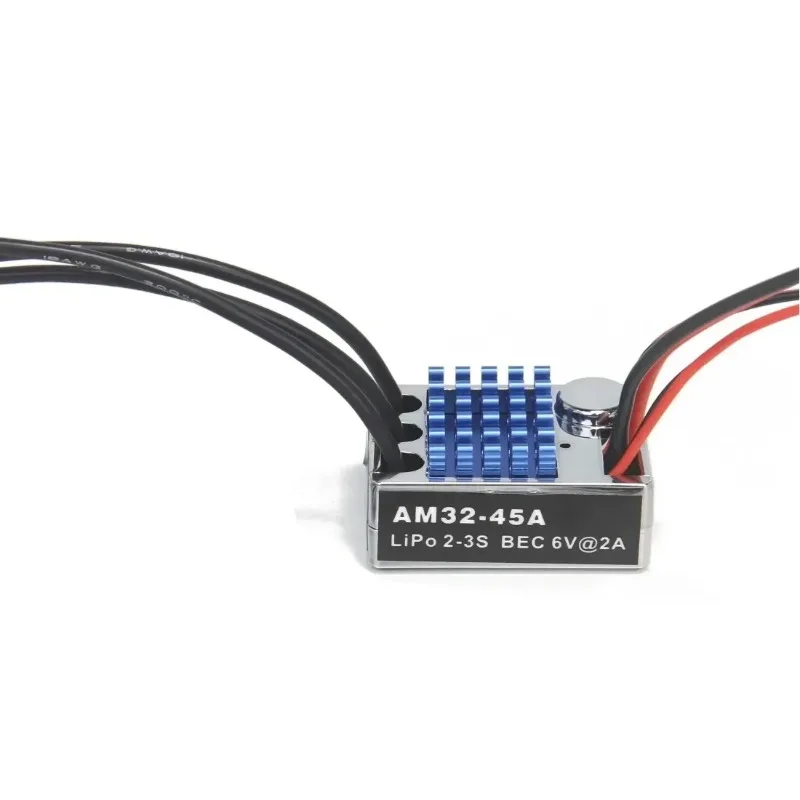

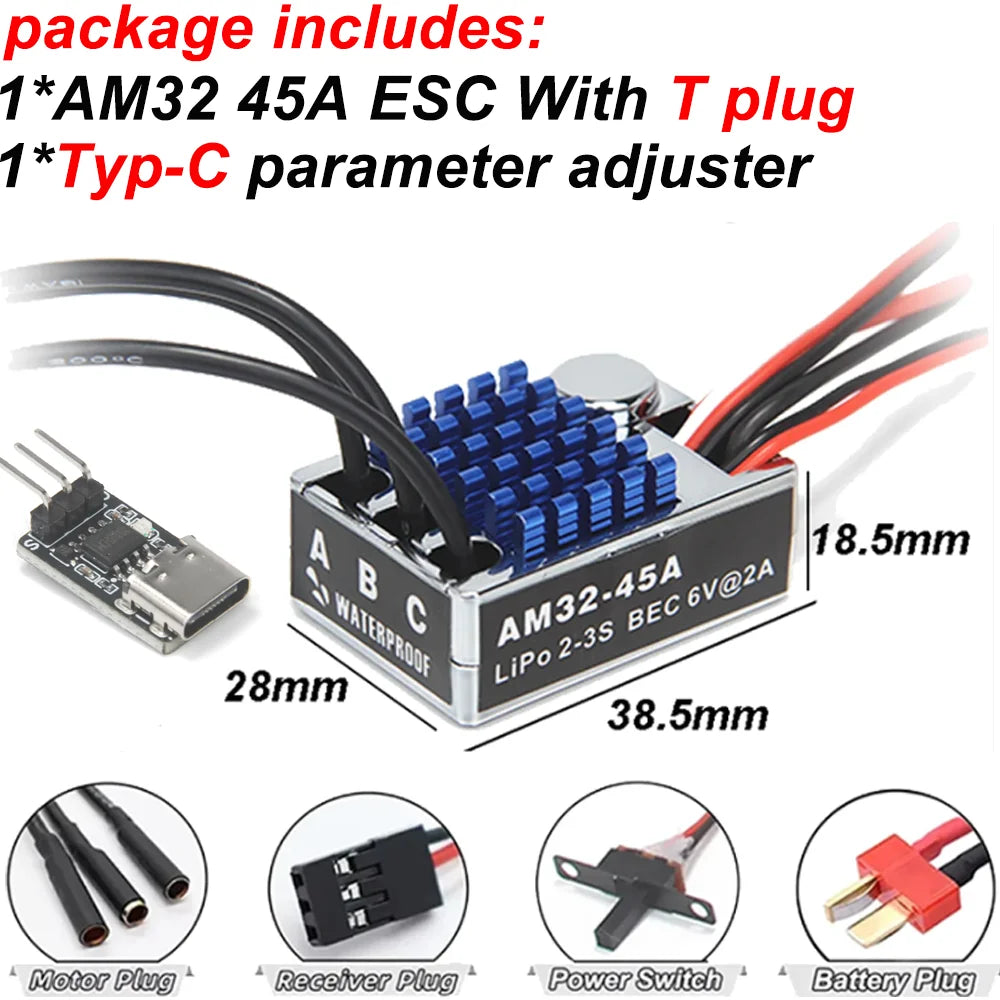

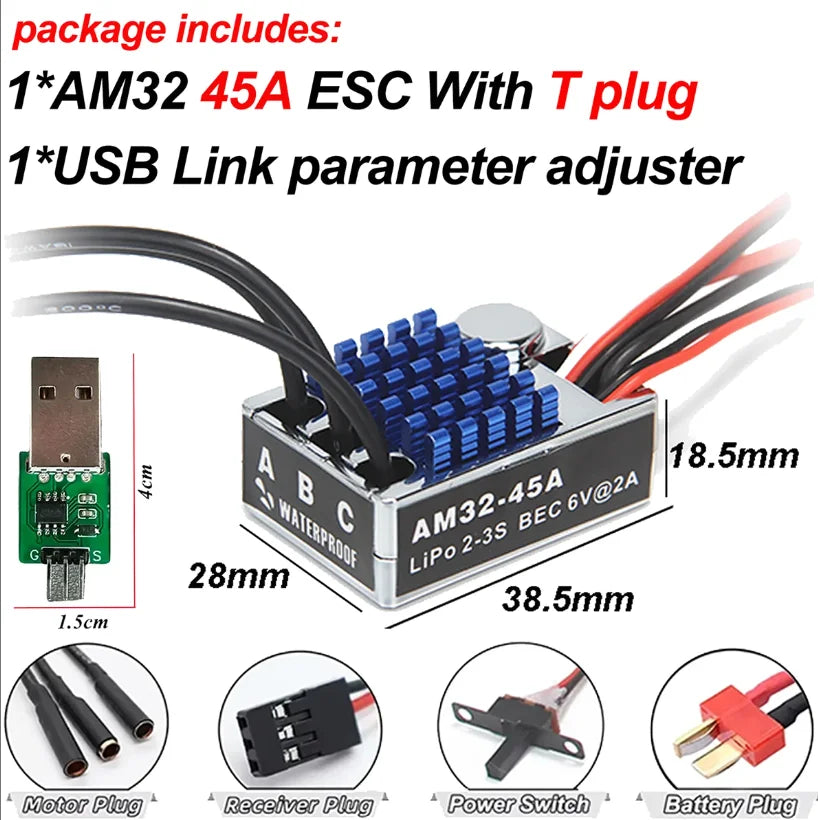

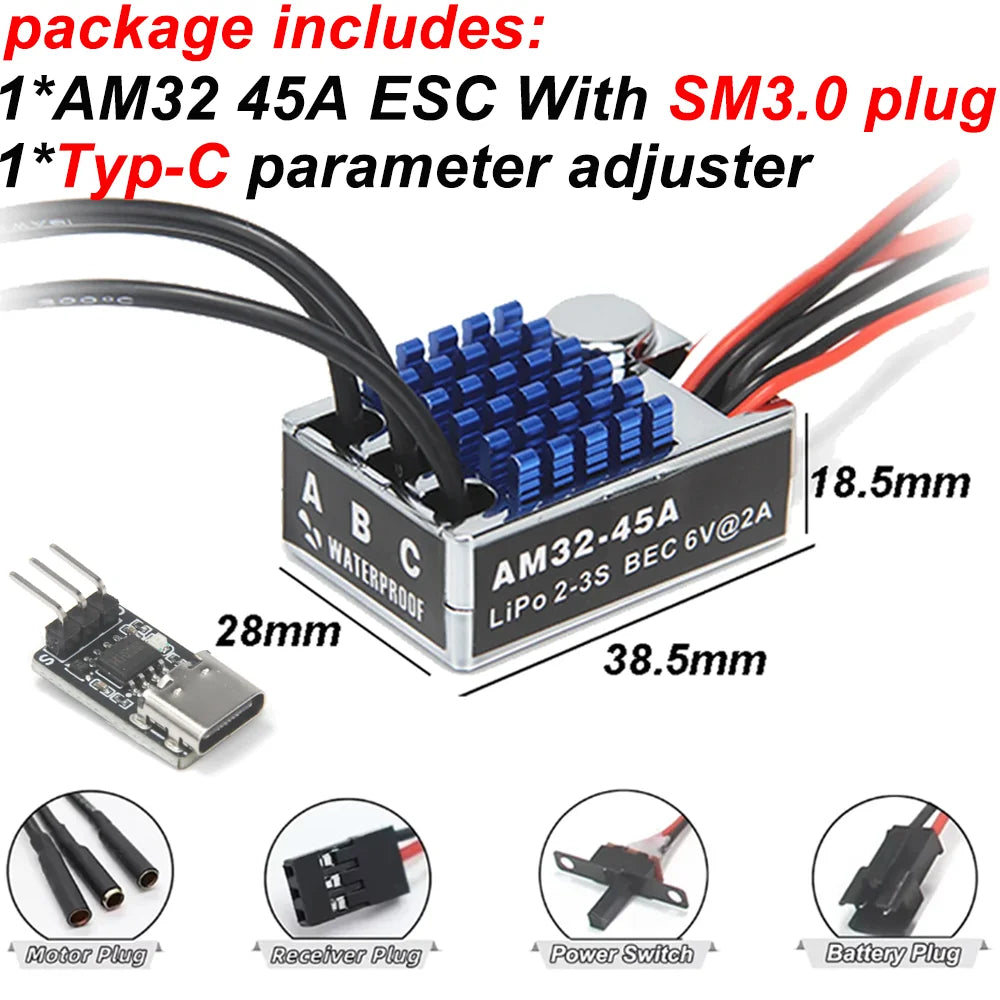

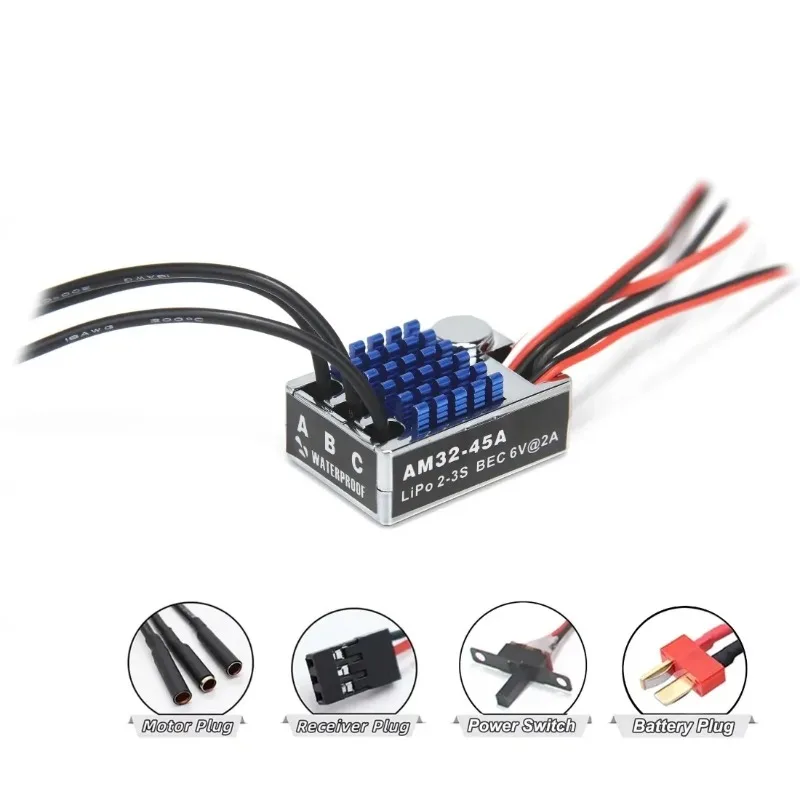

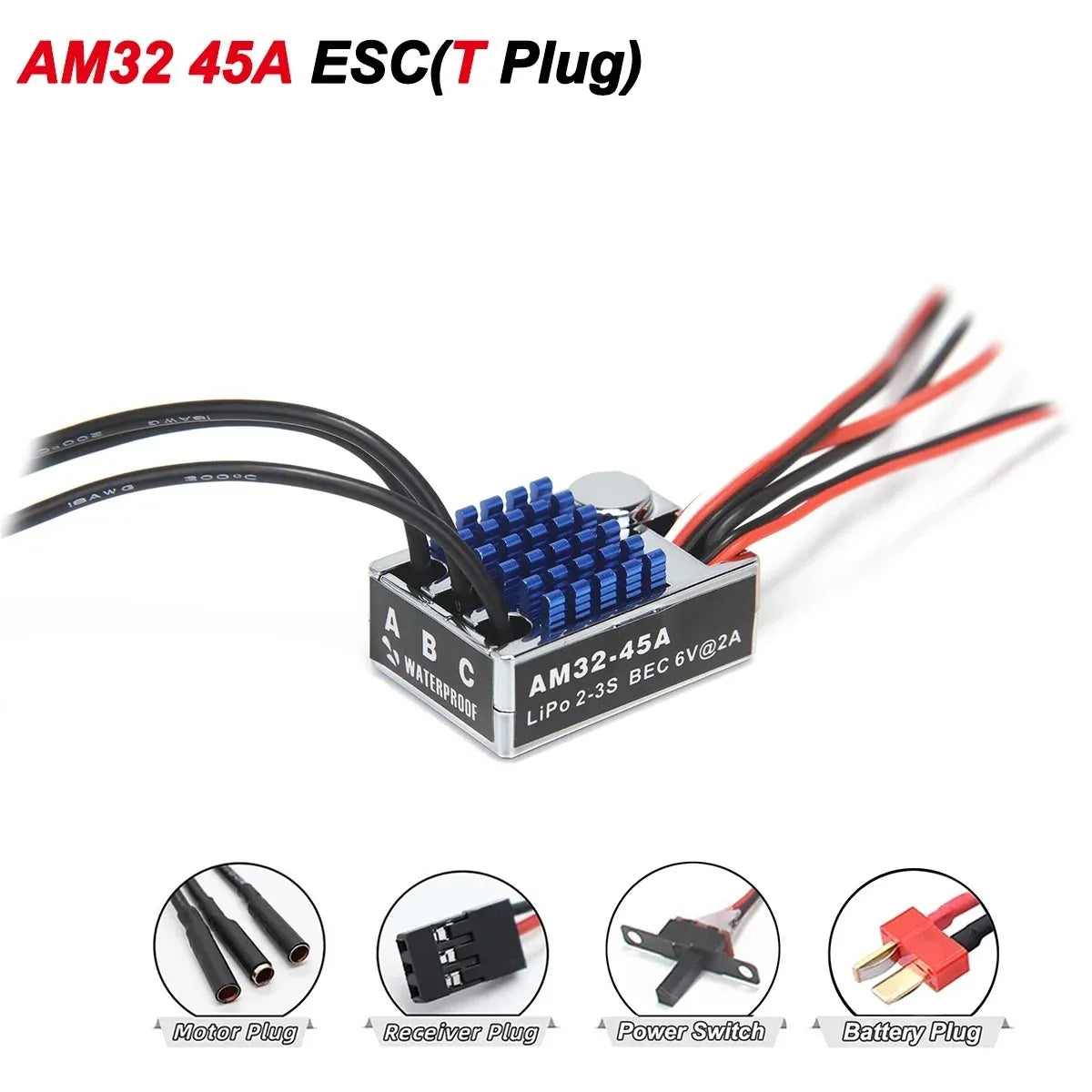

AM32 45A ESC Specification:
Voltage:7.4-11.1V
Lipo:2-3S
Battery Connector:SM3.0/T Plug
Cont.Current:45A
Start-up:Sine start
Low speed torque compensation: Comes with low-speed torque compensation

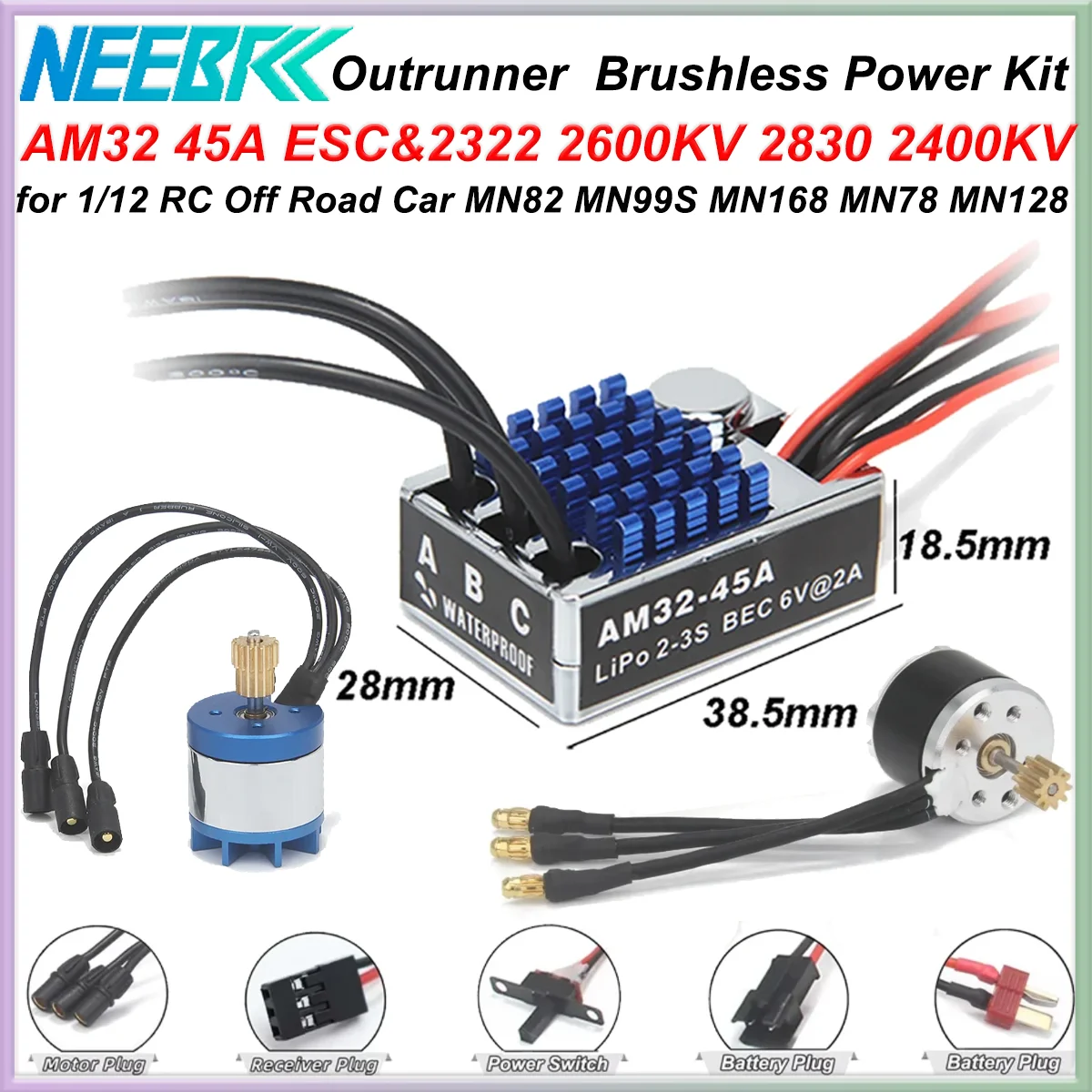

Size:38.5*28*18.5mm
Case Material:Plastic
2322 2600KV 2830 2400KV Brushless Motor AM32 45A for 1/12 RC Crawler Car Off Road Car MN82 MN168 MN78 MN86 MN128 Power Kit
$120.99
