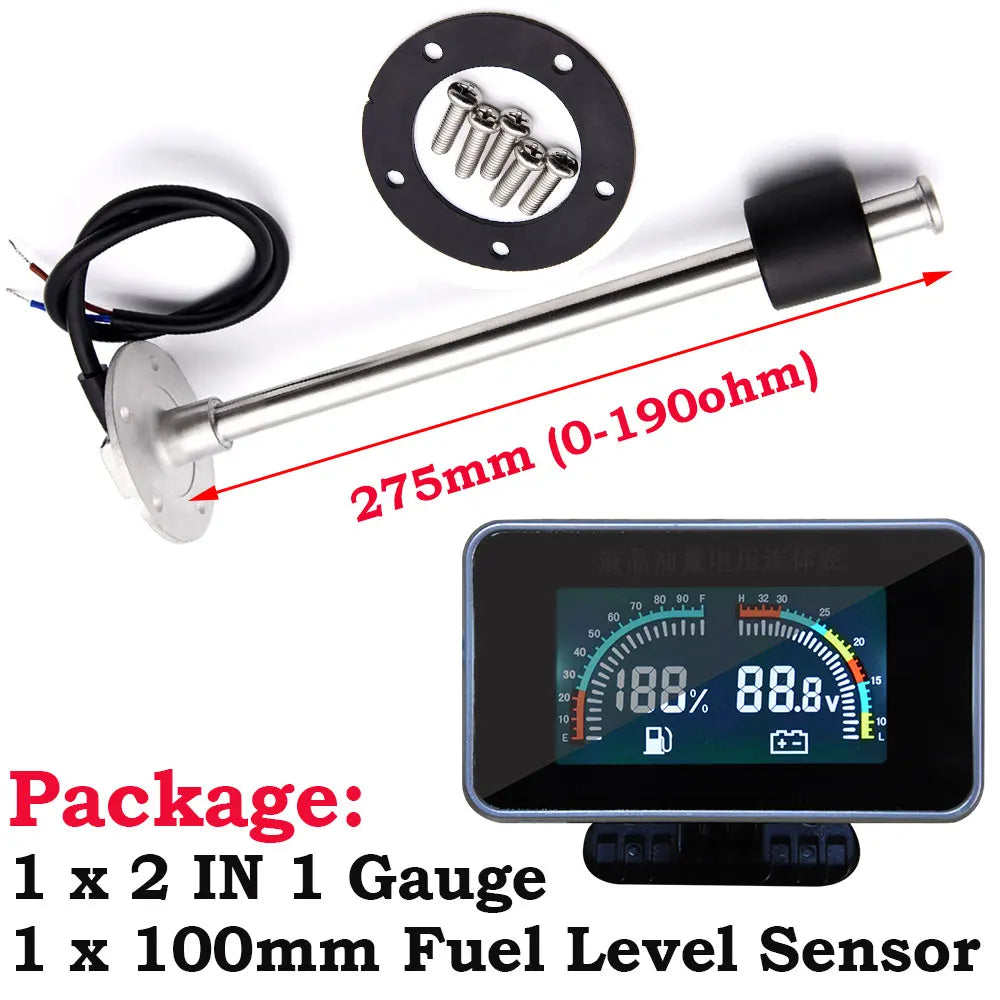

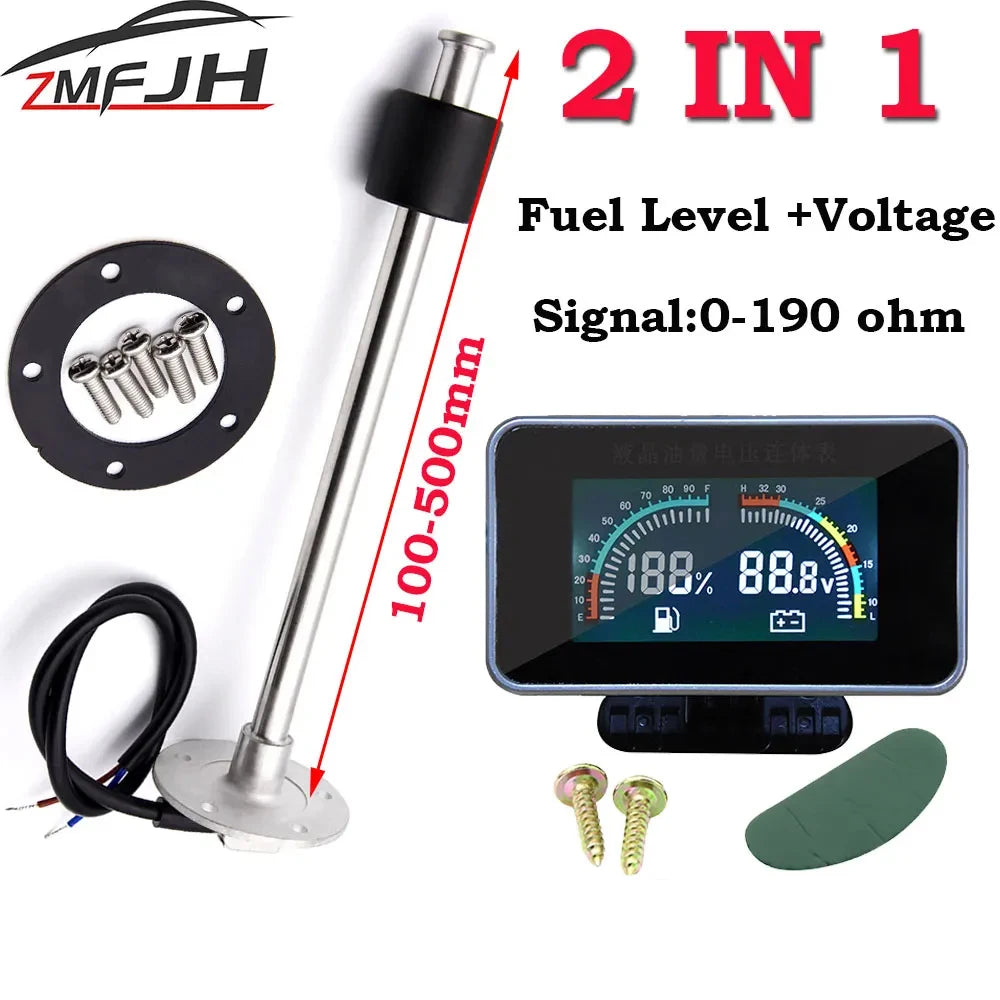

Fuel Level Sensor Specification；

- Protection ank: IP67
- Resolution range: 21 mm
- Assembly: SAE standard 5 holes
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius
- Fit for Fuel Level Gauge and Water Level Gauge
- Sensor Length :150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm - Mounting: 5 pieces of M5 screws and 2 mm thick gasket
- Output signal: 0~190 ohm (Standard European),
fit for water /Fuel Level Gauge: 0-190ohm

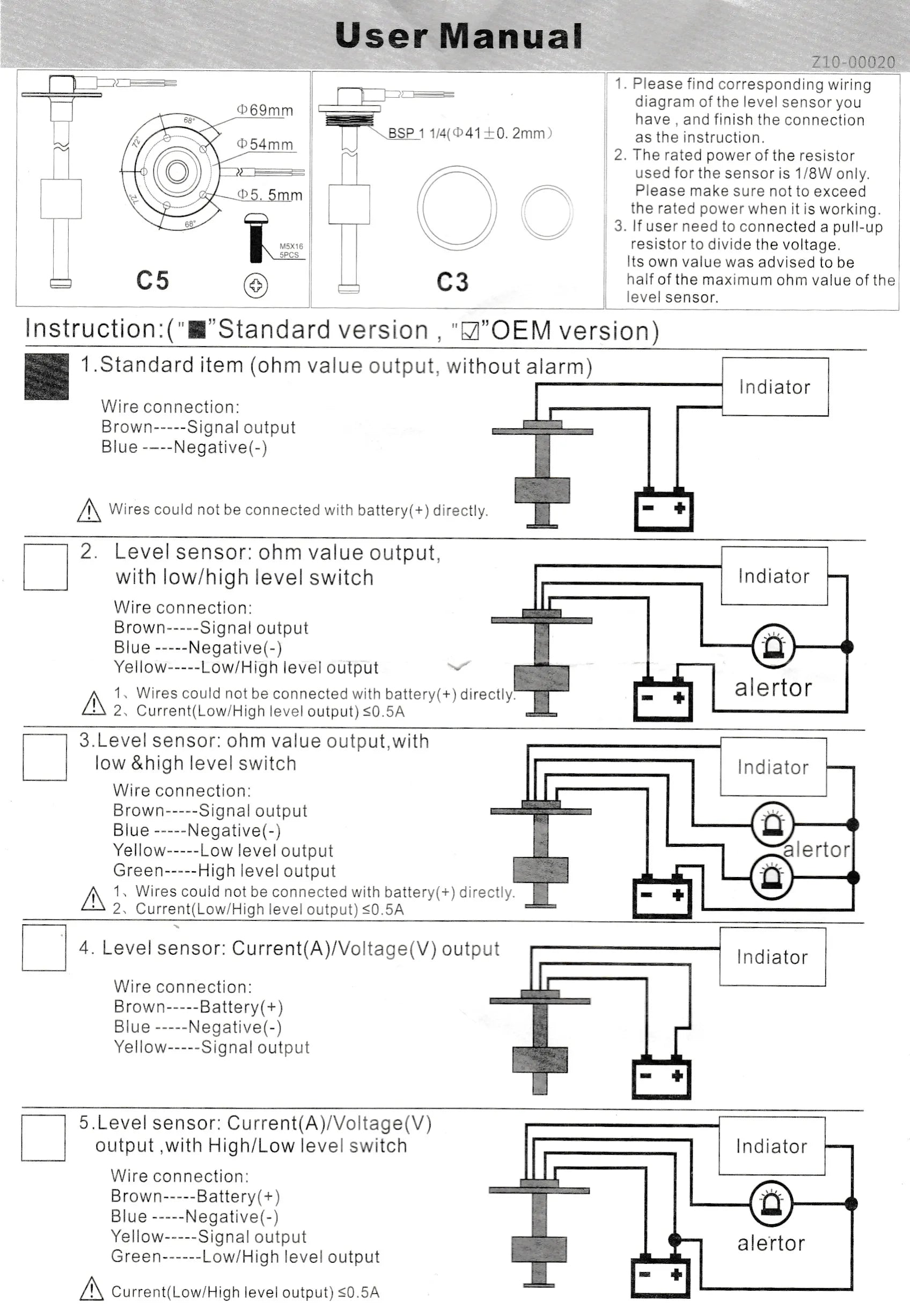

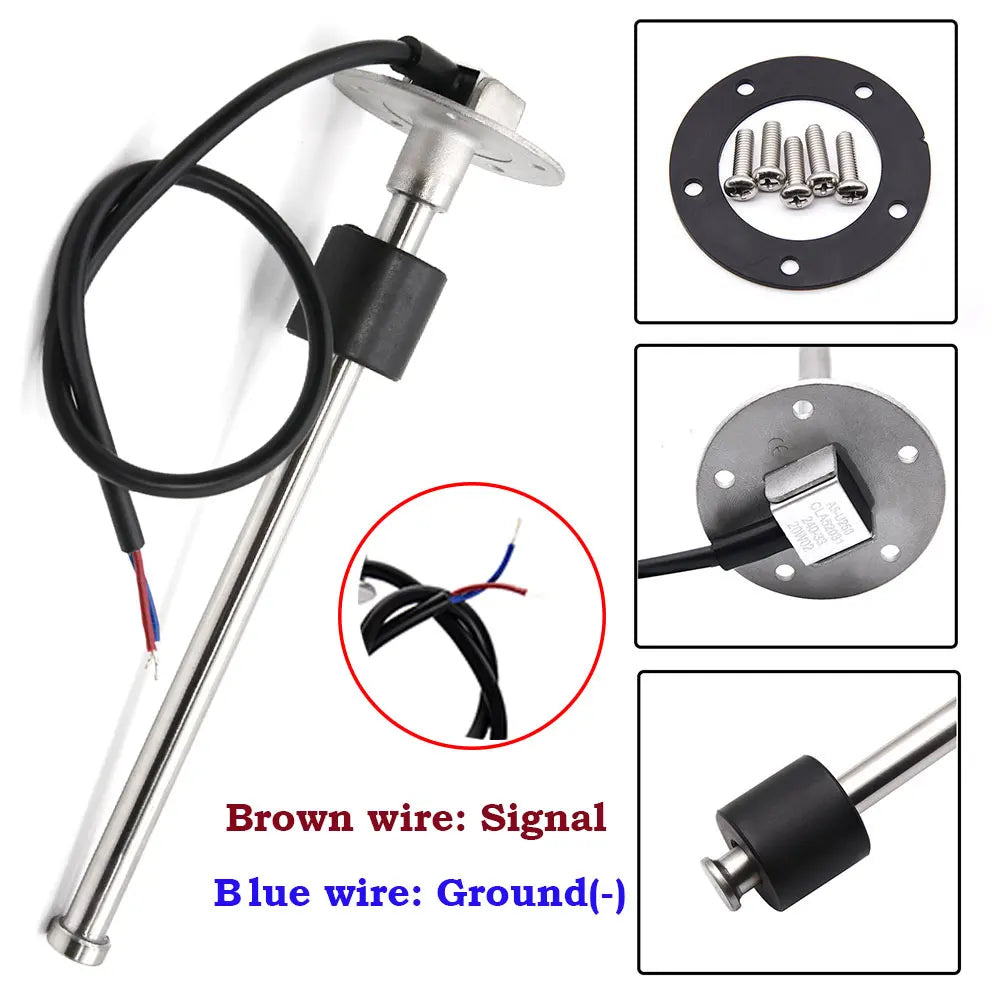

- the blue wire of sensor is connect the Ground line,
- the brown wire of sensor is connect the gauge

Attention:

- Empty oil level : 0 ohm /
- Full oil level : 190 ohm
- When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~

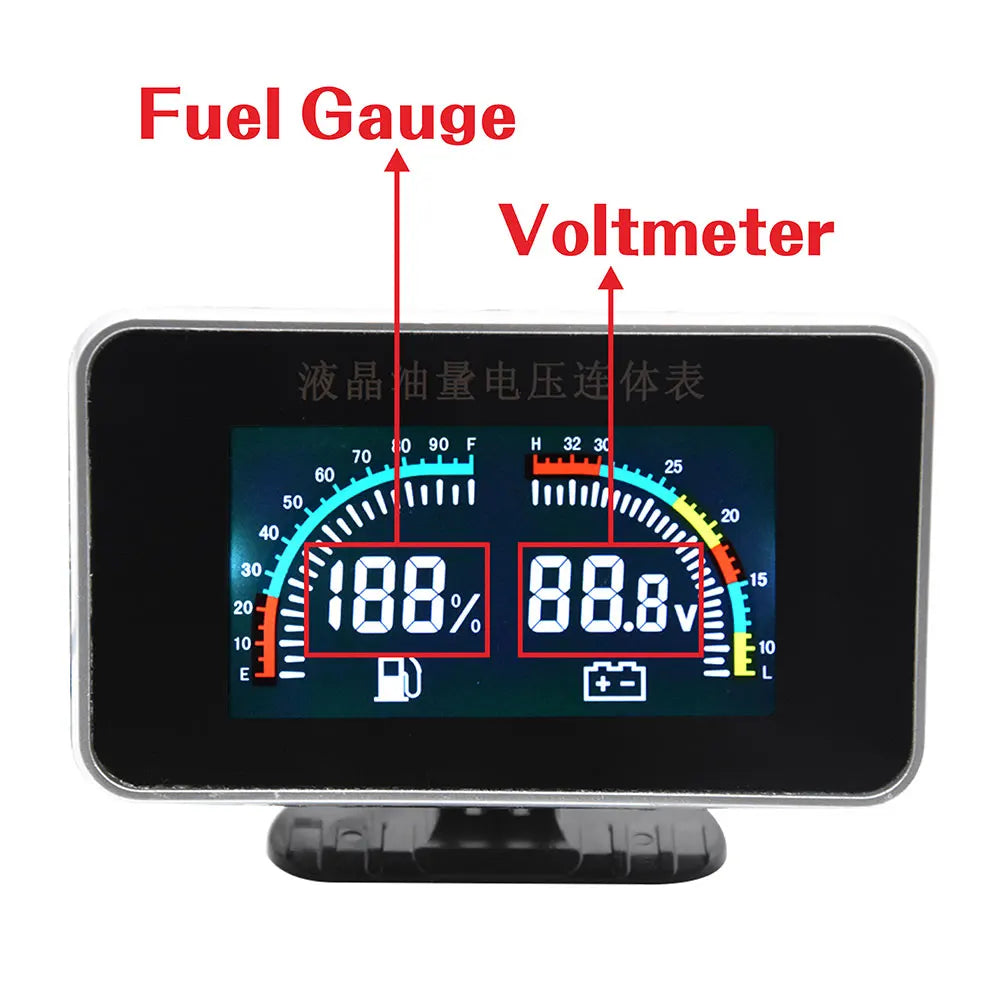

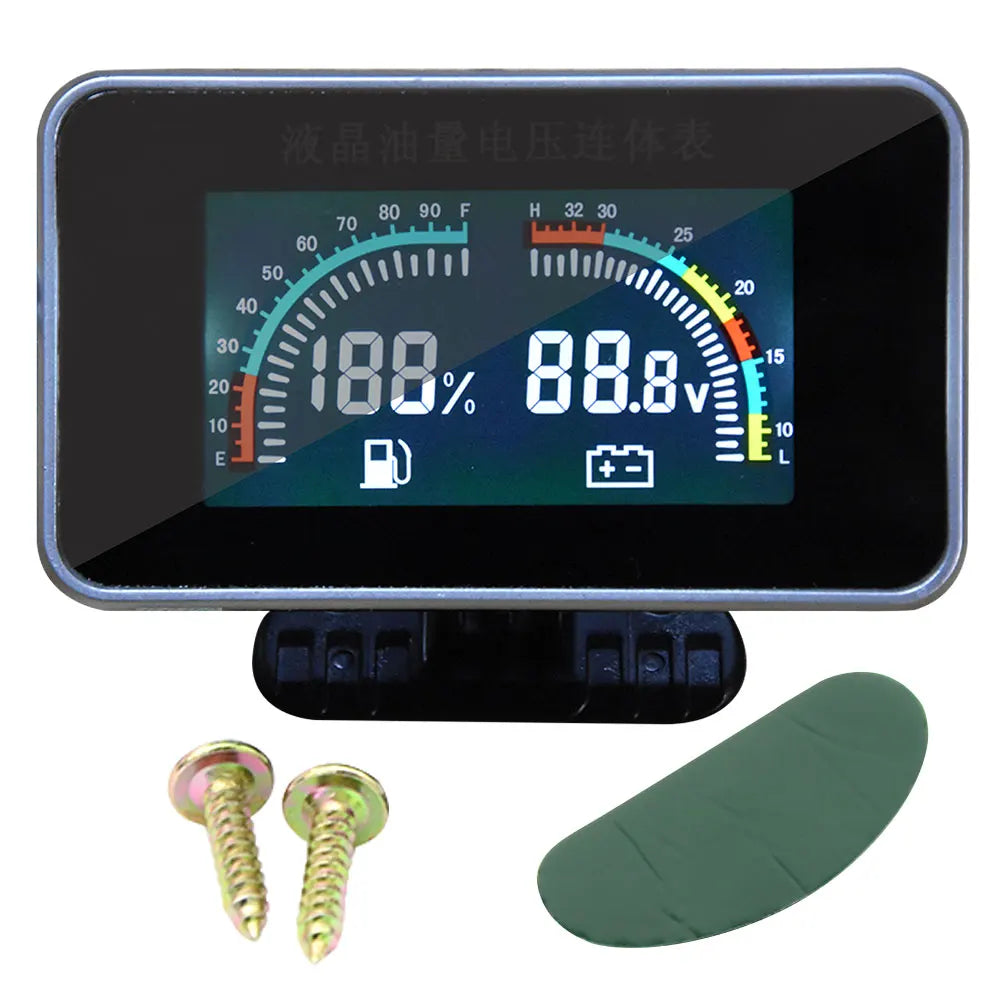

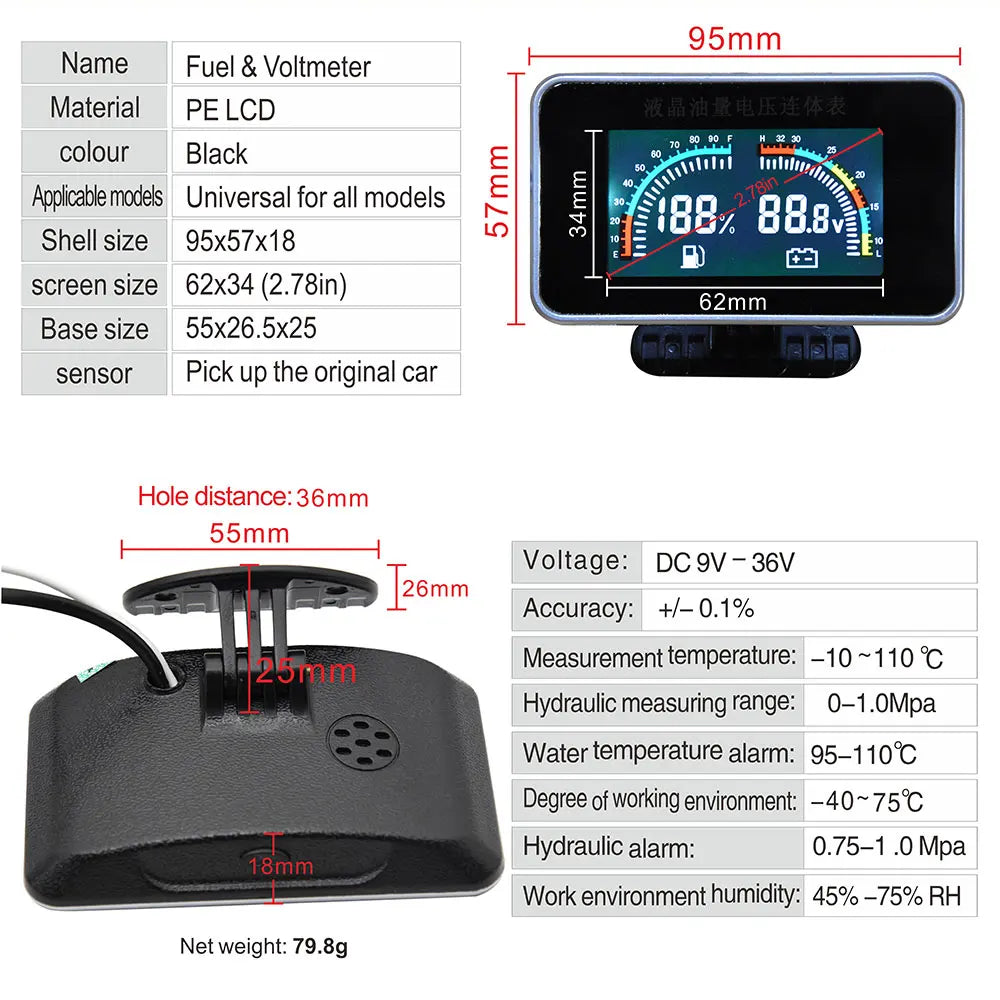

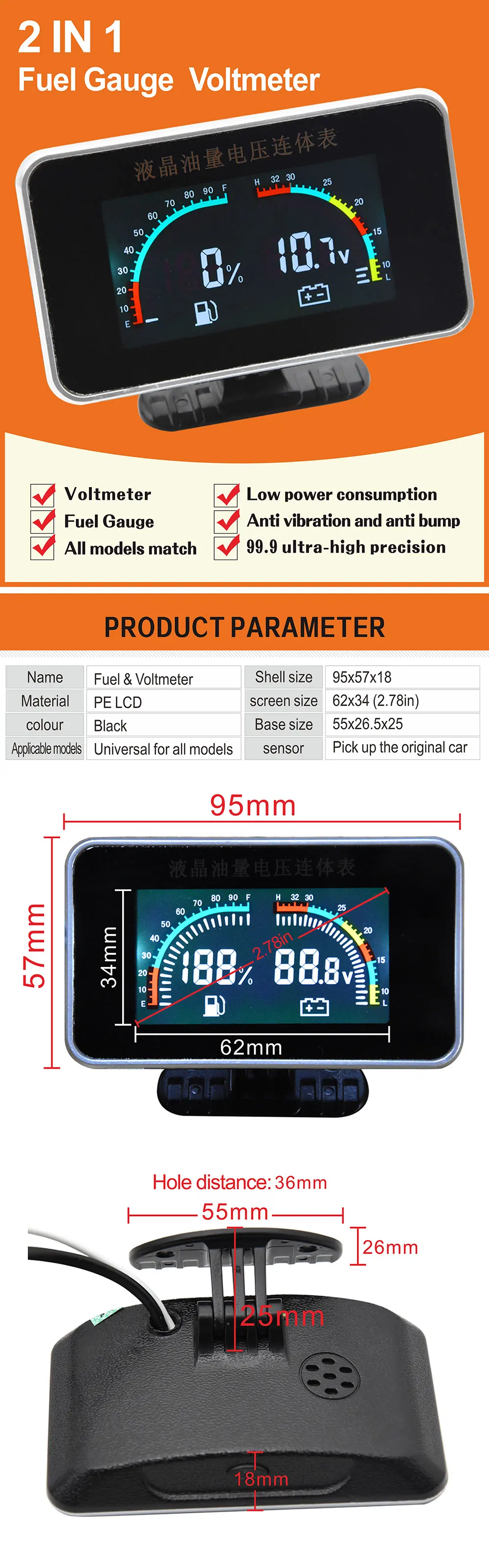

Gauge Specification:

-Material: ABS Plastic

-Display: LCD Color Screen

-Gauge Type: 2 In 1 Gauge /li>

-Working voltage: DC9-36V.

-Working environment temperature : - 40℃- 50℃.

-The working environment humidity: 45%-75% RH.



Application:



- Suitable for Car,Motorcycle or by your need.

- Suit Measurement object: compressed air, oil.



Features:

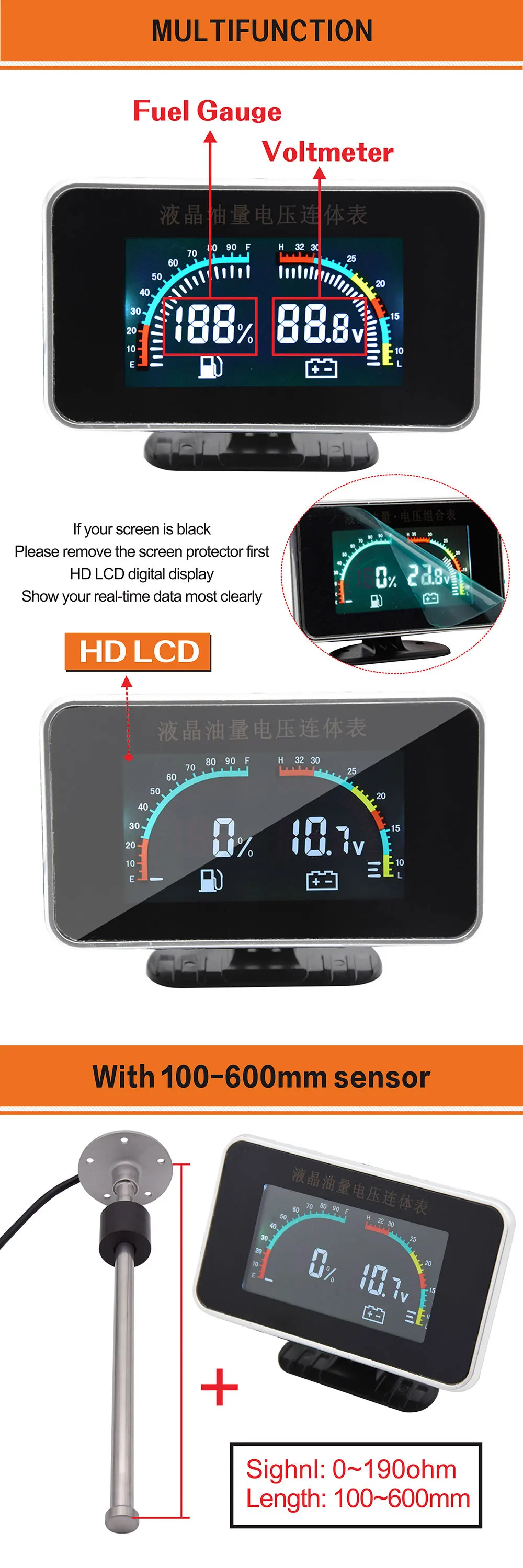

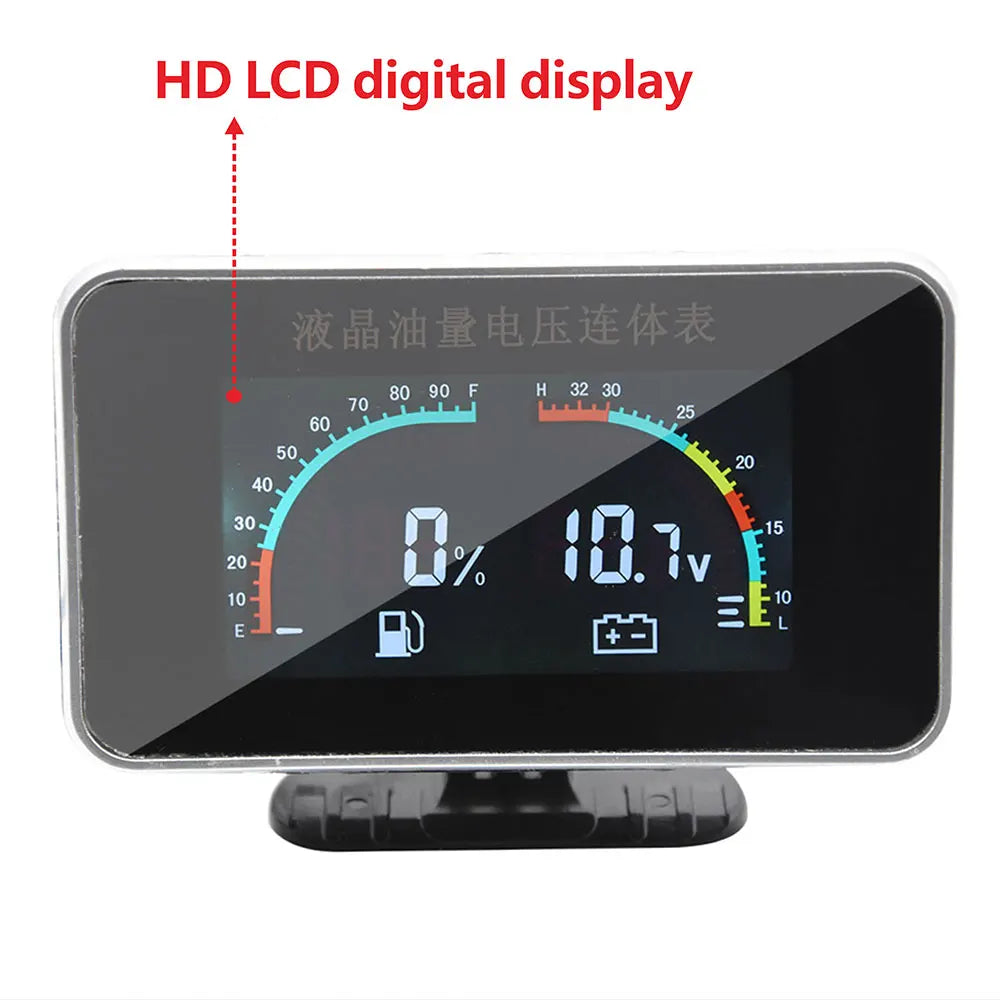

- With digital display, intuitive observation.

- Parameter display precision and stability, low power consumption.

- Stable performance.Anti-shake,anti vibration and anti bump.

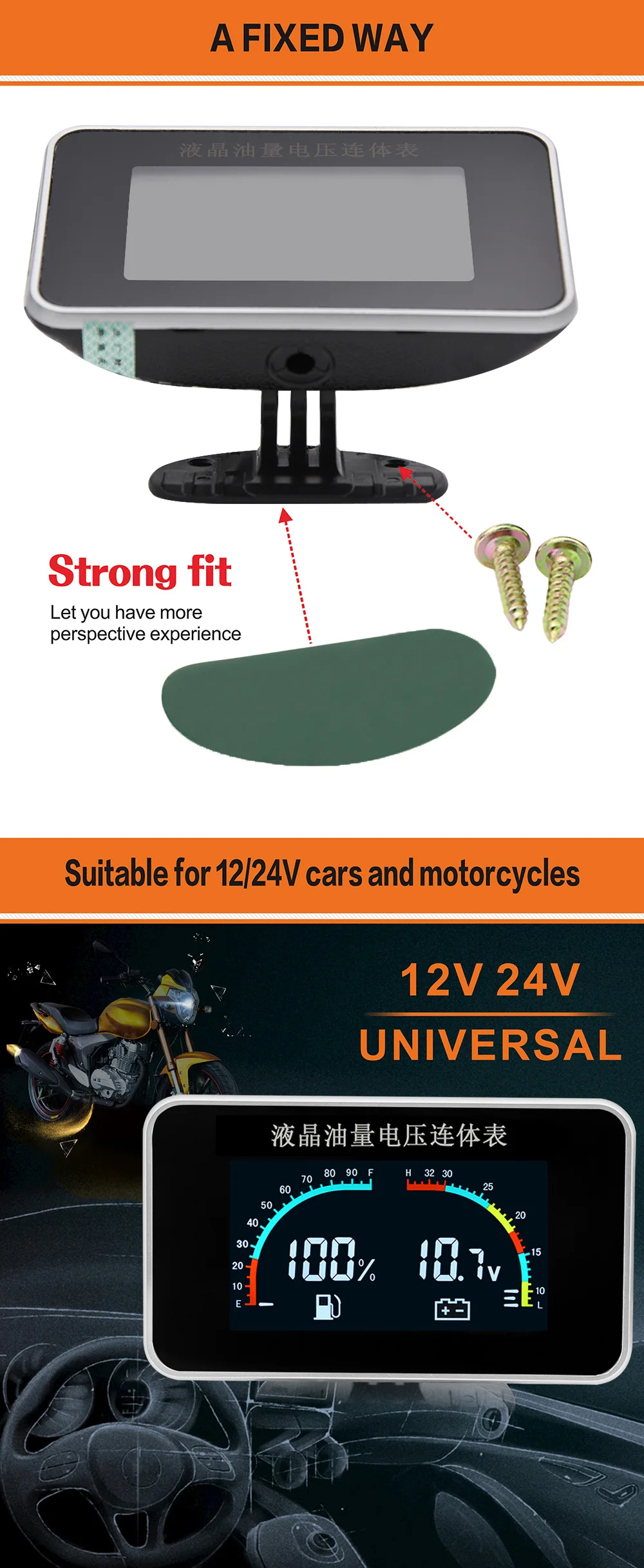

- Easy installation.



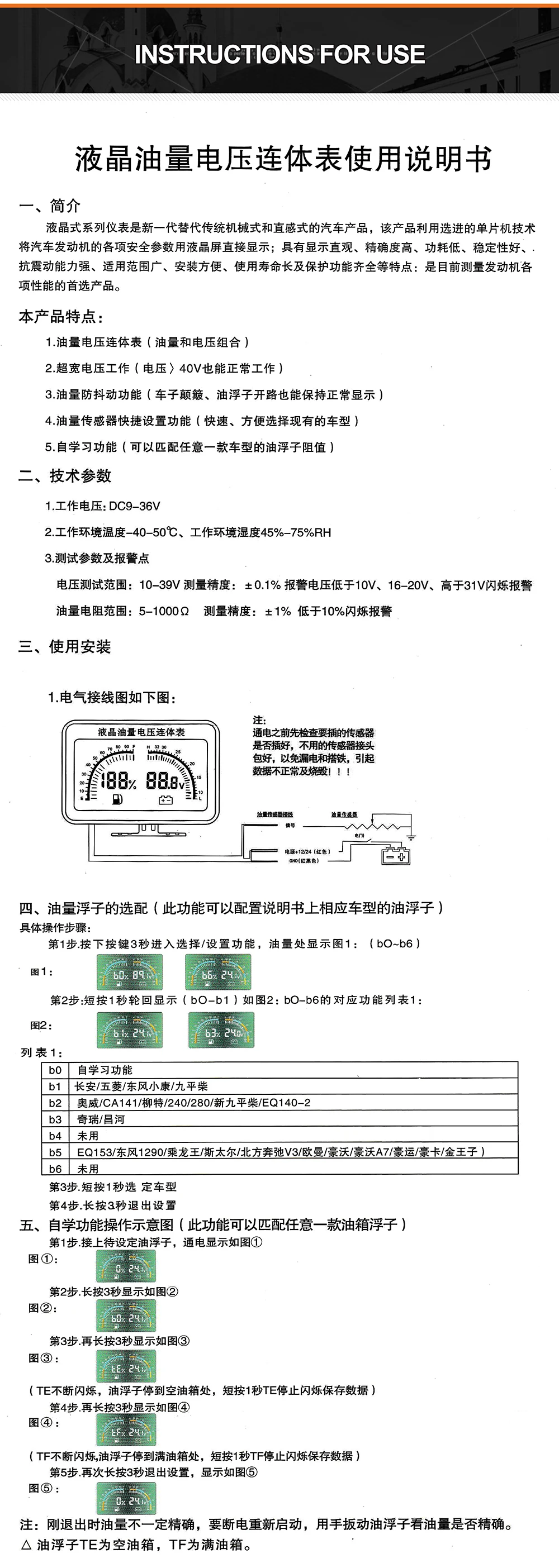

Test parameters and alarm points:



- Voltage test range: 9 - 39V.

- Measurement accuracy: +0.1%.

- The alarm voltage is lower than 10V, 16 - 20V and higher than 31V.

- Oil resistance range: 5-1000Ω.

- Measurement accuracy: +/-0.1%, less than 10% scintillation alarm.
