Micro Slip Ring 12.5mm 2/4/6/8/12/18 Channel For RC Excavator DIY Gimbal

Key Features

• Rotating Speed Limit — It rotates at up to 250rpm.
• Wide Temperature Range — It is rated for working temperatures from -40C~+80C.
• Long Working Life — Its working life is at least 5 million revolutions, depending on work speed and environment.
• Inter-Channel Voltage Rating — It withstands 500V at 50Hz between two channels.

Product Specifications

• Diameter: 12.5mm
• Total length: 21.6mm

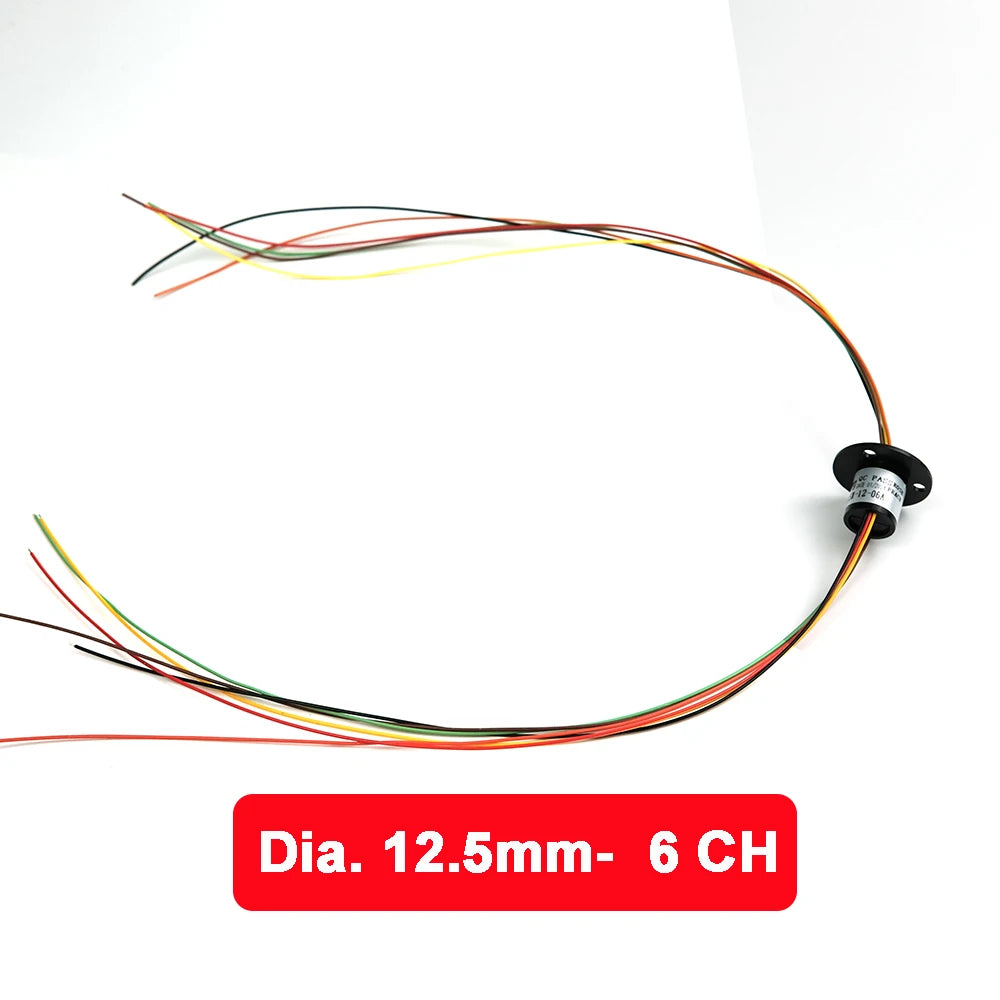

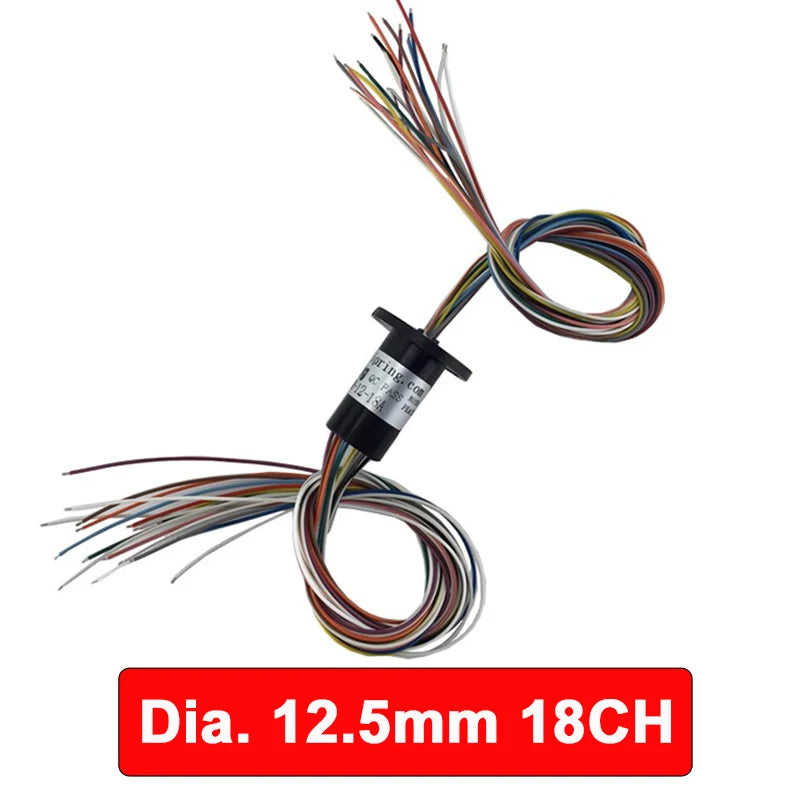

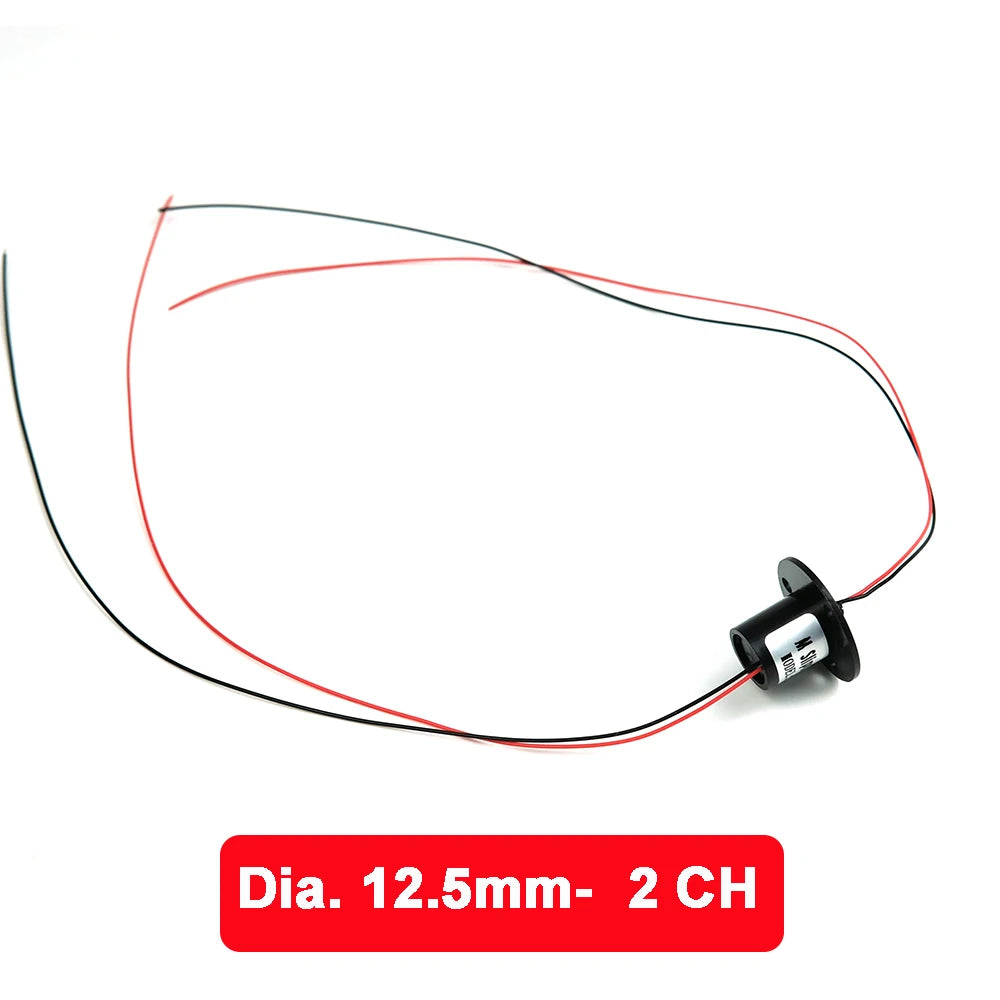

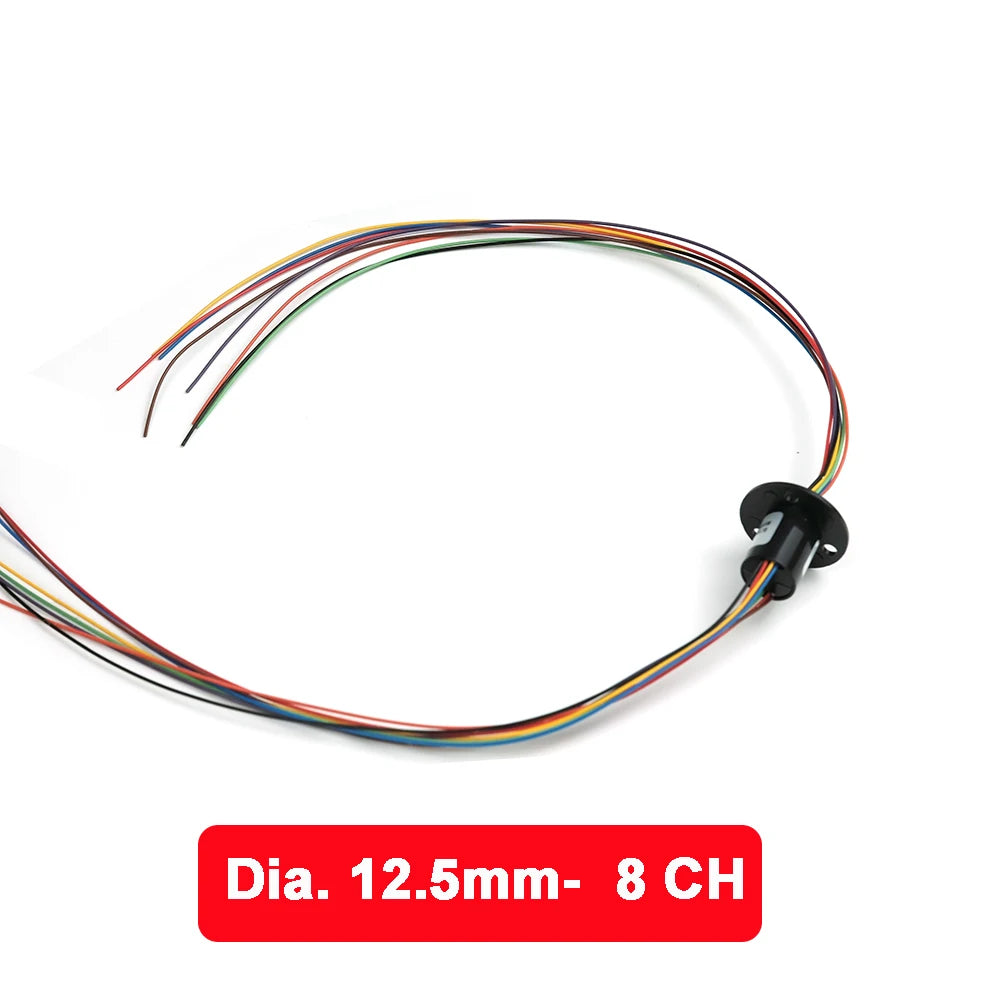

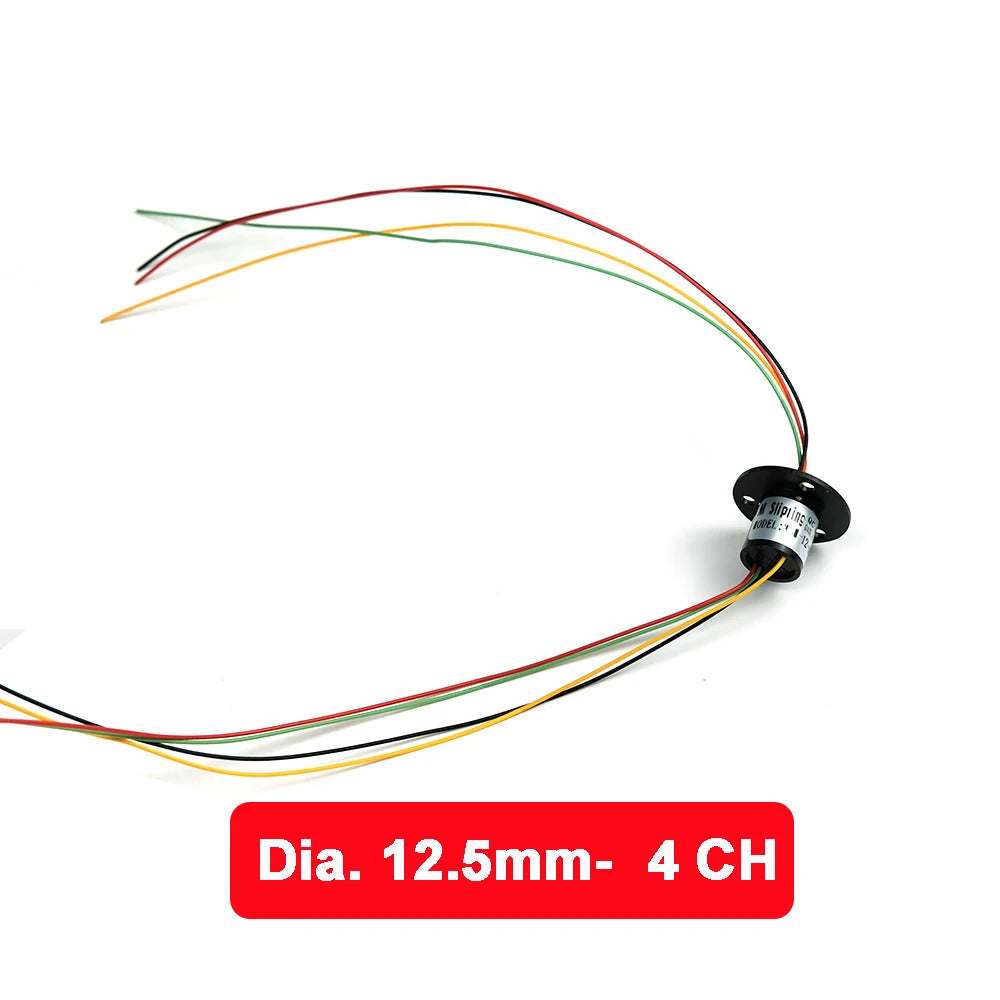

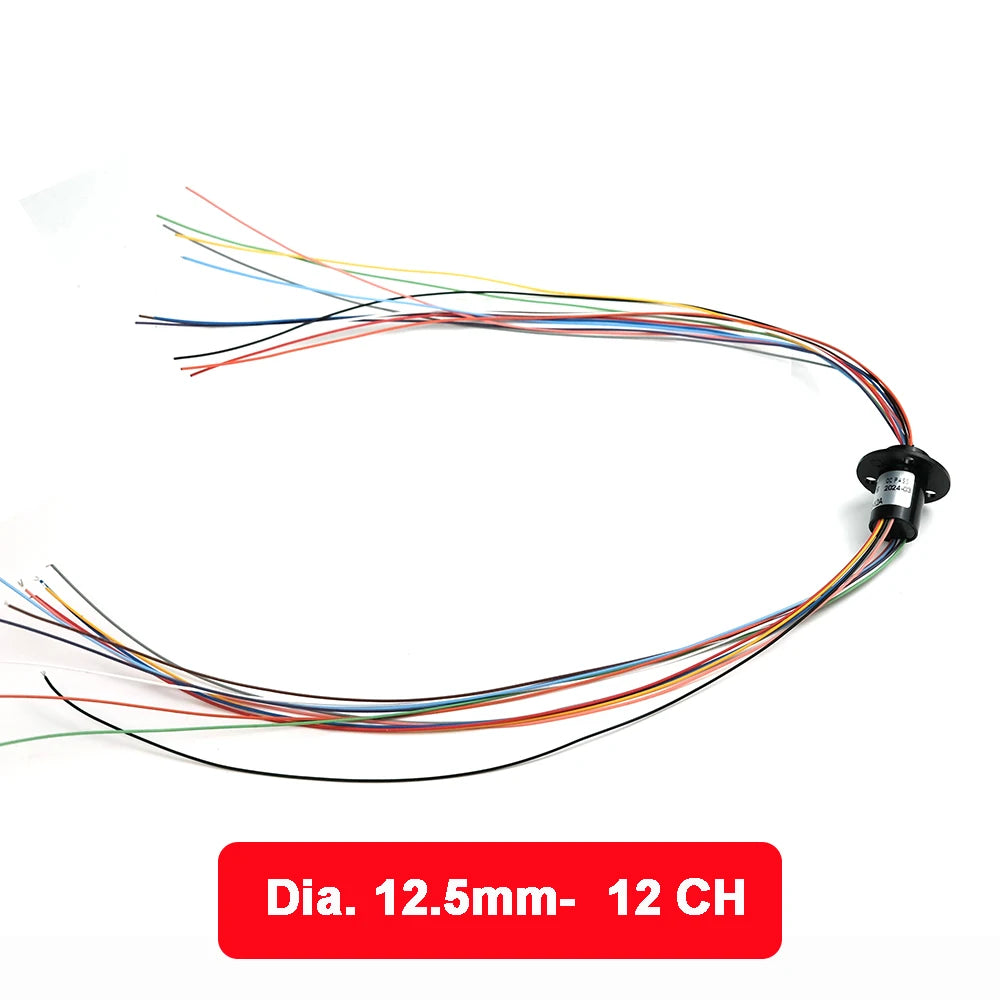

• Channels: 2/4/6/8/12/18 channel
• Rotating speed: 250rpm (at most)
• Working temperature: -40C~+80C
• Rated voltage: 0~240v
• Shell material: Engineering plastics
• Piece count: 1 pcs
• Compatible models: RC Excavator Model DIY PTZ Gimbal Electric Collector Rings

What It Is / How It Works

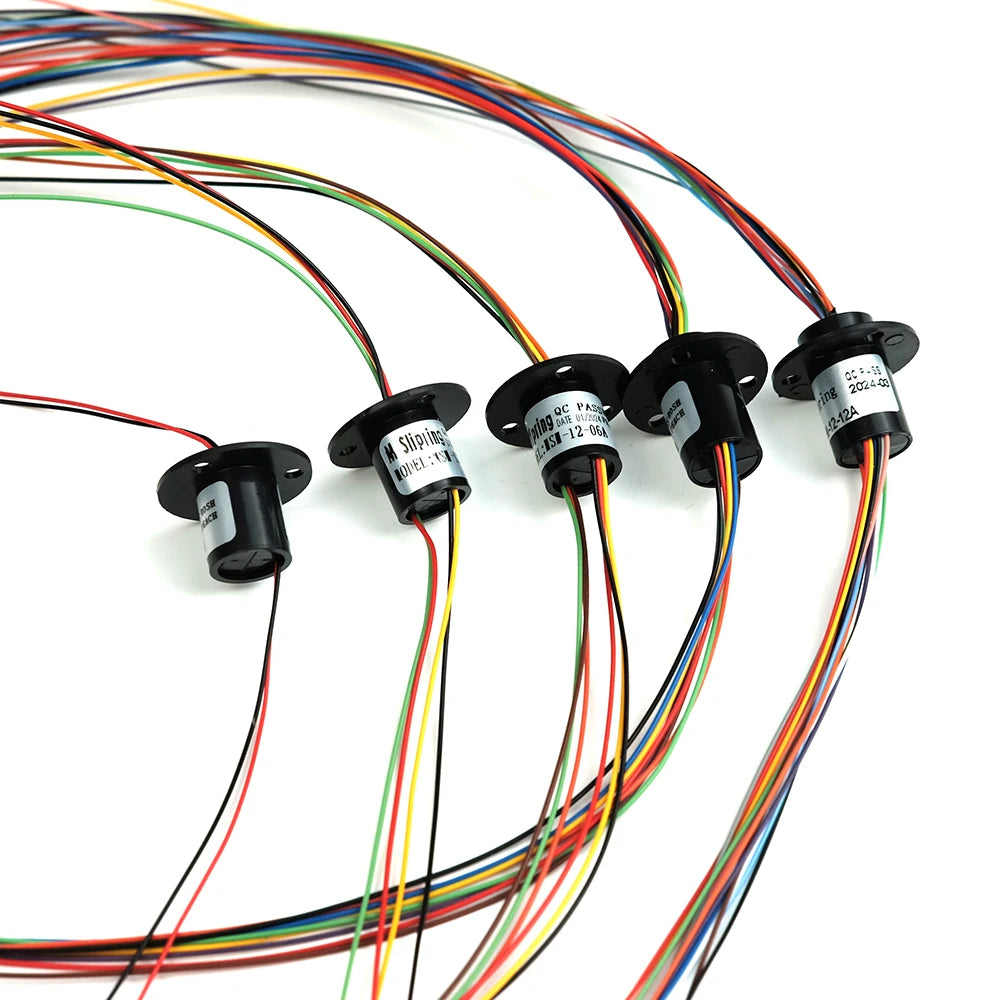

This is a micro slip ring, a rotating electrical connector that carries wires through a turning joint. It is 12.5mm in diameter and is listed with 2, 4, 6, 8, 12 or 18 channels. One slip ring comes per pack.

Who It's For / Use Cases

Slip rings suit builders who need to route wires through a part that turns, such as RC excavator models, DIY pan-tilt (PTZ) gimbals and similar projects. They fit people who want a compact rotating connector with a channel count that matches the number of wires in their build.

How to Use / Care

1. Use it to carry wires through a rotating joint in RC excavator models, DIY PTZ gimbals or similar builds.
2. Keep the rated voltage and working temperature range from the specifications in mind when wiring it.

How to Choose

Choose the channel count by the number of wires your build needs, since the listed options run from 2 to 18 channels. Check the 12.5mm diameter against the space in your rotating joint before ordering. If your build runs at high speed, compare it against the 250rpm rating in the specifications.

Frequently Asked Questions

What is the diameter and length?
It is 12.5mm in diameter (0.49 in), with a total length of 21.6mm (0.85 in).

How many channels does it have?

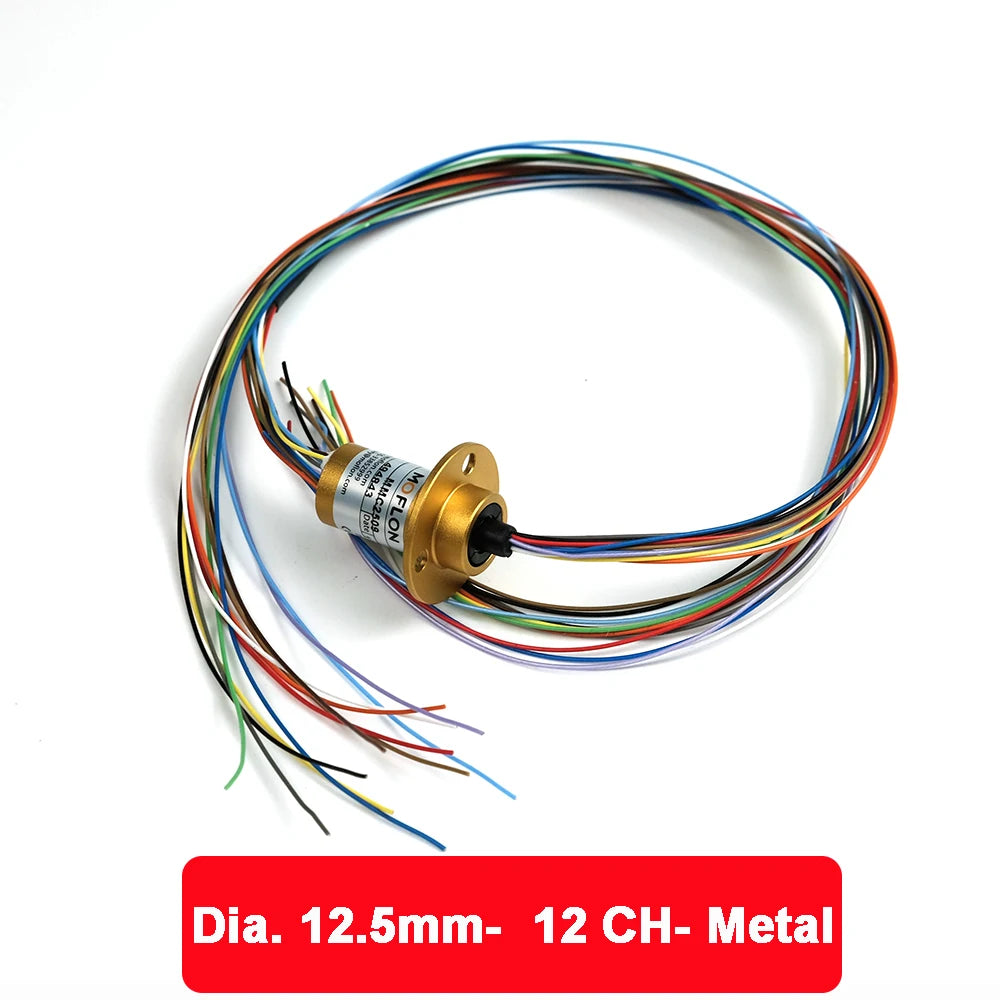

It is listed with 2, 4, 6, 8, 12 or 18 channels. The 12-channel version is also offered with a metal option.

What is the rotating speed?
It is rated for up to 250rpm.

Does it need batteries?
No. It has no battery, and batteries are not included.

What certifications does it carry?
It carries CE and FCC marks.
