Waterproof Metal Gear Digital Servo For 1/8 1/10 Scale RC Baja Cars

Key Features

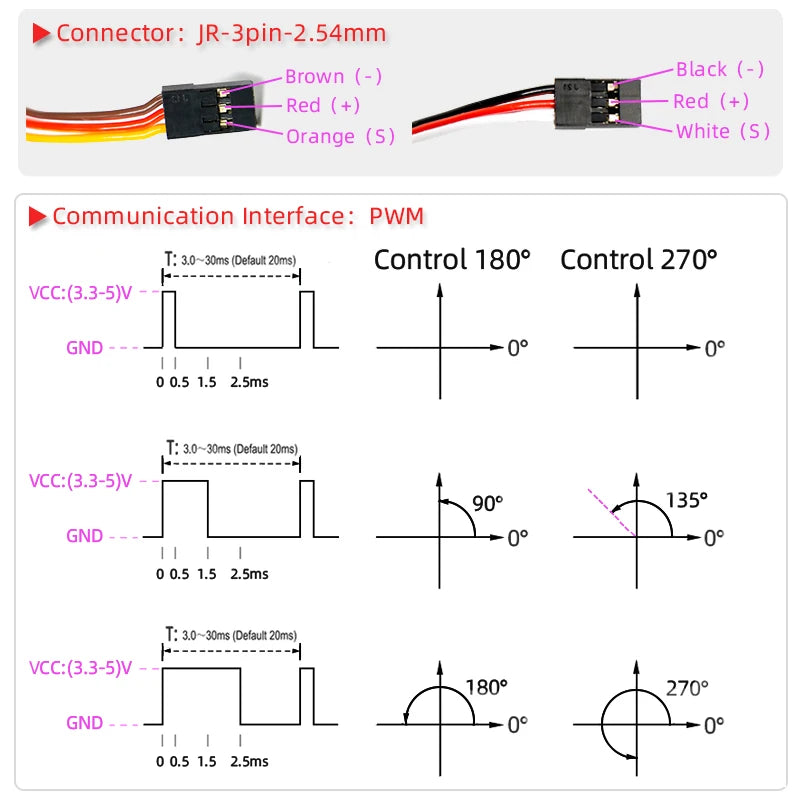

• Digital Controller — A digital controller reads pulse width signals to drive the servo.
• 180° Running Range — The running degree is 180±3° across PWM 500~2500usec.

Product Specifications

• Material: Metal

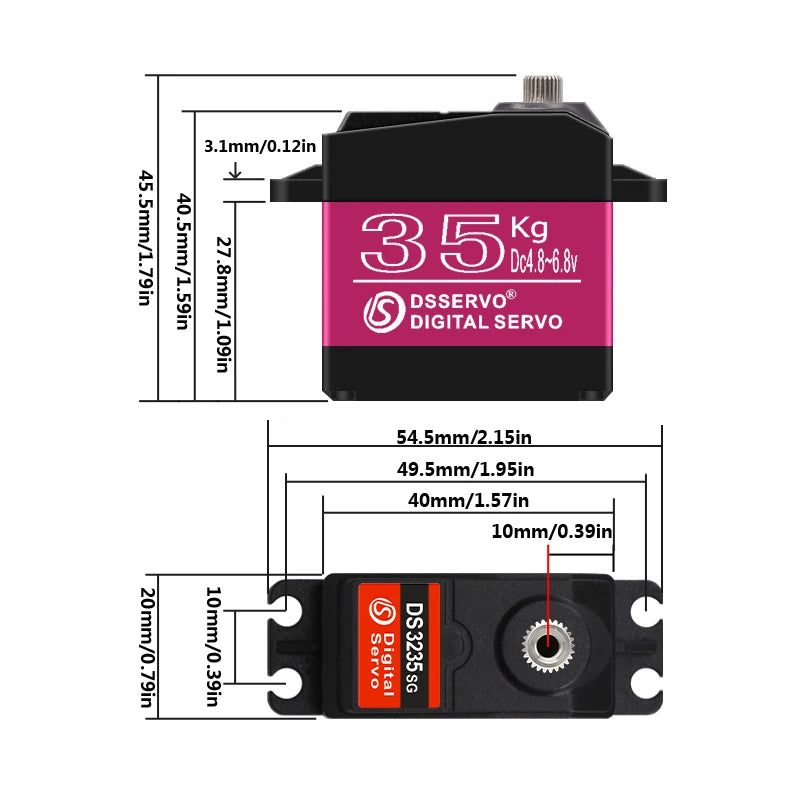

• Size: 40.0*20.5*40.5mm
• Weight: 58g±2g
• Limit Angle: 360°
• Working Voltage: 4.8 - 6.8V
• Operating Temperature: -25°C~70°C
• Storage Temperature: -30°C~80°C
• Horn Gear Spline: 25T Diameter: 5.9mm

What It Is / How It Works

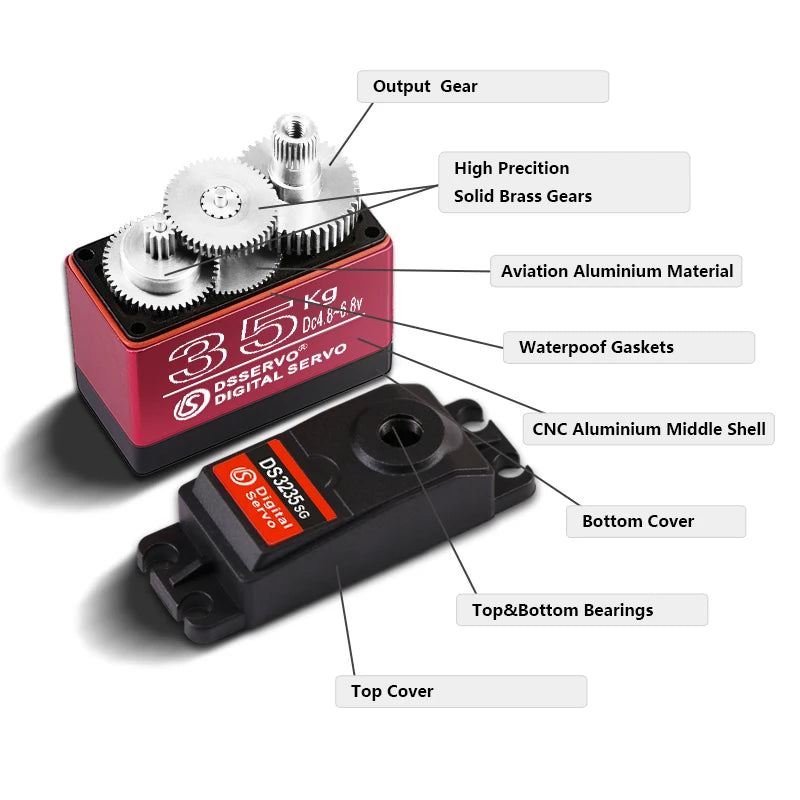

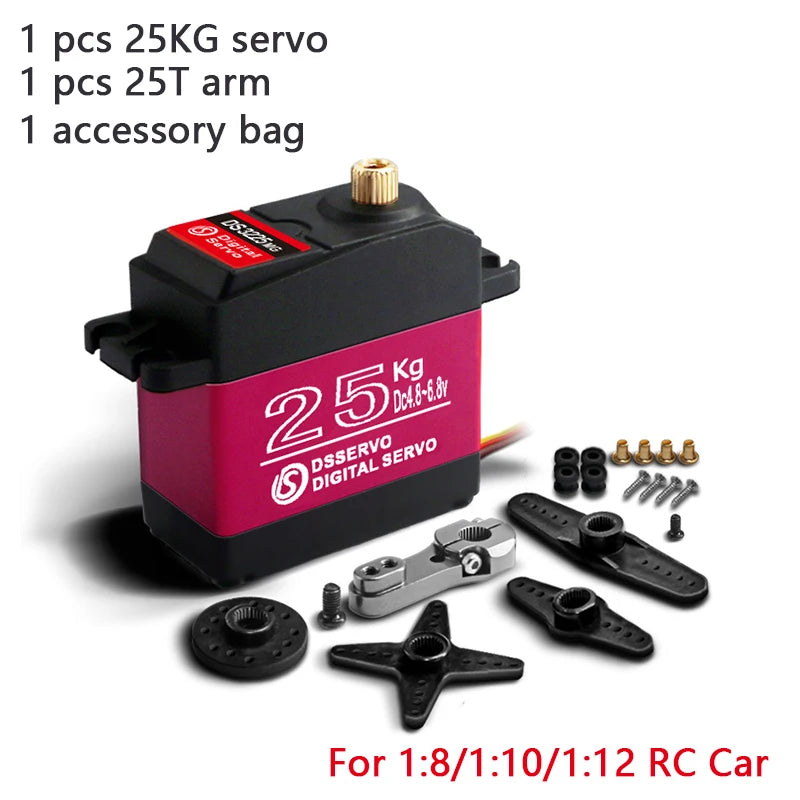

This is a servo for RC cars, sold as an RC Baja servo for 1/8 and 1/10 scale builds. It is a digital servo with a metal arm and a metal gear design, and one accessory bag is included. Servos like this turn a control signal into precise steering or throttle movement on the car.

Who It's For / Use Cases

Buyers usually compare the torque rating against the steering load of their build before choosing one.

How to Use / Care

1. Match the torque rating to the steering load of the car before installing it.

How to Choose

Start with torque, because a servo with a higher torque rating suits heavier steering loads. Next, check the working voltage so it matches your receiver and power setup. Finally, compare the size and weight with the space available in your chassis.

Frequently Asked Questions

Does it need a battery?
No battery is included, and the servo has no battery of its own. It runs from the power supply in your RC car within its 4.8 - 6.8V working range.

What are the size and weight?
It measures 40.0*20.5*40.5mm and weighs 58g±2g.

What temperature range can it handle?
It operates from -25°C to 70°C and can be stored from -30°C to 80°C.
