10mm Brass Hydraulic Cylinder for 1/16 1/18 1/24 RC Models

Key Features

• Brass Construction — The body is made from H59 brass with a brass seamless mirror tube.
• Pressure Rating — It is rated below 3Mpa, with a maximum pressure of 4Mpa.
• Heat-Resistant Oil Seal — The oil seal offers high temperature resistance and wear resistance.
• Compact Outer Diameter — It has a 10mm outer diameter, which suits small-scale hydraulic builds.
• 3mm Link Hole — The link hole has an inner diameter of 3mm for attaching linkage.

Product Specifications

• Material: H59 brass + brass seamless mirror tube
• Outer Diameter: 10mm

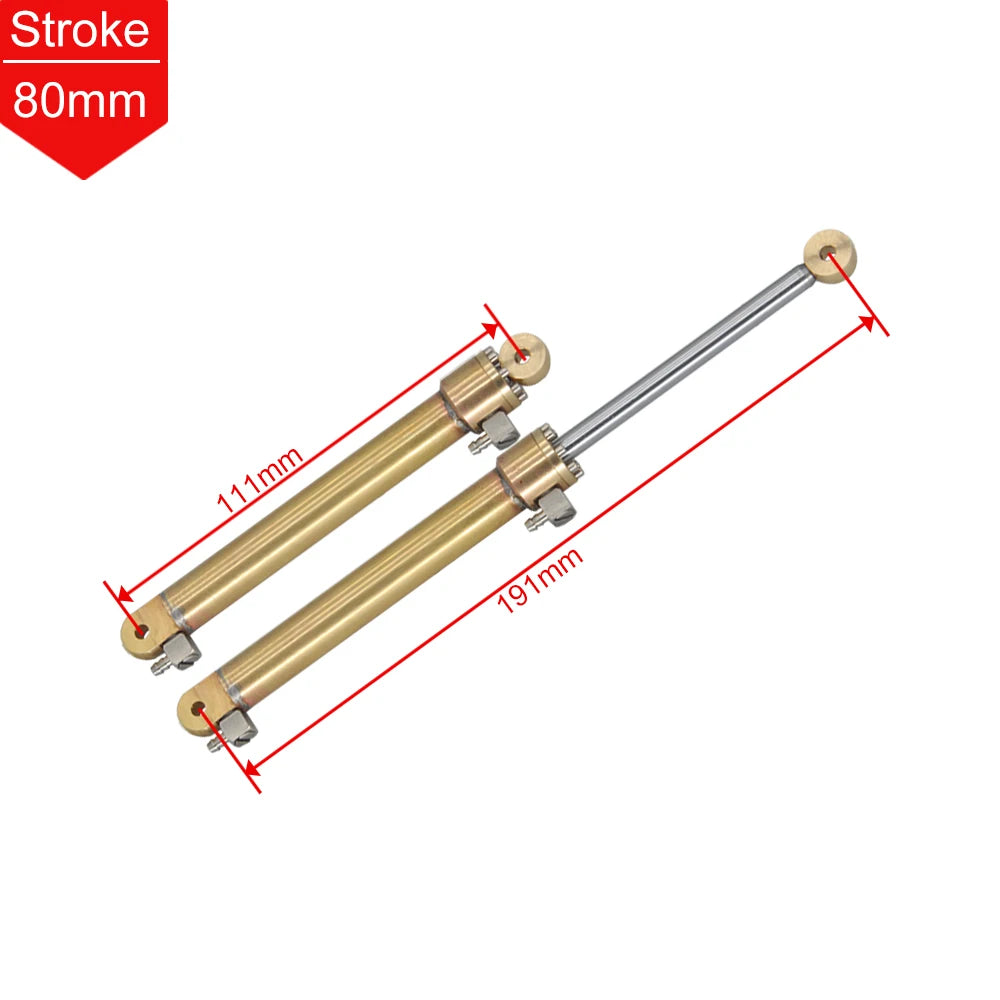

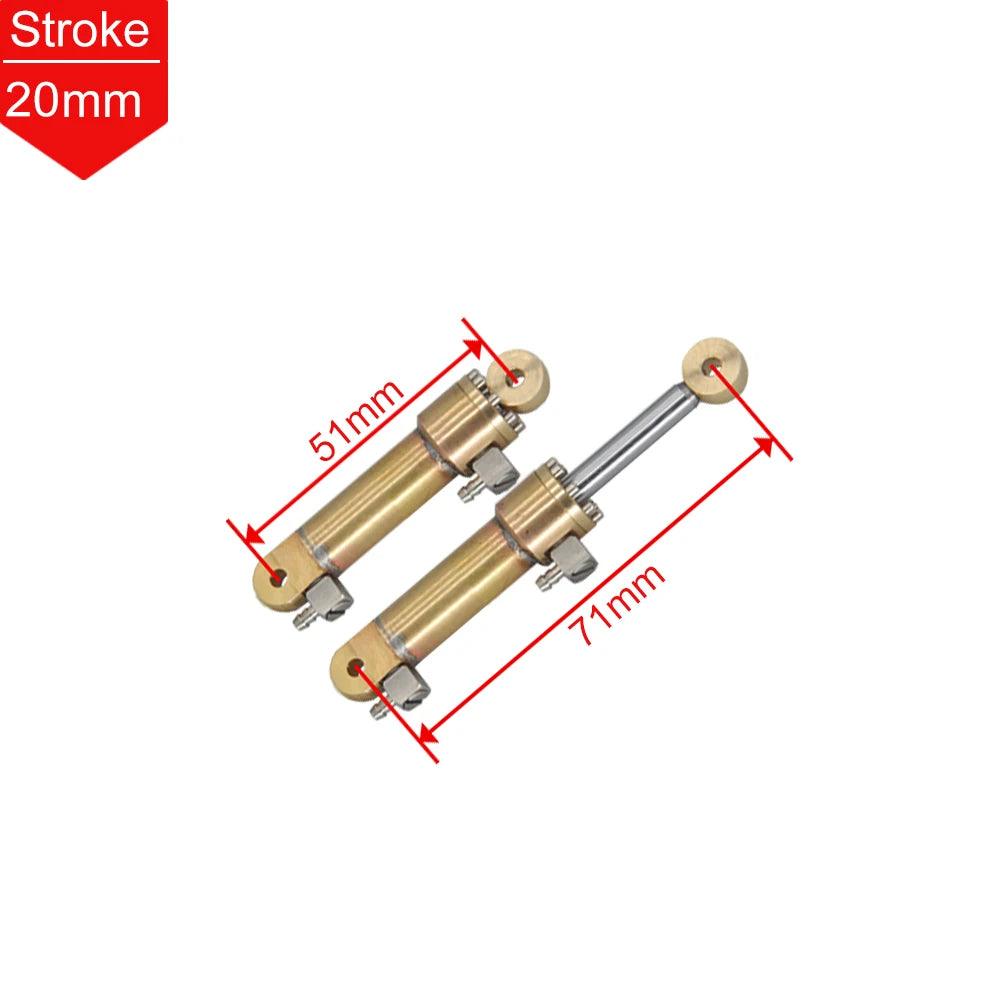

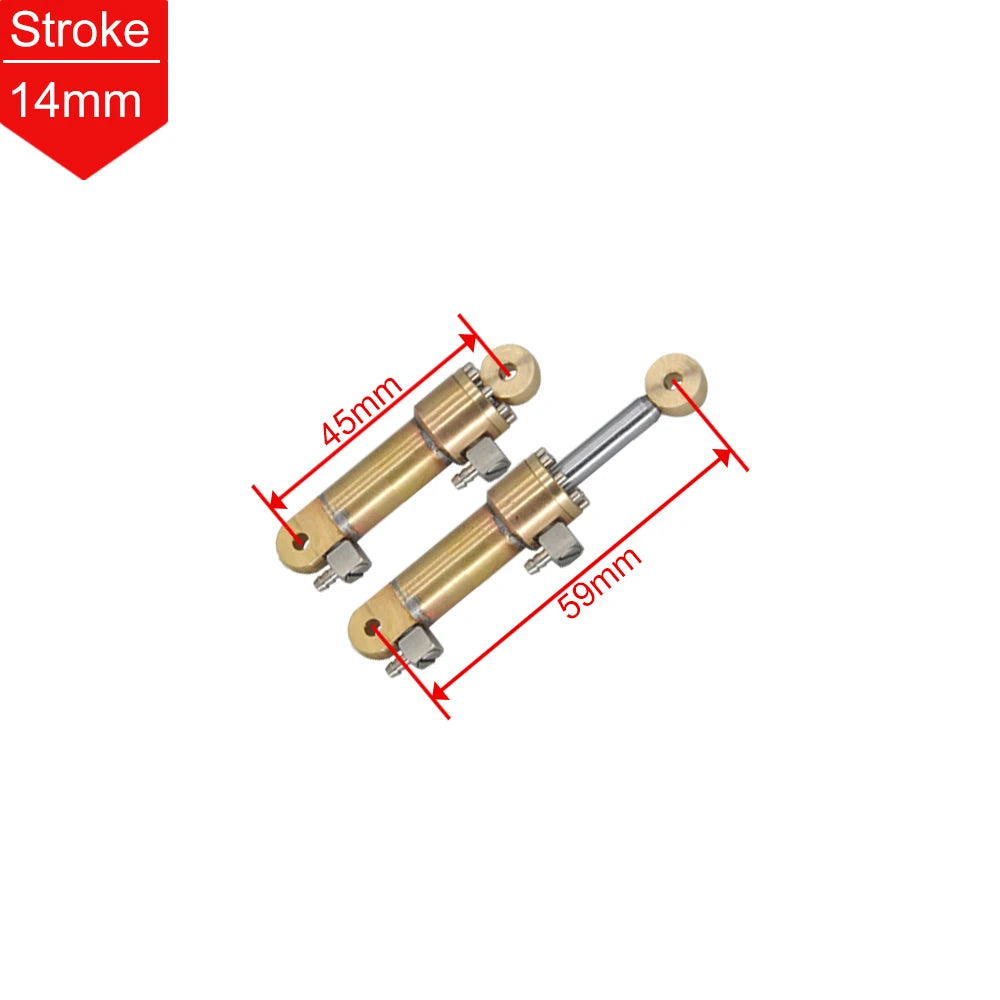

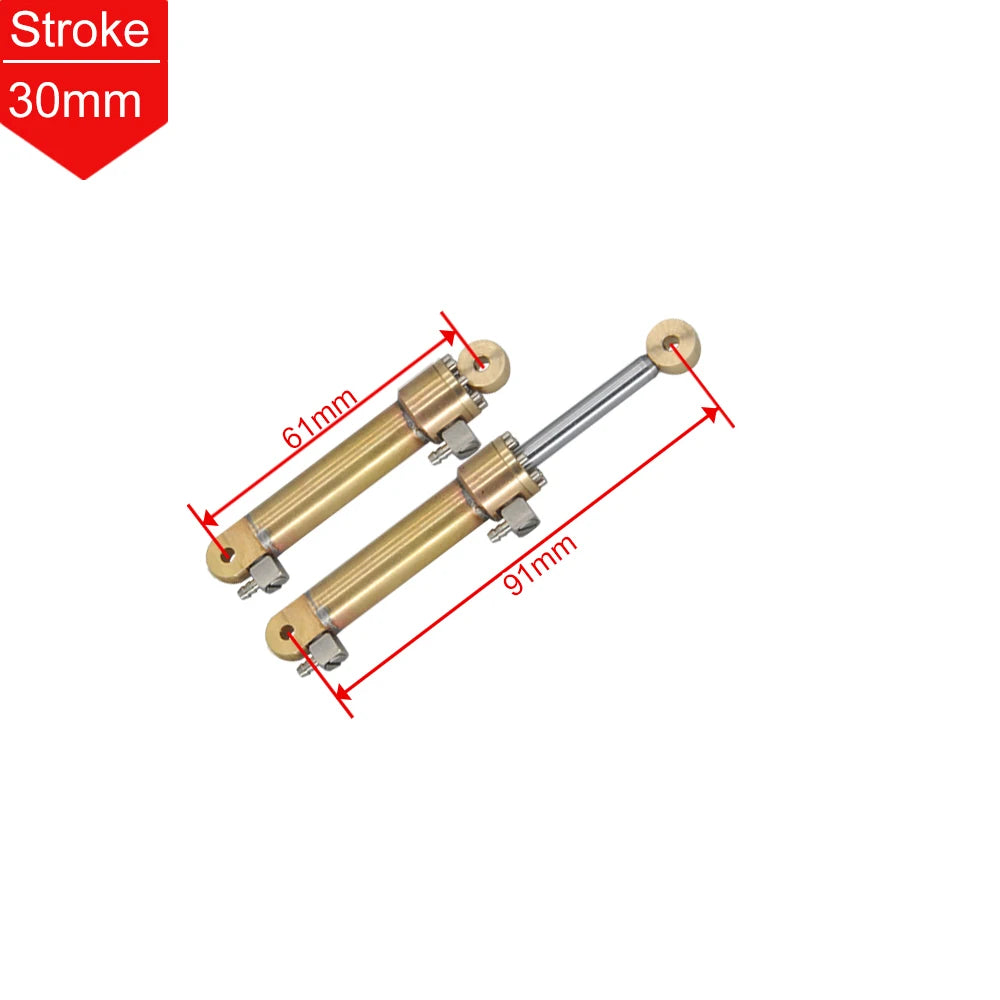

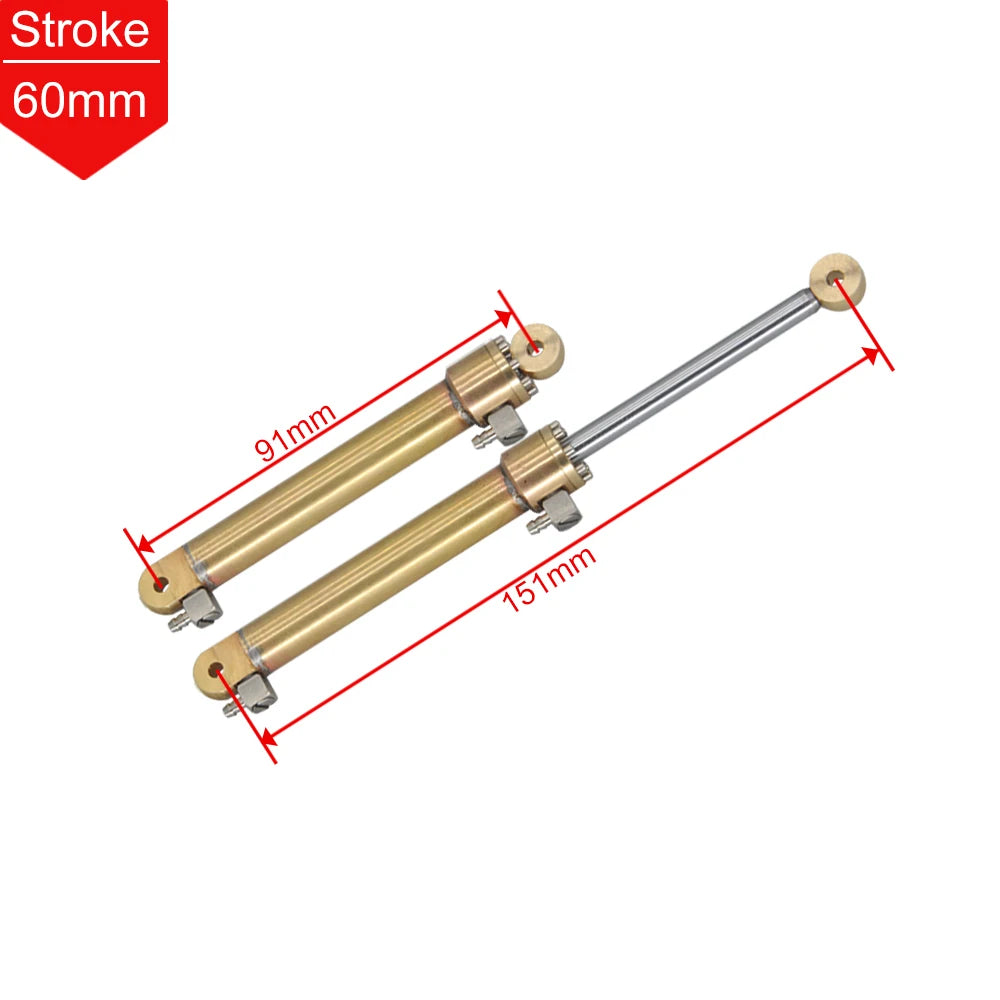

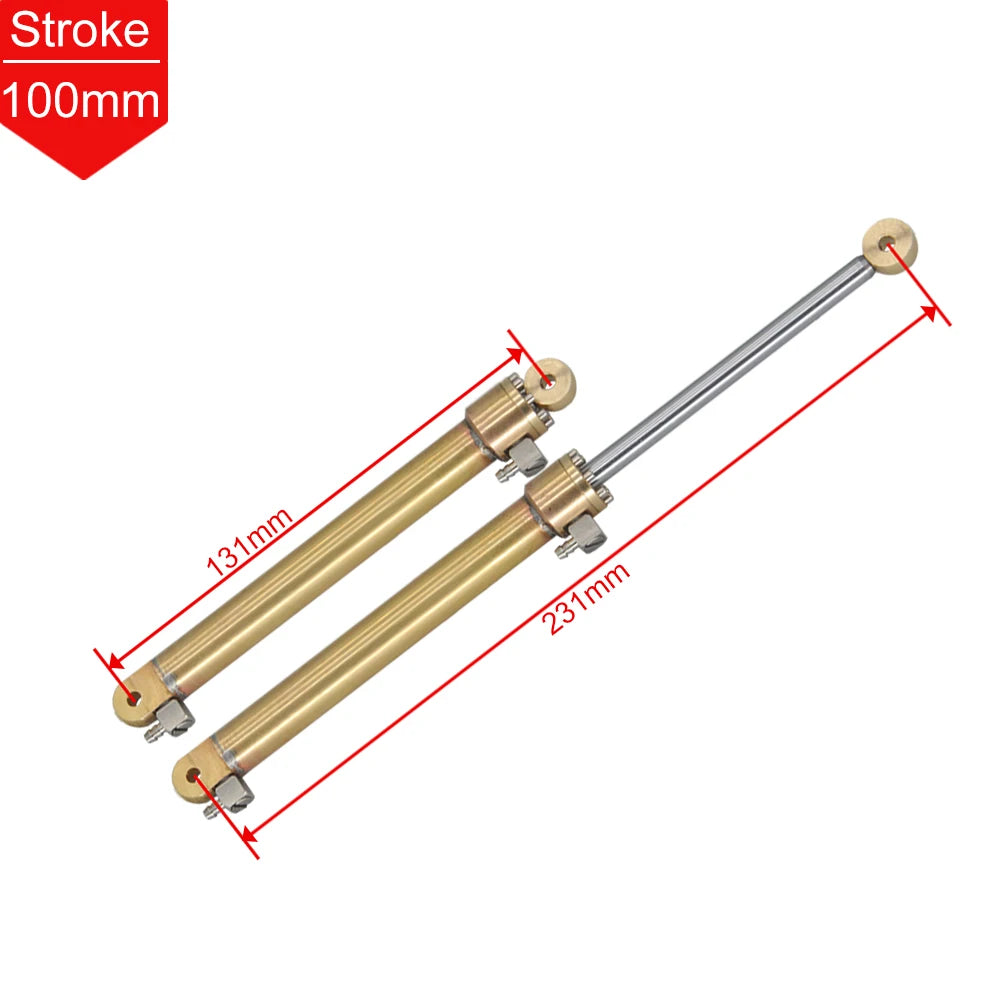

• Stroke: 14/20/30/45/60/80/100mm
• Scale: 1/16, 1/18, 1/24
• Strength: Below 3Mpa, maximum pressure 4Mpa
• Cylinder Medium: No. 46 hydraulic oil
• Piece Count: 1 pcs
• Age Range: 14+y

What It Is / How It Works

This small hydraulic cylinder is an RC model accessory built for hydraulic model setups. It comes in a 10mm outer diameter with stroke options from 14mm to 100mm, and it is made from brass.

Who It's For / Use Cases

Hydraulic cylinder accessories suit RC hobbyists who build, repair or upgrade hydraulic model vehicles and want a replacement or add-on cylinder for a scale hydraulic system. They also suit builders who prefer metal parts with an oil seal for hydraulic operation.

How to Use / Care

1. Use it as a small hydraulic cylinder in an RC hydraulic model build, with No. 46 hydraulic oil as the cylinder medium.

How to Choose

Start by matching the cylinder to your model's hydraulic layout. Compare the outer diameter, the stroke length and the link hole size against the parts already in your build so the cylinder fits the space and the linkage. Check the scale your model is built for, then pick the stroke that gives the travel your mechanism needs. Brass construction suits builders who want a metal cylinder body, while the oil seal rating matters if the system runs warm or sees steady wear.

Frequently Asked Questions

What material is it made of?
It is made from H59 brass with a brass seamless mirror tube.

Does it need a battery?
No. It has no battery and no power source, because it works as a hydraulic part.

What stroke lengths are available?
The stroke options are 14mm, 20mm, 30mm, 45mm, 60mm, 80mm and 100mm.

What hydraulic oil does it use?
It is designed for No. 46 hydraulic oil as the cylinder medium.

What pressure can it handle?
Its strength is rated below 3Mpa, with a maximum pressure of 4Mpa.
