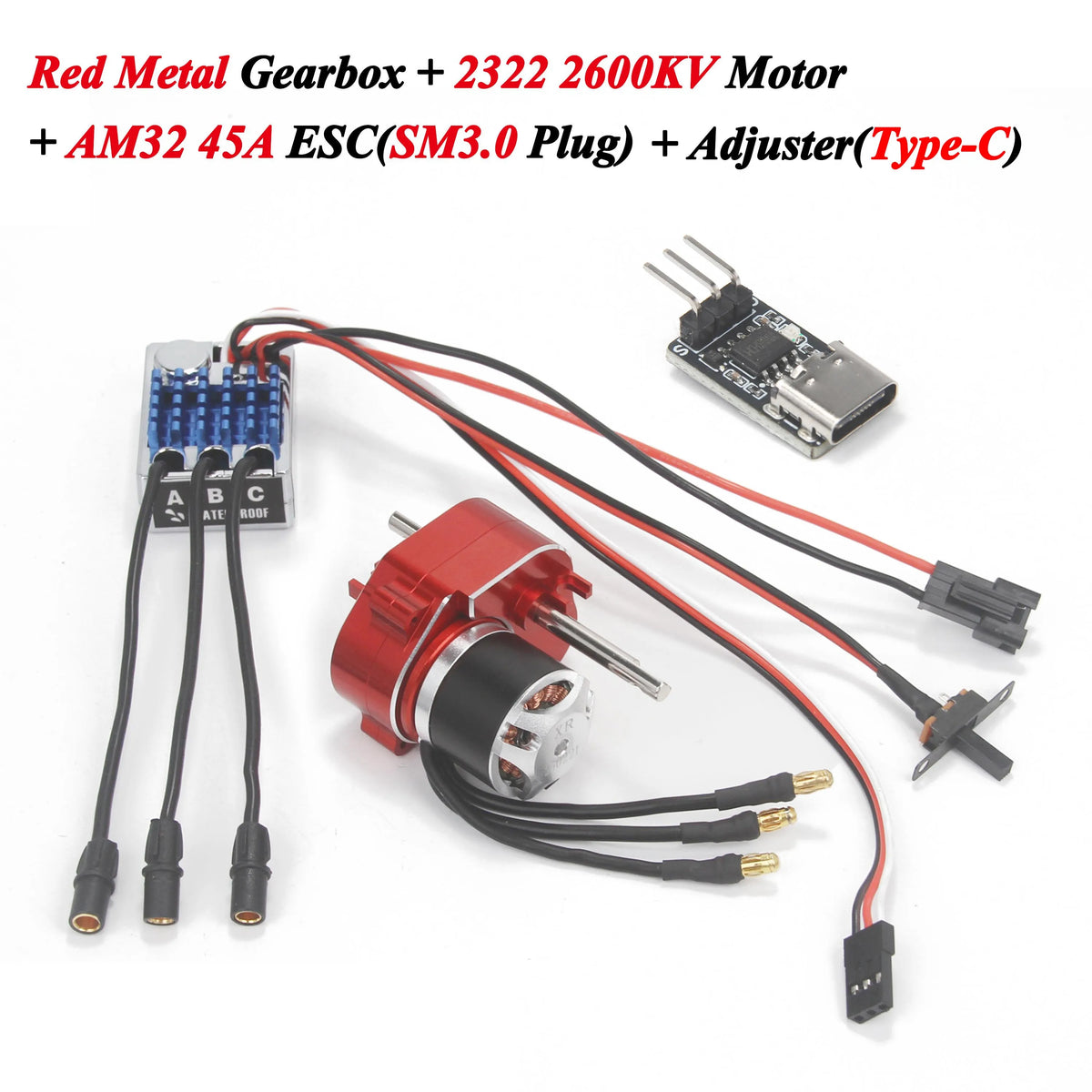

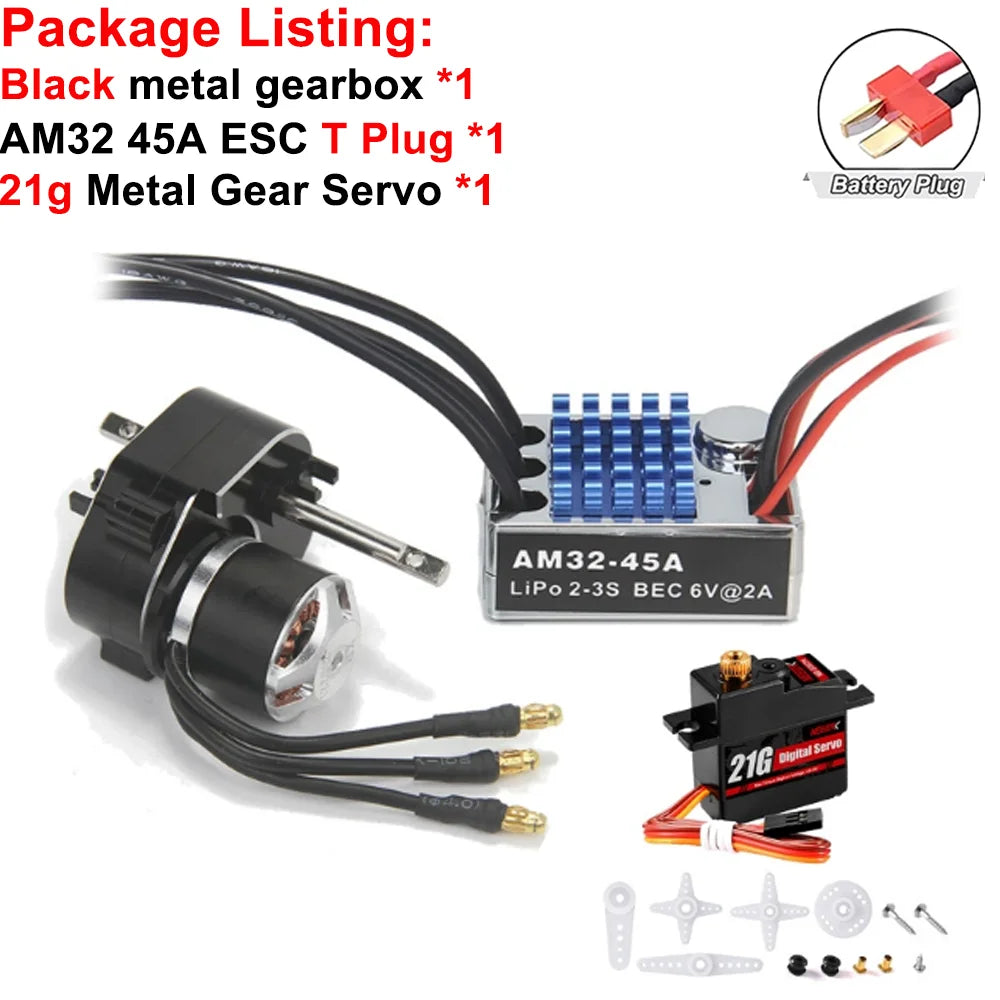

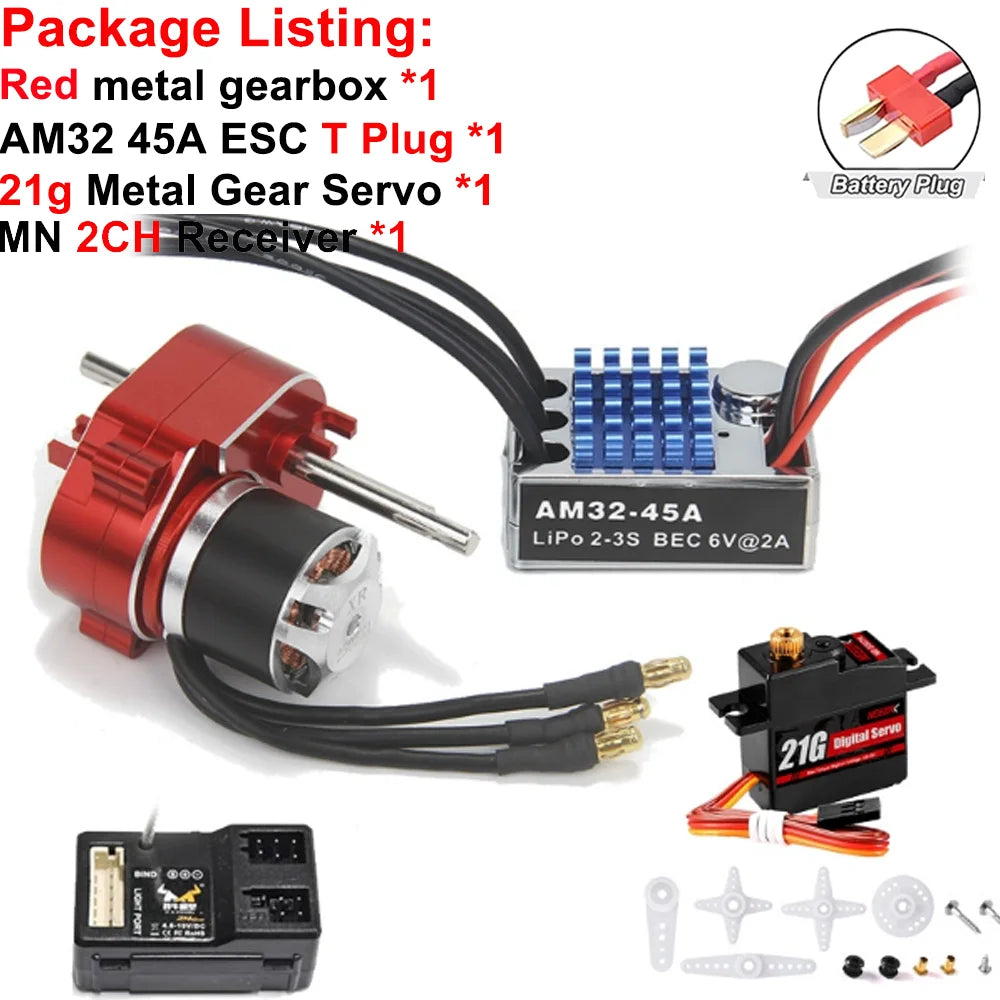

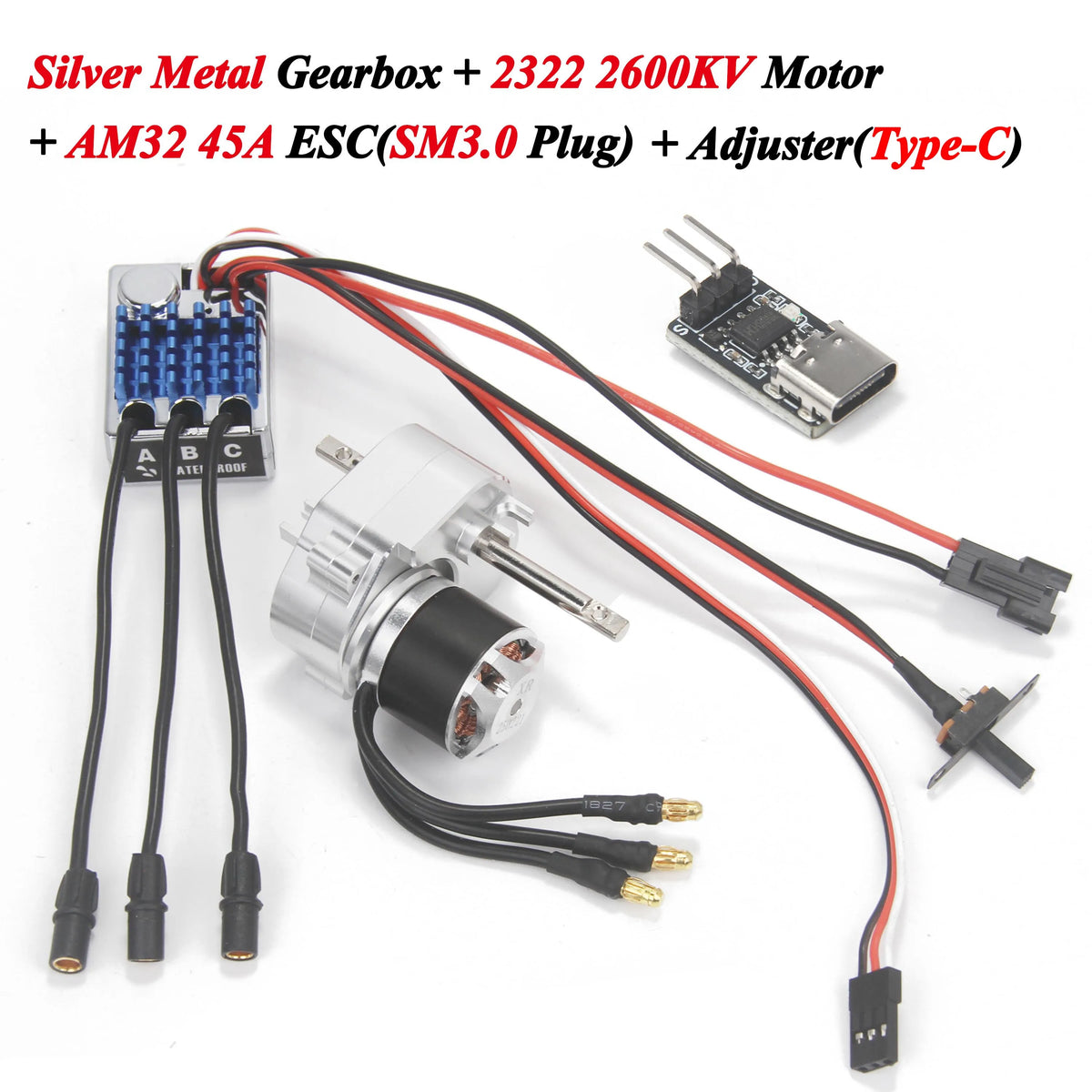

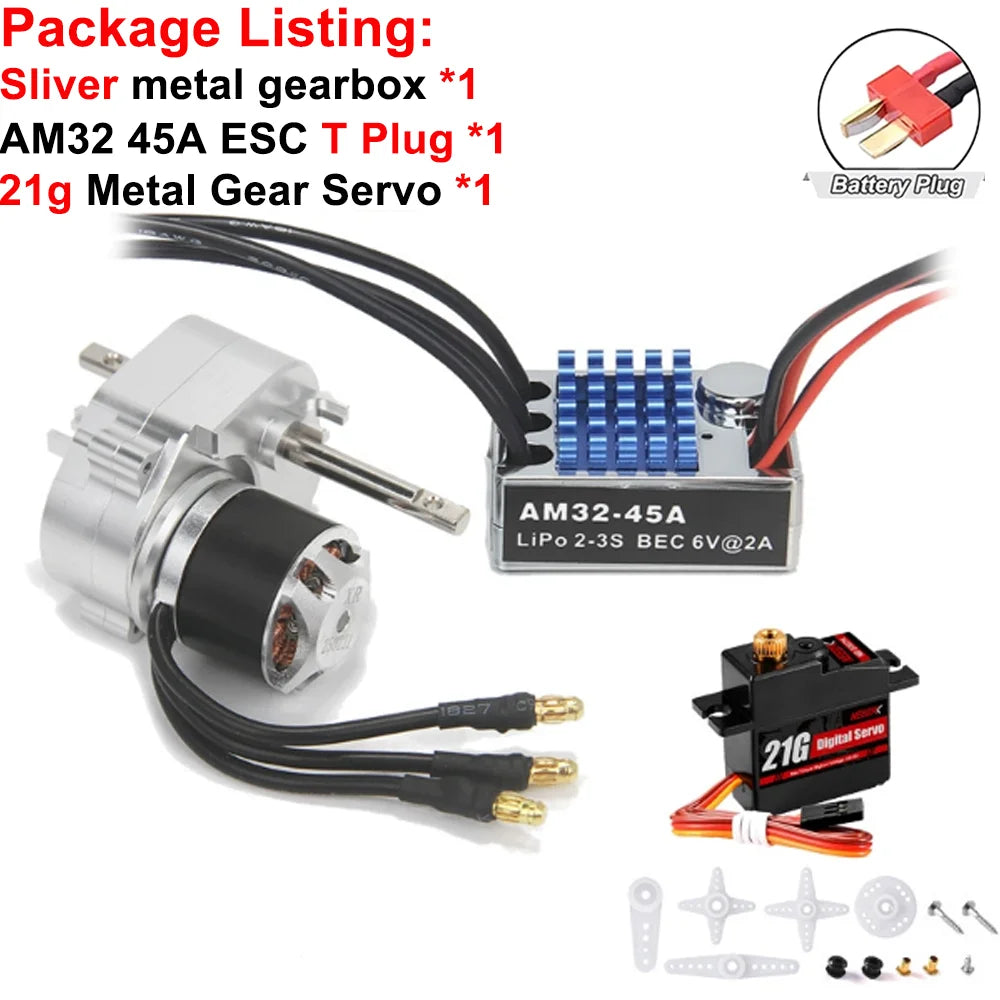

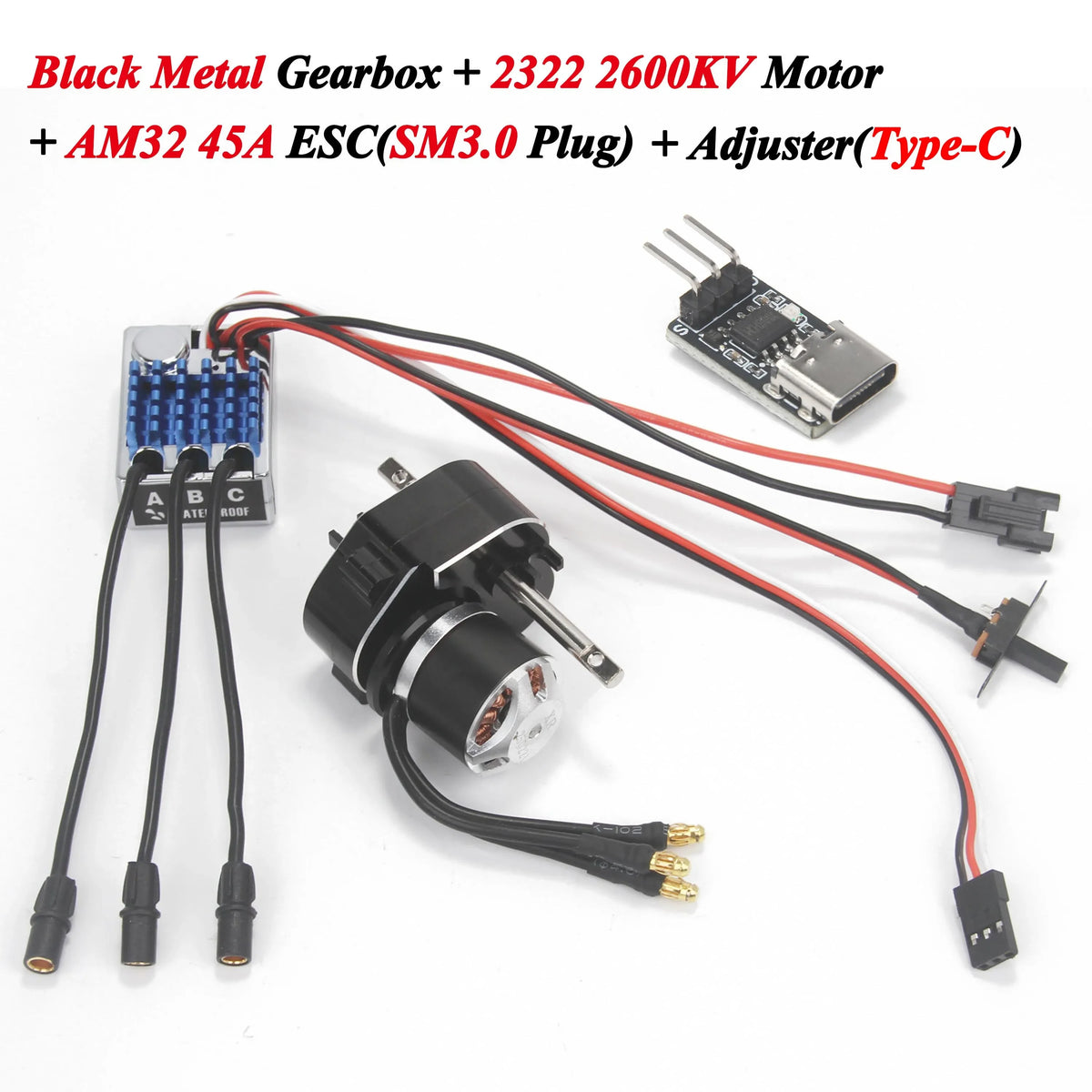

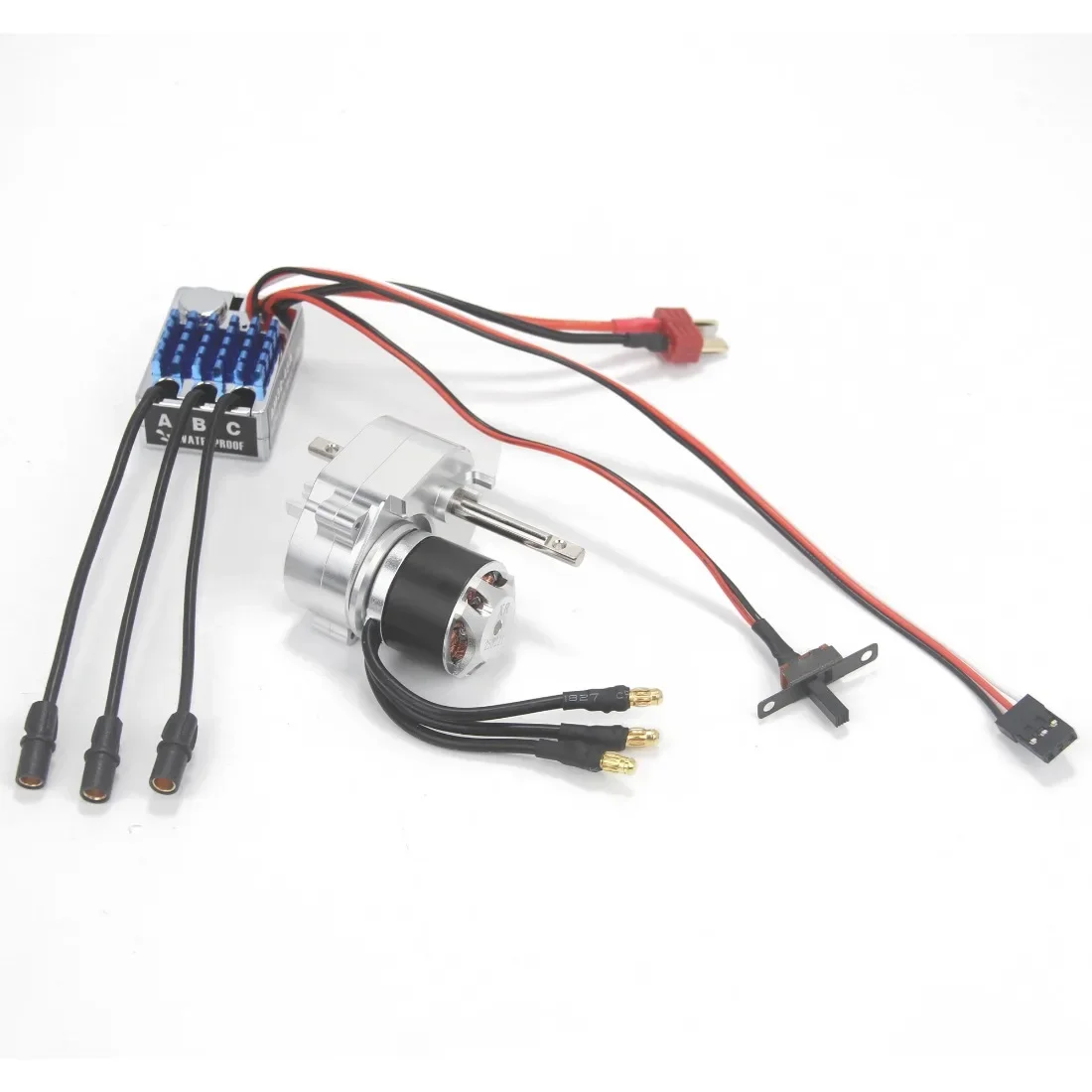

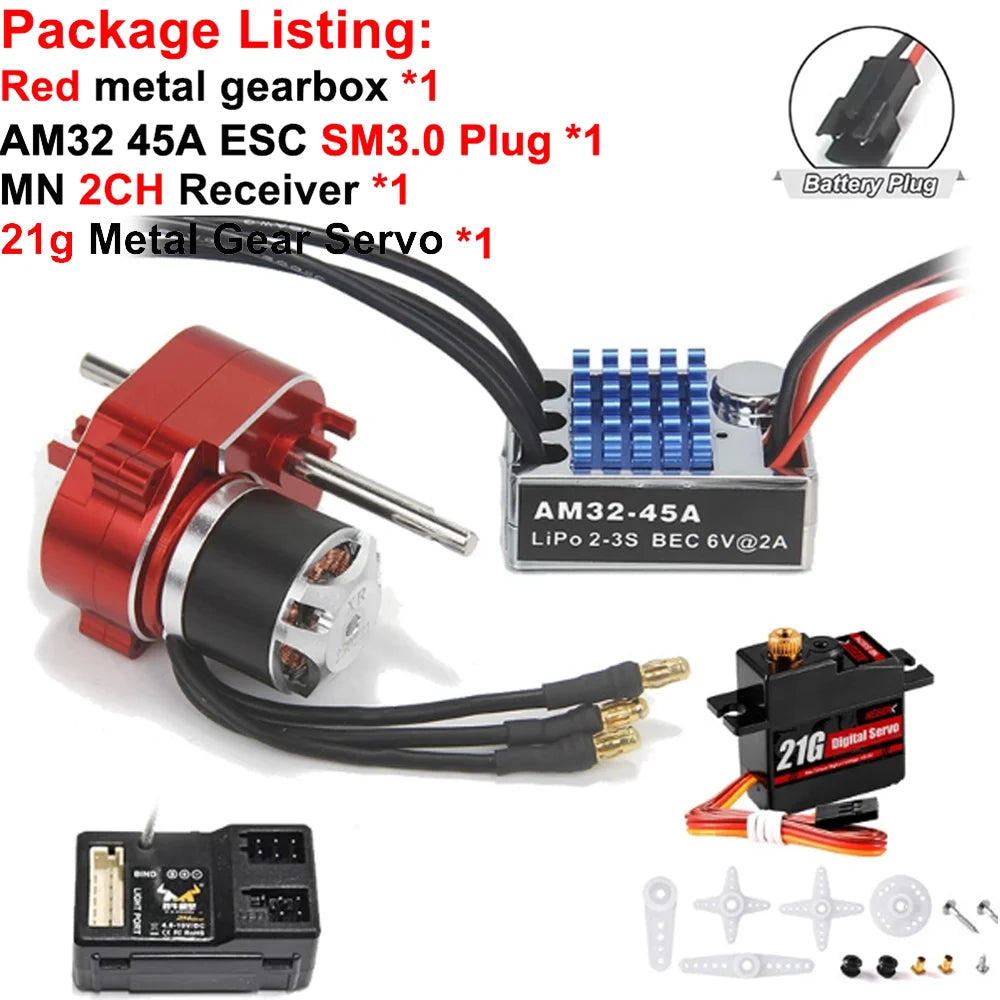

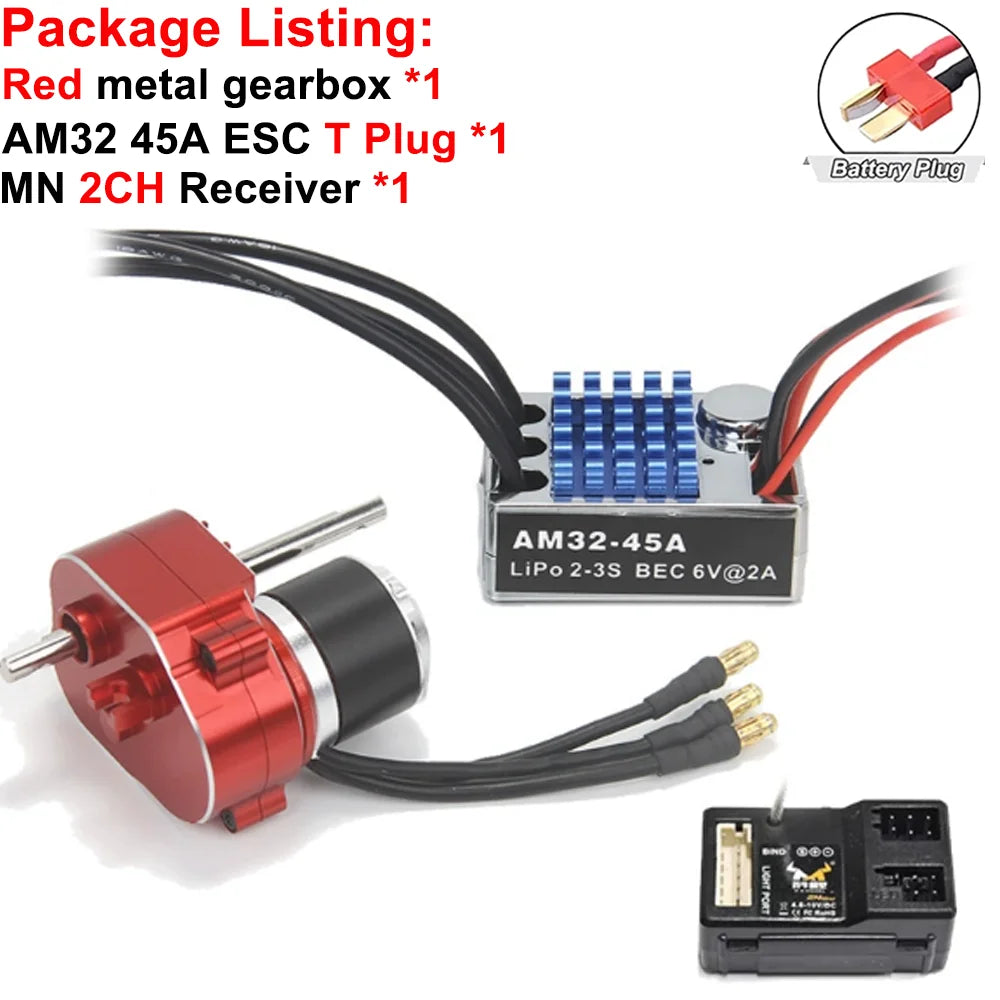

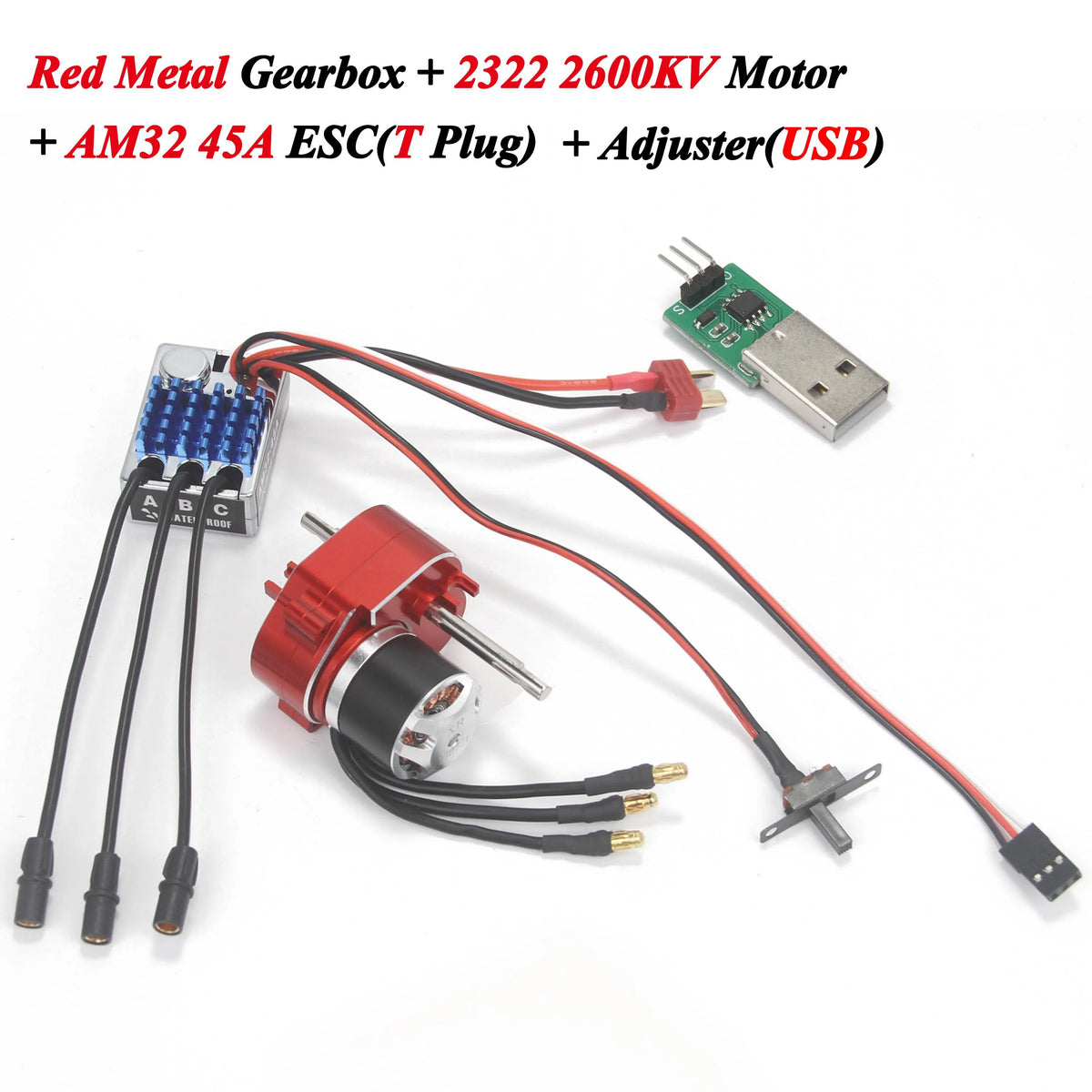

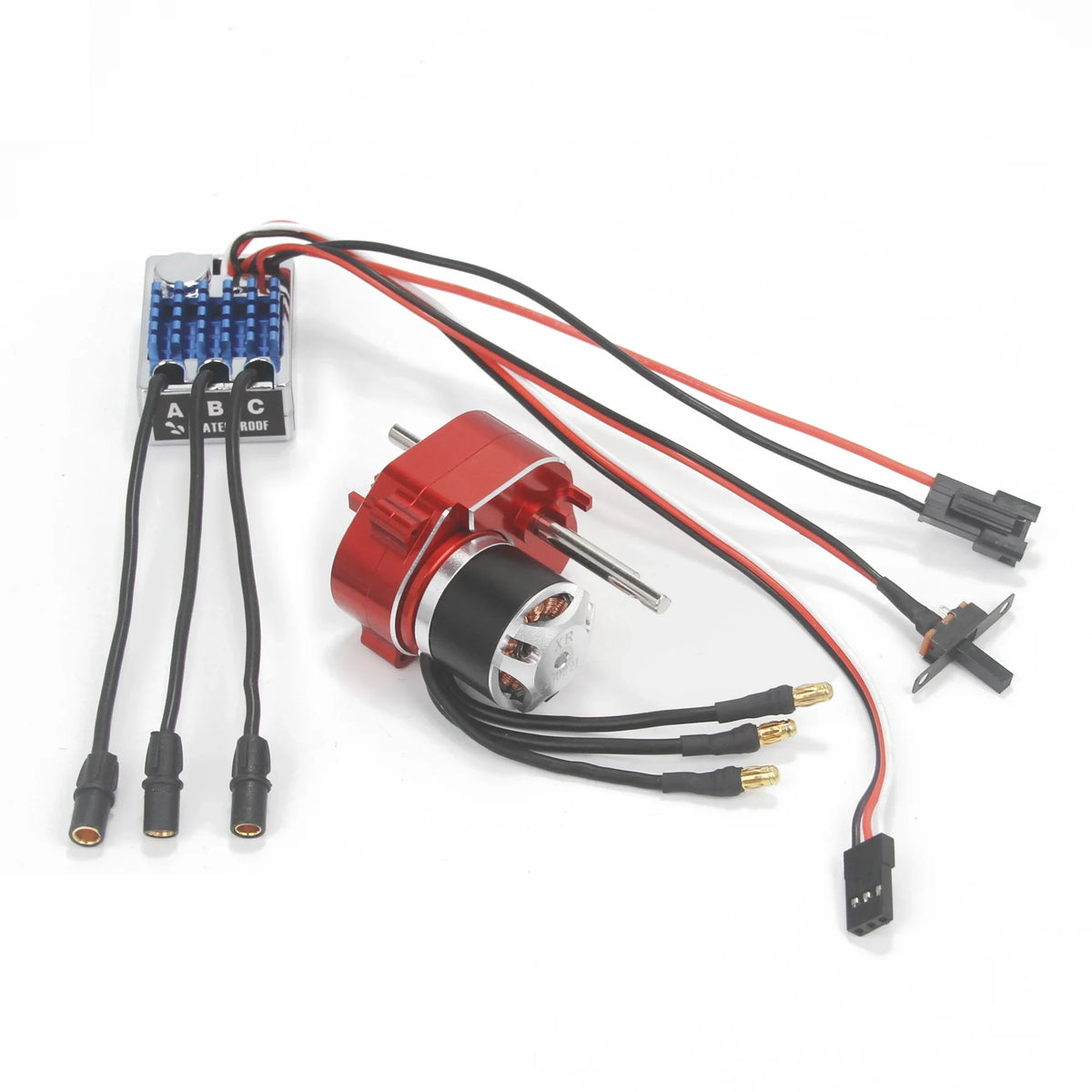

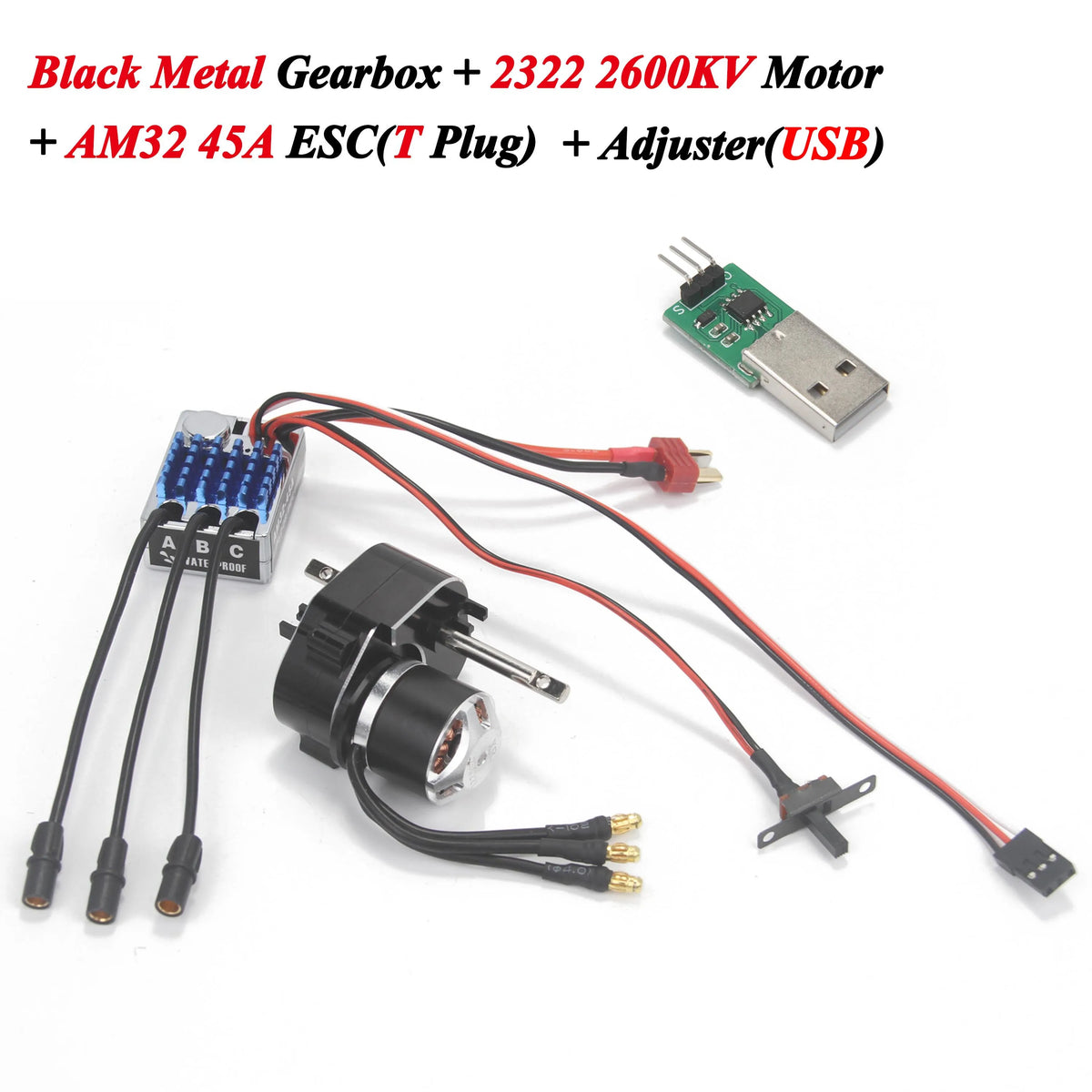

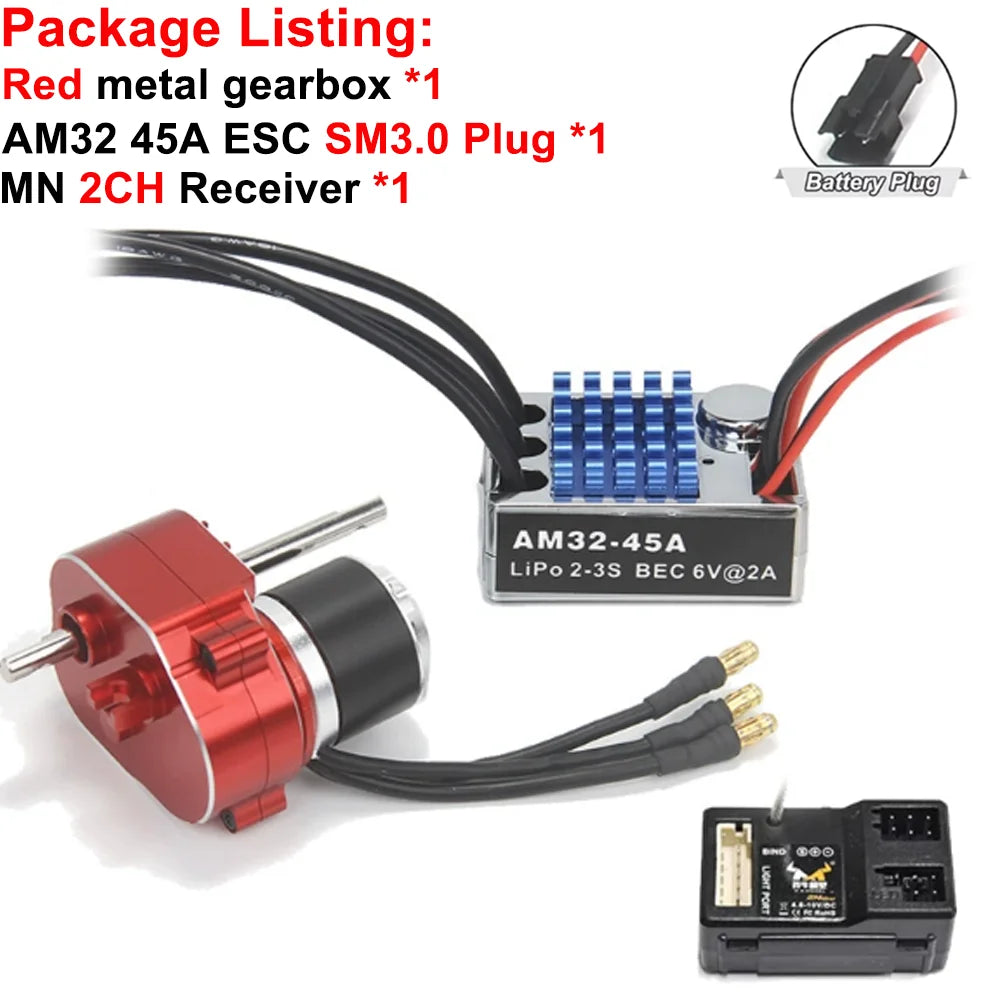

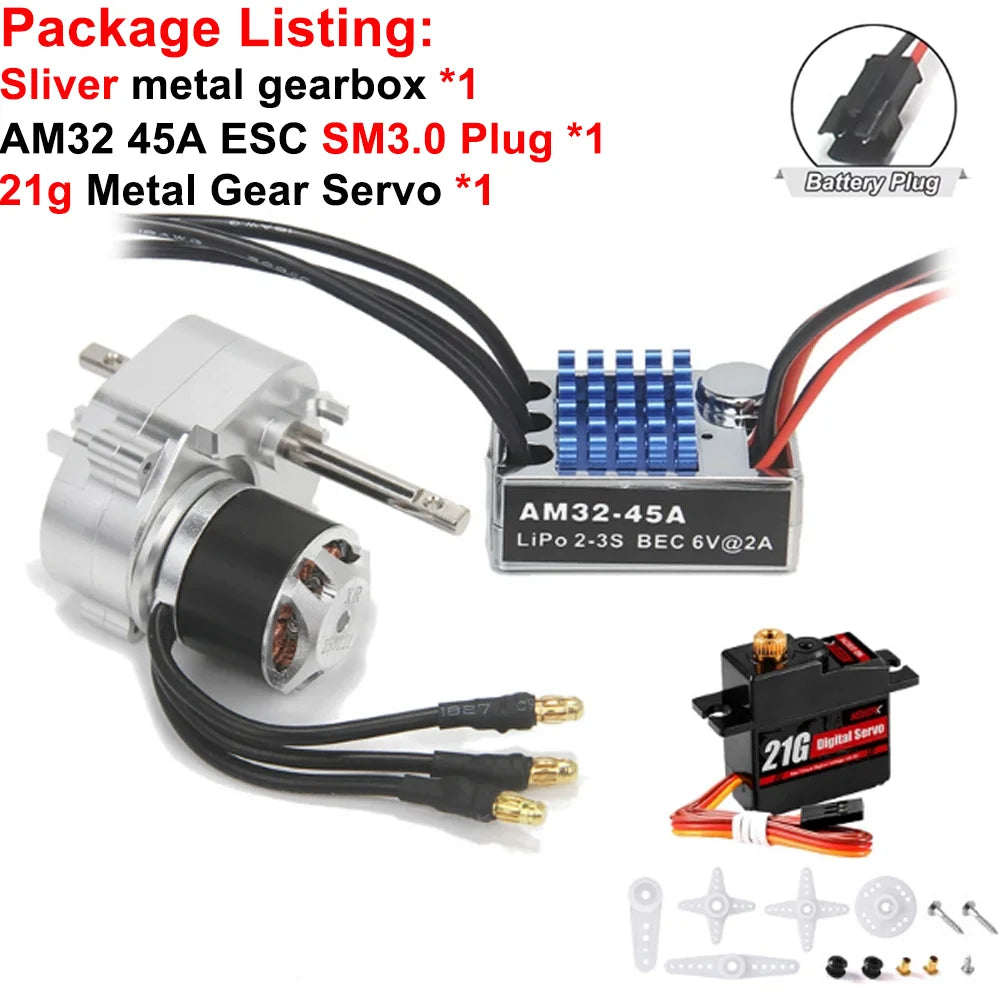

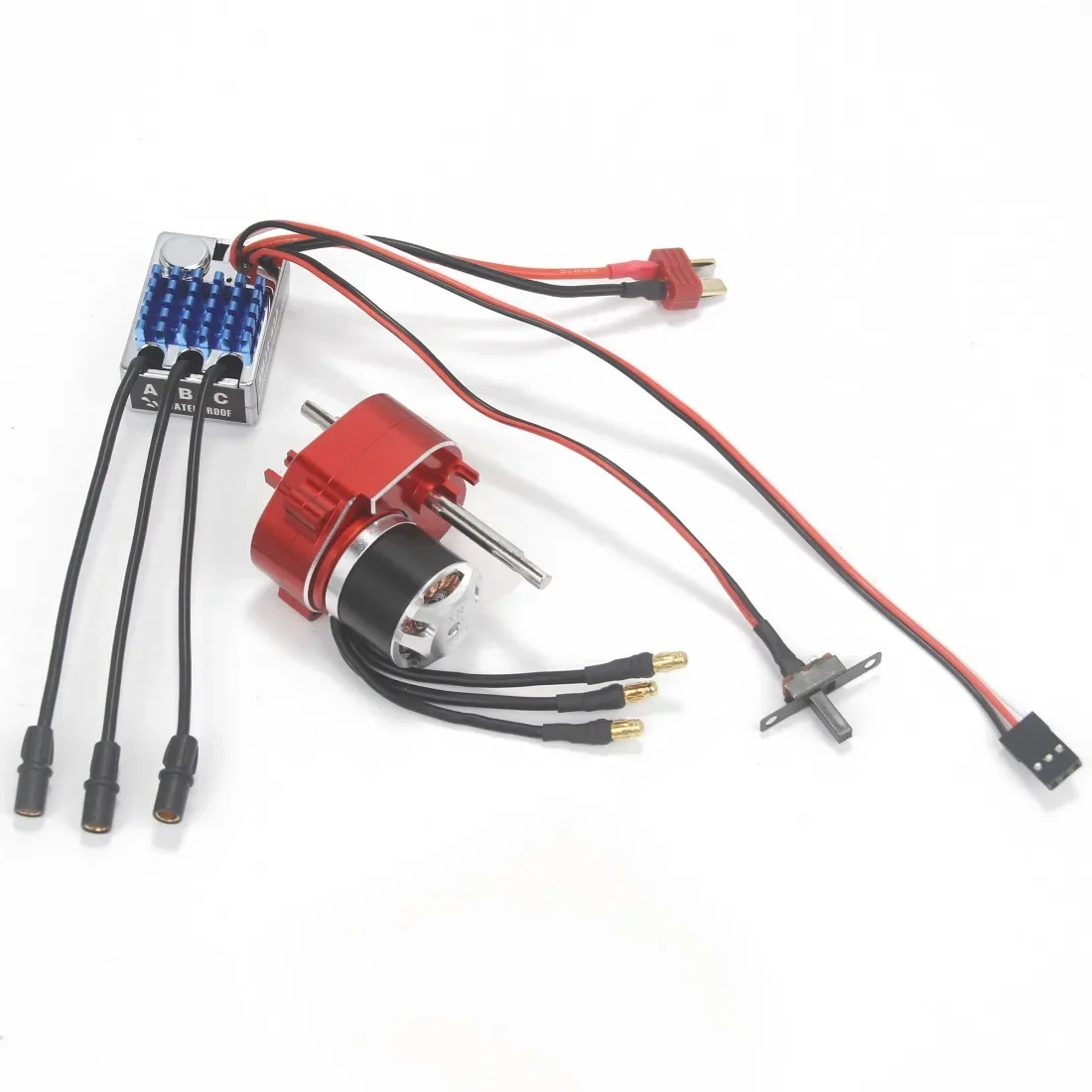

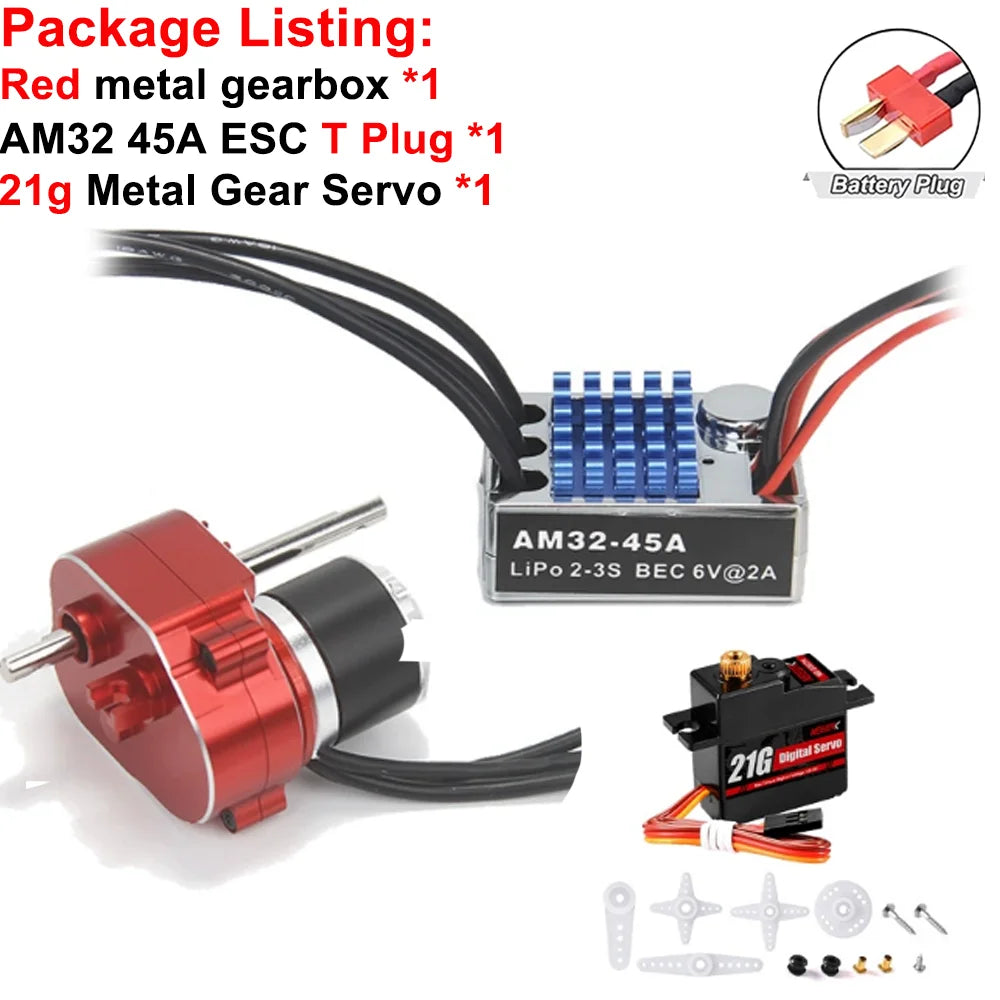

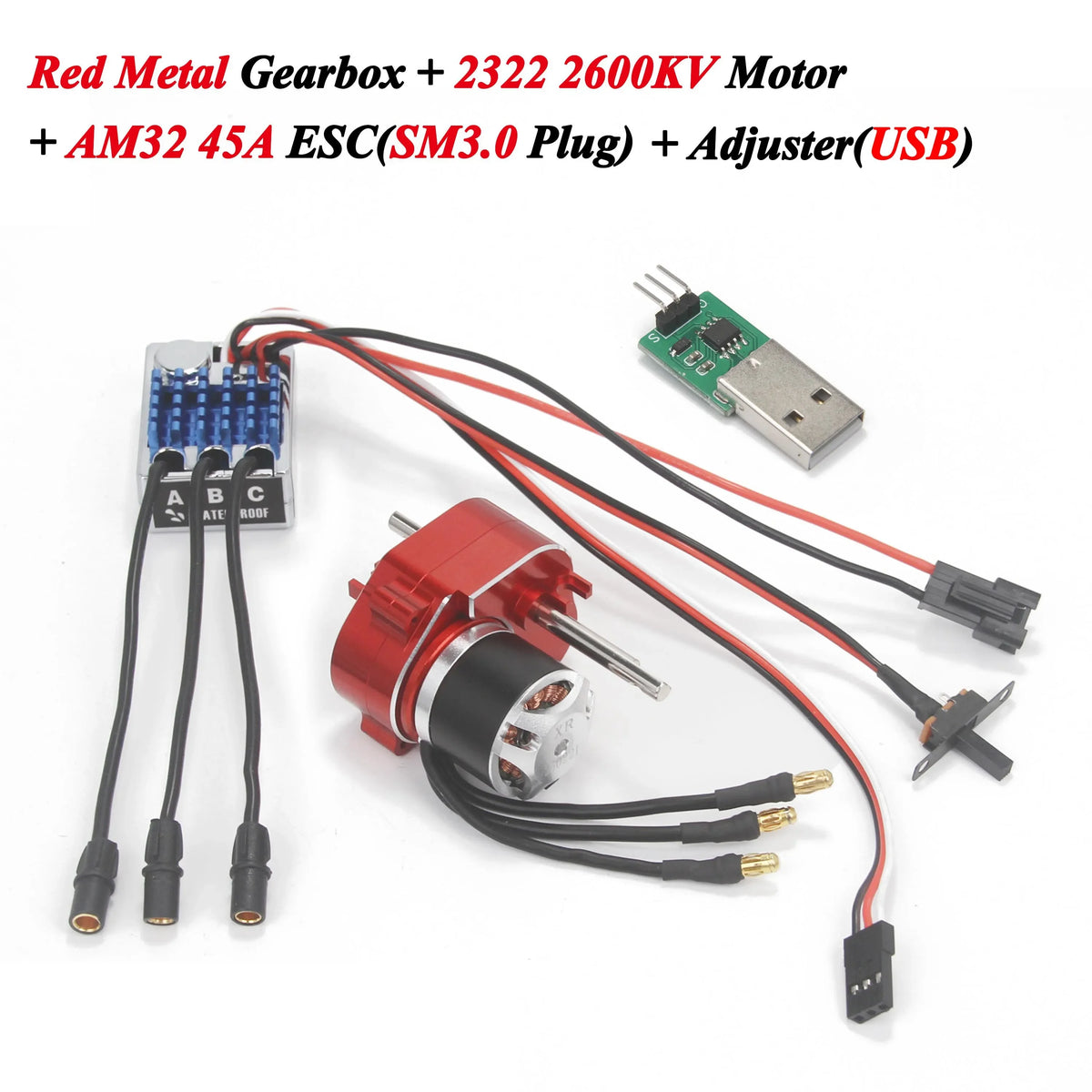

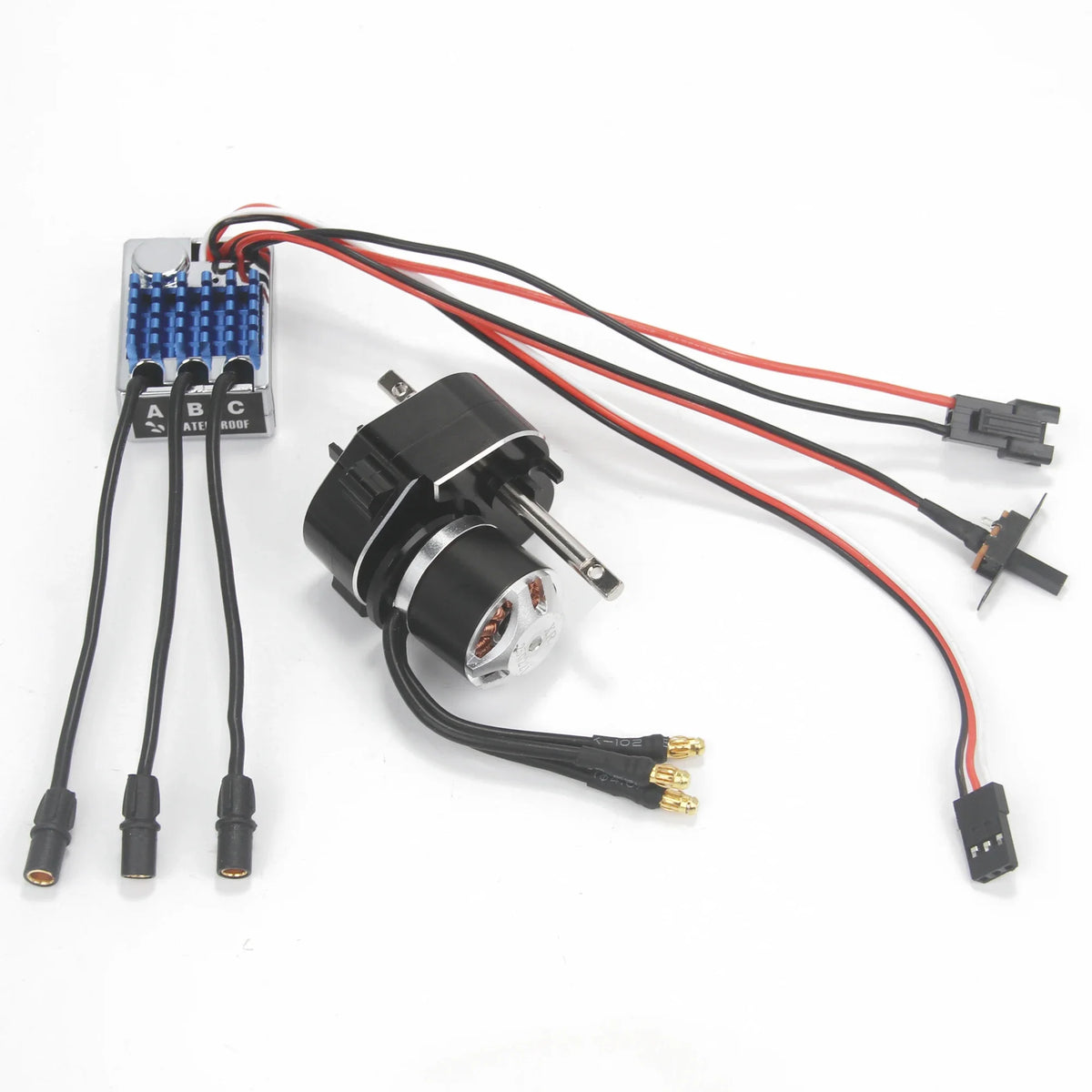

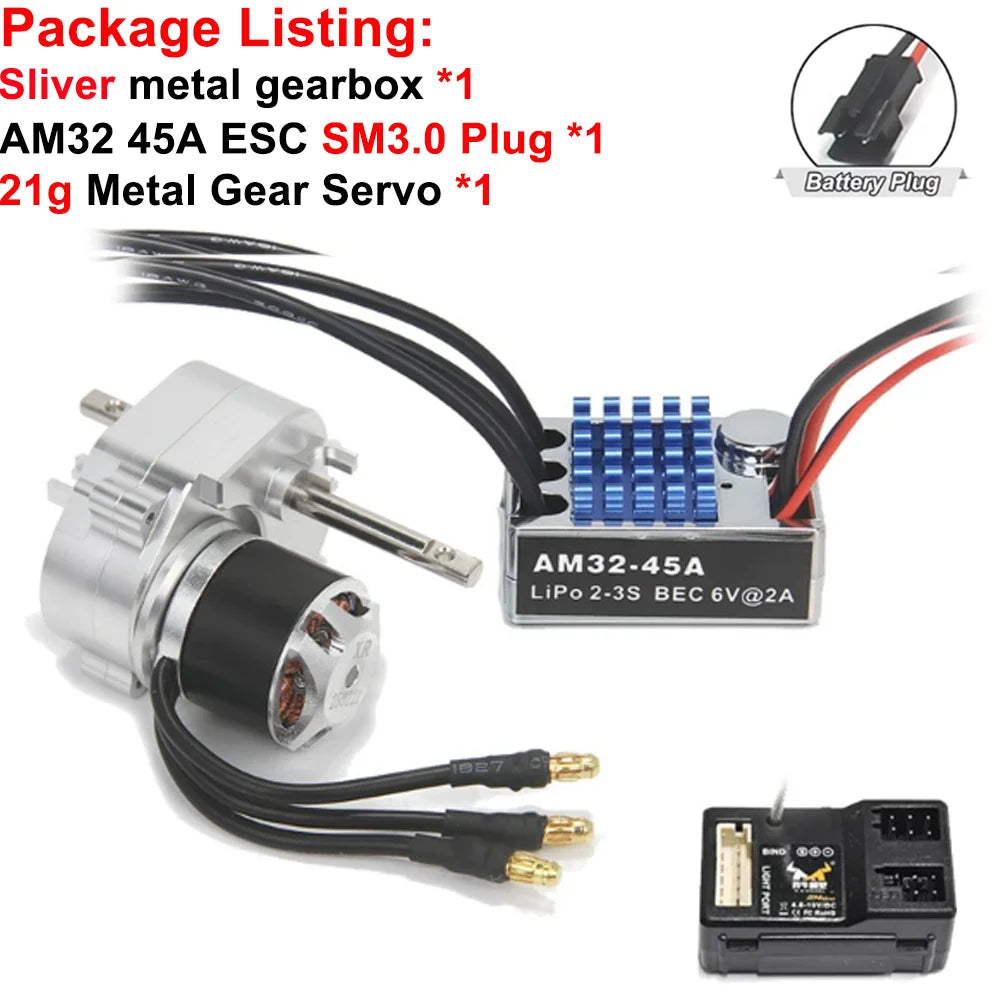

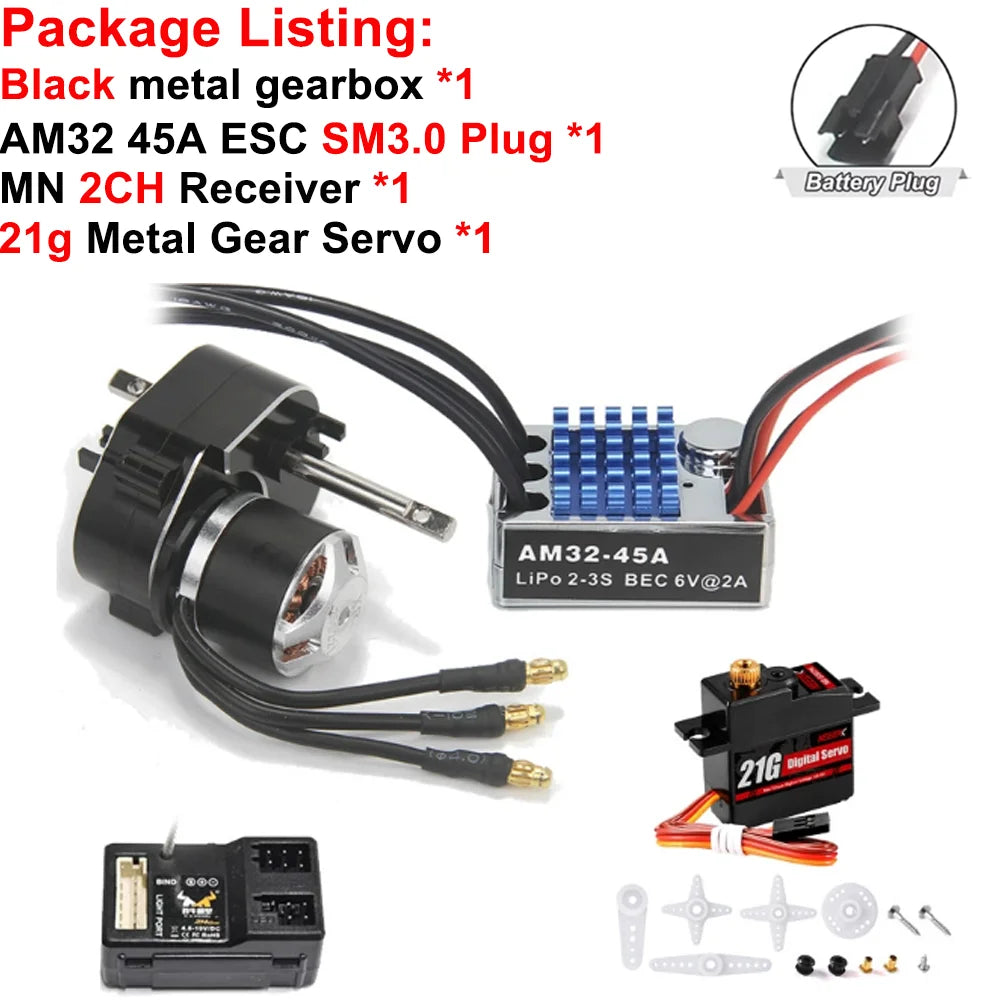

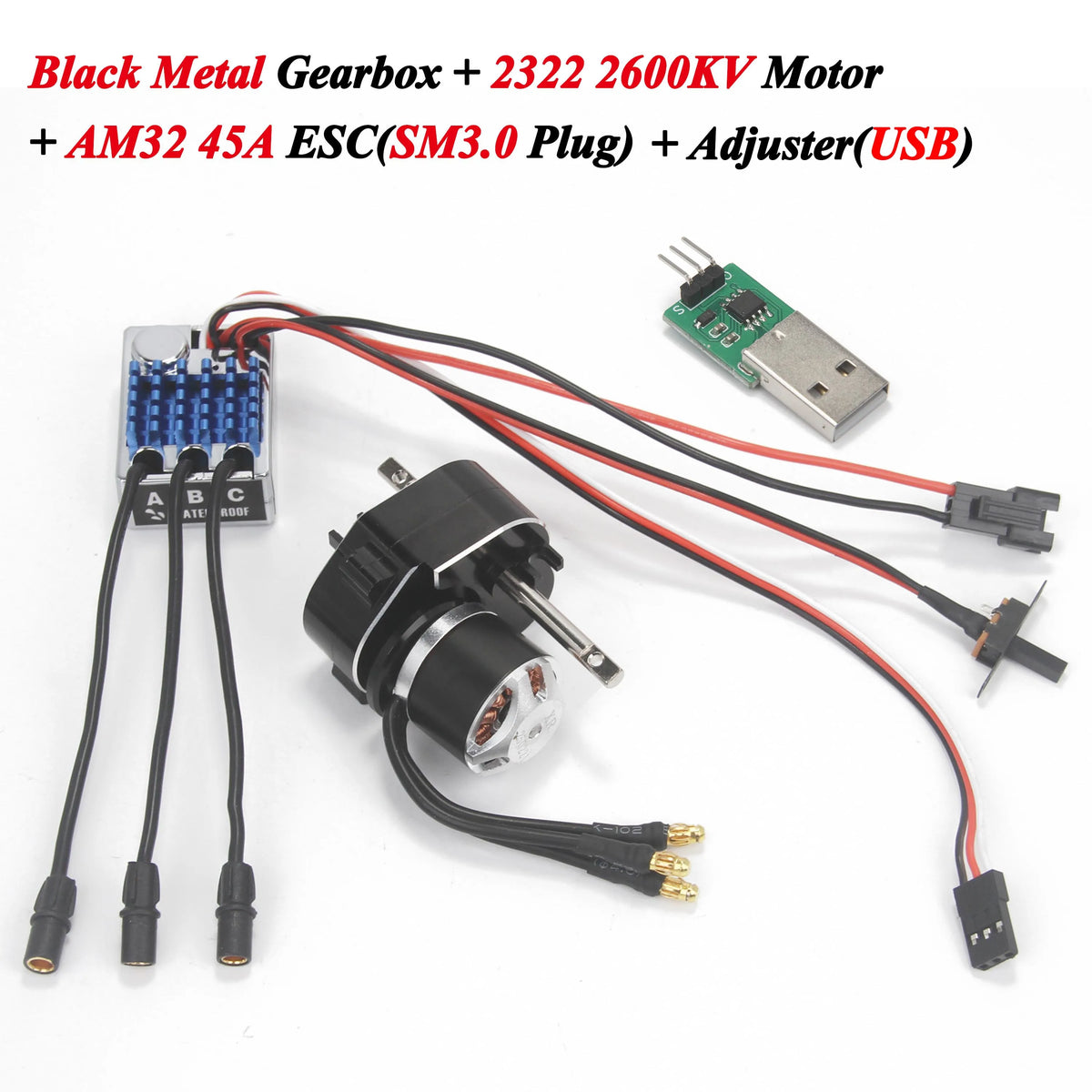

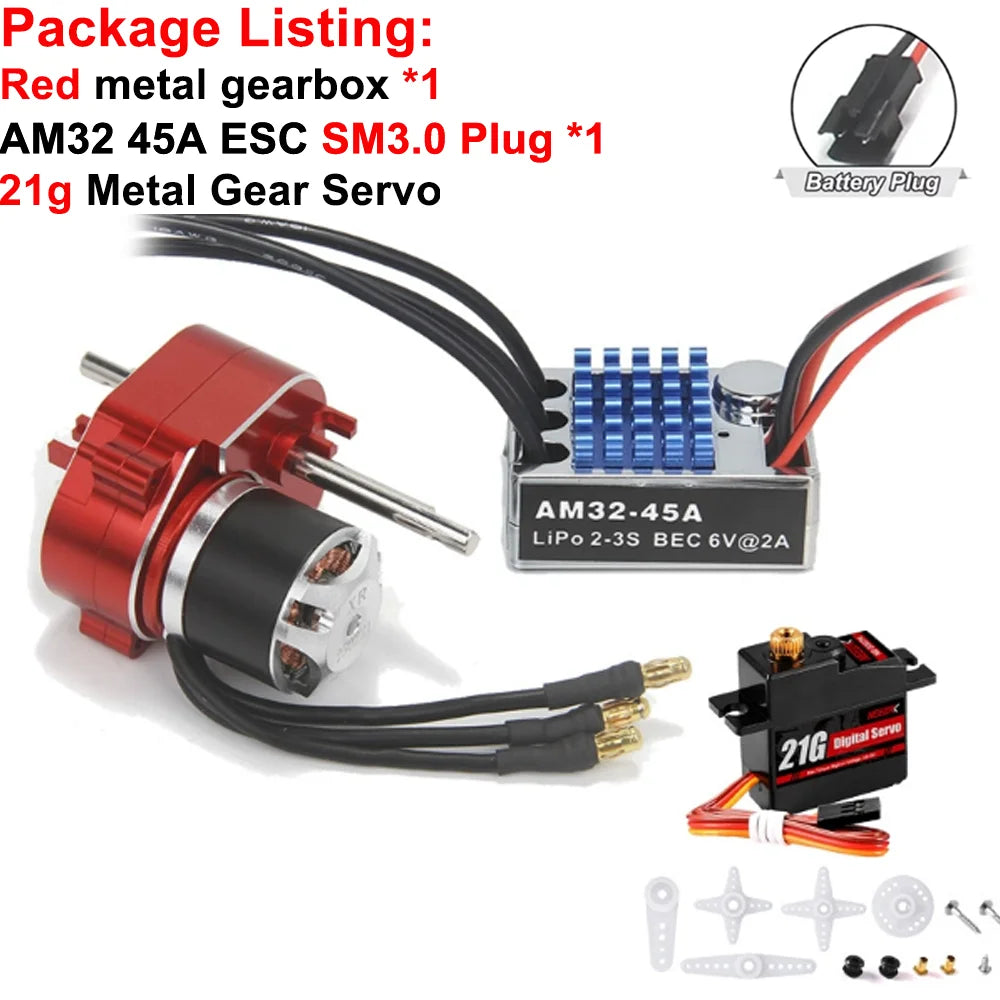

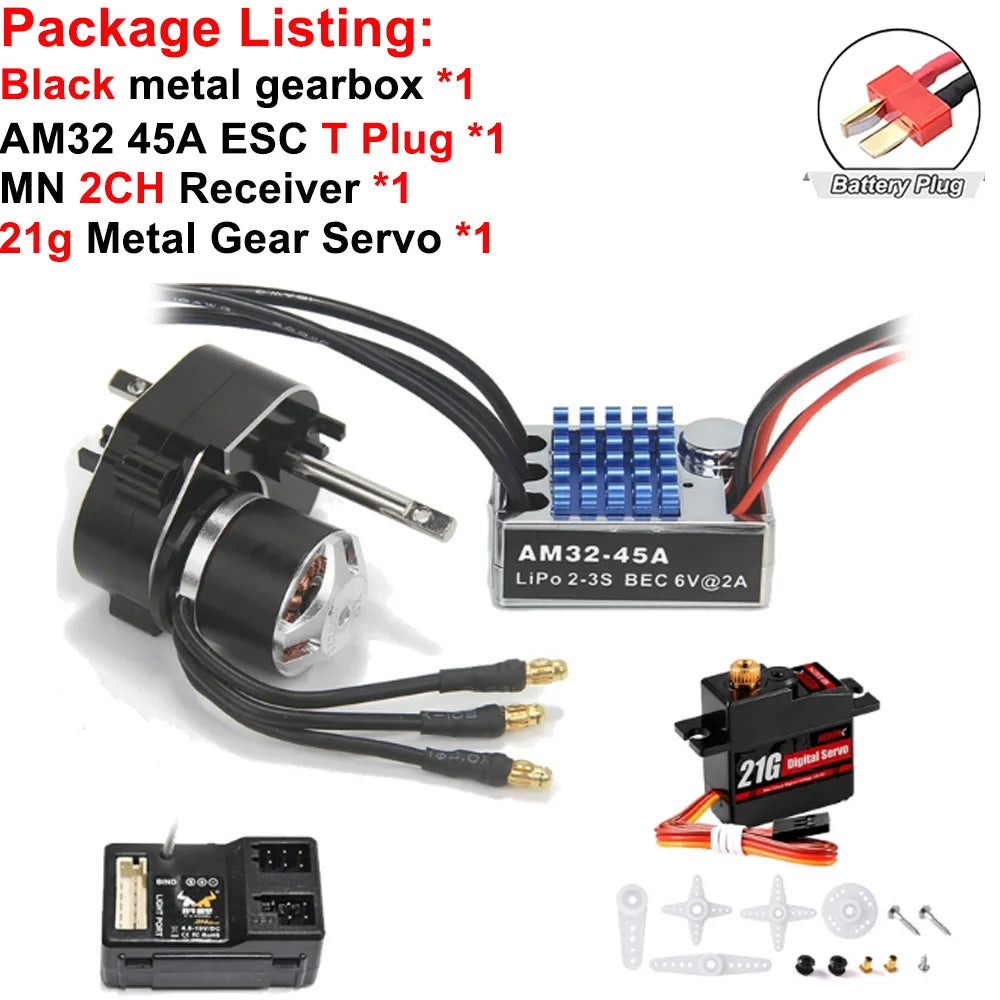

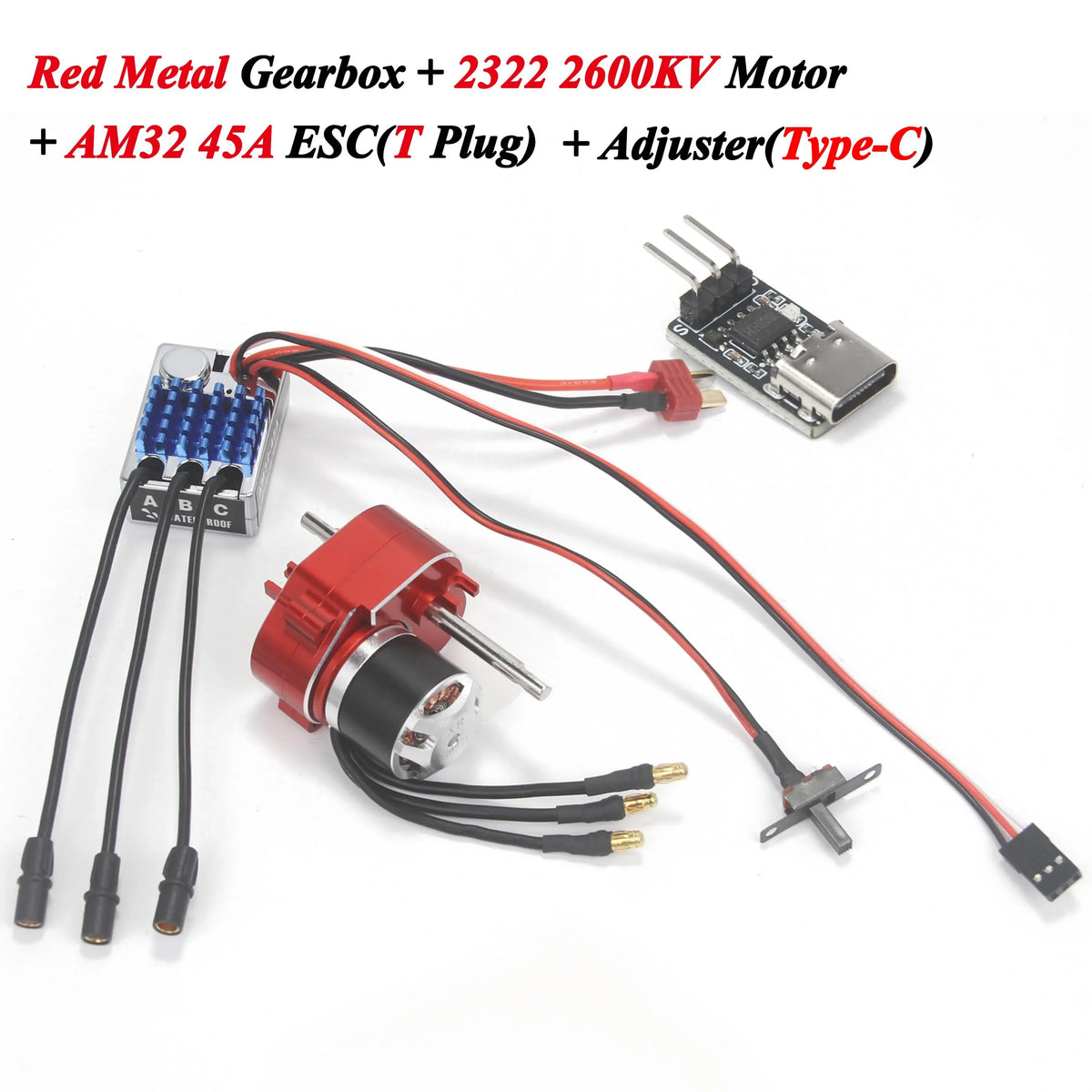

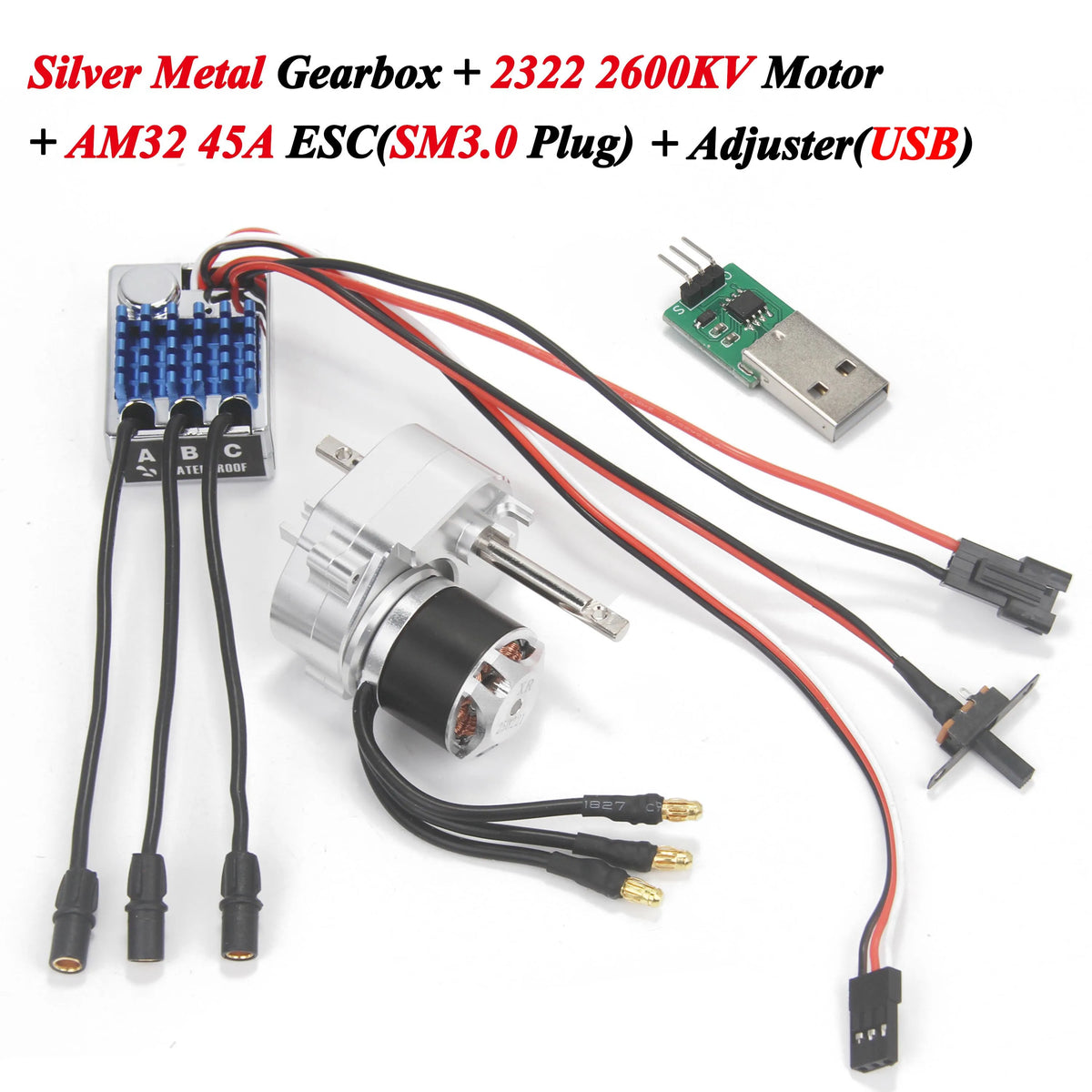

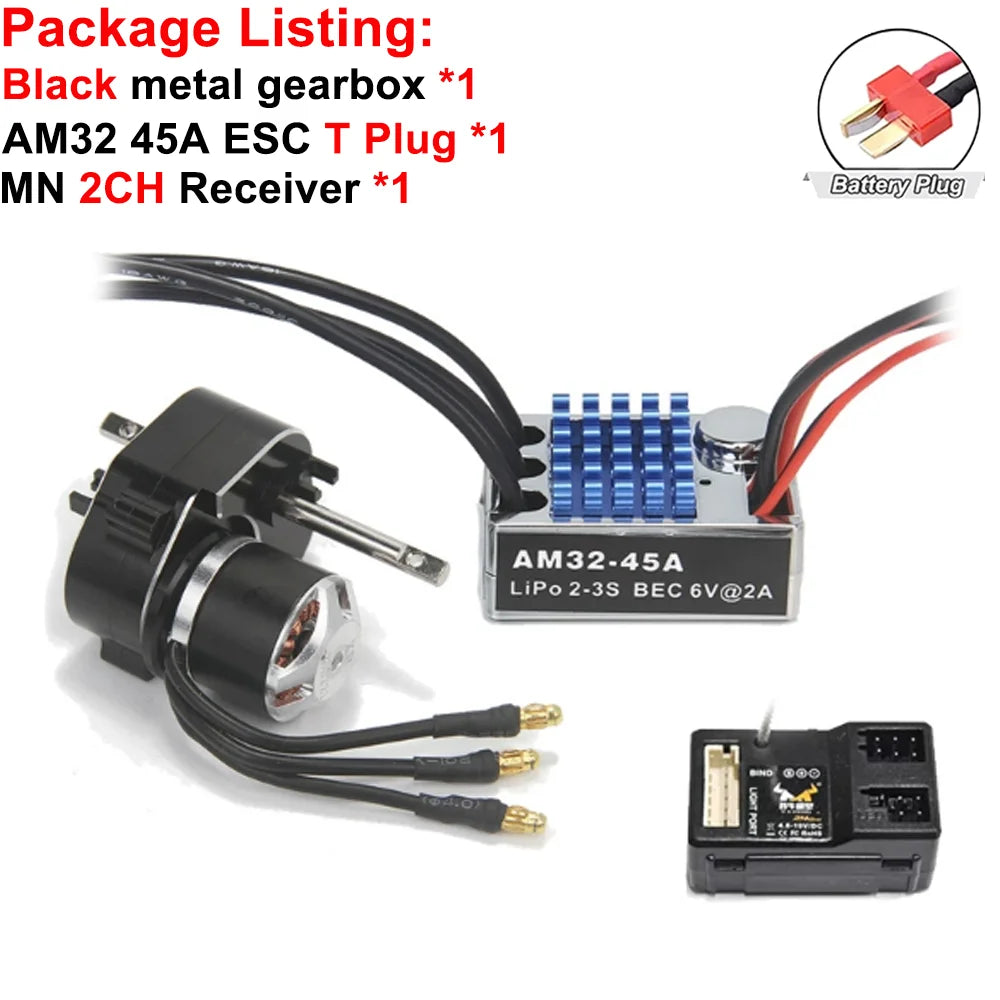

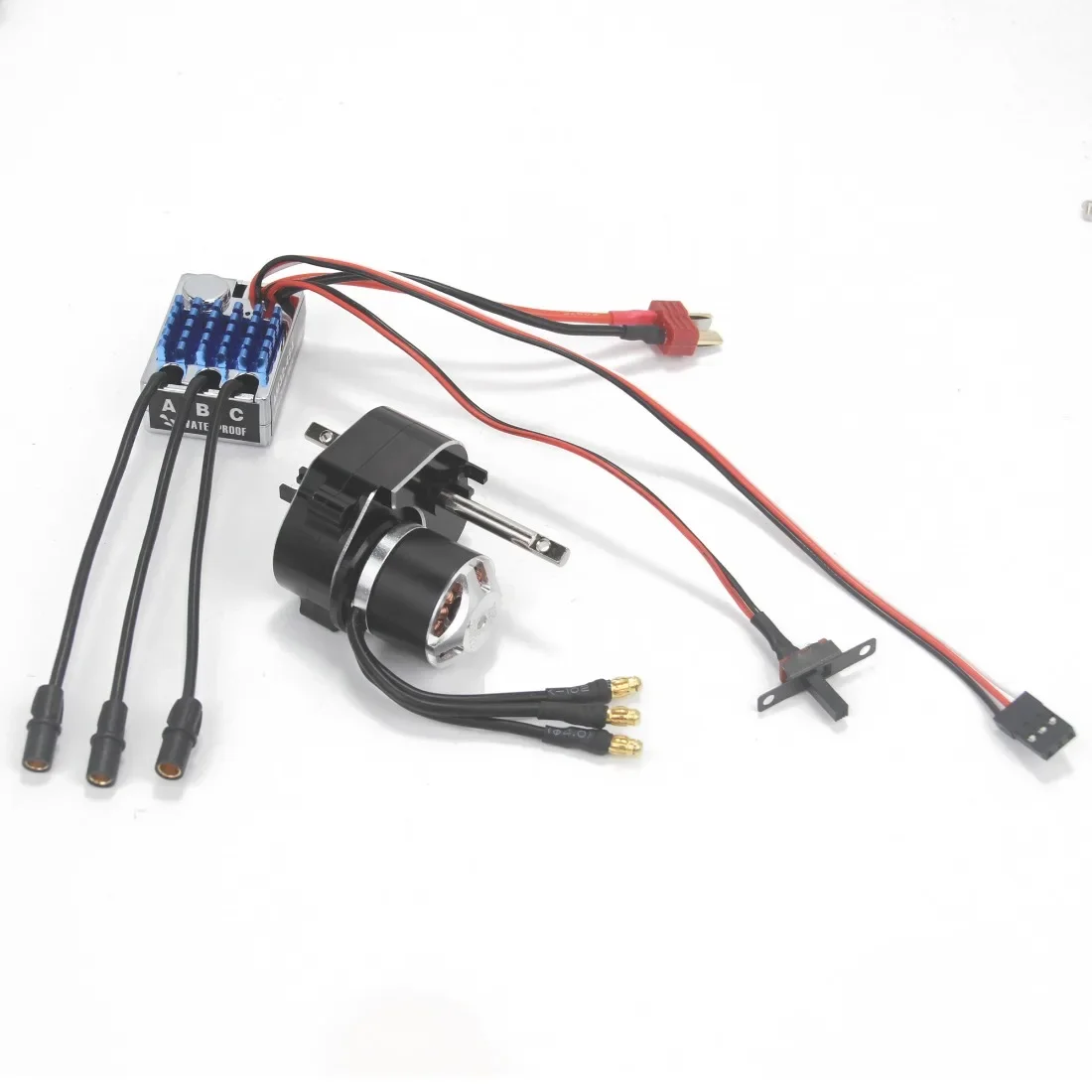

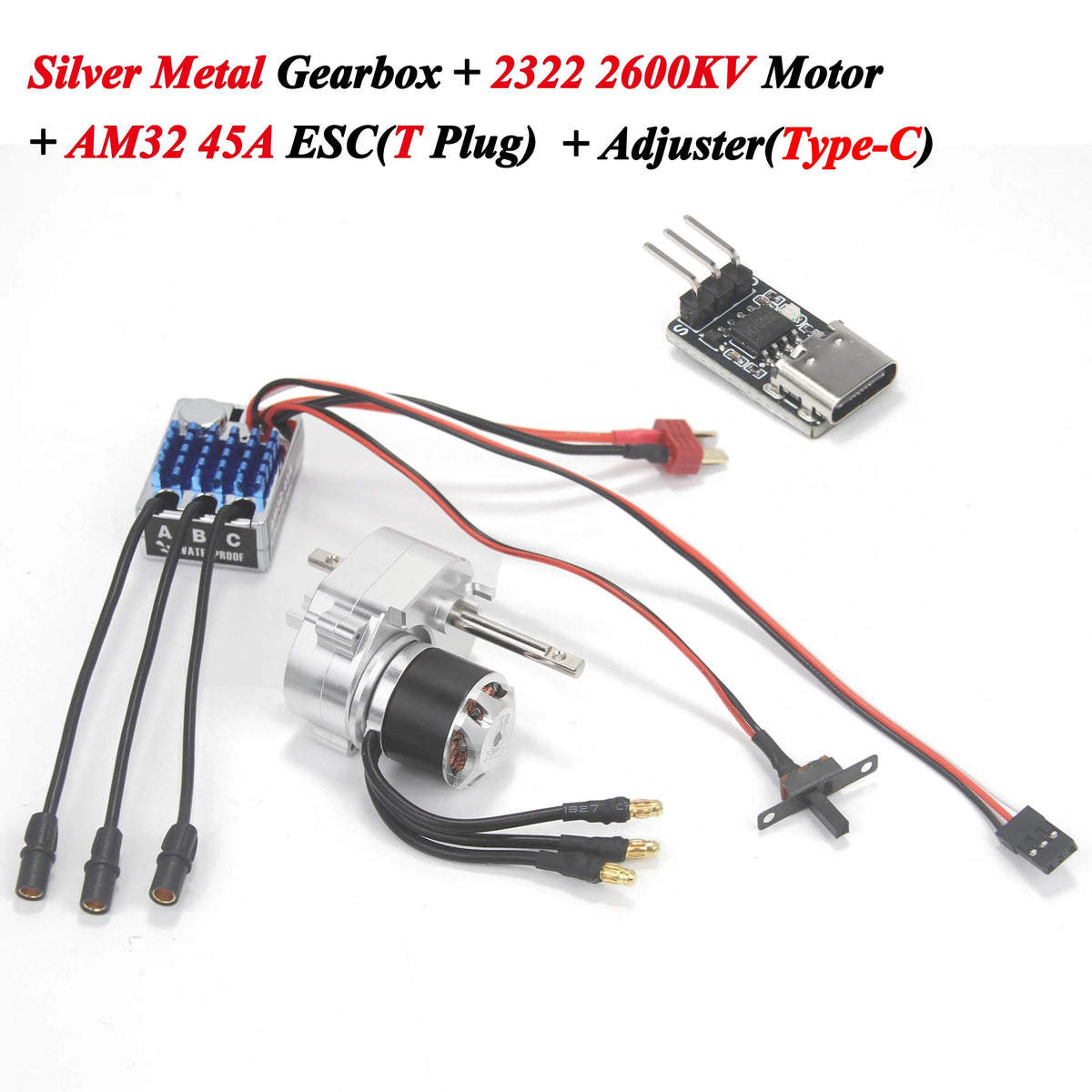

Full Metal Gearbox 2322 2600KV Brushless Motor AM32 45A ESC Adjuster 21g Servo for 1/12 RC Car Crawler MN82 MN78 MN168 MN99 MN98
$152.99
SPECIFICATIONS
Brand Name: NeebRC
Certification: CE
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: 2322
Origin: Mainland China
RC Parts & Accs: Motors
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 2600KV
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Hydraulic Transmission Box
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

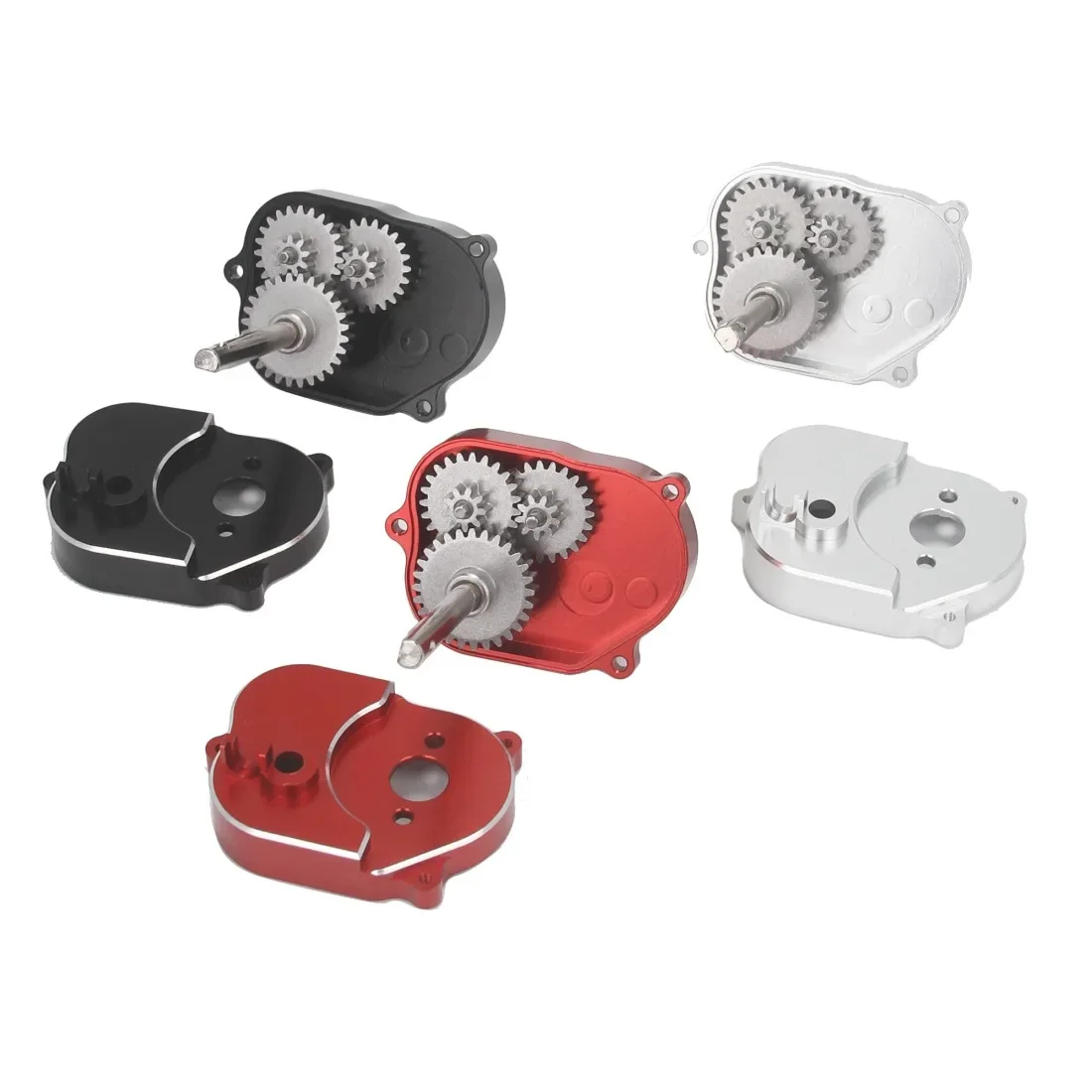

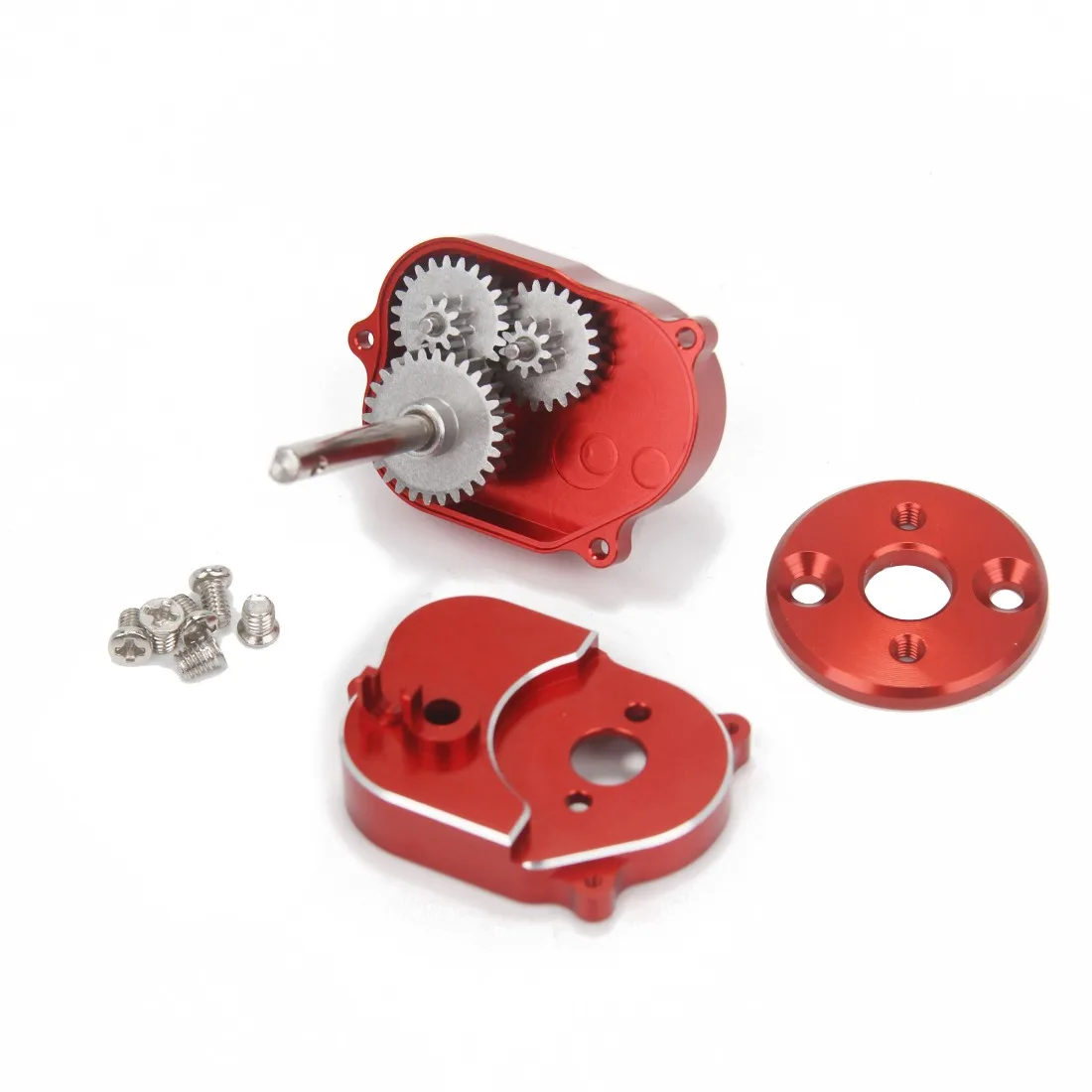

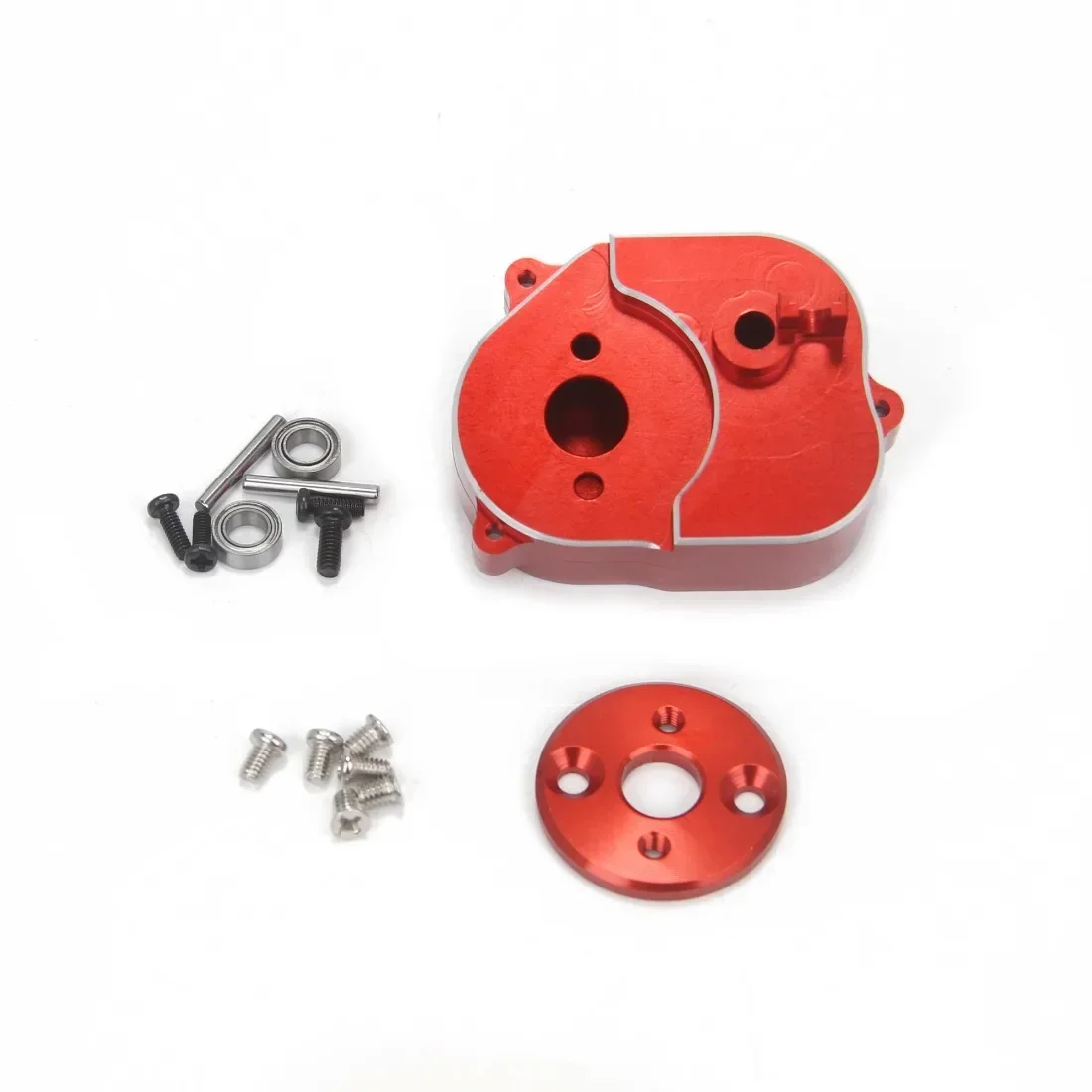

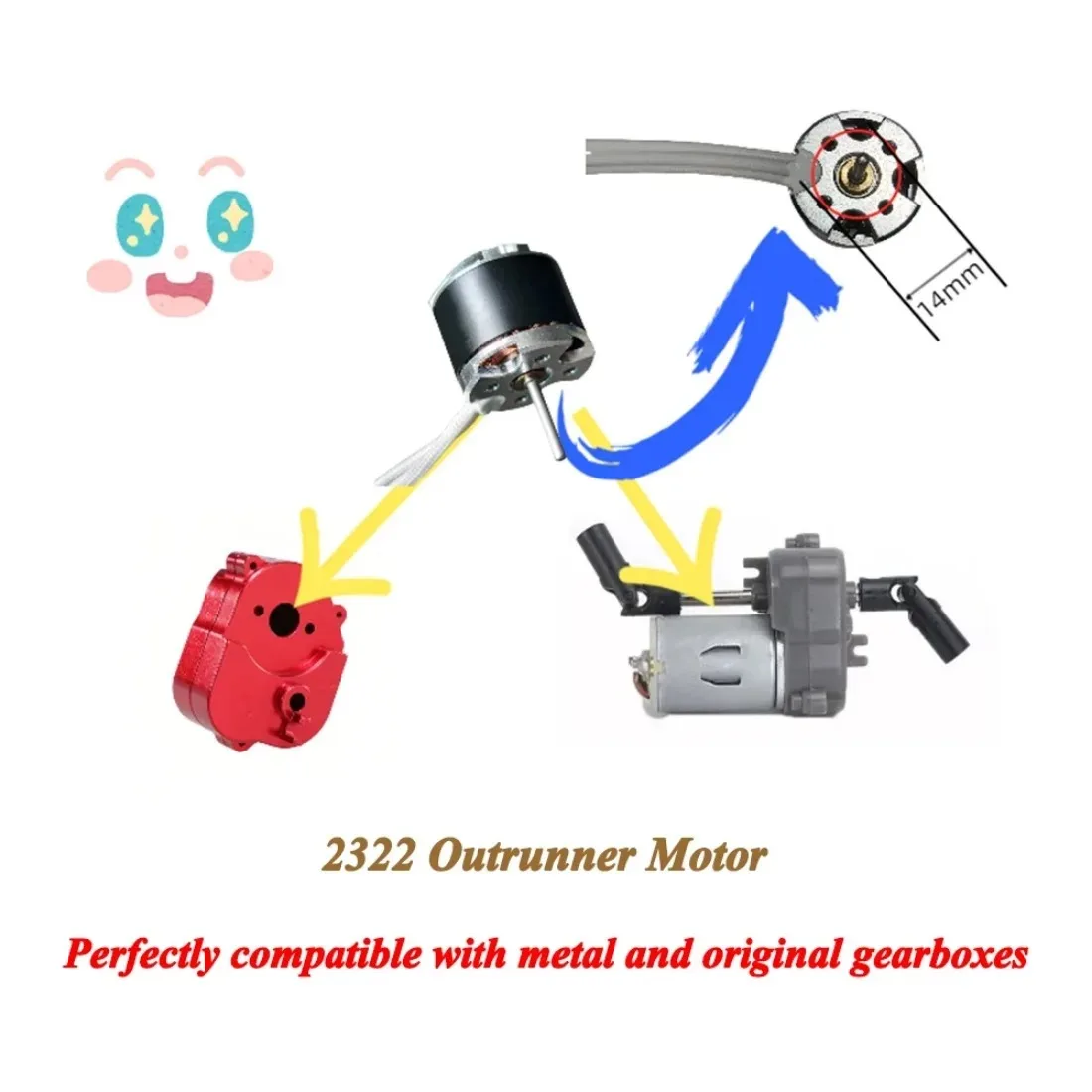

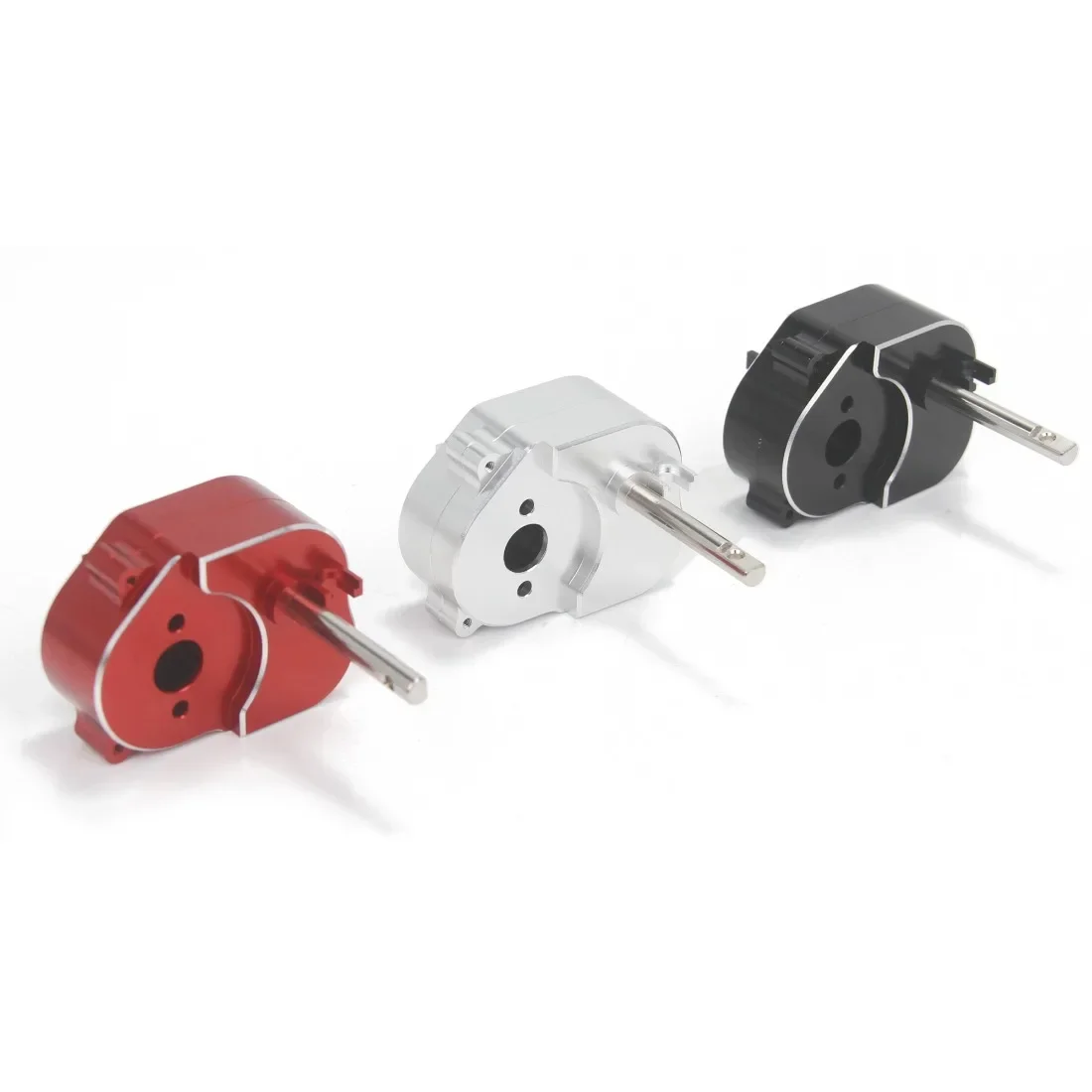

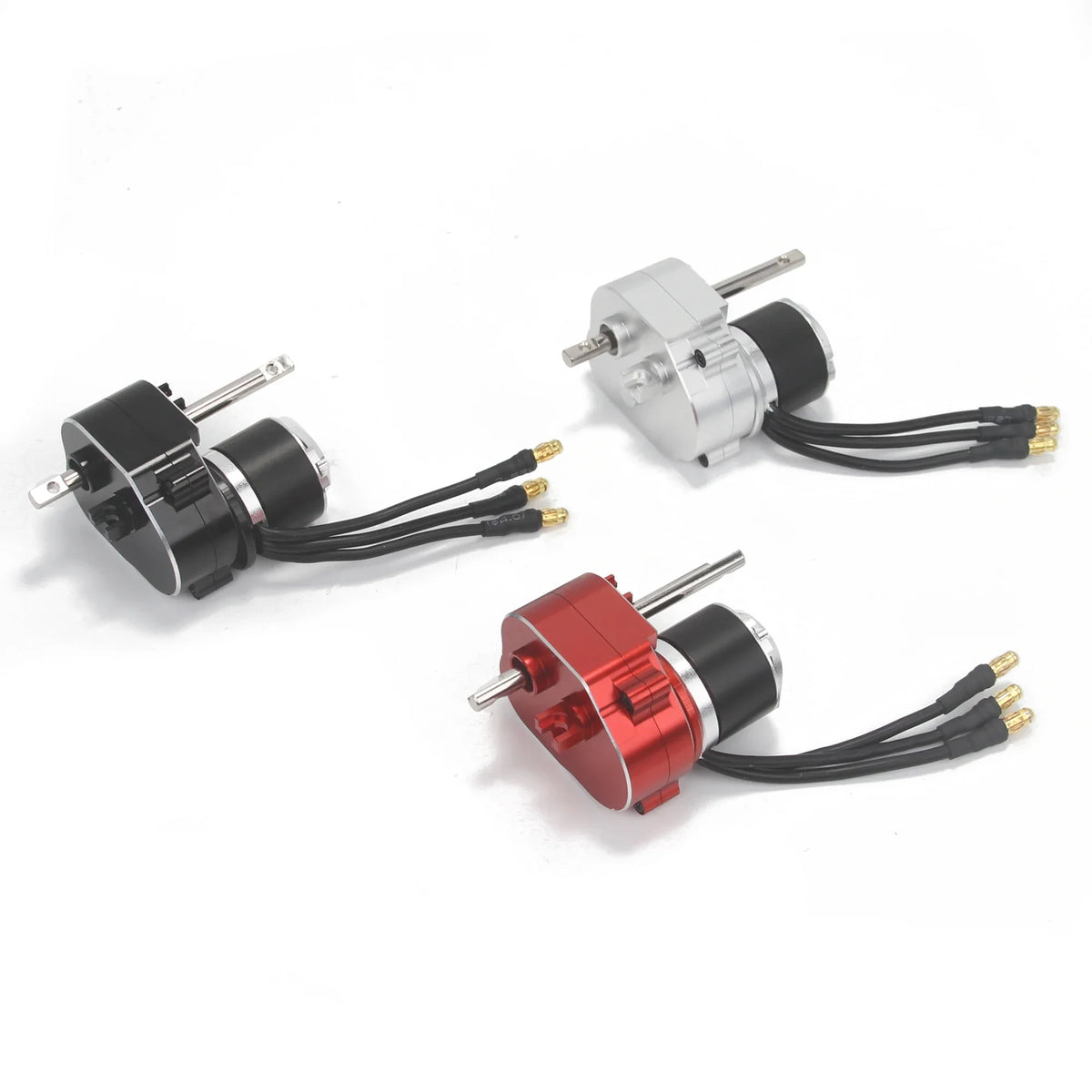

Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearbox
Smaller size, stronger power
No need to polish the bottom shell or car shell during installation
After modification, low-speed torque compensation, better linearity, easy to climb
Specification:
Applicable vehicle models: MN82 MN99S MN168 MN78

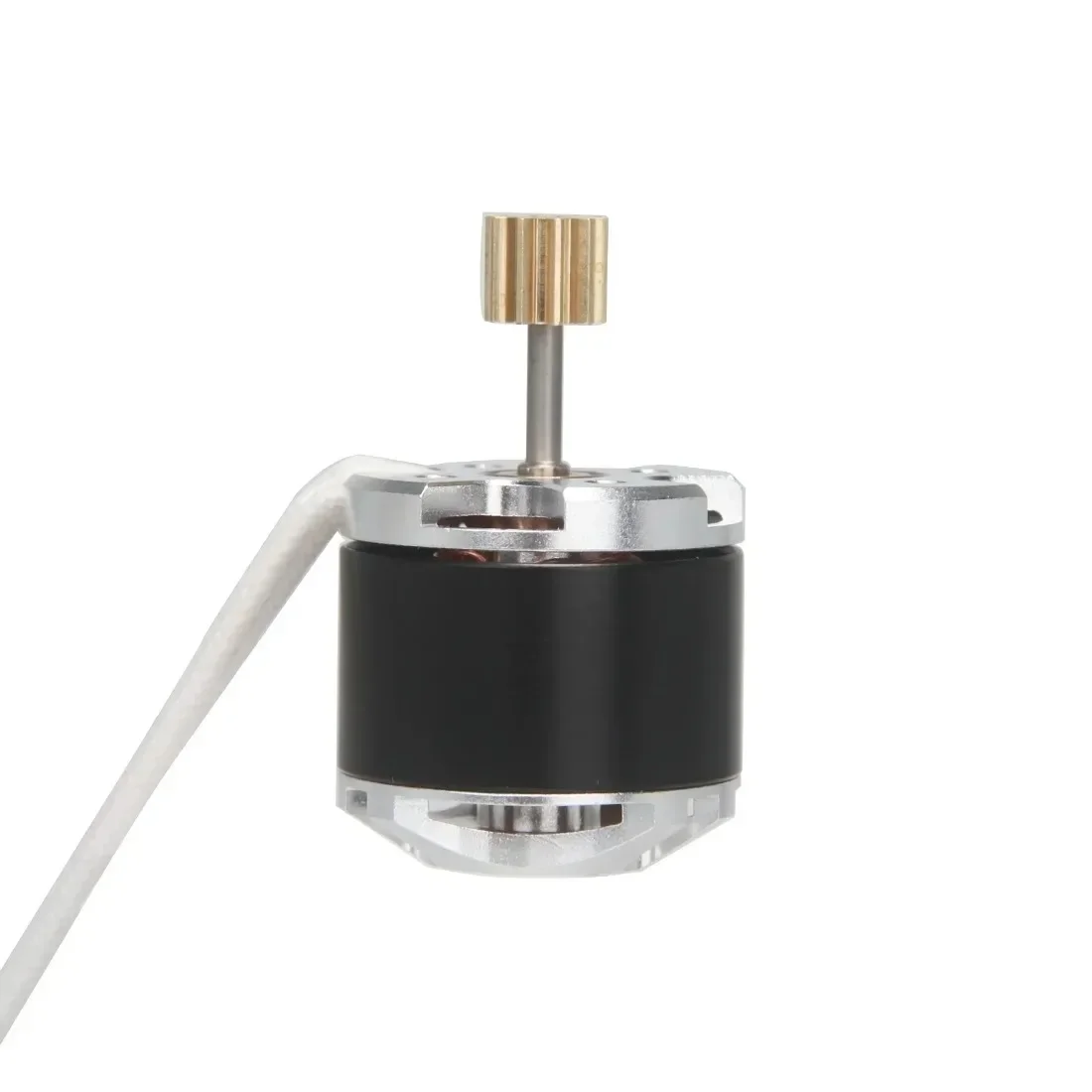

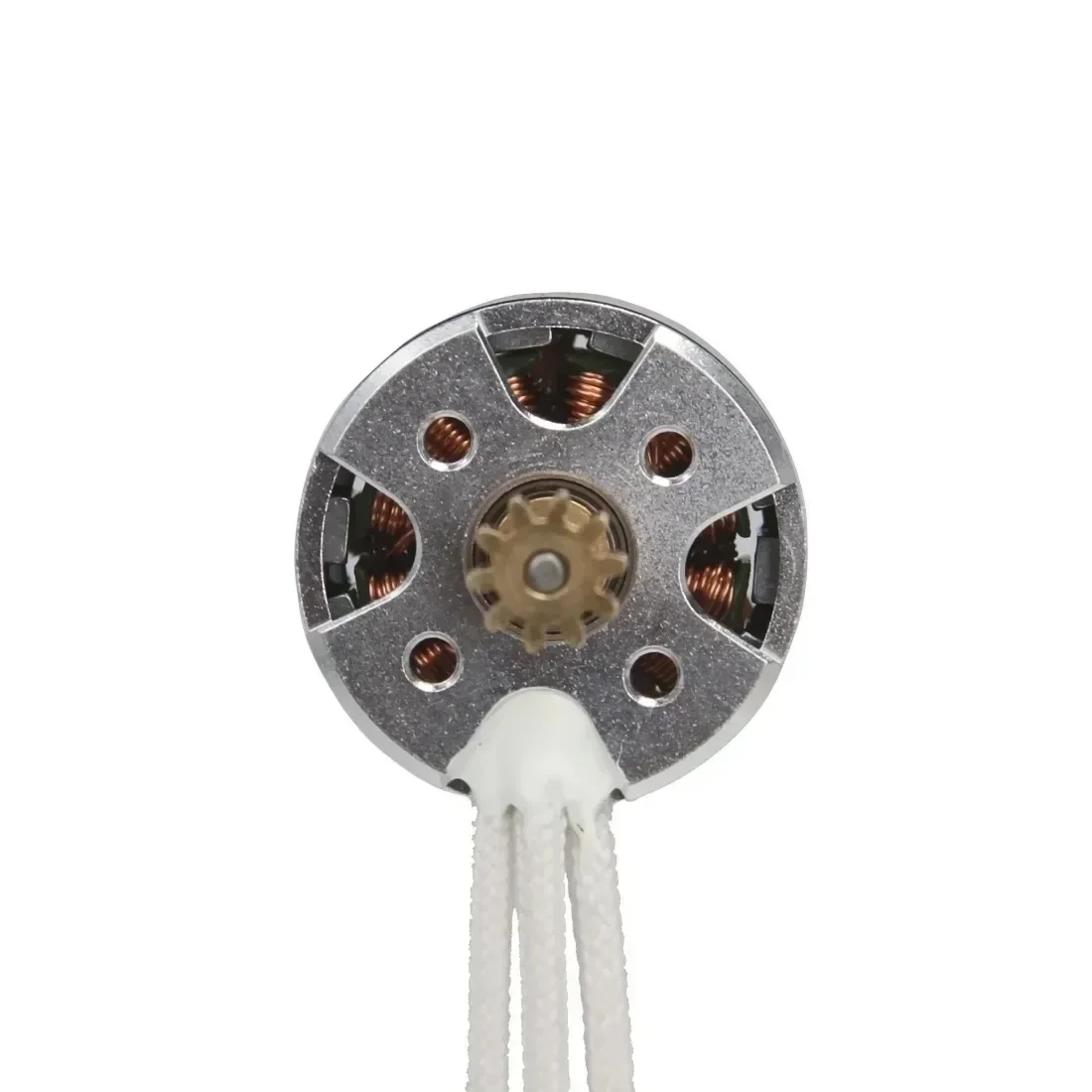

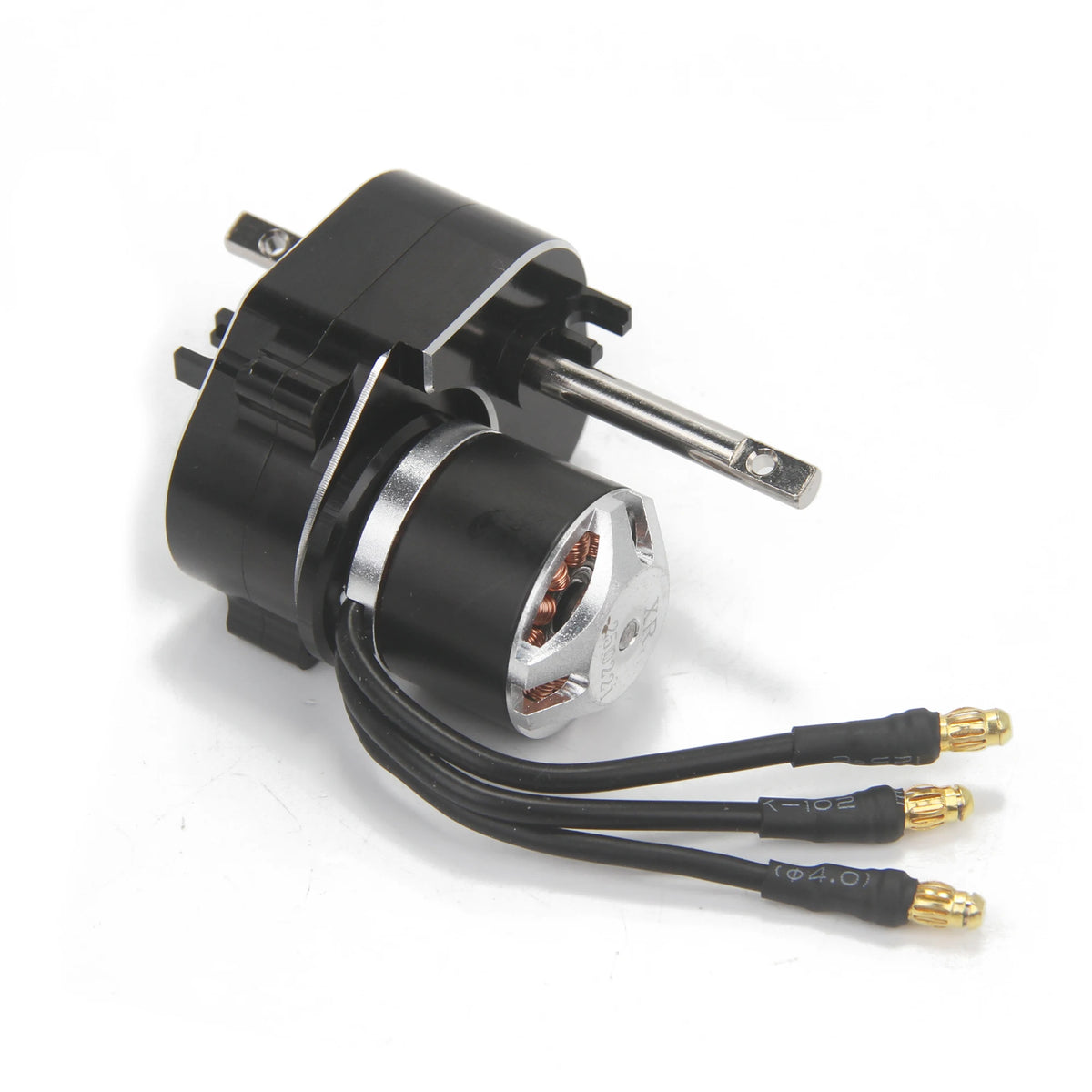

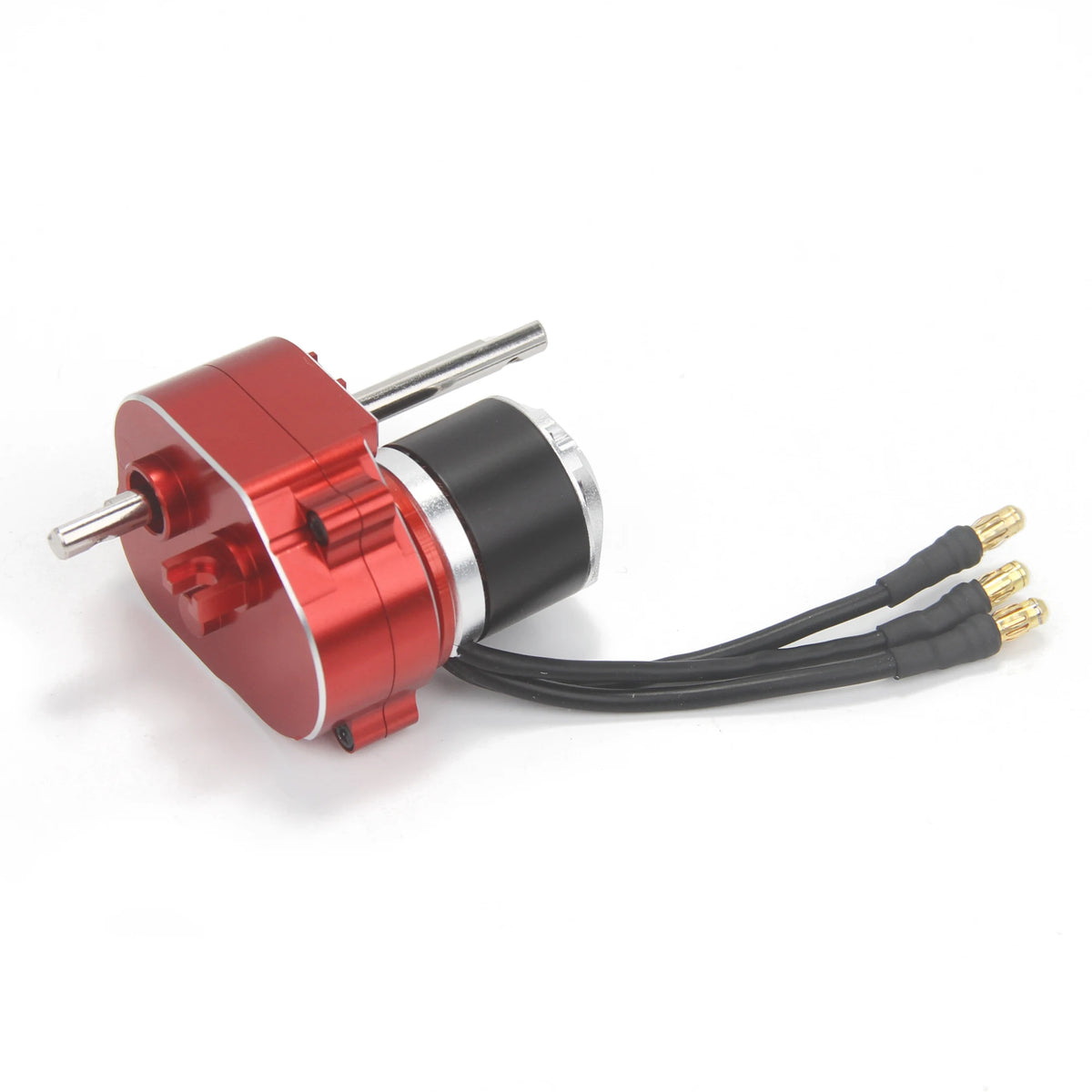

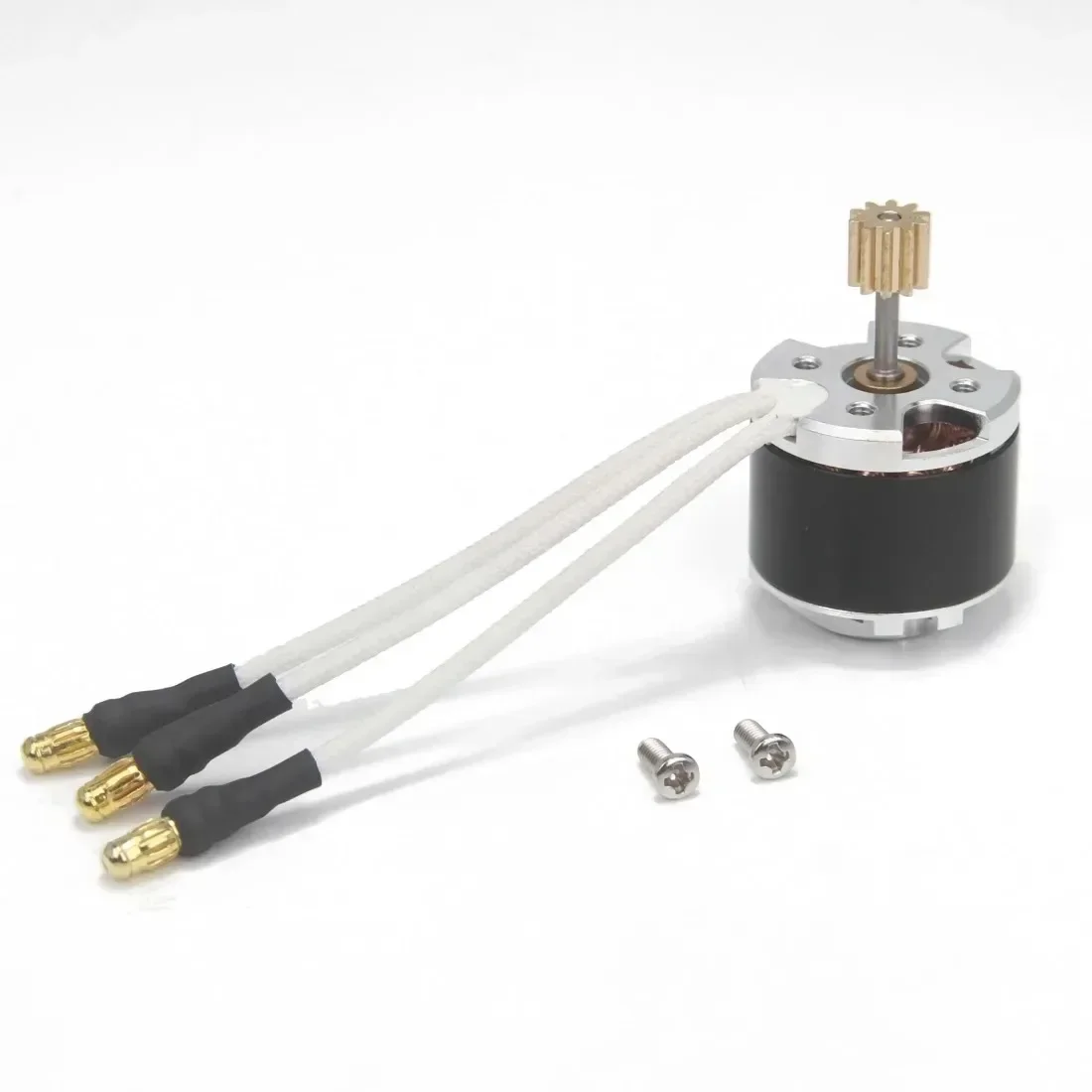

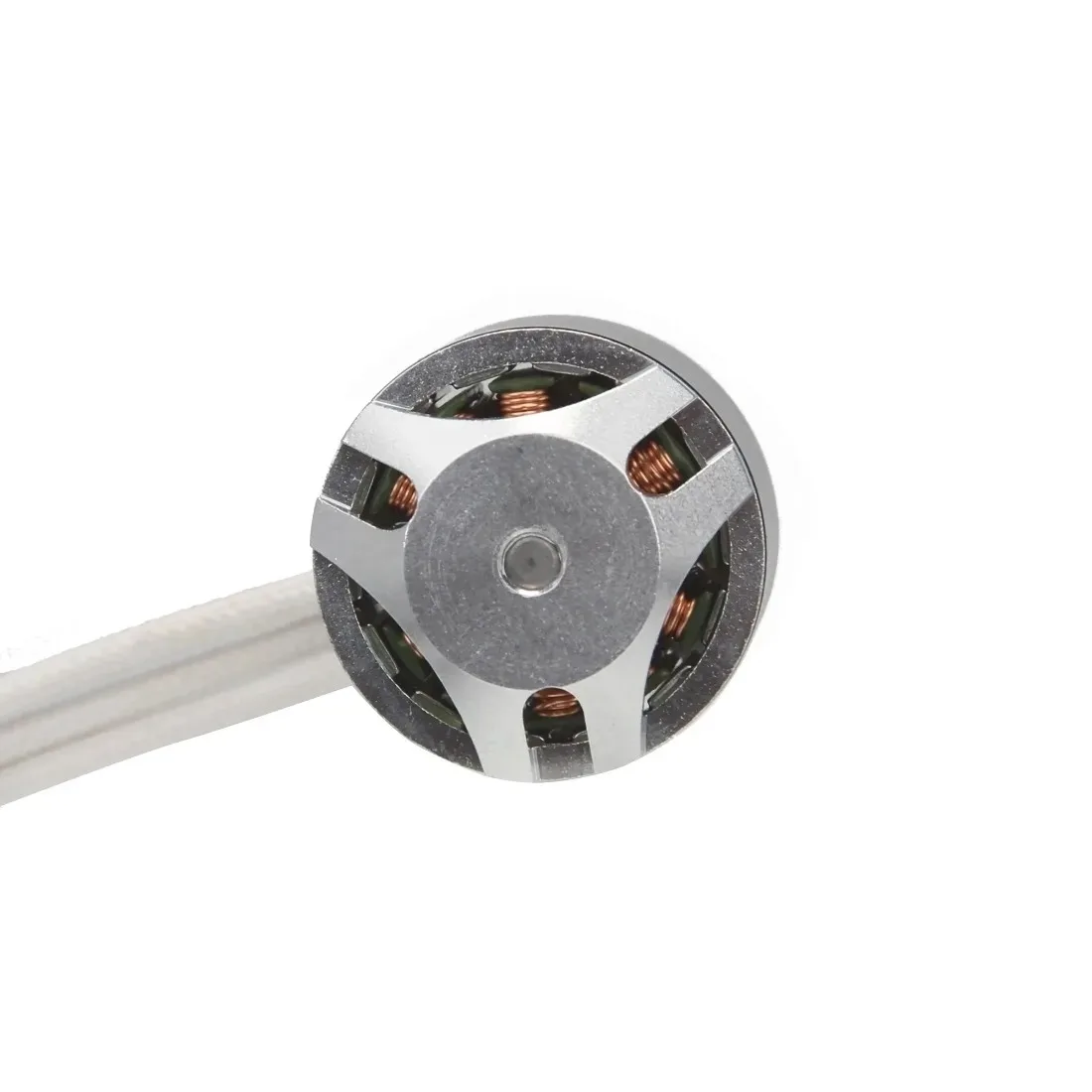

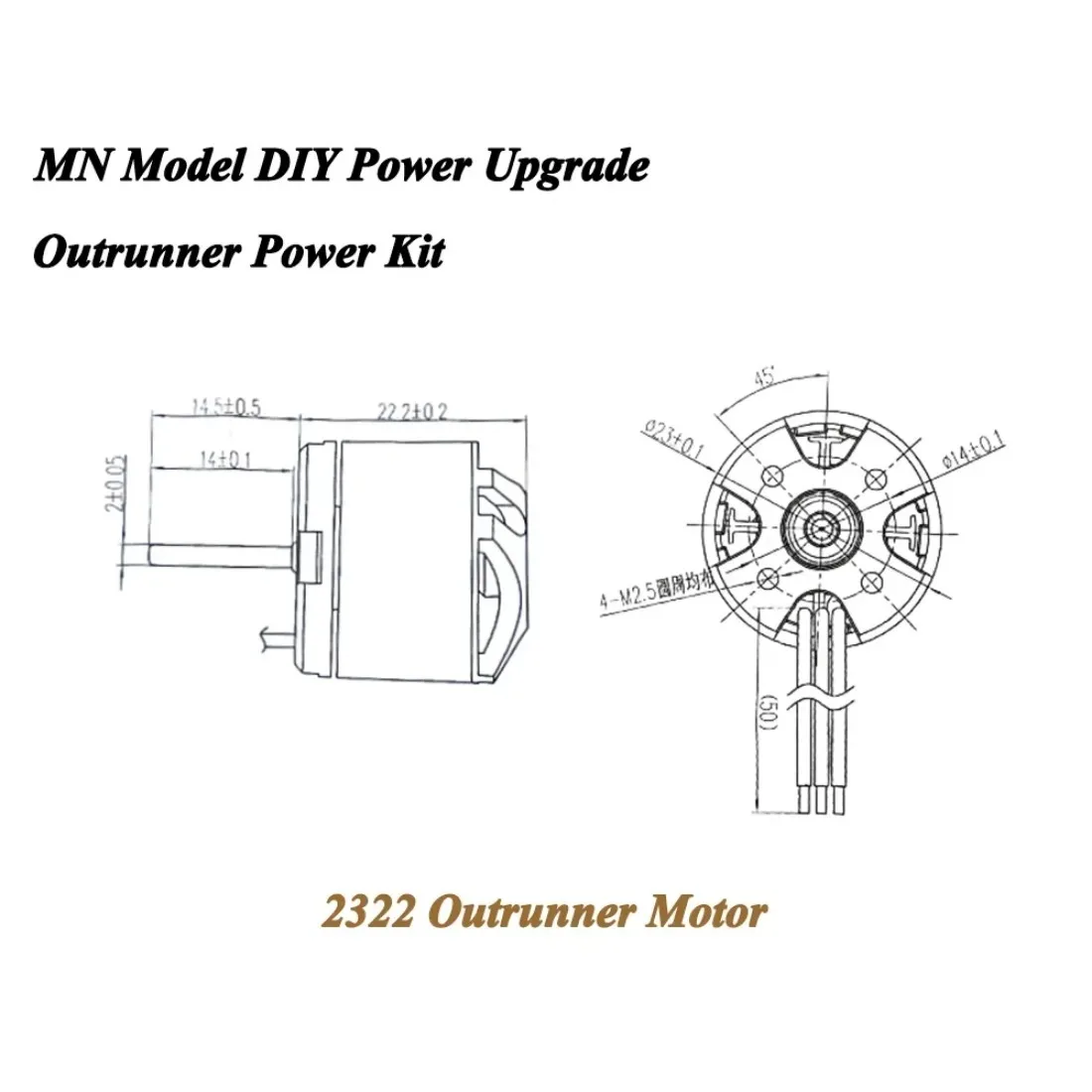

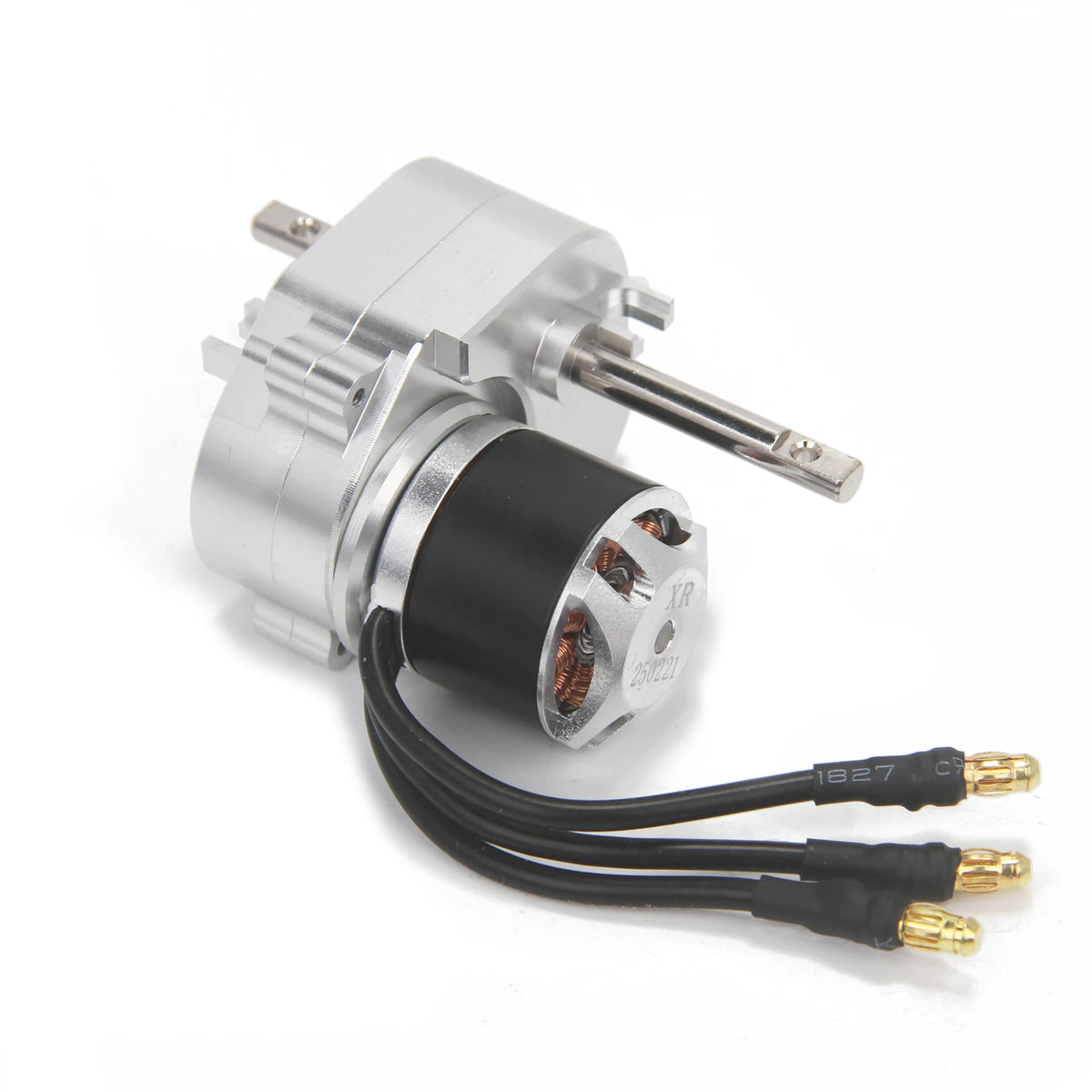

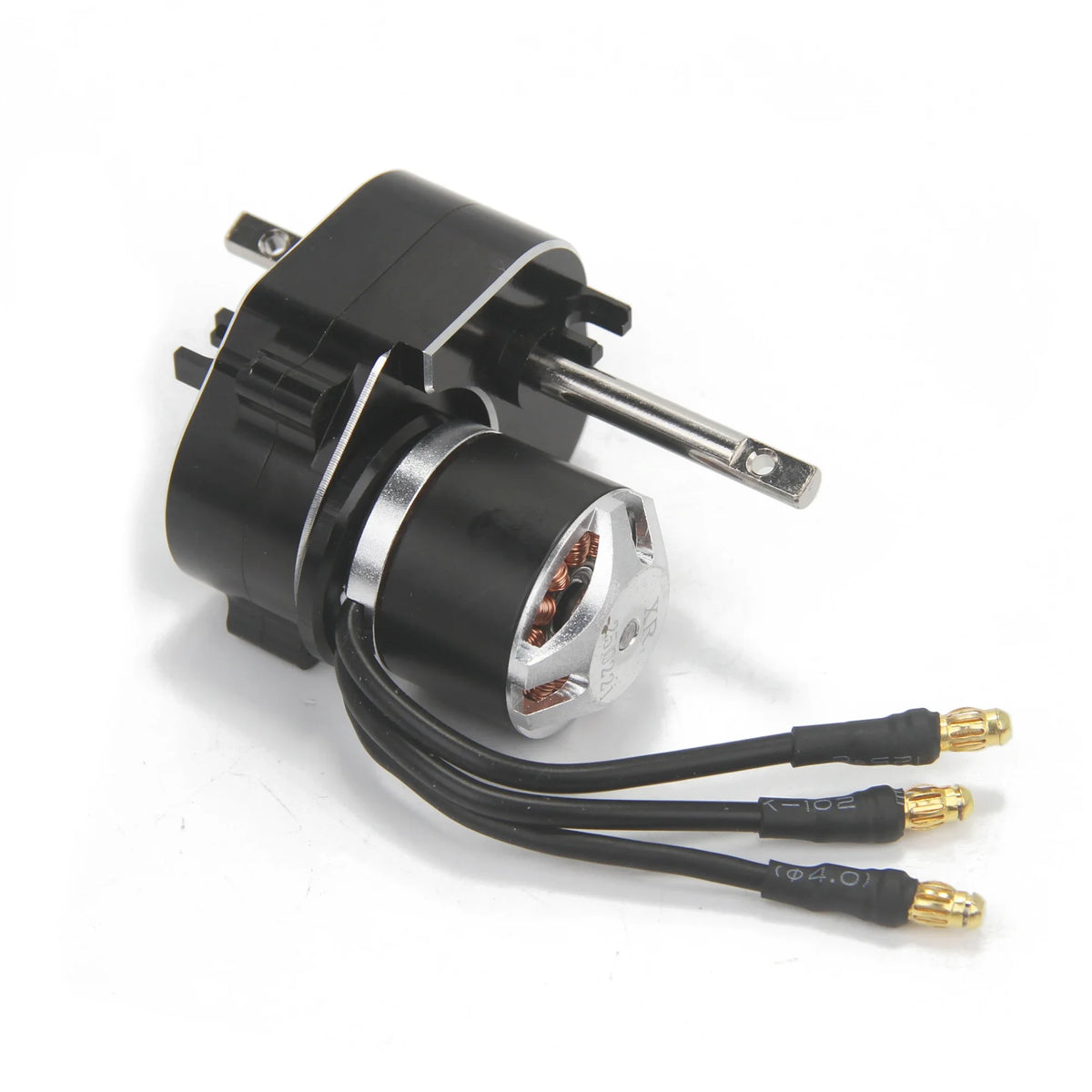

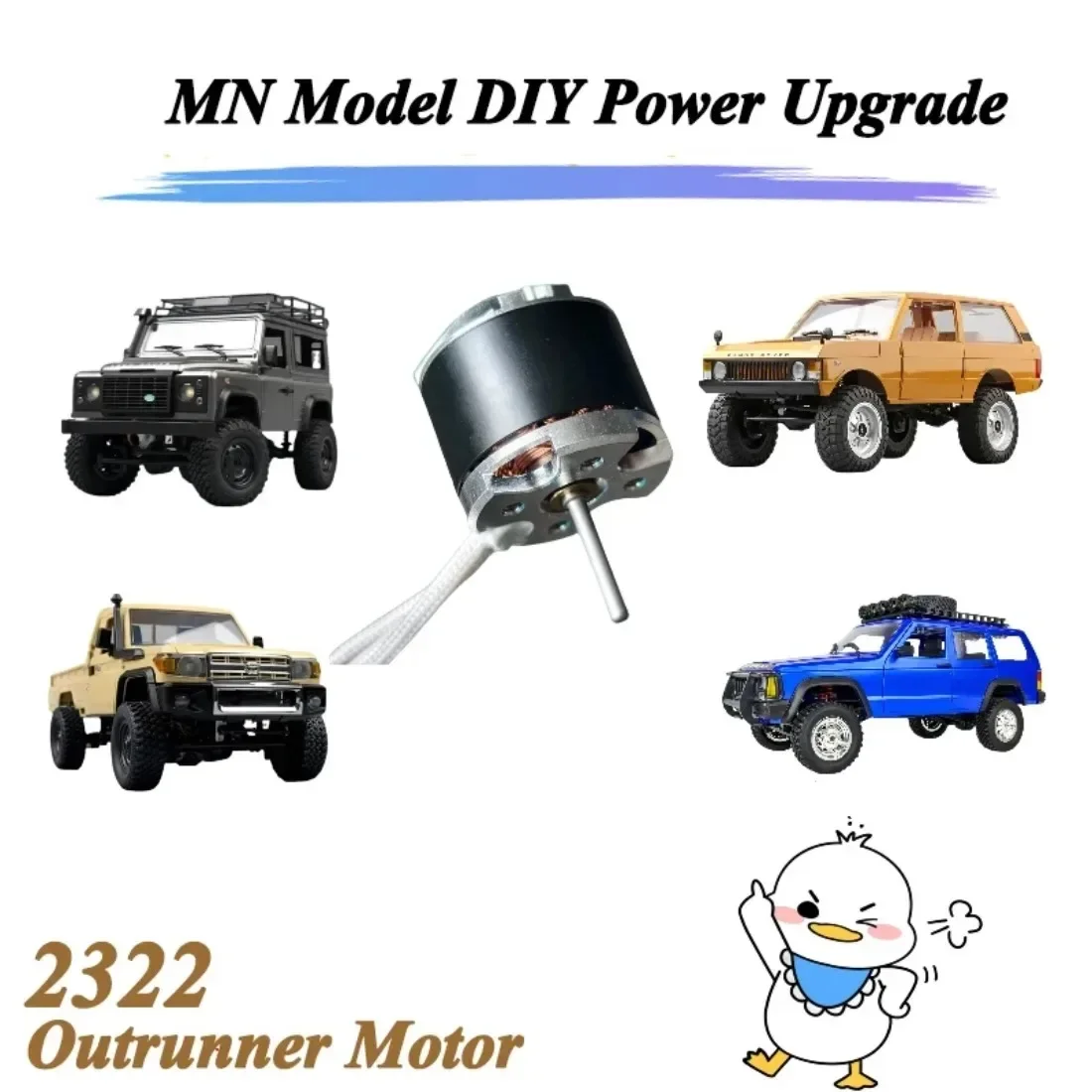

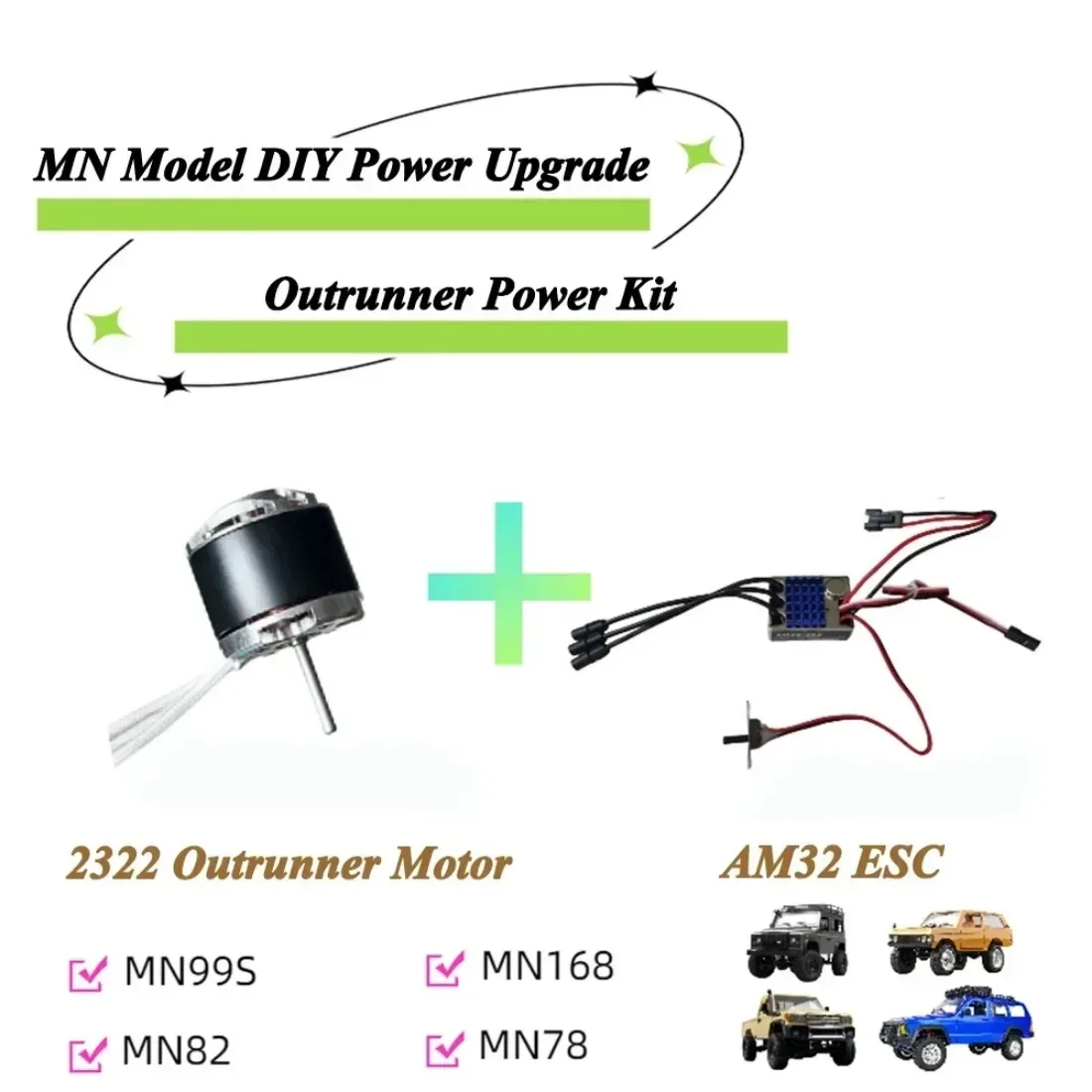

Product: 2322 2600KV external climbing motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max
Number of gear teeth: 10T

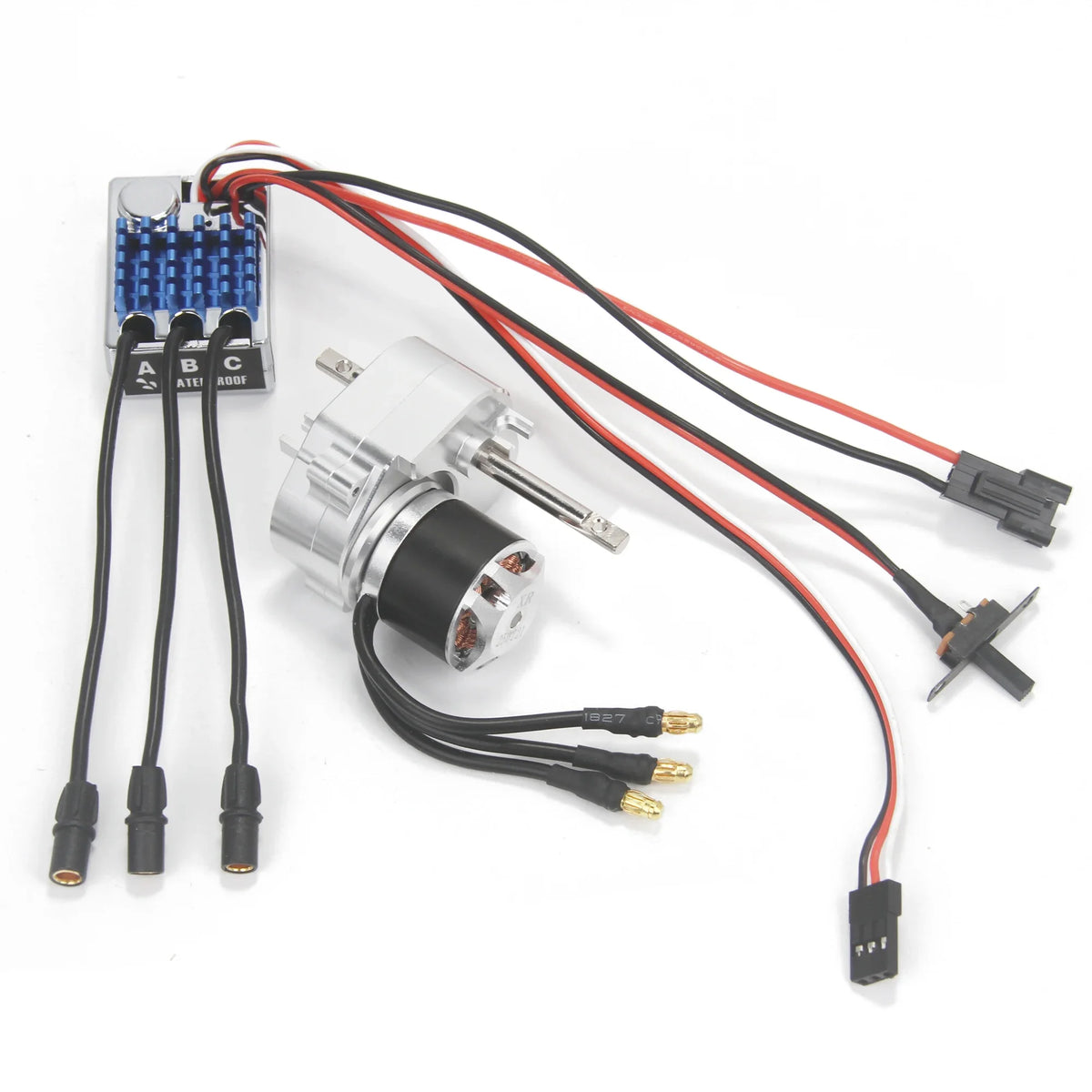

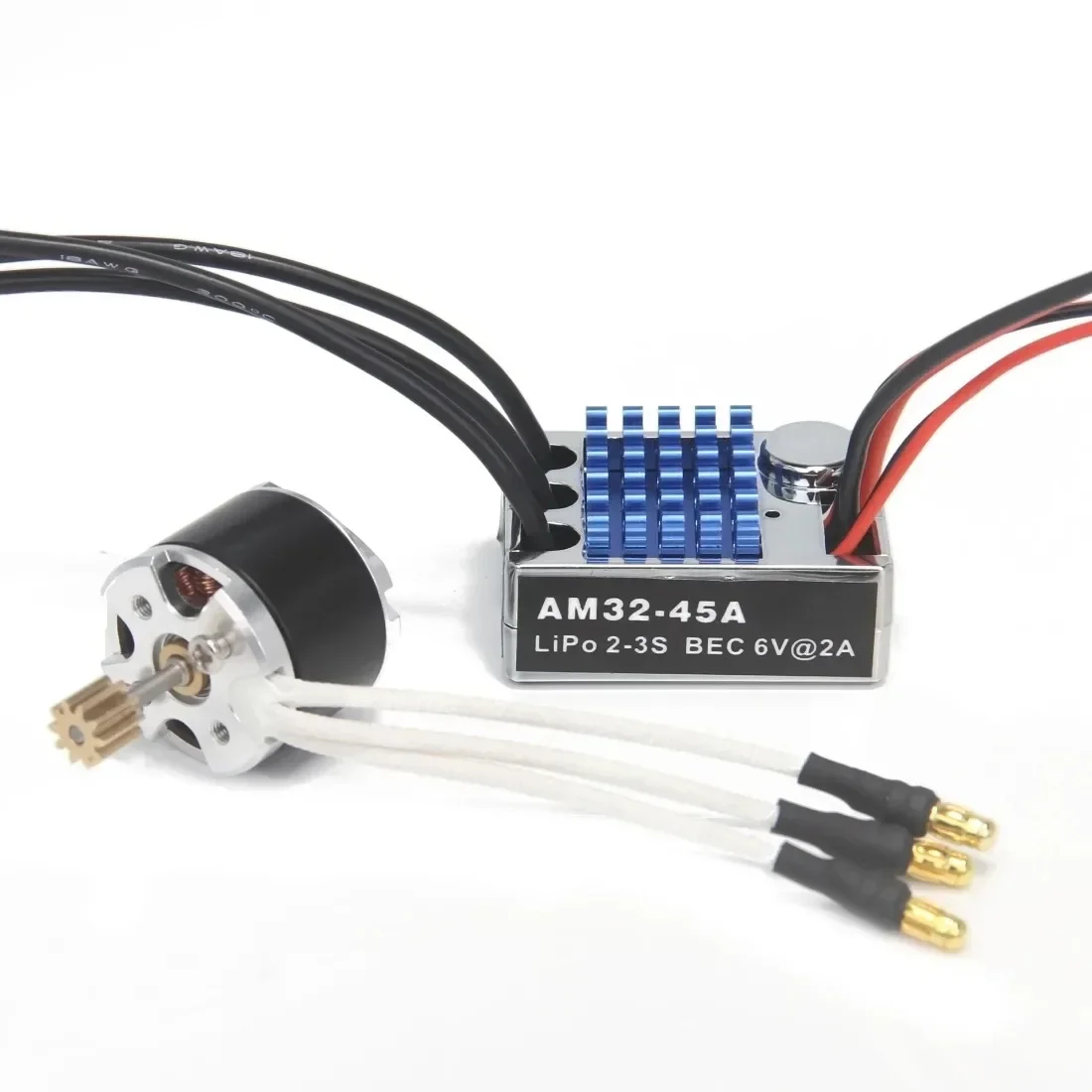

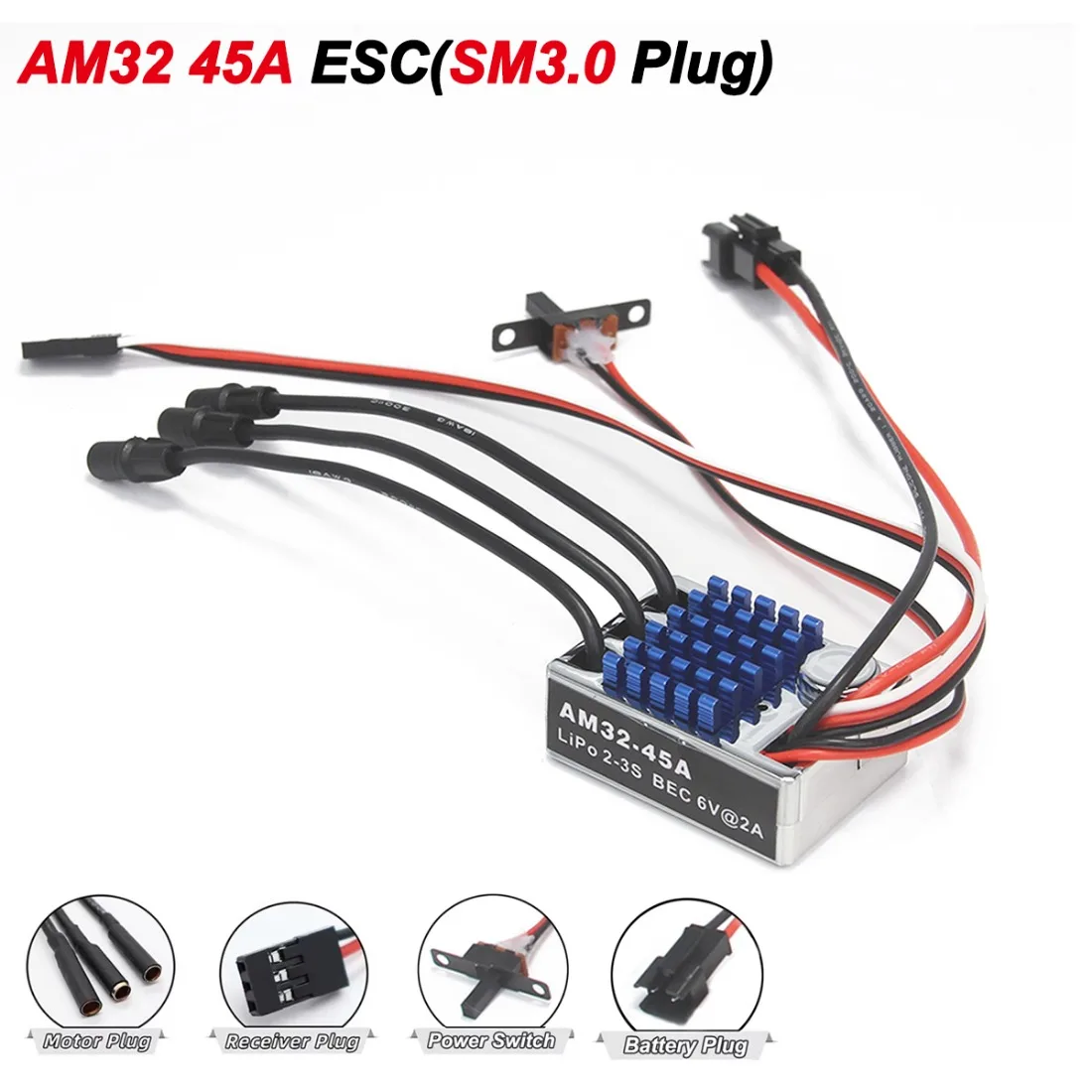

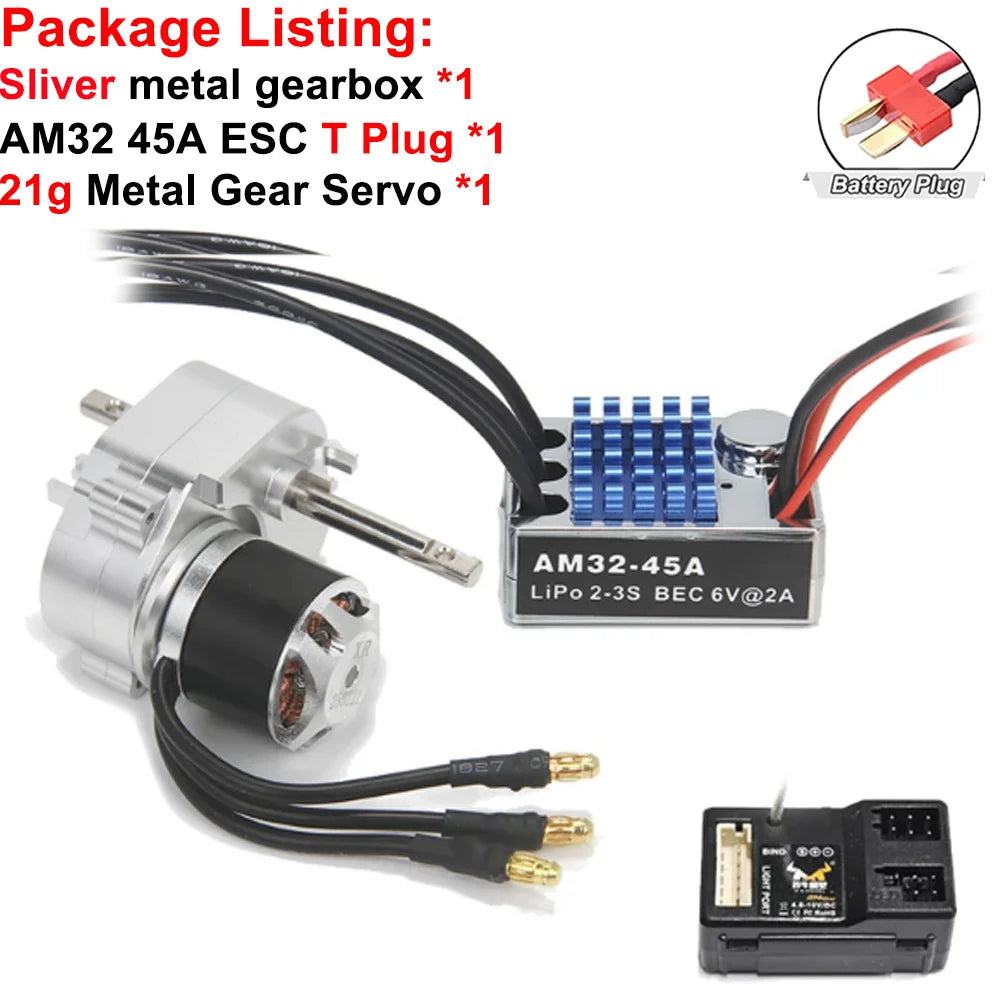

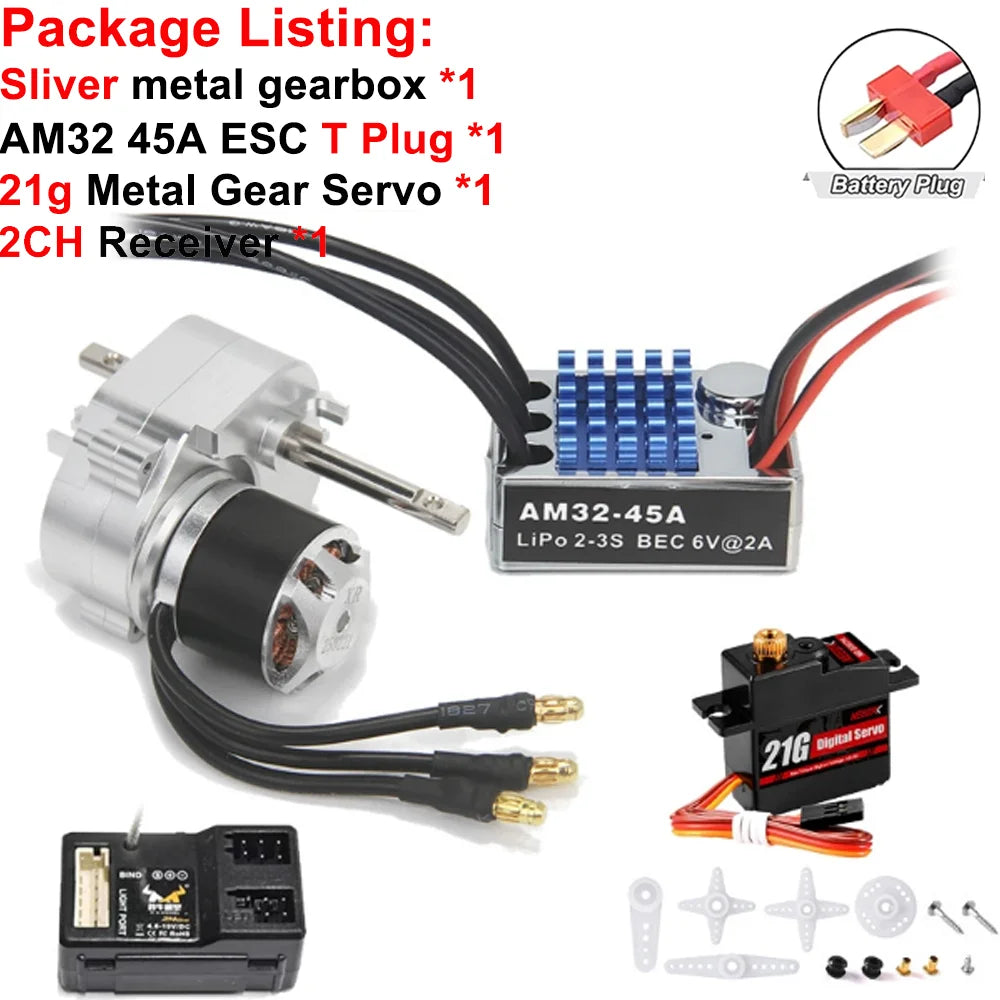

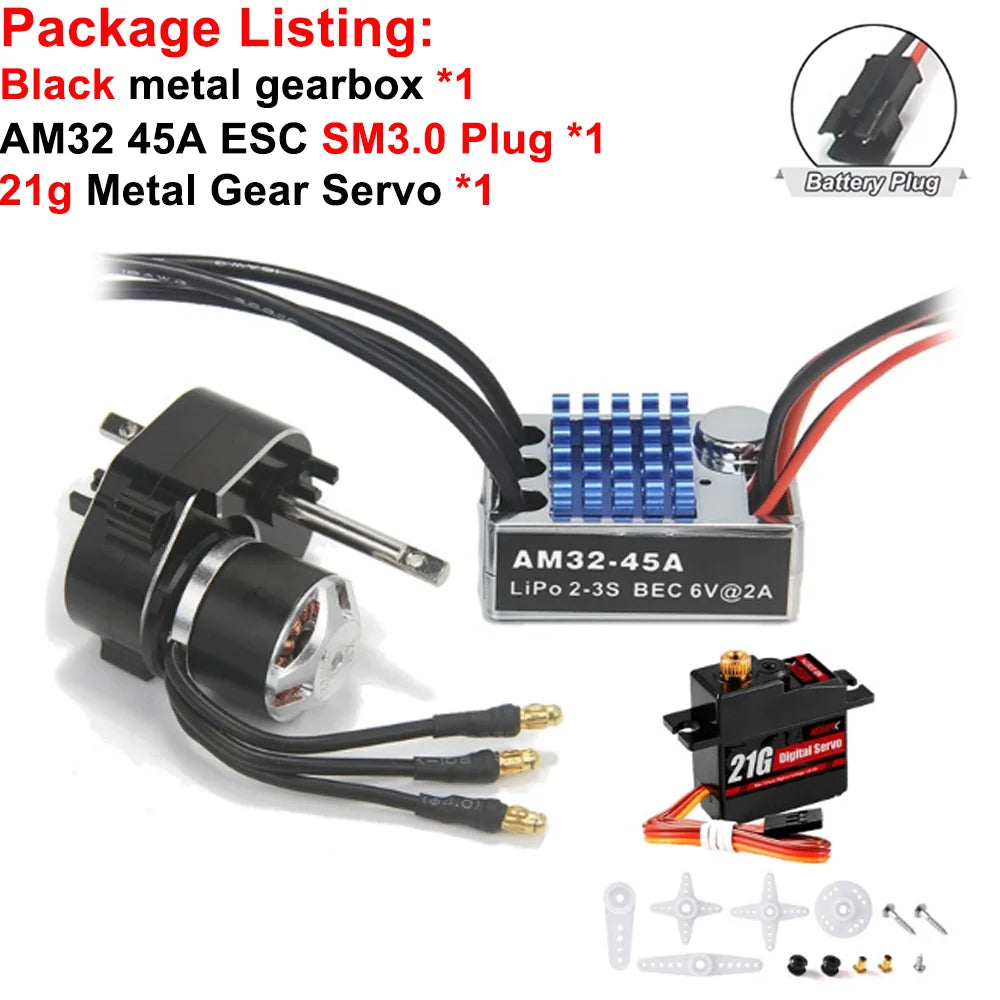

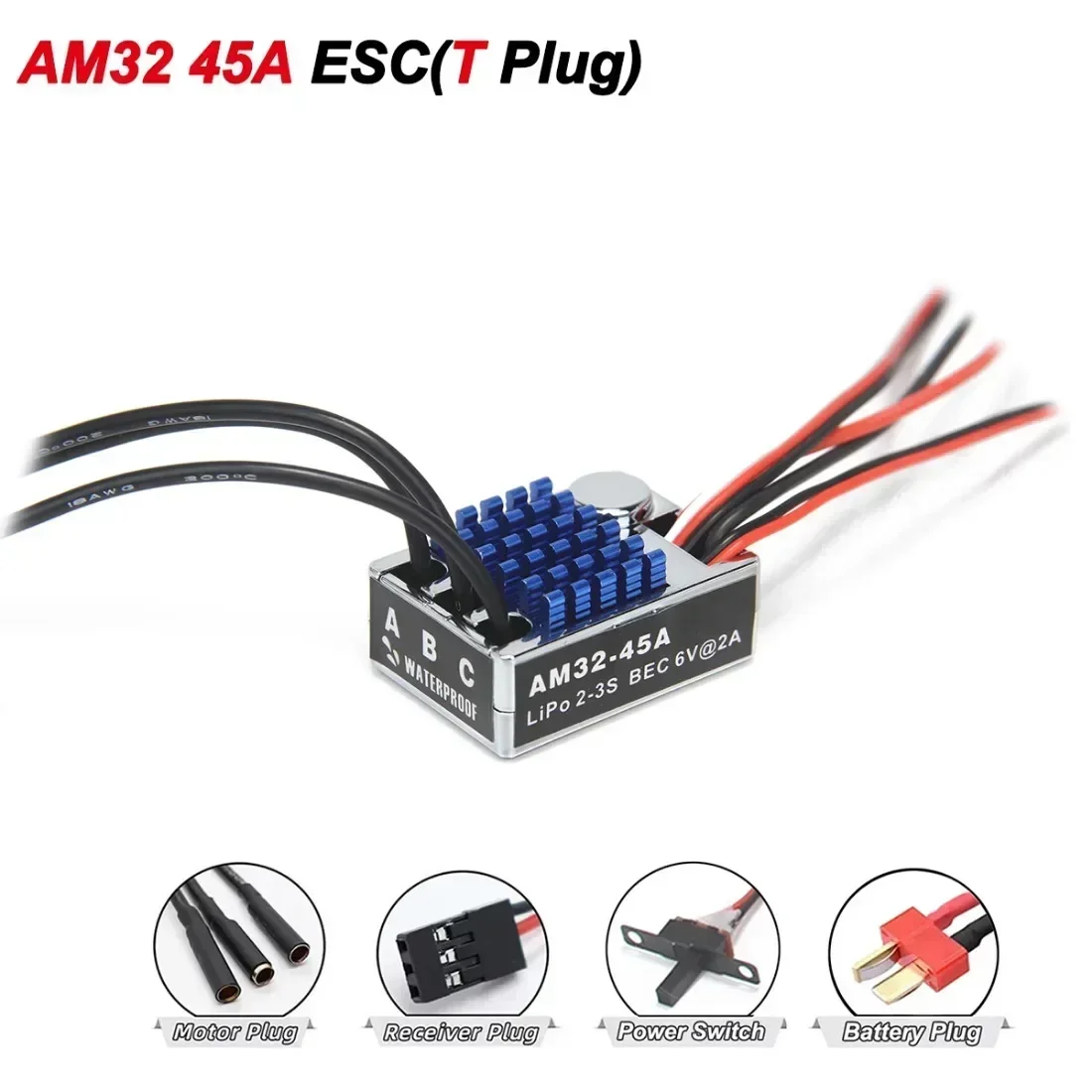

AM32 45A ESC Specification:
Voltage:7.4-11.1V
Lipo:2-3S
Battery Connector:SM3.0/T Plug
Cont.Current:45A
Start-up:Sine start
Low speed torque compensation: Comes with low-speed torque compensation
Size:38.5*28*18.5mm
Case Material:Plastic

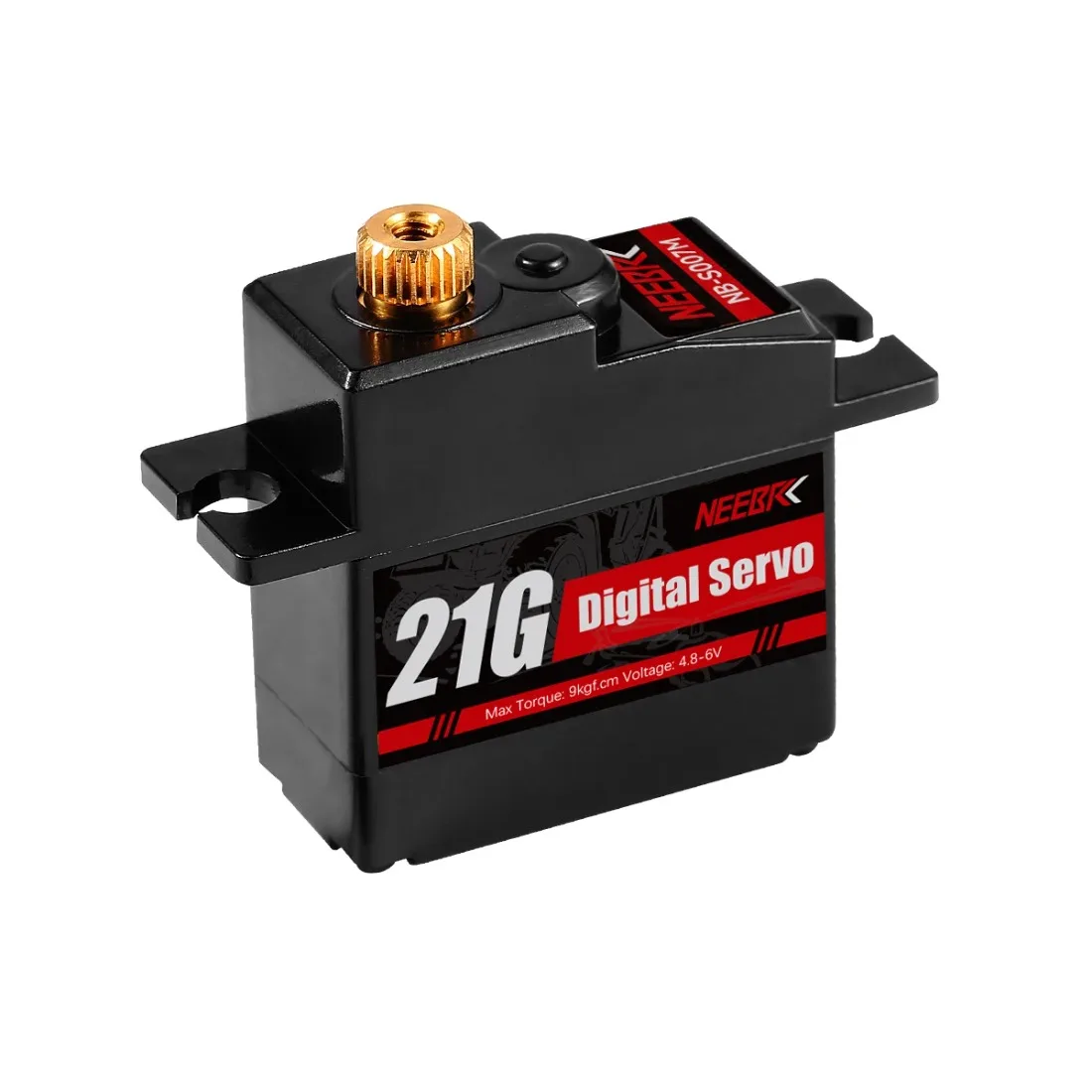

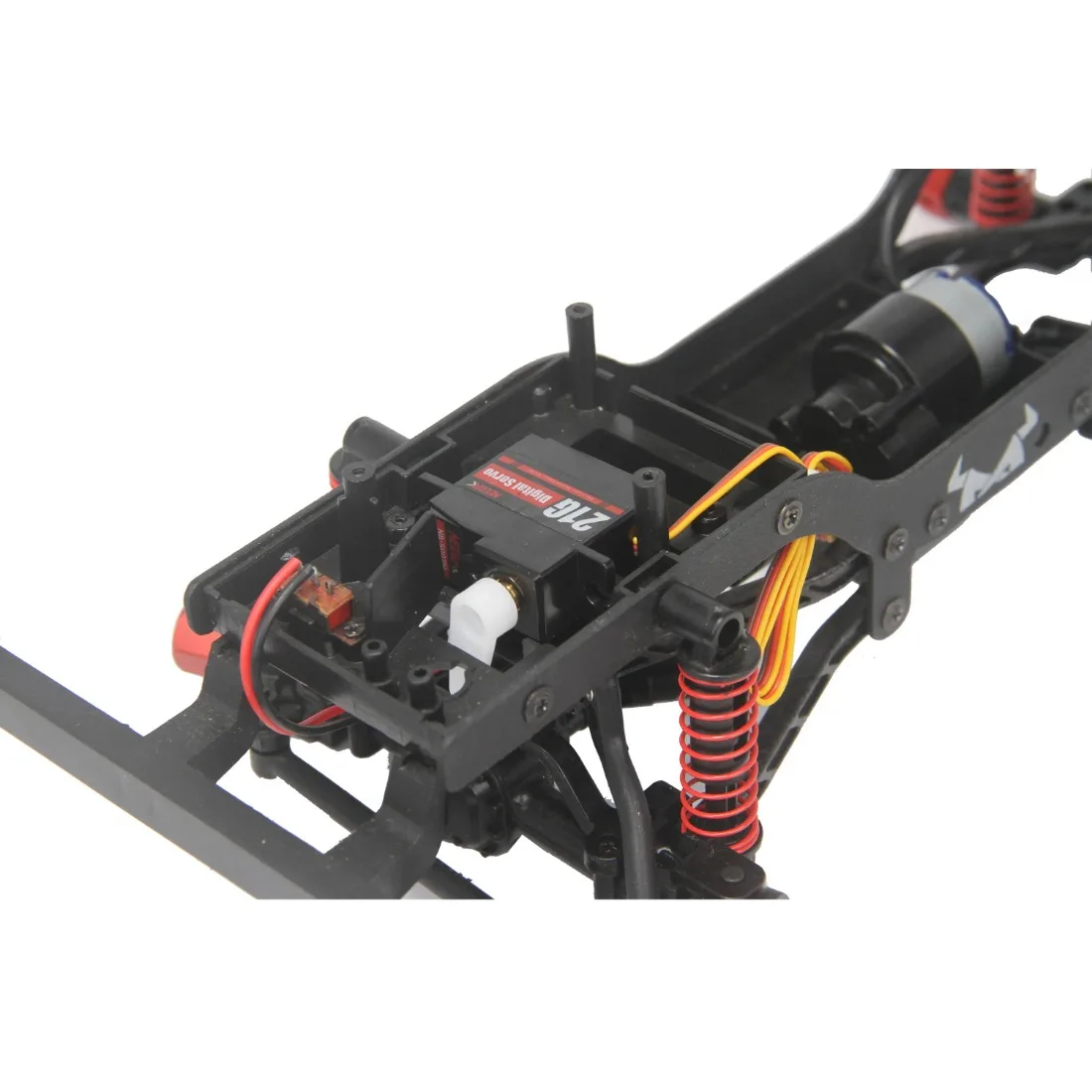

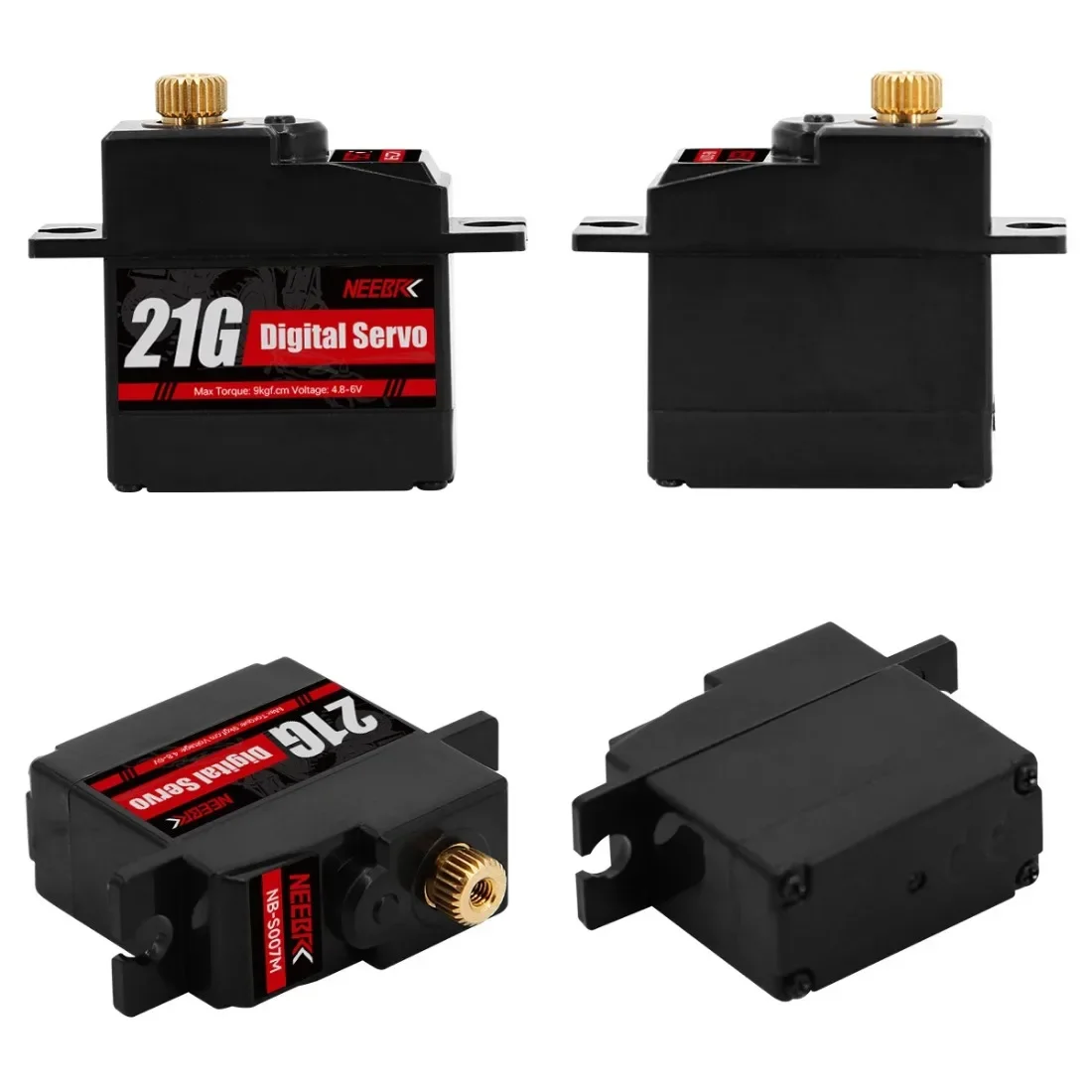

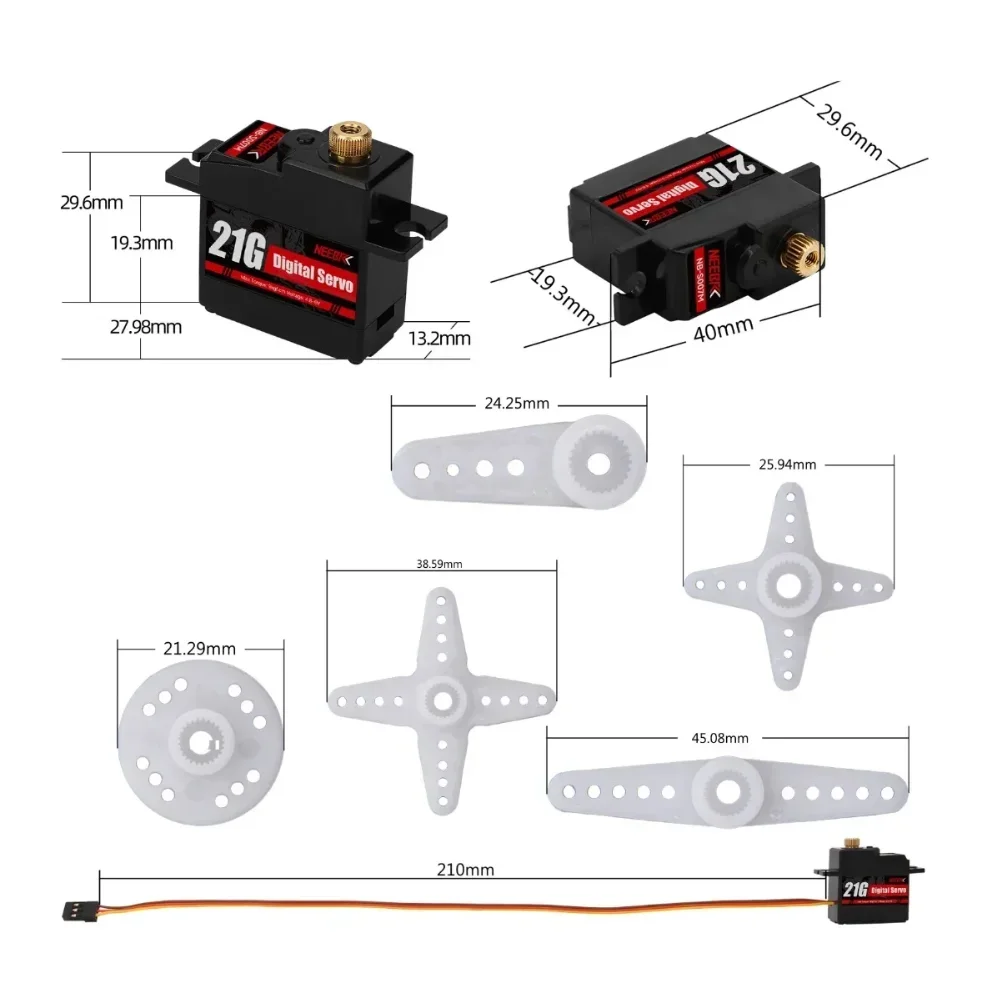

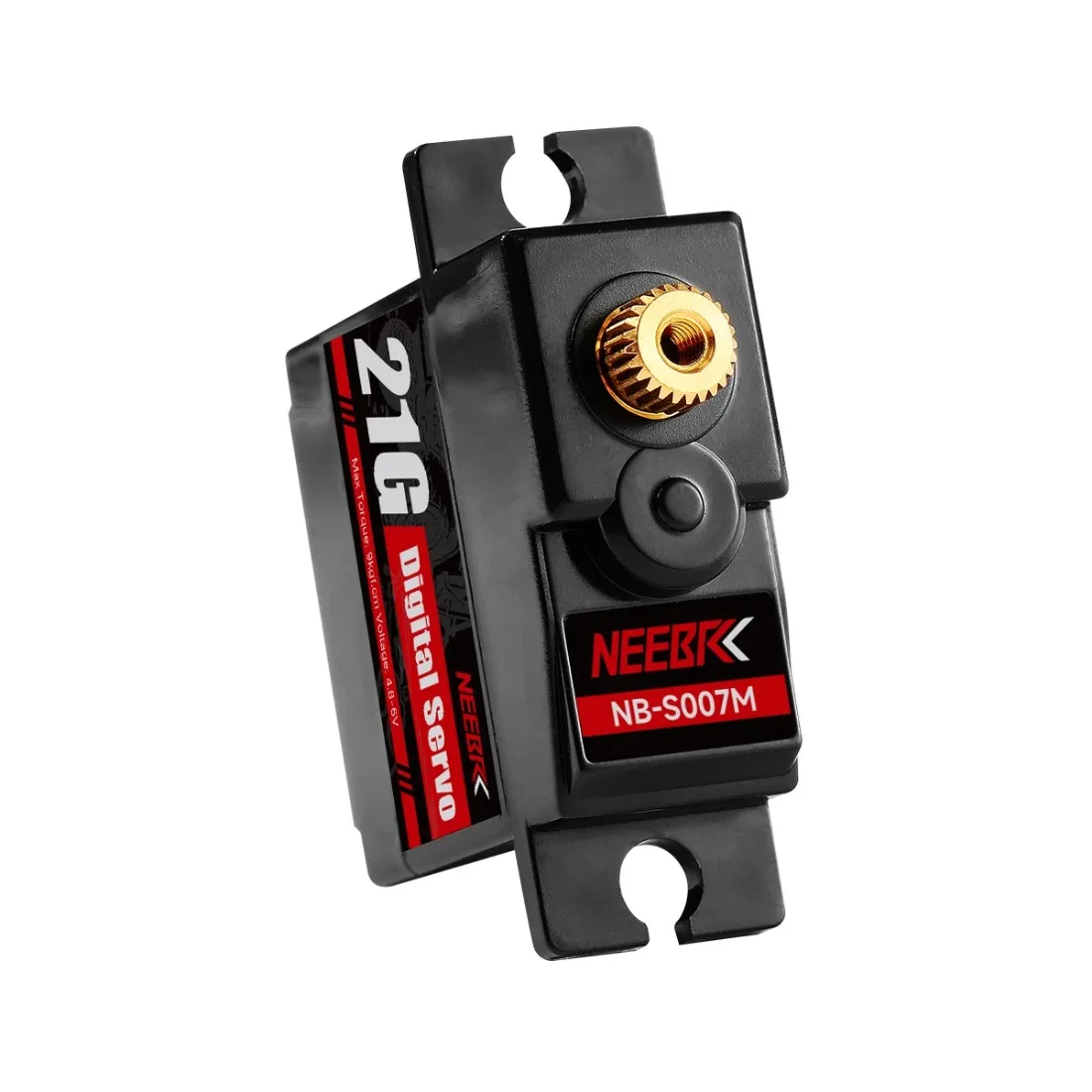

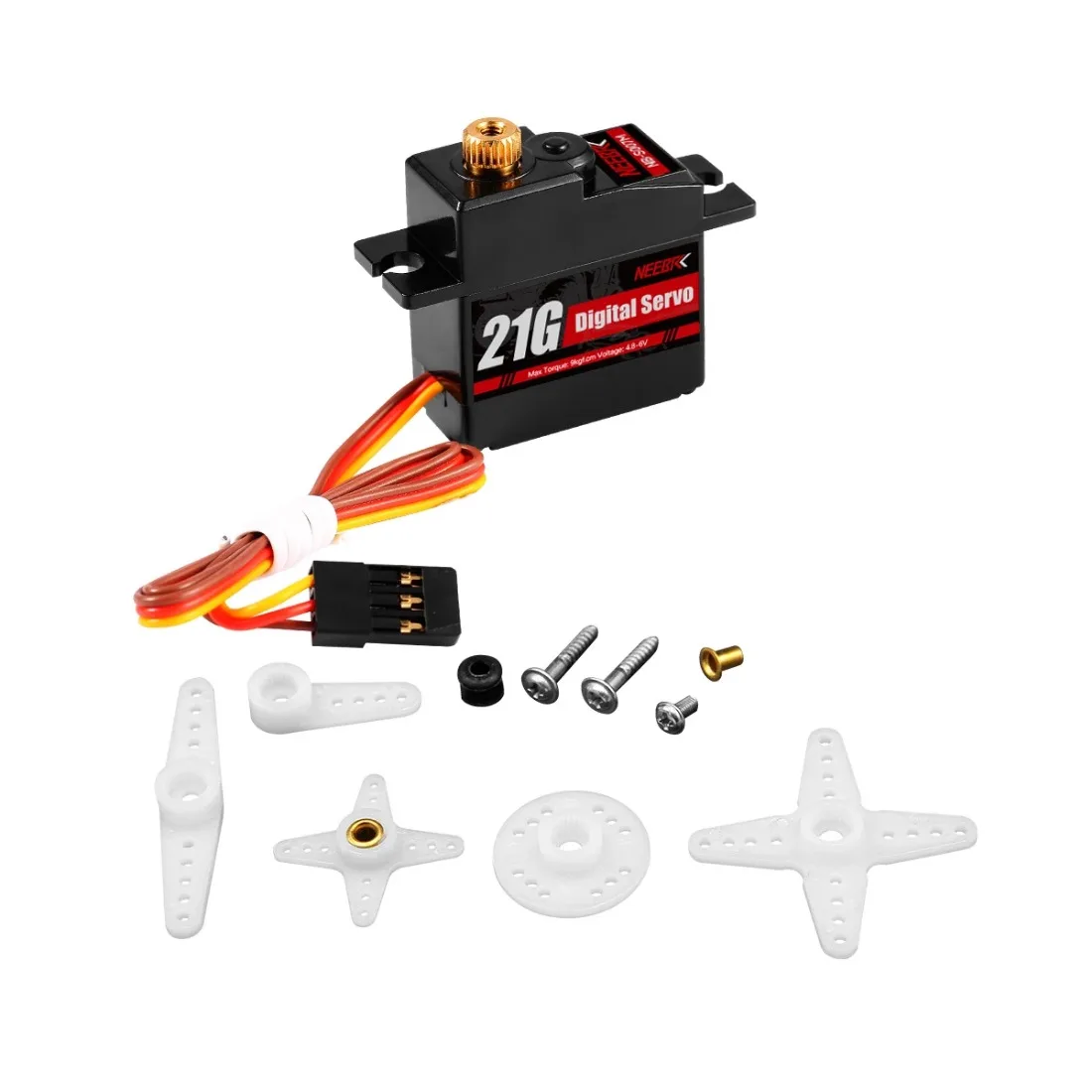

NEEBRC 21g servo Specification:
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:
Item name: NEEBRC NB-S007M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 9kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current:4.8V≦1500mA;6.0V≦1800mA
Consumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mA
Max. Operating Travel Angle:180°±10°(1000~2000μs)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear
Horn Gear Spline: 25T/Φ5.77
Weight: 20.7 g
Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR 250±5mm (exposed without plug)

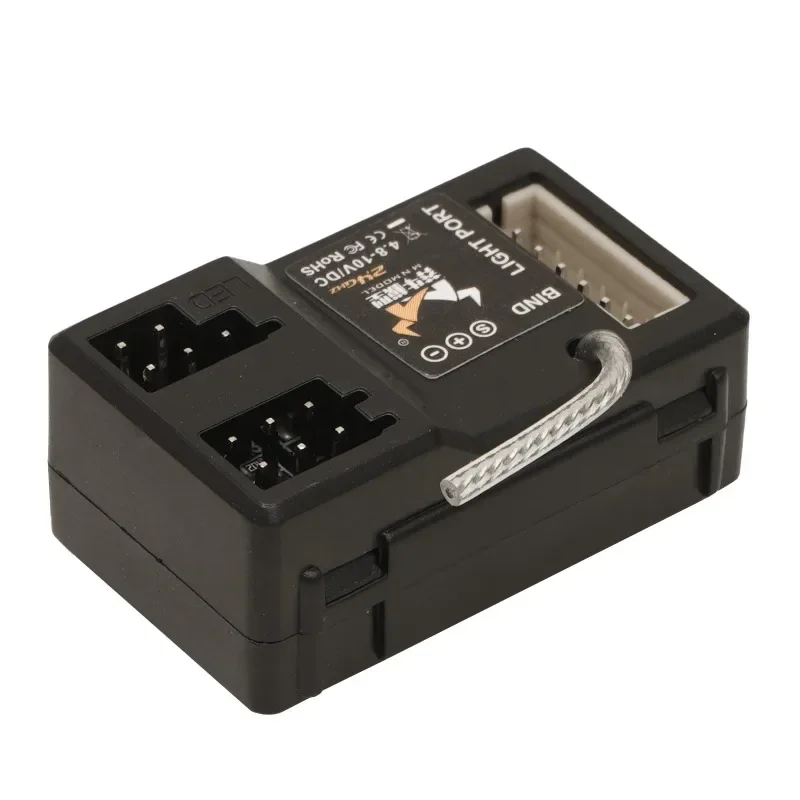

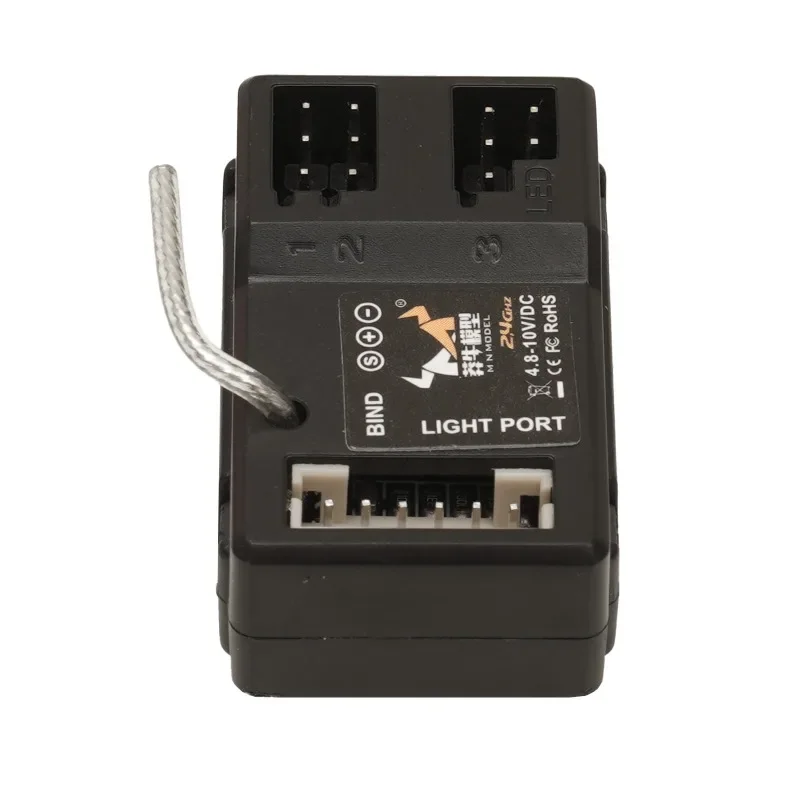

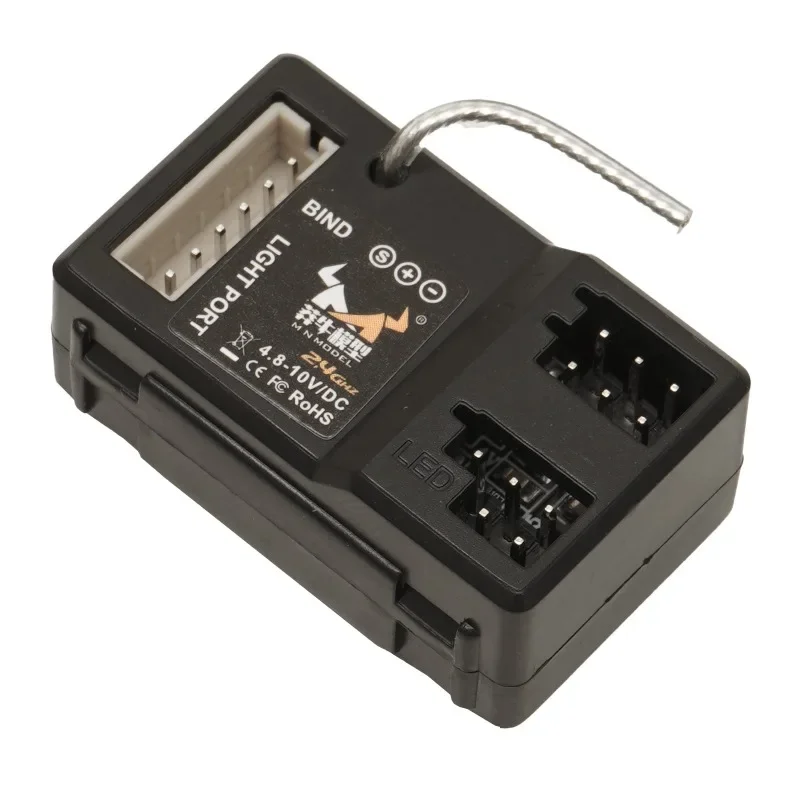

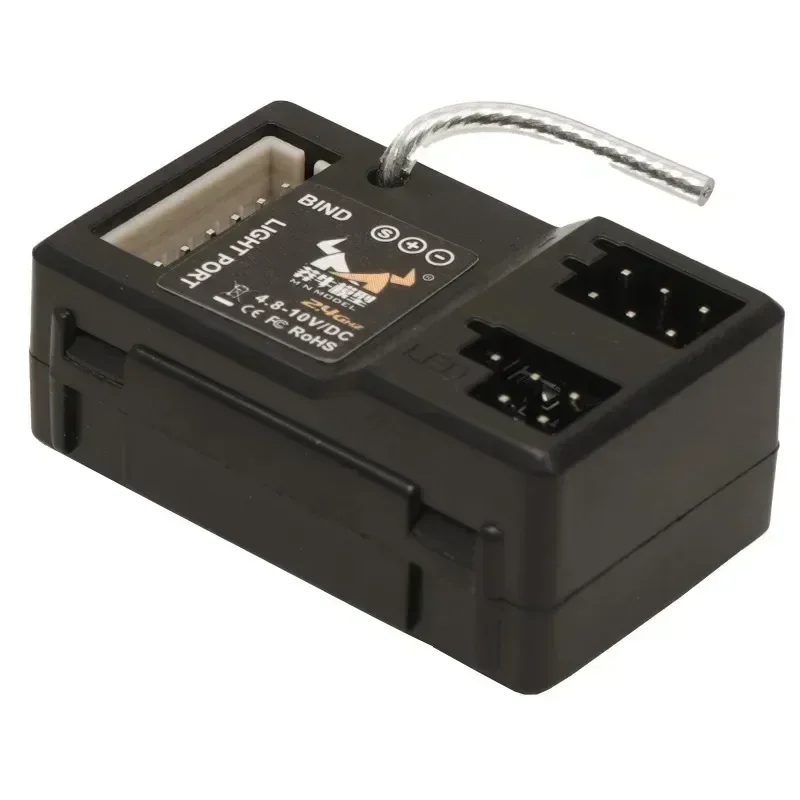

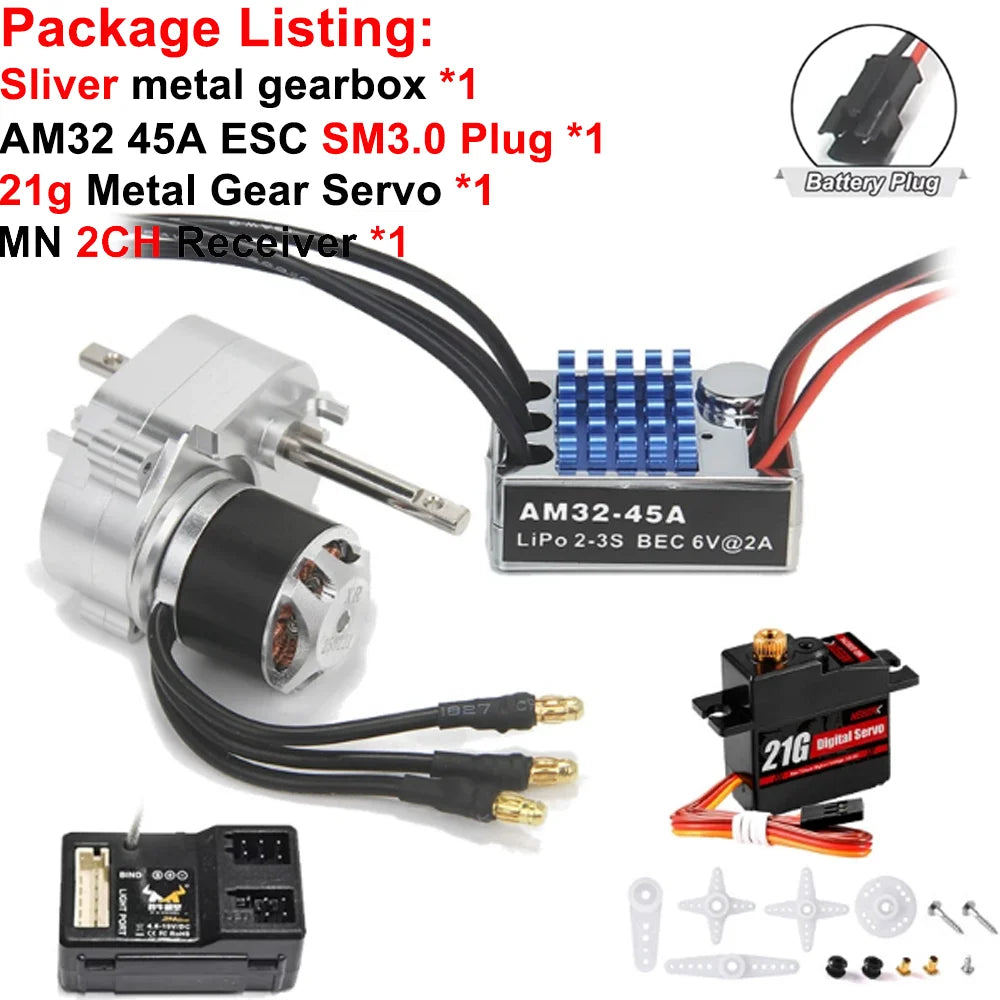

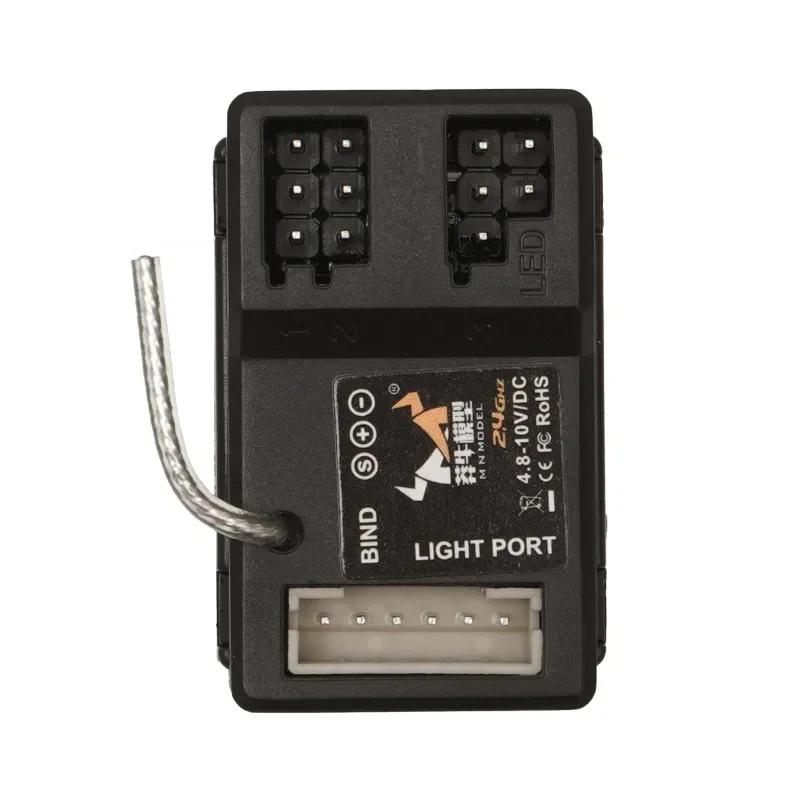

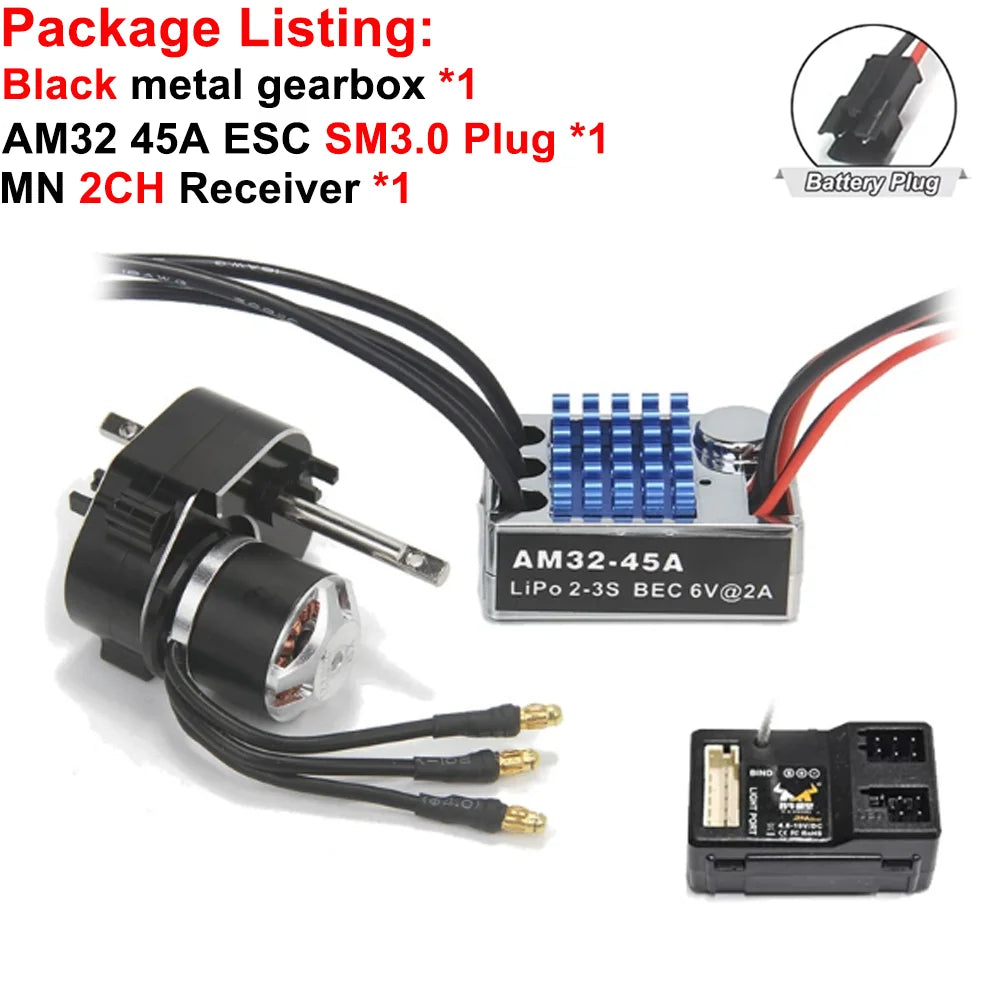

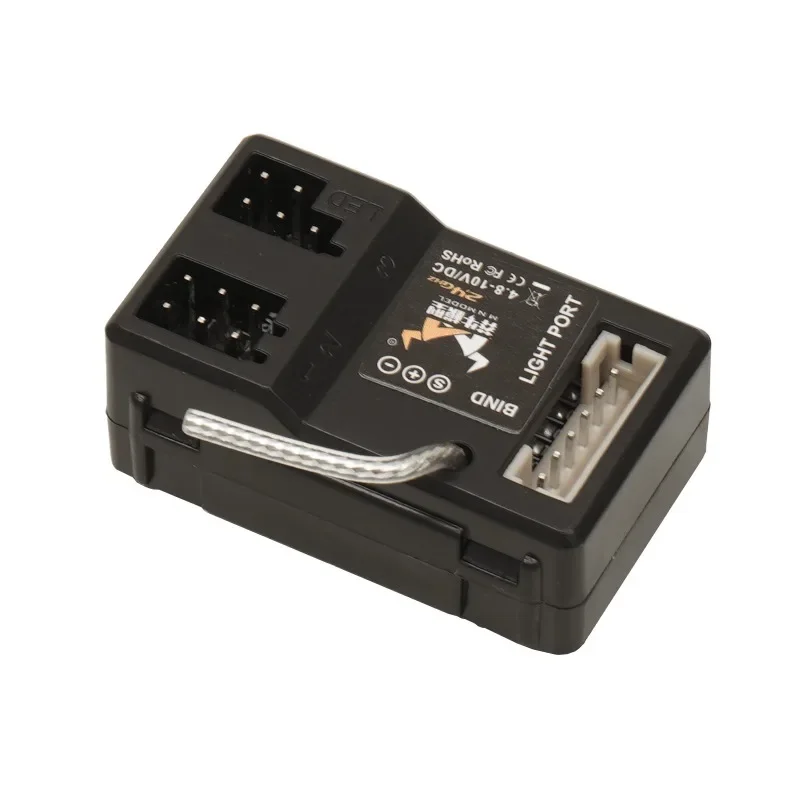

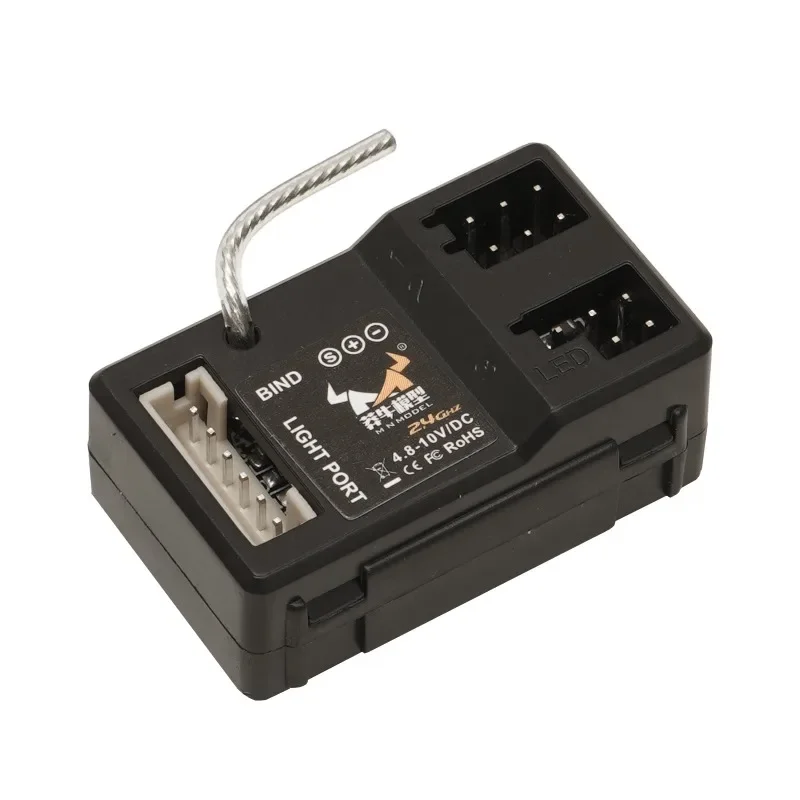

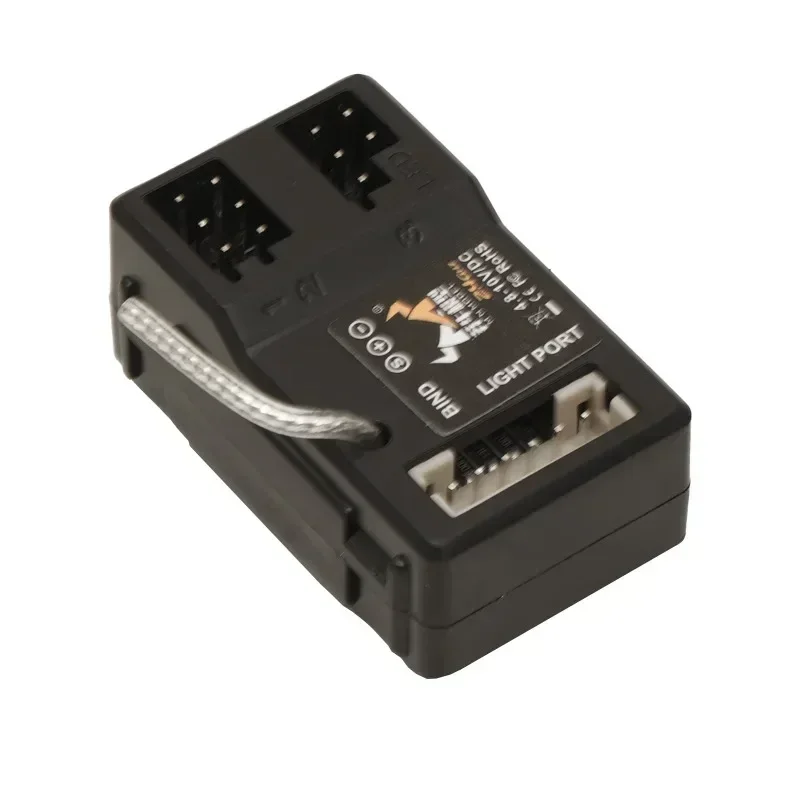

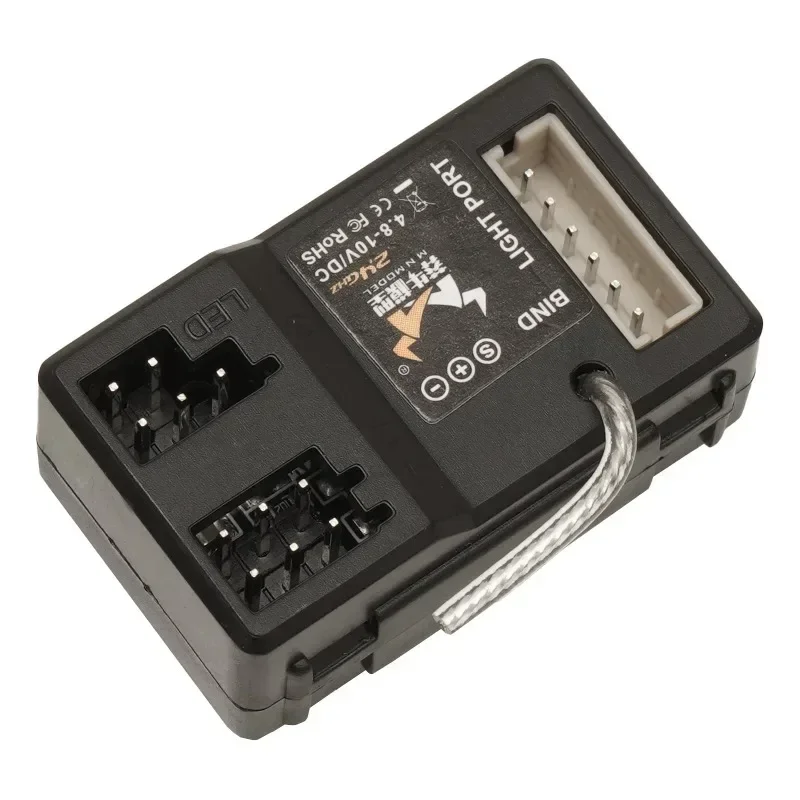

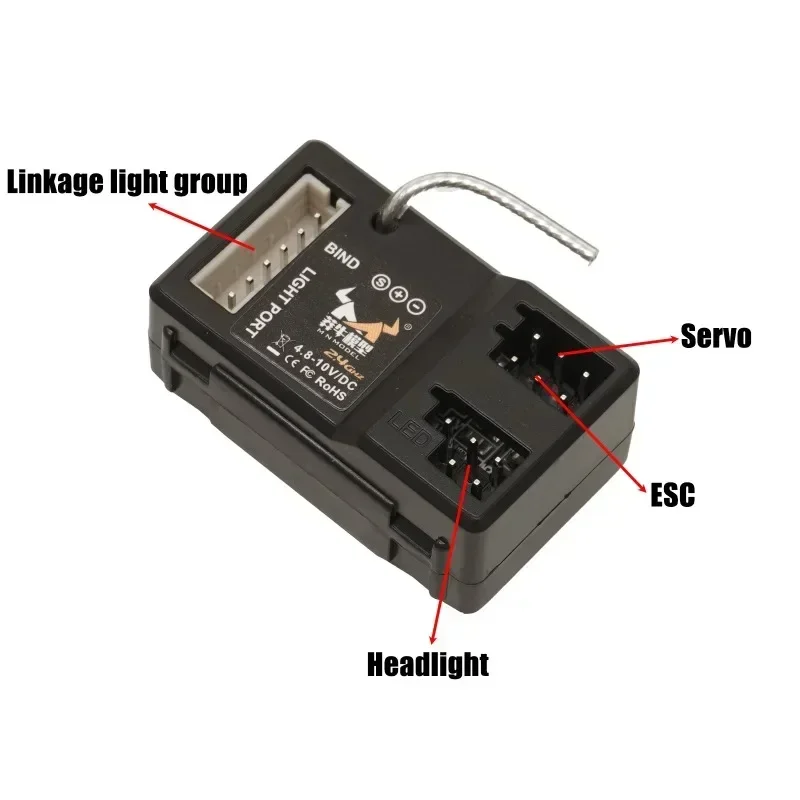

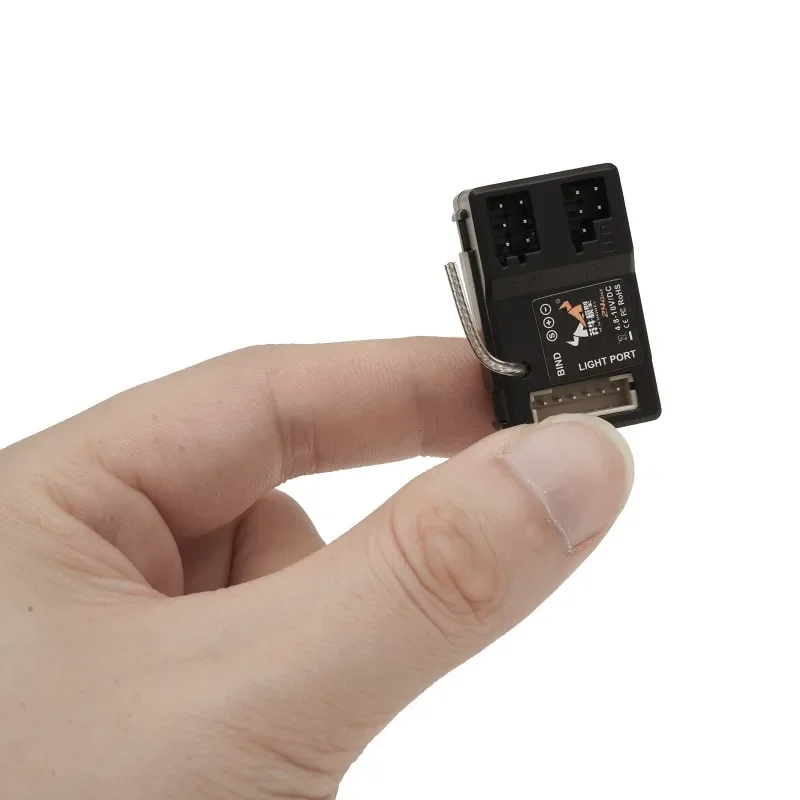

MN 2CH Receiver Specifications :
Channel:2CH
RF range: 2.4GHz
Receiver Voltage Range: 4.8-10V

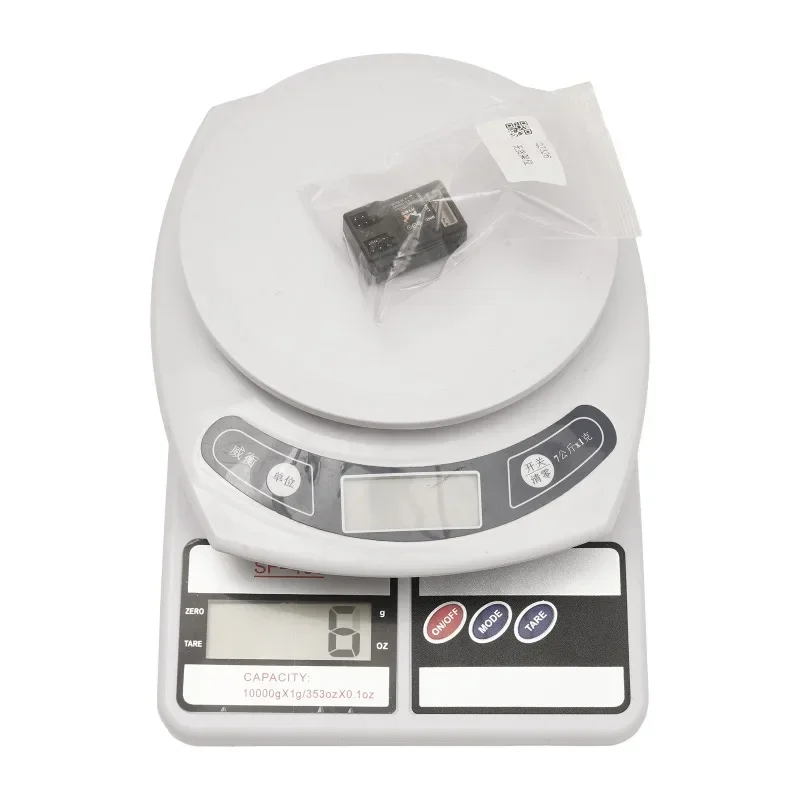

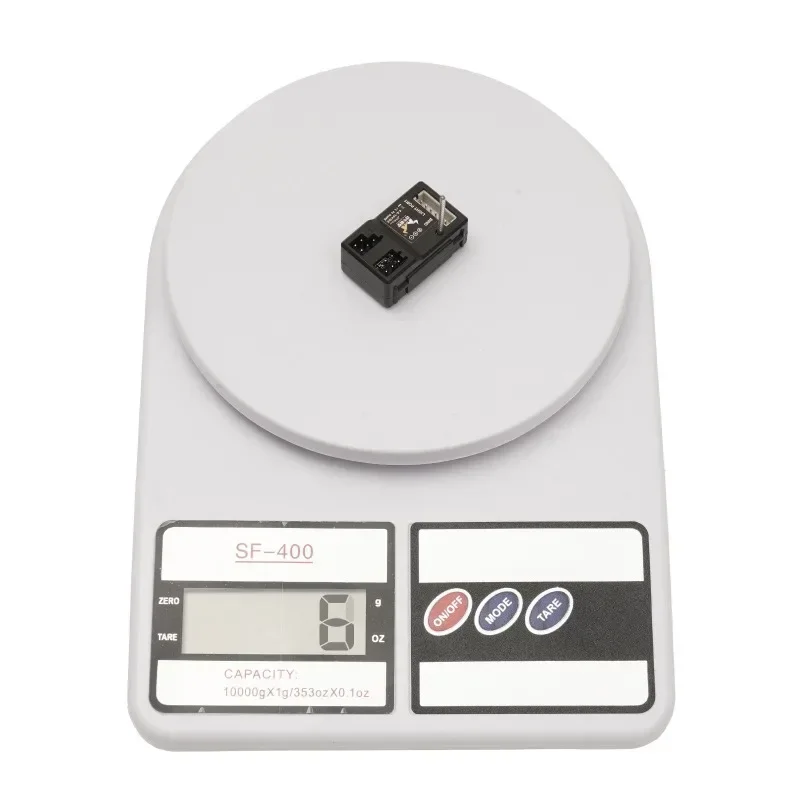

Weight: 6g

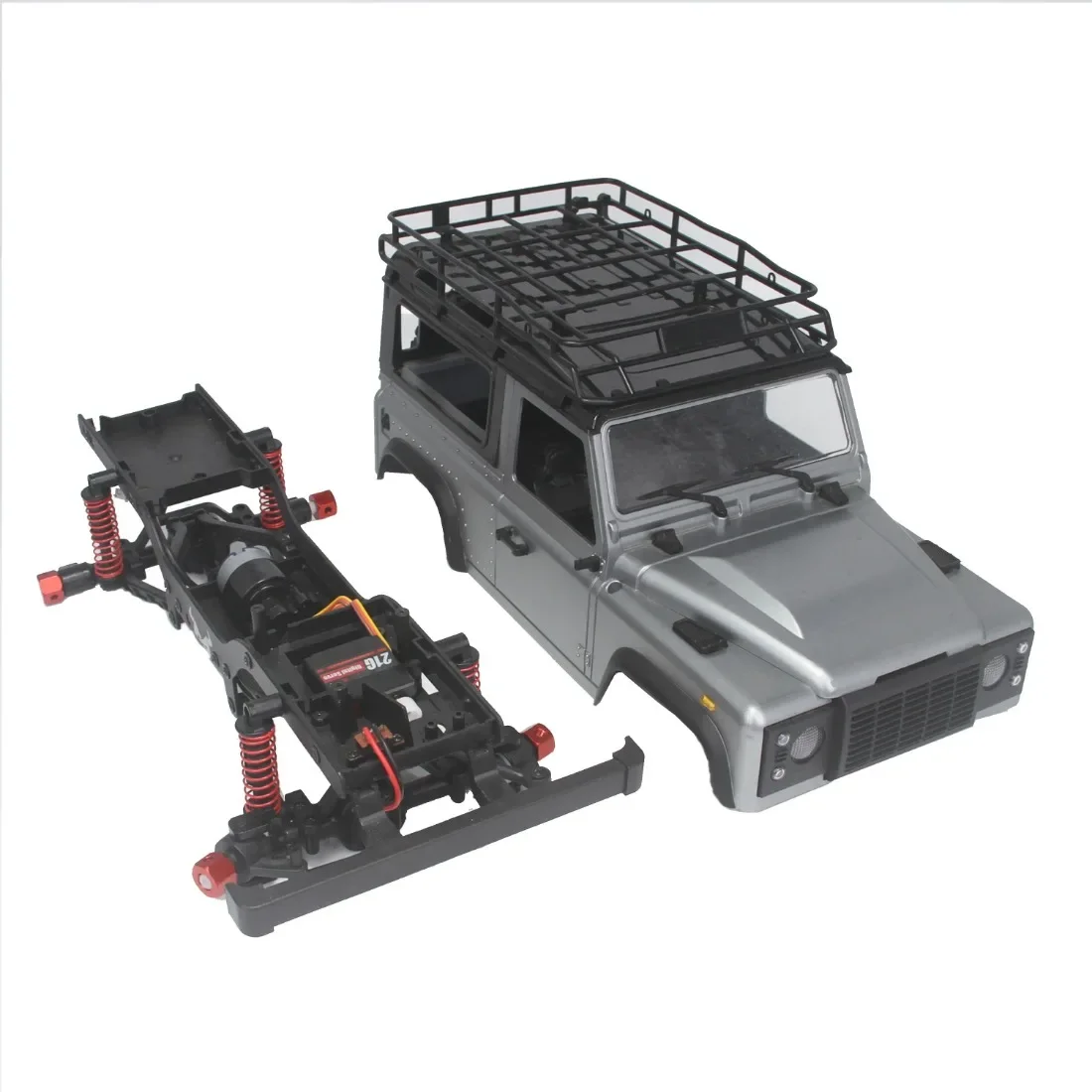

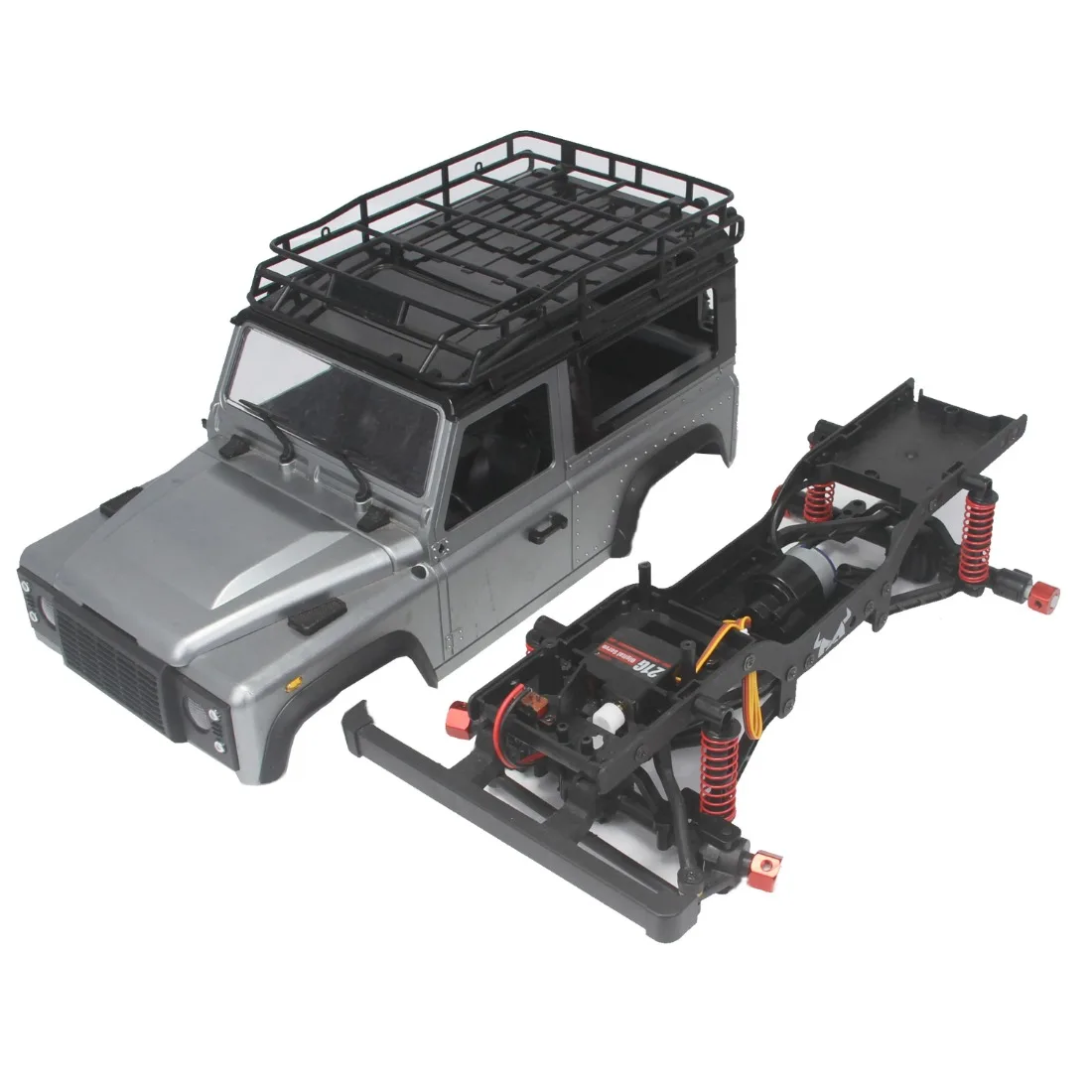

Fit for 1/12 MN Model MN82 MN82S MN78 New MN99S MN111 MN86 MN128 WPL C14 C24 C54 RC Car
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!

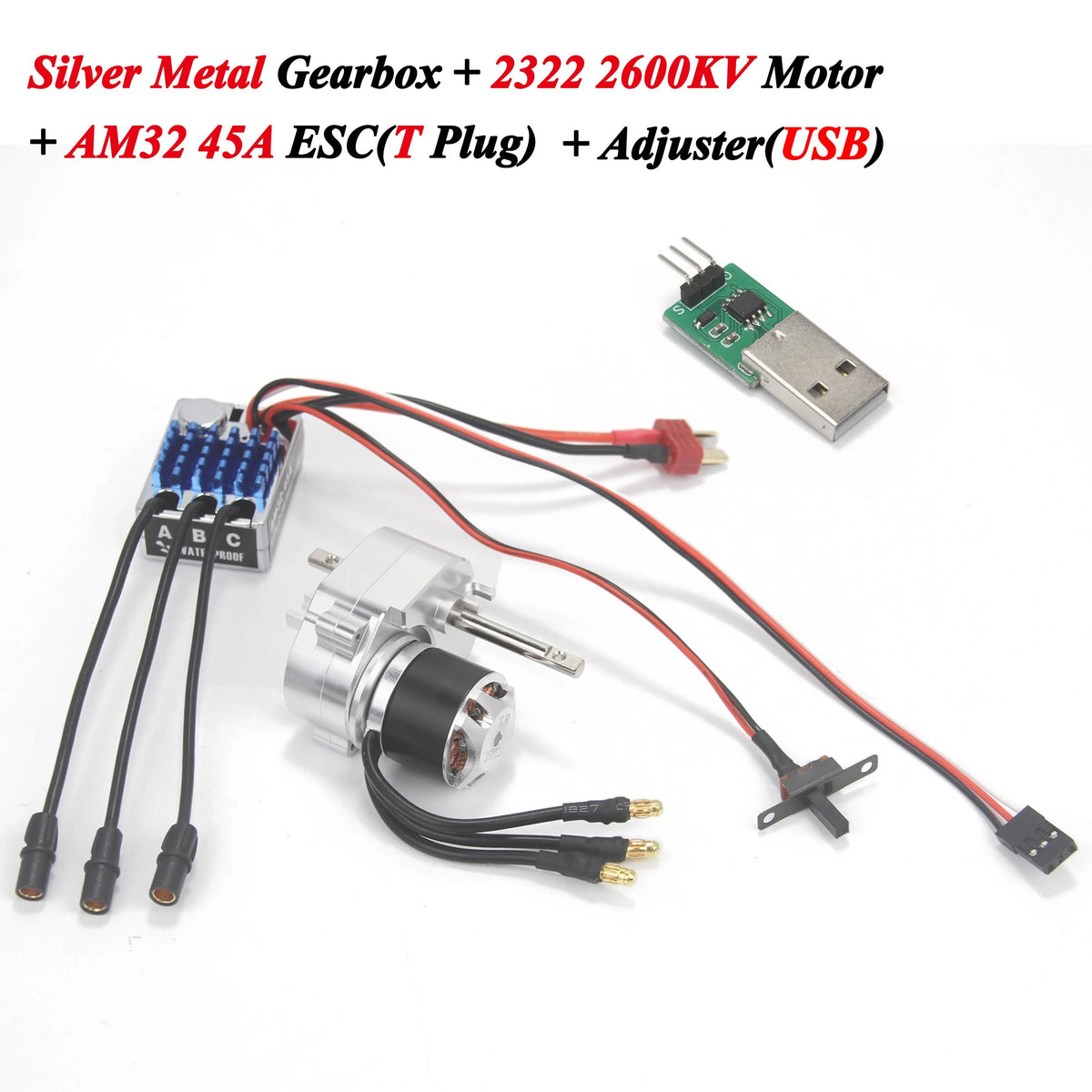

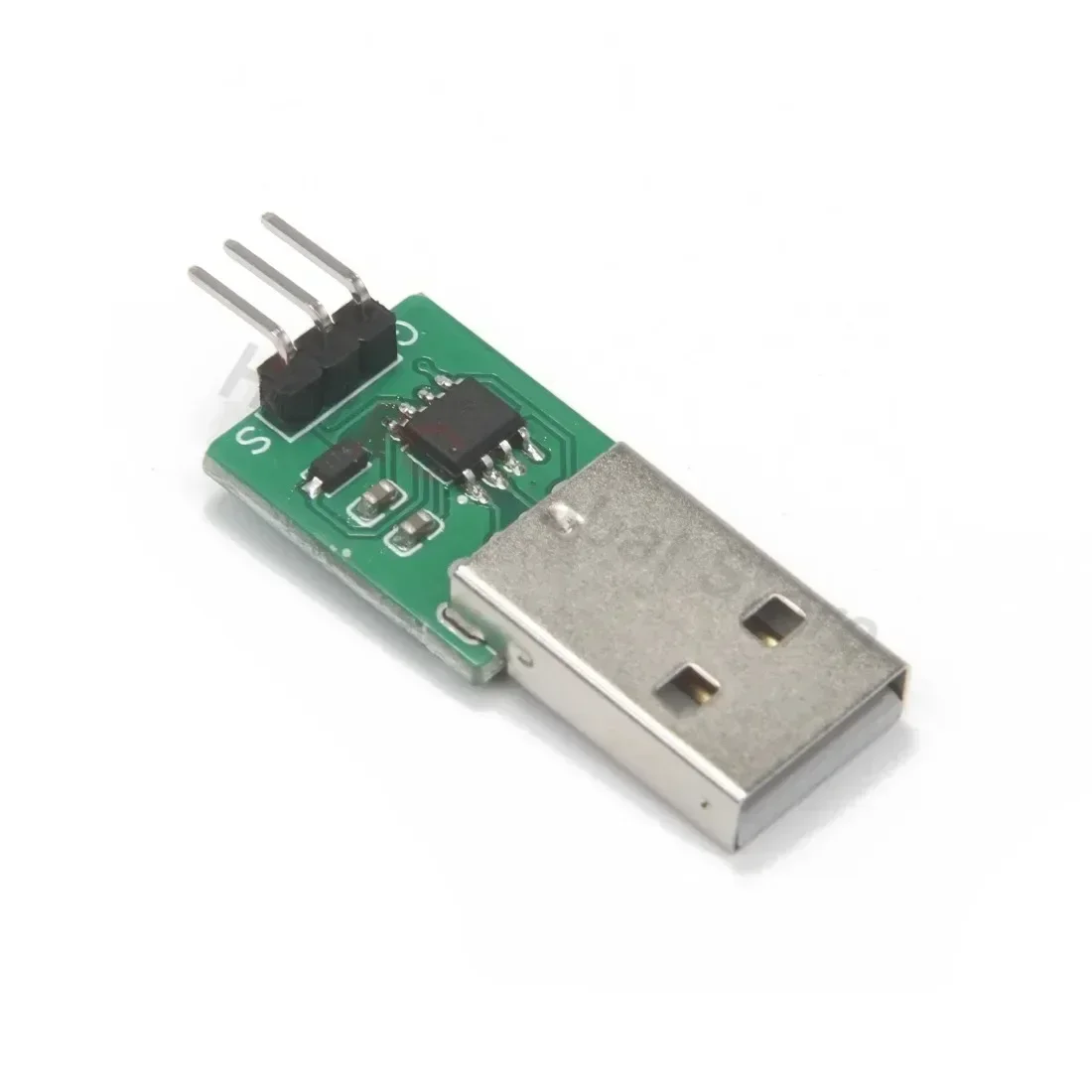

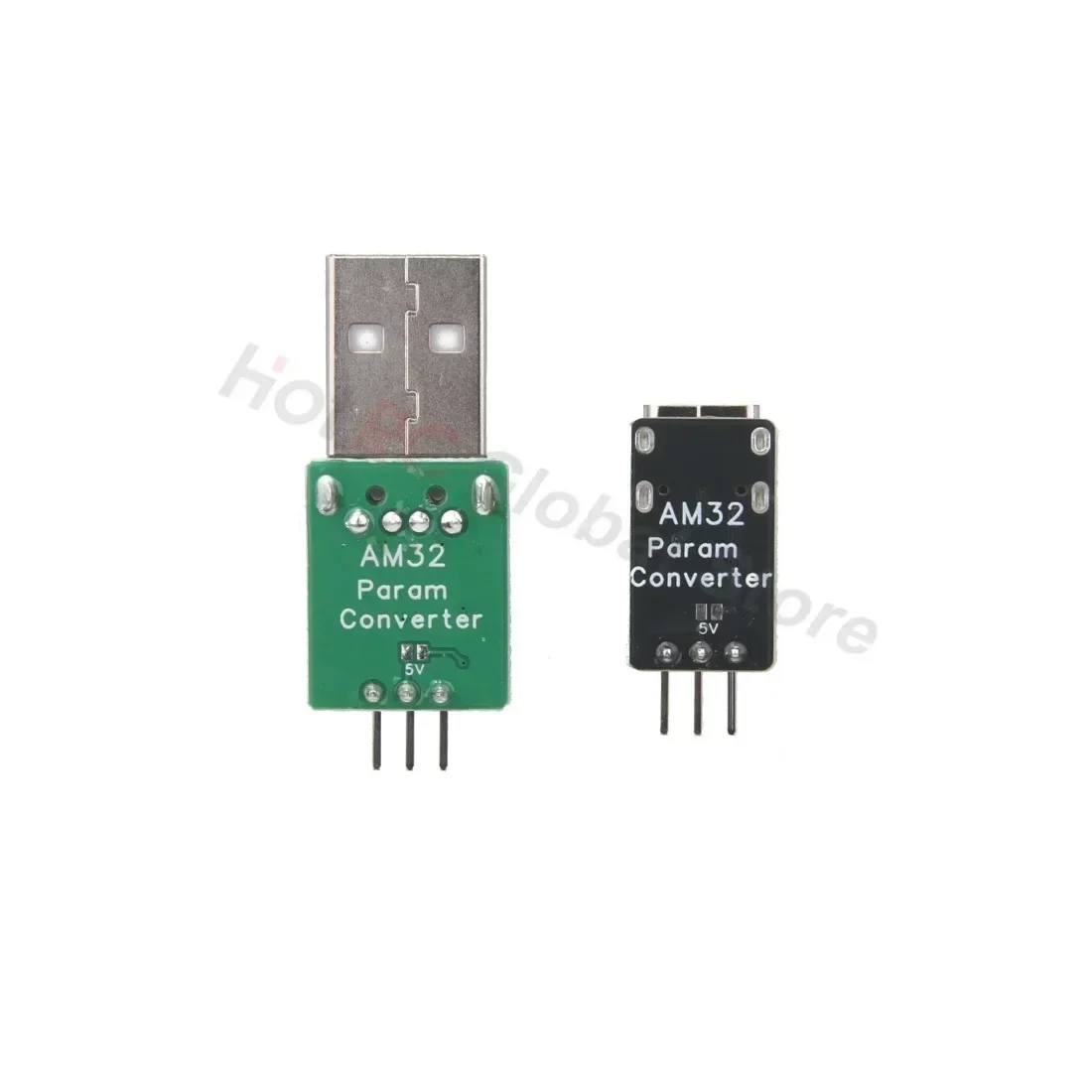

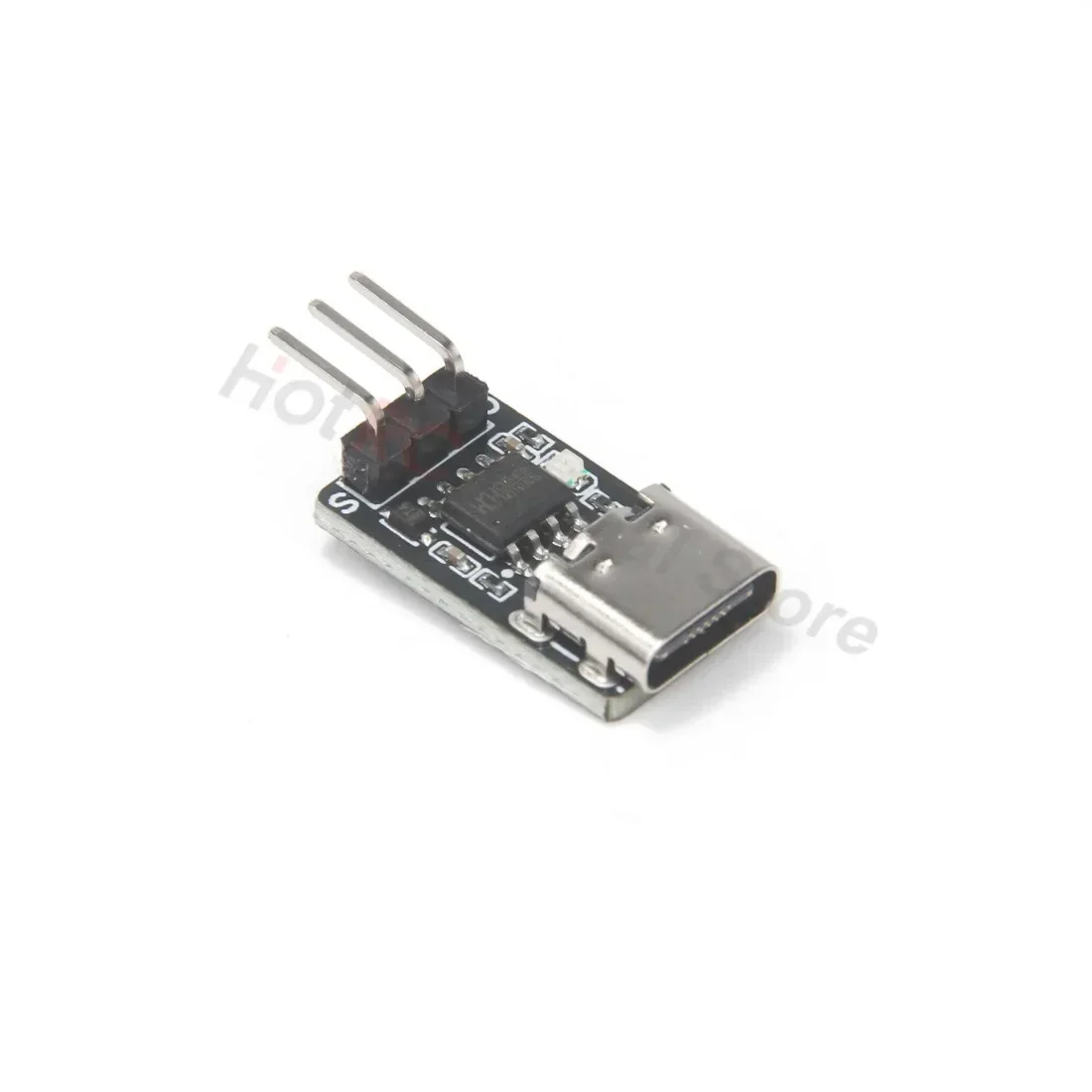

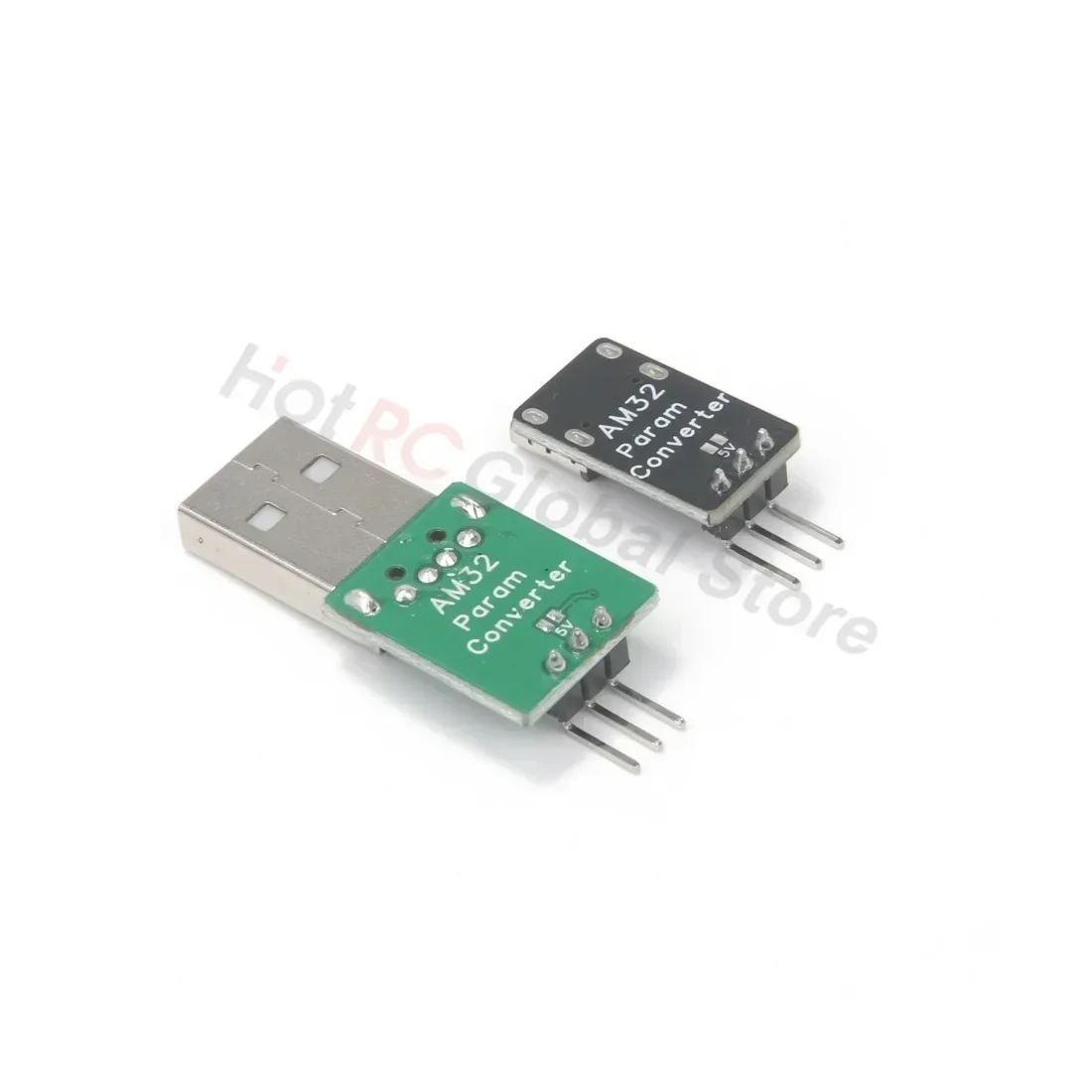

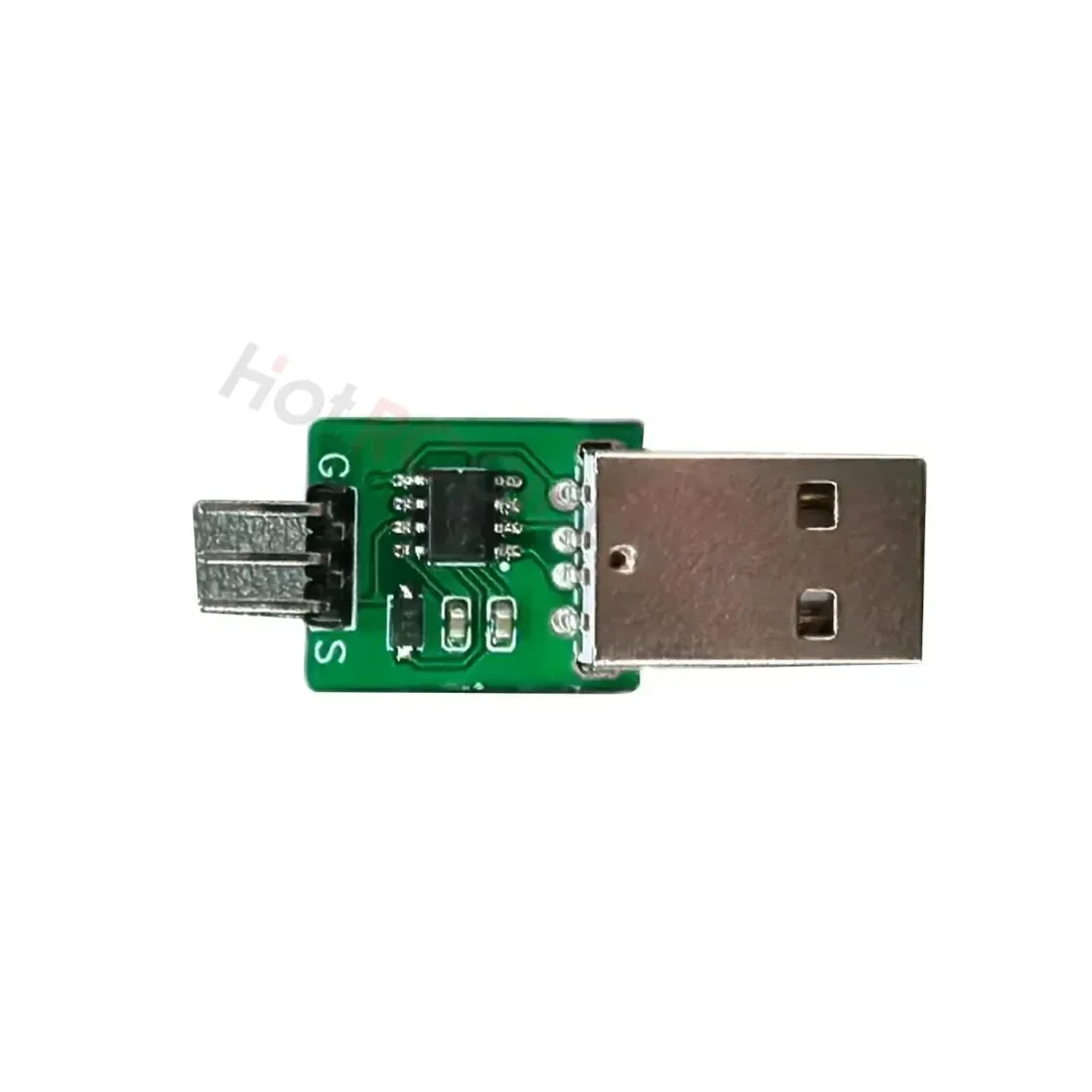

USBLink

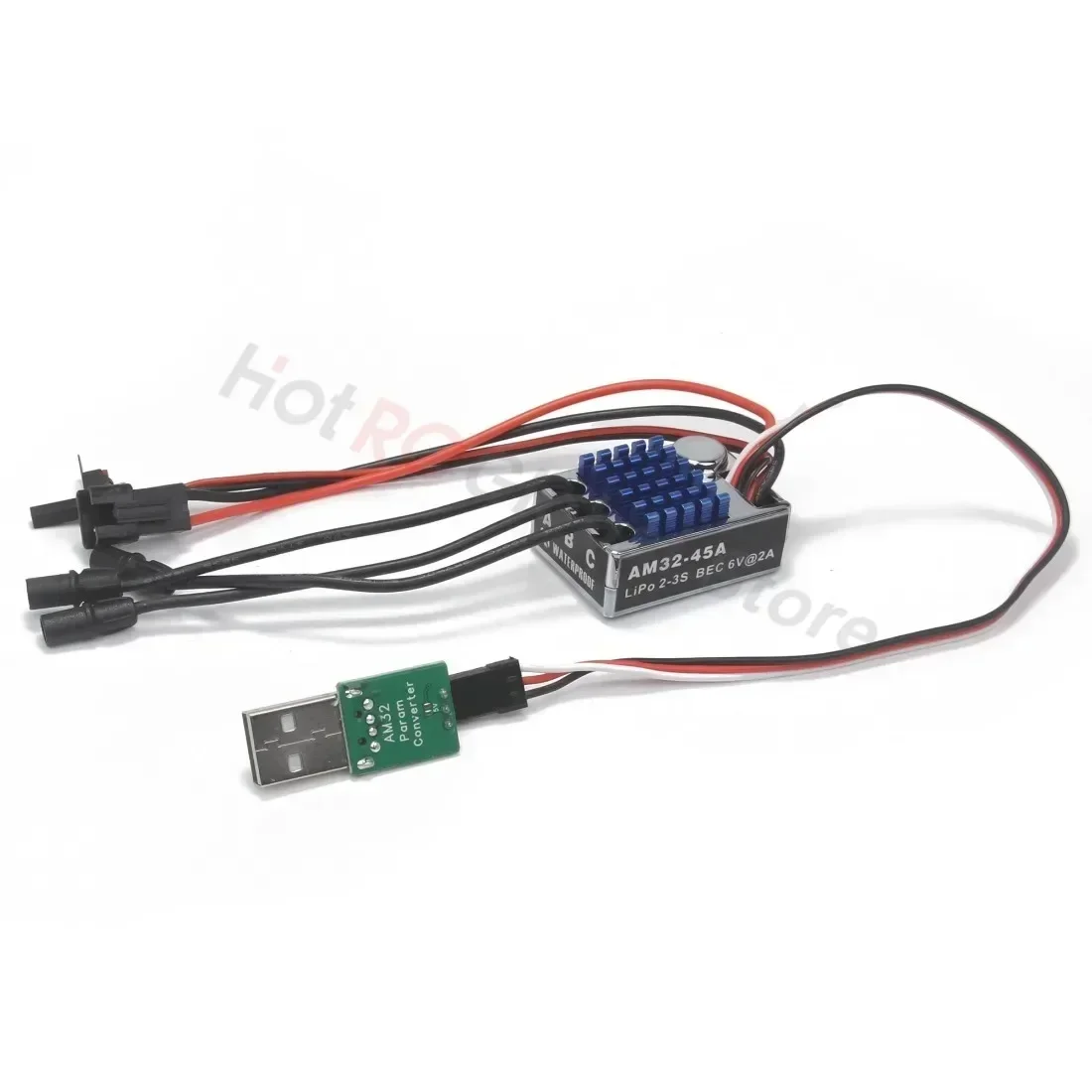

For AM32/BL32, connects the ESC to a computer for configuration or firmware upgrade.
Portable and easy to use, simply connect the ESC signal plug, connect the USB Type-C cable to a computer, and install the VCP driver.
AM32 firmware is specifically designed for AT32 ARM processors, for controlling brushless motors (BLDC). The firmware is designed to be safe, fast, with a smooth and rapid start, and linear throttle. It is suitable for various vehicle types and flight controllers.
Specification:

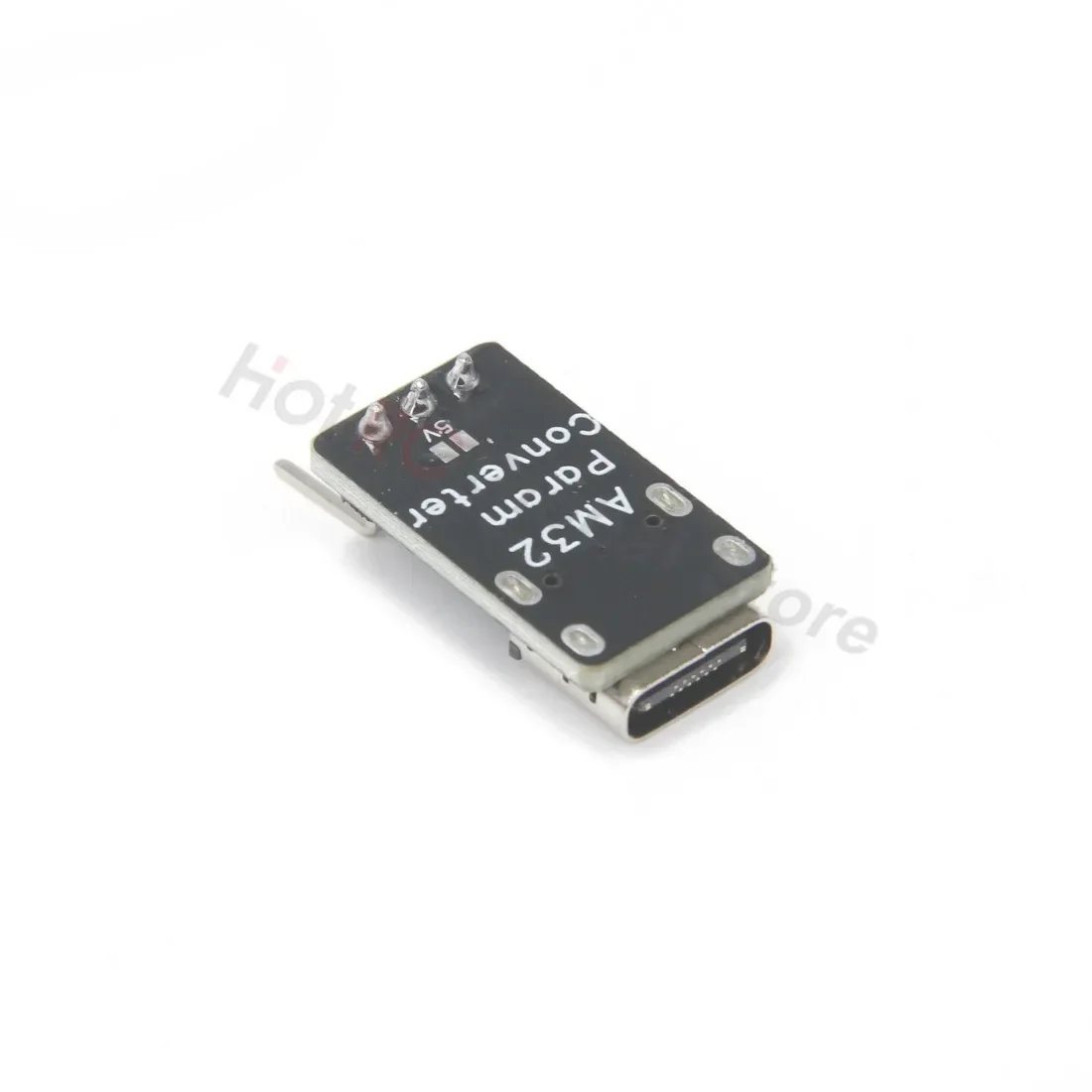

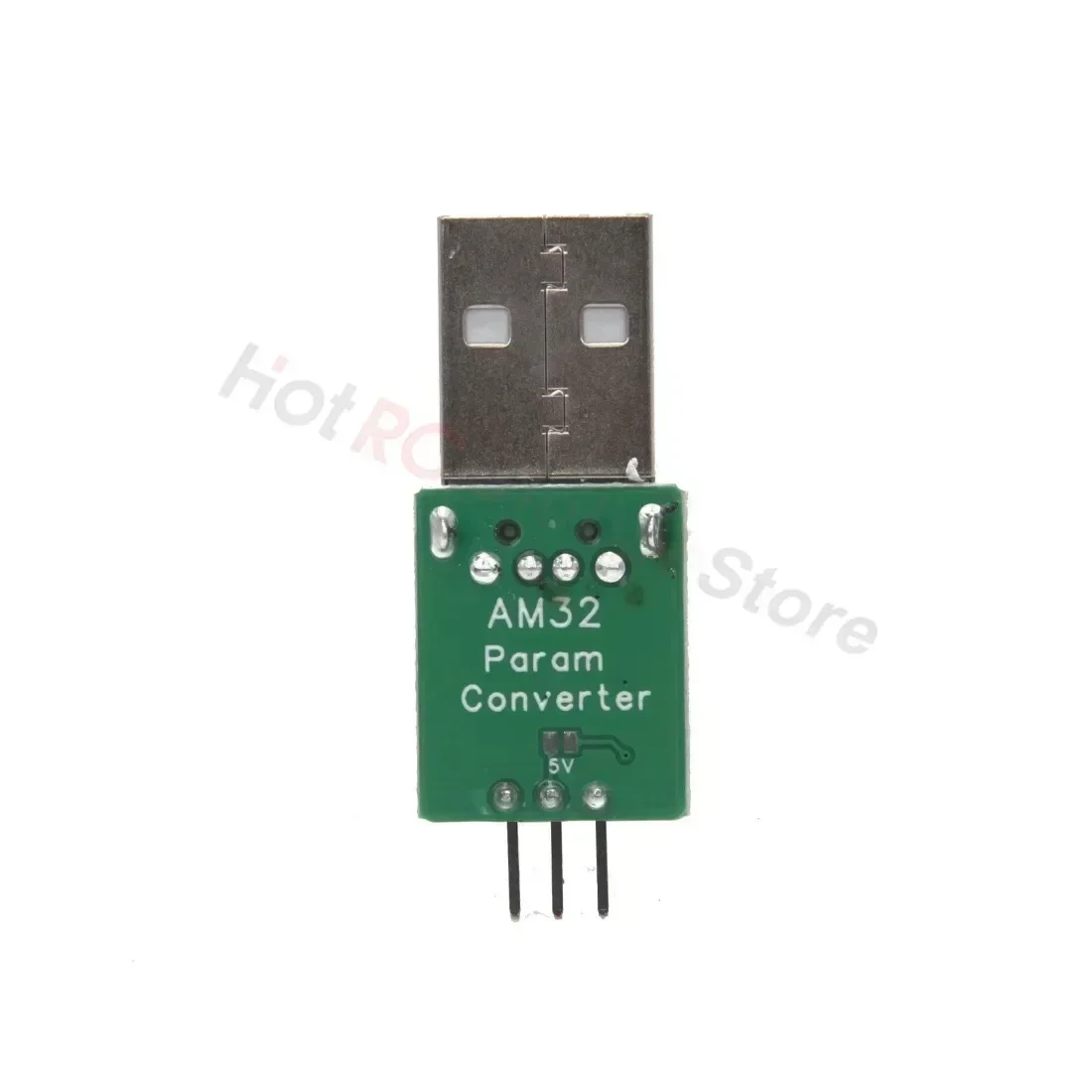

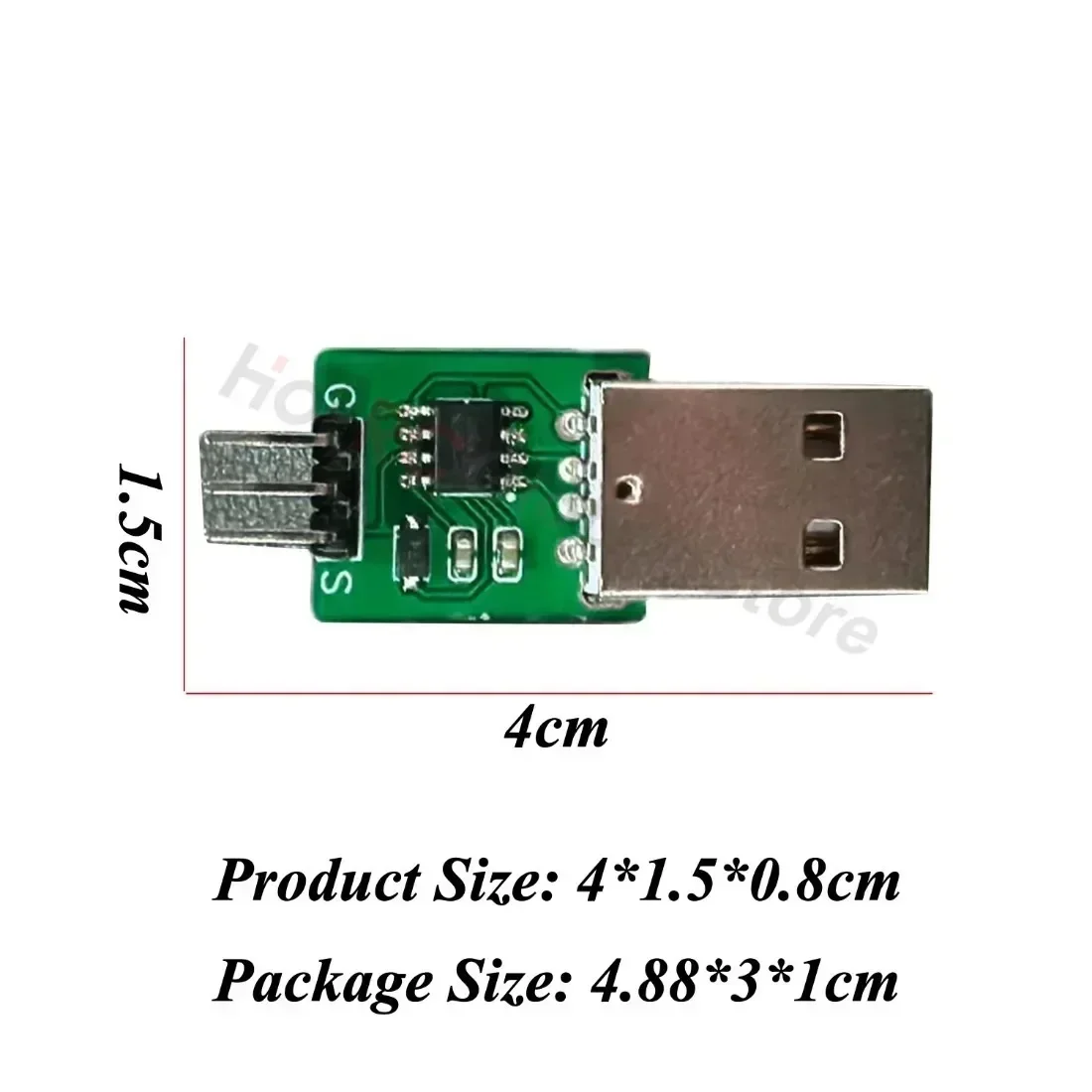

Item Name: AM32 ESC Param Converter USB Link
Product size: 4*1.5*0.8cm
Package size: 4.88*3*1cm
Quantity: 1 piece

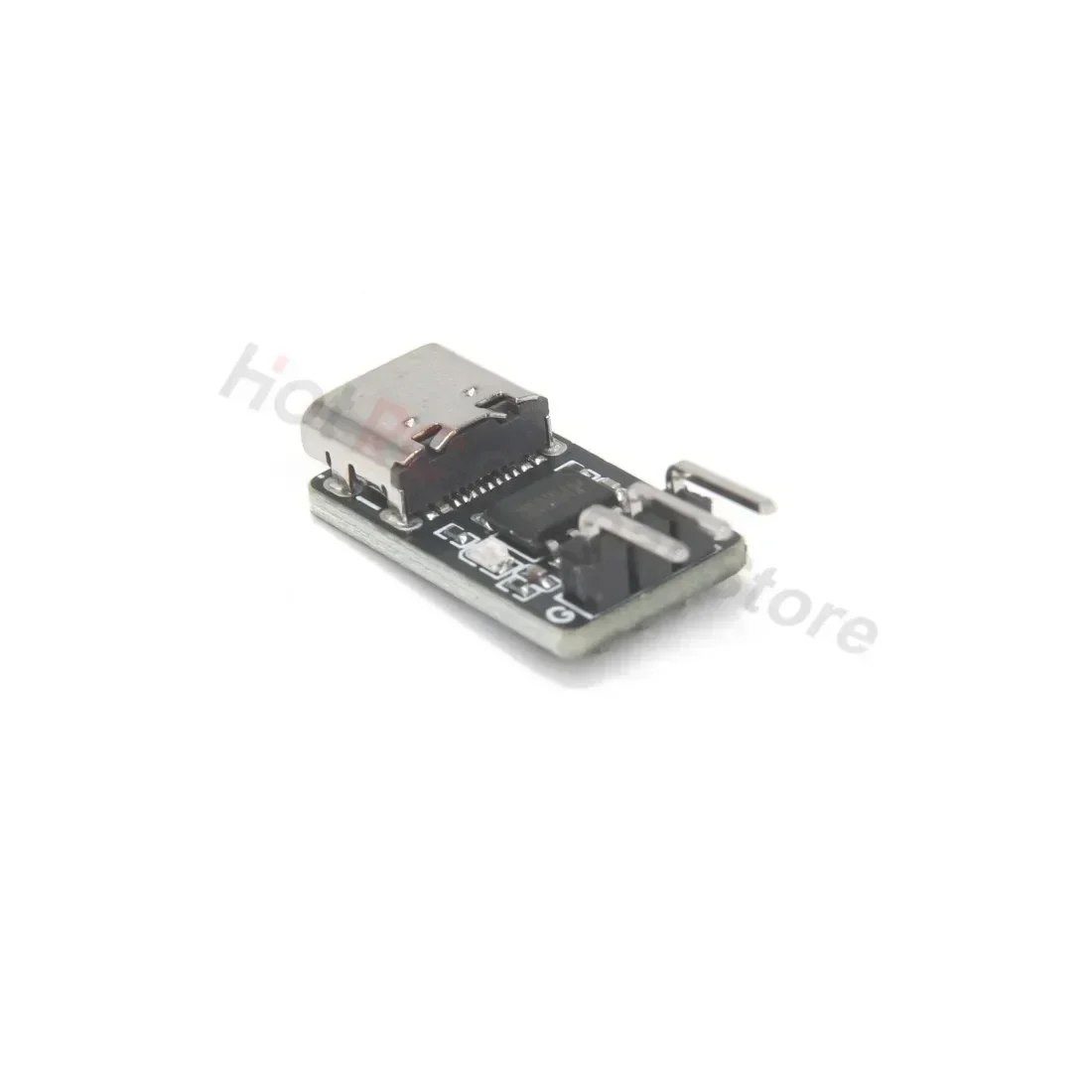

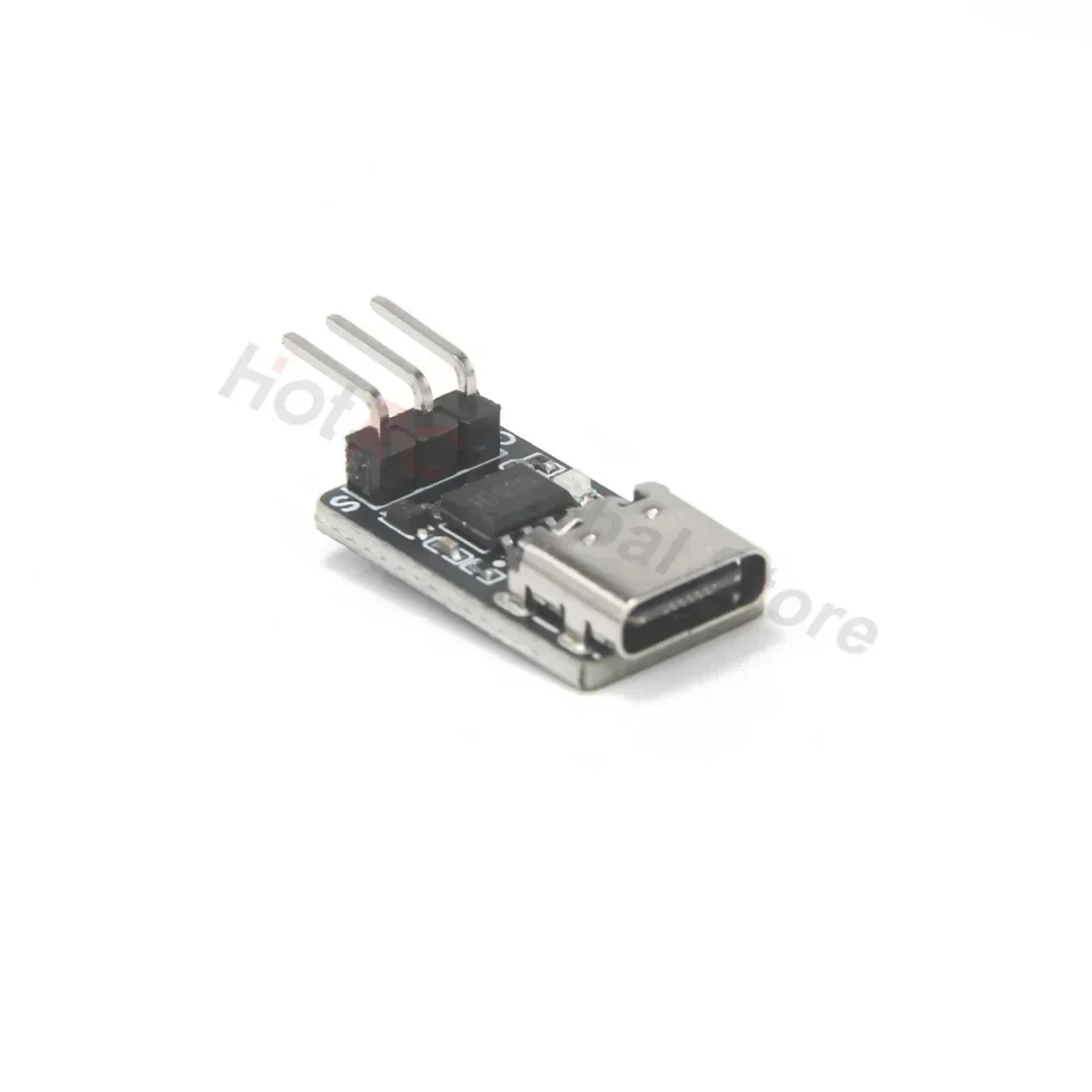

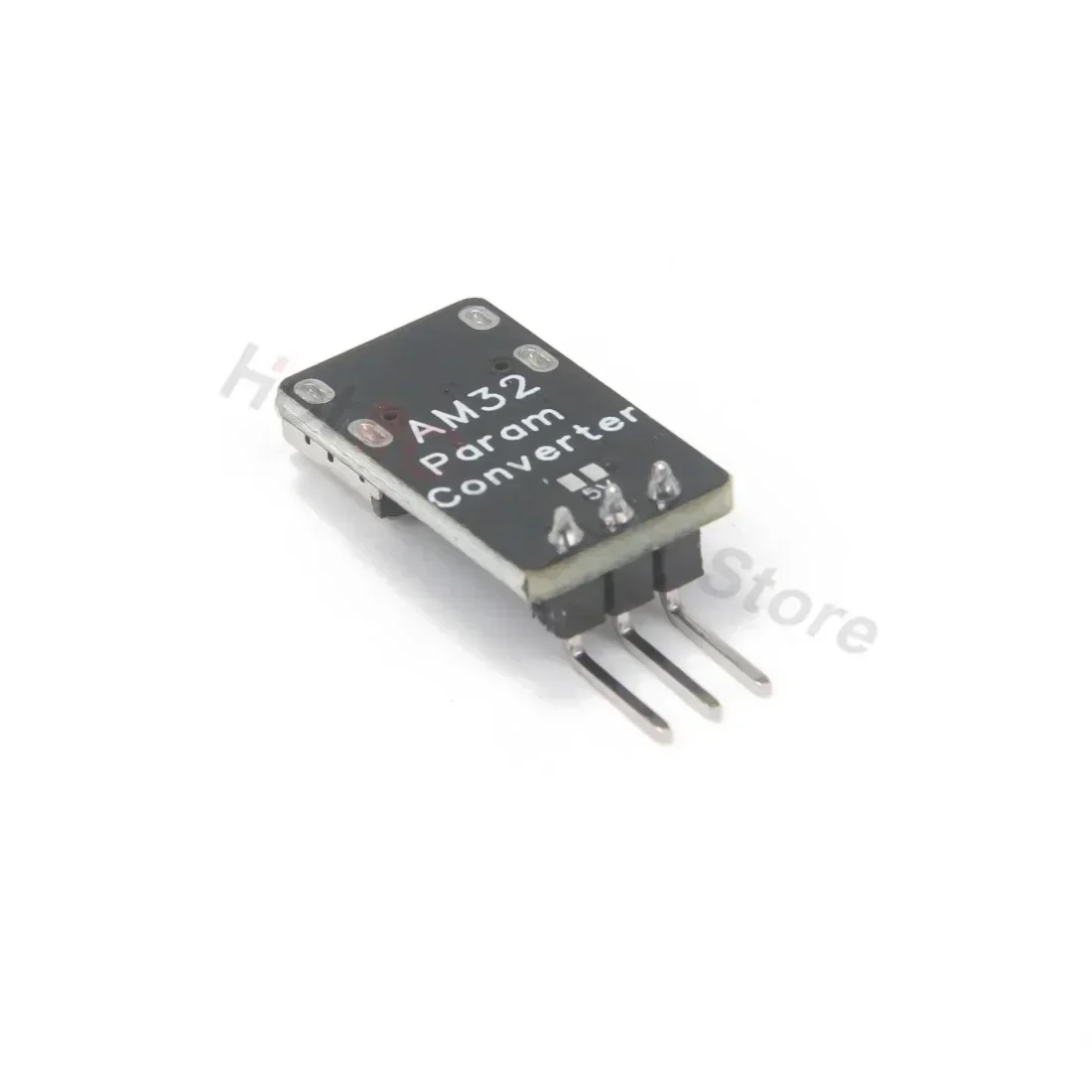

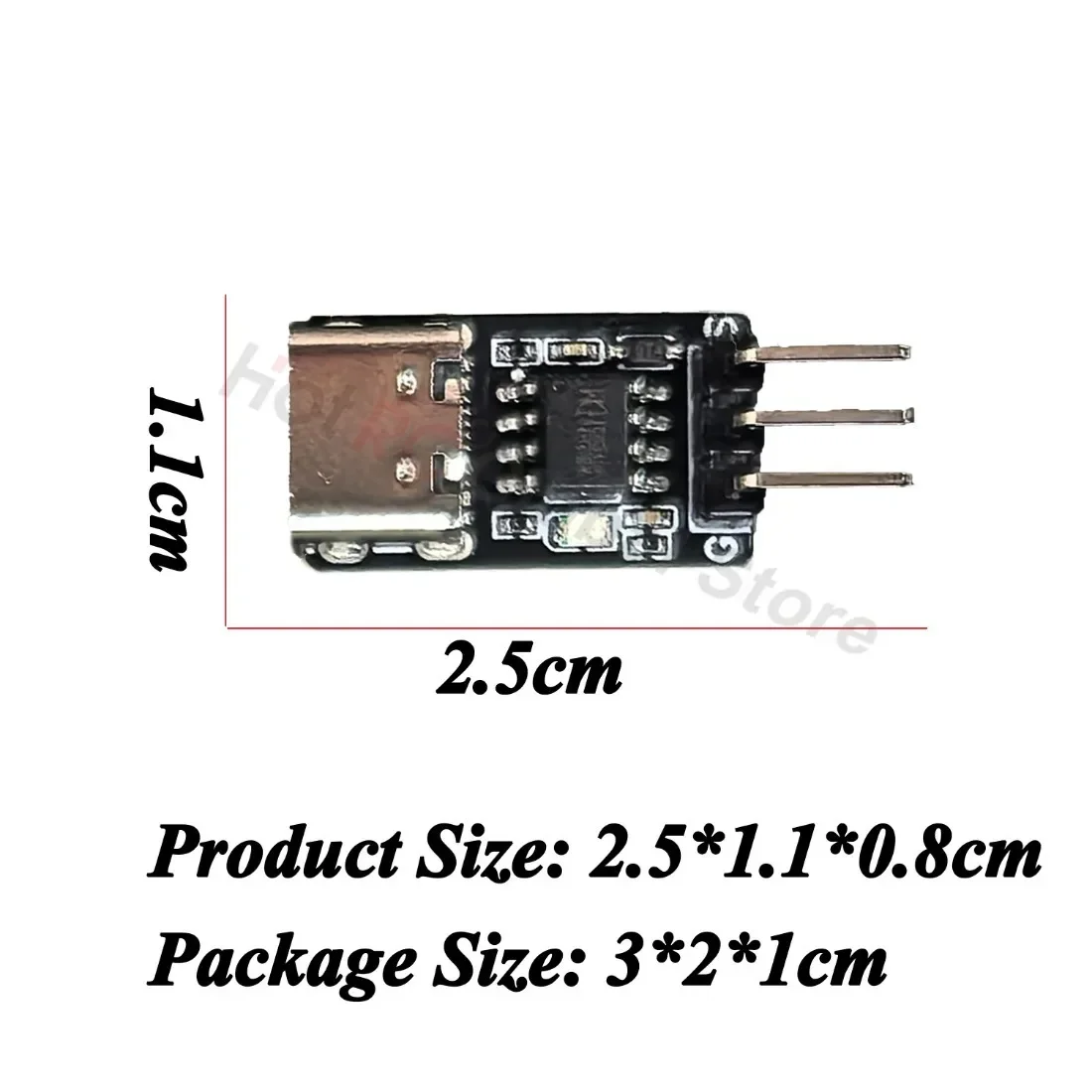

Item Name: AM32 ESC Param Converter Type-C Link
Product size: 2.5*1.1*0.8cm
Package size: 3*2*1cm
Quantity: 1 piece
Full Metal Gearbox 2322 2600KV Brushless Motor AM32 45A ESC Adjuster 21g Servo for 1/12 RC Car Crawler MN82 MN78 MN168 MN99 MN98
$152.99
