Digital Dual Gauge with Alarm 0-190ohm 52MM Water Level+Sewage Level Meter for Water/Sewage Level Sensor Car Boat Marine Custom
Water Sensor 150mm / Default
$90.04
Sale price
$90.04
Regular price
$0.00
Skip to product information
Digital Dual Gauge with Alarm 0-190ohm 52MM Water Level+Sewage Level Meter for Water/Sewage Level Sensor Car Boat Marine Custom
$90.04
Sale price
$90.04
Regular price
$0.00
Shipping calculated at checkout.
SPECIFICATIONS
52MM Gauge: Water Level Gauge
Brand Name: ZMFJH
Country/Region of Manufacture: China
HTG: Sewage Level Gauge
High-concerned chemical: None
Interchange Part Number: Holding Tank Gauge
Item Height: 52mm
Item Length: 150mm
Item Weight: 150g
Item Width: 52mm
Length: 100-600mm
Manufacturer Part Number: Multi Gauge
Material: Stainless Steel
OEM NO.: Water Level Gauge
Origin: Mainland China
Other Part Number: Sewage Level Meter
Placement on Vehicle: Front
Sewage Level Meter: Holding Tank Gauge
Signal: 0-190 ohm

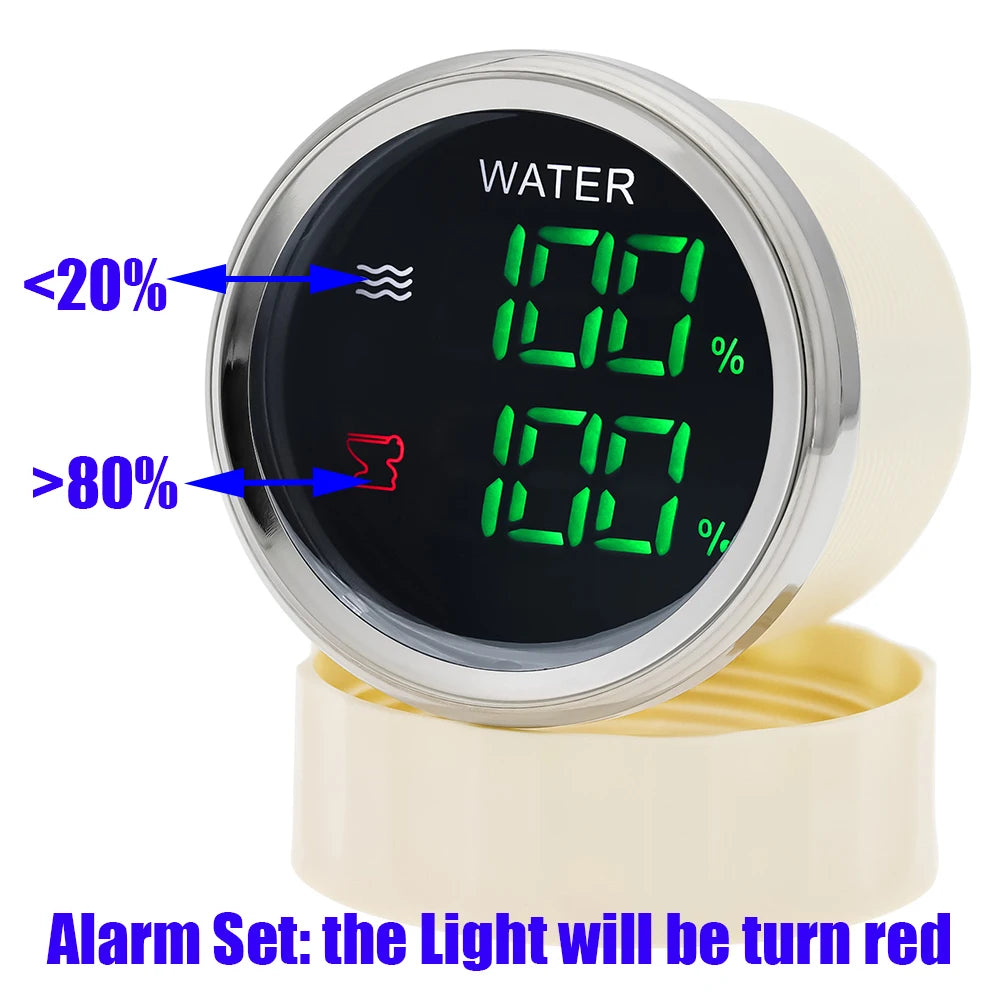

Special Features: with Alarm
Water Level Indicator: Water Level Meter 52mm
this link gauge/sensor sell separate , if you need gauge and sensor , please choose gauge and sensor together to make order

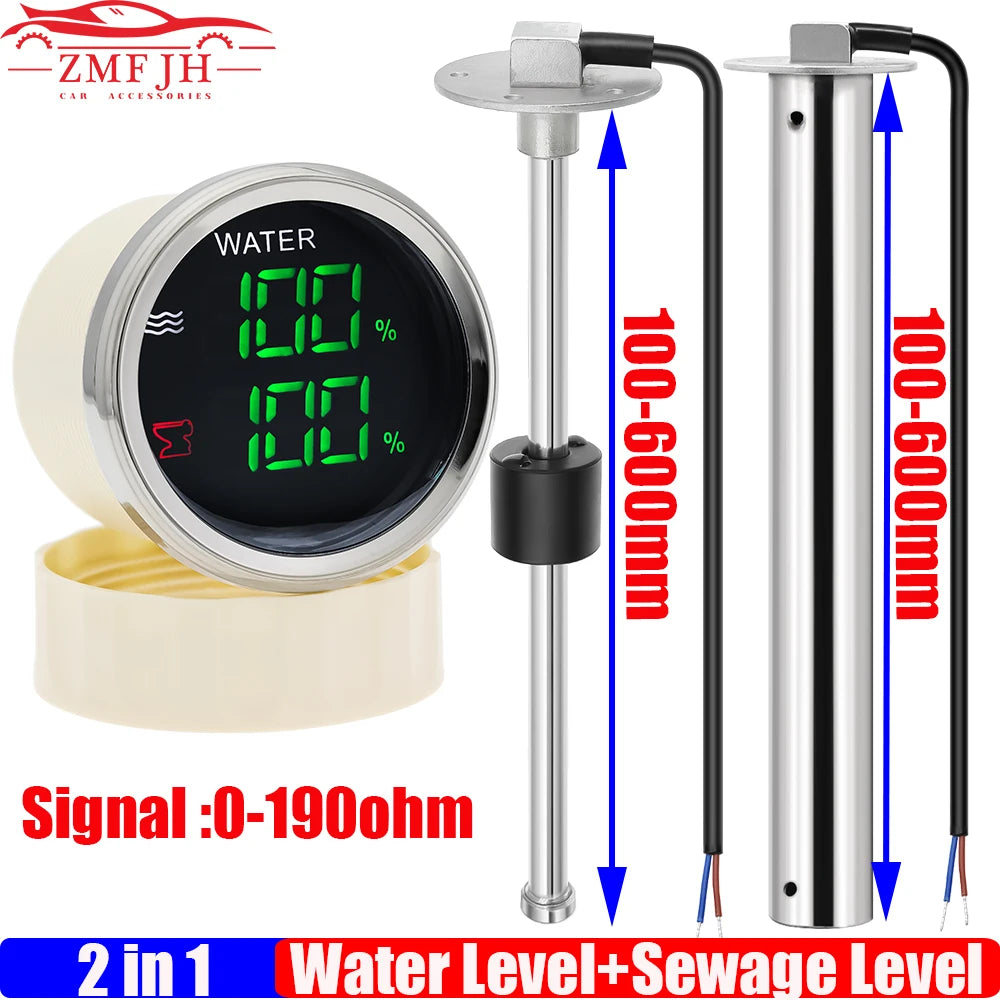

2024 New 52mm Universal 2 in 1 Dual Gauge
Application: Marine Boats/Truck/Bus/Motor Home/Hot Rod/Generators
About the gauge:
The device works, with a little delay (about 20 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank.
Feature:
- 52mm diameter Two in One Gauge show with easy installation
- Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor
0-190Ω, 0-180Ω, 10-180Ω, 240-33Ω, 240-30Ω
- High Resolution View under sunshine
- Installation Diameter: 52mm (2inch)
- Reverse polarity protection and anti-fogging performance
- Working Voltage:12V/24V
- Working temperatures: - 40 to 85°C

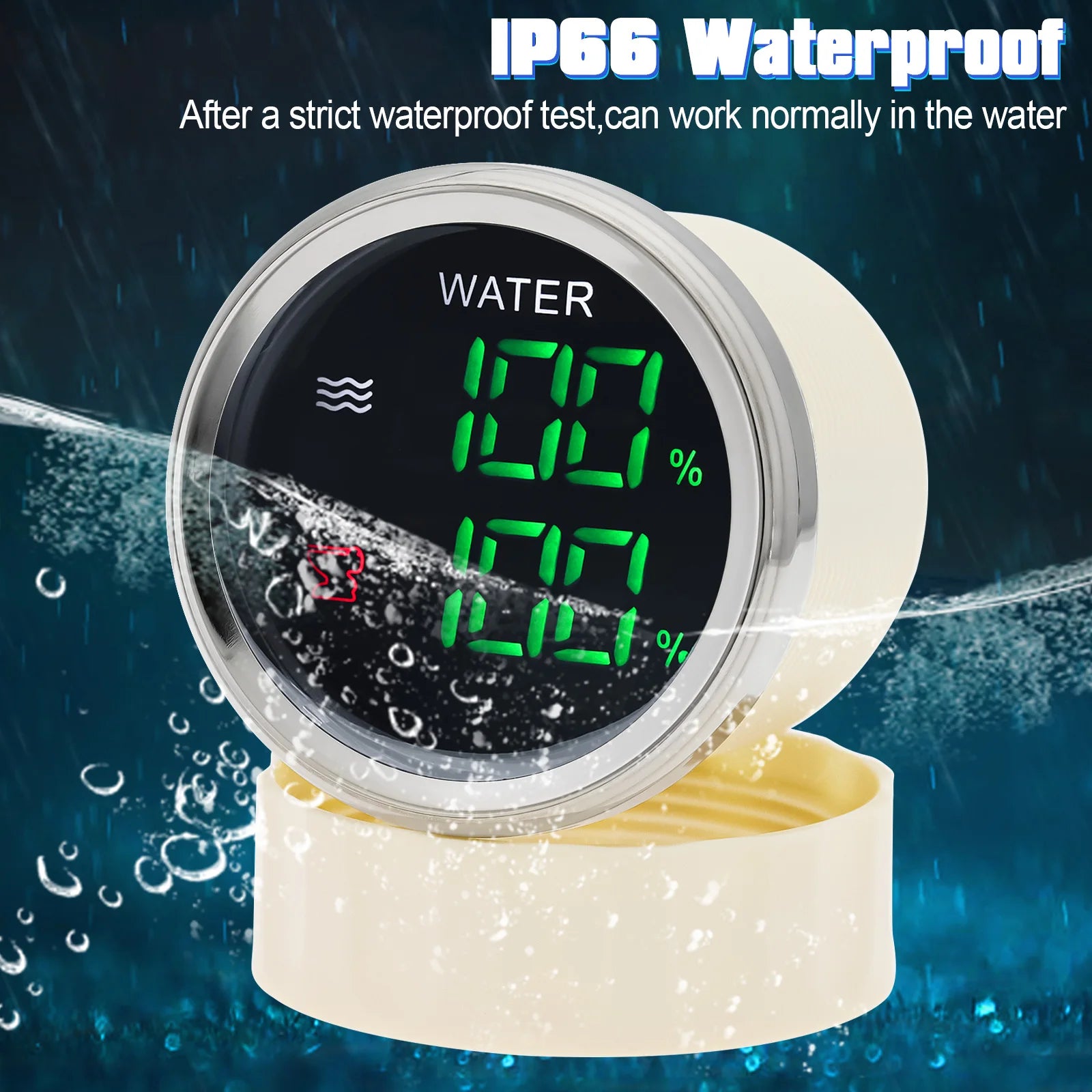

- IP66 Waterproof
INSTALLATION GUIDE
1. Cut an Φ52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16”). behind the panel.
2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)

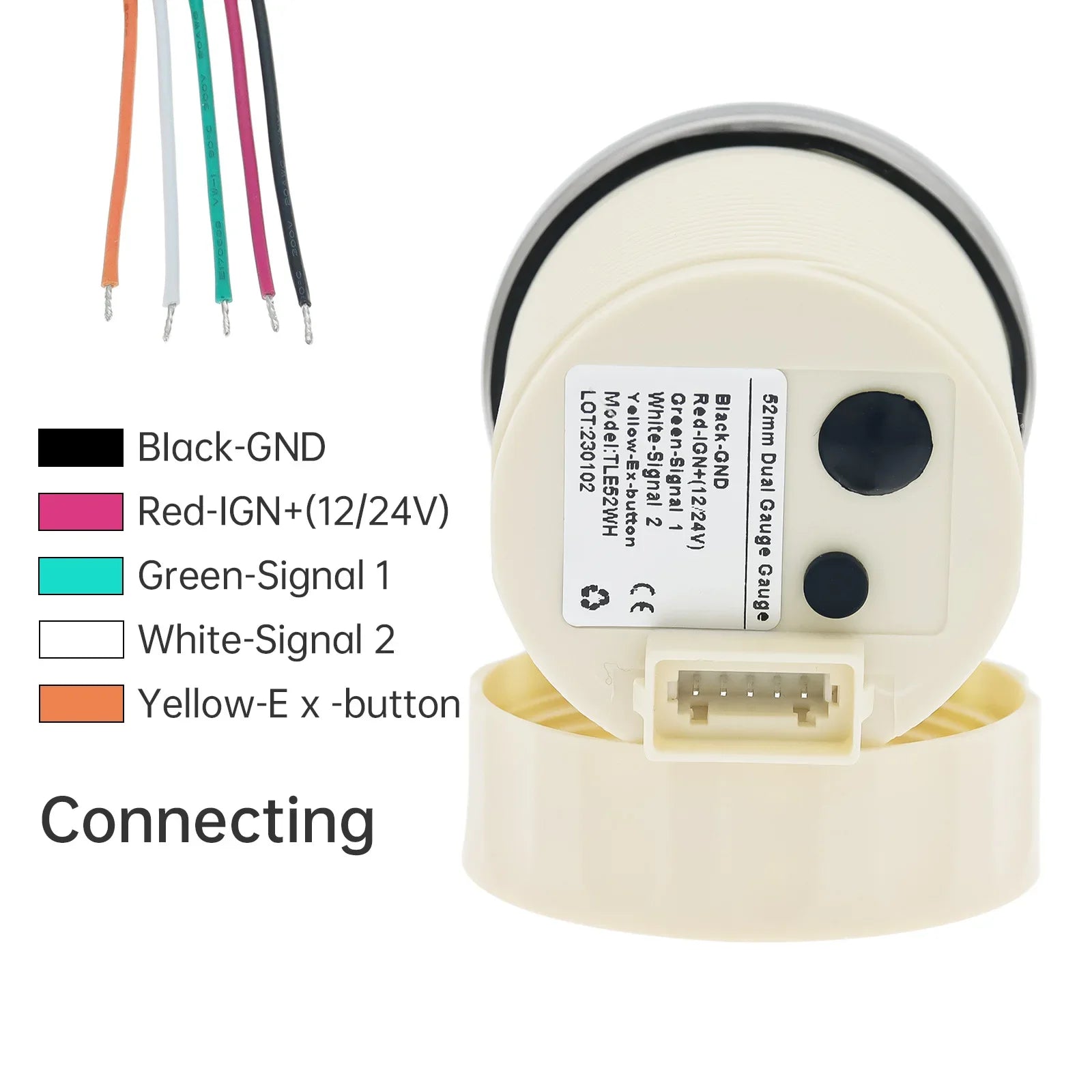

3. Connect cables according to the diagram/label.
Setting Menu：“Unit” “R 1” “R 2”
1.Hold & Press the button, Power On Gauge, the LED screen will show Switch Show
Unit, R1, R2
2.Unit
Fuel Gauge, Water Level, HTG Sewage Level: %
Water temperature: ℃ or ℉
3.R1---Configure Top Row Signal Range
Press Button to switch 000 ~006
For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting
4.R2---Configure Top Row Signal Range
Press Button to switch 000 ~006.
For example, LED will show “002” , which means 10~180ohm, then release the button and wait digital flash to complete to save setting

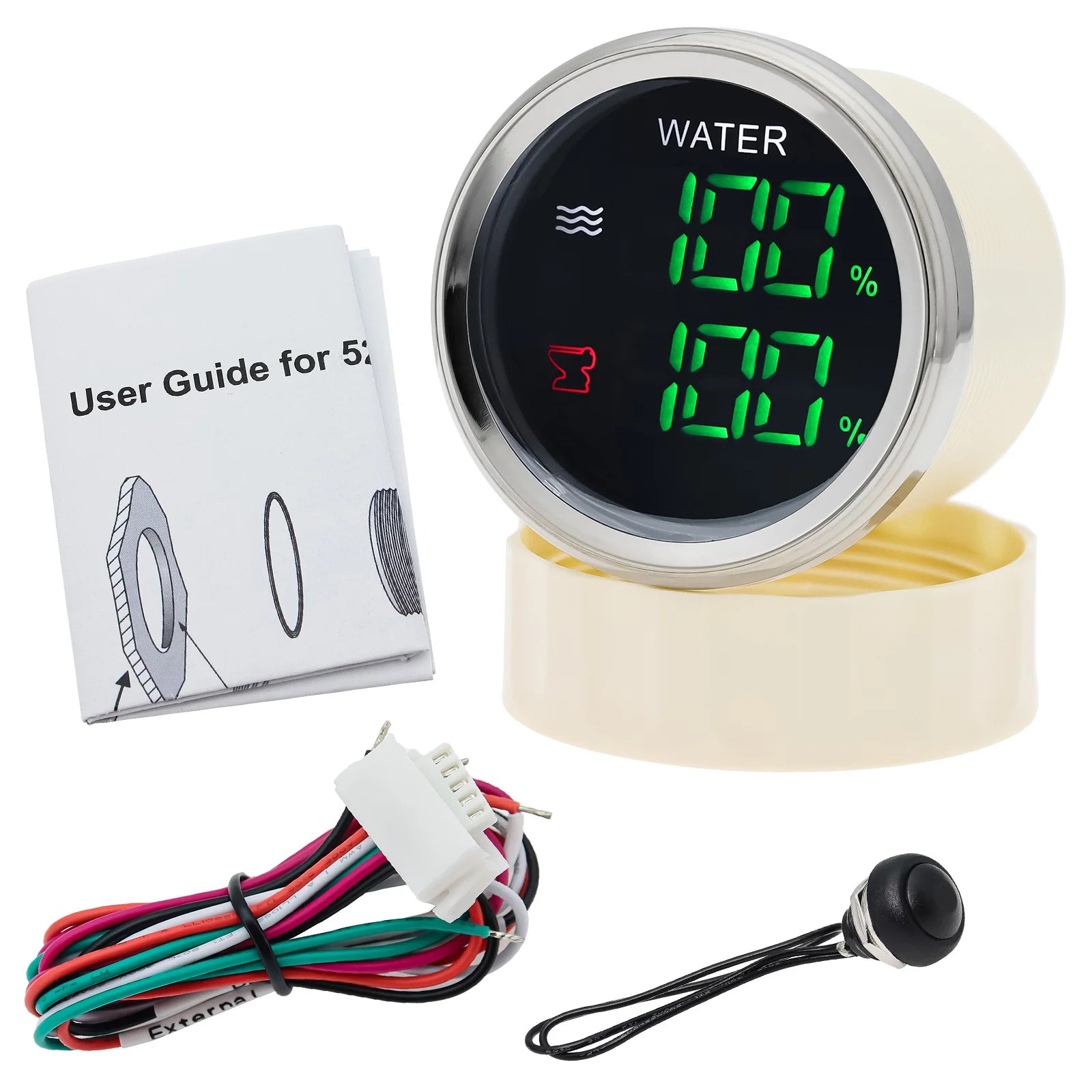

Package:

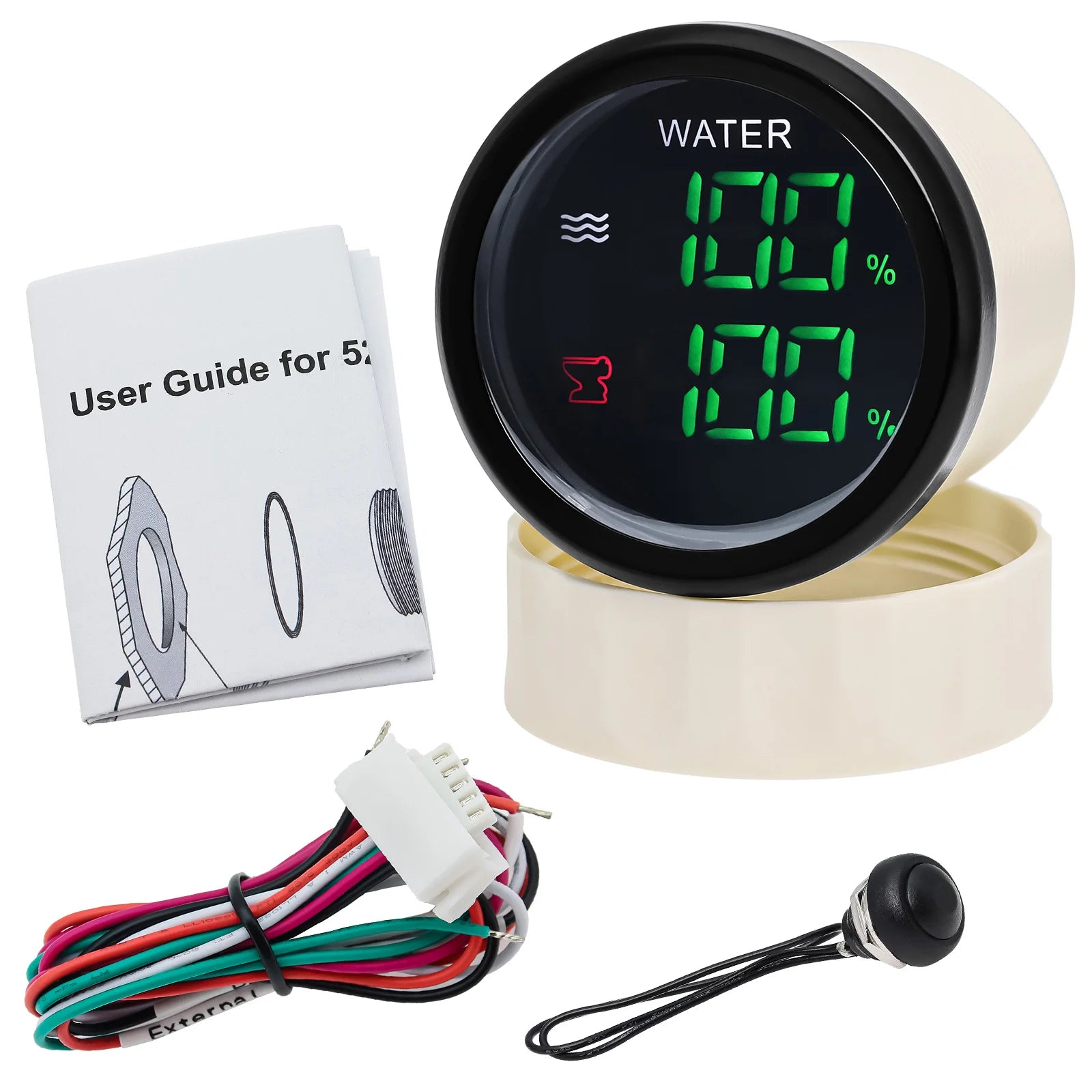

1PCS Gauge+Manual+Cable
,not included sensor
Sensor supporting Customized , if you need customized , please contact to us
Attention:
- Empty oil level : 0 ohm / 240 ohm
- Full oil level : 190 ohm / 33 ohm
- When the oil / water level is empty , there will be a space of 3-21mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
- When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~

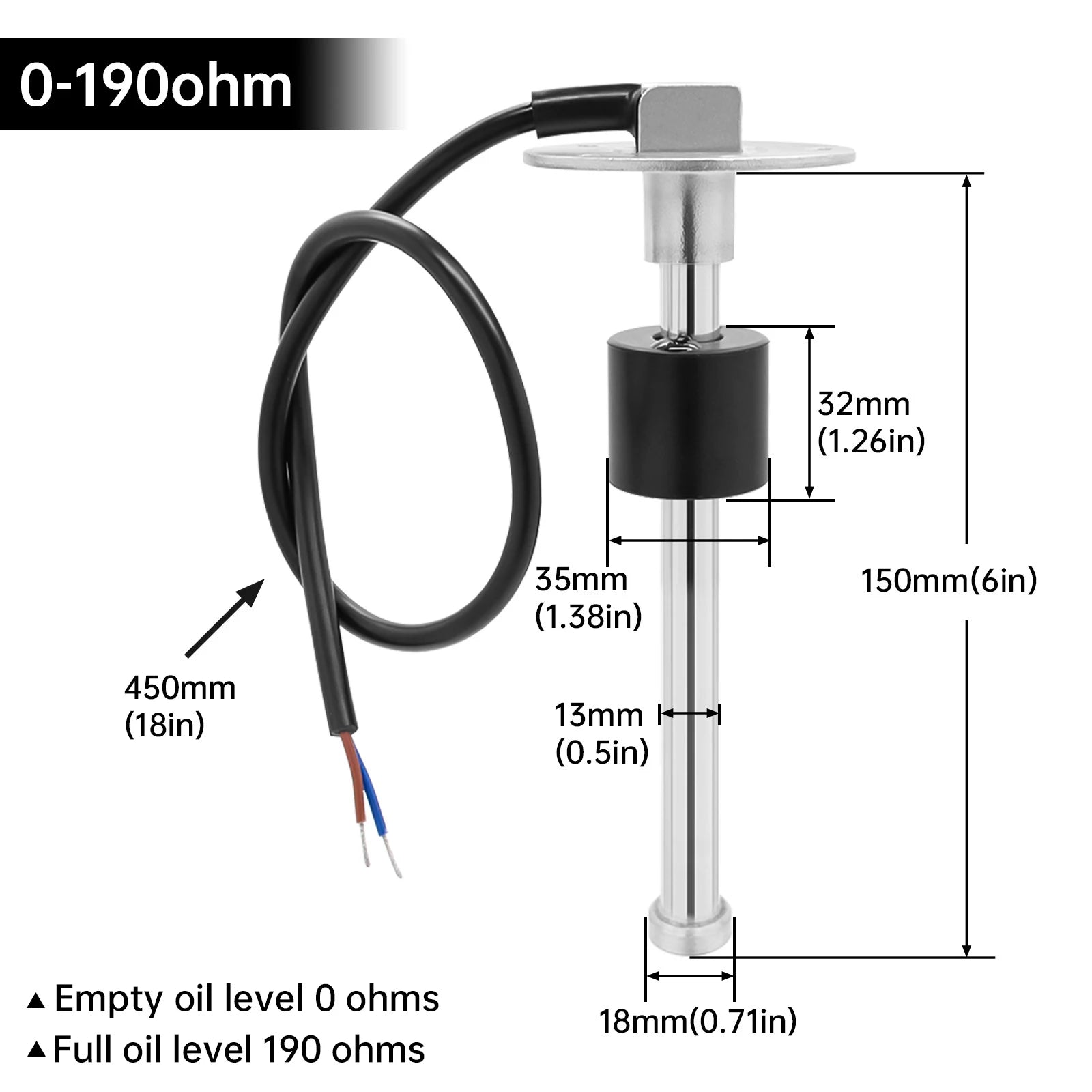

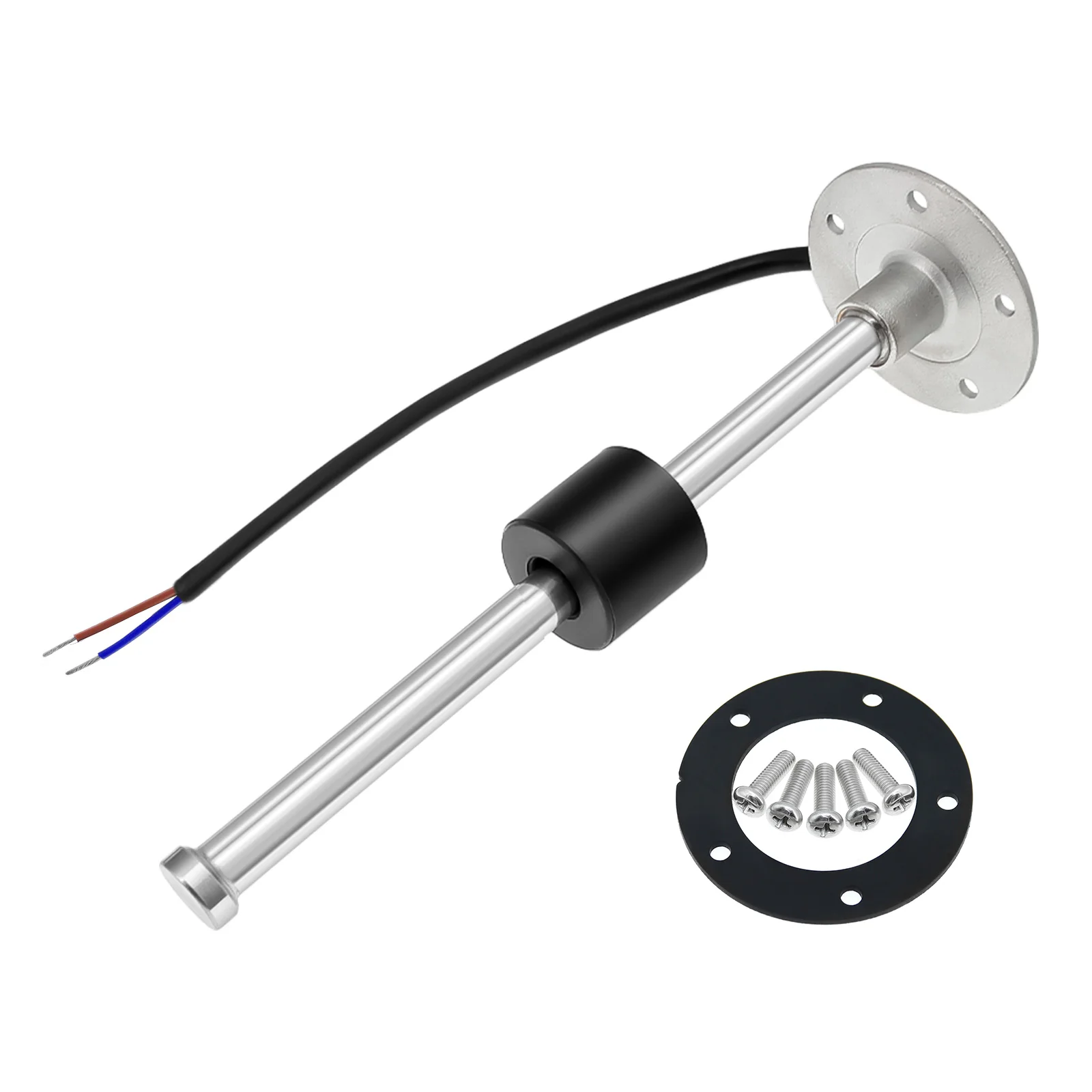

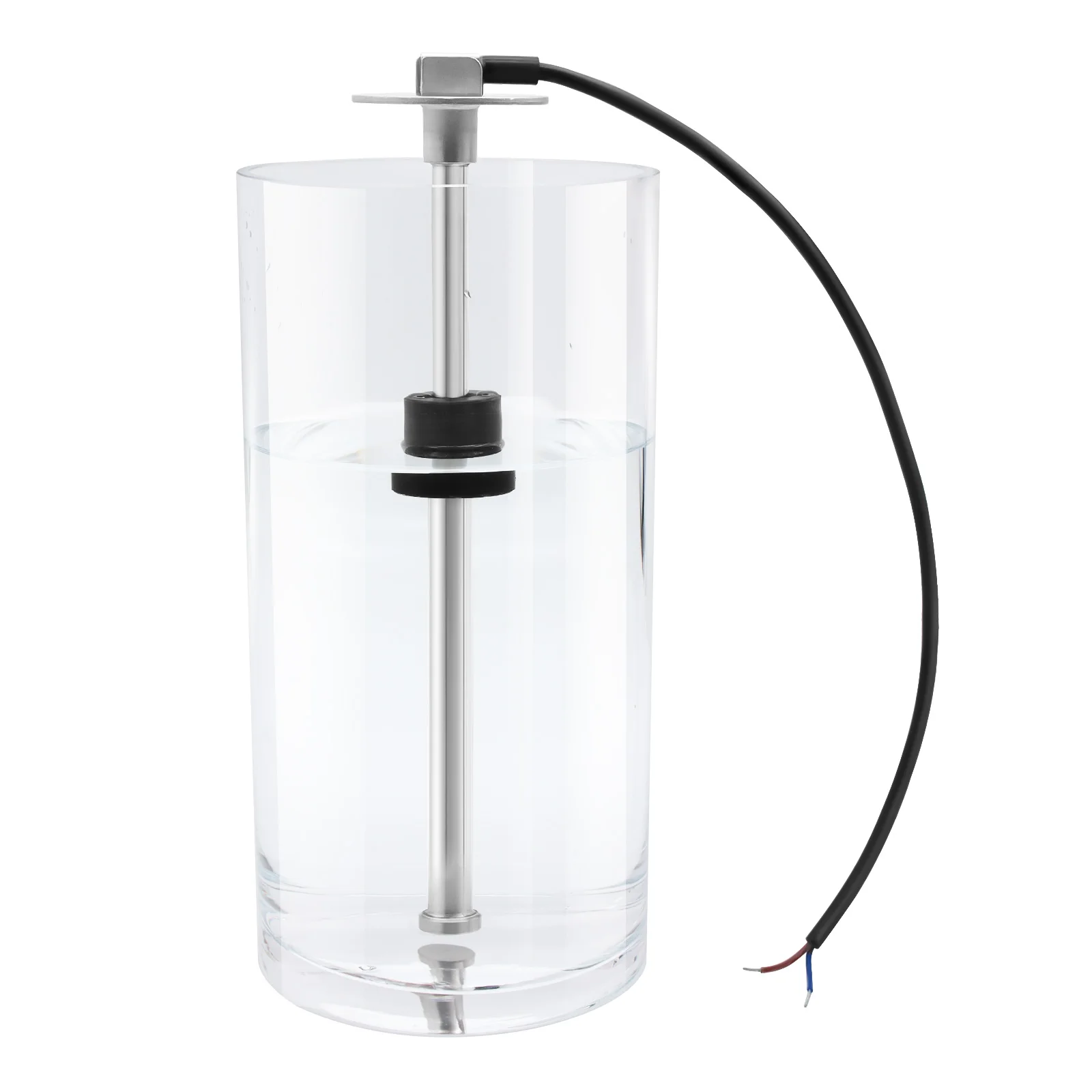

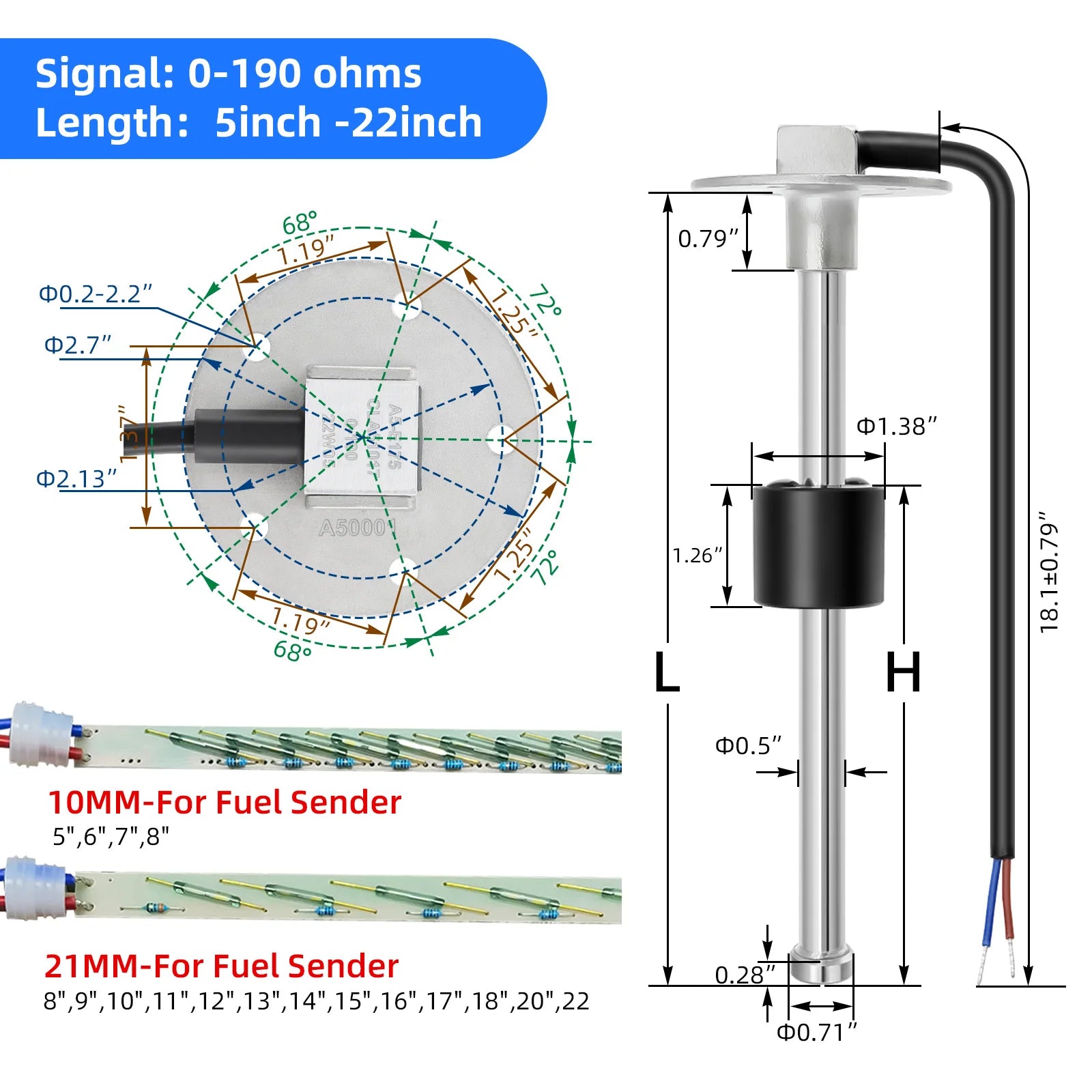

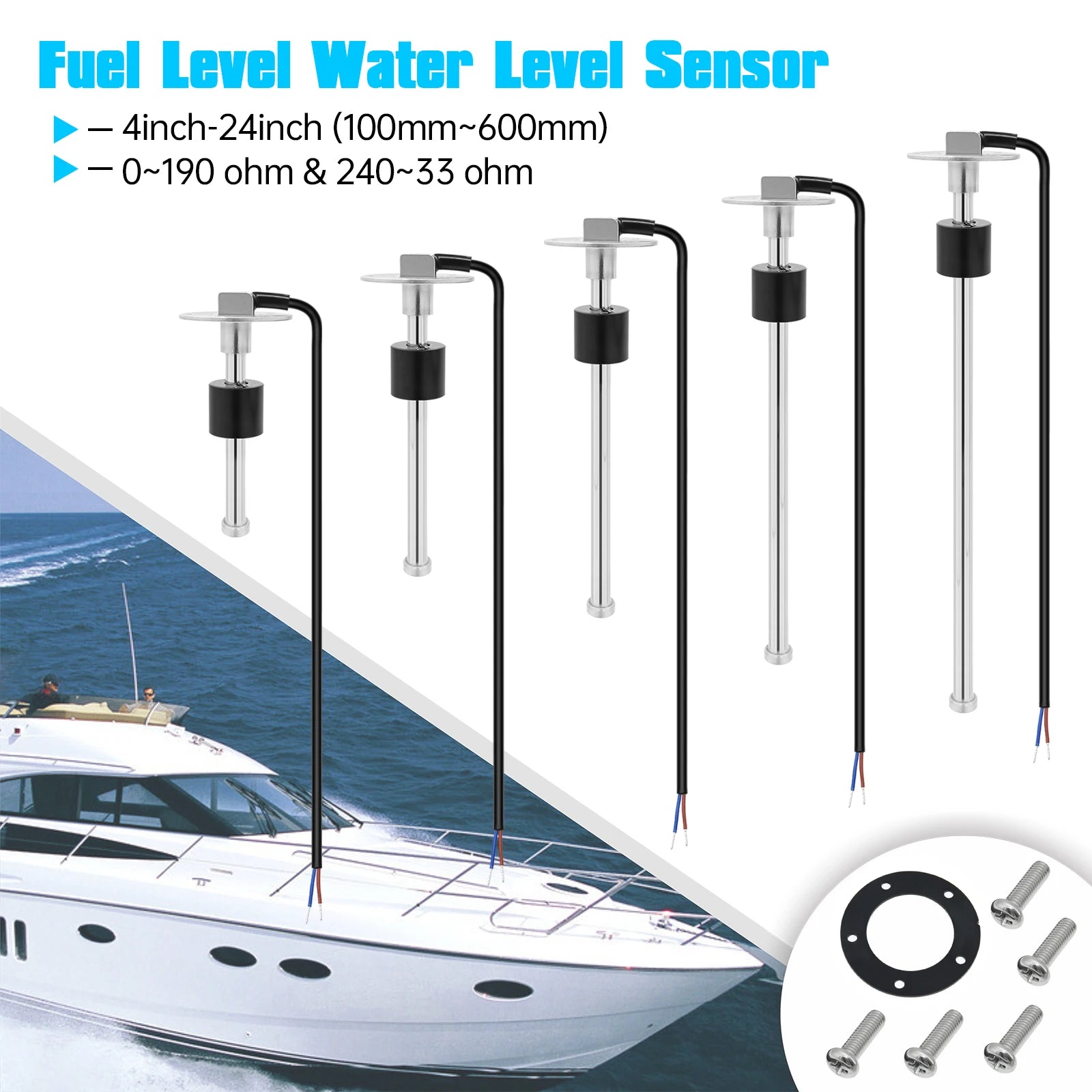

Water Level Sensor:
- Resolution range: 21 mm
- Signal: 0-190ohm(can customized)
- Working volt:9-32VDC
- Operating current: ≤60mA
- Operating temperature: -30~+75℃
- Storage temperature: -40~+85℃
- Gauge Diameter: 52mm / 2inch
- Sensor Height: Approx. 350mm / 13.8 inch

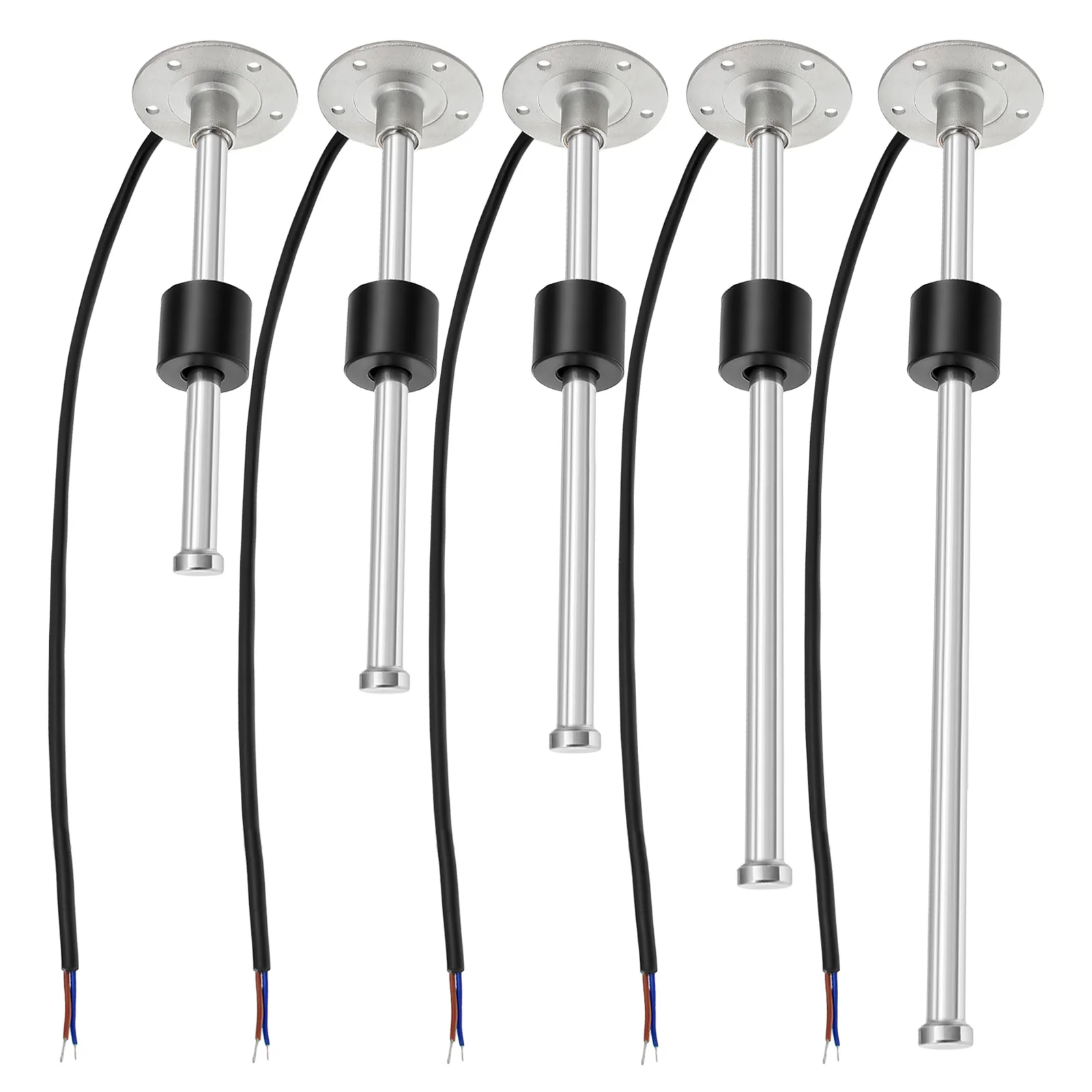

- Sensor Length: 100mm-600mm(can customized)
Package:1 X Water Level Sensor+Manual,not included gauge

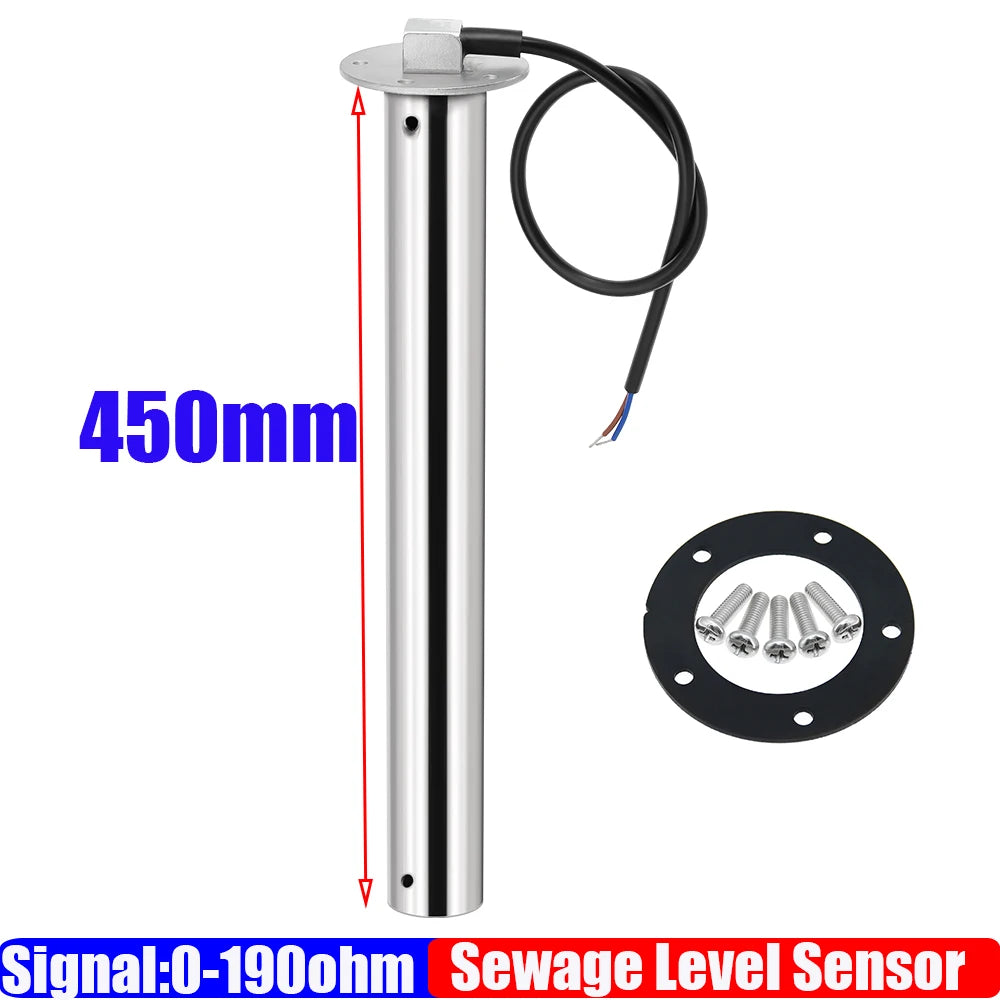

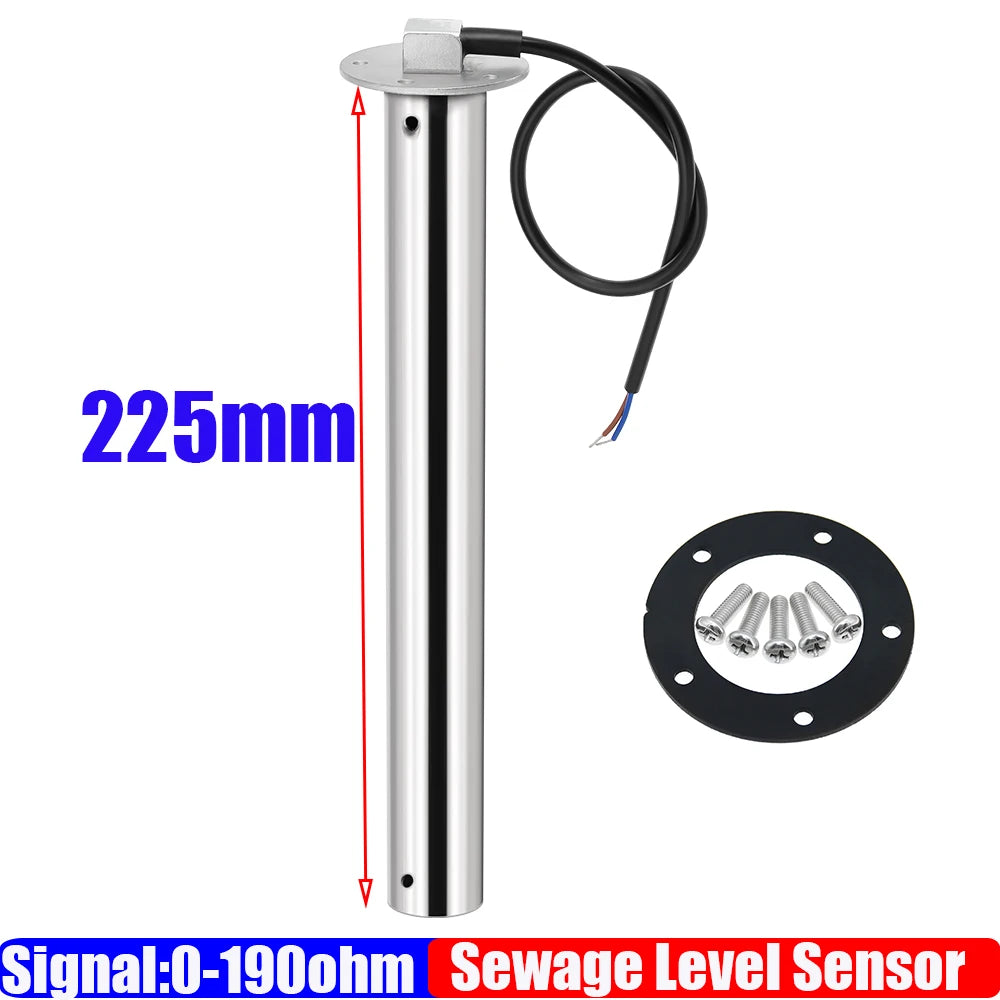

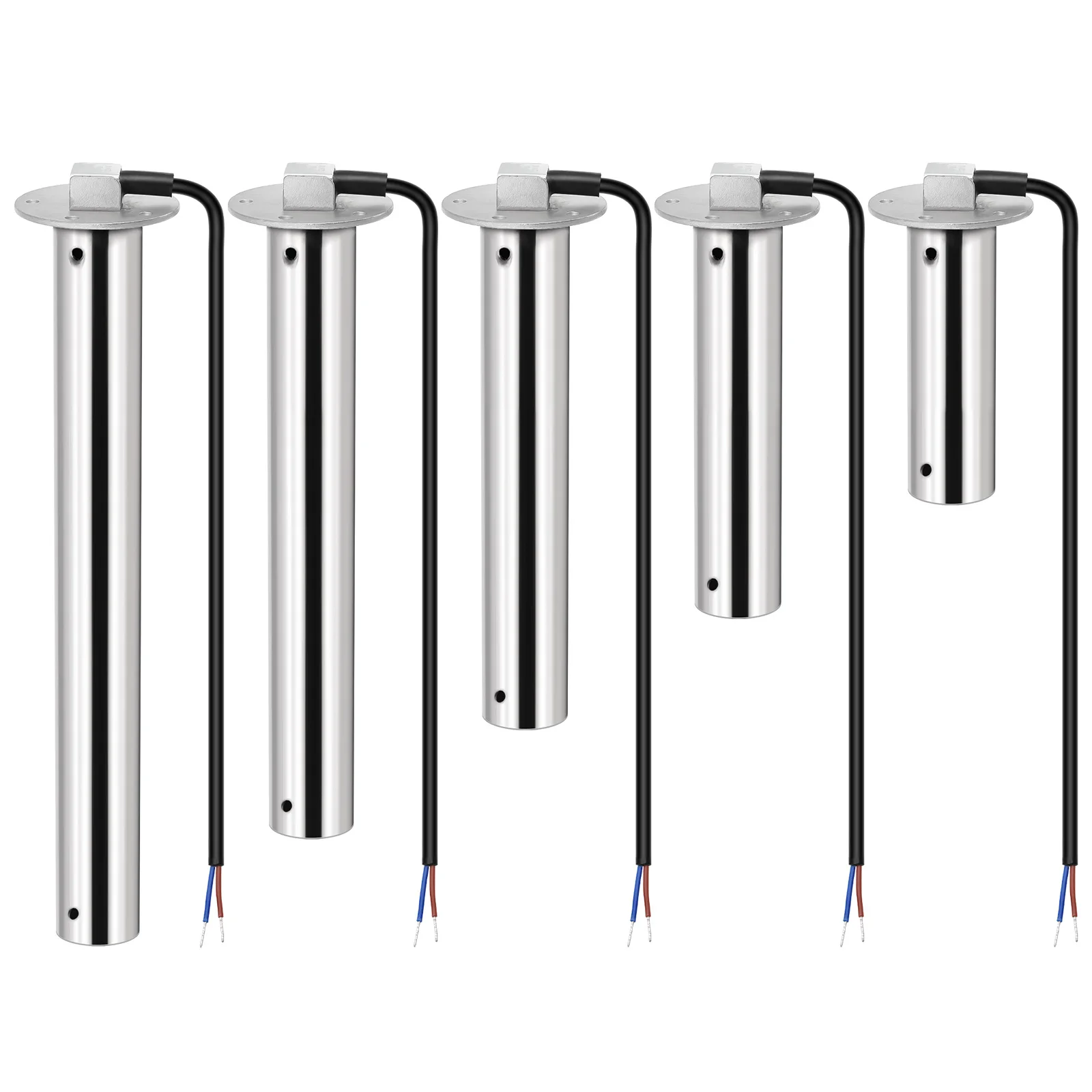

Sewage Level Sensor:
- Resolution range: 21 mm
- Signal: 0-190ohm(can customized)
- Working volt:9-32VDC
- Operating current: ≤60mA
- Operating temperature: -30~+75℃
- Storage temperature: -40~+85℃
- Sensor Height: Approx. 350mm / 13.8 inch
- Sensor Length: 100mm-600mm(can customized)
Package:1 X sewage Level Sensor+Manual,not included gauge
