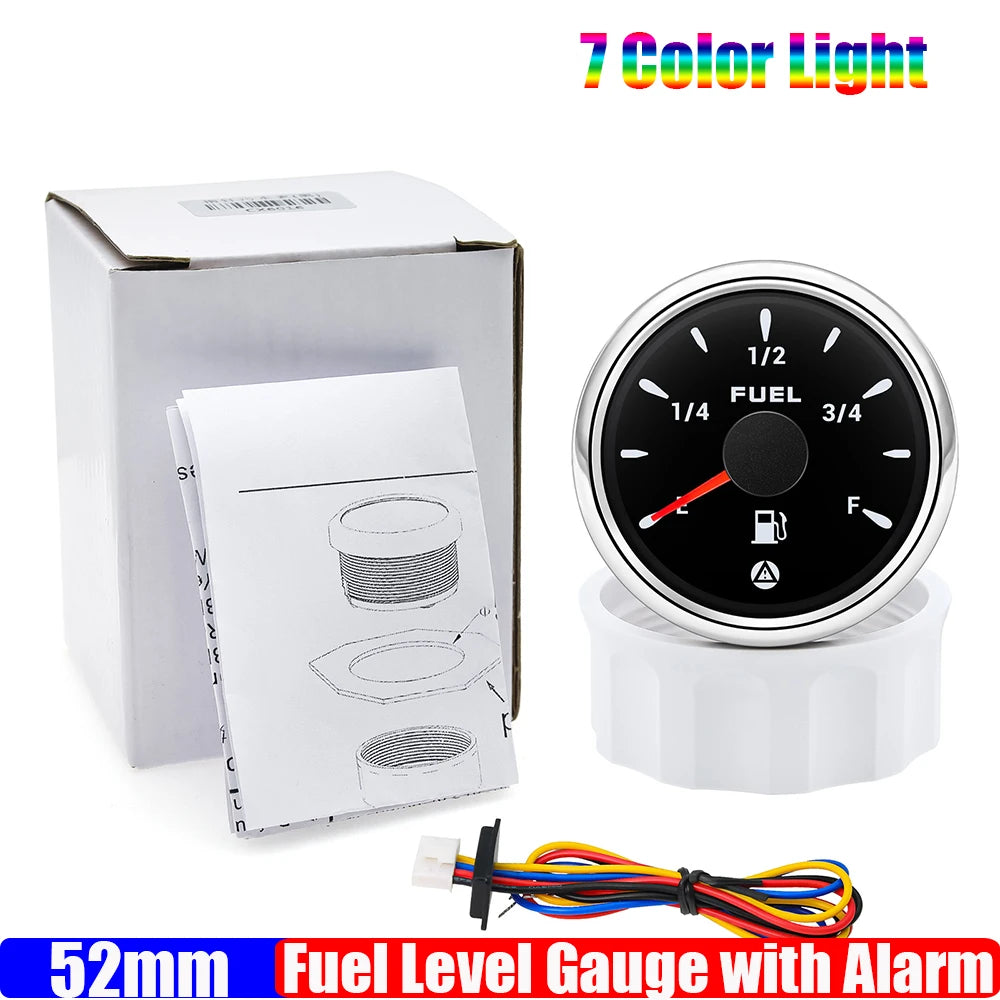

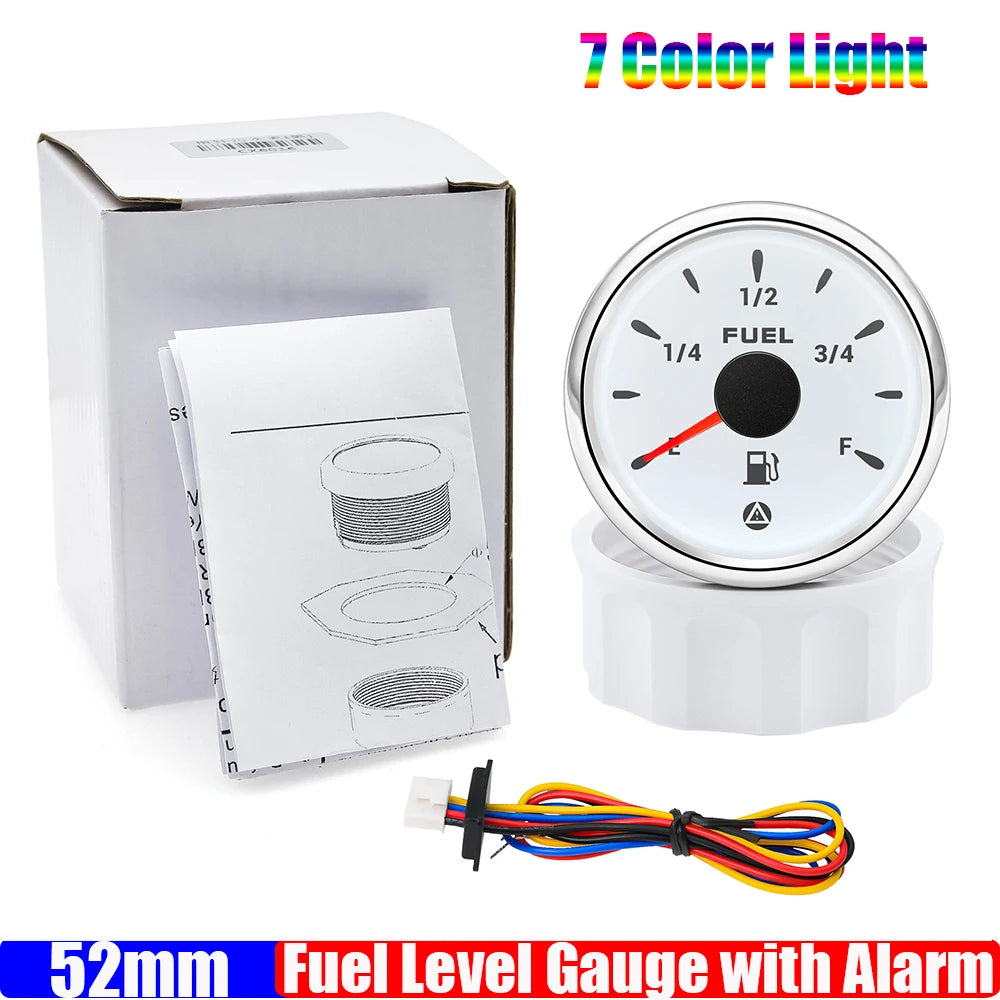

2"52mm Fuel Level Gauge with Flashing Alarm 0-190ohm 240-33ohm 10-180ohm 0-90ohm Oil Tank Meter 7 Color Backlight for Car Boat
WS
$102.44
Sale price
$102.44
Regular price
$0.00
Skip to product information
2"52mm Fuel Level Gauge with Flashing Alarm 0-190ohm 240-33ohm 10-180ohm 0-90ohm Oil Tank Meter 7 Color Backlight for Car Boat
$102.44
Sale price
$102.44
Regular price
$0.00
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: ZMFJH
Country/Region of Manufacture: China
High-concerned chemical: None

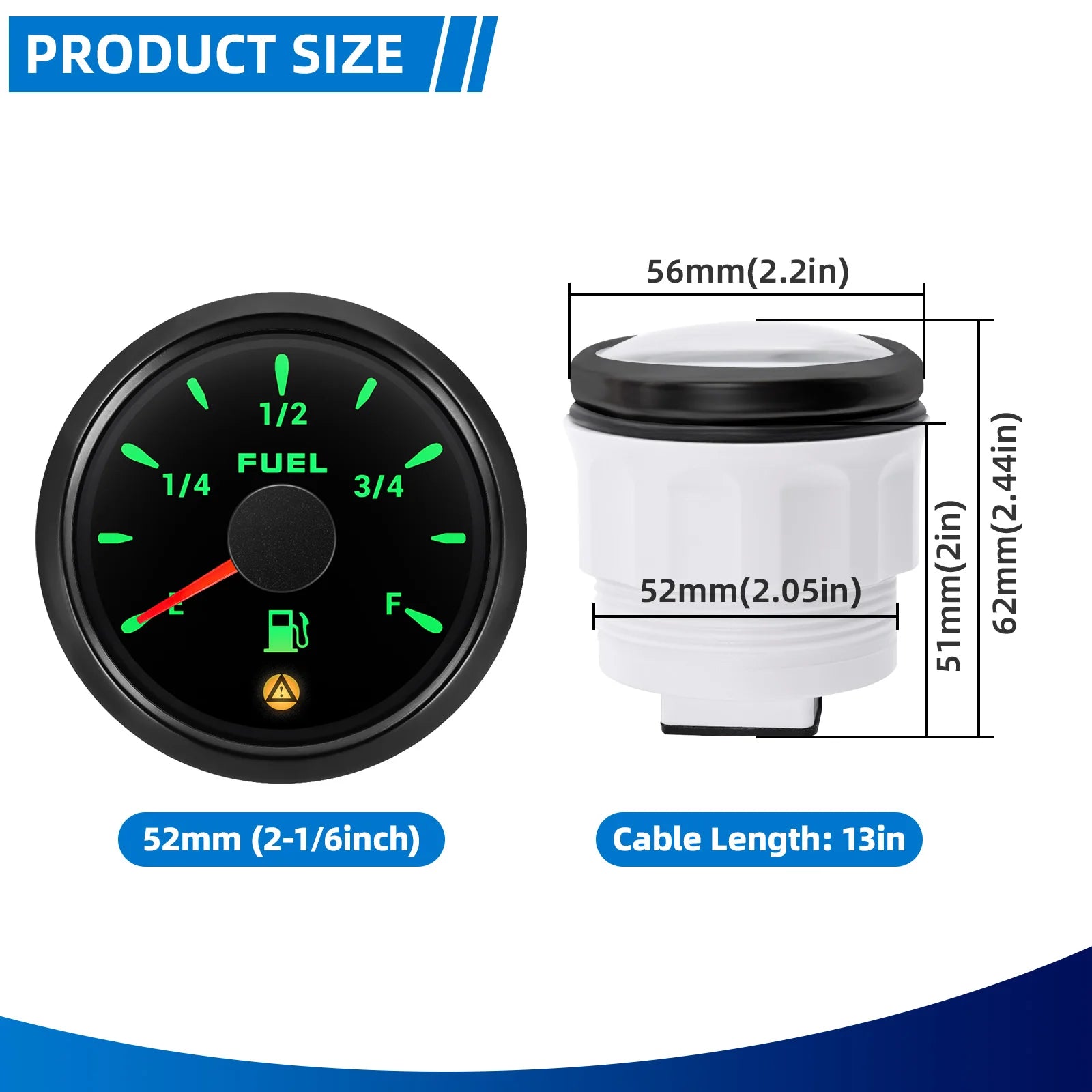

Item Height: 52mm
Item Length: 52mm
Item Weight: 120g
Item Width: 52mm
Material: Plastic
OEM NO.: Gauge
Origin: Mainland China
Other Part Number: fuel Level Gauge
Placement on Vehicle: front
Special Features: Alarm
Technical parameters:
Operatingvoltage: 9-32VDC
Operating current: <50mA
Operating temperature: -30- 80C
Storage temperature: -40- 85C

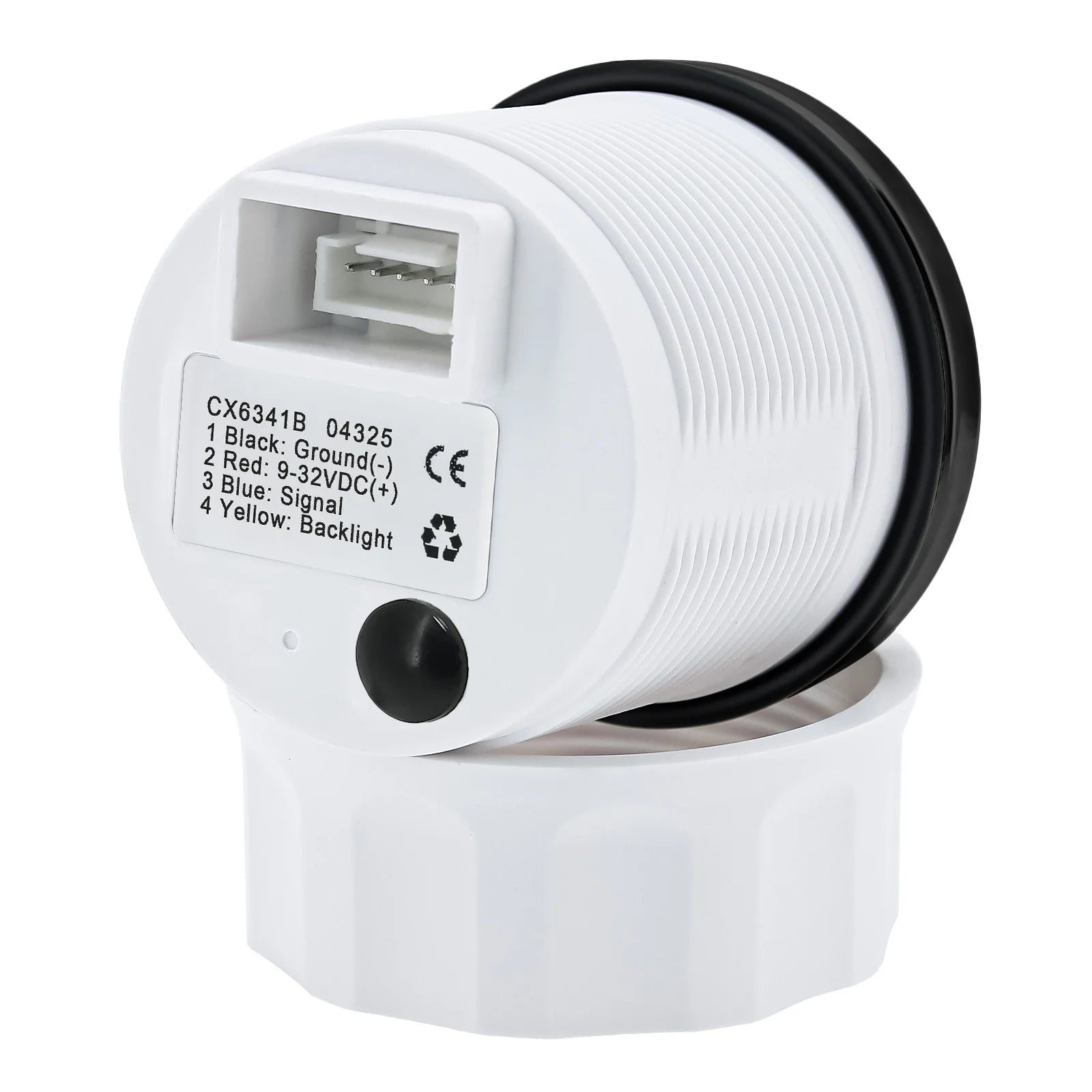

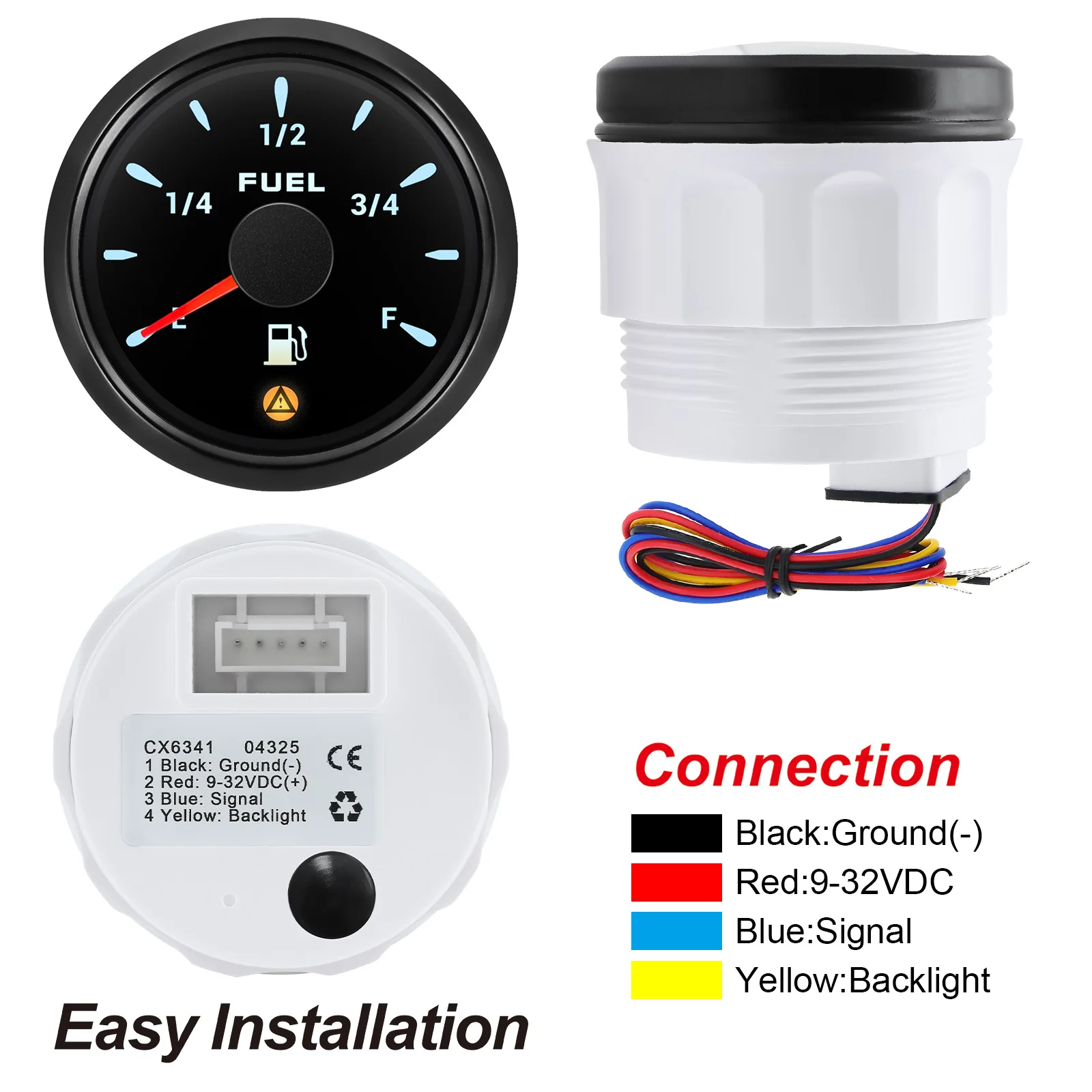

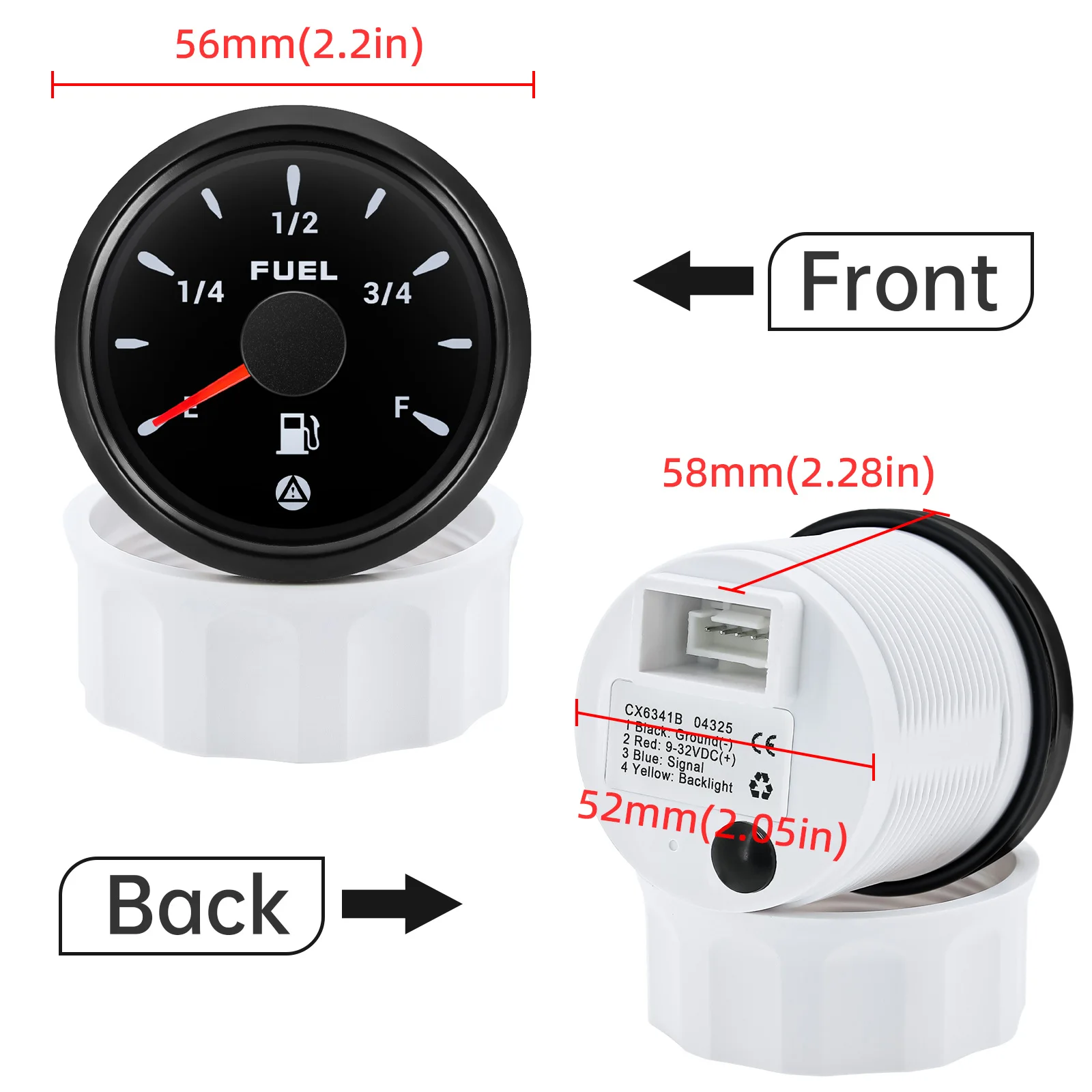

Connection
1 Black : Ground(-)
2 Red: 9-32VDC(+)
3 Blue: Signal
4 Yellow : Backlight
Feature:

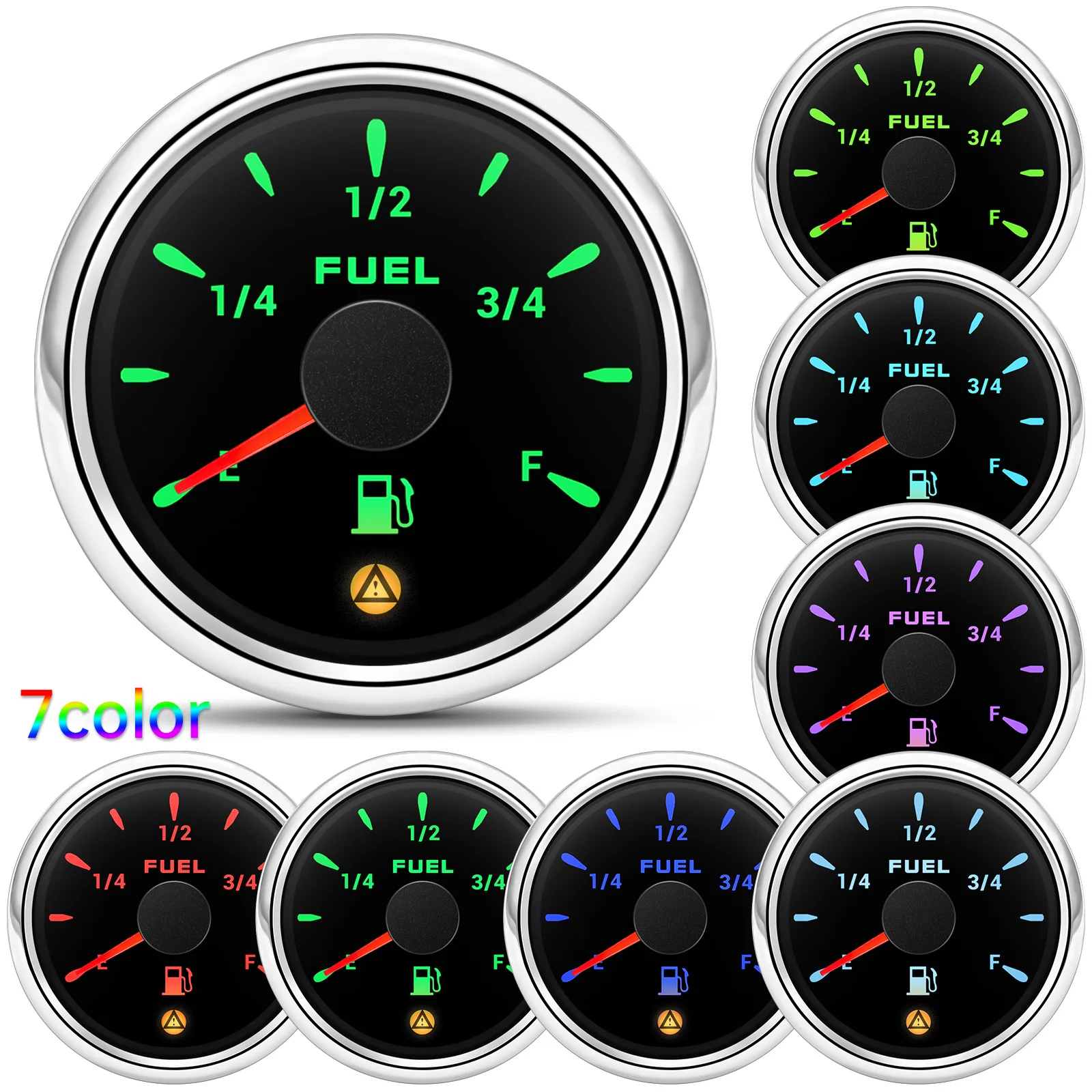

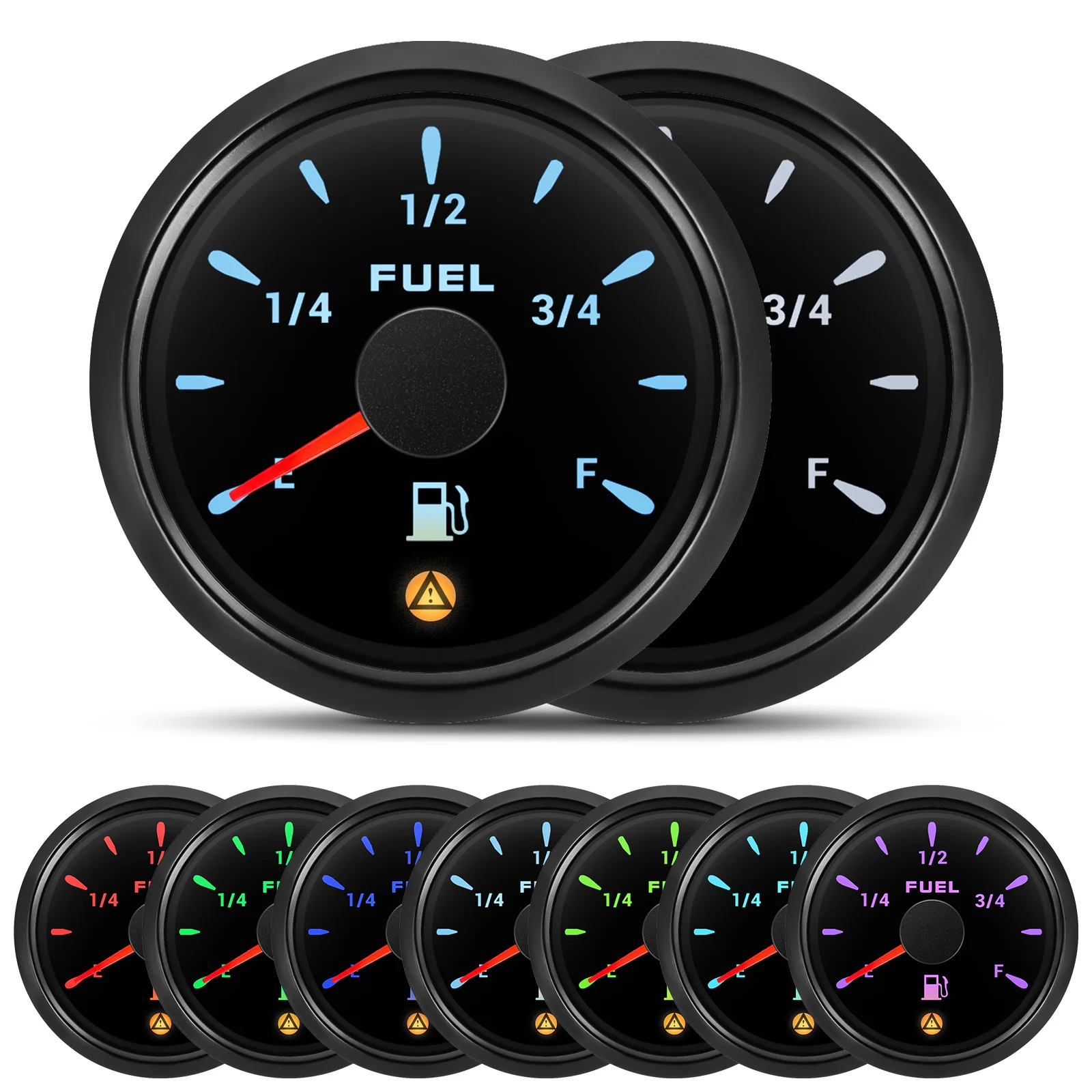

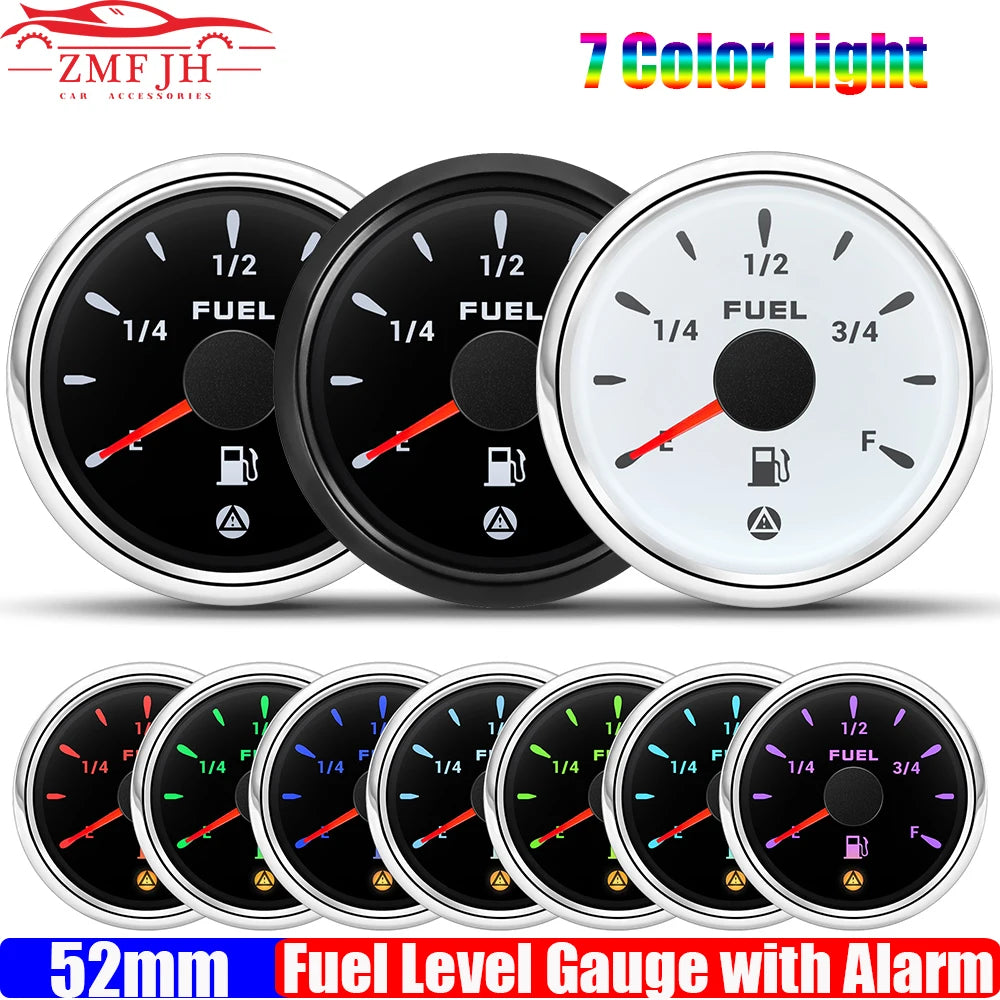

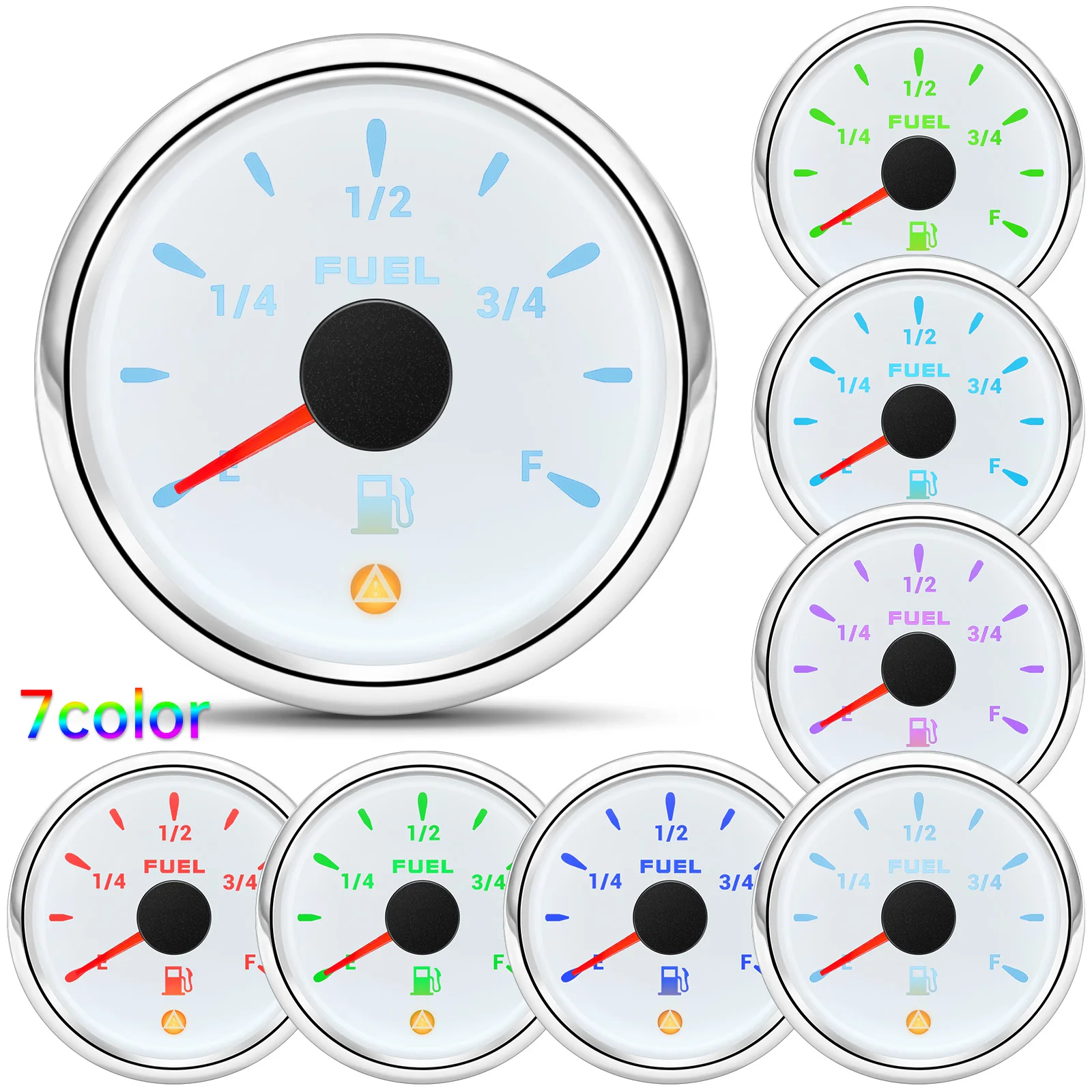

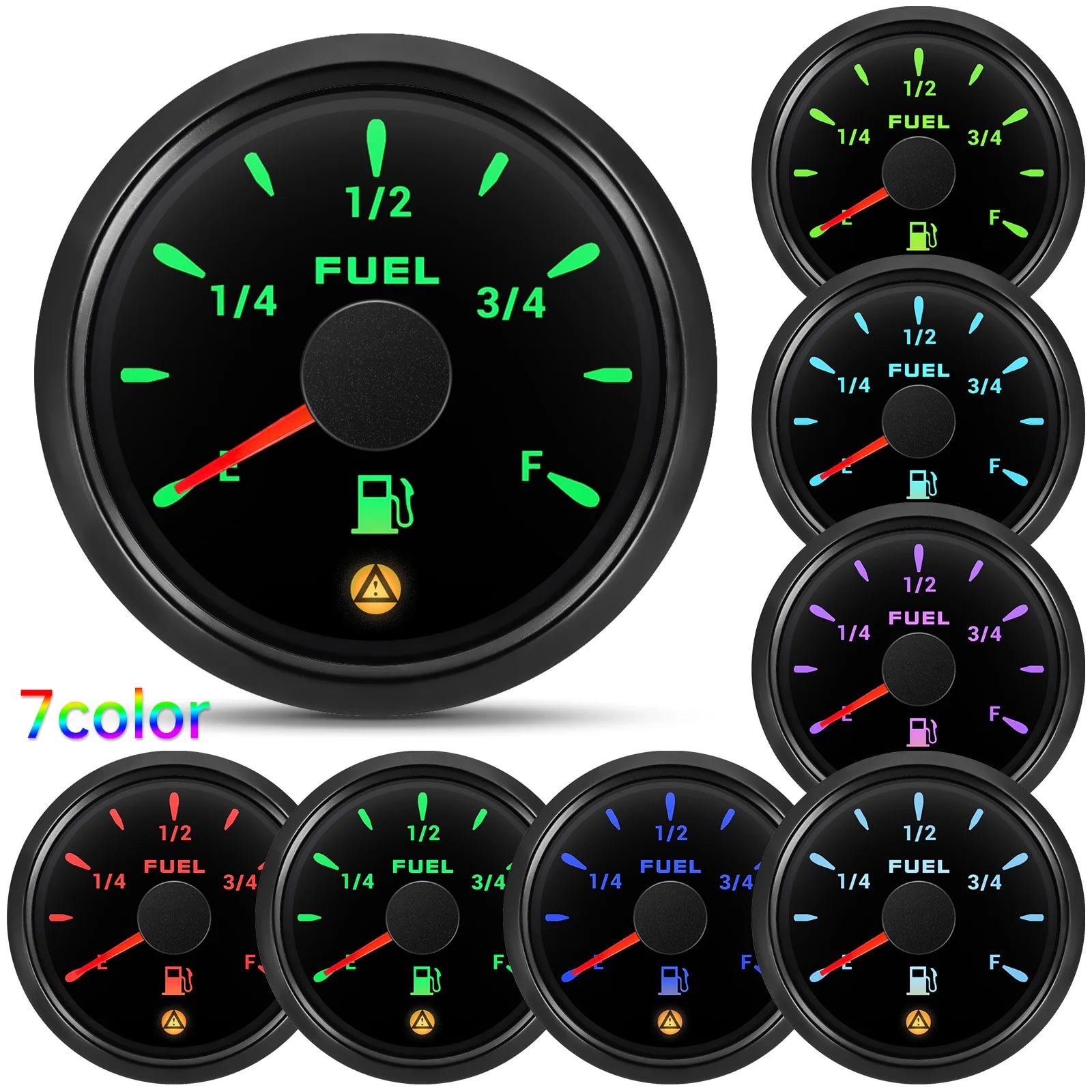

- 7 Color Backlight
- work on DC 12V24V
- fit for diesel, gasoline Car boat yacht etc
- signal: 0-190 ohm,240-33ohm,10-180ohm,0-90ohm,240-30ohm

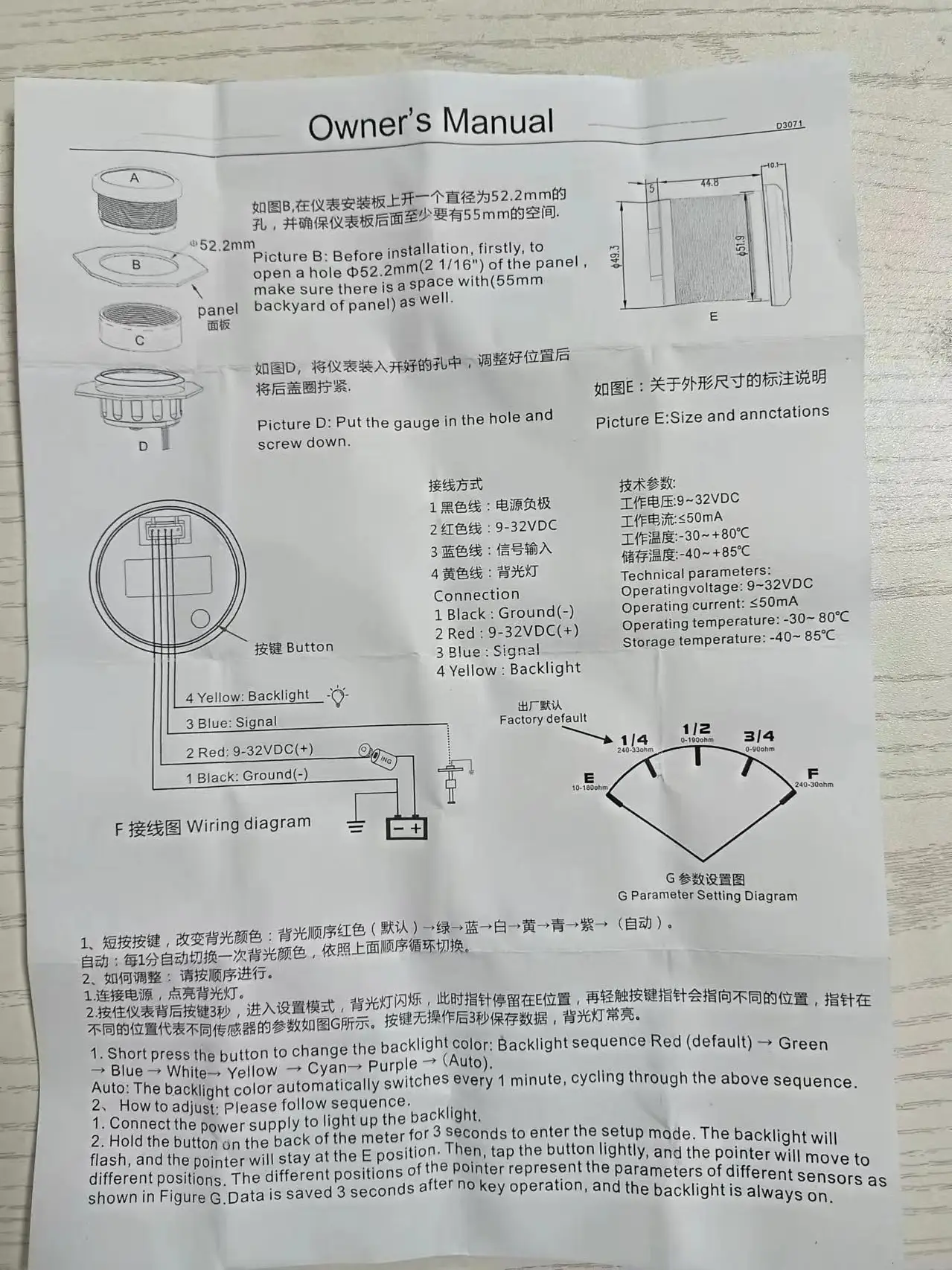

setting way :

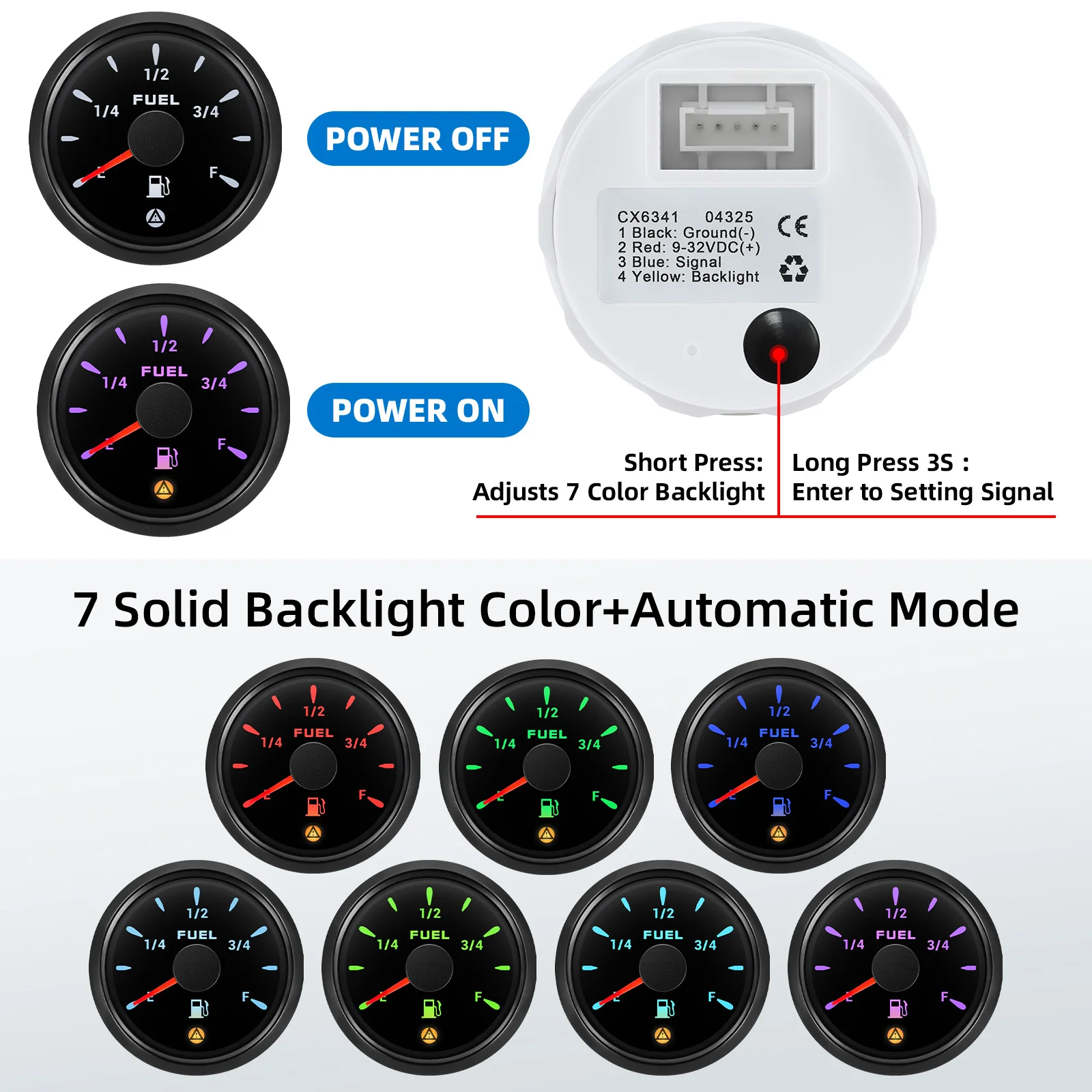

1. Short press the button to change
the backight color Backlight sequence Red(default)→Green→Blue→White→Yellow→Cyan→Purple→(Auto).
Auto: The backlight color switch every 1 minute, cycling through the above sequence.

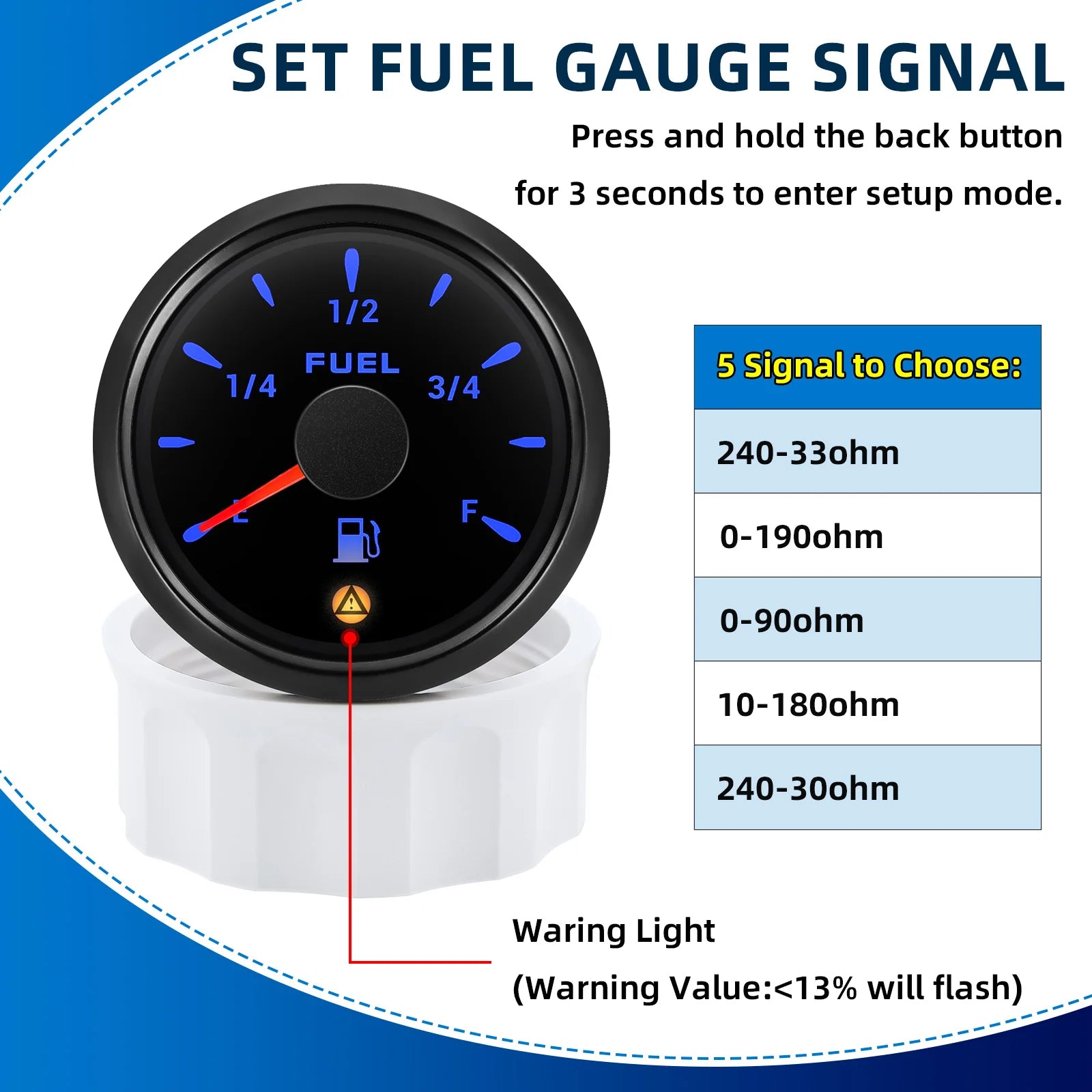

2. How to adjust Please follow sequence，
1. connect to the power supply to light up the backlight
2. Hold the button on the back of the meter for 3 seconds to enter the setup mode, the backlight will flash, and the pointer will stay at the E position, Then , tap the button lightly, and the pointer will move to the different positions , the different positions of the pointer represent the parameters of different sensors as shown in figure G , Data is saved 3 seconds after no key operation , and the backlight is always on.

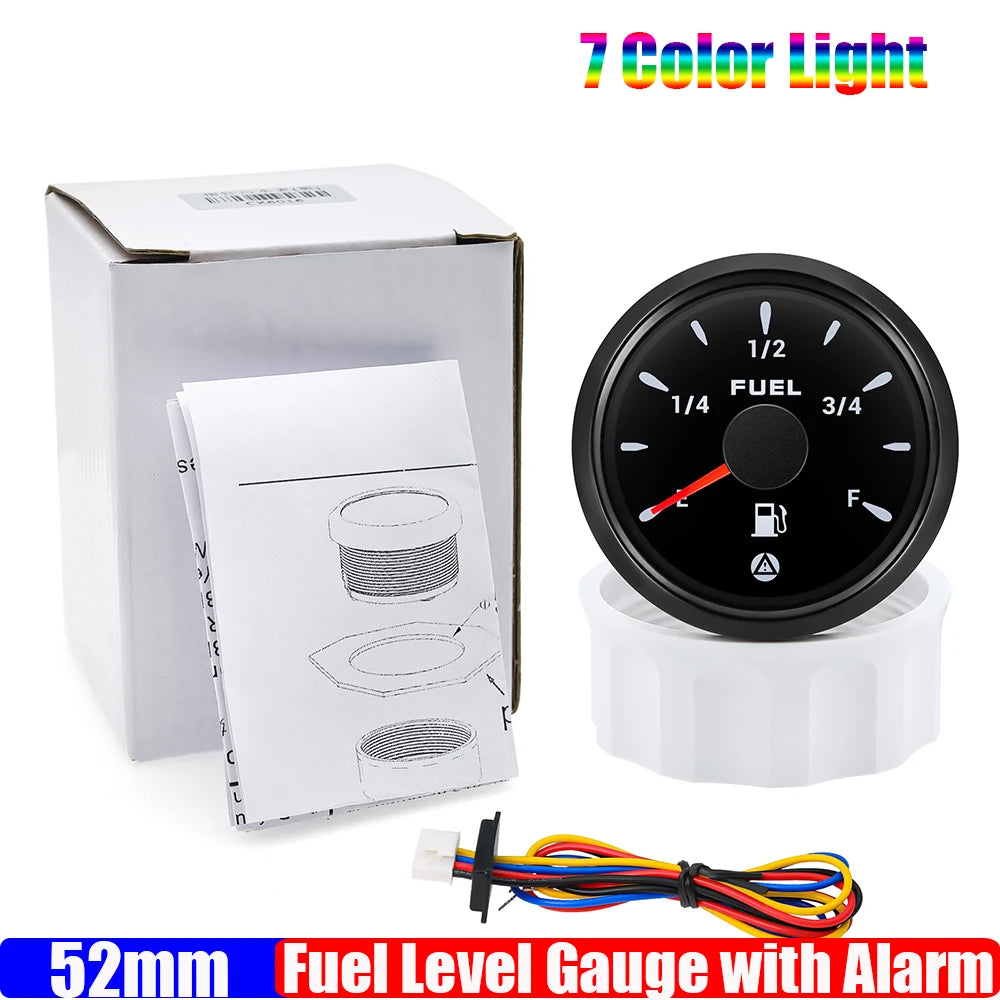

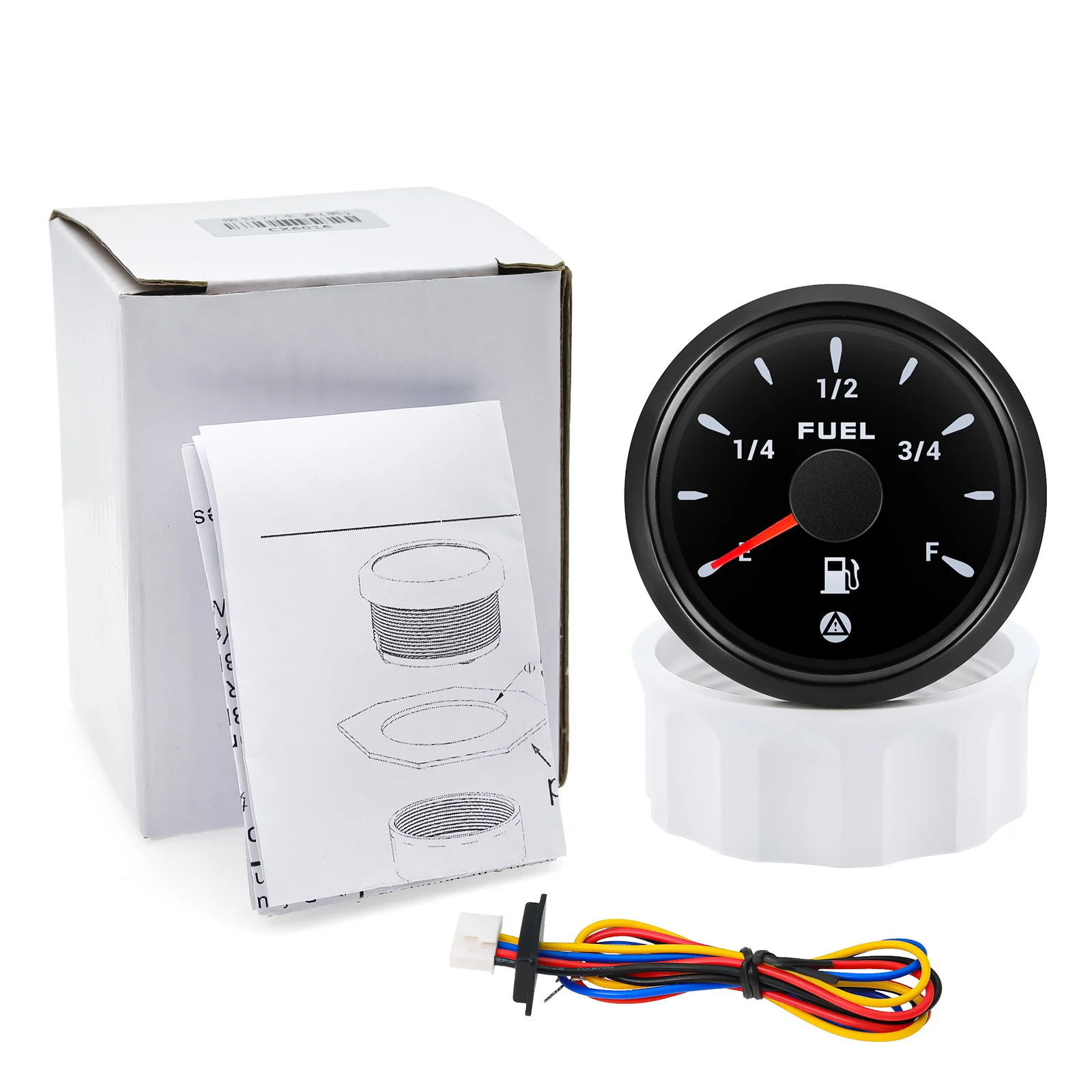

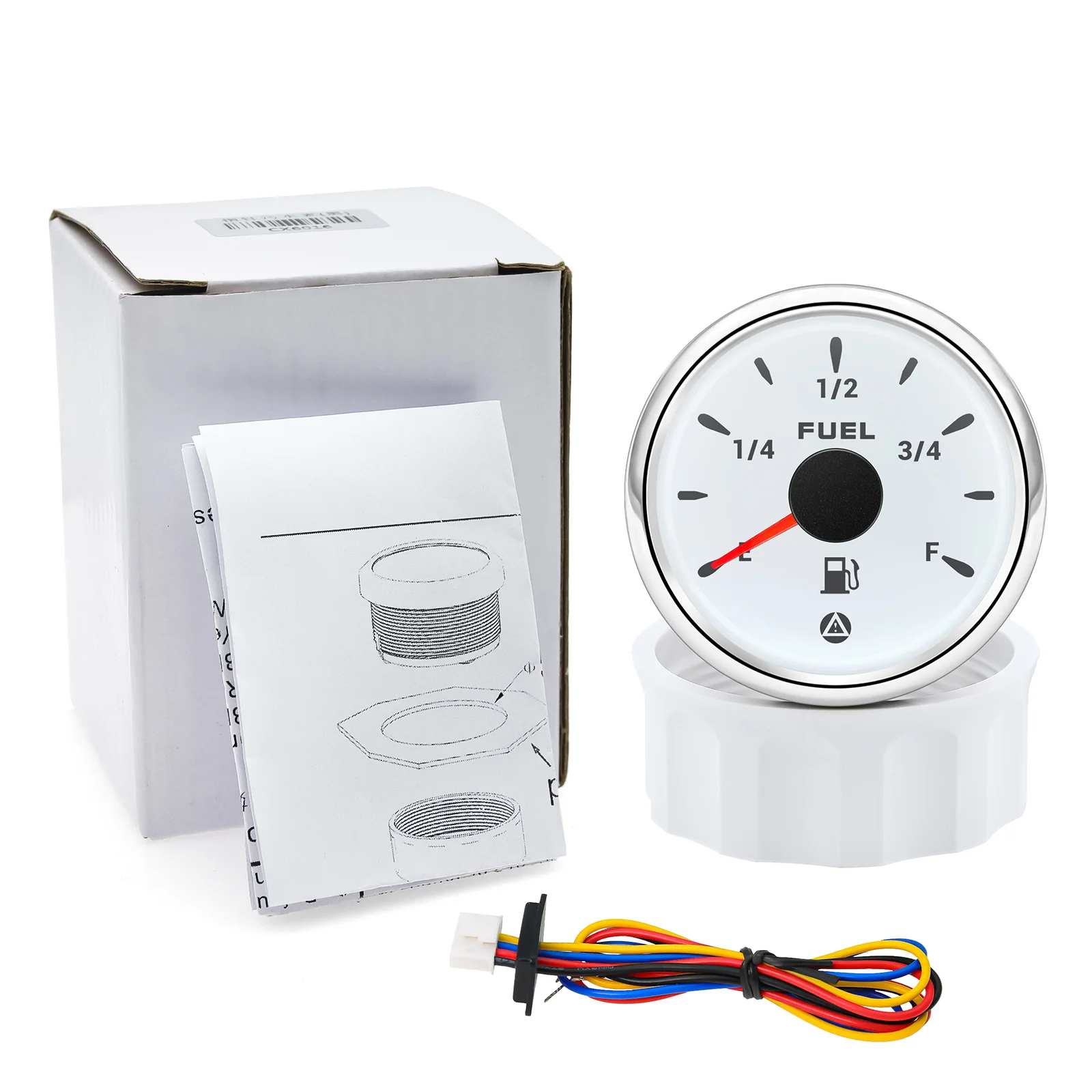

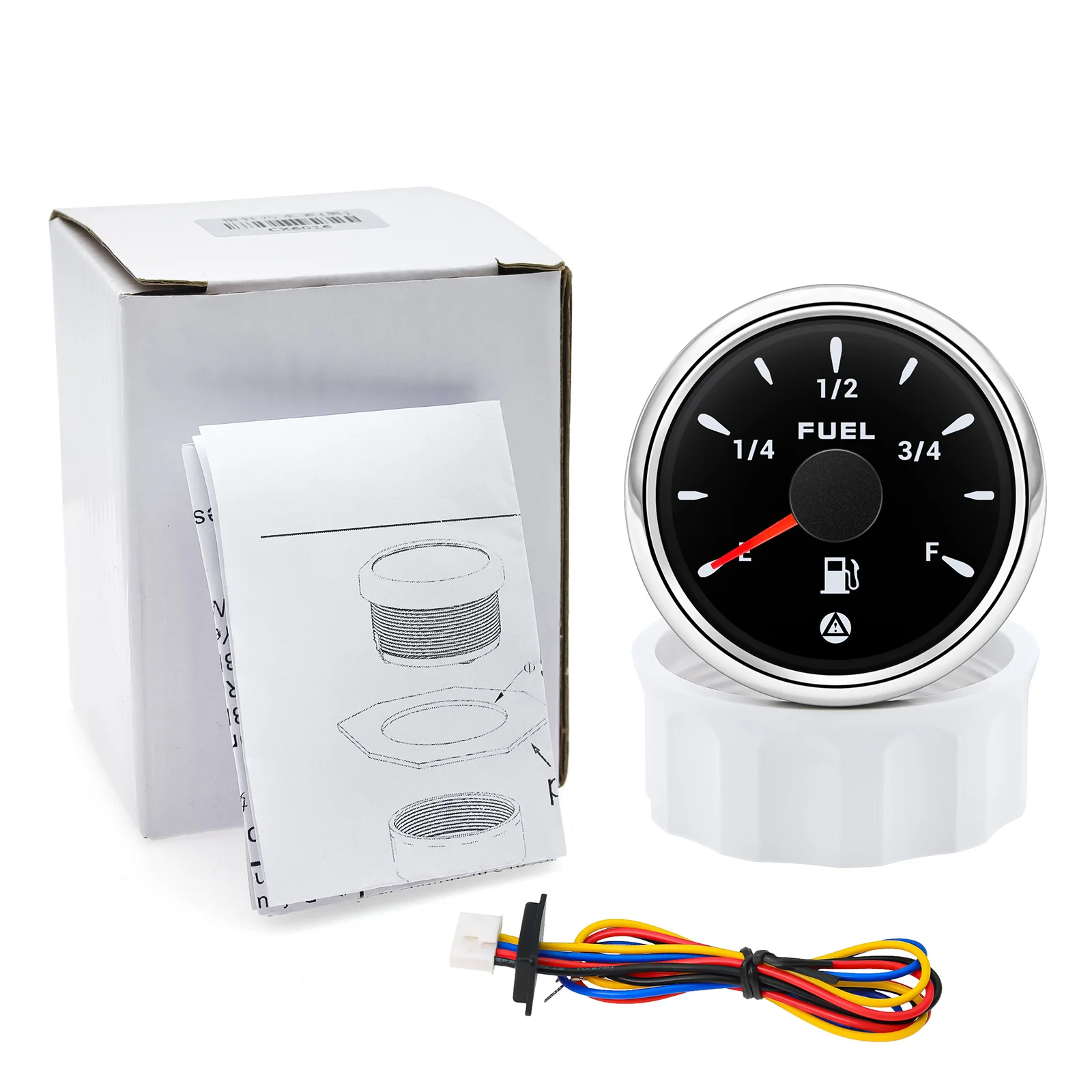

Package: 1PCS Gauge
