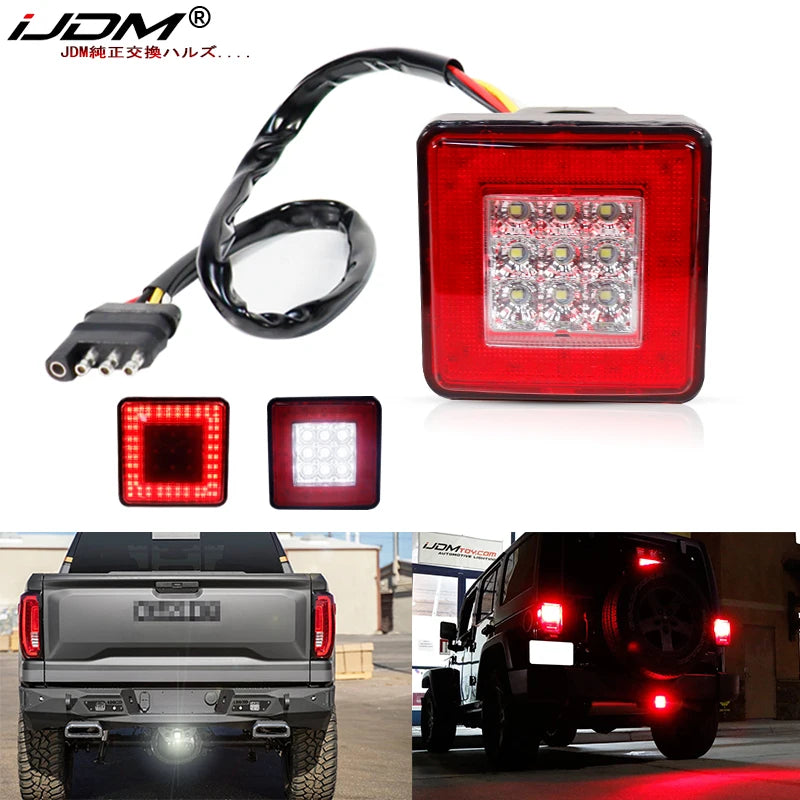

iJDM 2'' Hitch Receiver Brake Lamp,Tail Lamp,Reverse Light for Truck SUV Trailer Equipped Class 3/4/5 2-Inch Towing Adapter Hole

Key Features

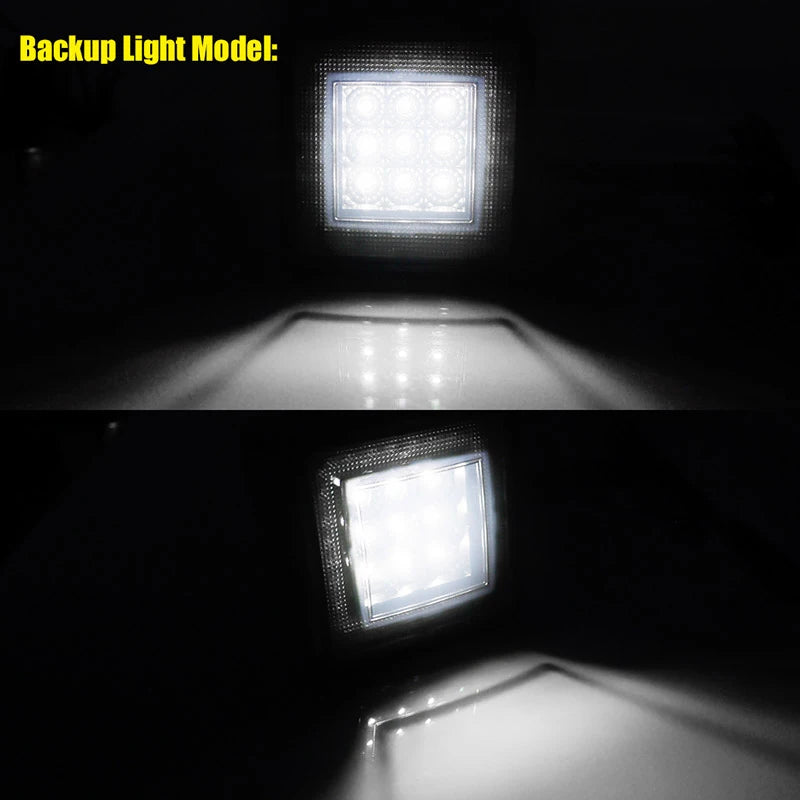

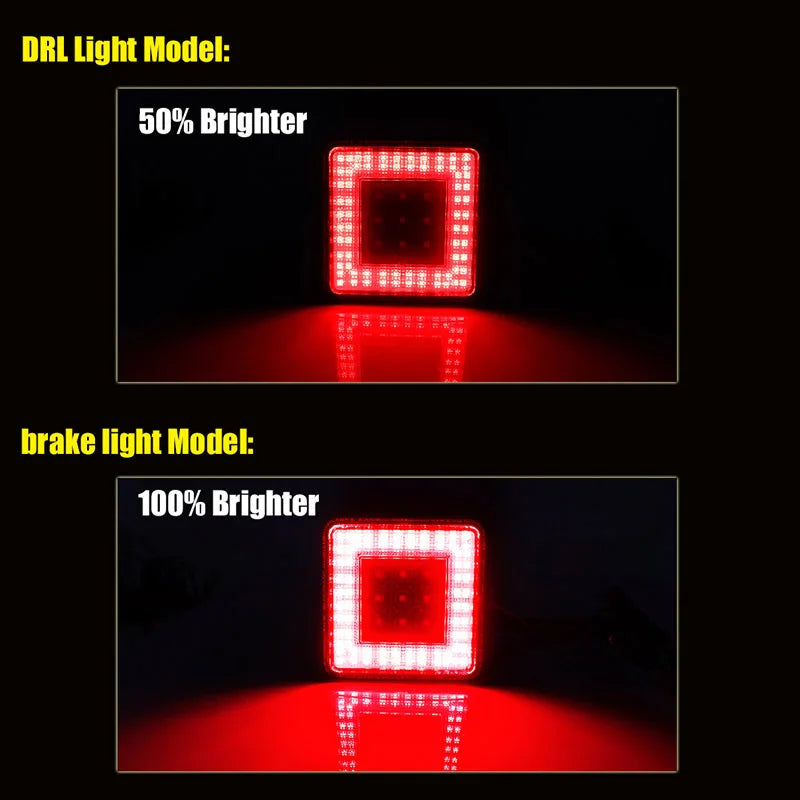

• Bright LED Output — This hitch-mounted lamp uses 89 LEDs to light up the rear of your vehicle, with 80 LEDs for driving and brake functions and 9 for reverse.

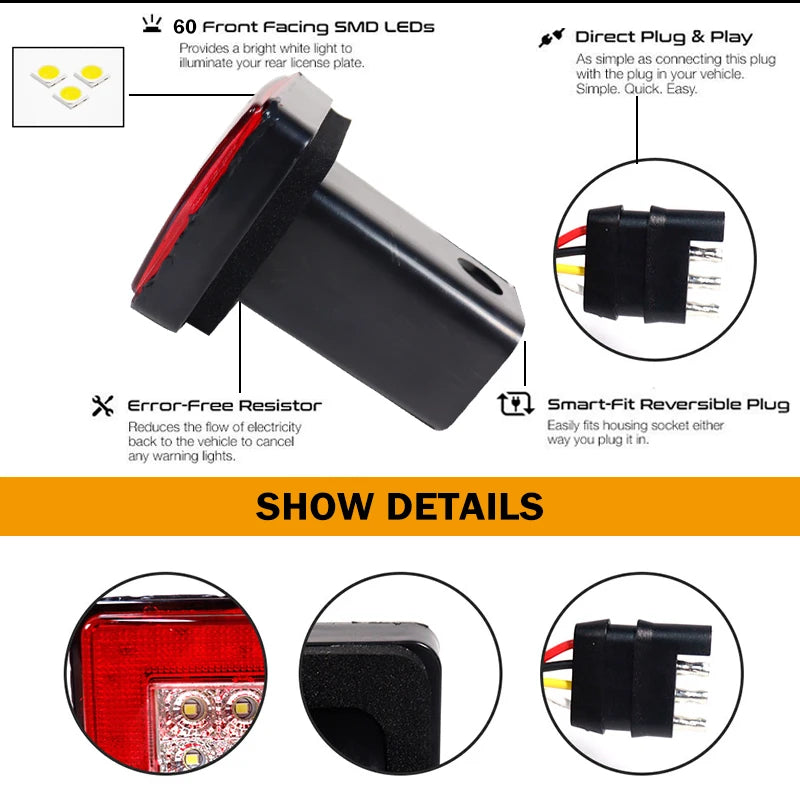

• Easy 4-Way Hookup — The standard 4-way flat plug connects to your vehicle's trailer wiring for running, brake, and reverse signals.
• Fits 2-Inch Receivers — Designed to fit standard 2" x 2" hitch receivers on trucks, SUVs, and Jeeps.
• Low Power Draw — LED technology draws only 0. 224 amperes, so it adds visibility without straining your electrical system.

Product Specifications

• Brand Name: iJDM
• Color: Red Lens / Smoked
• Dimensions: 3-1/4 x 3-1/4 inches
• Weight: 150 g (5.3 oz)
• Power: 12 V
• Wattage: 3W
• Lumens: 200Lm
• Approvals: DOT SAE approved

What It Is / How It Works

This is an LED brake light that mounts into a 2-inch hitch receiver. It combines driving, brake, and reverse functions in one unit, using 89 LEDs to improve rear visibility. The lamp fits standard 2" x 2" hitch openings and connects via a standard 4-way flat plug.

Who It's For / Use Cases

Hitch-mounted brake lights suit truck, SUV, and Jeep owners who want extra rear visibility when towing or when the hitch is empty. They are useful for drivers who frequently back up in low light, as the reverse lamp adds a bright white light. They also help protect the hitch opening from dirt and debris when not in use.

How to Use / Care

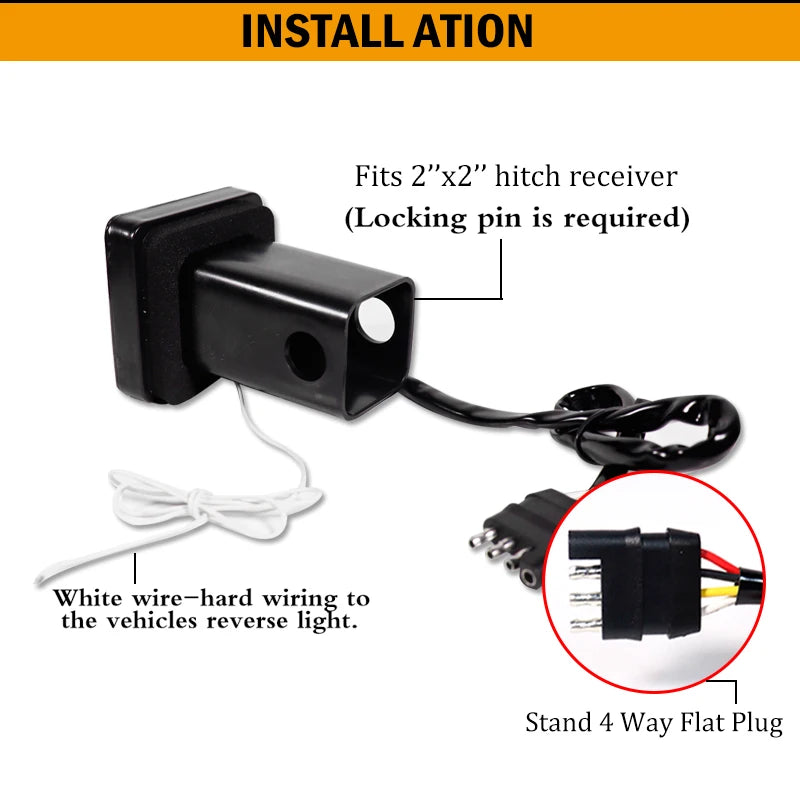

1. Align the lamp's mounting shaft with the receiver opening and slide it in until the face sits flush against the bumper.
2. Secure the lamp using a locking pin (sold separately) through the receiver's pin hole.
3. Connect the 4-way flat plug to your vehicle's trailer wiring socket, then hard-wire the white wire to the reverse light circuit.
4. Test all functions: running light, brake light, and reverse light.

How to Choose

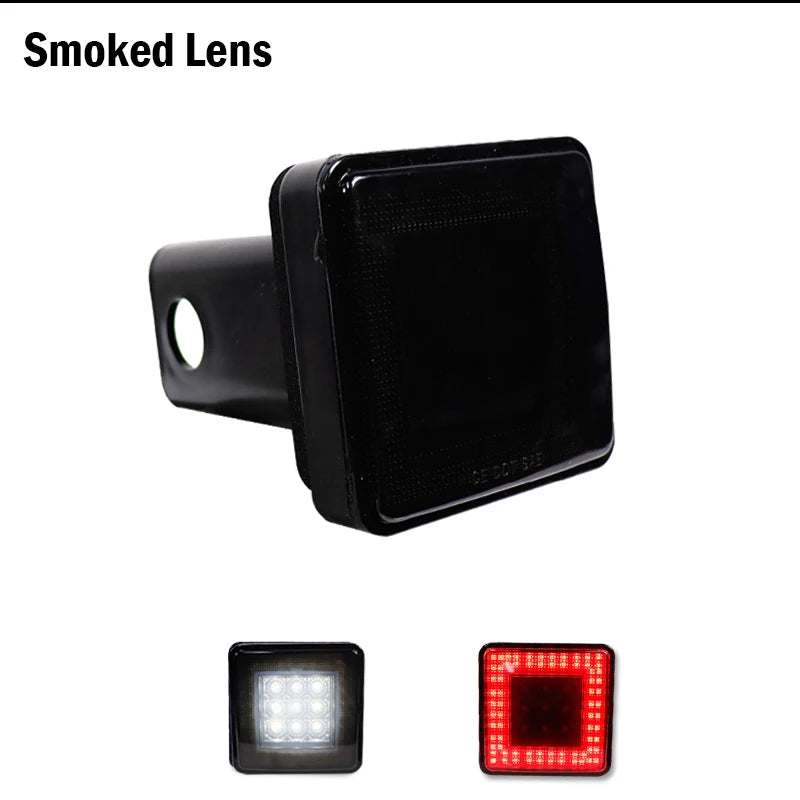

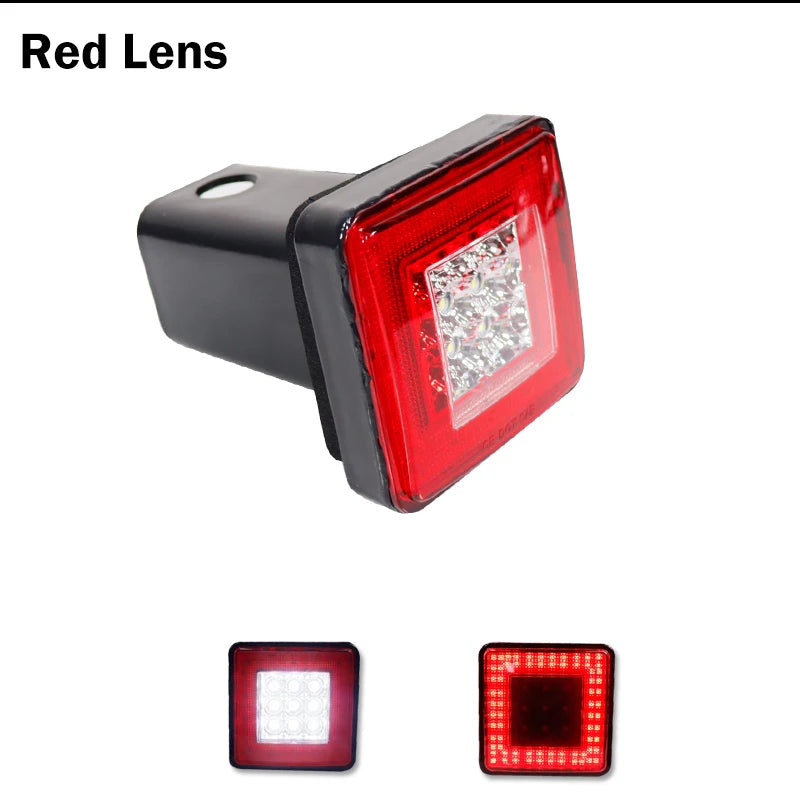

When choosing a hitch-mounted brake light, check the receiver size — this model fits 2" x 2" openings. Consider the lens color: red for a classic look or smoked for a darker appearance. Verify your vehicle's trailer wiring connector type; this unit uses a standard 4-way flat plug.

Frequently Asked Questions

Does this brake light fit all trucks and SUVs?
It fits any vehicle with a standard 2" x 2" hitch receiver, including many trucks, SUVs, and Jeeps. The lamp is universal for Class III, IV, and V receivers.

How is the reverse light wired?
The white wire must be hard-wired to your vehicle's reverse light circuit. The other functions connect through the standard 4-way flat plug.

Is the locking pin included?
No, the locking pin is not included and must be purchased separately. It is required to secure the lamp in the hitch receiver.

Will this light blink with turn signals?
It will not blink when turn signals are used alone, but it will blink if both brake lights and turn signals are active.
