Tach RPM Signal Adapter Tachometer Adapter For Car Boat Yacht Engine Diesel / Petrol Engine Tacho Meter Sensor For All Car Gauge
For diesel engines
$102.00
Sale price
$102.00
Regular price
$0.00
Skip to product information
Tach RPM Signal Adapter Tachometer Adapter For Car Boat Yacht Engine Diesel / Petrol Engine Tacho Meter Sensor For All Car Gauge
$102.00
Sale price
$102.00
Regular price
$0.00
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: RYSJM
Country/Region of Manufacture: Mainland China
High-concerned chemical: None
Manufacturer Part Number: tachometer car
Material: Plastic Shell
Number Of Cylinders: 4
OEM NO.: Car digital speedometer
Origin: Mainland China
Placement on Vehicle: speedometer car
Special Features: tachometer
GR01 Installation

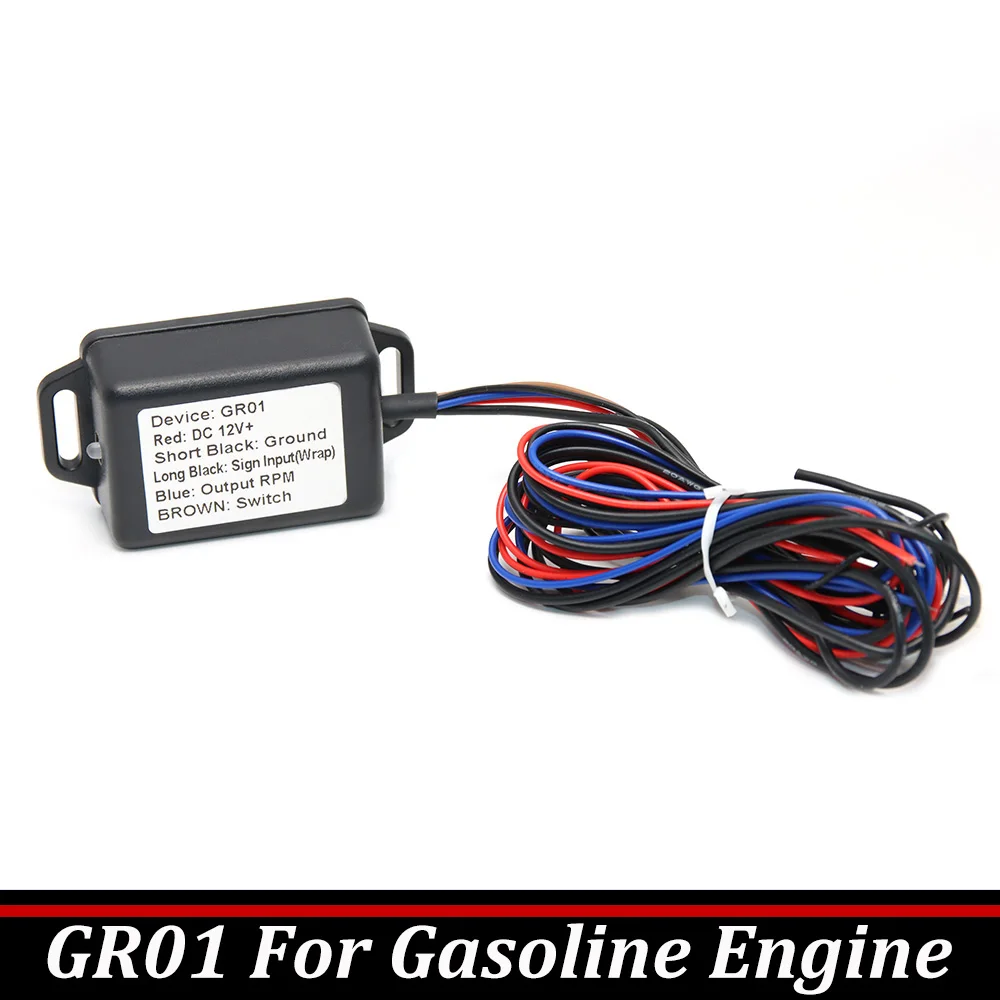

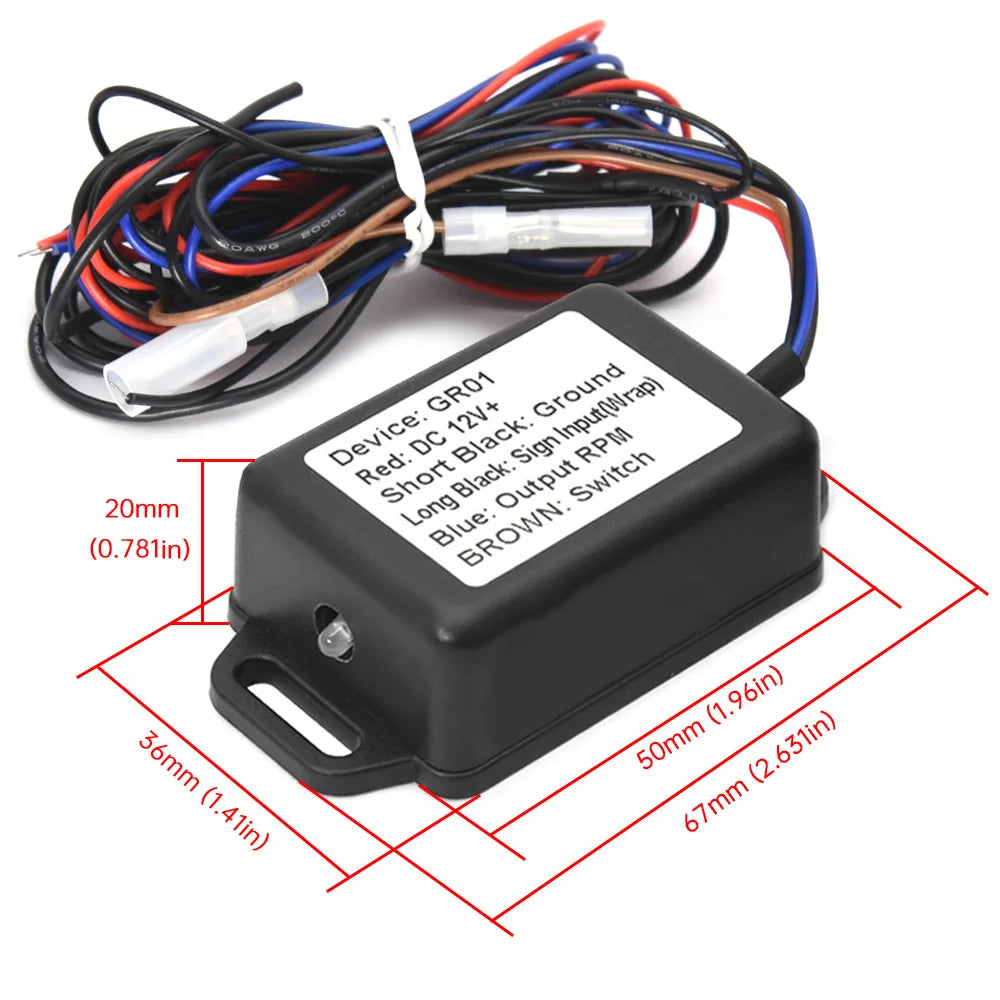

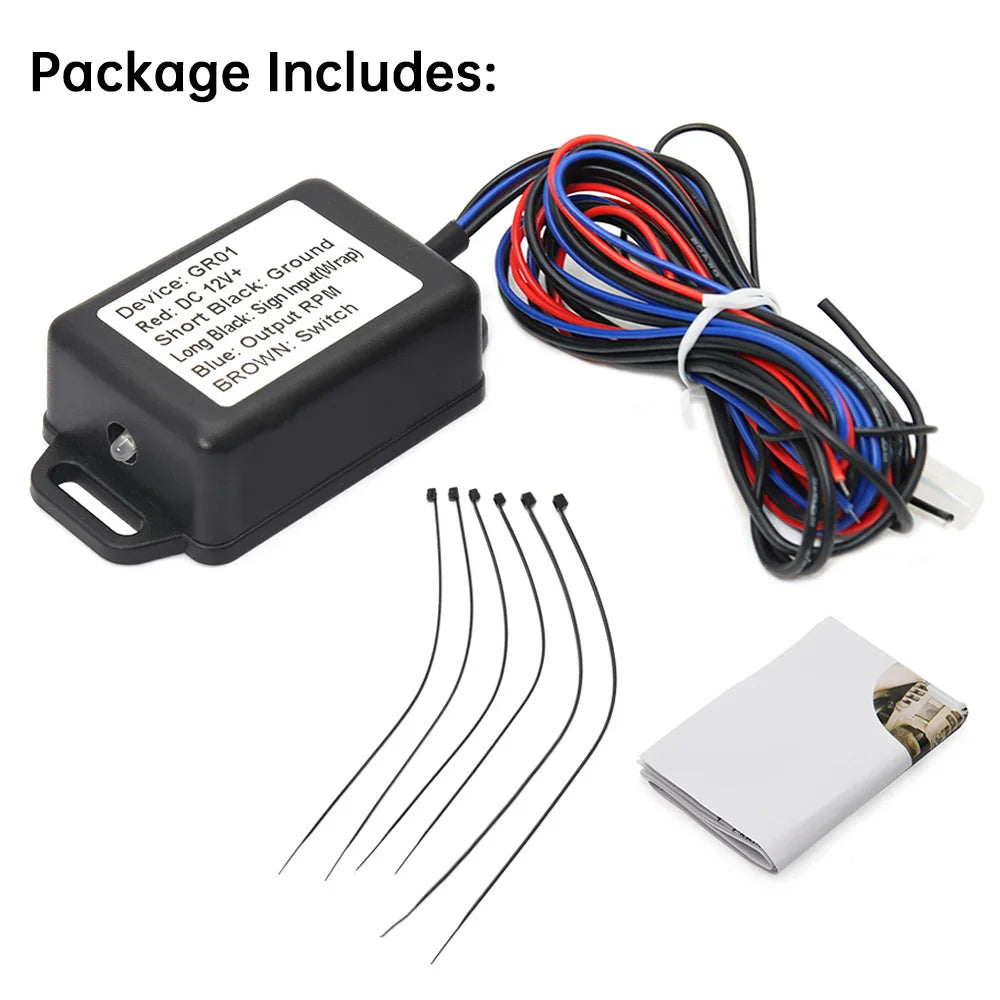

Model: GR01

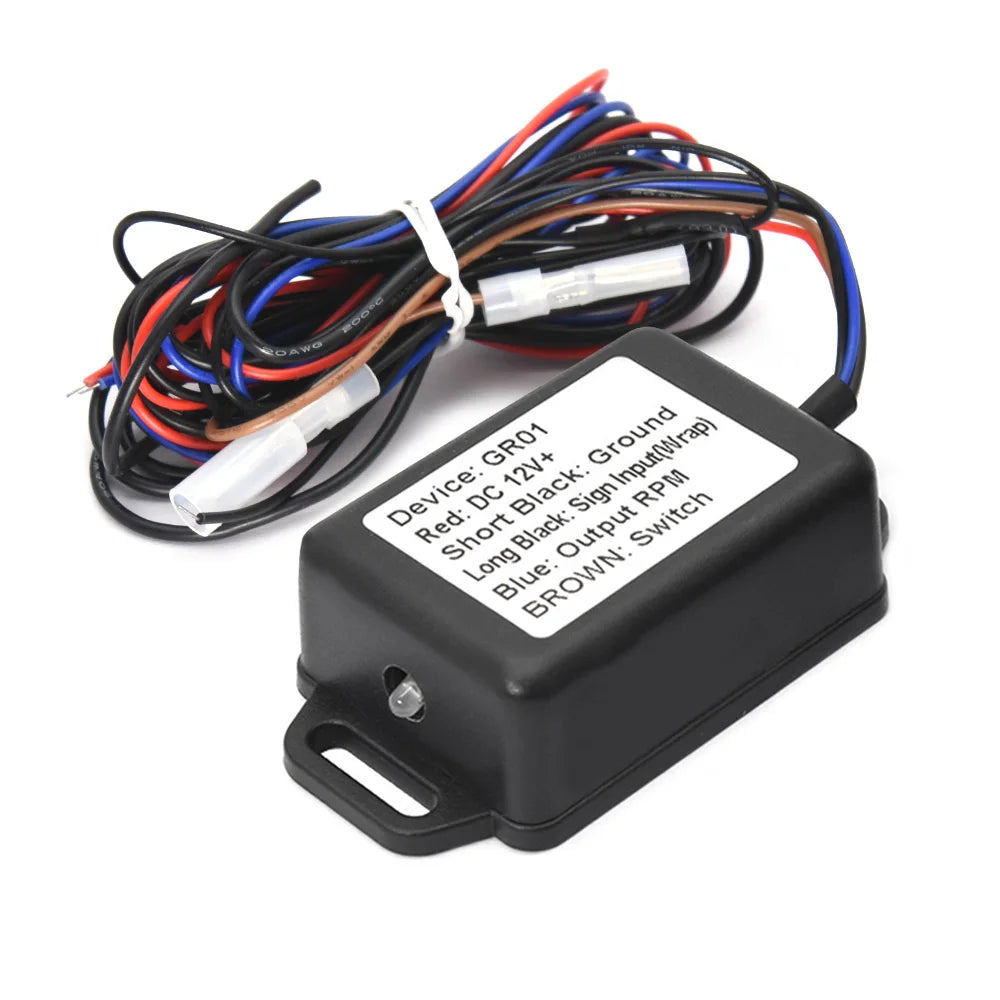

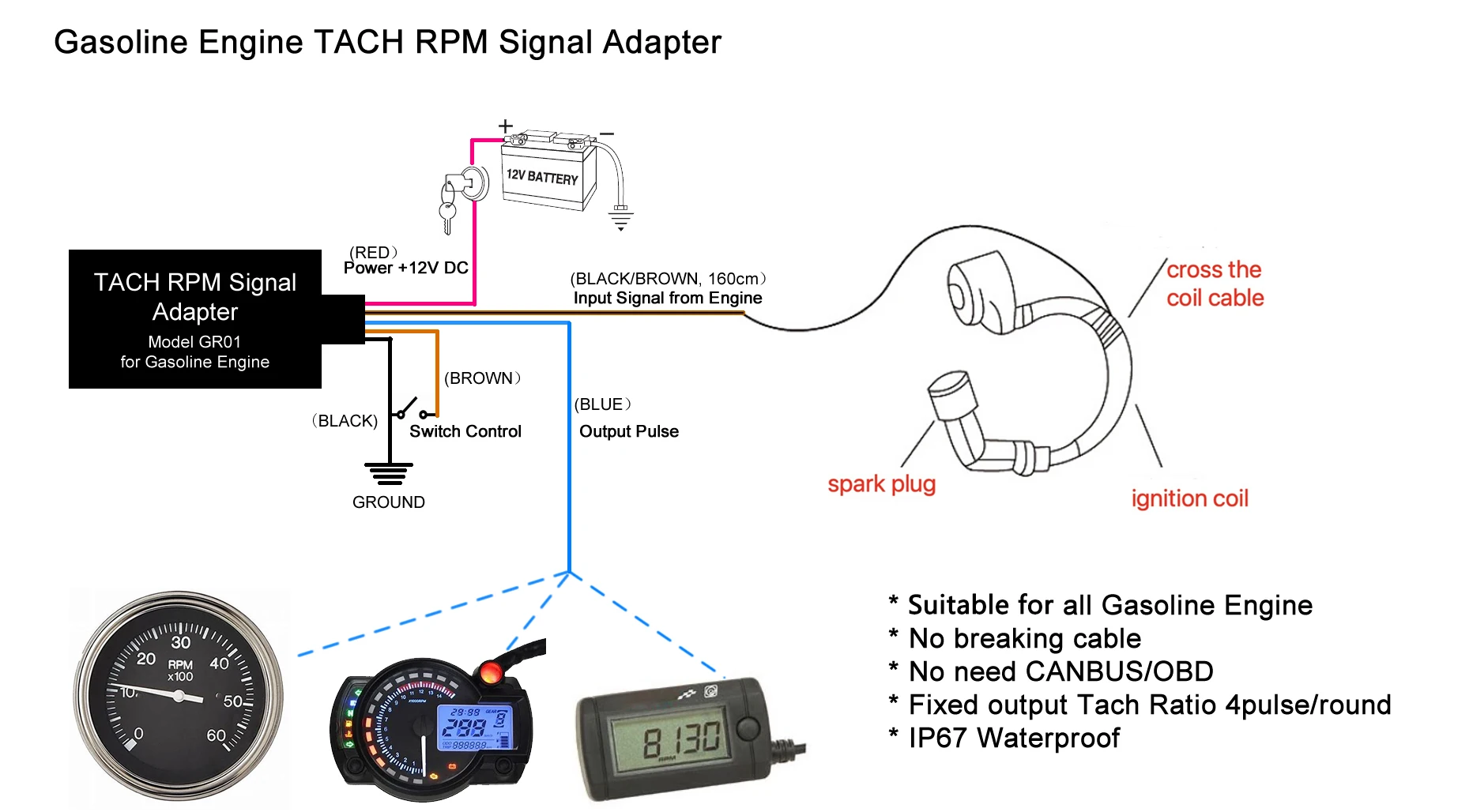

1.Cable Definition
RED: Power Supply 12V DC
BLACK: Power GND
BLACK/BROWN (1.6m): Input Signal Cable
BLUE: Output Signal (fixed 4pulses/round rpm ratio)
BROWN: Switch Control Cable
2.Configure Steps:
1)Connect Switch Cable to enter in setting mode
2)Find the Ignition Coil of your Gasoline Engine, normally it’s close to Spark Plug, which can be easily found from your engine/car/vehicle user guide.
Wrap the input signal cable 5~8 round across the ignition coil cable, and then tighten like below:
3)Power on the Sensor, the LED will stay Green
4)Disconnect Switch Cable, the LED will still stay Green and calculate the detected pulse from engine
5)Connect Switch Brown Cable and Disconnect again, the LED will flash
6)The sensor output Pulse signal with fixed Tach RPM ratio 4pulese/round, which means it will output 66.6Hz when 1000RPM.
For example, if the input frequency is 100Hz @1000RPM, the sensor will convert the signal and then output 66.6Hz @1000RPM
7)How to configure Tachometer?
Please set your Tachometer/RPM Gauge tach RPM ratio to 4 pulses/round, then the Gauge will work properly.

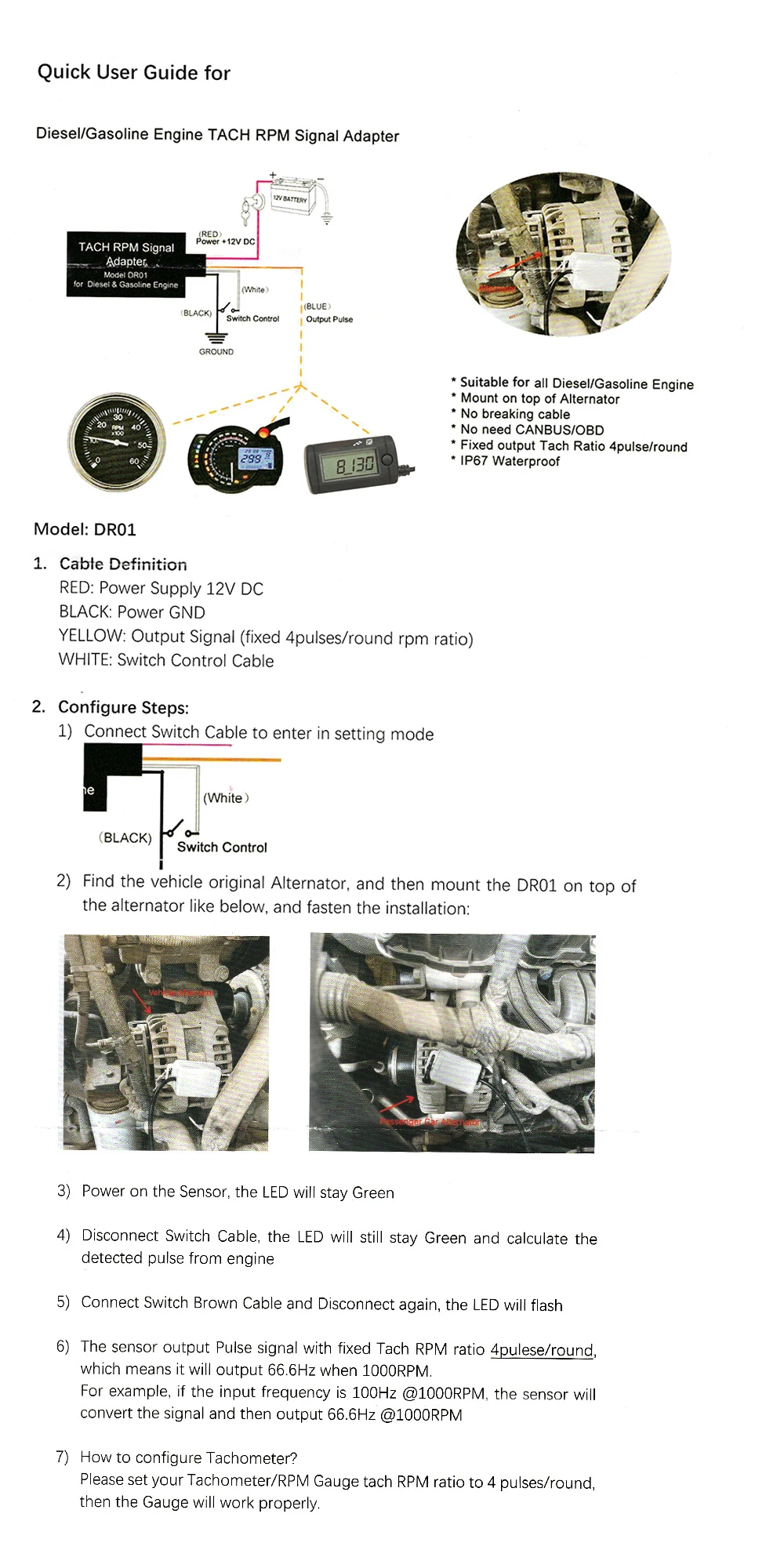

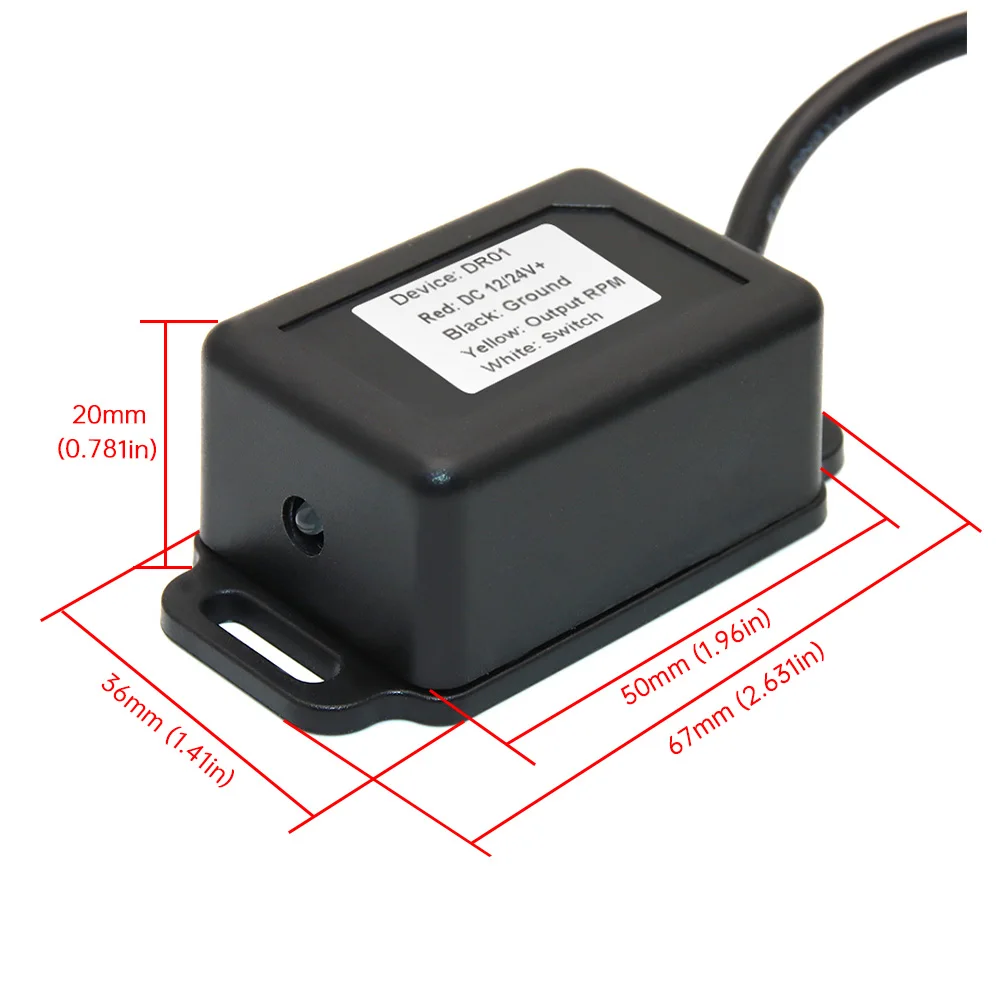

Model: DR01

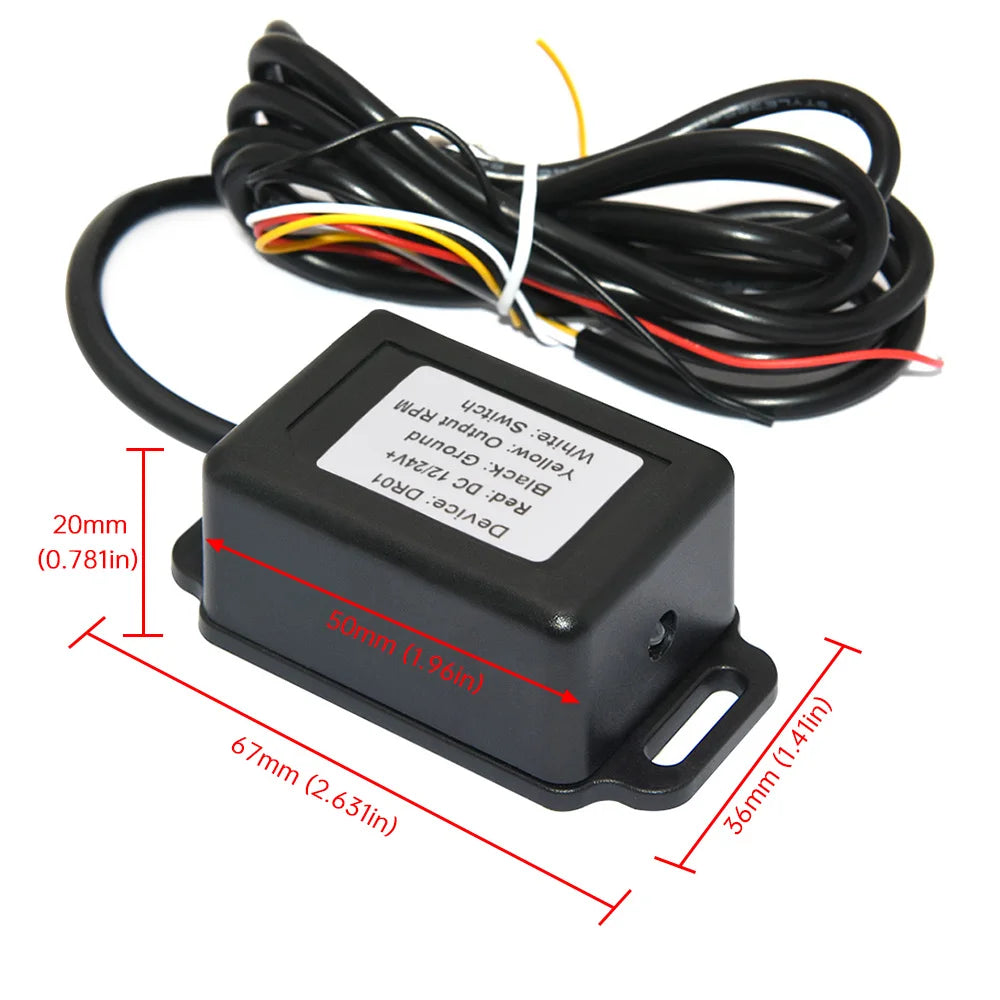

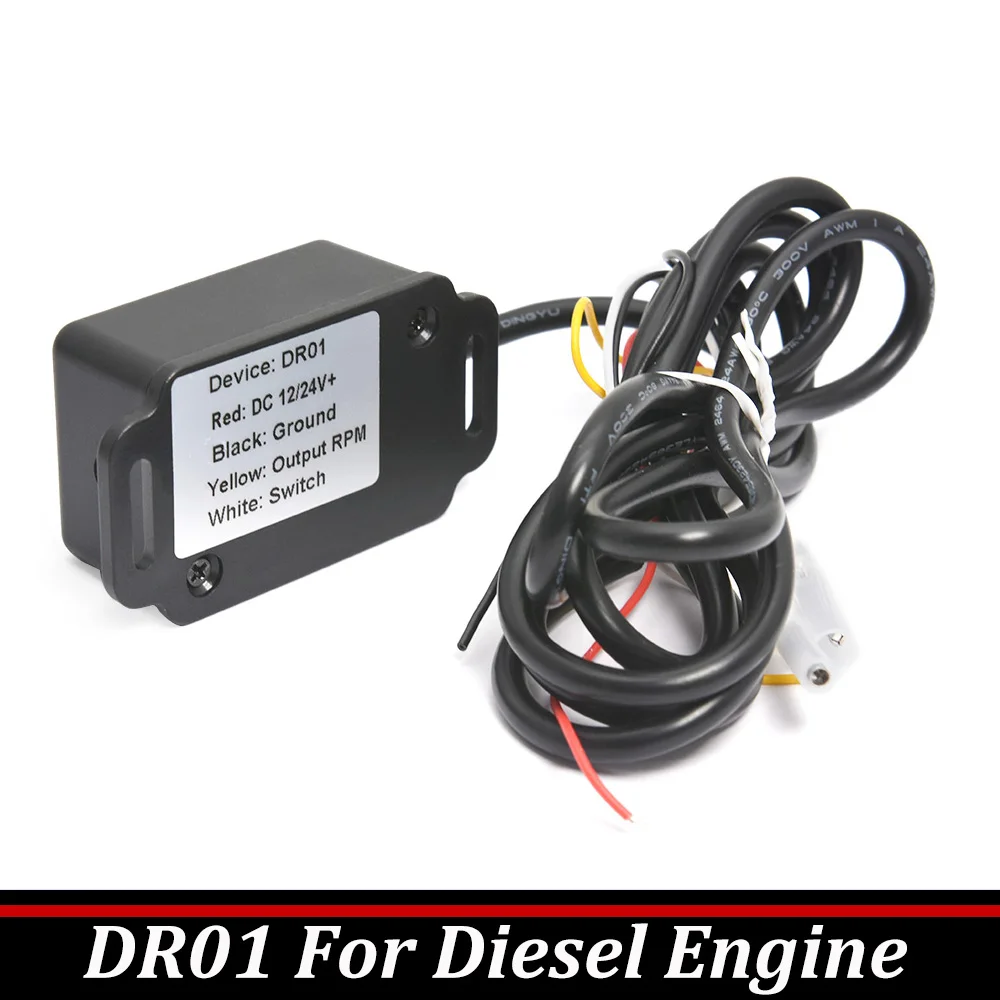

1.Cable Definition
RED: Power Supply 12V DC
BLACK: Power GND
YELLOW: Output Signal (fixed 4pulses/round rpm ratio)
WHITE: Switch Control Cable
2.Configure Steps:
1)Connect Switch Cable to enter in setting mode

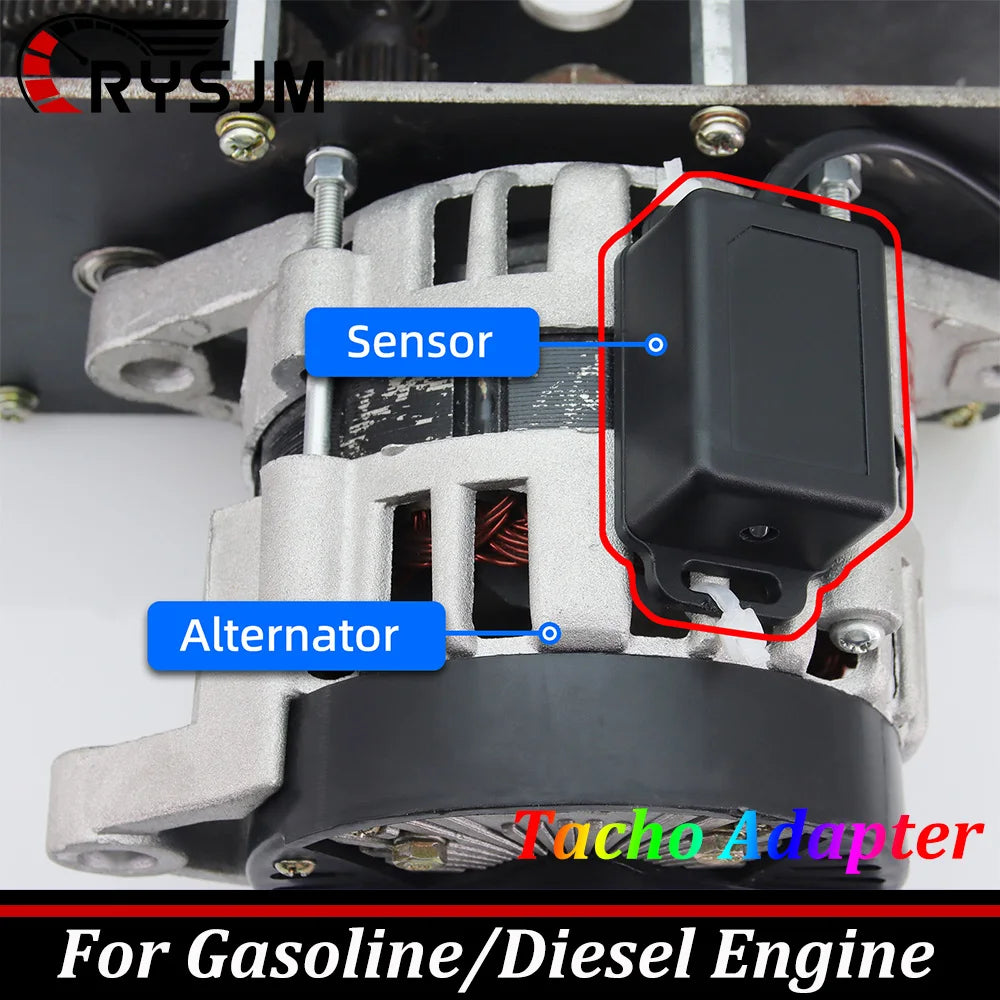

2)Find the vehicle original Alternator, and then mount the DR01 on top of the alternator like below, and fasten the installation:
3)Power on the Sensor, the LED will stay Green
4)Disconnect Switch Cable, the LED will still stay Green and calculate the detected pulse from engine
5)Connect Switch Brown Cable and Disconnect again, the LED will flash
6)The sensor output Pulse signal with fixed Tach RPM ratio 4pulese/round, which means it will output 66.6Hz when 1000RPM.
For example, if the input frequency is 100Hz @1000RPM, the sensor will convert the signal and then output 66.6Hz @1000RPM
7)How to configure Tachometer?
Please set your Tachometer/RPM Gauge tach RPM ratio to 4 pulses/round, then the Gauge will work properly.
