KONNWEI TK100 TPMS Programming Tool | 4 Sensors 315/433MHz Car Tire Pressure Diagnostic Relearn Tool for iPhone Android

The KONNWEI TK100 TPMS programming tool lets you diagnose, program, and relearn tire pressure sensors from your smartphone. It works with both 315MHz and 433MHz frequencies and includes 4 TPMS LINK sensors for a complete tire pressure monitoring solution. Compatible with iPhone and Android devices, this tool helps you replace and program sensors without visiting a shop.

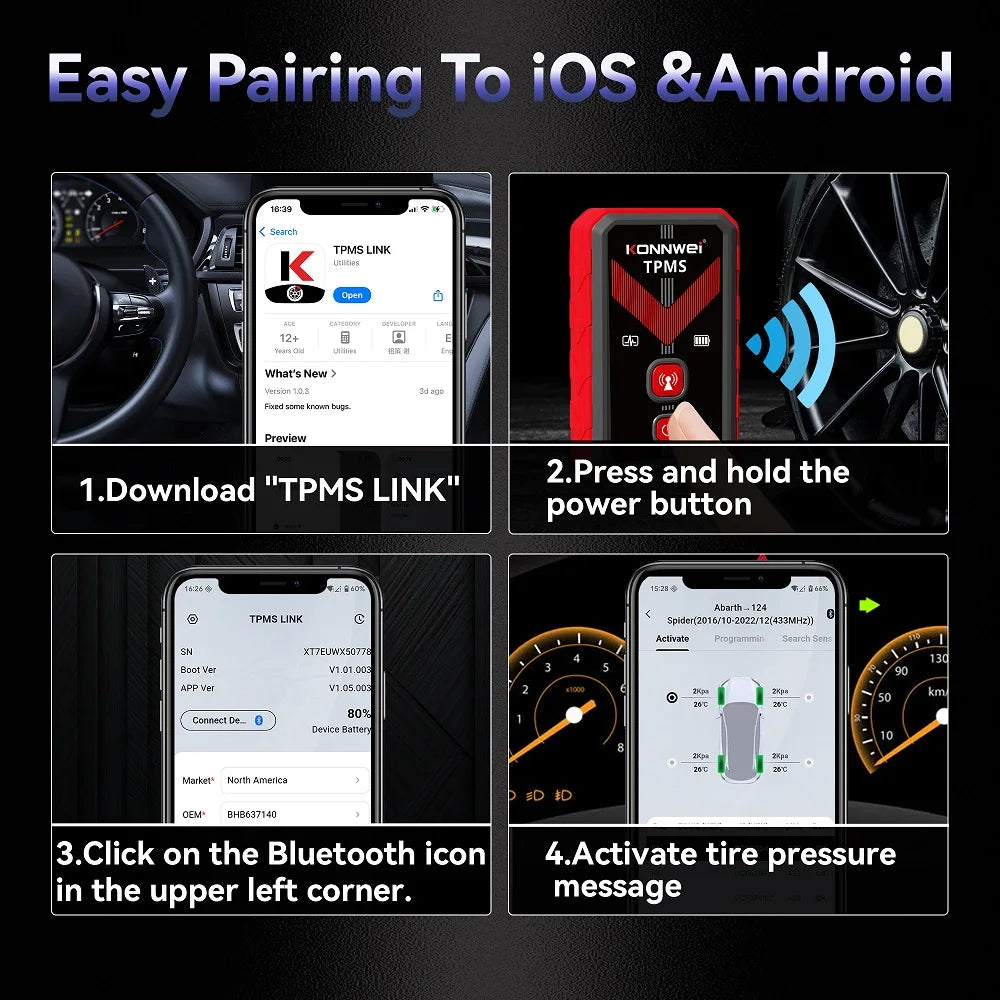

This TPMS diagnostic tool uses Bluetooth 5.2 to connect with the KONNWEI TPMS LINK mobile app. The app downloads vehicle-specific data from the cloud based on your car model or sensor OEM number. The TK100 then wirelessly programs the correct IDs into the TPMS LINK sensors. Once programmed, these sensors collect pressure and temperature data inside the tire and transmit it to your vehicle's original display screen. The sensor protocol matches the original tire pressure sensor protocol exactly, so your car reads it as a factory part.

The TK100 can activate over 99% of TPMS sensors, read sensor data, and perform relearn procedures. It also supports TPMS ECU ID and OBD relearn when used with a separate TPMSLINK/OBD-II diagnostic tool (sold separately). The tool comes with a 1500mAh lithium battery and charges via a standard Type-C cable. You get free lifetime software updates to keep the tool compatible with newer vehicle models.

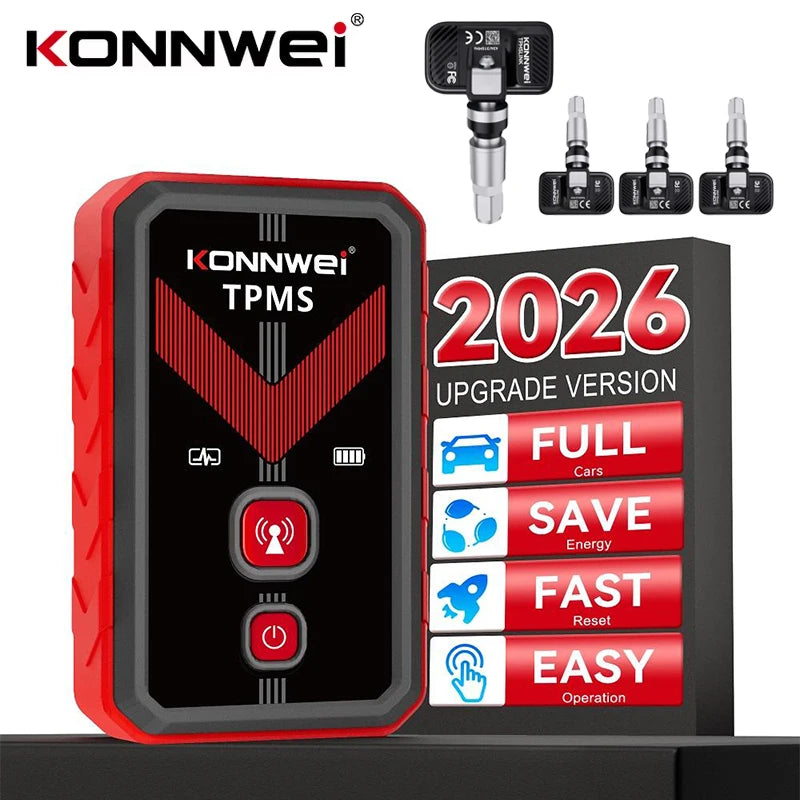

This kit includes everything you need to start: the TK100 programming tool, 4 TPMS LINK sensors, a Type-C charging cable, and a user manual. The sensors are specifically designed to work with the KONNWEI TK100 and cannot be used with other programming tools.

Key Features and Benefits

- Bluetooth 5.2 mobile app connection that lets you program sensors from your phone without extra hardware

• Dual frequency support (315MHz and 433MHz) that covers most vehicles on the road

• Cloud-based vehicle data download that ensures accurate sensor programming for your specific car model

• TPMS sensor activation and reading that confirms sensor function before installation

• Relearn and programming capability that replaces original sensors at a lower cost

• Free lifetime software updates that keep the tool compatible with new vehicle models

Who Is This For

- Car owners who want to replace faulty TPMS sensors themselves instead of paying a shop

• DIY mechanics and home garage hobbyists who maintain multiple vehicles

• Small auto repair shops looking for an affordable TPMS programming solution

• Fleet managers who need to monitor and maintain tire pressure across multiple vehicles

Usage Scenario

Mark noticed his SUV's tire pressure warning light flickering on and off during his morning commute. A quick check showed one sensor was failing. Instead of scheduling an expensive shop visit, he grabbed the KONNWEI TK100 kit. He opened the app on his phone, selected his vehicle model, and the tool downloaded the correct sensor data. Within minutes, he programmed a new TPMS LINK sensor and installed it. The warning light turned off, and his tire pressure readings appeared on the dashboard again. He saved over $100 and finished before lunch.

Micro Comparison

Many TPMS programming tools require a separate tablet or laptop to operate. The KONNWEI TK100 works directly with your smartphone, so you already own the screen and interface. Other kits often include generic sensors that require manual ID entry. This system downloads the exact data from the cloud and programs it wirelessly, reducing the chance of errors. The included 4 TPMS LINK sensors are pre-matched to the TK100, so you do not need to worry about compatibility.

Specifications

Working Voltage: 12V

Frequency: 315MHz / 433MHz

Battery: 1500mAh lithium battery

Charge Interface: 5V/2.0A Type-C (do not use fast charge)

Standby Current: 33mA

Operating Current: 90mA

Sleep Current: less than 10μA

Dimensions: 110 x 70 x 23mm / 4.3 x 2.8 x 0.9 in

Unit Weight: 0.156 kg / 5.5 oz

Display: App on Android or iOS device

Languages: Chinese, English, French, German, Spanish, Italian

Color: Red

Storage Environment: less than or equal to 97% RH (40°C) / -30°C to 85°C

Operating Environment: less than or equal to 97% RH (40°C) / -20°C to 70°C

Please allow 1-3 cm / 0.4-1.2 in difference due to manual measurement.

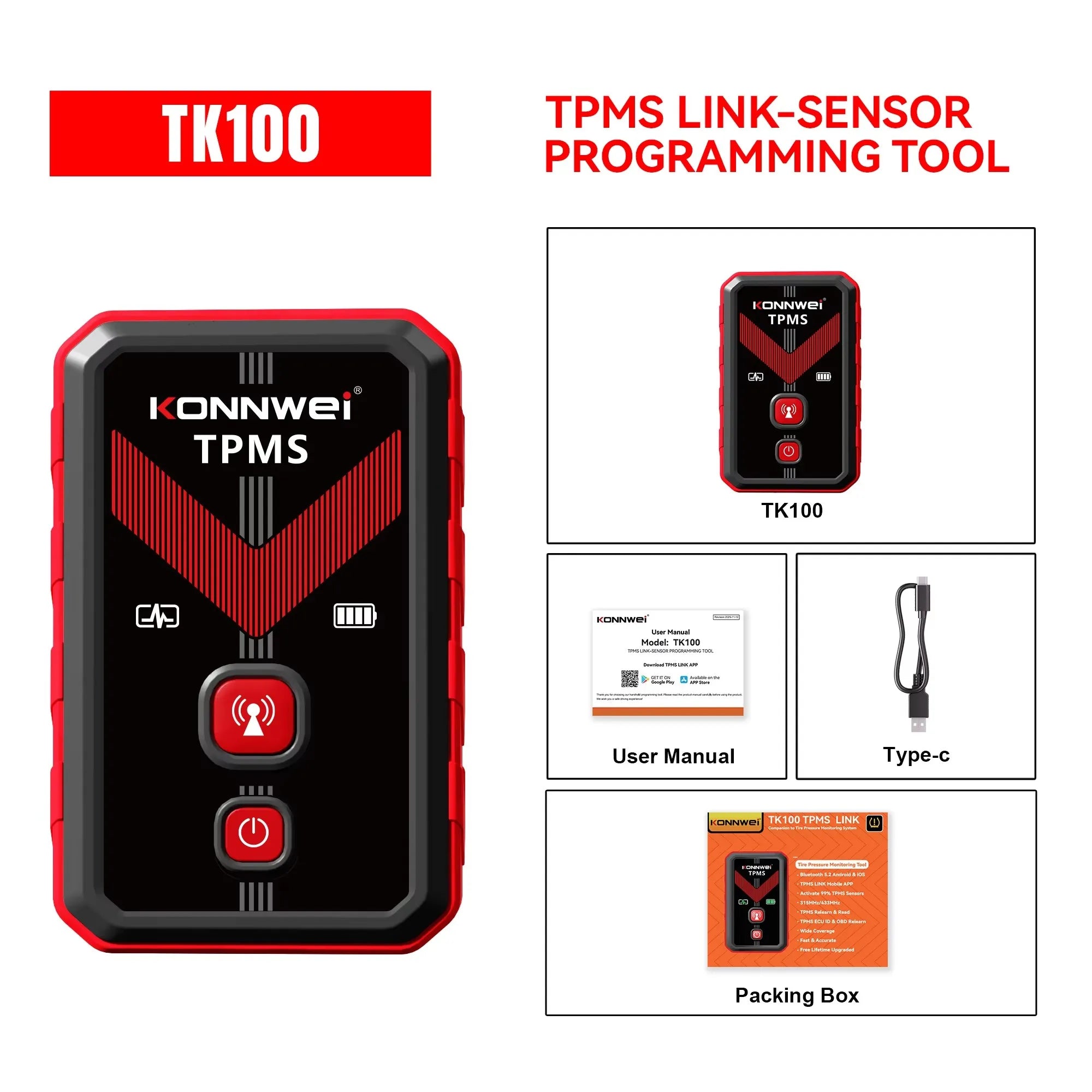

Package Includes

- 1 x TK100 device

• 1 x User Manual

• 1 x Type-C cable

• 1 x Retail color box

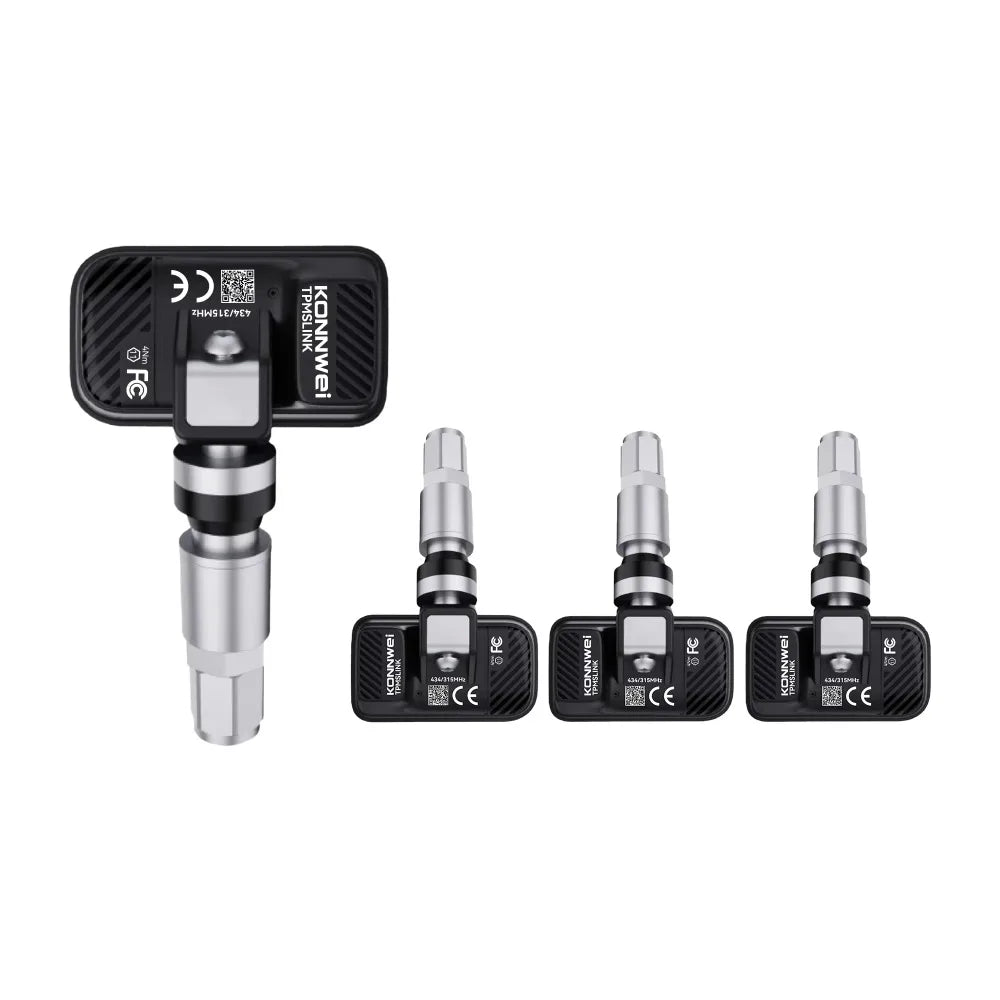

• 4 x TPMS LINK sensors

Why You Will Love It

You save money on every sensor replacement by doing it yourself. The smartphone app makes programming feel like using any other modern tool. Free lifetime updates mean this tool stays useful as new cars hit the road, so you buy it once and use it for years.

Questions and Answers

Question: Does this tool work with any TPMS sensor brand?

Answer: No. The TK100 works specifically with KONNWEI TPMSLINK sensors. It cannot program sensors from other brands.

Question: Can I use this tool without the mobile app?

Answer: No. The TK100 requires the KONNWEI TPMS LINK mobile app on an Android or iOS device to download vehicle data and program sensors.

Question: Does this kit include the OBD-II relearn tool?

Answer: No. The TPMS ECU ID and OBD relearn function requires a separate TPMSLINK/OBD-II automotive diagnostic tool, which is not included.

Question: How long does the battery last on a full charge?

Answer: The 1500mAh lithium battery provides enough power for multiple programming sessions. Standby current is 33mA and operating current is 90mA.

Question: Will this tool work on my 2023 vehicle?

Answer: The tool supports both 315MHz and 433MHz frequencies and receives free lifetime software updates, so it supports most vehicles. Check the KONNWEI app for your specific vehicle model.

Question: Can I charge the tool with a fast charger?

Answer: No. The charge interface is 5V/2.0A Type-C. Do not use fast chargers as they may damage the device.
