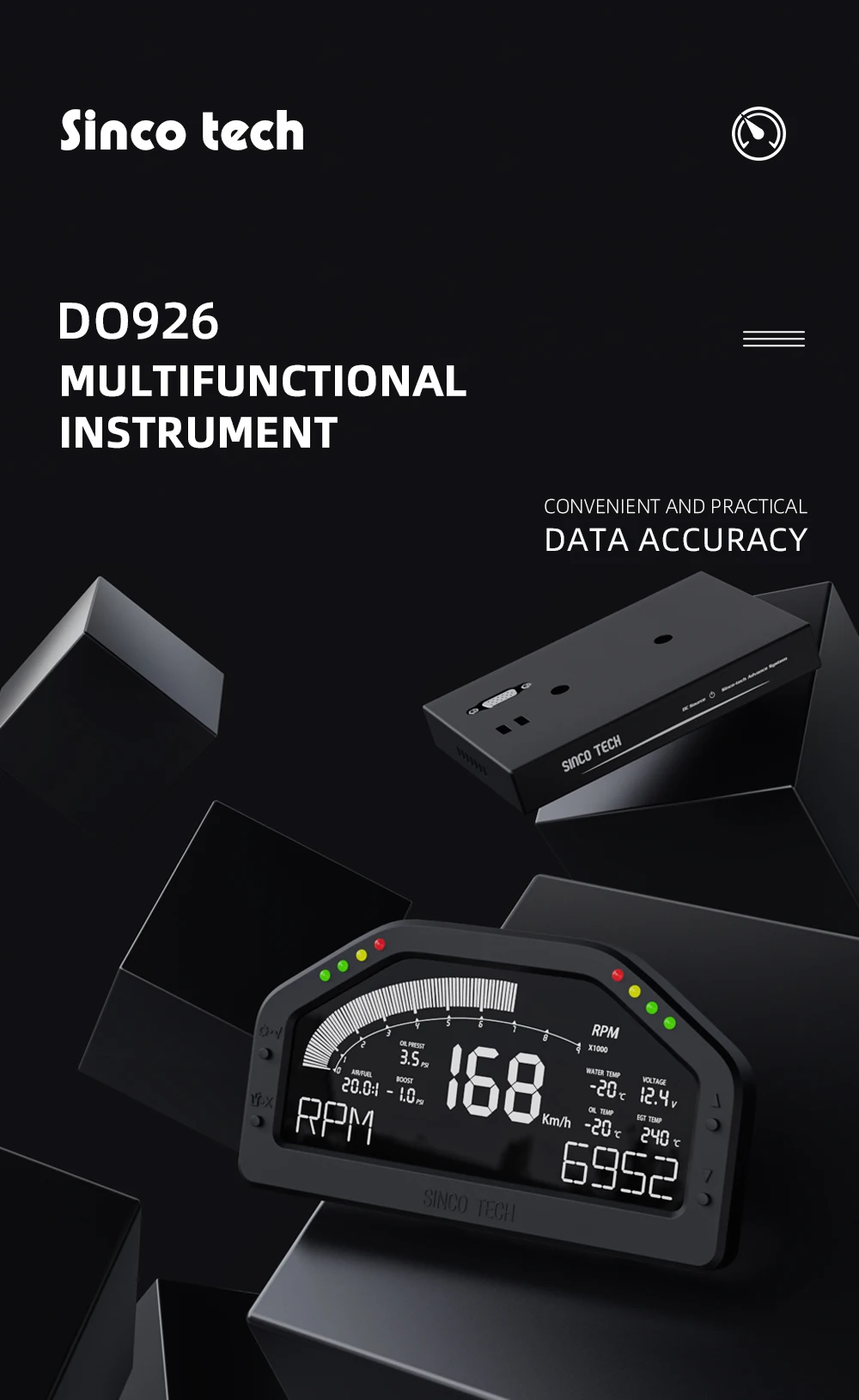

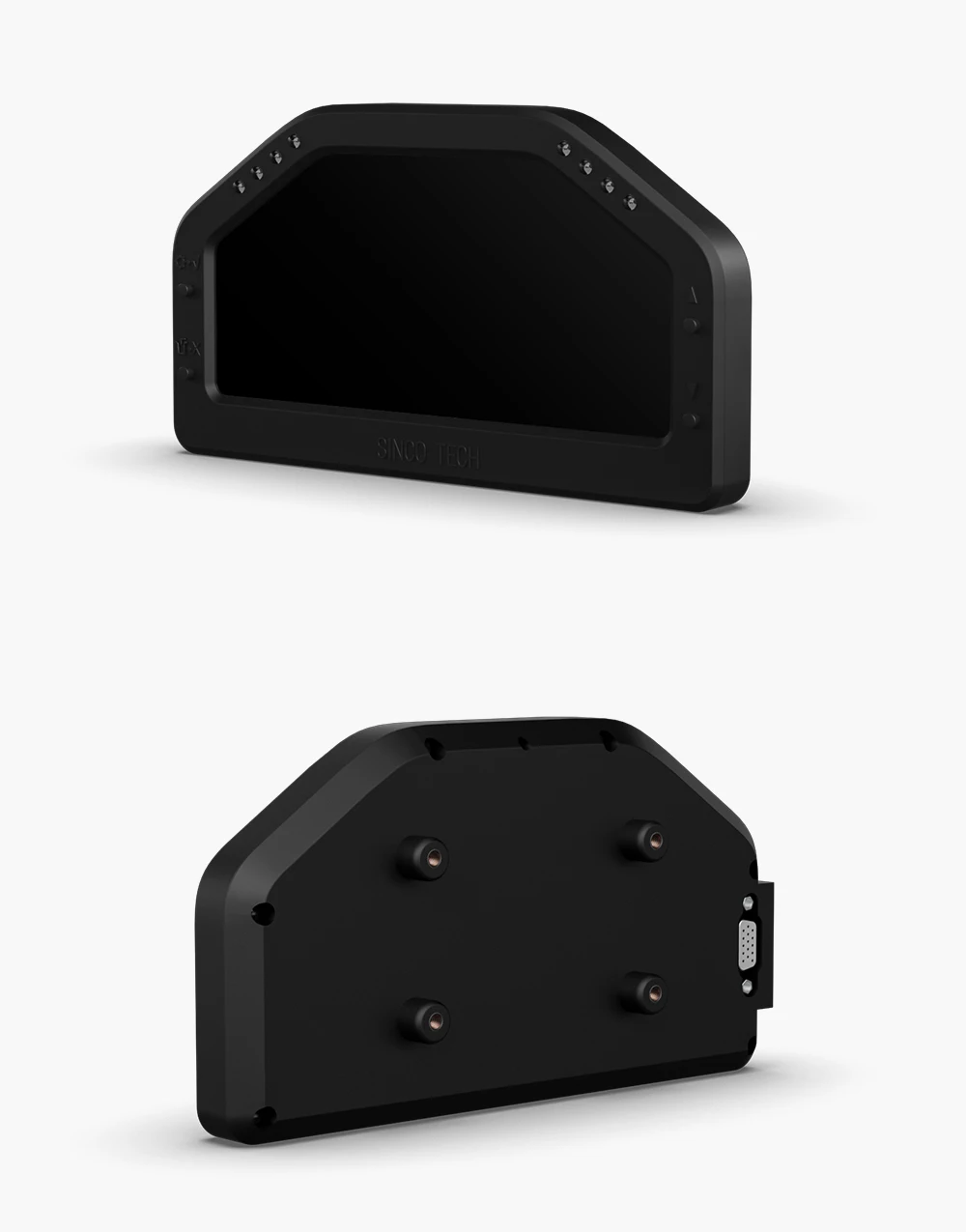

DO926 RACING DASHBOARD

This product is the upgraded version of DO908! New alarm function (water temperature, oil temperature, oil pressure, boost, voltage) and seven-color backlight!

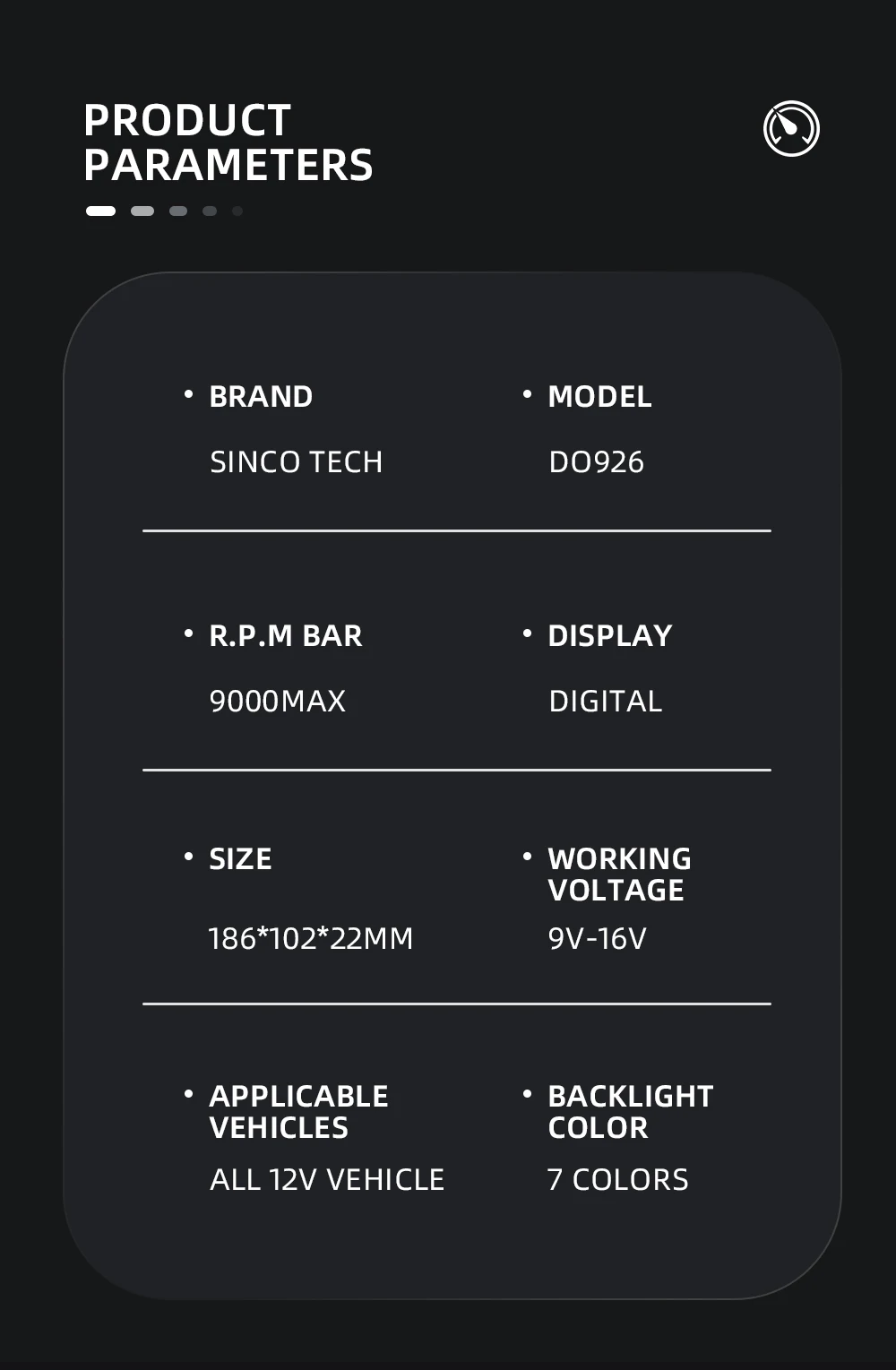

Brand  SINCO TECH

Model DO926

Display  Digital

Size  6.5 inch

Language  English

Operating Voltage  9V-16V

Application  All 12V Vehicle

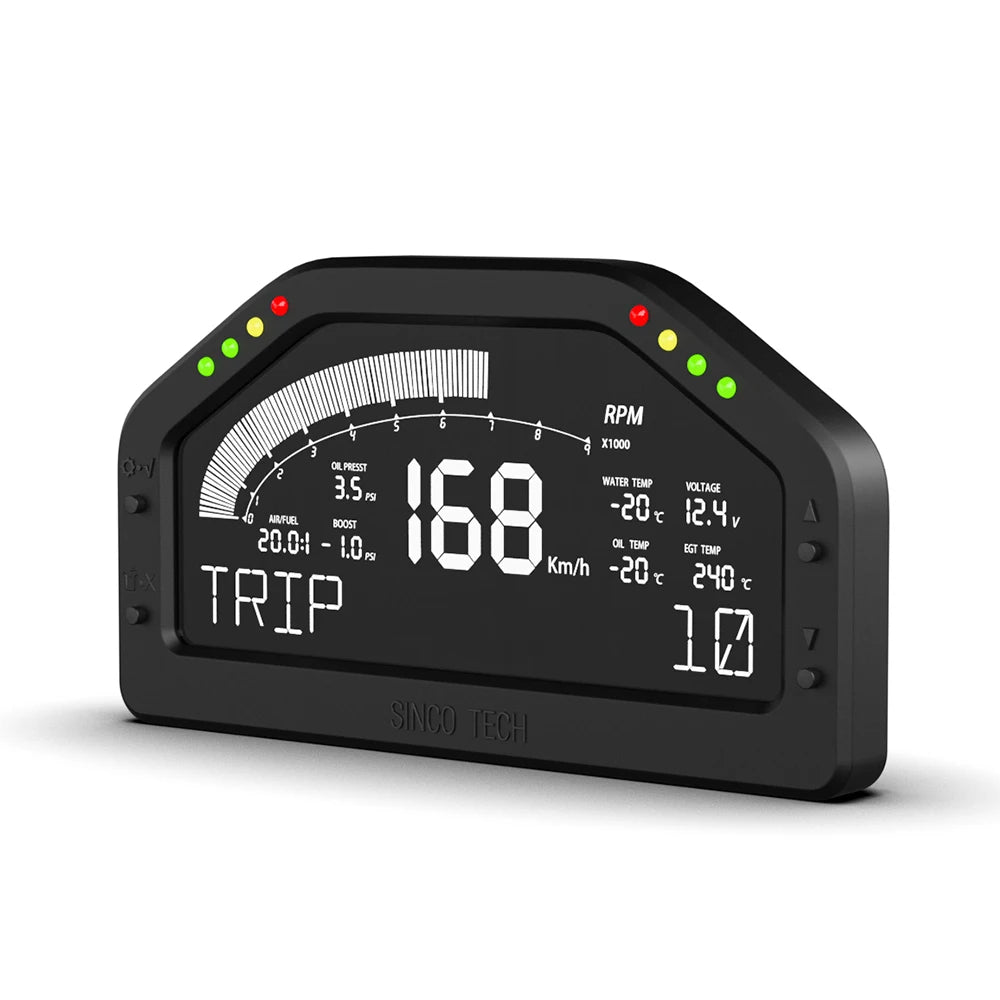

DO926 Multifunctional race dashboard features a 6.5 inch low consumptionLCD screen with high precise sensors kit . Chinese/English available, low consumption LCD screen with black backlight with 7 colorsdisplay optional,universal to all 12V vehicles( 1-8 engine cylinders), RPM reach to 9000 max. Four speed alarm LED lights and two button keys are designed on either side of display shell.

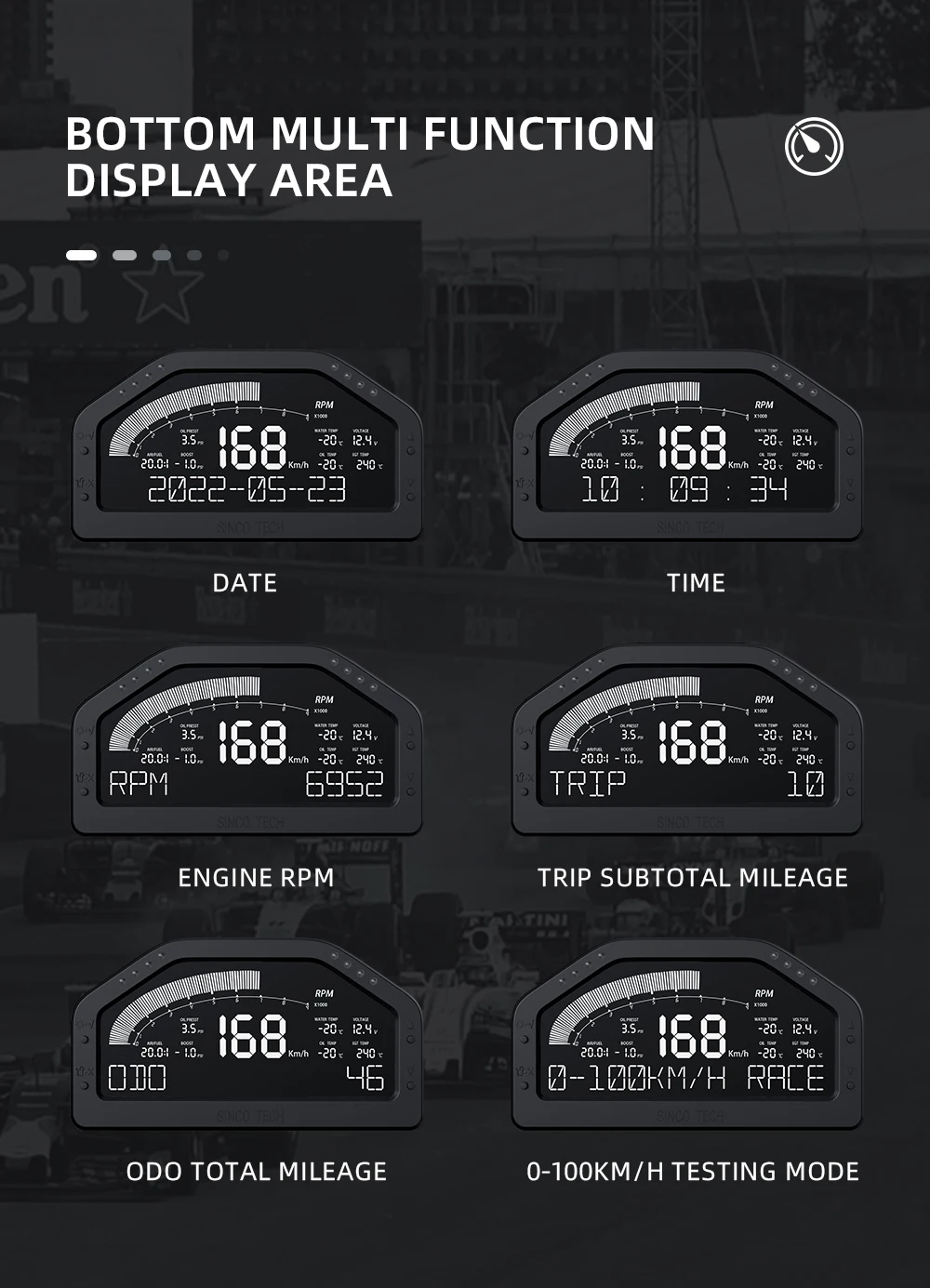

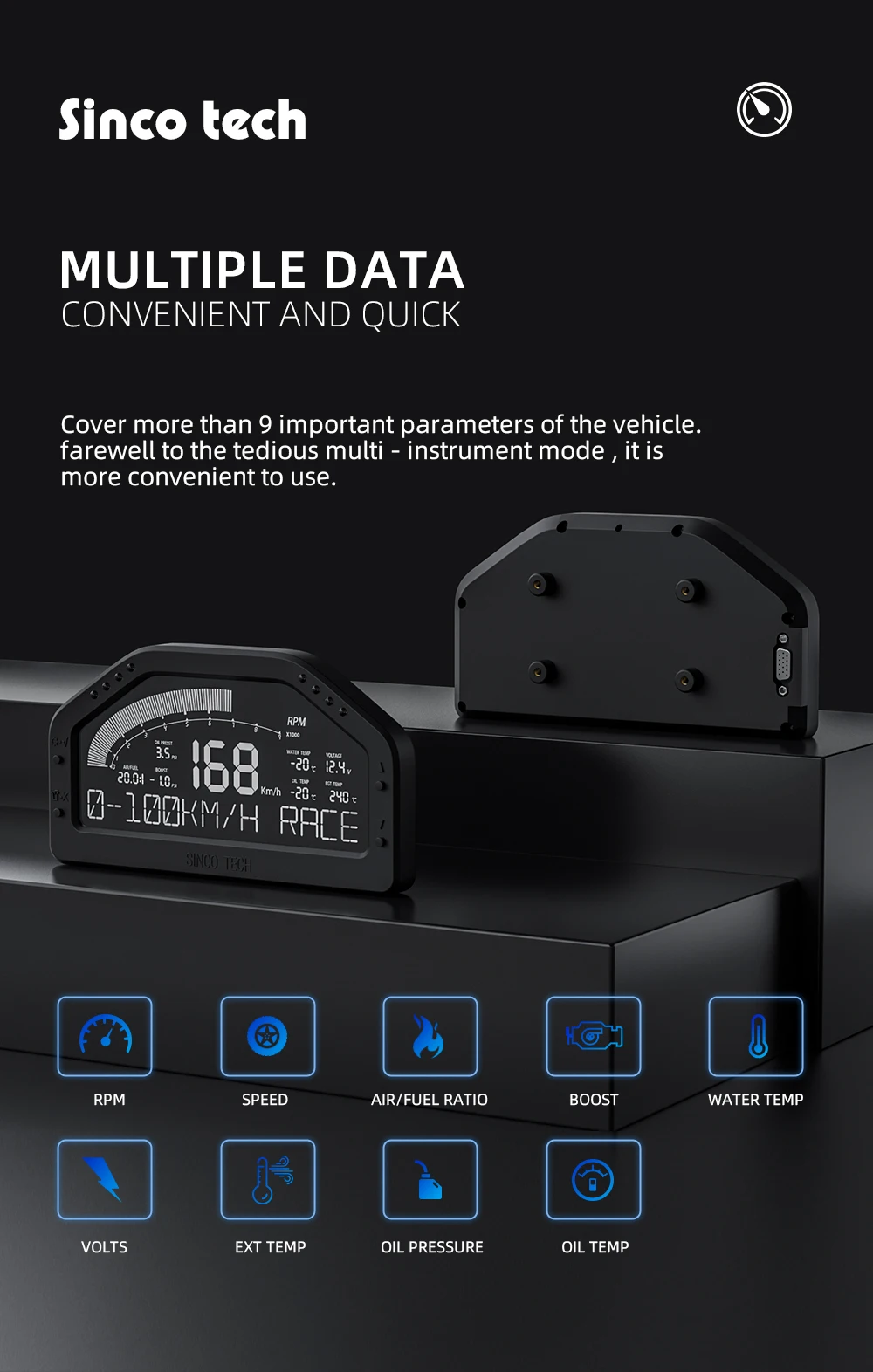

Functions Display
1. RPM

2.Speed

3.Oil Pressure

4.Oil Temp.

5.Water Temp

6.Boost

7.Air Fuel Ratio

8.EGT

9.Voltage

10.ODO and Trip

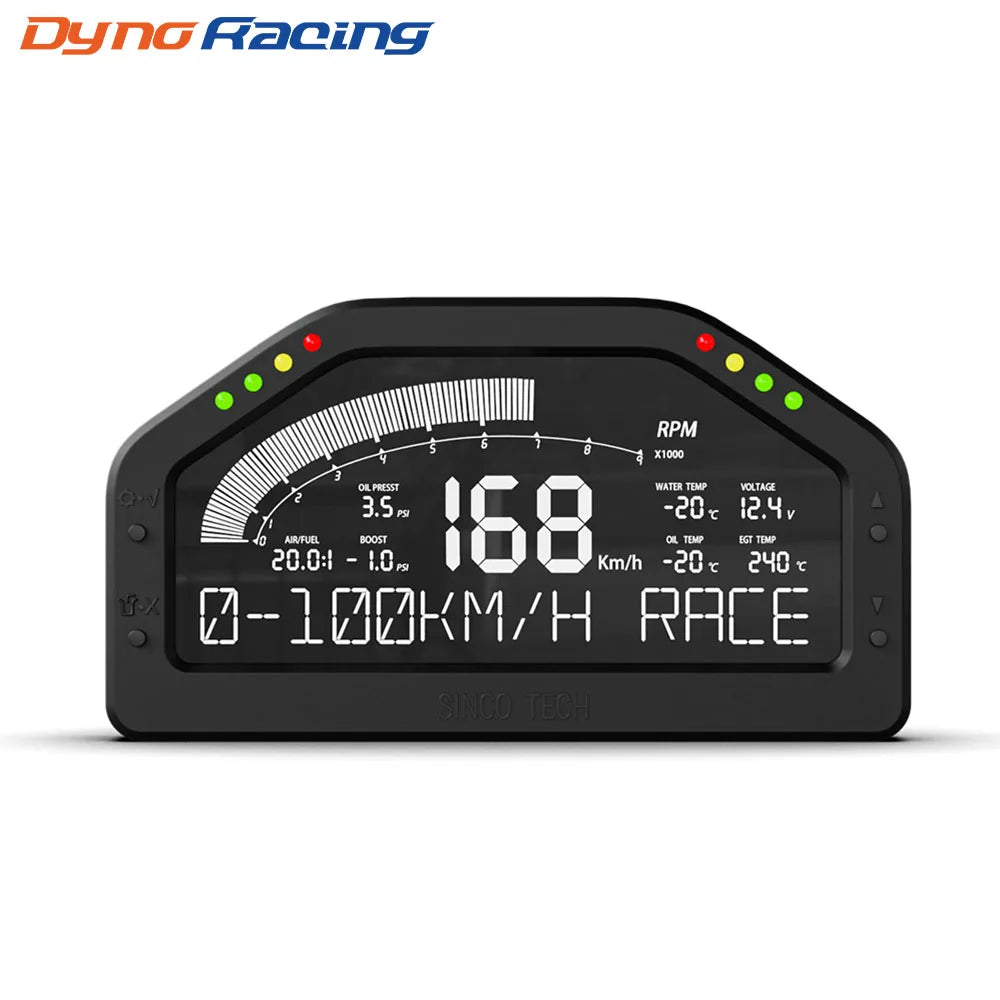

11.0-100KM/H Testing Mode

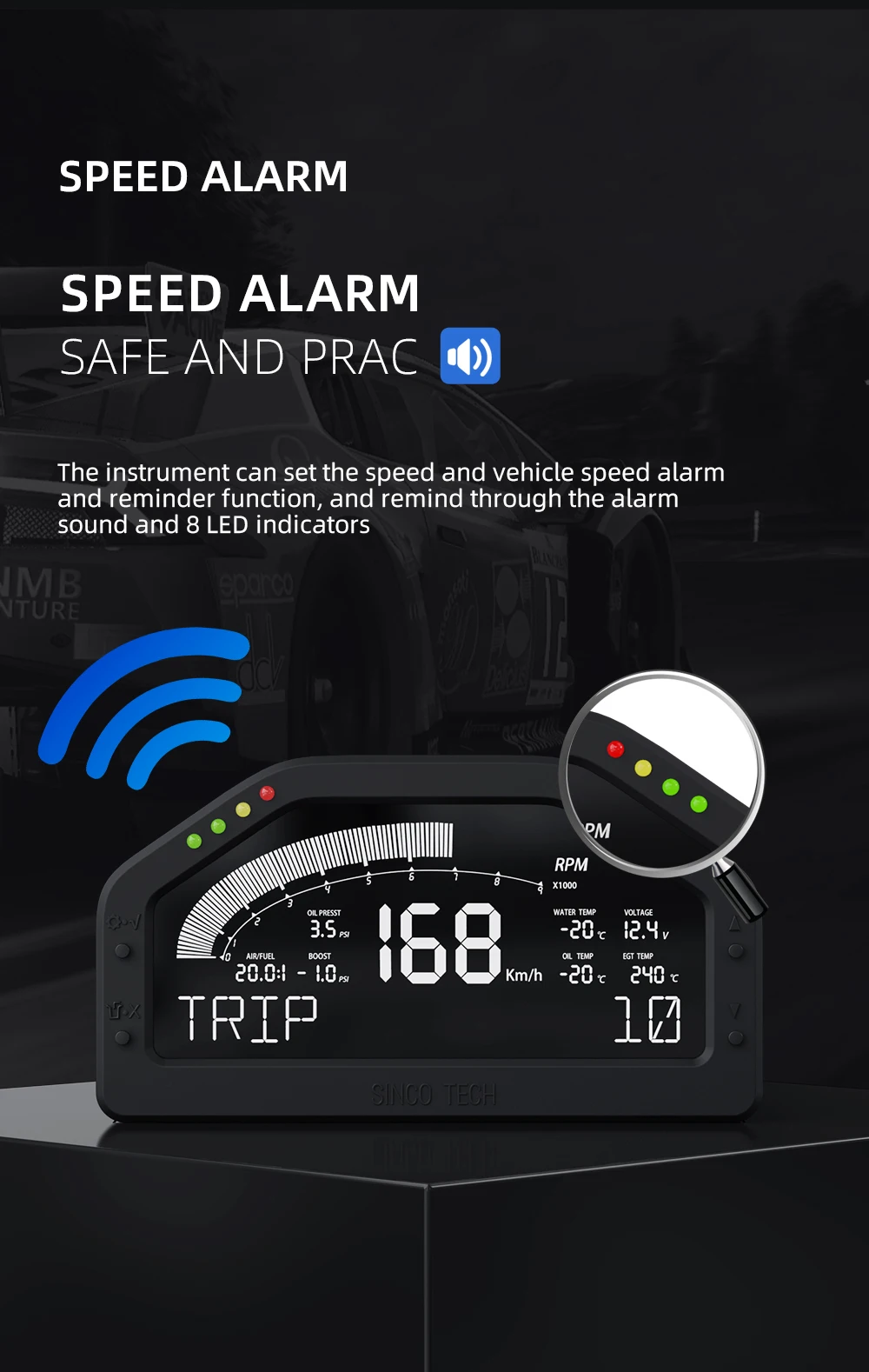

Alarm Setting
SPEED, TACHO, WATERTEMP, OIL.TEMP, OIL PRESSURE, BOOST, VOLT

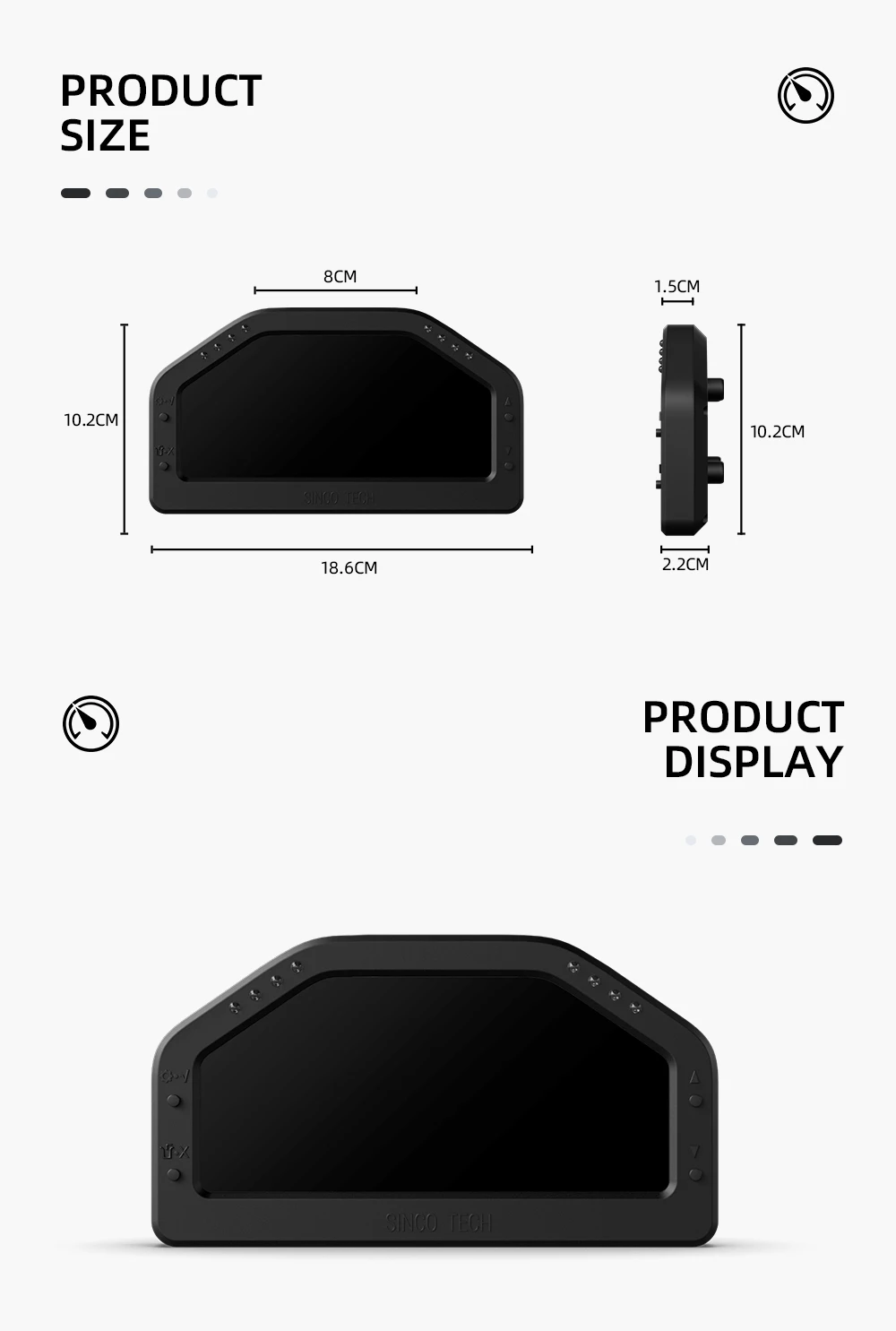

Dimension
186mm*102mm*22mm

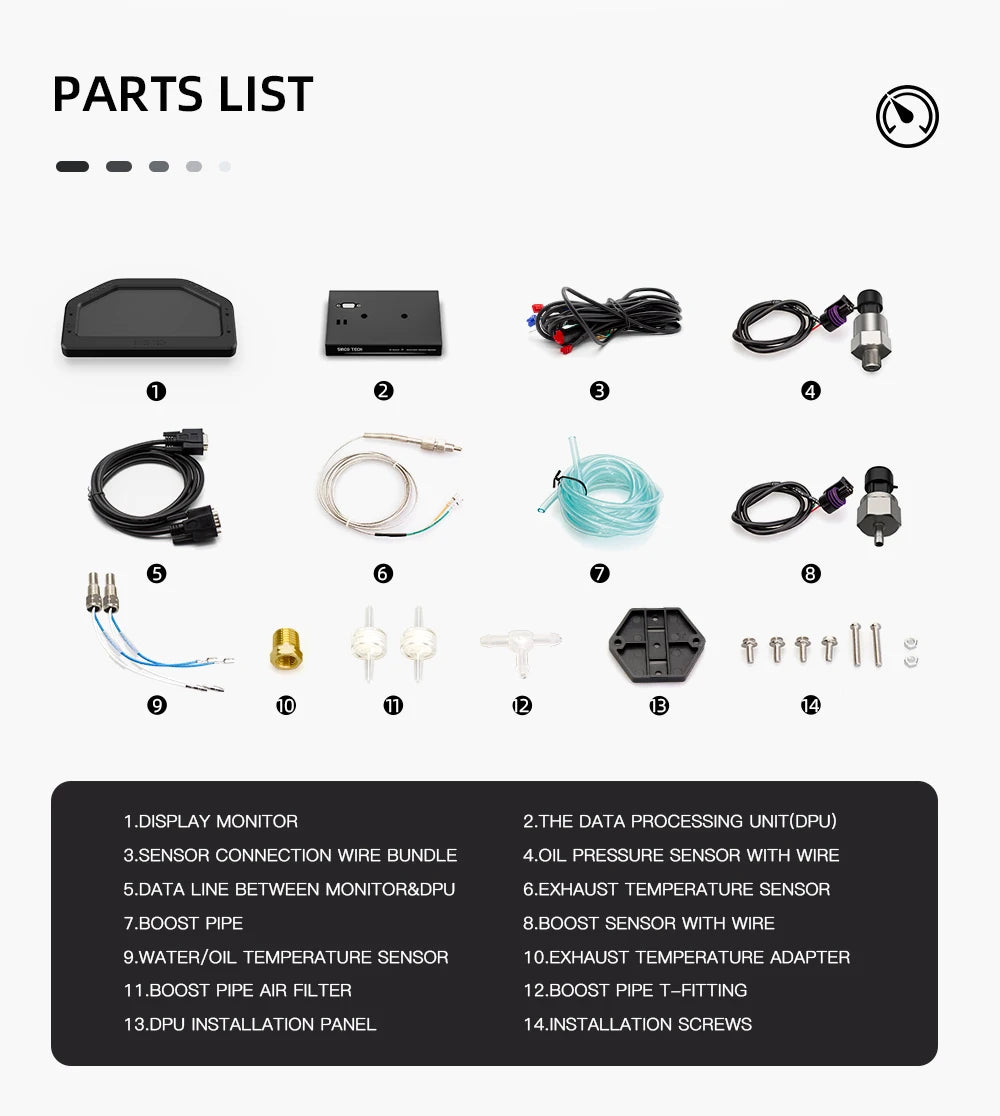

Parts List
1. Displaymonitor
2. Data processing unit (DPU)

3.Sensors and wiring.
4. Instructions manual

Features

■Low consumption LCD screen

■8 LED lights with sequential indicator function

■With a new advanced system

■Harness wiring

■ODO and Trip display

■waterproof

■Time clock function

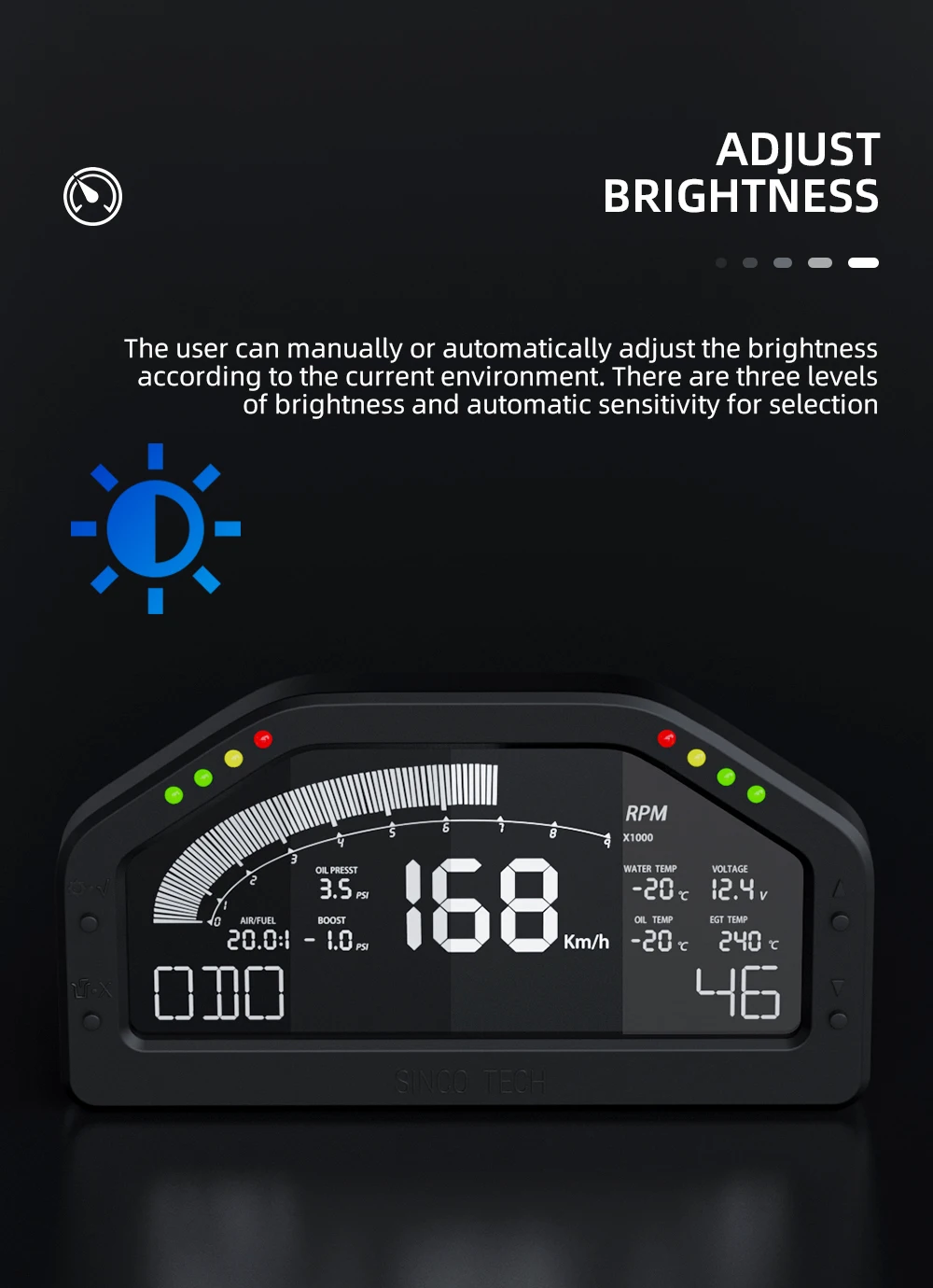

■Backlight Dimmer adjustedby manual

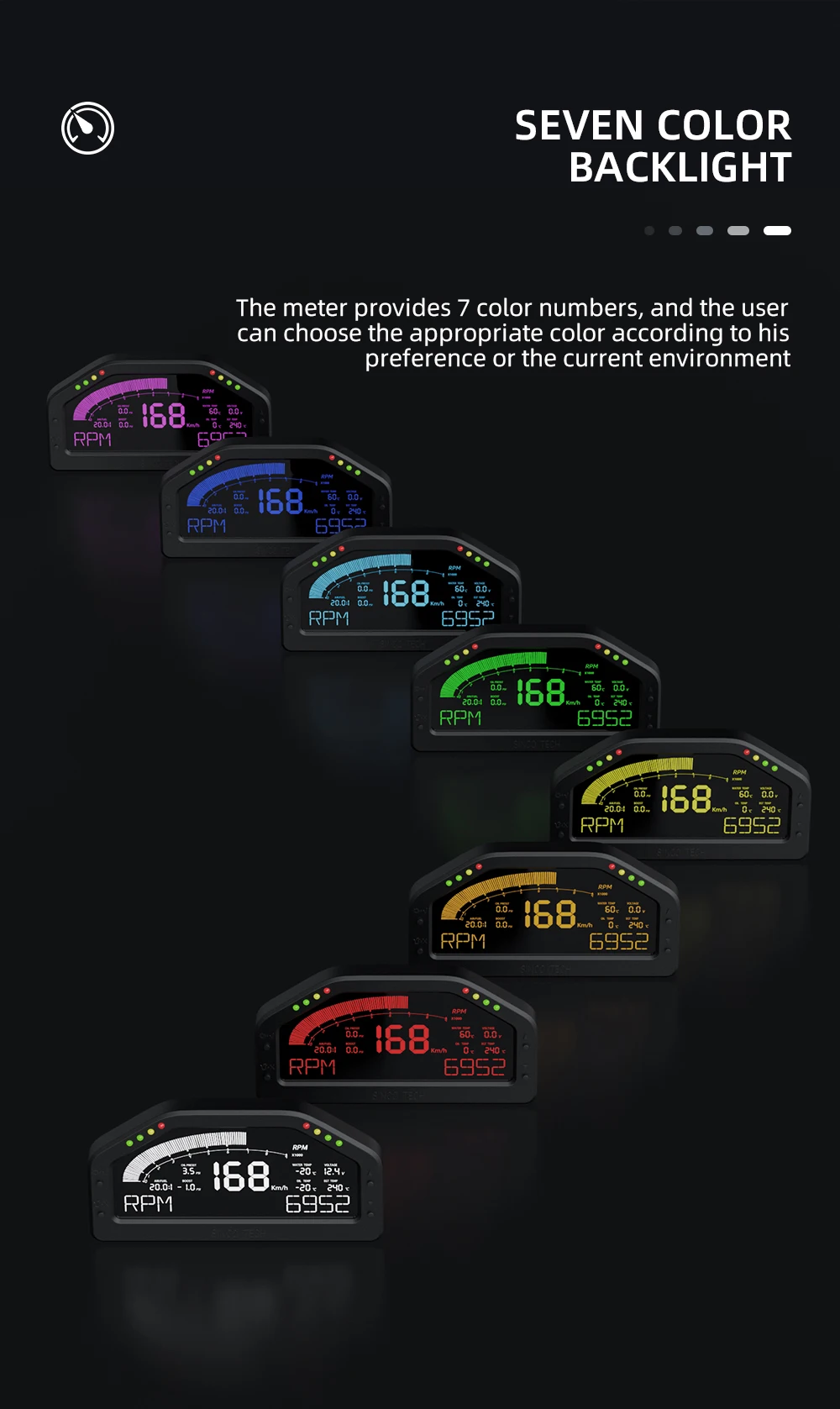

■7 Color adjustable ,11 backlight modes optional

■Professional factory with 30 years’ producing Experience

Product Question:

1.Yours identity？
Answer: We are manufacturers and distributors, welcome agents to cooperate with us！
we will be very welcome!

2.Is your product waterproof?
Answer: YES，DO926 have waterproof

3.What vehicle are products suitable for?
Answer: All 12v vehicle（Add gasoline）

4.How to connect vehicles?
Answer: SENSOR

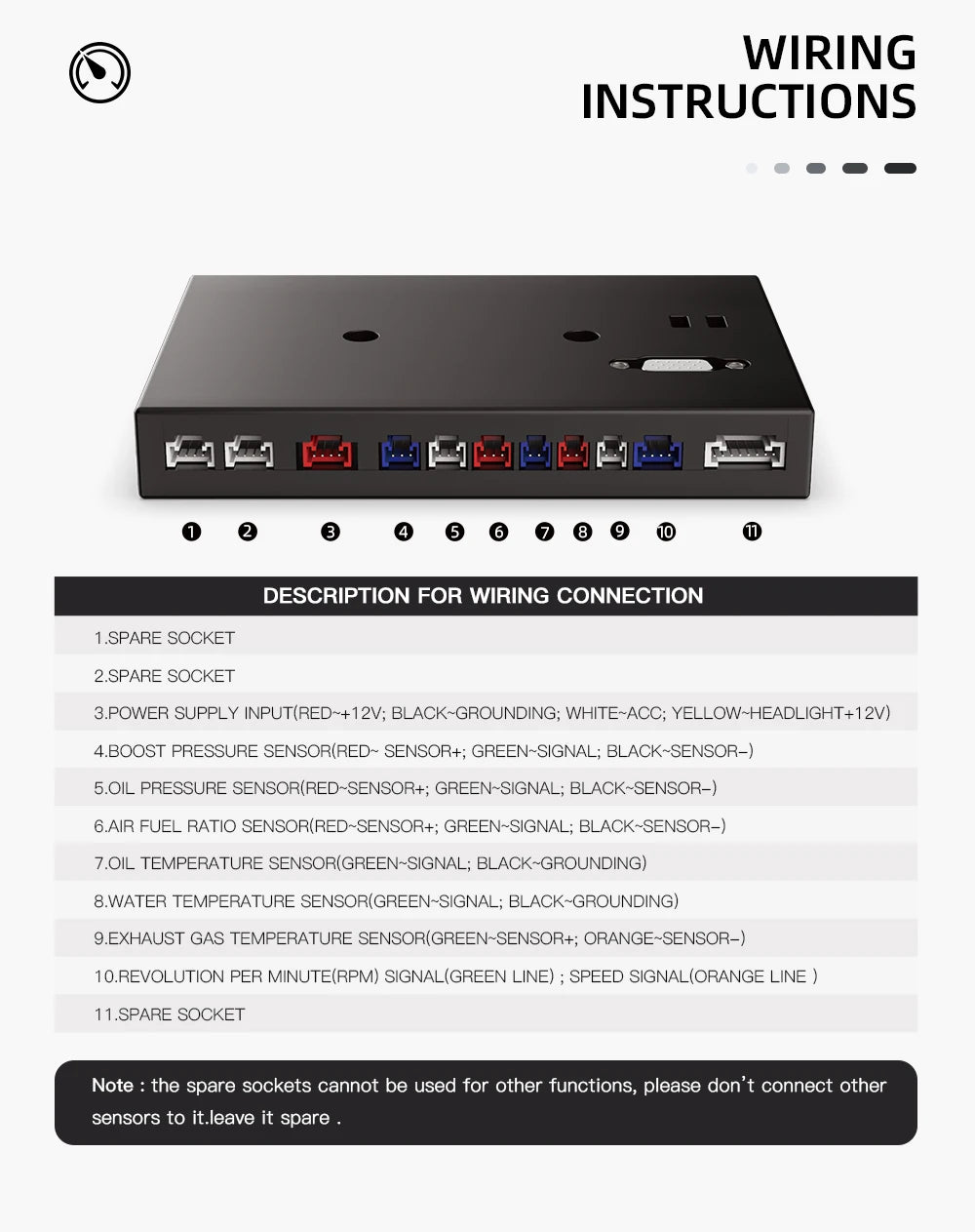

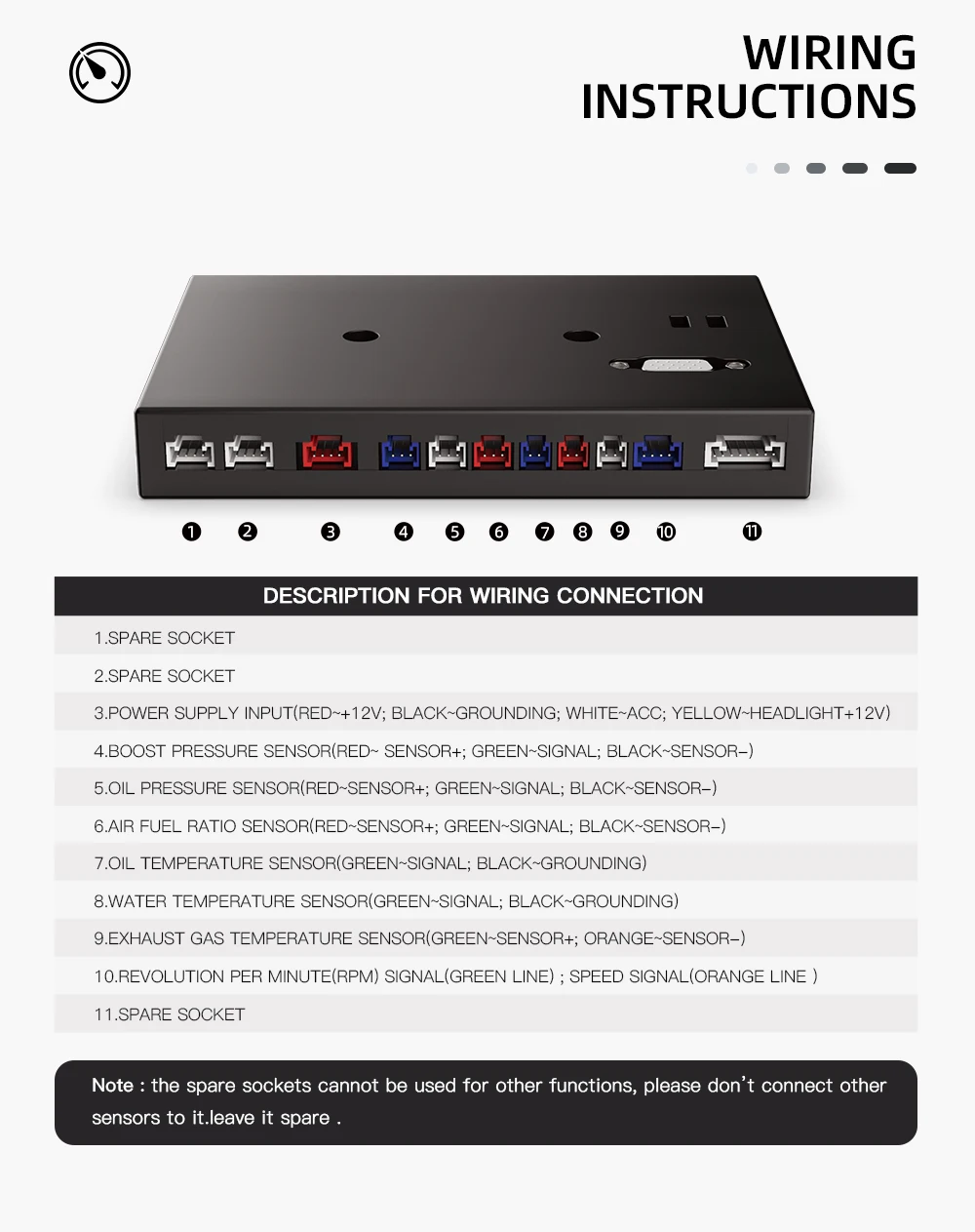

5.How can the display read the data from the sensor?
Answer: The connection between the display and the dpu is a wiring harness (more stable)

6.How bright is the LED?
Answer: Switch between "ON" and "OFF". (When the LED is selected "ON", the four
pairs of LED lights on the front of the dashboard will light up as the RPM increases.

7.Is your product data accurate?
Answer: Our products are just ECU porters, and the real and effective data is based on
the data provided by ECU.

8.Where is your factory located?
Answer: Wenzhou , Zhejiang , China

9.You'll deliver the goods within a few days？
Answer: If there is any inventory, we will deliver the goods within 3 working days
If there is no inventory, we will deliver the goods within 5 working days

10.Does the product have warranty?
Answer: The warranty for 1 year (other than man-made)
Proof of professional installation will be required for any warranty claims.
